Master Cable Gland Size Chart & Thread Mechanics
Dimensional precision determines seal longevity. Sourcing teams and electrical design engineers must align outer cable diameter (OD), clearance holes, thread pitch, and compression torque across EN 62444, DIN 40430, and ANSI/ASME B1.20.1 standards.
HOONSUN Complete Industrial Cable Gland Sizing Specification (PDF Edition)
Includes full mechanical drawings, clamping range tolerance envelopes (NBR & Silicone), explosion-proof compound matrices, tightening torque limits (Nm), and IP68 immersion curves under 5 bar water pressure.
| Thread Standard | Nominal Size | Cable Clamping Range (mm) | Thread Major OD (mm) | Clearance Hole (mm) | Thread Pitch (mm / TPI) | Recommended Torque (Nm) | Protection Rating |
|---|---|---|---|---|---|---|---|
| Metric (EN 62444) | M12 × 1.5 | 3.0 – 6.5 | 12.0 | 12.3 ± 0.1 | 1.5 mm | 2.5 – 3.5 | IP68 (5 bar) / UL94-V0 |
| Metric (EN 62444) | M16 × 1.5 | 4.0 – 8.0 / 5.0 – 10.0 | 16.0 | 16.3 ± 0.1 | 1.5 mm | 3.5 – 5.0 | IP68 (5 bar) / UL94-V0 |
| Metric (EN 62444) | M20 × 1.5 | 6.0 – 12.0 / 10.0 – 14.0 | 20.0 | 20.4 ± 0.1 | 1.5 mm | 6.0 – 8.5 | IP68 / IP69K / UL Listed |
| Metric (EN 62444) | M25 × 1.5 | 13.0 – 18.0 | 25.0 | 25.4 ± 0.15 | 1.5 mm | 8.0 – 11.0 | IP68 / IP69K / UL Listed |
| Metric (EN 62444) | M32 × 1.5 | 18.0 – 25.0 | 32.0 | 32.5 ± 0.2 | 1.5 mm | 12.0 – 15.0 | IP68 / UL Listed |
| Metric (EN 62444) | M40 × 1.5 | 22.0 – 32.0 | 40.0 | 40.5 ± 0.2 | 1.5 mm | 16.0 – 20.0 | IP68 / ATEX Ex d IIC |
| Metric (EN 62444) | M50 × 1.5 | 32.0 – 38.0 | 50.0 | 50.6 ± 0.2 | 1.5 mm | 22.0 – 26.0 | IP68 / ATEX Ex d IIC |
| Metric (EN 62444) | M63 × 1.5 | 37.0 – 44.0 | 63.0 | 63.8 ± 0.3 | 1.5 mm | 28.0 – 32.0 | IP68 / Marine DNV Class |
| German Standard (DIN) | PG7 | 3.0 – 6.5 | 12.5 | 12.8 ± 0.1 | 1.27 mm (20 TPI) | 2.5 – 3.0 | IP68 / CE |
| German Standard (DIN) | PG9 | 4.0 – 8.0 | 15.2 | 15.5 ± 0.1 | 1.41 mm (18 TPI) | 3.5 – 4.5 | IP68 / CE |
| German Standard (DIN) | PG11 | 5.0 – 10.0 | 18.6 | 18.9 ± 0.1 | 1.41 mm (18 TPI) | 4.5 – 5.5 | IP68 / CE |
| German Standard (DIN) | PG13.5 | 6.0 – 12.0 | 20.4 | 20.7 ± 0.1 | 1.41 mm (18 TPI) | 6.0 – 7.5 | IP68 / CE |
| German Standard (DIN) | PG16 | 10.0 – 14.0 | 22.5 | 22.8 ± 0.15 | 1.41 mm (18 TPI) | 7.0 – 9.0 | IP68 / CE |
| German Standard (DIN) | PG21 | 13.0 – 18.0 | 28.3 | 28.6 ± 0.15 | 1.58 mm (16 TPI) | 9.0 – 12.0 | IP68 / CE |
| North American (NPT) | NPT 3/8" | 4.0 – 8.0 | 17.1 | 17.5 ± 0.15 | 18 TPI | 4.0 – 5.5 | UL 514B / NEMA 4X, 6P |
| North American (NPT) | NPT 1/2" | 6.0 – 12.0 | 21.3 | 21.8 ± 0.15 | 14 TPI | 7.0 – 9.0 | UL 514B / NEMA 4X, 6P |
| North American (NPT) | NPT 3/4" | 13.0 – 18.0 | 26.7 | 27.2 ± 0.2 | 14 TPI | 10.0 – 14.0 | UL 514B / NEMA 4X, 6P |
| North American (NPT) | NPT 1" | 18.0 – 25.0 | 33.4 | 34.0 ± 0.2 | 11.5 TPI | 14.0 – 18.0 | UL 514B / NEMA 4X, 6P |
Critical Sizing Rule for Engineers: When reviewing the cable gland size chart pdf from Chinese factories, never select an entry gland where your nominal cable outside diameter coincides with the extreme lower or upper limit of the clamping envelope. For continuous dynamic installations subject to thermal cycling (−40°C to +100°C), elastomeric compression creep can degrade IP68 hydrostatic containment. Choose a gland whose median range encompasses your actual cable diameter plus insulation tolerance variations.
Global Corporate Procurement Demands & Factory Audit Criteria
Multinational OEMs and EPC contractors face mounting pressure to reduce Total Cost of Ownership (TCO) while adhering to zero-defect mandates. What tier-1 procurement managers evaluate when auditing cable gland manufacturers in China.

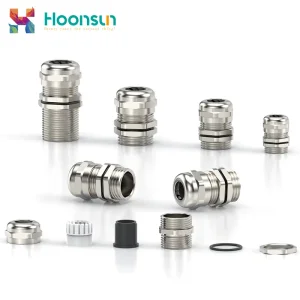

Material Metallurgy & Plating Depth
Substandard brass alloys with elevated iron or lead trace impurities suffer from stress corrosion cracking (SCC) in maritime humidity. HOONSUN verifies CuZn39Pb3 brass composition with atomic emission spectrometry and guarantees 3–5μm nickel electroplating thickness to pass 96-hour neutral salt spray (NSS) ASTM B117 testing.

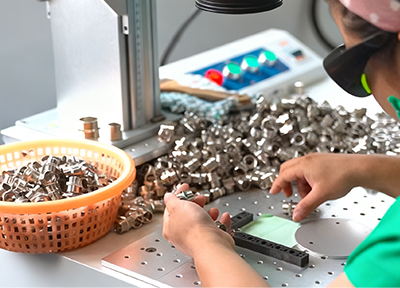

Thread Gauge Metrology & Fit Quality
Thread stripping in enclosure knockouts leads to costly panel rebuilds on job sites. Factory inspections require Class 6g/6H go/no-go plug and ring gauges per ISO 965. For NPT threads, pitch taper angle is held within ±0°17' to ensure complete mechanical engagement and gas-tight root sealing under ASME B1.20.1.
Sealing Elastomer Physical Stability
Inferior reclaimed rubber gaskets harden, crack, and fail within 12 months under solar ultraviolet radiation. Our sealing inserts use virgin Nitrile (NBR), high-temperature Silicone, or DuPont Viton (FKM), maintaining Shore A 65 ± 5 hardness and rebound elasticity across −40°C to +120°C operating ambients.
Full Regulatory Traceability (E-E-A-T)
Audit requirements demand full batch traceability: from raw ingot melt certificates to heat treatment and final optical dimensional sorting. Product lots carry CE Declaration of Conformity, UL listing files (E-series), RoHS 2.0 (2011/65/EU), and REACH (EC 1907/2006) test reports verified by SGS and TÜV Rheinland.

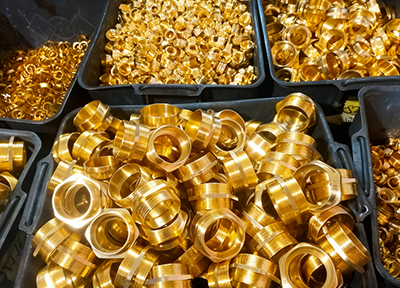

Supply Chain Scalability & Buffer Logistics
Factory direct integration eliminates trading company margins. Direct OEM buyers benefit from CNC machining cells operating 24/7 in Yueqing, inventory replenishment reserves of 500,000+ standard brass and nylon fittings, and custom thread turnaround within 10 to 14 business days.
PPAP & Custom Engineering Flexibility
Tier-1 automotive and locomotive buyers receive Production Part Approval Process (PPAP Level 3) submittals, including Failure Mode and Effects Analysis (FMEA), control plans, dimensional ballooned prints, and automated CMM inspection coordinate reports.
Macro Industrial Solutions: Engineering Cable Entries for Extreme Environments
Standard commercial fittings fail rapidly under severe industrial conditions. Discover how tailored gland configurations solve ingress, strain, and chemical breakdown in key global industries.
Photovoltaic & Offshore Wind Turbines

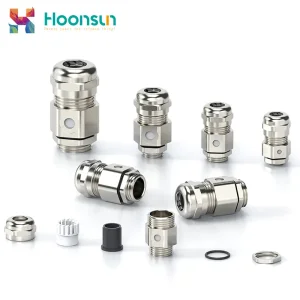

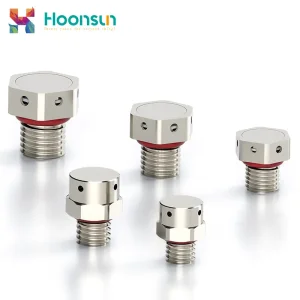

Offshore nacelles and solar combiner boxes experience severe diurnal temperature cycling leading to internal condensation and pressure differentials. Our breathable vent plugs and IP68 cable glands incorporate hydro-oleophobic ePTFE membranes (air permeability >1200 ml/min/cm² at 70 mbar) that equalize interior casing pressure while permanently blocking seawater intrusion.

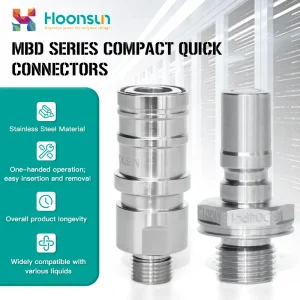

EV High-Voltage Harnesses & Liquid Cooling
Modern 800V DC electric mobility architectures generate severe electromagnetic interference (EMI) that disrupts sensor buses. HOONSUN EMC metal cable glands integrate 360-degree radial spring bronze contacts, guaranteeing <5 mΩ shield transfer impedance up to 1 GHz, paired with leak-free quick-disconnect couplings for dielectric cooling loops.

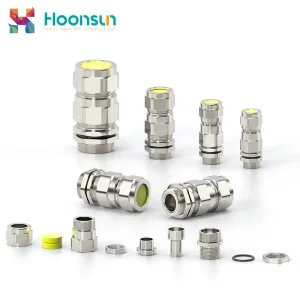

ATEX/IECEx Hazardous Petrochemical Zones
Refineries and offshore drilling platforms require barrier glands capable of withstanding internal gas explosions without igniting ambient hydrogen or hydrocarbon atmospheres. Our flameproof Ex d / increased safety Ex e cable glands employ two-part cold-pour resin barriers and compound seals certified for Zone 1, Zone 2, Zone 21, and Zone 22 deployments.

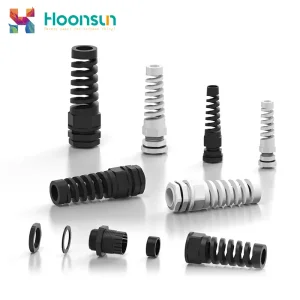

Multi-Axis Industrial Robotics & Flexible Conduits
Articulated robotic arms inflict millions of continuous torsional and flexural cycles upon servomotor feed lines. Combining nylon anti-bending spiral sleeves with nickel-plated brass hose adapters relieves mechanical stress concentrations, preserving conductor strand integrity and meeting EN 50262 Type B tensile pull-out requirements (>350 N).
Cable Gland Material Selection Matrix
Dimensional size matching is useless if the alloy or polymer degrades under chemical, galvanic, or thermal exposure. Review this comprehensive engineering material comparison.

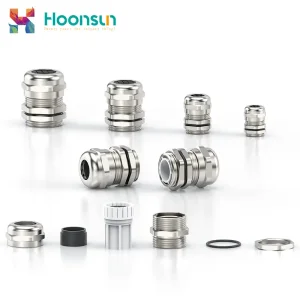

| Material Classification | Specific Alloy / Polymer | Operating Temperature | Tensile Strength (MPa) | Corrosion & Chemical Resistance | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Nickel-Plated Brass | HPb59-1 (CW614N) + 5μm Ni | −40°C to +110°C | 420 – 540 MPa | High resistance to atmospheric water, oils, and mild solvents; not for concentrated hydrochloric acid | General machinery, automation cabinets, rail transit, motors |

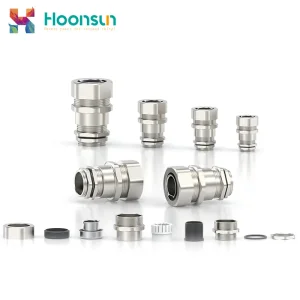

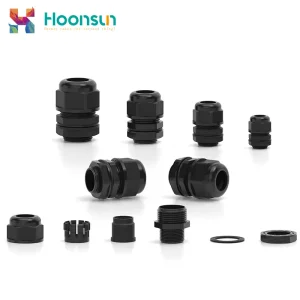

| Stainless Steel 304 | AISI 304 (EN 1.4301) | −60°C to +180°C | 520 – 720 MPa | Excellent resistance to oxidizing acids, industrial washdown, and moderate marine air | Food & beverage processing, packaging cleanrooms, solar tracking systems |
| Stainless Steel 316L | AISI 316L (EN 1.4404, Mo ≥ 2.0%) | −60°C to +200°C | 490 – 690 MPa | Immunity to chloride pitting, sulfuric acid vapours, continuous seawater immersion | Offshore oil & gas rigs, marine propulsion, chemical synthesis plants |
| Polyamide PA66 (Nylon) | Virgin PA66 + 30% Glass Bead optional | −40°C to +100°C (intermittent +120°C) | 75 – 110 MPa | Impervious to salt spray, alkalis, aliphatic hydrocarbons; sensitive to concentrated formic acid | Outdoor distribution boxes, telecom shelters, HVAC, LED lighting |
| Aluminum Alloy | 6061-T6 Anodized | −40°C to +130°C | 290 – 310 MPa | Good in non-alkaline atmospheres; light weight; high thermal conductivity | Aerospace instrumentation, defense telemetry, mobile battery enclosures |
Galvanic Corrosion Warning: Never connect a nickel-plated brass gland directly to an unanodized aluminum enclosure without an insulating neoprene or nylon flat sealing washer. The potential difference (0.35V) creates rapid galvanic oxidation in marine coastal air, destroying IP68 barrier seals. Refer to section 4 of the Cable Gland Size Chart PDF for full compatibility charts.
Technological Roadmap & Future Industry Standards
Cable gland engineering is advancing beyond passive mechanical clamps into smart, functional enclosure subsystems designed for extreme industrial electrification.
Smart Sensorized Entry Bushings
R&D teams are piloting integrated micro-fiber Bragg grating (FBG) and inductive moisture sensors directly into the internal elastomer seal of M32 and M40 glands. Real-time predictive analytics alert control rooms before micro-leakage or mechanical cable strain compromises utility-scale energy storage system (BESS) racks.
Halogen-Free Low-Smoke Polymers
With the tightening of European EN 45545-2 railway fire protection directives and UL 94-V0 compliance, HOONSUN is migrating all polymer gland production to zero-halogen polyamide matrixes. In combustion scenarios, these materials exhibit near-zero toxic fluorine/chlorine gas emission and minimize smoke obscuration.
Additive Prototyping & High-Tolerance CNC
High-speed multi-axis turn-mill machining centers from Japan and Germany allow rapid prototyping of custom cable gland sizes within 48 hours. Parametric sizing algorithms translate customer-supplied STEP files into custom brass fittings, minimizing costly tooling lead times.
Zhejiang Hongxiang Connector Co., Ltd. (HOONSUN)
Operating as an authenticated high-tech manufacturing facility in Liushi Town, Yueqing, Zhejiang Province — the world's epicenter for electrical component production. Direct from factory floor to global port.
Third-Party Verified Quality Certifications & Test Audits
All certifications are original and current. Factory audits welcome on site or via live video inspection.
Meet Our Senior Engineers In Person Worldwide
Visit our exhibition delegations at the 140th Canton Fair (Booth 20.1G03, Industrial Automation Section, Guangzhou) and Middle East Energy (MEE) (Hall H8, Stand B55, Dubai World Trade Centre). Inspect our physical product dies and get custom sizing consultations.
Localized Technical Support & Compliance Guarantees
How HOONSUN eliminates import risk for procurement teams across North America, the European Union, the Middle East, and Southeast Asia.
Standard Harmonization (UL vs. IEC)
Engineering drawings often reference conflicting standards: Metric clearances per IEC 62444 vs. NPT knockout diameters per NFPA 70 (NEC) / UL 514B. HOONSUN's bilingual application engineers verify your installation enclosure hole pattern before production to prevent cross-standard mismatch.
Incoterms DDP & Customs Pre-Clearance
Avoid customs gridlock. We offer comprehensive Delivered Duty Paid (DDP) multimodal logistics by sea, air, and rail. Export documentation includes harmonized tariff codes (HTS 8536.90.9000), verified gross mass (VGM), and Certificate of Origin (Form A, Form E, or EUR.1).
Zero-Defect Guarantee & Lot Warranty
Every production batch is backed by a 36-month structural and sealing warranty. If any gland fails field air-leak tests when installed within the specified torque window, HOONSUN provides rapid air-freight replacement and comprehensive 8D Root Cause Corrective Action reporting.
Frequently Asked Questions by Industrial Sourcing Teams
Authoritative answers to the most common engineering and procurement inquiries regarding cable gland sizing, thread conversion, and certification.
What is the practical difference between Metric (M) and German PG threads in a cable gland size chart?
How does cable gland tightening torque impact IP68 and IP69K ingress protection?
Why is an NPT thread tapered, and does it require an O-ring for an IP68 seal?

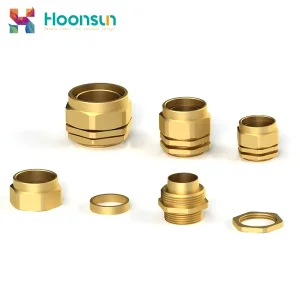

How do you select the correct cable gland size for steel wire armored (SWA) cables?
Can HOONSUN supply custom thread lengths and bespoke hole patterns?
What is the minimum clearance hole diameter for Metric and PG cable glands?
What are the lead times for sample evaluations and volume container orders?

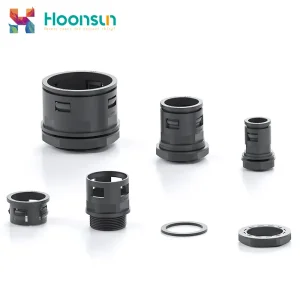

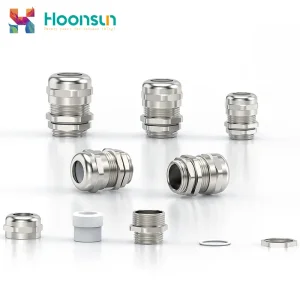

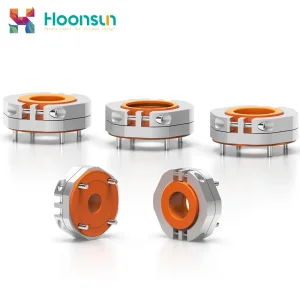

Heavy Industrial, Liquid Cooling & Temperature-Resistant Glands
