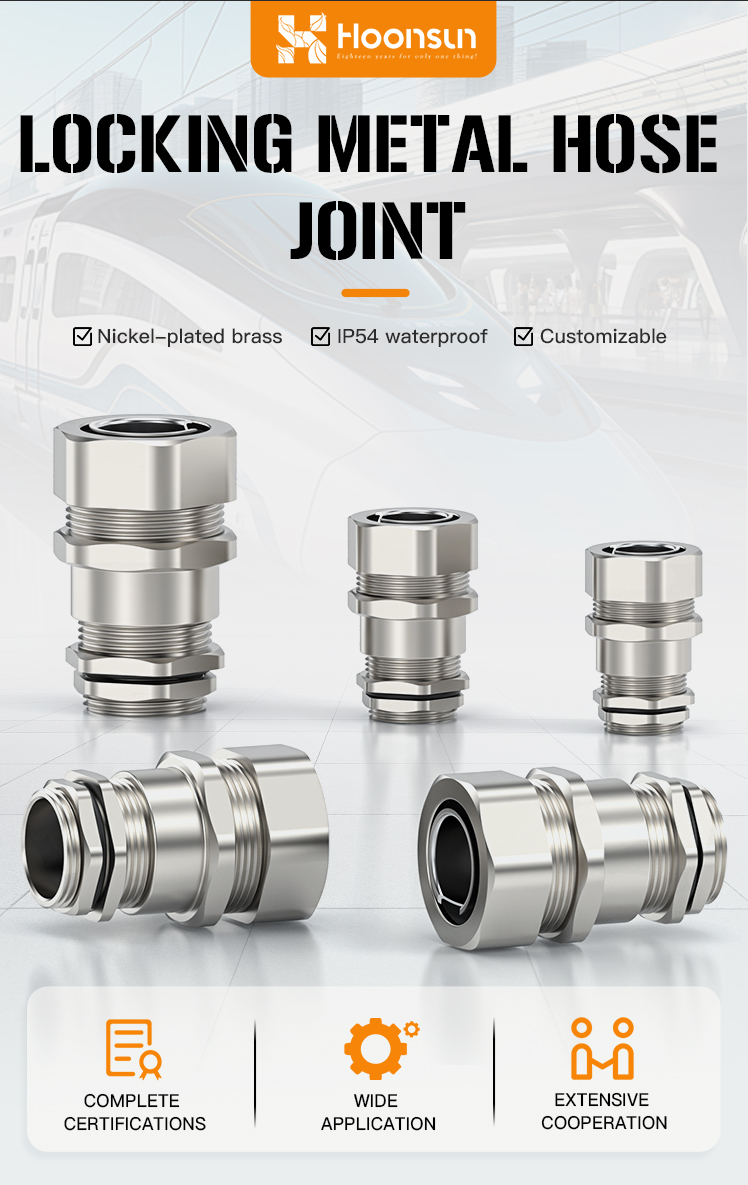

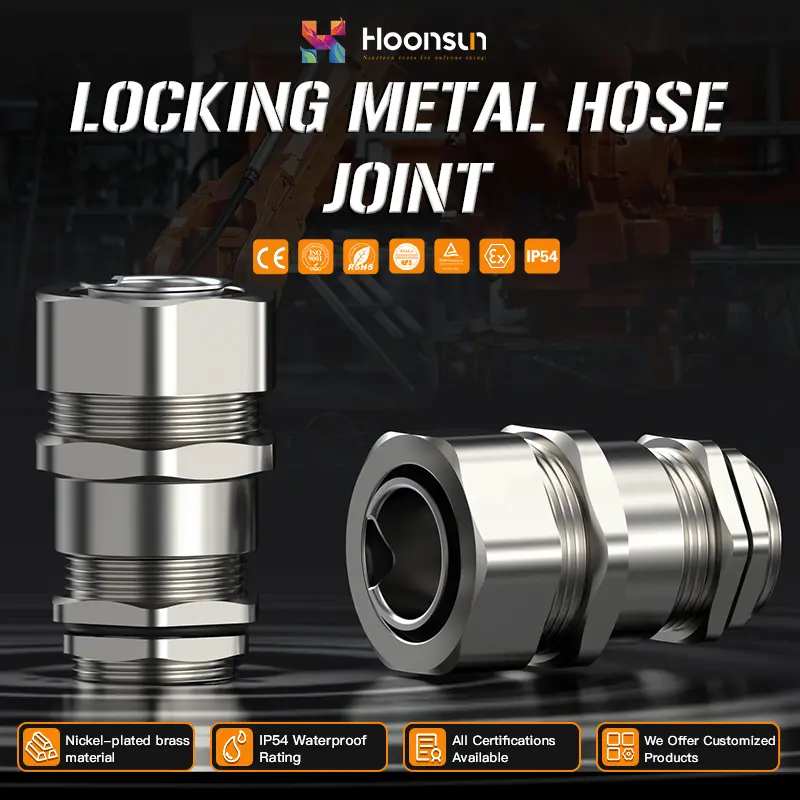

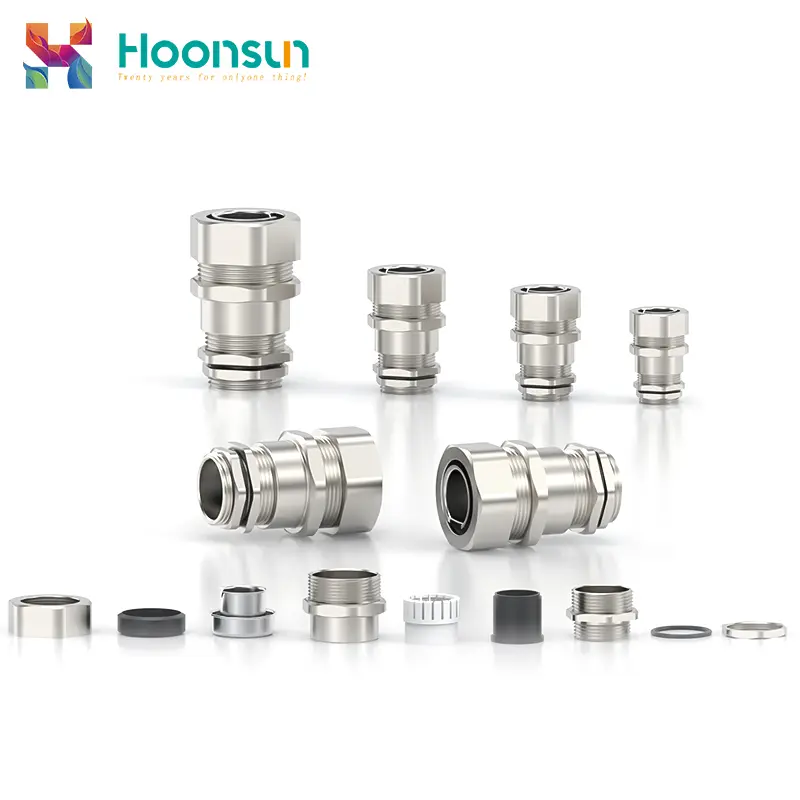

China 304/316L Stainless Steel Hose cable gland Manufacturers, Suppliers
Product Description
Product Overview
Product Highlights
- Precision-engineered fitting for reliable mechanical protection and electrical continuity.
- Constructed from nickel-plated brass or stainless steel for excellent corrosion resistance and durability in harsh environments.
- Integrated locknut design ensures a firm, vibration-resistant installation and prevents loosening.
- Features a tight sealing structure achieving IP67–IP68 waterproof protection, guarding against dust, oil, and moisture.
- Provides excellent strain relief to prevent conduit pull-out and ensure stable cable positioning.
- Allows for quick, tool-free installation while maintaining grounding continuity.
- Available in multiple thread types (PG, NPT, Metric).
- Complies with CE, UL, and RoHS certifications, meeting international quality and safety standards.
Key Benefits
- Durable nickel-plated brass or stainless steel construction
- Integrated locknut for secure anti-vibration installation
- IP67–IP68 waterproof and dustproof protection
- Excellent strain relief and grounding performance
- Compatible with PG, NPT, and Metric threads
- Suitable for power, automation, marine, and mechanical systems

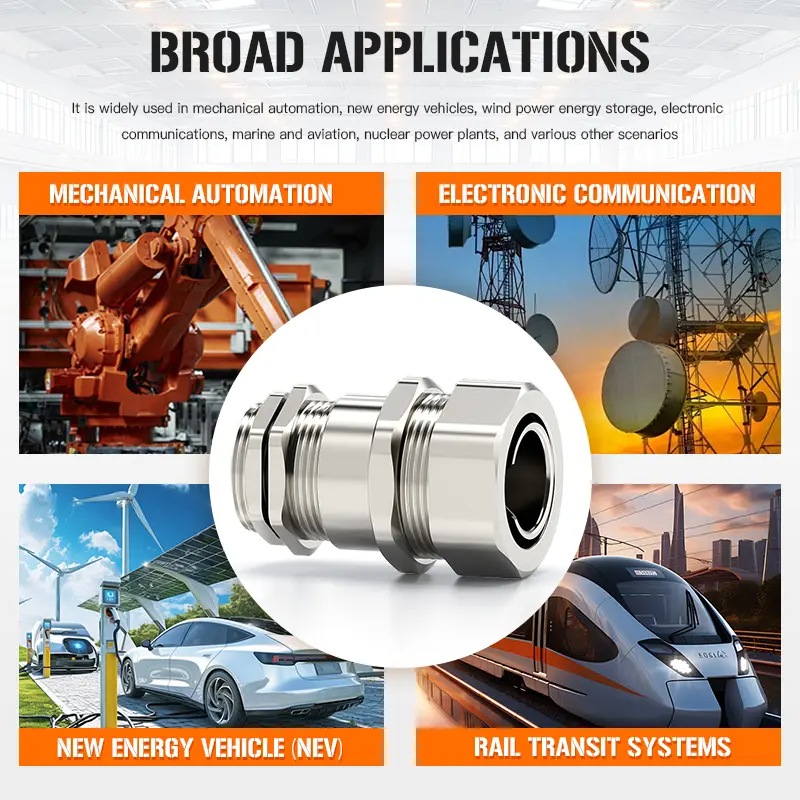

Applications
- Electrical Control Cabinets
- Automation Equipment
- Marine Installations
- Construction Machinery
- Rail Systems
- Power Equipment
- Industrial Machinery

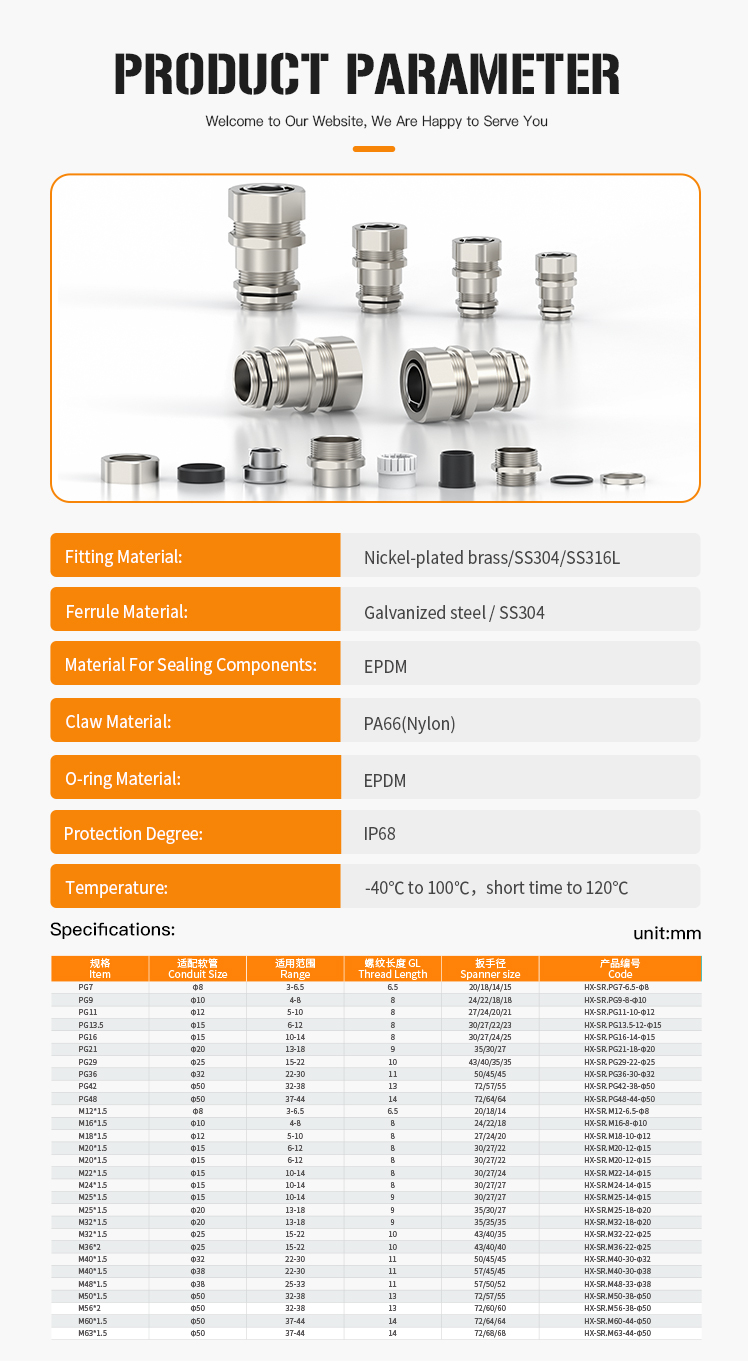

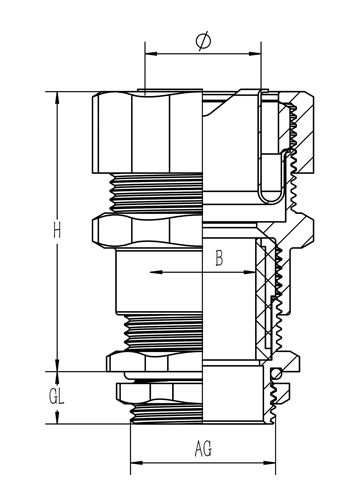

Product Specifications
| Item | Conduit Size | Range | GL Thread Length | Spanner size | Code |
|---|---|---|---|---|---|
| PG7 | φ8 | 3-6.5 | 6.5 | 20/18/14/15 | HX-SR.PG7-6.5-φ8 |
| PG9 | φ10 | 4-8 | 8 | 24/22/18/18 | HX-SR.PG9-8-φ10 |
| PG11 | φ12 | 5-10 | 8 | 27/24/20/21 | HX-SR.PG11-10-φ12 |
| PG13.5 | φ15 | 6-12 | 8 | 30/27/22/23 | HX-SR.PG13.5-12-φ15 |
| PG16 | φ15 | 10-14 | 8 | 30/27/24/25 | HX-SR.PG16-14-φ15 |
| PG21 | φ20 | 13-18 | 9 | 35/30/27 | HX-SR.PG21-18-φ20 |
| PG29 | φ25 | 15-22 | 10 | 43/40/35/35 | HX-SR.PG29-22-φ25 |
| PG36 | φ32 | 22-30 | 11 | 50/45/45 | HX-SR.PG36-30-φ32 |
| PG42 | φ50 | 32-38 | 13 | 72/57/55 | HX-5R.PG42-38-φ50 |
| PG48 | φ50 | 37-44 | 14 | 72/64/64 | HX-SR.PG48-44-φ50 |
| M12*1.5 | φ8 | 3-6.5 | 6.5 | 20/18/14 | HX-SR.M12-6.5-φ8 |
| M16*1.5 | φ10 | 4-8 | 8 | 24/22/18 | HX-SR.M16-8-φ10 |
| M18*1.5 | φ12 | 5-10 | 8 | 27/24/20 | HX-SR.M18-10-φ12 |
| M20*1.5 | φ15 | 6-12 | 8 | 30/27/22 | HX-SR.M20-12-φ15 |
| M20*1.5 | φ15 | 6-12 | 8 | 30/27/22 | HX-SR.M20-12-φ15 |
| M22*1.5 | φ15 | 10-14 | 8 | 30/27/24 | HX-SR.M22-14-φ15 |
| M24*1.5 | φ15 | 10-14 | 8 | 30/27/27 | HX-SR.M24-14-φ15 |
| M25*1.5 | φ15 | 10-14 | 9 | 30/27/27 | HX-SR.M25-14-φ15 |
| M25*1.5 | φ20 | 13-18 | 9 | 35/30/27 | HX-SR.M25-18-φ20 |
| M32*1.5 | φ20 | 13-18 | 9 | 35/35/35 | HX-SR.M32-18-φ20 |
| M32*1.5 | φ25 | 15-22 | 10 | 43/40/35 | HX-SR.M32-22-φ25 |
| M36*2 | φ25 | 15-22 | 10 | 43/40/40 | HX-SR.M36-22-φ25 |
| M40*1.5 | φ32 | 22-30 | 11 | 50/45/45 | HX-SR.M40-30-φ32 |
| M40*1.5 | φ38 | 22-30 | 11 | 57/45/45 | HX-SR.M40-30-φ38 |
| M48*1.5 | φ38 | 25-33 | 11 | 57/50/52 | HX-SR.M48-33-φ38 |
| M50*1.5 | φ50 | 32-38 | 13 | 72/57/55 | HX-SR.M50-38-φ50 |
| M56*2 | φ50 | 32-38 | 13 | 72/60/60 | HX-SR.M56-38-φ50 |
| M60*1.5 | φ50 | 37-44 | 14 | 72/64/64 | HX-SR.M60-44-φ50 |
| M63*1.5 | φ50 | 37-44 | 14 | 72/68/68 | HX-SR.M63-44-φ50 |

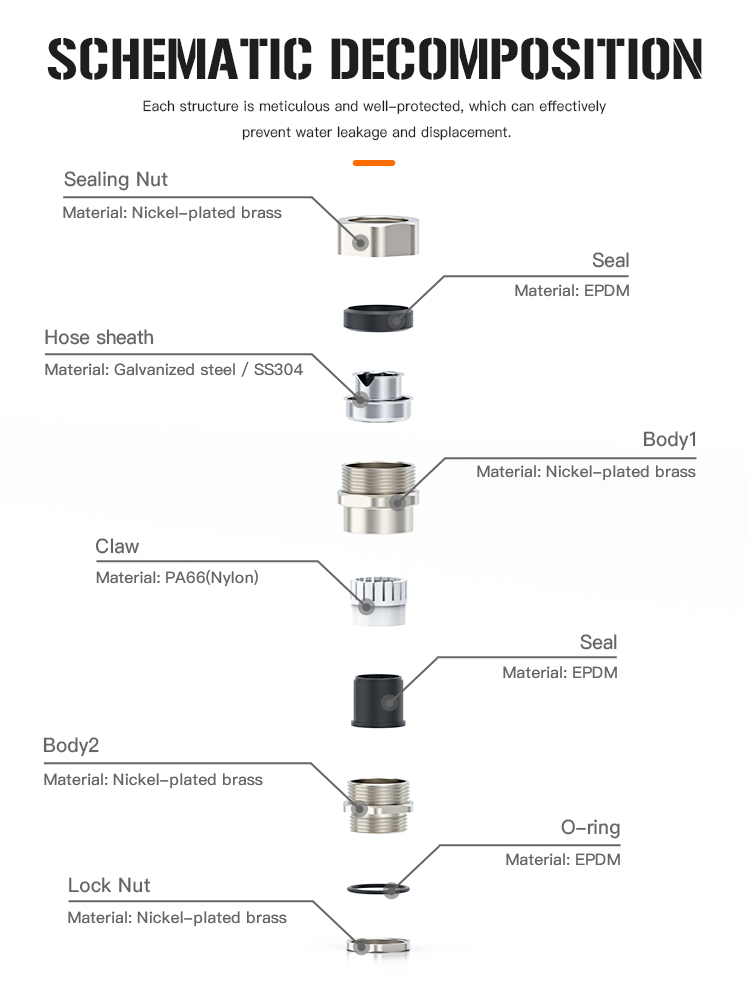

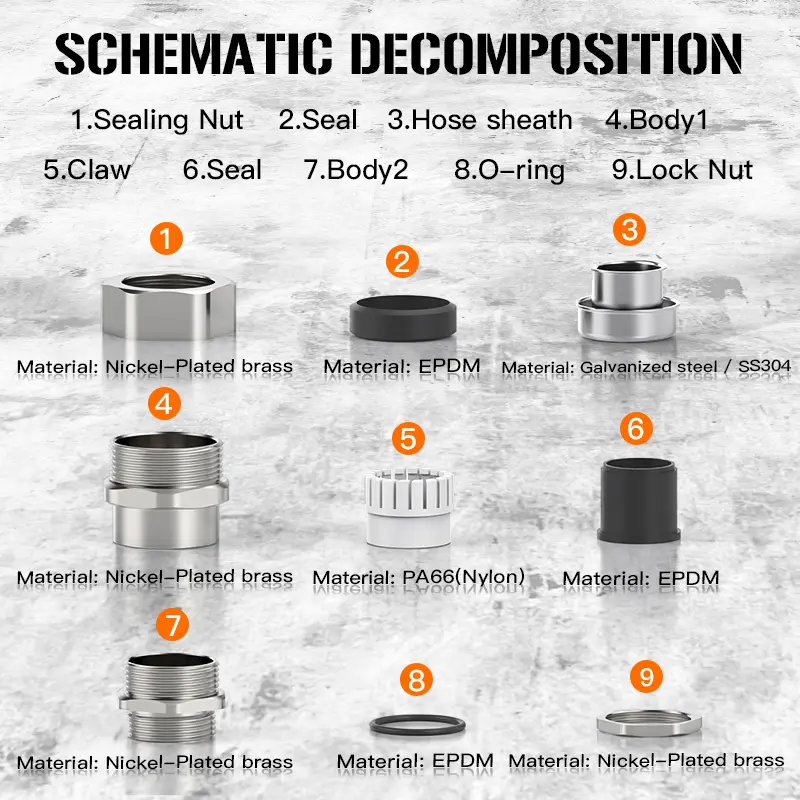

Detailed Images
Frequently Asked Questions (FAQ)
What materials are used to construct these fittings?
They are manufactured using high-grade nickel-plated brass or stainless steel, offering outstanding corrosion resistance and mechanical durability.

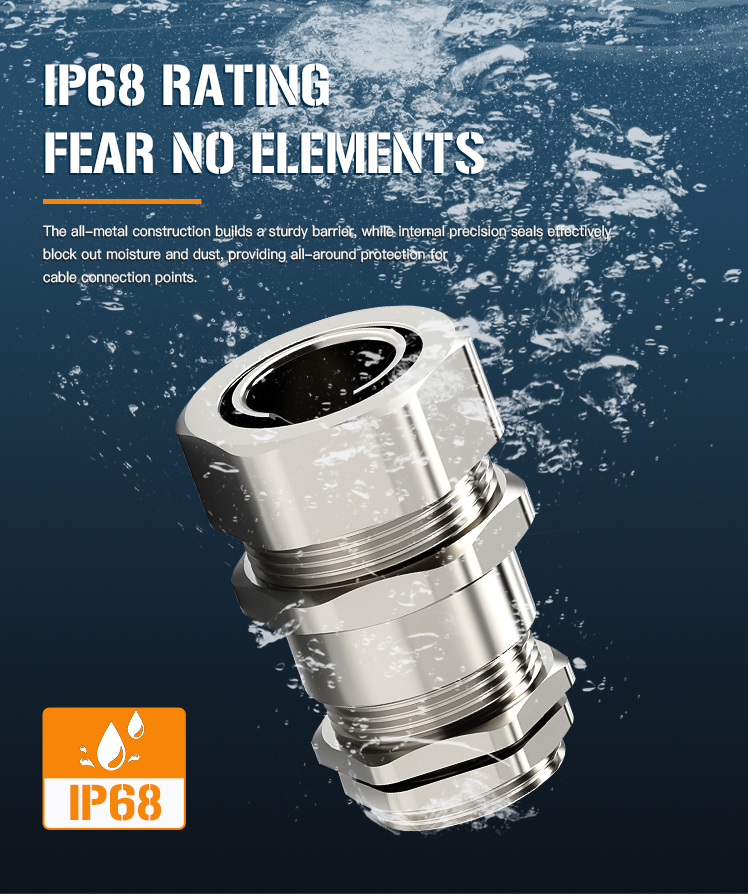

What level of ingress protection (IP rating) does this joint offer?
The connector features an advanced tight sealing design that achieves an IP67 to IP68 rating, ensuring complete protection against dust, water, oil, and moisture.
Which thread types are available?
The fittings are versatile and compatible with multiple standard thread standards, including Metric (M), PG, and NPT thread types.
Does this joint prevent conduit disconnection under vibration?
Yes, the integrated locknut design delivers an anti-vibration locking mechanism that secures the conduit firmly and prevents accidental loosening.
What certifications do these connectors carry?
The product is fully certified under CE, UL, and RoHS standards, adhering to international industrial quality and electrical safety guidelines.
Is special tooling required for assembly?
No, the design allows for rapid, tool-free installation while maintaining consistent mechanical holding force and electrical grounding continuity.
