Product Description

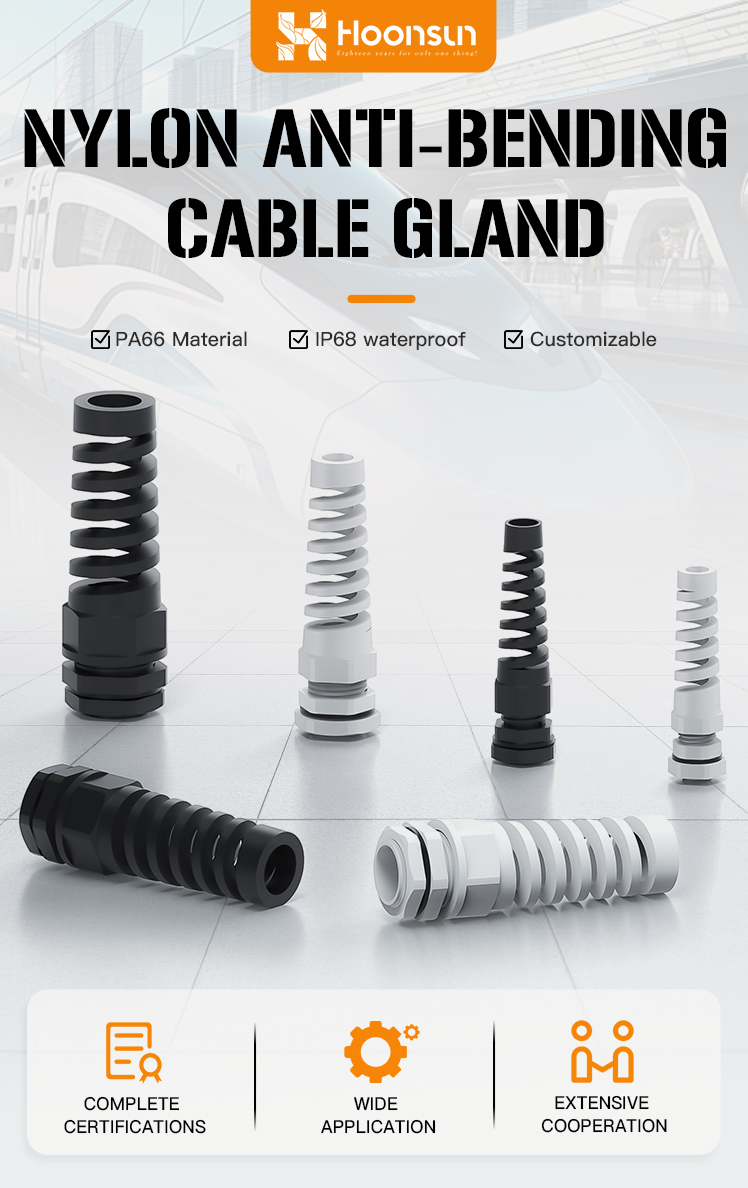

Features an integrated anti-bending structure that effectively limits the cable's bending radius at the joint. This key design is crucial for preventing core wire breakage and insulation layer damage caused by excessive bending, thereby significantly extending the overall service life of the connected cable.

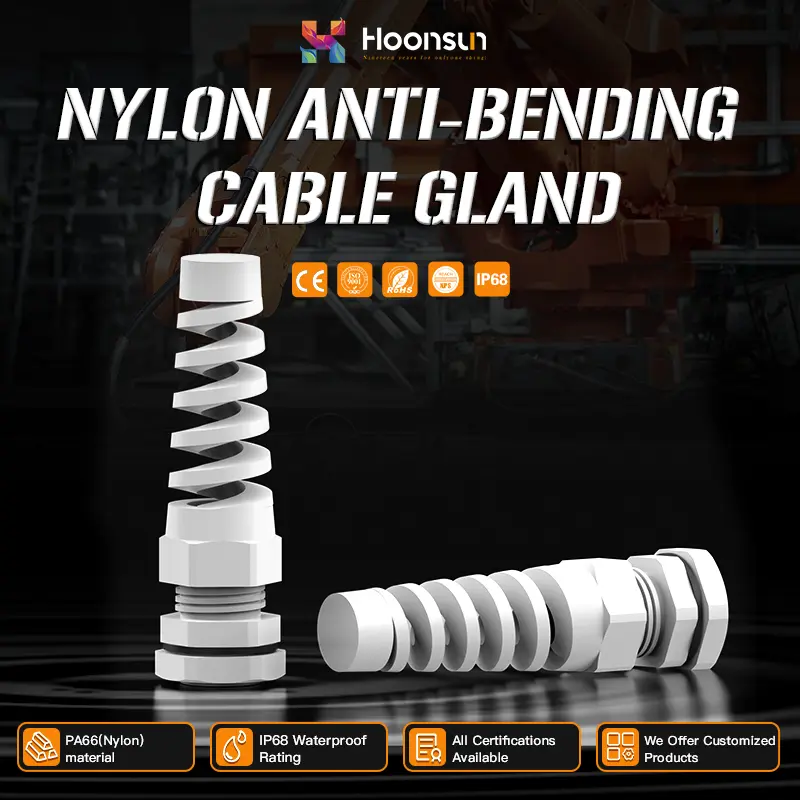

Manufactured from high-quality nylon material, this cable gland is not only lightweight and cost-effective but also offers excellent resistance to corrosion, aging, and deformation. This makes it a durable and reliable choice for long-term use.

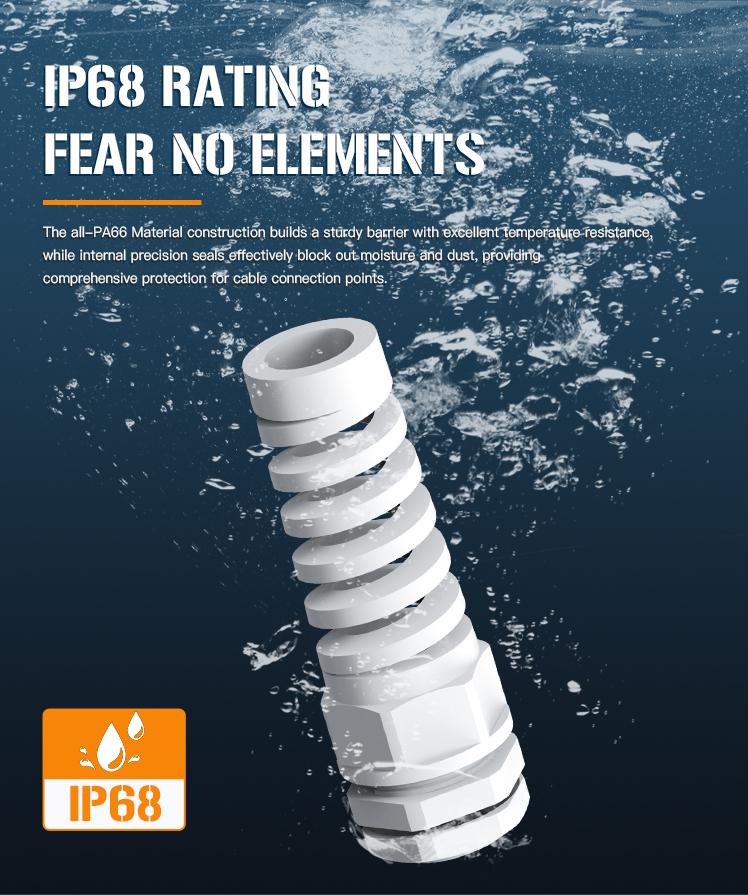

Provides a solid IP68 protection rating, ensuring complete dust-tightness and the ability to withstand continuous submersion in water under specified conditions. It effectively seals out dust, moisture, and mild oil splashes, guaranteeing a stable and protected connection for cable entries.
The product is UL Listed, confirming it has undergone rigorous independent testing for safety. This provides an additional layer of trust and assurance for users and is often a requirement for projects and installations in North America.
This versatile nylon cable gland is ideally suited for a wide range of indoor and outdoor applications where reliable cable protection and sealing are required. It is commonly used in industrial control systems, electrical cabinets, machinery equipment, outdoor lighting, and automation technology. It is perfect for general environments in settings such as factories, manufacturing plants, and infrastructure projects that require protection against dust, water, and mechanical stress like cable bending.
The specialized anti-bending design directly prevents one of the most common points of cable failure, reducing maintenance needs and replacement costs by protecting against wire breakage.
With an IP68 rating, it offers peace of mind by creating a highly secure seal that guards against harsh elements like dust and water ingress, even in demanding conditions.
The high-quality nylon material ensures the gland itself withstands environmental challenges without corroding or degrading, offering a great balance of performance and cost-effectiveness over its long service life.
Its compact and user-friendly design allows for fast, tool-free installation by hand. This simplifies the wiring process, saves valuable time on the job, and is highly efficient for batch wiring scenarios and large-scale projects.

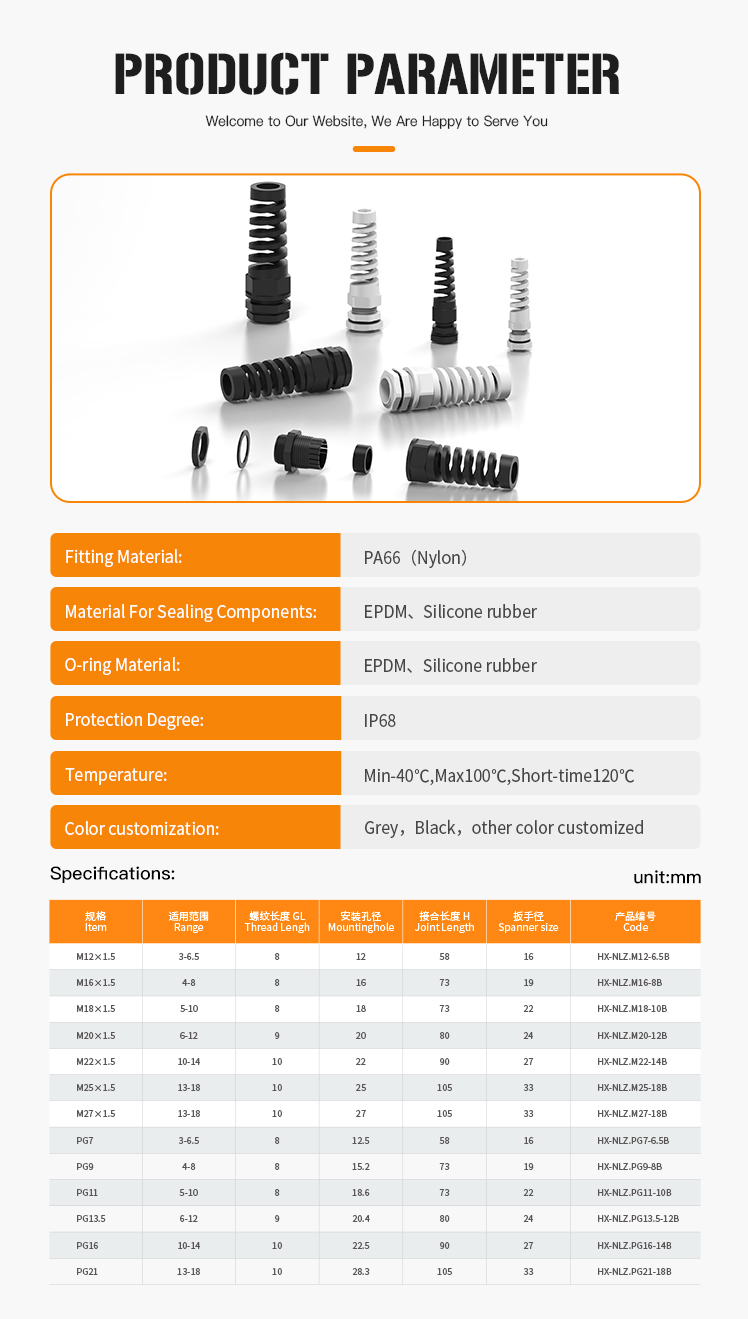

| Item | Range | GL Thread Length | Mounting Hole | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 8 | 12 | 58 | 16 | HX-NLZ.M12-6.5B |
| M16×1.5 | 4-8 | 8 | 16 | 73 | 19 | HX-NLZ.M16-8B |
| M18×1.5 | 5-10 | 8 | 18 | 73 | 22 | HX-NLZ.M18-10B |
| M20×1.5 | 6-12 | 9 | 20 | 80 | 24 | HX-NLZ.M20-12B |
| M22×1.5 | 10-14 | 10 | 22 | 90 | 27 | HX-NLZ.M22-14B |
| M25×1.5 | 13-18 | 10 | 25 | 105 | 33 | HX-NLZ.M25-18B |
| M27×1.5 | 13-18 | 10 | 27 | 105 | 33 | HX-NLZ.M27-18B |
| PG7 | 3-6.5 | 8 | 12.5 | 58 | 16 | HX-NLZ.PG7-6.5B |
| PG9 | 4-8 | 8 | 15.2 | 73 | 19 | HX-NLZ.PG9-8B |
| PG11 | 5-10 | 8 | 18.6 | 73 | 22 | HX-NLZ.PG11-10B |
| PG13.5 | 6-12 | 9 | 20.4 | 80 | 24 | HX-NLZ.PG13.5-12B |
| PG16 | 10-14 | 10 | 22.5 | 90 | 27 | HX-NLZ.PG16-14B |
| PG21 | 13-18 | 10 | 28.3 | 105 | 33 | HX-NLZ.PG21-18B |

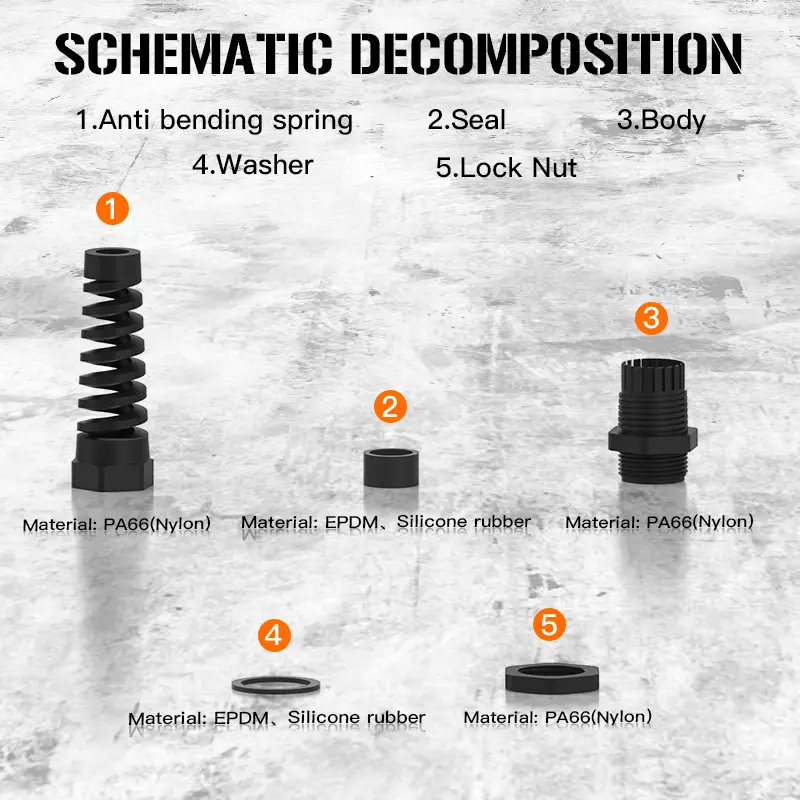

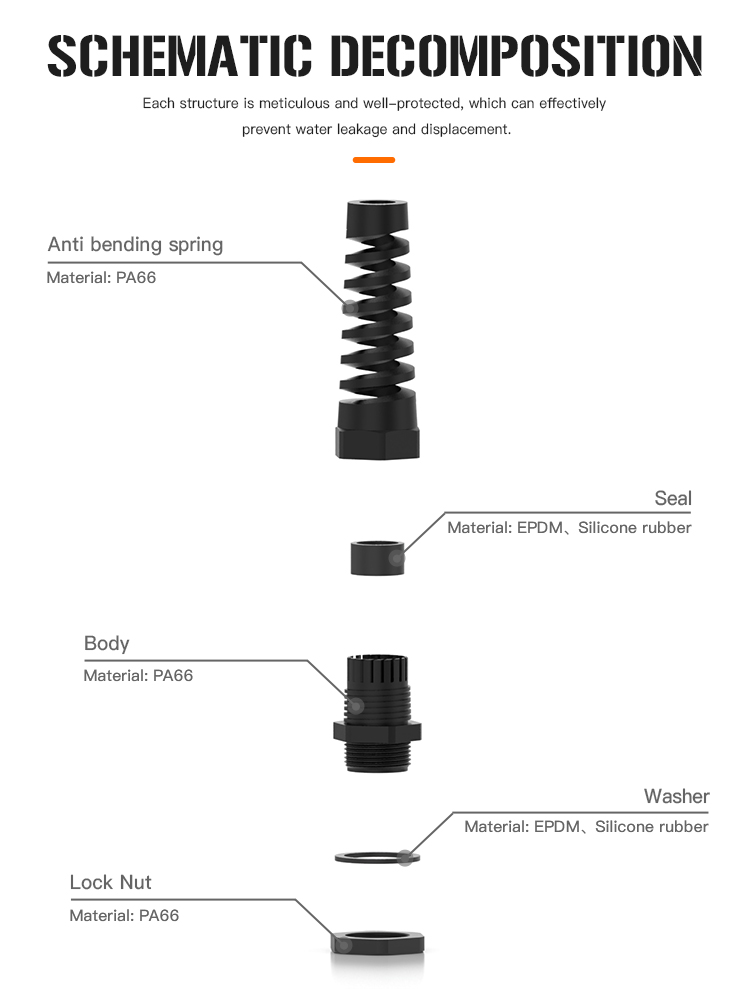

The integrated anti-bending spiral structure controls the bending radius of the cable at the entry point. This minimizes dynamic mechanical strain, preventing interior wire breakage and insulation rupture over time.
It features an IP68 ingress protection rating, ensuring complete protection against dust ingress and reliable resistance against water submersion under specified operational conditions.
Yes, this series is UL Listed, indicating that it has been independently tested to meet strict safety and operational standards required for North American industrial and commercial setups.

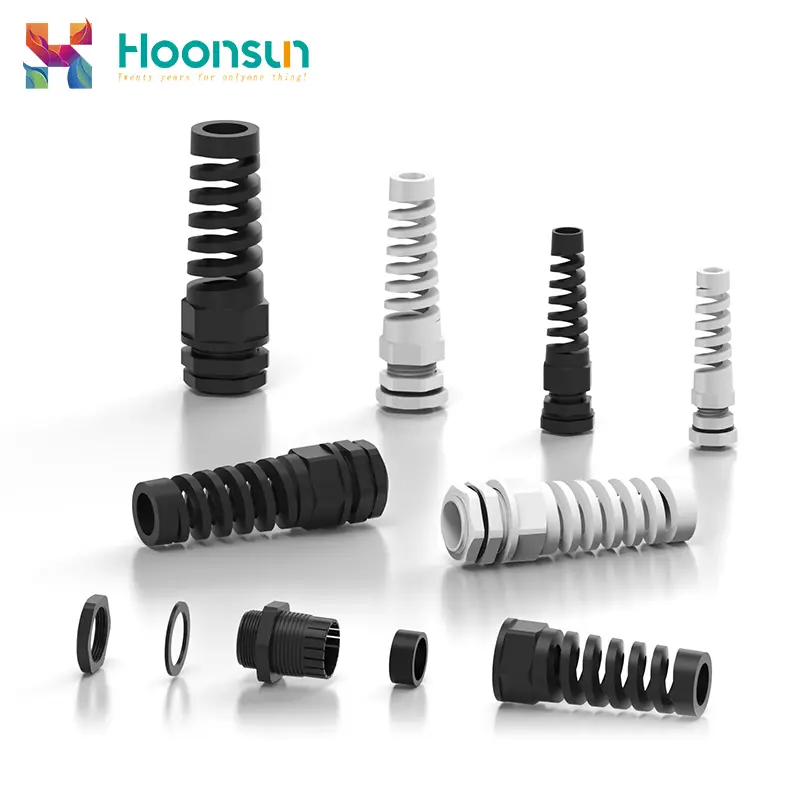

The series is available in both Metric (ranging from M12 to M27) and PG thread standards (ranging from PG7 to PG21) to match diverse enclosure and junction box specifications.
No, the glands feature a compact, ergonomic design that allows quick initial tool-free assembly by hand, followed by standard spanner tightening according to the listed spanner sizes.
