Standard & Heavy-Duty Cable Gland Lineup
Deploying verified IP68, UL, and CE-compliant terminal interfaces. Access immediate dimensional datasheets and order factory-direct lots with certified traceability.
Marine Cable Gland TH Standard Type
Heavy-duty marine brass with high tensile seal, engineered for harsh offshore salinity and continuous deep immersion.
View Specification →
Metal Cable Gland Direct Type (IP68 & UL)
Nickel-plated brass CNC precision threaded connection for distribution boards, terminal boxes, and automated control cabinets.
View Specification →

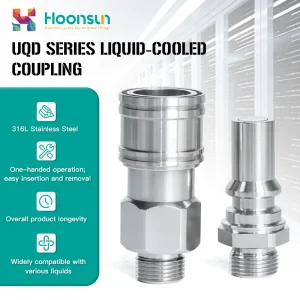

UQD06S / UQD06P Quick Coupling
Specialized liquid cooling connector for high-density AI data center computing racks, supercomputer cold plates, and power converters.
View Specification →
Stainless Steel IP68 UL Cable Gland
AISI 304/316L chemical-grade ingress protection offering complete acid/alkali tolerance for petrochemical and food washdowns.
View Specification →
316L High-Flow UQD Series Coupling
Zero-drip non-spill quick connect valves specifically rated for ethylene-glycol and dielectric fluid thermal management circuits.
View Specification →
Nylon Corrugated Tubing Gland
PA66 engineered joint with integrated conduit clamp for dynamic robotic arm cable management and flex-resistant conduit loops.
View Specification →
Marine TJ Clamping Type Cable Gland
Integrated dual-retention compression clamp design for armored marine electrical cables, preventing accidental pullout under wave drag.
View Specification →
Marine Gland JIS Standard Type
Machined to Japanese Industrial Standards (JIS F8801) for international commercial shipbuilding and maritime container terminals.
View Specification →The Global Role of Cable Gland Sizing in Critical Infrastructure
Modern electrical engineering requires moving beyond basic catalog approximations. Sizing failures in demanding applications account for up to 34% of enclosure ingress breaches and subsequent electrical equipment failure.
Global Electrification Pressures
Global demand for certified cable pass-throughs is expected to exceed $4.2 Billion by 2030. The rapid expansion of utility-scale Photovoltaic (PV) plants, offshore wind farms, Battery Energy Storage Systems (BESS), and EV fast-charging corridors has placed severe demands on sealing integrity.
Thermal Shock & IP Ingress Decay
Standard compression seals frequently degrade when operating environments experience wide diurnal temperature fluctuations (-30°C to +85°C). Thermal expansion differences between the cable jacket (PVC, PUR, XLPE) and gland bodies necessitate elastic NBR, Silicone, or EPDM clamping inserts that prevent creep over decades.
EMC Shielding Attenuation
Variable frequency drives (VFD) and automated servo electronics introduce high-frequency parasitic noise. Modern cable gland selection requires evaluating 360-degree shielding braid contact mechanisms, achieving low transfer impedance and attenuation exceeding 65 dB up to 1 GHz.
The Engineering Reality of Sizing Tolerances
A cable gland must balance two opposing physical requirements: it must compress the cable outer jacket sufficiently to pass an IP68 water column test at 0.5 to 1.0 MPa (50-100m head) while maintaining mechanical pullout resistance (conforming to EN 62444 Class A or B, up to 450N of axial force), without cold-flowing or crushing inner conductor insulation. A properly configured selection chart represents an engineered boundary curve balancing torque, seal durometer, and cable diametric limits.
Standard Cable Gland Dimensional & Sizing Chart
Cross-referencing thread architectures across Metric (EN 60423), German Panzergewinde (DIN 40430), and American National Pipe Taper (ANSI/ASME B1.20.1) with verified outer diameter (OD) clamping capabilities.
| Thread Type & Size | Thread O.D. (mm) | Panel Clearance Hole (mm) | Standard Clamping Range (mm) | Extended Range (mm) | Recommended Torque (N·m) | Protection Rating |
|---|---|---|---|---|---|---|
| Metric M12 × 1.5 | 12.0 | 12.2 – 12.4 | 3.0 – 6.5 | 2.0 – 5.0 | 2.5 – 3.5 | IP68 / 5 Bar |
| Metric M16 × 1.5 | 16.0 | 16.2 – 16.5 | 4.0 – 8.0 | 2.0 – 6.0 | 3.5 – 5.0 | IP68 / 5 Bar |
| Metric M20 × 1.5 | 20.0 | 20.3 – 20.6 | 6.0 – 12.0 | 5.0 – 9.0 | 6.0 – 8.0 | IP68 / 10 Bar |
| Metric M25 × 1.5 | 25.0 | 25.4 – 25.8 | 13.0 – 18.0 | 9.0 – 16.0 | 8.0 – 10.0 | IP68 / 10 Bar |
| Metric M32 × 1.5 | 32.0 | 32.5 – 33.0 | 18.0 – 25.0 | 13.0 – 20.0 | 12.0 – 15.0 | IP68 / 10 Bar |
| Metric M40 × 1.5 | 40.0 | 40.5 – 41.0 | 22.0 – 32.0 | 20.0 – 26.0 | 15.0 – 18.0 | IP68 / 10 Bar |
| Metric M50 × 1.5 | 50.0 | 50.5 – 51.2 | 32.0 – 38.0 | 25.0 – 31.0 | 20.0 – 24.0 | IP68 / 10 Bar |
| Metric M63 × 1.5 | 63.0 | 63.6 – 64.5 | 37.0 – 44.0 | 29.0 – 35.0 | 25.0 – 30.0 | IP68 / 10 Bar |
| PG 7 (DIN 40430) | 12.5 | 12.8 – 13.0 | 3.0 – 6.5 | 2.0 – 5.0 | 2.5 – 3.0 | IP68 / 5 Bar |
| PG 9 (DIN 40430) | 15.2 | 15.5 – 15.8 | 4.0 – 8.0 | 2.0 – 6.0 | 3.5 – 4.5 | IP68 / 5 Bar |
| PG 13.5 (DIN 40430) | 20.4 | 20.7 – 21.0 | 6.0 – 12.0 | 5.0 – 9.0 | 6.0 – 7.5 | IP68 / 5 Bar |
| PG 21 (DIN 40430) | 28.3 | 28.7 – 29.2 | 13.0 – 18.0 | 9.0 – 16.0 | 8.0 – 10.0 | IP68 / 5 Bar |
| PG 36 (DIN 40430) | 47.0 | 47.5 – 48.2 | 22.0 – 32.0 | 20.0 – 26.0 | 15.0 – 18.0 | IP68 / 5 Bar |
| NPT 3/8" (Tapered) | 17.1 | 17.3 – 17.6 | 4.0 – 8.0 | 2.0 – 6.0 | 4.0 – 5.5 | IP68 / UL Listed |
| NPT 1/2" (Tapered) | 21.3 | 21.6 – 22.0 | 6.0 – 12.0 | 5.0 – 9.0 | 6.5 – 8.5 | IP68 / UL Listed |
| NPT 3/4" (Tapered) | 26.7 | 27.0 – 27.5 | 13.0 – 18.0 | 9.0 – 16.0 | 9.0 – 12.0 | IP68 / UL Listed |
| NPT 1" (Tapered) | 33.4 | 33.8 – 34.4 | 18.0 – 25.0 | 13.0 – 20.0 | 12.0 – 16.0 | IP68 / UL Listed |
Cable Outer Diameter Verification
Never select a gland based on nominal cable cross-sectional area (e.g., 4G2.5mm²). Outer jacket tolerances vary up to ±12% across cable manufacturers. Always measure the actual max/min jacket diameter with a calibrated vernier caliper.
Thread Engagement Depth
Thick-walled cast enclosures require extended thread lengths (12mm to 15mm) to ensure at least 5 full threads of engagement per IEC 60079-1 standard for flameproof integrity. Standard 6mm to 8mm threads suffice for stamped sheet-metal enclosures.
Locknut Clearance & Spacing
When grouping multiple glands on high-density entry gland plates, calculate center-to-center distances based on the across-corners dimension ($e$) of both the gland hex cap and internal hex locknut to ensure adequate wrench clearance.
Material Selection: Metallurgy vs. Engineering Polymers
Matching substrate chemistry to environmental corrosivity category (ISO 12944 C1 through C5-M). Selecting incorrect materials creates catastrophic micro-fissuring and galvanic corrosion.
Nickel-Plated Brass
Grade: HPb59-1 / CW614N
Plating: Cu/Ni 8–12μm
Operating Temp: -40°C to +110°C
The industrial workhorse. Offers superior mechanical pull-out strength, high impact resistance (IK10), and integrated grounding paths for EMC earthing. Suitable for factory automation, machine tools, and rolling stock.
Stainless Steel 316L
Grade: 1.4404 / AISI 316L
Passivation: Acid-dipped
Operating Temp: -60°C to +200°C
Maximum pitting and crevice corrosion resistance in chloride environments. Essential for marine rigs, ship decks, desalination facilities, and pharmaceutical sanitary CIP (clean-in-place) washdown cycles.
Polyamide 6.6 (PA66)
Grade: UL 94 V-0 Virgin Resin
Modifiers: UV stabilized (f1 rating)
Operating Temp: -40°C to +100°C
Cost-efficient, totally dielectric non-conductive solution. Eliminates galvanic potential when mounting into fiberglass or polycarbonate junction boxes. Highly resistant to weak acids, bases, and outdoor solar irradiance.
Elastomeric Seals
Variants: NBR, VMQ, FKM
Hardness: 65–75 Shore A
Immersion: Up to 1.0 MPa
Standard NBR provides high mineral oil and fuel resistance. Silicone (VMQ) extends thermal operating margins from -60°C to +180°C for extreme climates. Fluorocarbon (FKM) resists aromatic hydrocarbons and solvents.
| Material Configuration | Salt Spray Resistance (ASTM B117) | Tensile Impact Resistance | UV Degradation Rating (UL 746C) | Chemical Resistance (Acids / Solvents) | Relative Cost Factor |
|---|---|---|---|---|---|
| Virgin Polyamide 6.6 (Nylon) | > 2,000 hrs (Inert) | IK08 (5 Joules) | UL 746C f1 (Stabilized) | Fair (Vulnerable to conc. acids) | 1.0× (Benchmark) |
| Nickel-Plated Brass (HPb59-1) | > 480 hrs | IK10 (20 Joules) | Completely unaffected | Good (Oils, greases, solvents) | 2.2× – 2.8× |
| AISI 304 Stainless Steel | > 1,000 hrs | IK10+ (Exceeds 20 Joules) | Completely unaffected | Excellent (Food-grade acids) | 3.5× – 4.2× |
| AISI 316L Marine Stainless Steel | > 2,500 hrs | IK10+ (Exceeds 20 Joules) | Completely unaffected | Superior (Chloride & Marine immersion) | 4.8× – 6.0× |
China Factory Production Efficiency: The Liushi Cluster Dynamics
How HOONSUN (Zhejiang Hongxiang Connector Co., Ltd.) leverages the world's most concentrated electrical manufacturing cluster in Yueqing to deliver superior mechanical consistency, certified compliance, and pricing advantages.
Manufacturing Heritage
Founded in 2006, HOONSUN has continuously produced ingress sealing technology, expanding from standard terminal nuts to engineered explosion-proof glands and precision liquid-cooling couplings.
Multi-Axis Swiss CNC Lathes
In-house machining guarantees pitch-diameter precision down to ±0.015mm, eliminating burrs, micro-cracks, and lead thread galling during automated high-speed torque installation.
In-House QC & Hydrostatic Testing
Our QA testing floor utilizes continuous IPX8 pressure vessels (simulating 100m depths for 24h), dynamic tensile testers, salt-spray chambers, and coordinate measuring machines (CMM).
Vertical Integration Economics
By collocating bar extrusion, CNC turning, plastic injection molding, and vulcanized O-ring assembly within Liushi, Yueqing, we bypass intermediate supplier margins and compress prototyping cycles to 5 days.
Why Yueqing, Zhejiang Matters in Global EPC Procurement
Known globally as the "Electrical Capital of China", Liushi accounts for over 60% of domestic low- and medium-voltage electrical component output. This geographic density creates unmatched raw material availability (certified electrolytic copper and virgin PA66 pellets) and localized plating ecosystems that achieve strict RoHS and REACH environmental compliance at high production volumes.
Tailored Engineering Use-Cases for Critical Systems
Every operating domain imposes distinct physical degradation vectors. How HOONSUN designs custom sealing profiles for specific industrial use cases.
Marine, Offshore & Subsea
Offshore rigs, marine propulsion, and naval vessels face seawater immersion, spray velocity, and severe wave vibrations. Our TJ Clamping and JIS-type marine glands integrate heavy clamping fingers that grip the cable armor (wire braid or steel tape) to ground surge potentials while maintaining an IP68 barrier.
Liquid Cooling for AI Data Centers
Modern AI clusters and supercomputing racks with TDPs over 100kW per cabinet cannot rely on standard air cooling. HOONSUN engineers precision UQD quick couplings from 316L stainless steel, offering non-spill, dry-break fluid transfer connections that safeguard multimillion-dollar GPU clusters.
Hazardous ATEX/IECEx Zones
In petrochemical refineries, chemical processing, and flour storage silos, electrical arcs can trigger atmospheric explosions. Our explosion-proof barrier glands incorporate flameproof (Ex d) and increased safety (Ex e) compound chambers that extinguish any internal deflagration before it can ignite surrounding gases.
Rail Transit & Rolling Stock
Subway bogies and locomotive undercarriages require cable entries tested to EN 61373 Category 1 Class B vibration and shock standards. HOONSUN provides anti-vibration lock mechanisms with anti-bending spiral spring tails that manage minimum dynamic bending radii.
EV Battery Packs & BESS Units
High-voltage electrical architectures (800V+) require IP68/IP69K sealing against high-pressure steam cleaning along with multi-contact spring-ring ground fingers. Our glands maintain low contact resistance (<5 mΩ) to safely sink EMI induced by high-frequency inverter switching.
Robotics & Flexible Conduit Systems
Continuous flex cycles on 6-axis articulated welding robots degrade standard glands. HOONSUN integrates corrugated metal and polymer conduit interfaces directly into the cable gland assembly, protecting internal power and fieldbus data cables from flying slag and abrasion.
The Global Procurement Checklist: Qualifying a Cable Gland Factory
A comprehensive guide for international EPC buyers, distributors, and OEM supply chain executives evaluating Chinese cable gland manufacturers.
1. Dimensional & Thread Verification
Confirm GO/NO-GO gauge compliance for threads (Metric ISO 965-1 6g/6H or NPT ANSI/ASME B1.20.1). Ensure thread lead chamfers are clean to avoid cross-threading during rapid assembly line installation.
2. Raw Material Test Certificates
Require chemical composition spectrographic analysis reports according to EN 10204 3.1. Verify that brass alloys contain < 0.1% lead if compliance with revised European RoHS exemptions is required.
3. Rubber Seal Durometer & Aging
Confirm seal durometer (standard 70 ± 5 Shore A). Request compression set testing data (ASTM D395 Method B) to verify sealing resilience under high operating temperatures over 1,000 continuous hours.
4. Plating Thickness Verification
Specify X-ray fluorescence (XRF) coating thickness measurements. Nickel plating on brass should be at least 5 μm for general machinery and 10–12 μm for coastal and offshore environments.
5. Third-Party Witness Reports
Check for accredited laboratory test certificates (UL, TÜV, DEKRA, or SGS) confirming compliance with EN 62444 for mechanical cable anchorage, IP68 immersion tests, and IK impact testing.
6. Private Labeling & Packaging
OEM distributors can leverage HOONSUN's direct custom laser marking capabilities (part numbers, batch QR codes, customer branding) along with custom retail blister or barcoded export boxes.
Industry Trends: The Next Generation of Sealing Technology
How technological shifts are driving cable glands from passive hardware components to engineered, multifunctional connection interfaces.
Hybrid Power & Liquid Connectors
The boundary between electrical feedthroughs and thermal fluid loops is blurring. As data racks and EV charging stations transition to direct-to-chip and liquid-cooled cables, hybrid gland plates are emerging that accommodate high-amp conductors alongside dripless fluid channels.
Bio-Based & Halogen-Free Polymers
Global decarbonization initiatives are driving the adoption of bio-based engineering polyamides derived from renewable castor oil feedstocks. These compounds offer low carbon footprints while meeting UL94 V-0 flame-retardant standards and avoiding hazardous halogens (chlorine, bromine).
Integrated Condition Telemetry
Experimental IoT-enabled smart glands for utility substations incorporate passive RFID or micro-piezoelectric moisture sensors within the clamping seal. These notify maintenance crews via wireless telemetry if seal compression drops or micro-humidity breaches the inner chamber.
Frequently Asked Sizing & Manufacturing Questions
Answers to critical questions asked by procurement directors, panel fabricators, and compliance engineers.
How do I precisely calculate the cable gland clamping range required?
What is the functional difference between Metric (M) and PG thread standards?
Why is NPT thread tightening logic fundamentally different from Metric?
Can standard cable glands be installed in ATEX/IECEx hazardous areas?
How does HOONSUN ensure IP68 integrity over decades of service?
What parameters are required when requesting a custom OEM quote from HOONSUN?
Engineered Cable Glands & Thermal Connectors
Discover specialized configurations: extended threads, bending protection, explosion-proof joints, and high-performance fluid couplings.
UQD08S / UQD08P Quick Coupling
High-flow 316L liquid cooling quick disconnect for high-density computing fluid distribution manifolds.
View Specification →
Metal Anti-Bending Cable Gland
Machined spiral spring strain-relief prevents sharp acute cable kinks on automated assembly lines and portable equipment.
View Specification →
Metal Double Lock Cable Gland
Dual compression architecture clamps both the outer cable jacket and inner armor wires, offering high pullout resistance.
View Specification →
EX3 Explosion-Proof Cable Clamp Joint
Heavy flameproof barrier connector engineered for hazardous processing equipment in coal mining and chemical manufacturing.
View Specification →
EX4 Explosion-Proof Marine Gland
Certified dual-rated marine explosion-proof connector designed to seal armored shipboard cables in LNG carrier engine compartments.
View Specification →
Corrosion-Proof 316 Stainless Gland
High-grade stainless steel entry with integrated washdown seal for hygienic food production lines and coastal energy farms.
View Specification →
Nylon Anti-Bending Cable Gland
UL-listed PA66 construction with spiral bend-limiter, protecting flexible handheld industrial tools from jacket wear.
View Specification →
Metal Cable Gland (Extended Thread)
Long-thread variant engineered to pass through thick cast-iron distribution walls and double-skinned insulated junction enclosures.
View Specification →Connect Directly with HOONSUN Factory Engineering
Eliminate supply-chain intermediaries. Access competitive factory-direct volume pricing, custom dimensional turning, private-label packaging, and accredited third-party certified test documentation from Yueqing, China.
Request Technical Catalog & Direct Quotation
