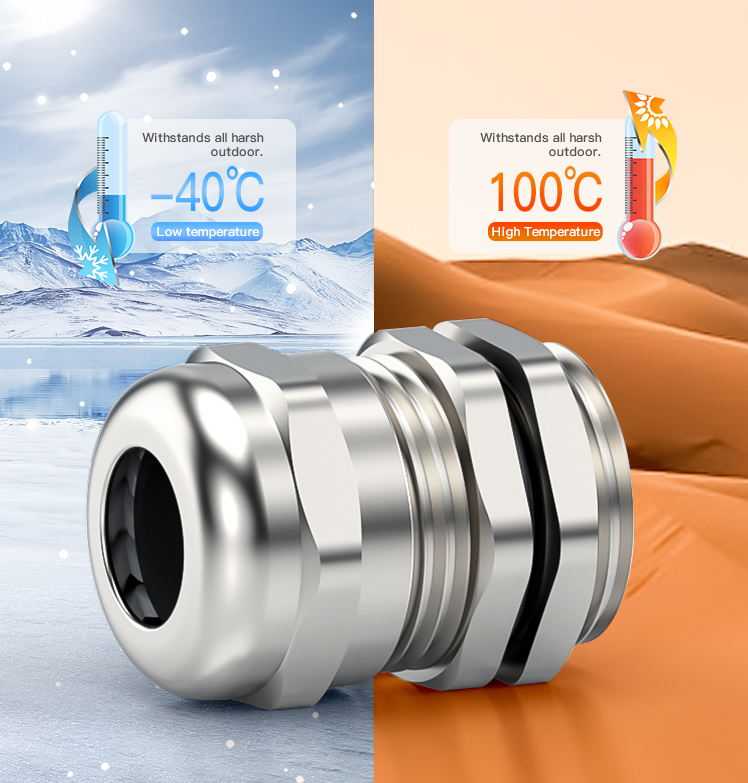

China Metal Cable Gland Direct Type with IP68 and UL Factories, Factory
Product Description

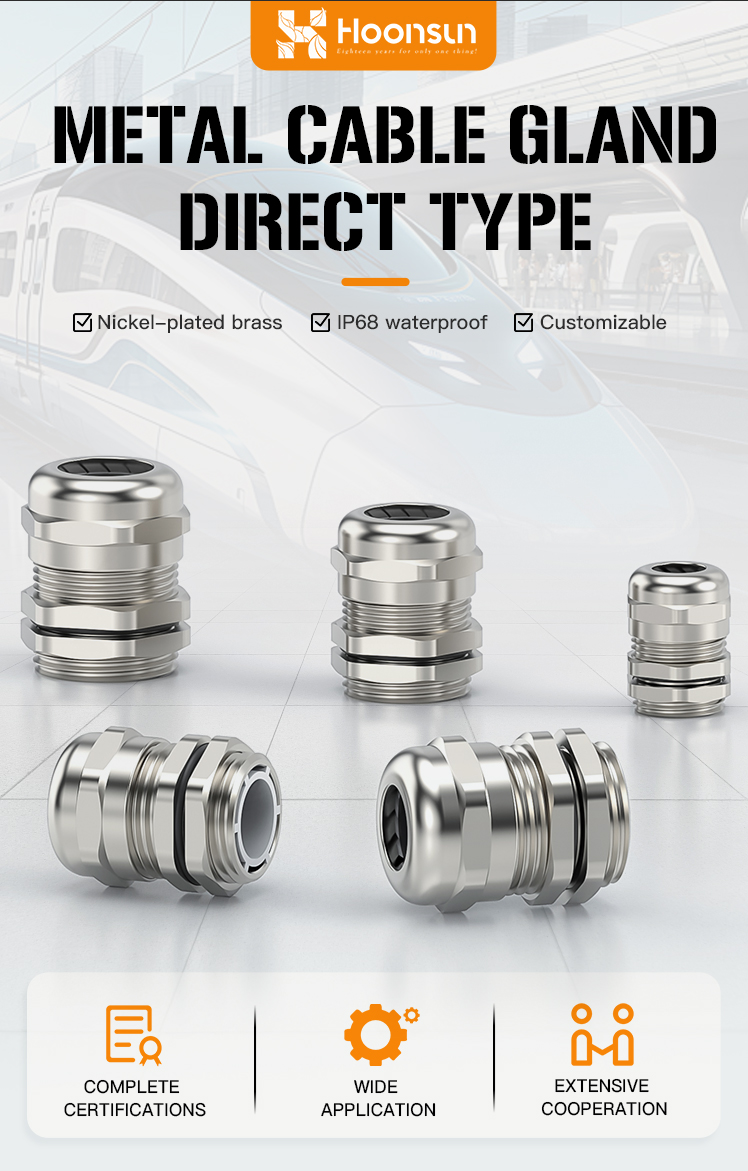

Product Overview
Product Highlights
- Precision-engineered from nickel-plated brass or stainless steel for high durability, corrosion resistance, and stability in harsh environments.
- Direct-through (straight-through) design ensures optimal cable alignment and minimizes stress.
- Provides IP68-rated waterproof and dustproof protection, effectively preventing the ingress of water, oil, and contaminants.
- Offers excellent strain relief to protect cables from pull-out and bending fatigue.
- Features a smooth internal structure to reduce cable wear during installation.
- Compatible with Metric, PG, and NPT threading for seamless global integration.
- Certified by CE, UL, and RoHS, ensuring industry-standard quality and safety.
Applications
Key Benefits
- Straight-through design for optimal cable alignment
- IP68 waterproof and dustproof protection
- Excellent strain relief and vibration resistance
- Nickel-plated brass or stainless-steel body
- Easy installation with Metric, PG, and NPT threads
- CE / UL / RoHS certified for global compliance

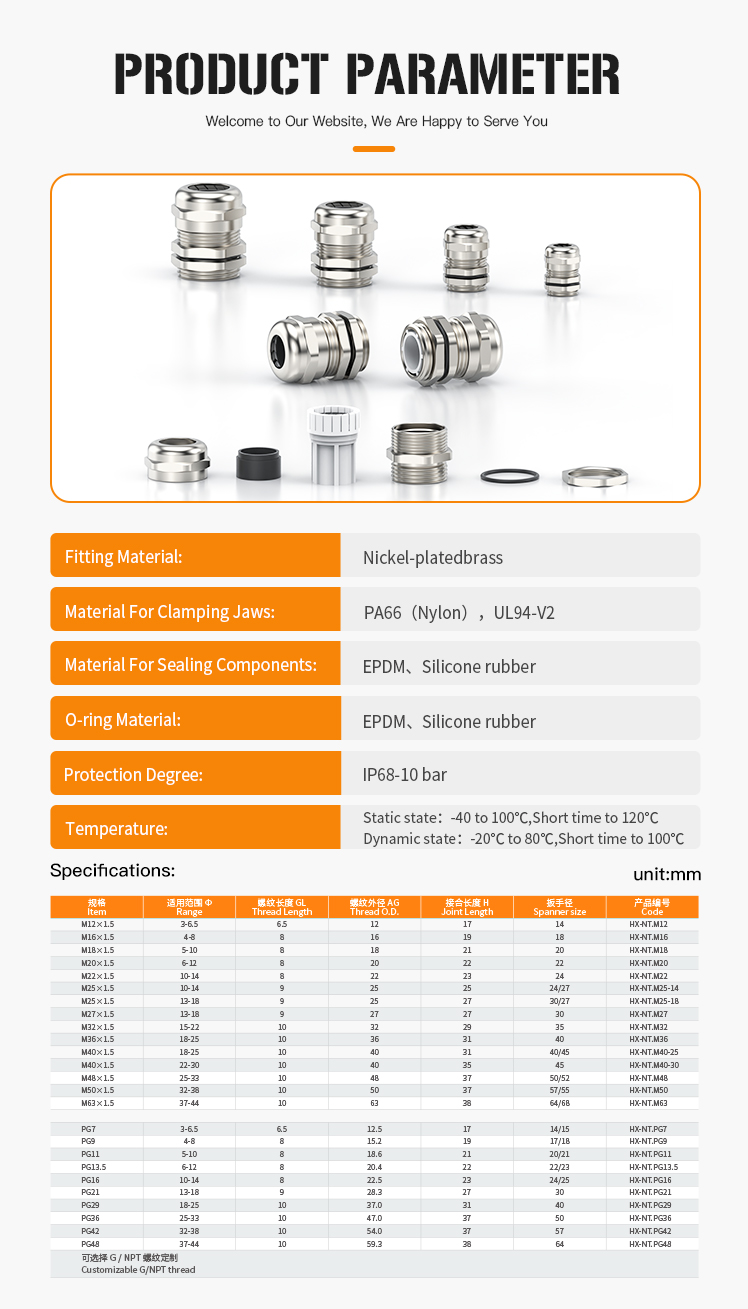

Product Parameters
| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 6.5 | 12 | 17 | 14 | HX-NT.M12 |
| M16×1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-NT.M16 |
| M18×1.5 | 5-10 | 8 | 18 | 21 | 20 | HX-NT.M18 |
| M20×1.5 | 6-12 | 8 | 20 | 22 | 22 | HX-NT.M20 |
| M22×1.5 | 10-14 | 8 | 22 | 23 | 24 | HX-NT.M22 |
| M25×1.5 | 10-14 | 9 | 25 | 25 | 24/27 | HX-NT.M25-14 |
| M25×1.5 | 13-18 | 9 | 25 | 27 | 30/27 | HX-NT.M25-18 |
| M27×1.5 | 13-18 | 9 | 27 | 27 | 30 | HX-NT.M27 |
| M32×1.5 | 15-22 | 10 | 32 | 29 | 35 | HX-NT.M32 |
| M36×1.5 | 18-25 | 10 | 36 | 31 | 40 | HX-NT.M36 |
| M40×1.5 | 18-25 | 10 | 40 | 31 | 40/45 | HX-NT.M40-25 |
| M40×1.5 | 22-30 | 10 | 40 | 35 | 45 | HX-NT.M40-30 |
| M48×1.5 | 25-33 | 10 | 48 | 37 | 50/52 | HX-NT.M48 |
| M50×1.5 | 32-38 | 10 | 50 | 37 | 57/55 | HX-NT.M50 |
| M63×1.5 | 37-44 | 10 | 63 | 38 | 64/68 | HX-NT.M63 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HX-NT.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 19 | 17/18 | HX-NT.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NT.PG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22 | 22/23 | HX-NT.PG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23 | 24/25 | HX-NT.PG16 |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-NT.PG21 |
| PG29 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NT.PG29 |
| PG36 | 25-33 | 10 | 47.0 | 37 | 50 | HX-NT.PG36 |
| PG42 | 32-38 | 10 | 54.0 | 37 | 57 | HX-NT.PG42 |
| PG48 | 37-44 | 10 | 59.3 | 38 | 64 | HX-NT.PG48 |
| Customizable G/NPT thread | ||||||
Detailed Images
Frequently Asked Questions (FAQ)

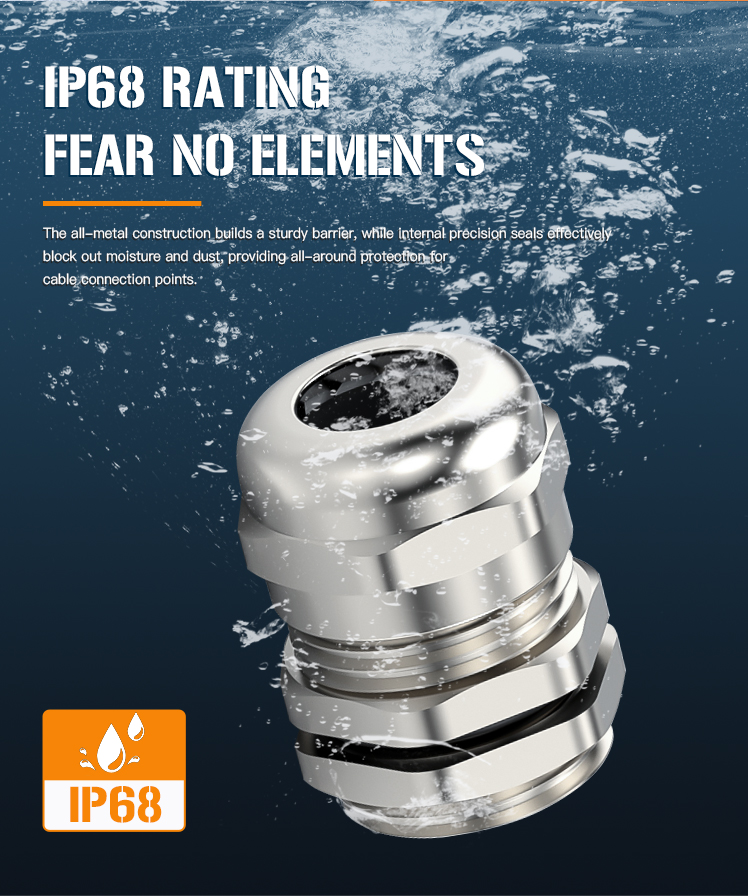

An IP68 rating ensures total protection against dust ingress and continuous immersion in water beyond 1 meter under specified pressure, making these glands ideal for severe outdoor and marine environments.
Standard thread offerings include Metric (M-threads) and PG types as displayed in the table. G (BSPP) and NPT threading are fully available upon request.
The cable glands are manufactured using high-grade nickel-plated brass or stainless steel, paired with premium internal seals to withstand mechanical stress and chemical exposure.

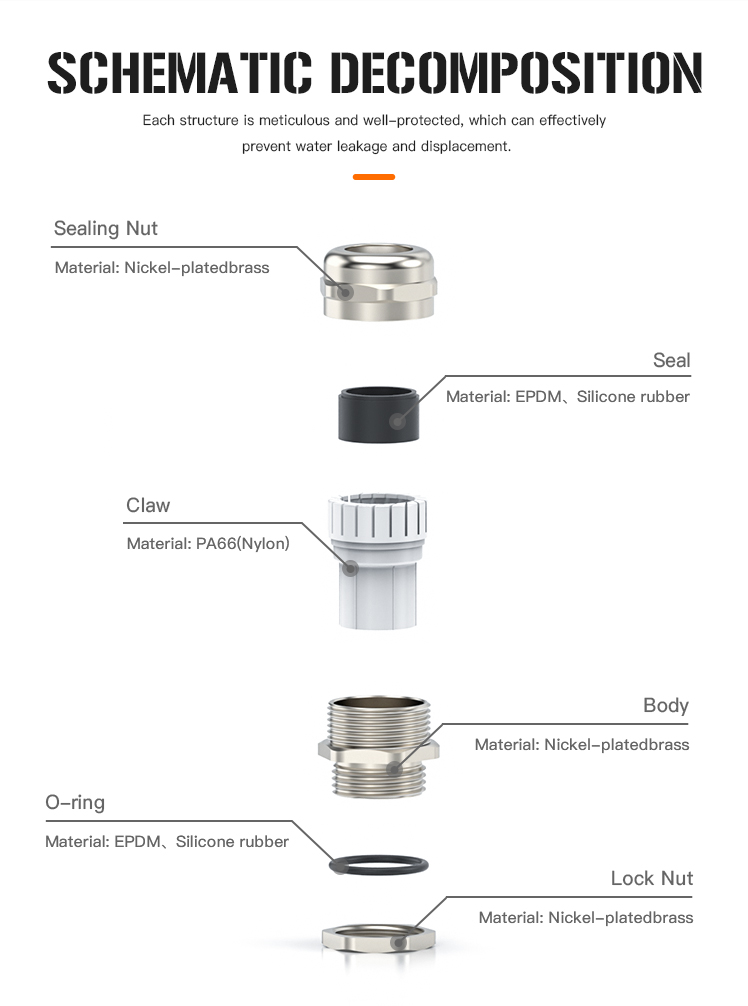

The integrated clamping claw and sealing ring evenly distribute radial pressure over the cable jacket, preventing pull-out while protecting the cable conductors from damage caused by tension and vibration.
Our direct-type metal cable glands are certified under UL, CE, and RoHS international standards, meeting stringent global industrial safety and environmental requirements.
