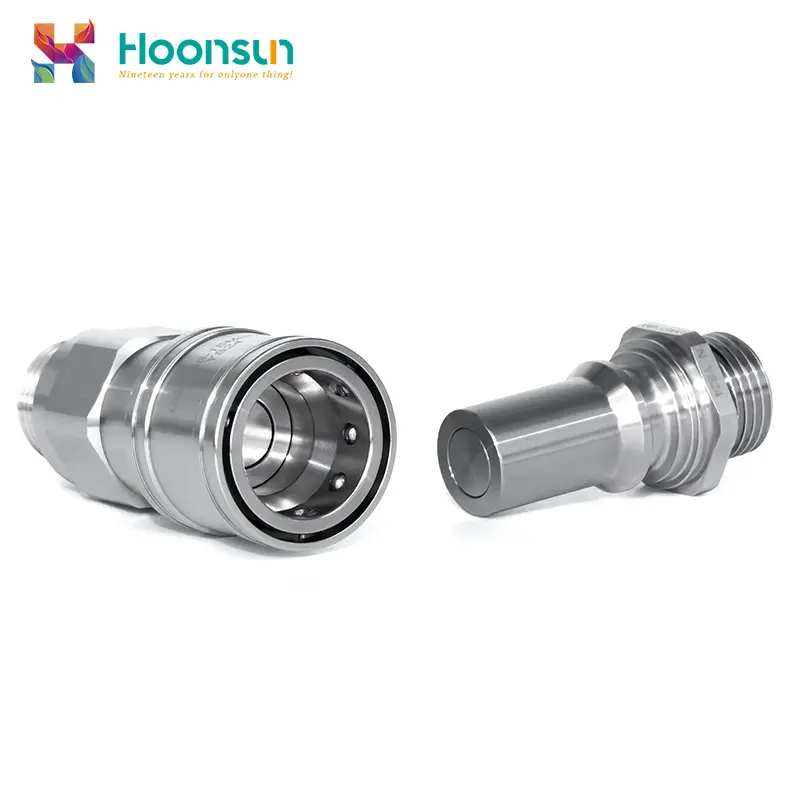

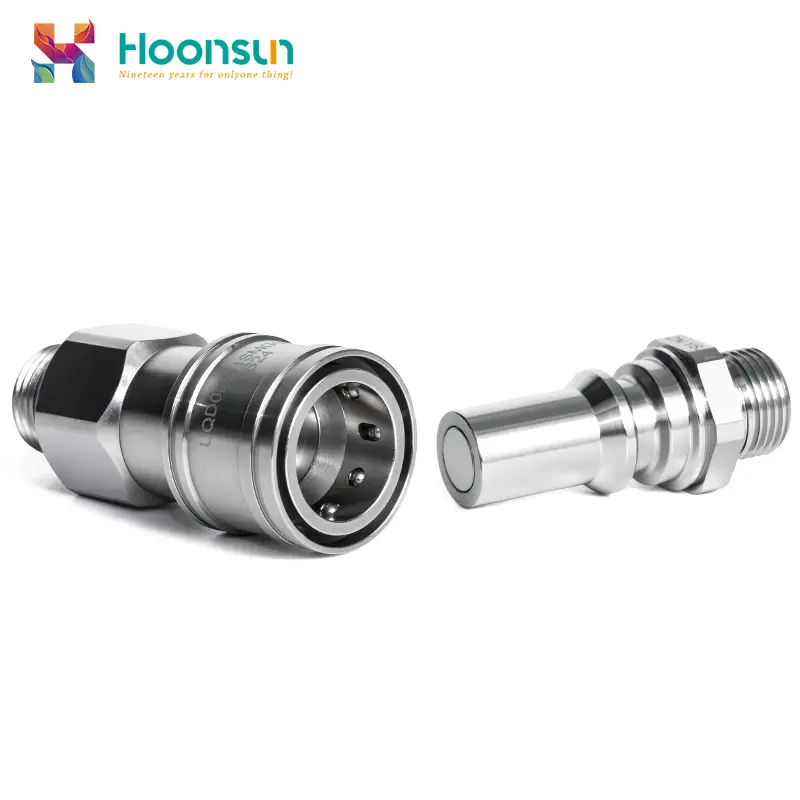

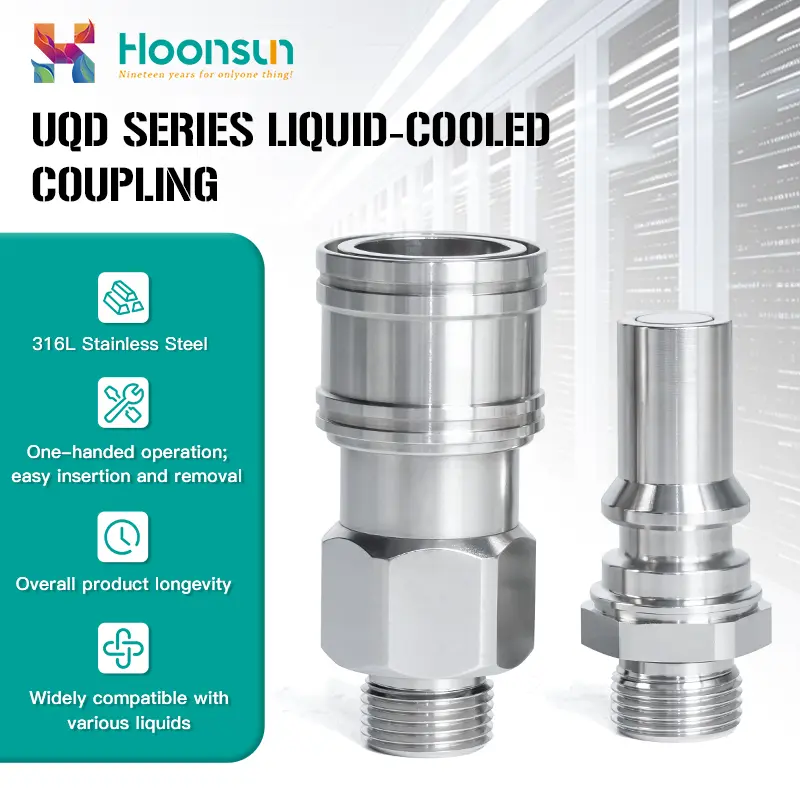

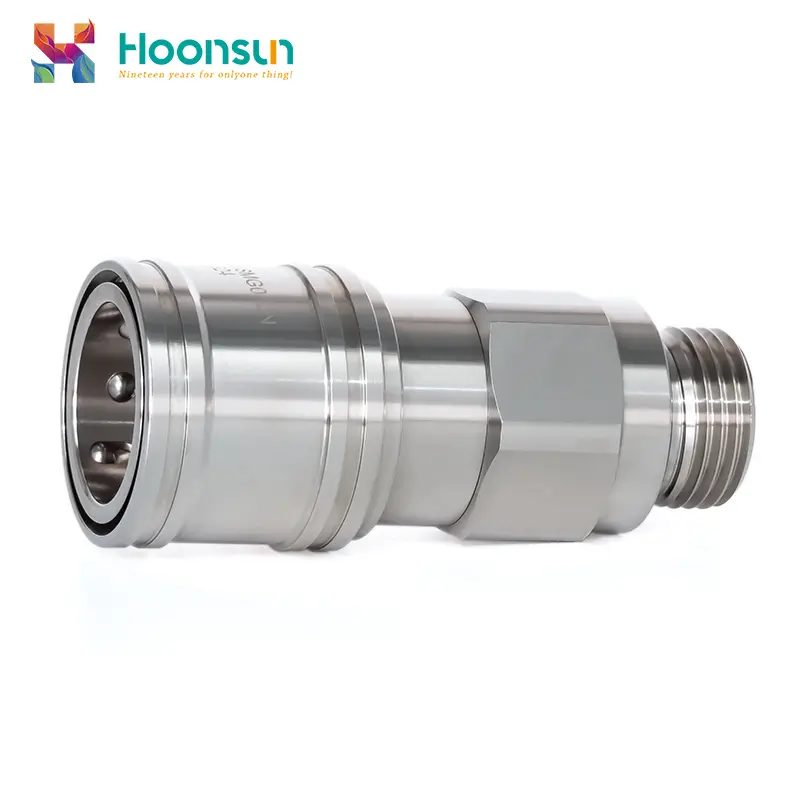

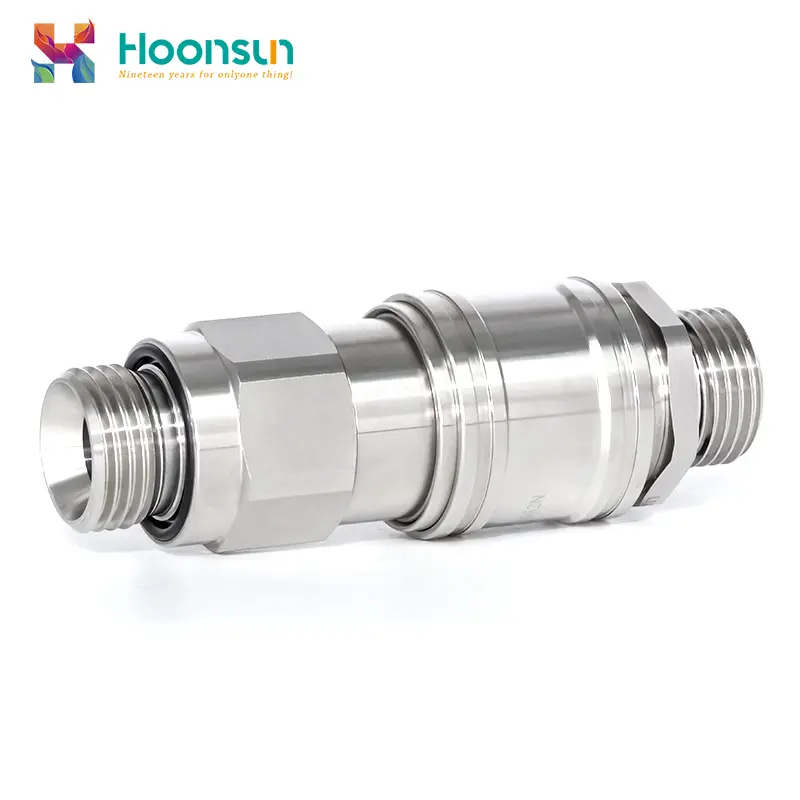

China UQD06S-1SMGG042N-UQD06P-1SMG042N Manufacturer, Factory

UQD Series Liquid-Cooled Quick Coupling by Hoonsun is a high-performance fluid connection solution engineered for demanding liquid cooling systems. Manufactured from premium 316L stainless steel with a standard EPDM seal (HNBR/FKM optional), it delivers reliable, leak-proof performance across a wide range of fluids and operating conditions.

With a rated working pressure of 20 bar (burst pressure 80 bar) and an operating temperature range of -40°C to +120°C, this coupling is built for durability and efficiency. Four size options (DN03 to DN10) and multiple connection configurations (UNF/G threads, hose barbs) ensure seamless integration into diverse industrial applications, from data centers to medical equipment.

Certified for Global Markets：

Send Inquiry

Product Description

Core Features

✅

316L Stainless Steel Construction Superior corrosion resistance for industrial, outdoor, and high-humidity environments

✅

Multi-Material Sealing Standard EPDM seals for water/glycol, with HNBR/FKM options for oil/chemical compatibility

✅

Zero-Leakage Performance Precision-engineered sealing system prevents fluid loss under rated pressure

✅

Wide Operating Range -40°C to 120°C temperature resistance, 20 bar working pressure

✅

Versatile Connections UNF/G threads and self-clinching hose barbs for flexible system integration

✅

Harsh Environment Ready Dust-proof, salt-proof, and resistant to acids, alkalis, and common solvents

✅

Low Pressure Drop Optimized internal flow path for efficient fluid transfer up to 85 L/min

✅

Long Service Life Robust construction and precision manufacturing for continuous operation

Product Specifications

Model	DN Size	Body Material	Seal Material	Connection Options	Working Pressure	Temperature Range
UQD02	DN03	316L Stainless Steel	EPDM (HNBR/FKM Optional)	7/16-20 UNF (Thread/Barb), G1/8" Thread	20 bar	-40°C~120°C
UQD04	DN05	316L Stainless Steel	EPDM (HNBR/FKM Optional)	9/16-18 UNF (Thread/Barb), G1/4" Thread	20 bar	-40°C~120°C
UQD06	DN07	316L Stainless Steel	EPDM (HNBR/FKM Optional)	3/4-16 UNF (Thread/Barb), G3/8" Thread	20 bar	-40°C~120°C
UQD08	DN10	316L Stainless Steel	EPDM (HNBR/FKM Optional)	7/8-14 UNF (Thread/Barb), G1/2" Thread	20 bar	-40°C~120°C

Compatible Media: Deionized water, purified water, ethylene glycol solution, propylene glycol solution, oils, and fluorinated fluids

Flow Performance: Optimized internal flow path with minimal pressure drop, supporting flow rates up to 85 L/min

Applications

Data Center & HPC Liquid Cooling: Server rack and high-performance computing cooling systems
EV Charging Piles & Thermal Management: Liquid cooling connections for electric vehicle charging infrastructure
Industrial Laser Equipment: Precision cooling for high-power industrial lasers
Medical Equipment: MRI machines, diagnostic devices, and precision instrument cooling
Photovoltaic Inverters: Outdoor solar and wind power electronic cooling systems
Test Benches & Automated Systems: Reliable fluid connections for laboratory and industrial test setups
High-Density Electronic Systems: Compact, efficient connections in limited-access environments

Installation & Removal Process

1. Preparation

Ensure the coupling and mating components are clean, free of debris, and undamaged. Depressurize the fluid system before installation.

2. Connection

Align the plug and socket, then push straightly until a click sound confirms complete locking.

3. Verification

Perform a pressure test to confirm no leaks before bringing the system online.

4. Disconnection

Depressurize the system, then simply pull the plug out of the socket. The coupling will automatically seal to prevent fluid loss.

⚠️ Safety Notes:

● Never connect or disconnect the coupling while the system is under pressure.

● Protect the sealing surface from scratches to maintain long-term leak-proof performance.

Detailed Images

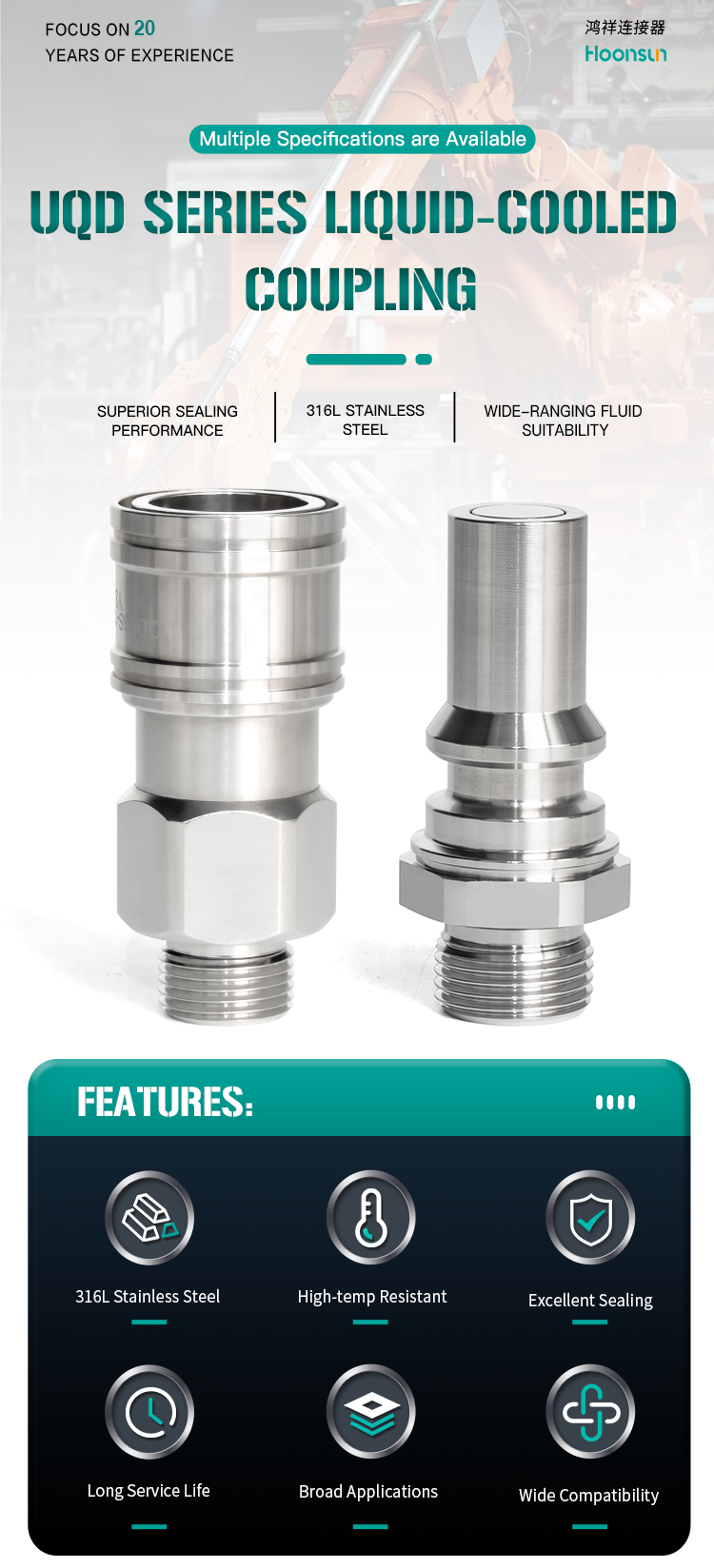

Liquid Cooling Quick Coupling UQD Series 01

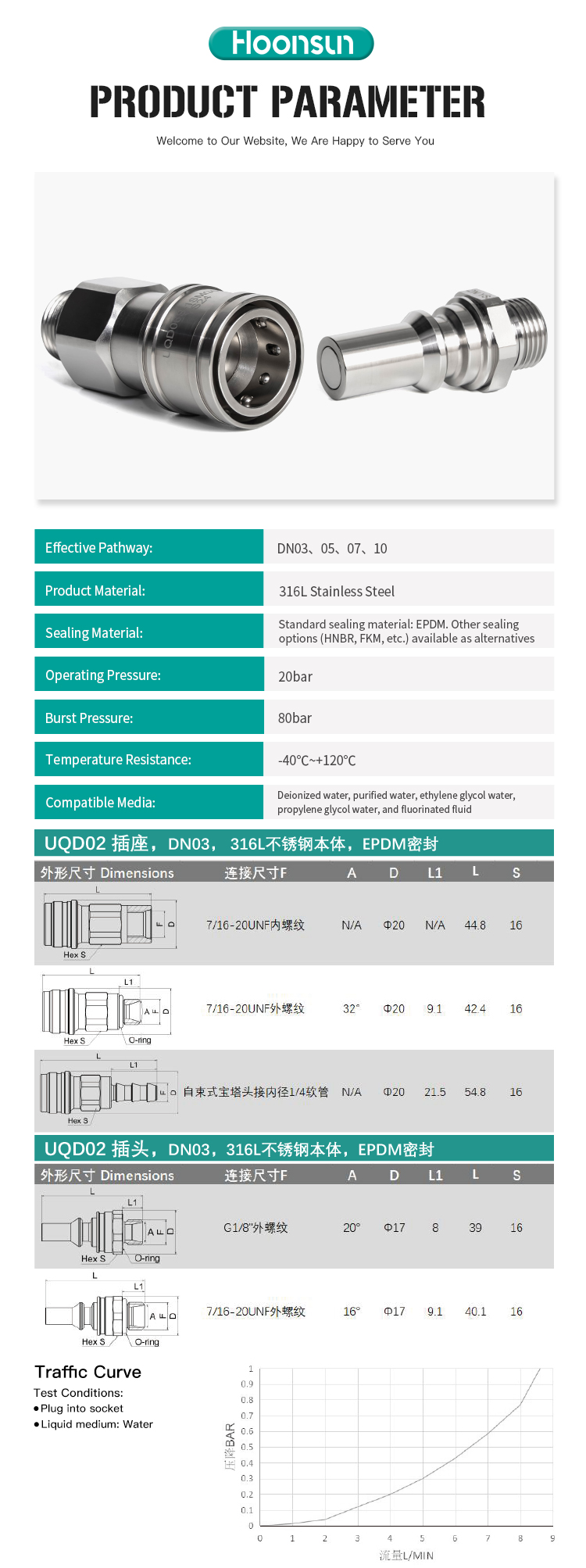

Liquid Cooling Quick Coupling UQD Series 02

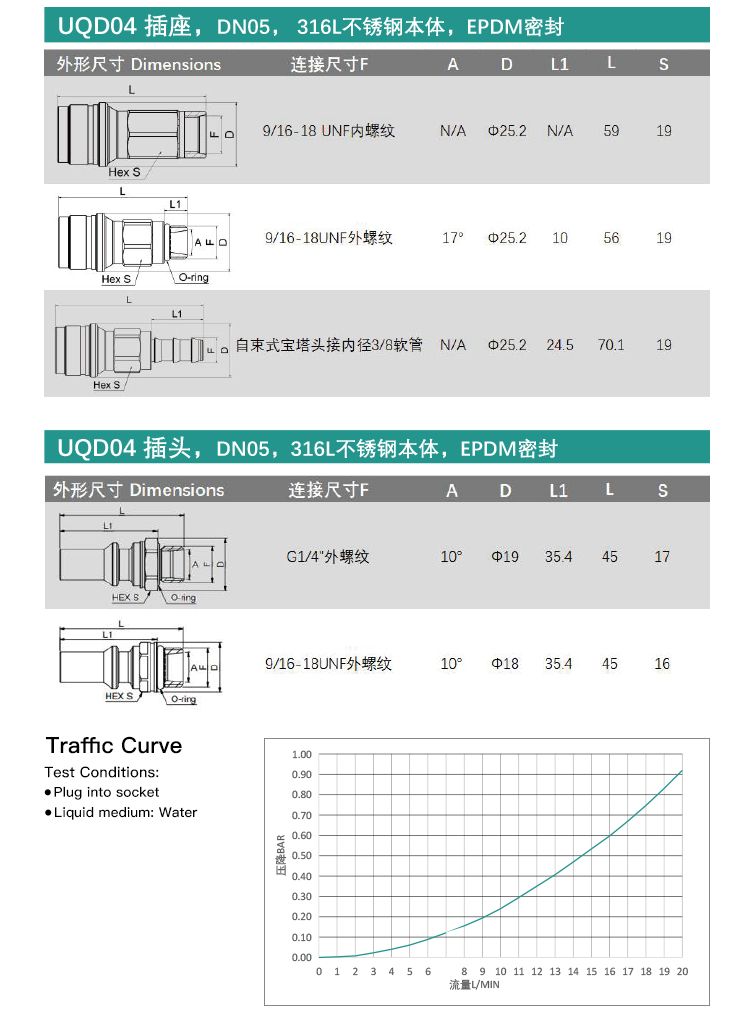

Liquid Cooling Quick Coupling UQD Series 03

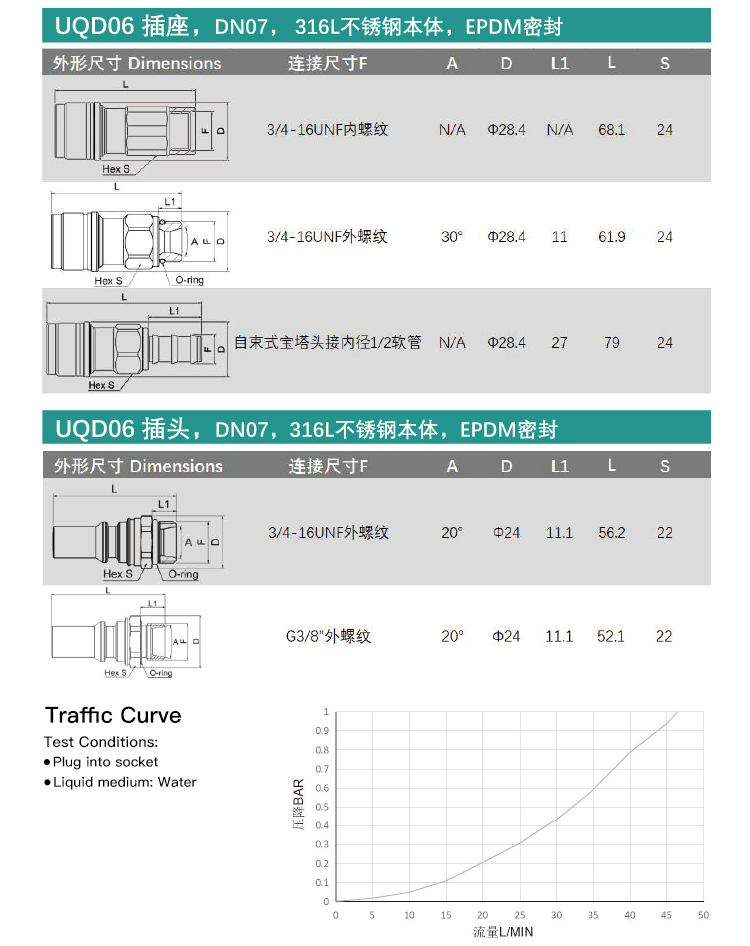

Liquid Cooling Quick Coupling UQD Series 04

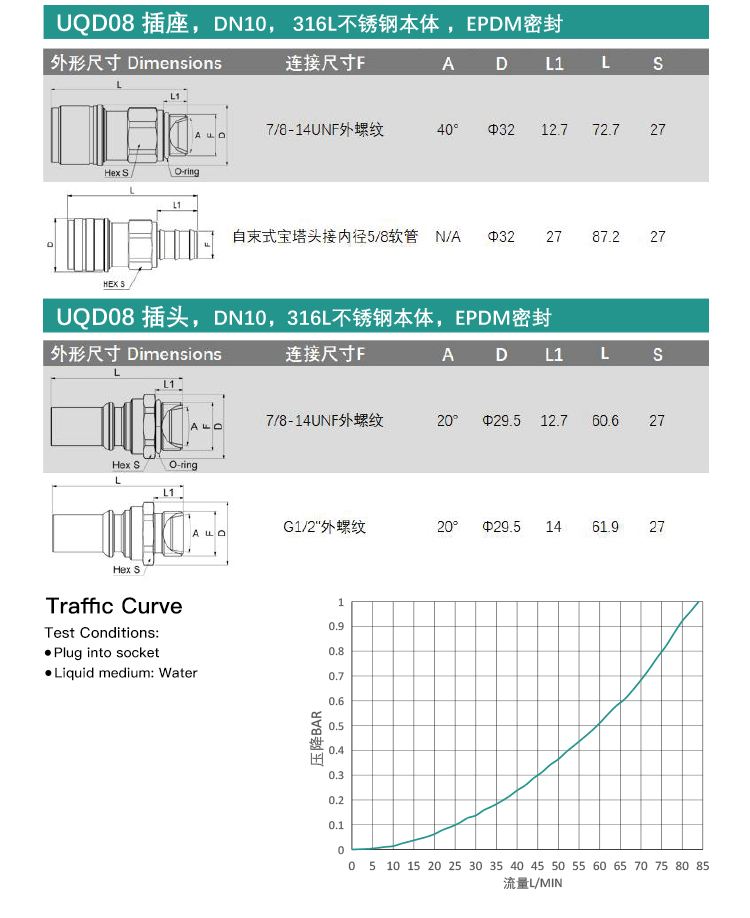

Liquid Cooling Quick Coupling UQD Series 05

Liquid Cooling Quick Coupling UQD Series 06

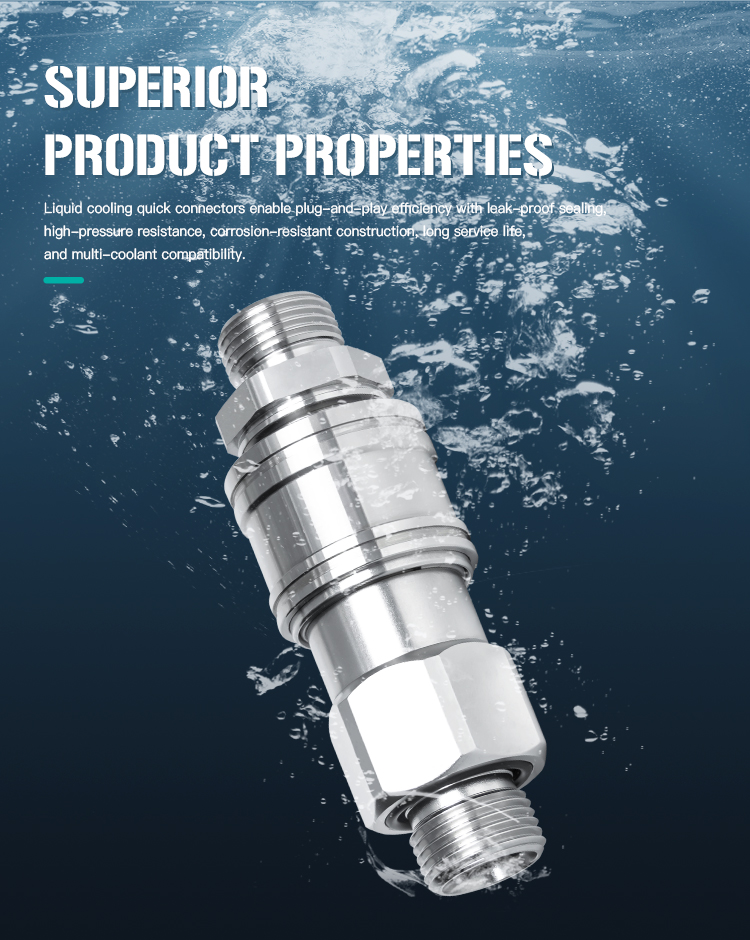

Liquid Cooling Quick Coupling UQD Series 07

Liquid Cooling Quick Coupling UQD Series 08

Liquid Cooling Quick Coupling UQD Series 09

Liquid Cooling Quick Coupling UQD Series 10

Liquid Cooling Quick Coupling UQD Series 11

Frequently Asked Questions

1. What makes the UQD series different from other quick couplings?

The UQD series combines 316L stainless steel construction with versatile sealing and connection options, making it suitable for a wide range of demanding liquid cooling applications.

2. Can I choose different sealing materials?

Yes. Standard EPDM seals are suitable for water and glycol solutions. HNBR seals offer better oil resistance, while FKM seals are ideal for high-temperature or chemically aggressive fluids.

3. What fluids are compatible with these couplings?

They work with most common liquid cooling media, including deionized water, glycol mixtures, industrial oils, and fluorinated fluids.

4. What are the pressure and temperature ratings?

Rated working pressure is 20 bar (burst pressure 80 bar), with an operating temperature range of -40°C to 120°C.

5. Are these couplings suitable for outdoor use?

Yes. The 316L stainless steel construction provides excellent resistance to corrosion, salt spray, and extreme temperatures, making them ideal for outdoor and industrial applications.

6. Do I need tools to install or remove them?

No. The plug-and-play design allows for tool-free connection and disconnection, simplifying installation and maintenance.
