Product Description
Product Highlights

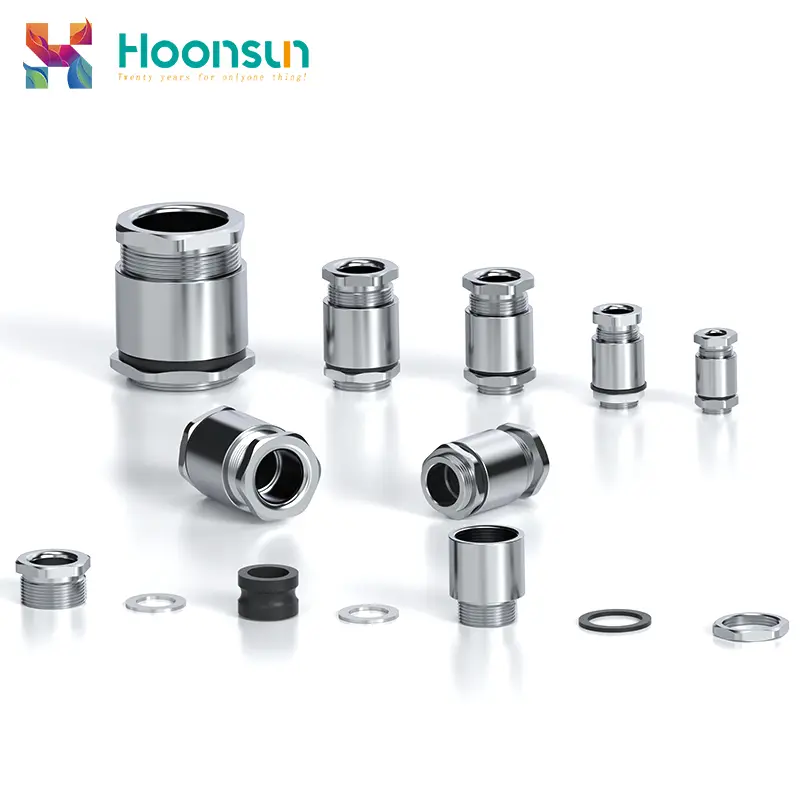

Crafted from premium brass with chrome or nickel plating for superior durability.
Achieves up to IP68 protection, ensuring complete dust and water resistance.

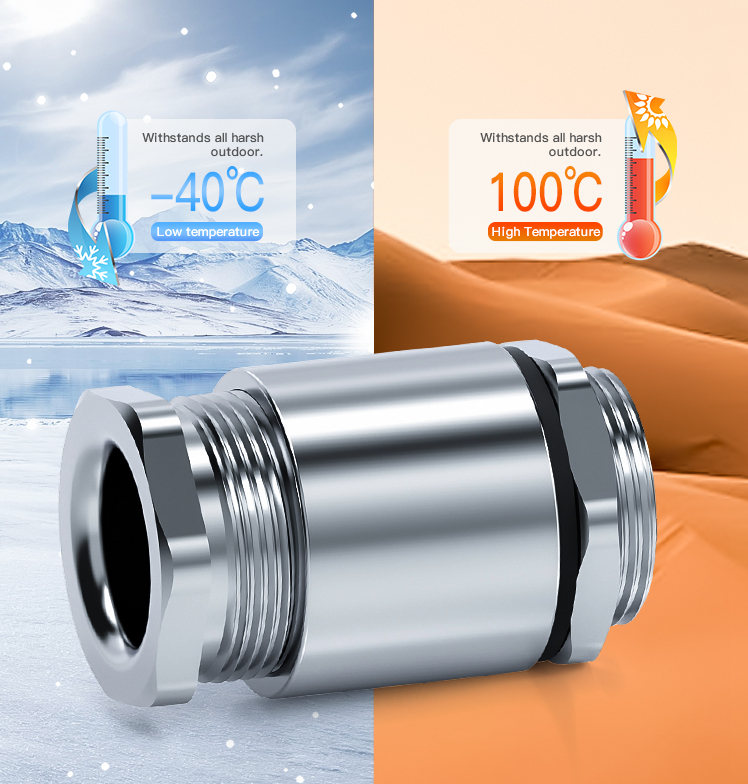

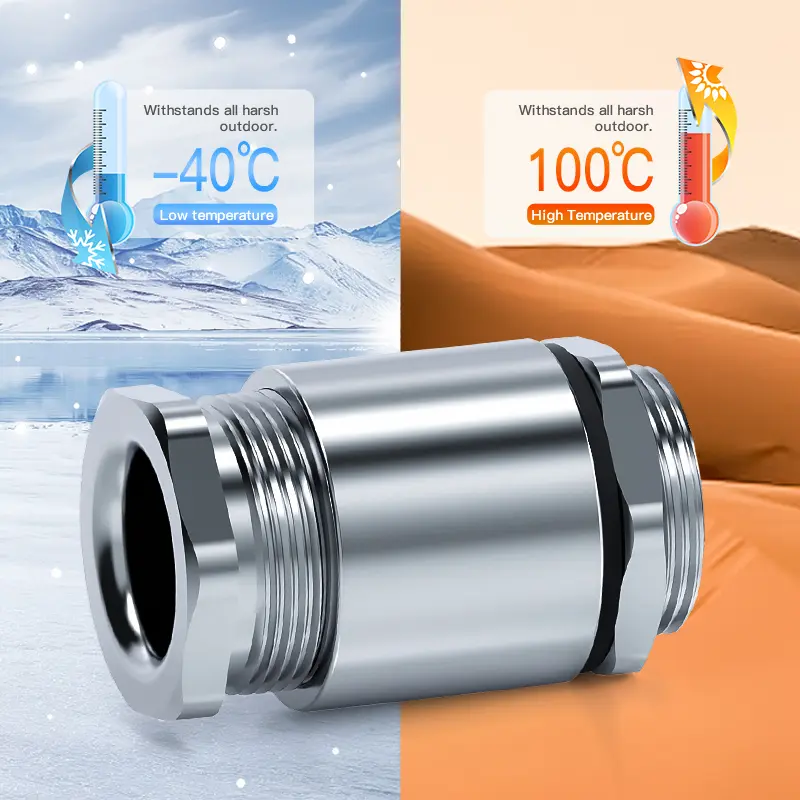

Wide operating temperature: static from -40℃ to 110℃, dynamic from -20℃ to 80℃.
Multiple thread options (e.g., M16×1.5, M20×1.5) and compatibility with cable diameters from 5mm to 57mm.
UL certified for safety and reliability in demanding conditions.

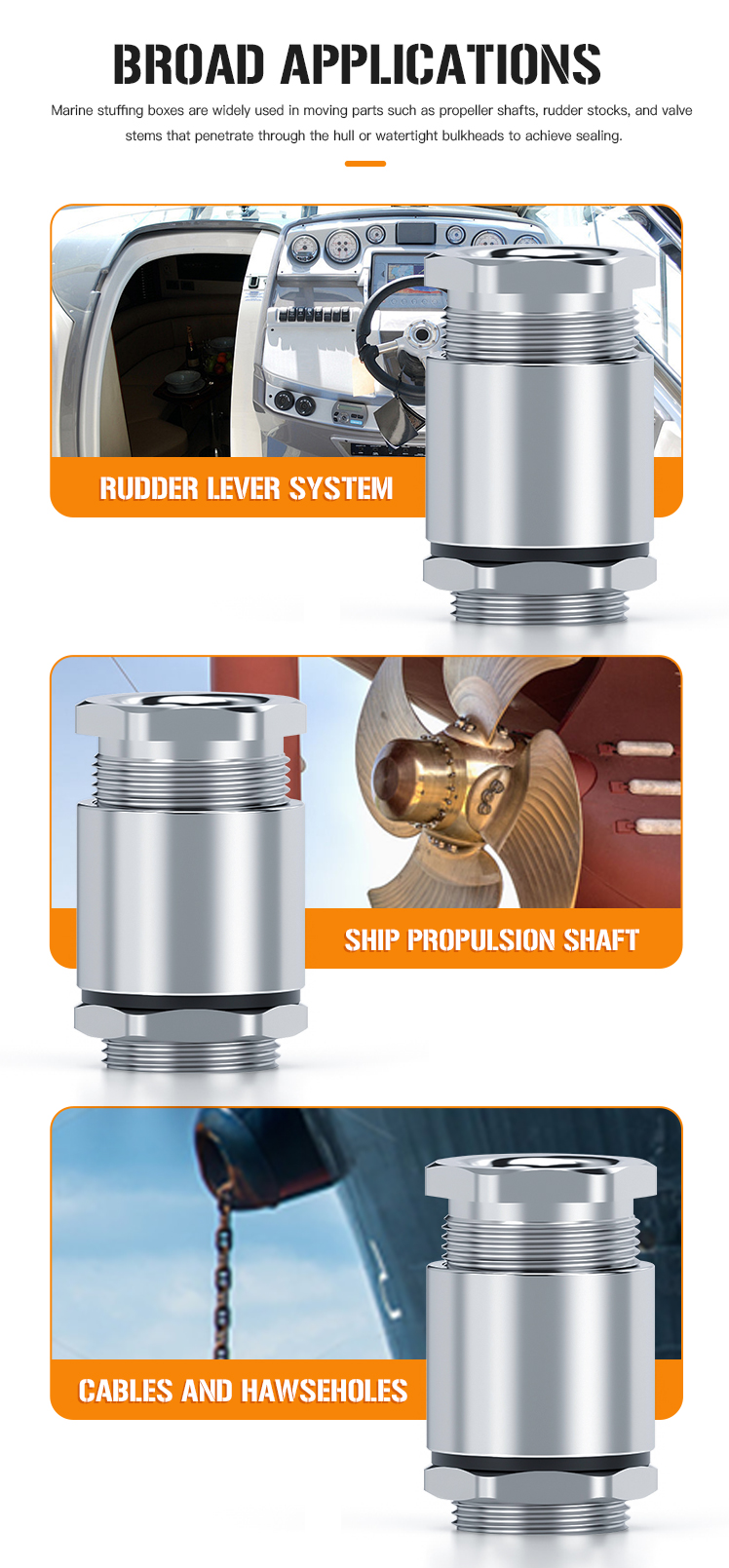

Applications
Marine and Offshore Applications
Essential for cable entry sealing on ship decks, engine rooms, offshore drilling platforms, and navigation systems.
Renewable Energy Systems
Provides reliable protection for electrical connections in offshore wind turbines and tidal energy equipment.
Industrial and Infrastructure Use
Ideal for water treatment plants, chemical processing facilities, and outdoor lighting in coastal areas with high salt spray.
Transportation Equipment
Suitable for cable management in railway signaling, port machinery, and other vehicles operating in harsh and corrosive conditions.
Key Benefits
- Exceptional corrosion resistance for long-lasting performance in marine settings.
- Robust sealing mechanism prevents ingress of water and dust, even under high pressure.
- Flexible design accommodates various cable sizes, simplifying installation and inventory.
- Maintains stable performance across a broad temperature range, ensuring reliability in diverse operational scenarios.

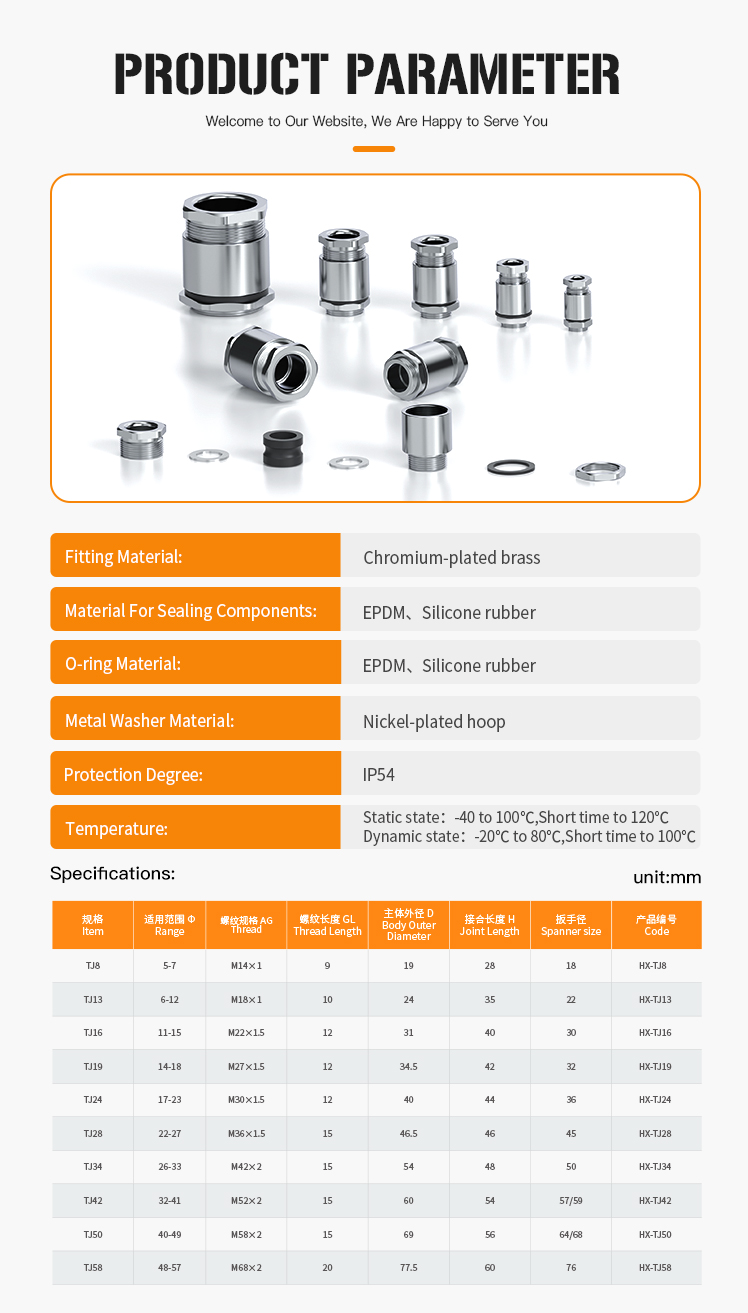

Product Parameters
| Item | Range | AG Thread | GL Thread Length | D Body Outer Diameter | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|---|
| TJ8 | 5-7 | M14×1 | 9 | 19 | 28 | 18 | HX-TJ8 |
| TJ13 | 6-12 | M18×1 | 10 | 24 | 35 | 22 | HX-TJ13 |
| TJ16 | 11-15 | M22×1.5 | 12 | 31 | 40 | 30 | HX-TJ16 |
| TJ19 | 14-18 | M27×1.5 | 12 | 34.5 | 42 | 32 | HX-TJ19 |
| TJ24 | 17-23 | M30×1.5 | 12 | 40 | 44 | 36 | HX-TJ24 |
| TJ28 | 22-27 | M36×1.5 | 15 | 46.5 | 46 | 45 | HX-TJ28 |
| TJ34 | 26-33 | M42×2 | 15 | 54 | 48 | 50 | HX-TJ34 |
| TJ42 | 32-41 | M52×2 | 15 | 60 | 54 | 57/59 | HX-TJ42 |
| TJ50 | 40-49 | M58×2 | 15 | 69 | 56 | 64/68 | HX-TJ50 |
| TJ58 | 48-57 | M68×2 | 20 | 77.5 | 60 | 76 | HX-TJ58 |

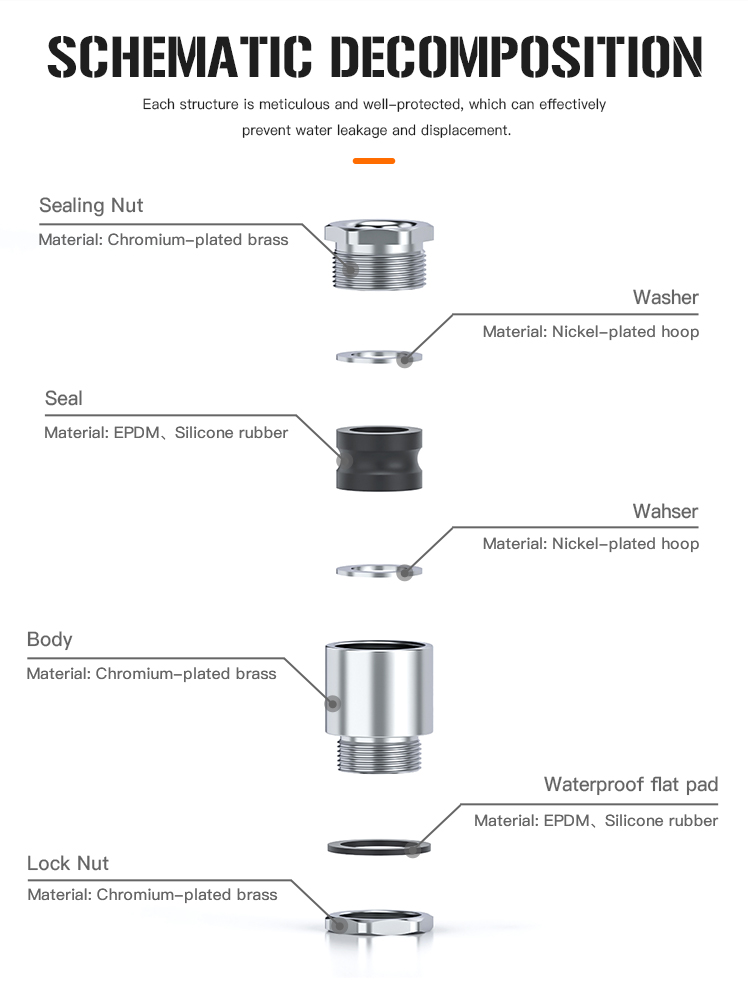

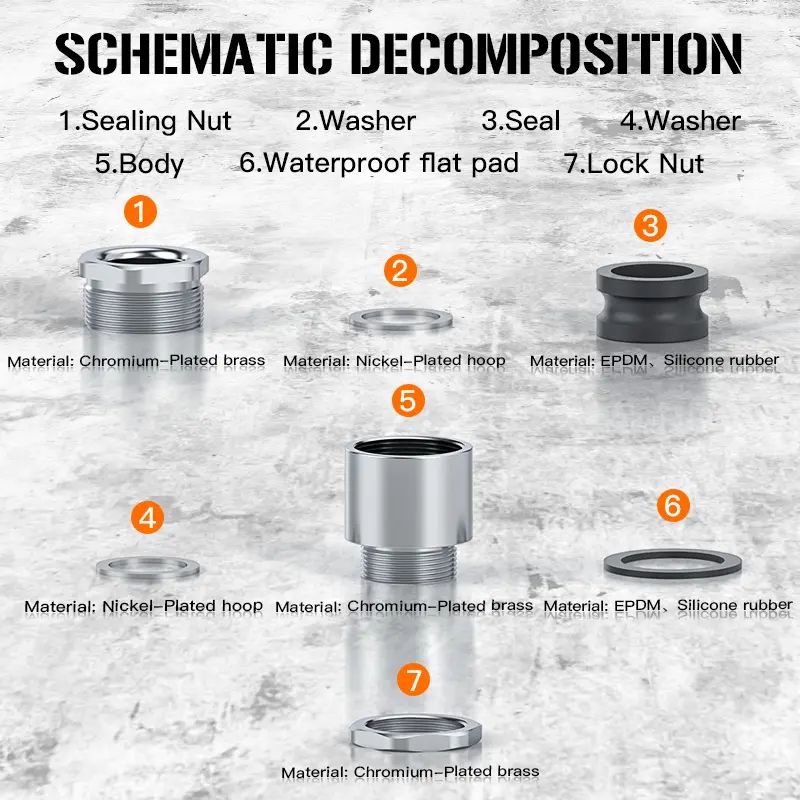

Detailed Images
