Single Compression Cable Gland: Working Mechanics & Ingress Dynamics
A granular breakdown of mechanical sealing dynamics, displacement geometry, and material elastomeric response across modern industrial junction interfaces.
Outer Sheath Sealing Mechanics
Unlike double-compression fittings that anchor inner beddings and armour wire concurrently, a single compression cable gland compresses a precision elastomeric sealing grommet (NBR, EPDM, or Silicone) purely across the cable's external jacket. Tightening the compression nut generates controlled axial displacement, forced into radial contraction by the internal chamfer of the gland body, forming a hermetic barrier preventing liquid and particle entry up to 5 bar hydrostatic head.
IEC 62444 Strain Relief Type A
Under mechanical stress, pulling forces applied to external wiring must never translate to internal terminal strips. Our single compression systems utilize an interlocking PA66 claw cage or conical vulcanized elastomer collar that exerts uniform, circumferential frictional resistance. This guarantees Type A cable retention compliant with EN 62444 standard criteria, resisting continuous axial loads without jacket creep or core damage.
Hydrostatic & Gas Barrier Thresholds
Dynamic ingress protection necessitates precise interfacial contact pressures exceeding fluid backpressure. By engineering specialized seal geometries featuring dual-contact annular ribs, HOONSUN single compression assemblies achieve certified IP68 (submersion up to 50m / 5 bar) and IP69K washdown resilience, eliminating capillary moisture draw even through rapid thermal cycling from -40°C to +120°C.
Global Procurement Demand & Strategic OEM Sourcing Challenges
Modern EPC contractors, cabinet builders, and industrial system integrators face escalating complexities in component qualification, compliance harmonization, and cost containment.
Thread Incompatibility
Procuring across cross-border projects demands simultaneous inventory of ISO Metric (EN 60423), German PG (DIN 40430), American NPT (ANSI B1.20.1), and British Standard Pipe (BSPP/G). HOONSUN manufactures unified body frameworks with interchangeable thread adapters to streamline multi-regional SKU stocking.
TCO vs Unit Cost Risk
Low-grade brass fittings suffering from zinc embrittlement or inferior sealing polymers crack under UV and ozone exposure. Field replacements in critical infrastructures exceed initial gland costs by 100x. Direct factory sourcing with certified CW614N brass ensures multi-decade service life.
Dual Audit Compliance
Navigating North American UL 514B certification alongside European CE / IEC 62444 directives frequently halts transatlantic project delivery. HOONSUN delivers dual-certified single compression hardware, backed with lot-traceable metallurgical mill certs (EN 10204 3.1).
Custom Dimensions & OEM
Standard catalog fittings often fail custom thick-walled distribution enclosures or specialized shielded hybrid cables. Our internal engineering department provides custom thread length extensions, multi-hole inserts, and flat cable adaptors within 5 business days.
Industrial Solutions Tailored for Mission-Critical Environments
Field-proven installations where electrical insulation, mechanical clamping, and environmental isolation cannot tolerate failure.
Solar Photovoltaic & Energy Storage (BESS)
Utility-scale string inverters, solar combiner boxes, and containerized battery storage units face relentless UV irradiation and diurnal temperature fluctuations. Our polyamide PA66 single compression glands feature UL 94 V-0 flame retardancy and anti-aging EPDM seals resistant to ozone stress-cracking, safeguarding system uptime for 25+ years.
Offshore Marine & Wind Power Generation
Salt spray, continuous humidity, and aggressive chloride concentrations induce severe galvanic corrosion in standard metals. HOONSUN provides marine-certified TJ-clamping and standard single compression glands machined from AISI 316L austenitic stainless steel or electro-nickel-plated CW614N brass, passing 1,000-hour ASTM B117 salt fog evaluations.
Robotics, Automation & EV Liquid Cooling
Six-axis articulated robots and EV motor controllers demand dynamic flex resistance and superior thermal dissipation. Combining corrugated flexible conduit glands with multi-hole elastomeric inserts and specialized liquid cooling quick-couplings, we ensure dry, vibration-immune connectivity inside automated assembly cleanrooms.
Single vs Double Compression Technical Selection Matrix
Select the exact mechanical architecture based on conductor geometry, cable armoring profile, and environmental severity.
| Architecture Type | Body Material Options | Cable Compatibility | Ingress Rating | Operating Temperature | Tensile Clamping Standard | Typical Industrial Target |
|---|---|---|---|---|---|---|
| Standard Single Compression | CW614N Brass, SS304, SS316L, Polyamide PA66 | Unarmoured, Flexible Portable Cord, Multi-Core Tray | IP68 (5 Bar) / IP69K | -40°C to +100°C (Static) -20°C to +80°C (Dynamic) |
IEC 62444 Class A Clamping | Control Cabinets, Solar Inverters, Junction Enclosures, Machinery |
| EMC Shielded Single Comp. | Nickel-Plated Brass with 360° Copper-Beryllium Contact Springs | Screened / Foil Braided / Shielded Signal Cable | IP68 | -40°C to +120°C | EN 62444 with low-impedance bonding (< 5 mΩ) | VFD Drives, Precision Servo Controllers, Medical Instrumentation |
| Breathable Single Comp. | Polyamide PA66, Nickel-Plated Brass with ePTFE Membrane | Standard Unarmoured Sensor & Power Cables | IP67 / IP68 | -40°C to +105°C | Interlocking Clamping Claw | Outdoor LED Luminaires, Telecom Enclosures, Pressure-Sensitive Modules |
| Double Compression (Armoured) | High-Tensile Brass, SS316L Marine Grade | SWA (Steel Wire), STA (Steel Tape), Aluminium Braid | IP66 / IP67 / IP68 | -60°C to +130°C (Silicone Gasket) | Dual Anchor (Inner Seal + Armour Cone Clamping) | Explosion-Proof Hazardous Areas, Heavy Petrochem, Deep Mining |
| Corrugated Conduit Single Comp. | Modified Polyamide (PA6), Halogen/Phosphorus Free | Corrugated Flexible Tubing (AD10.0 to AD54.5) | IP68 | -40°C to +120°C | Quick-Snap Integrated Snap Ring | Rail Transit Rolling Stock, Machine Tools, Industrial Robots |
In-House Manufacturing, Metrology & Yueqing Ecosystem Synergy
Operating from Shenhe Village, Liushi Town, HOONSUN bridges raw ingot metallurgy with micron-level CNC precision and automated assembly.
Direct Vertical Integration
While trading intermediaries outsource machining to volatile job-shops, HOONSUN retains complete physical control over high-precision multi-spindle automatic lathes, high-tonnage plastic injection presses, and automated O-ring insertion systems. This guarantees uniform crest angles on Metric/PG/NPT threading and prevents thread galling during rapid onsite installation.
Metrology & Empirical Validation
Every production run undergoes systematic statistical process control (SPC). In-house metrology encompasses Mitutoyo optical profile projectors for thread pitch verification, computerized tensile pull-out rigs to stress-test jacket grip thresholds, and immersion pressure chambers evaluating hydrostatic seals under elevated 5-bar water columns.
Supply Chain Aggregation Advantage
Headquartered in Liushi Town, Yueqing—widely recognized as China's electrical capital—we harness a compressed component supply chain. High-purity nickel plating, specialized fluorosilicone compounding, and high-tensile fasteners are sourced within a 15-kilometer radius, slashing production lead times by 40% compared to inland factories.
Technological Roadmap: The Next Generation of Cable Termination
Anticipating evolving electrification, smart manufacturing, and eco-sustainability demands with pioneering R&D.
Bio-Based Polyamides
Developing halogen-free, recyclable biopolymer glands that lower scope 3 carbon emissions without sacrificing UL 94 V-0 flame ratings or impact resistance at -40°C.
Active Torque Verification
Integrating tactile snap-rings that deliver audible and physical feedback when the gland nut achieves the precise factory-specified torque, eliminating over-compression.

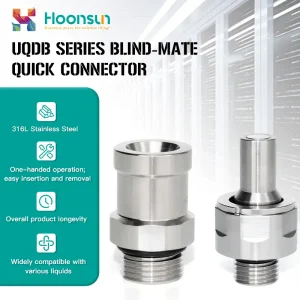

Conductive Liquid Couplings
Expanding our specialized UQD fluid coupling range for hyperscale AI datacenters and ultra-fast megawatt EV charging cables requiring zero-leakage cooling loops.
Smart Strain Monitoring
Prototyping sensor-embedded glands capable of logging interfacial sealing pressure and temperature anomalies, feeding predictive maintenance diagnostics into PLC SCADA.
