Product Description

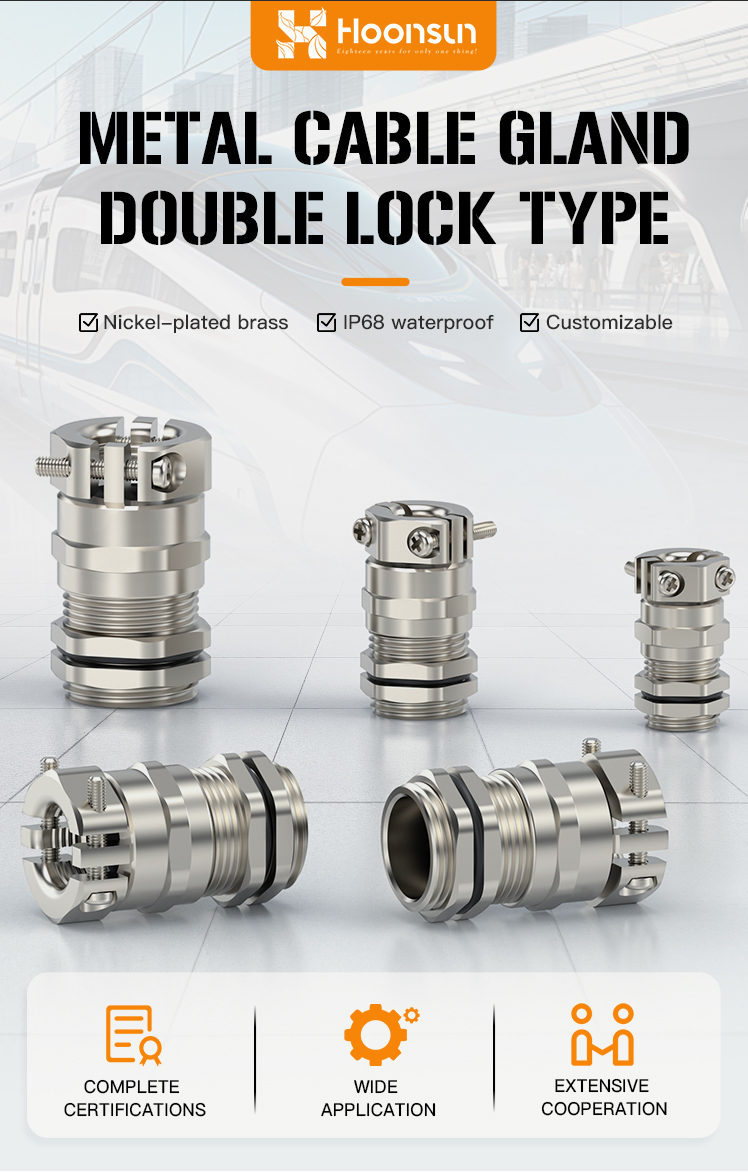

Product Overview
Product Highlights

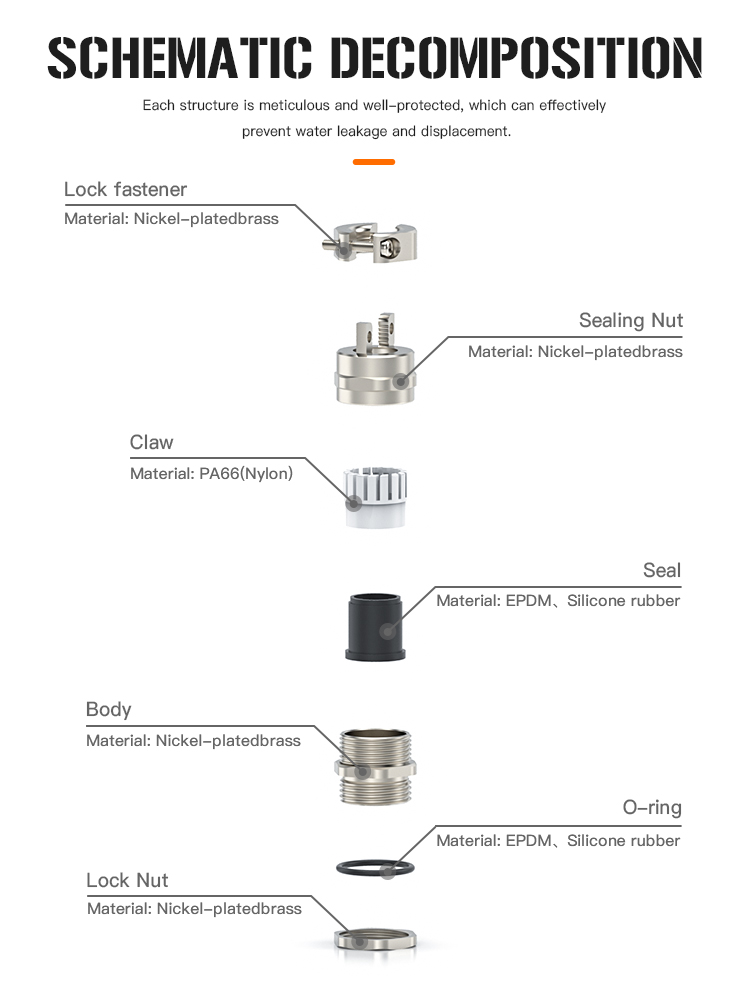

- Double-locking structure (thread + ferrule or dual-thread) for superior anti-loosening performance under vibration and pulling.

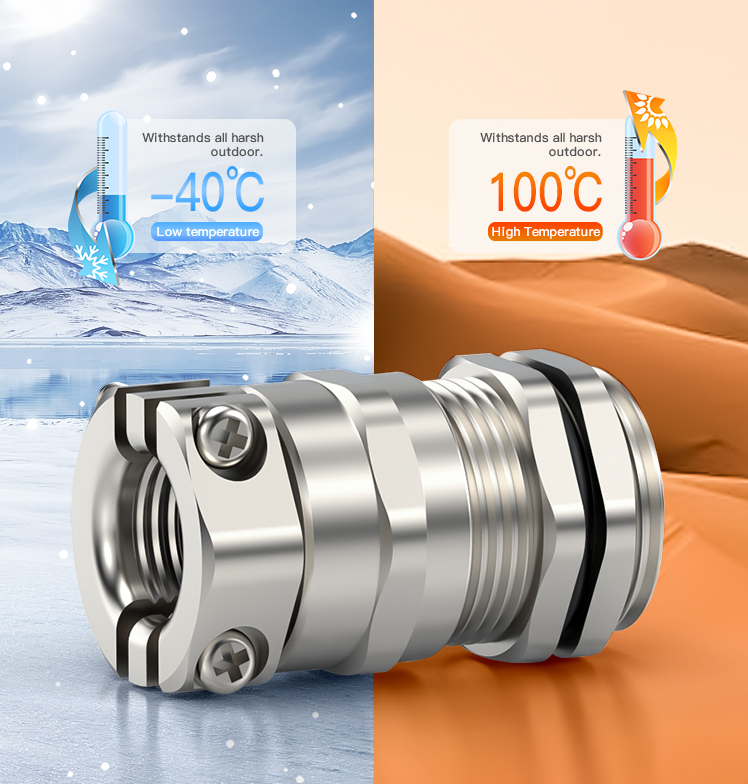

- High-quality metal housing with excellent mechanical strength, impact/corrosion resistance, and high-temperature durability.

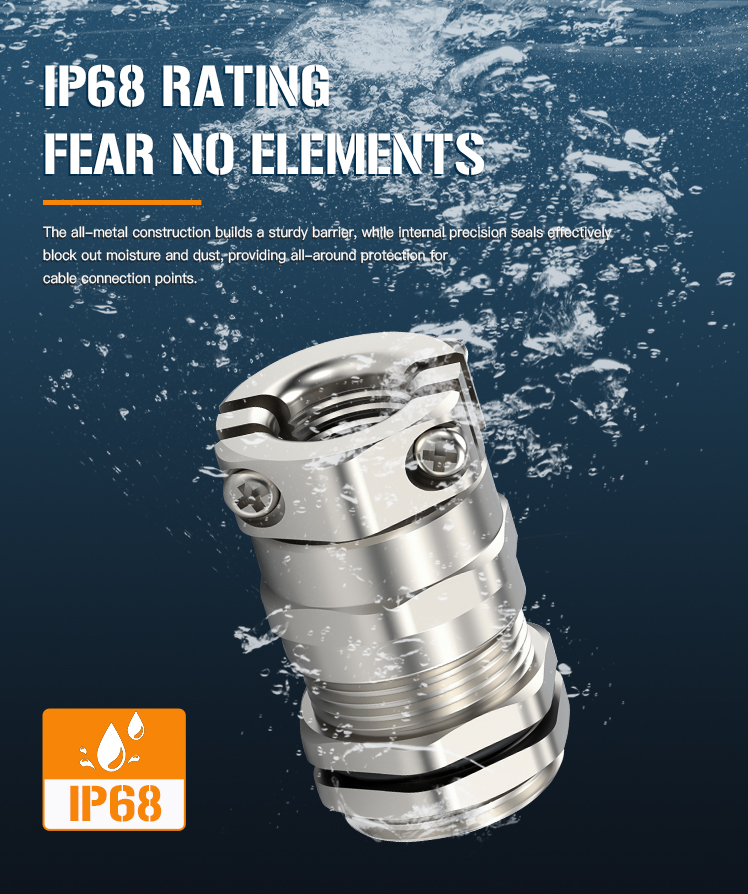

- IP68-rated sealing, ensuring dustproof, waterproof, and oil-proof protection in harsh conditions.
- Compact design, easy to install manually or with basic tools, compatible with multiple cable specifications.
Applications
- Outdoor and heavy industrial environments
- High-vibration machinery and equipment
- Wiring systems requiring robust dust/water/oil resistance
- Harsh conditions in manufacturing, energy, and infrastructure sectors
Key Benefits
- Enhanced connection stability under extreme vibration and tension
- Long service life with resistance to wear, corrosion, and impact
- Reliable sealing prevents leakage and protects internal components
- Easy installation improves efficiency while ensuring secure cable connections

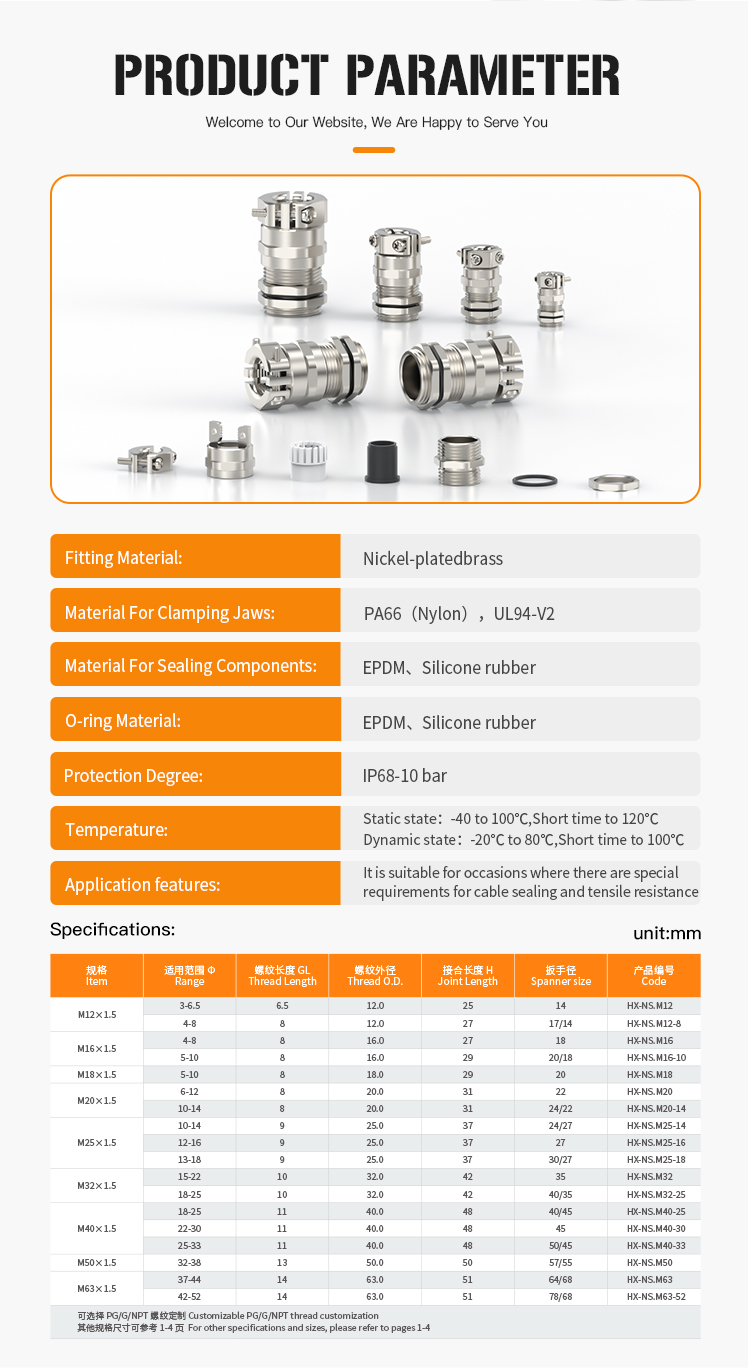

Product Specifications
unit: mm
| Item | Range | GL Thread Length | Thread O.D. | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 25 | 14 | HX-NS.M12 |
| 4-8 | 8 | 12.0 | 27 | 17/14 | HX-NS.M12-8 | |
| M16×1.5 | 4-8 | 8 | 16.0 | 27 | 18 | HX-NS.M16 |
| 5-10 | 8 | 16.0 | 29 | 20/18 | HX-NS.M16-10 | |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 22 | HX-NS.M18 |
| M20×1.5 | 6-12 | 8 | 20.0 | 31 | 22 | HX-NS.M20 |
| 10-14 | 8 | 20.0 | 31 | 24/22 | HX-NS.M20-14 | |
| M25×1.5 | 10-14 | 9 | 25.0 | 37 | 24/27 | HX-NS.M25-14 |
| 12-16 | 9 | 25.0 | 37 | 27 | HX-NS.M25-16 | |
| 13-18 | 9 | 25.0 | 37 | 30/27 | HX-NS.M25-18 | |
| M32×1.5 | 15-22 | 10 | 32.0 | 42 | 35 | HX-NS.M32 |
| 18-25 | 10 | 32.0 | 42 | 40/35 | HX-NS.M32-25 | |
| M40×1.5 | 18-25 | 11 | 40.0 | 48 | 40/45 | HX-NS.M40-25 |
| 22-30 | 11 | 40.0 | 48 | 45 | HX-NS.M40-30 | |
| 25-33 | 11 | 40.0 | 48 | 50/45 | HX-NS.M40-33 | |
| M50×1.5 | 32-38 | 13 | 50.0 | 50 | 57/55 | HX-NS.M50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 51 | 64/68 | HX-NS.M63 |
| 42-52 | 14 | 63.0 | 51 | 78/68 | HX-NS.M63-52 | |
| Customizable PG / G / NPT thread customization available | ||||||
Detailed Images
Frequently Asked Questions
What is the advantage of a double-locking cable gland?
The double-locking mechanism integrates a thread with a ferrule or dual threads to provide significantly higher mechanical clamping force. This prevents cable slippage and loosening caused by severe mechanical pulling forces and high vibrations.
What does the IP68 ingress protection rating ensure?
An IP68 rating guarantees complete protection against dust ingress and continuous underwater immersion under specified pressure conditions. It ensures electrical enclosures remain fully protected against moisture, dirt, and industrial oils.
What thread types can be customized for this product?
Standard configurations feature Metric (M) threads. We also provide full customization options for PG, G (BSPP), and NPT threads to match your specific regional or machinery standards.
Can these cable glands withstand outdoor extreme environments?
Yes, manufactured from high-quality metal (such as nickel-plated brass or stainless steel), these glands provide exceptional UV, corrosion, impact, and high-temperature resistance suitable for outdoor heavy-duty industrial applications.
How do I choose the correct gland size for my cable?
Measure the overall outer diameter (O.D.) of your cable and select the product code where your cable diameter falls within the specified clamping "Range" shown in our parameter chart.
Are specialized tools required for installation?
No specialized machinery is required. The compact design allows quick manual pre-assembly and can be securely tightened using standard wrenches matching the specified spanner size.
