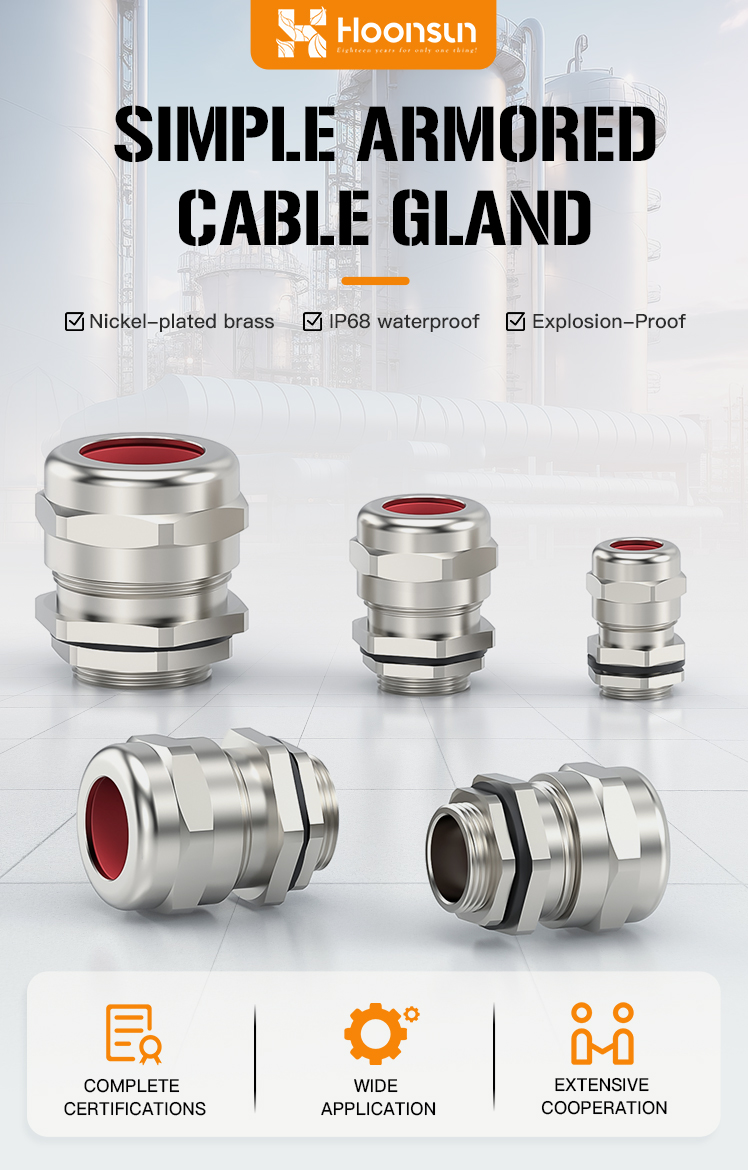

China Simple Armored Cable Gland with Dual IP68 and UL Certification Supplier, Factory
Product Description
Product Highlights
Hand-Tightened Assembly
Requires no special tools for fast and efficient installation.
Armored Cable Locking
Securely grips the armor layer to resist pull and vibration forces.
Dual Certification
Independently certified for both IP68 water immersion and UL safety requirements.
Key Benefits
Saves Time & Labor
Streamlined installation process reduces overall construction time.
Enhanced Mechanical Security
Prevents joint loosening for stable, long-lasting connections.
Essential Environmental Sealing
Effectively blocks out dust and moisture to protect internal components.
Applications
General industrial control panel and mechanical wiring installation.
Projects that focus on cost control need to adopt reliable and certified cable connection methods.
Outdoor lighting fixtures, water treatment systems, and outdoor junction boxes.
Conveyor systems, HVAC equipment, and other vibration-prone machinery.
In petrochemical plants and mining operations, the requirement for sealing performance is extremely strict.

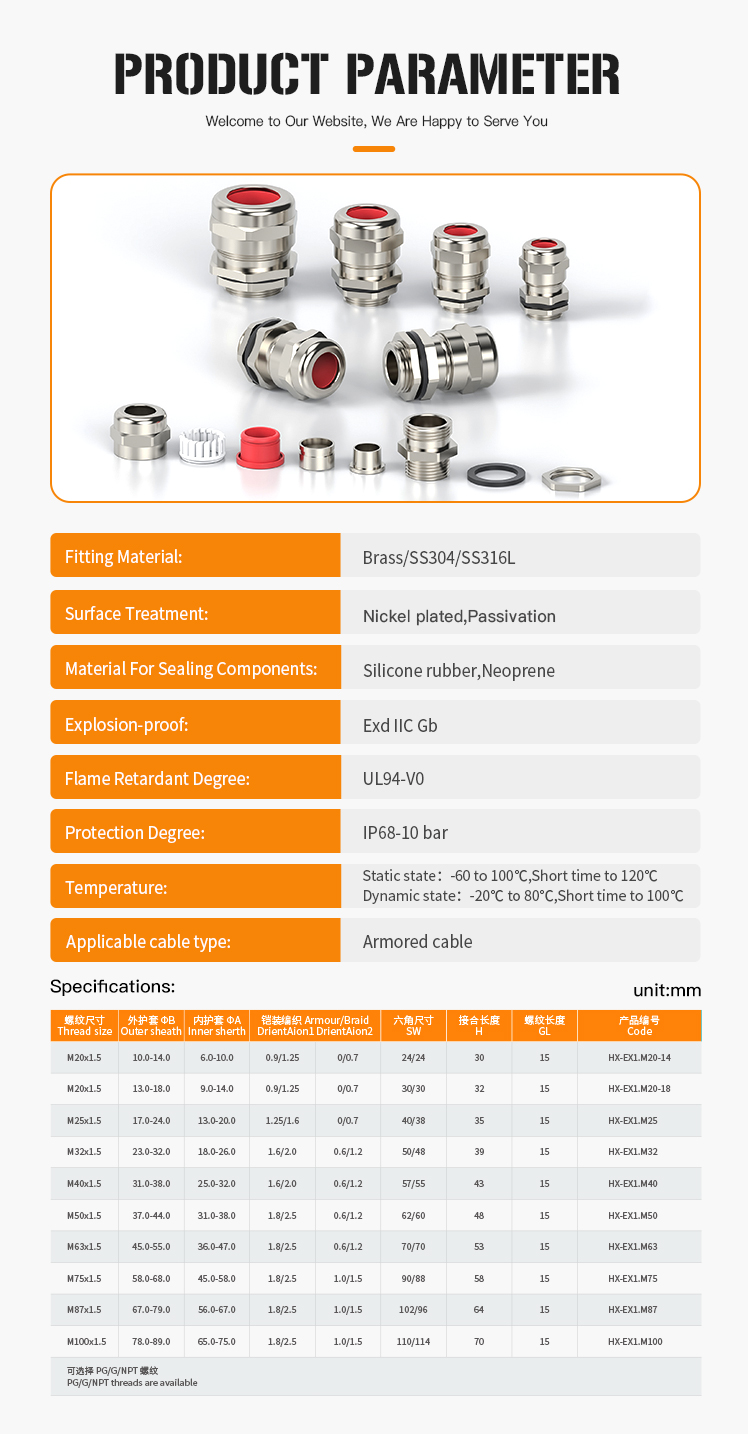

Product Parameter
| Thread size | B Outer sheath | A Inner sherth | Armour/Braid DrientAion1 / DrientAion2 |
SW | H | GL | Code | |
|---|---|---|---|---|---|---|---|---|
| M20x1.5 | 10.0-14.0 | 6.0-10.0 | 0.9/1.25 | 0/0.7 | 24/24 | 30 | 15 | HX-EX1.M20-14 |
| M20x1.5 | 13.0-18.0 | 9.0-14.0 | 0.9/1.25 | 0/0.7 | 30/30 | 32 | 15 | HX-EX1.M20-18 |
| M25x1.5 | 17.0-24.0 | 13.0-20.0 | 1.25/1.6 | 0/0.7 | 40/38 | 35 | 15 | HX-EX1.M25 |
| M32X1.5 | 23.0-32.0 | 18.0-26.0 | 1.6/2.0 | 0.6/1.2 | 50/48 | 39 | 15 | HX-EX1.M32 |
| M40X1.5 | 31.0-38.0 | 25.0-32.0 | 1.6/2.0 | 0.6/1.2 | 57/55 | 43 | 15 | HX-EX1.M40 |
| M50x1.5 | 37.0-44.0 | 31.0-38.0 | 1.8/2.5 | 0.6/1.2 | 62/60 | 48 | 15 | HX-EX1.M50 |
| M63x1.5 | 45.0-55.0 | 36.0-47.0 | 1.8/2.5 | 0.6/1.2 | 70/70 | 53 | 15 | HX-EX1.M63 |
| M75x1.5 | 58.0-68.0 | 45.0-58.0 | 1.8/2.5 | 1.0/1.5 | 90/88 | 58 | 15 | HX-EX1.M75 |
| M87X1.5 | 67.0-79.0 | 56.0-67.0 | 1.8/2.5 | 1.0/1.5 | 102/96 | 64 | 15 | HX-EX1.M87 |
| M100x1.5 | 78.0-89.0 | 65.0-75.0 | 1.8/2.5 | 1.0/1.5 | 110/114 | 70 | 15 | HX-EX1.M100 |
| PG / G / NPT threads are available | ||||||||
Detailed Images
Frequently Asked Questions

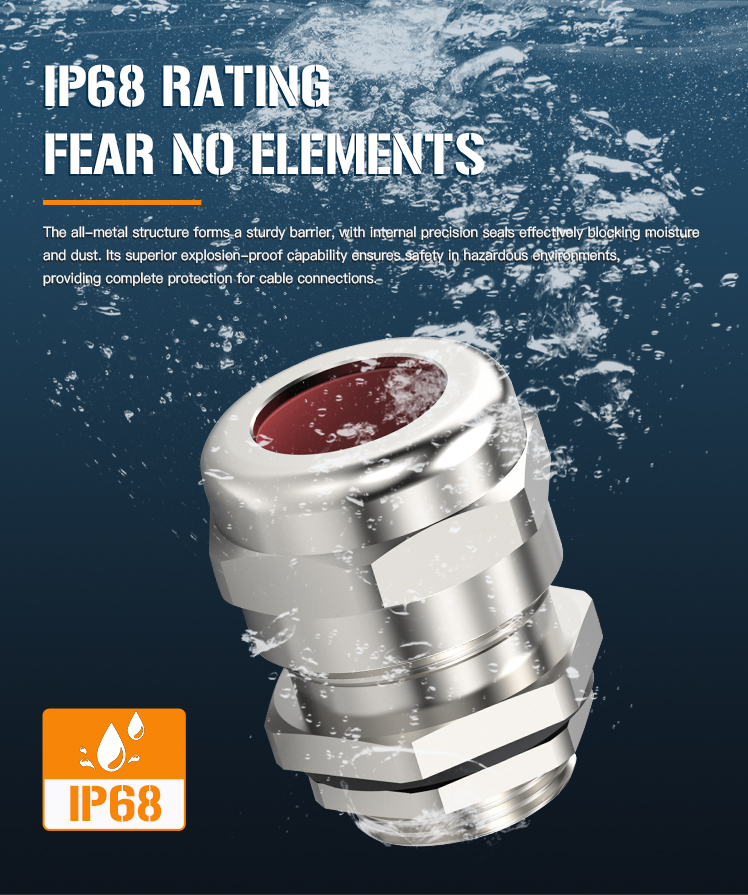

What level of ingress protection does this cable gland provide?
This cable gland is dual-certified and features IP68-rated protection, ensuring reliable resistance against continuous water immersion and dust ingress in harsh environments.
Can these cable glands be installed without specialized tooling?
Yes, they are engineered for hand-tightened assembly, requiring no specialized tools, which significantly speeds up wiring and reduces overall labor costs.
What types of thread standards are supported?
Standard metric sizes range from M20x1.5 up to M100x1.5. Additionally, PG, G, and NPT thread configurations can be provided based on project requirements.

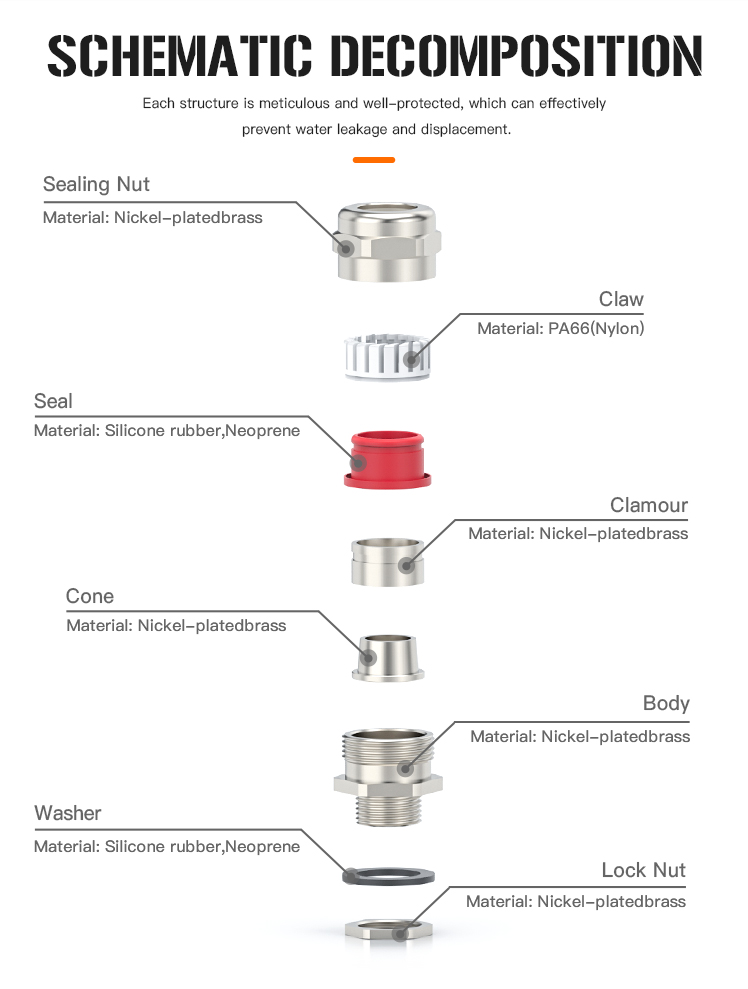

How does the gland protect armored cables against mechanical stress?
It features an armored cable locking mechanism that firmly grips the armor layer, offering outstanding strain relief against strong pull forces and equipment vibrations.
What certifications do these cable glands hold?
The product holds independent dual certifications for IP68 environmental sealing and UL safety compliance, meeting rigorous global industrial specifications.
What typical industries and machinery utilize this gland?
They are widely used across industrial control panels, outdoor lighting fixtures, HVAC systems, conveyors, water treatment plants, petrochemical facilities, and mining sites.
