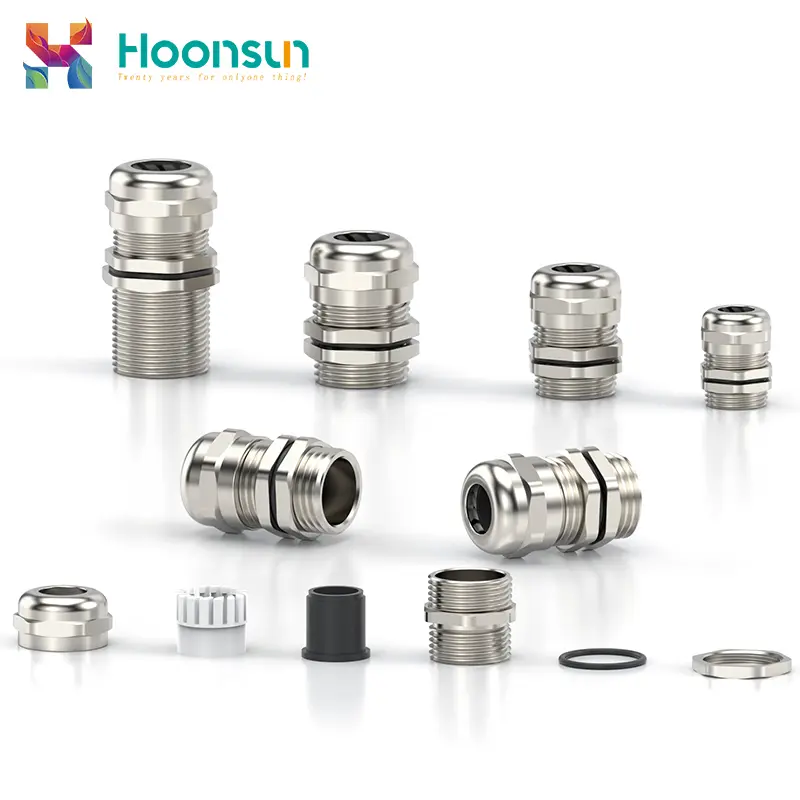

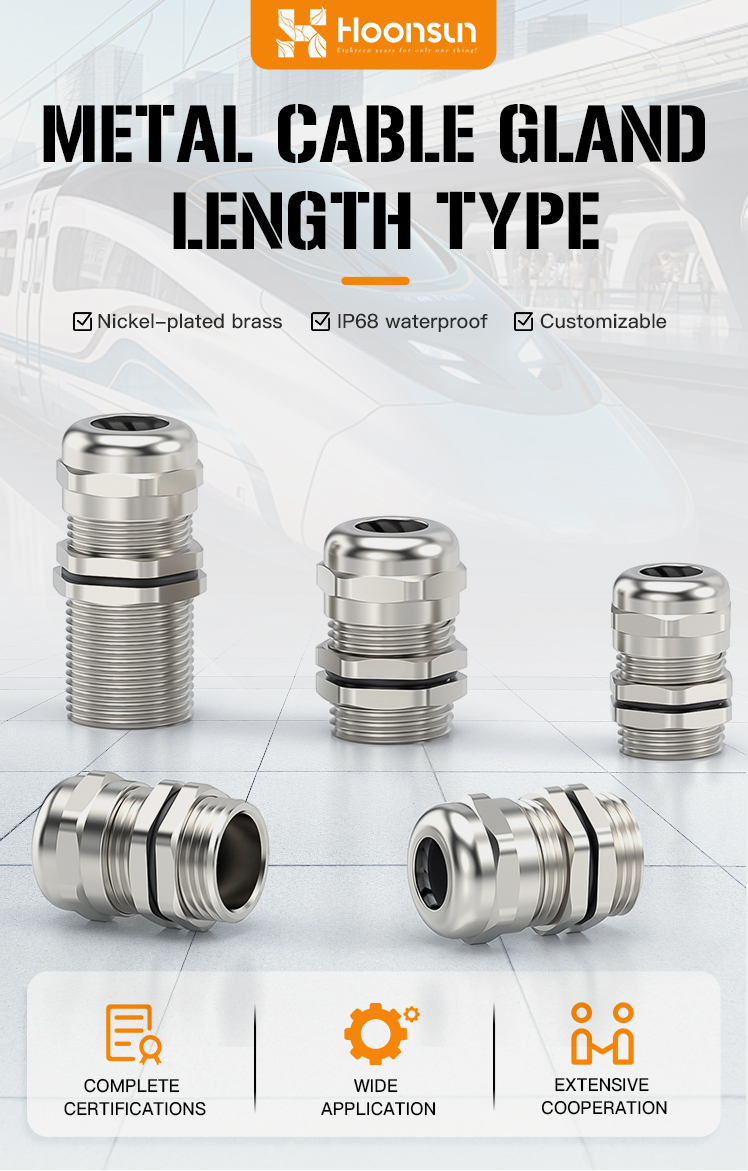

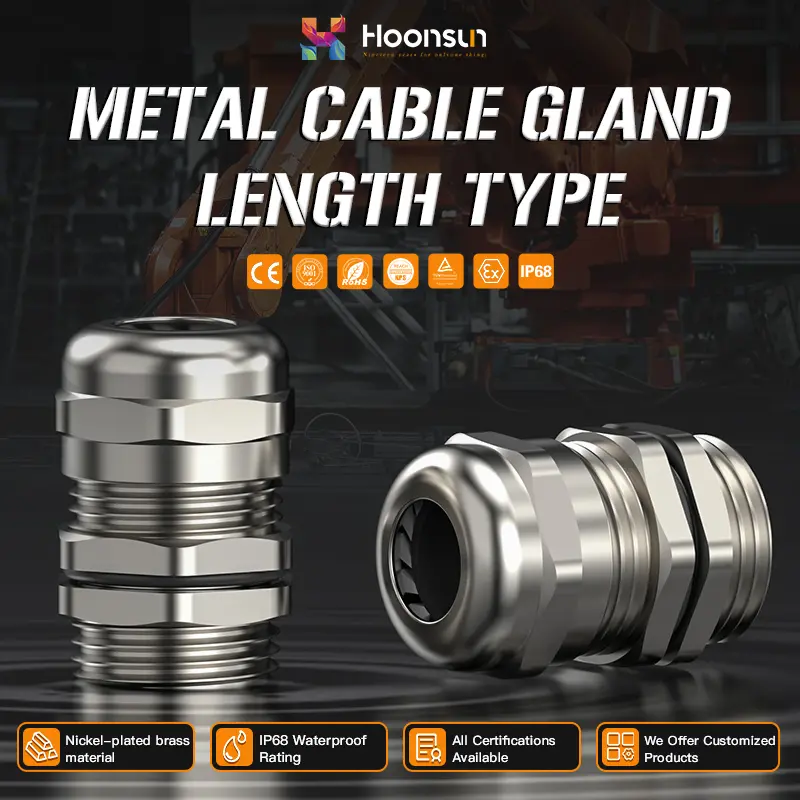

Product Description
Product Highlights
Extended Body for Special Scenarios
Longer main body than conventional models, enabling penetration into deep-cavity equipment or thick-walled cabinets. Suitable for long-distance cable penetration installation, avoiding excessive cable bending.
Full-Length Enhanced Protection
The extended section maintains a complete sealing structure with IP65+ protection rating, providing full-length dustproof, waterproof, and oil-proof performance, adaptable to harsh environments like damp and dusty areas.
Secure Connection with Strong Anti-Disturbance
Equipped with high-strength clamping components and an anti-slip structure, featuring excellent tensile and anti-vibration performance to prevent loosening caused by long-term use or external forces.
Wide Compatibility & Easy Installation
Compatible with various cable specifications and thread standards (PG, NPT, and Metric), allowing quick manual assembly. Suitable for special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.
Key Benefits
Secure and Watertight Seal
Designed for installations requiring longer thread engagement, providing a reliable seal through thick or double-layered enclosure walls.

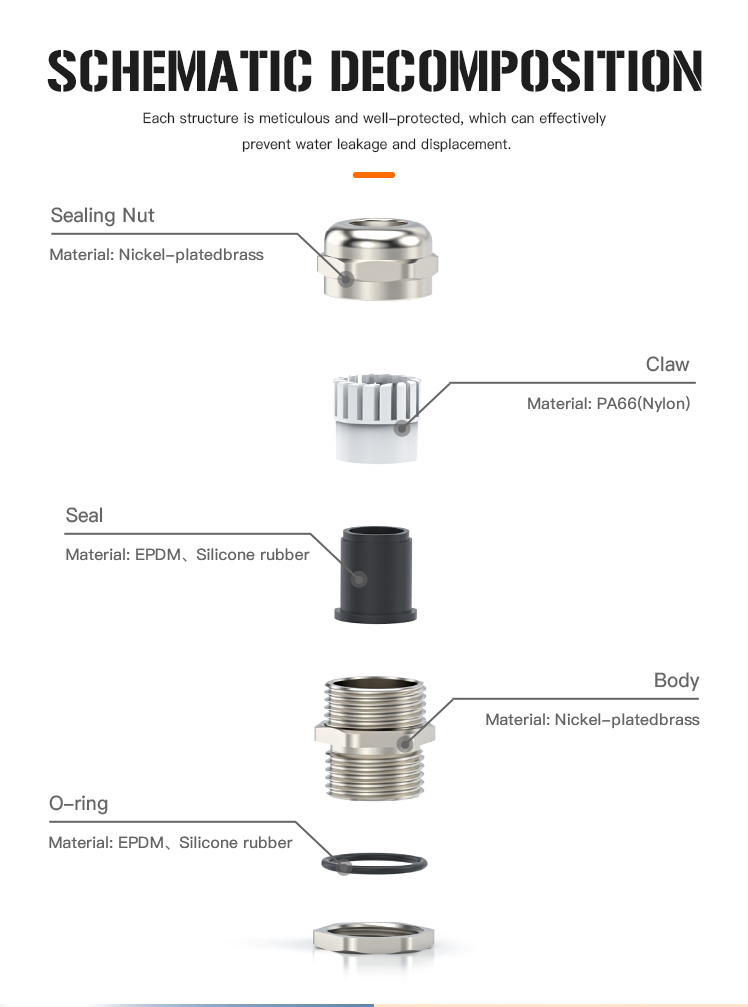

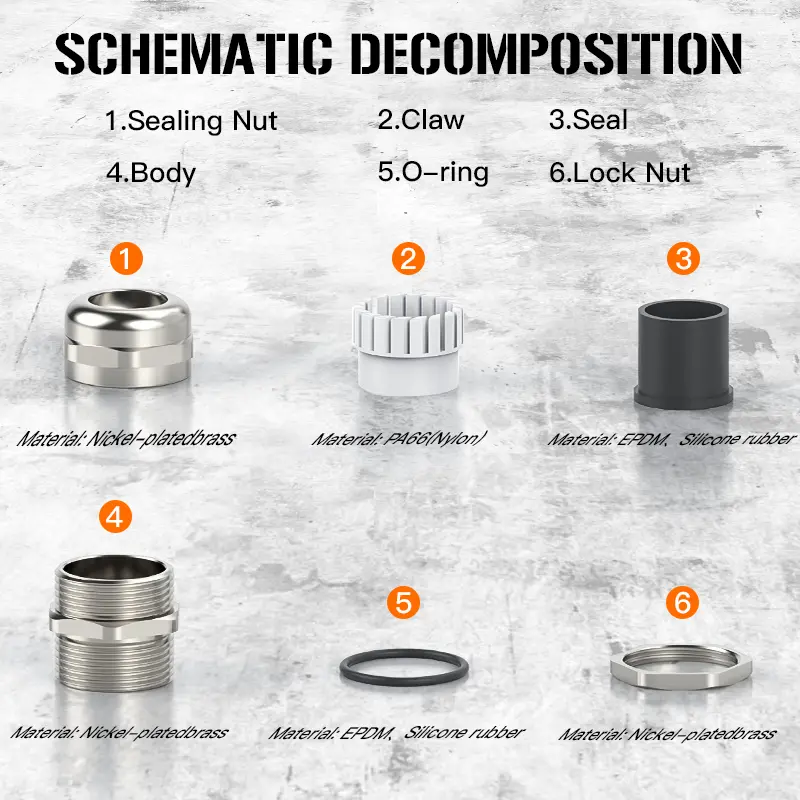

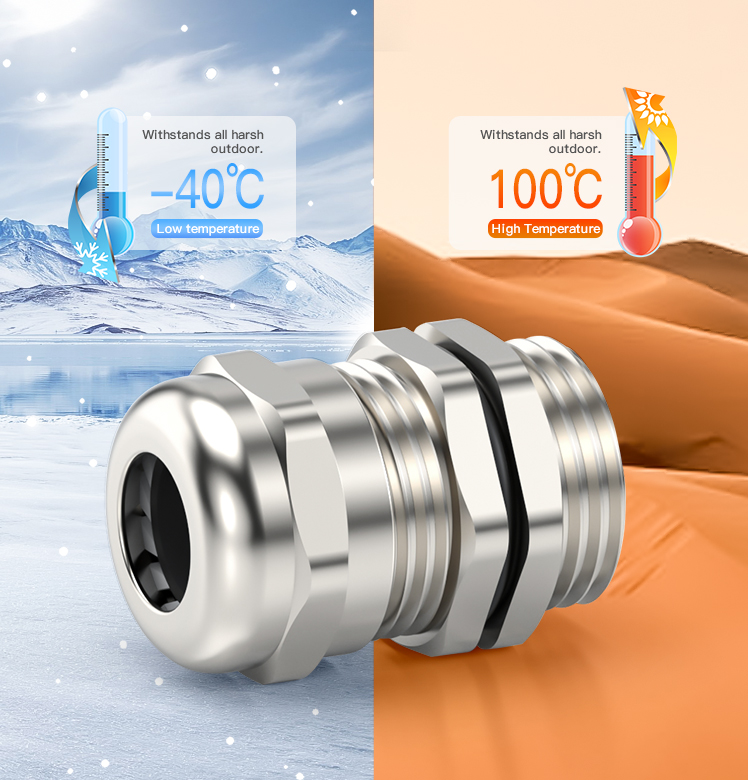

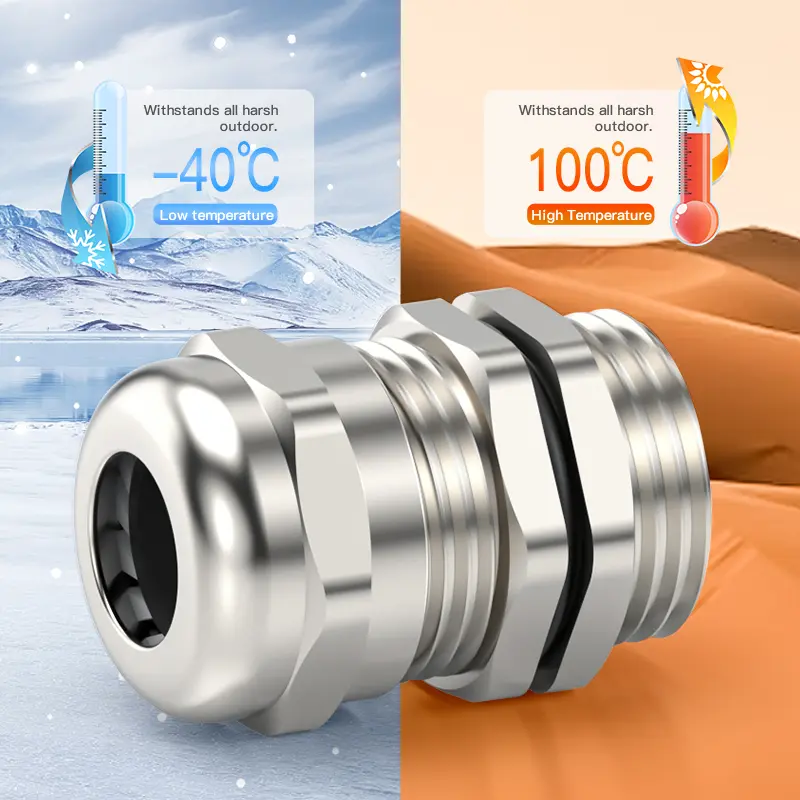

Durability and Corrosion Resistance
Manufactured from high-quality nickel-plated brass or stainless steel, offering excellent corrosion resistance and long-term mechanical stability.

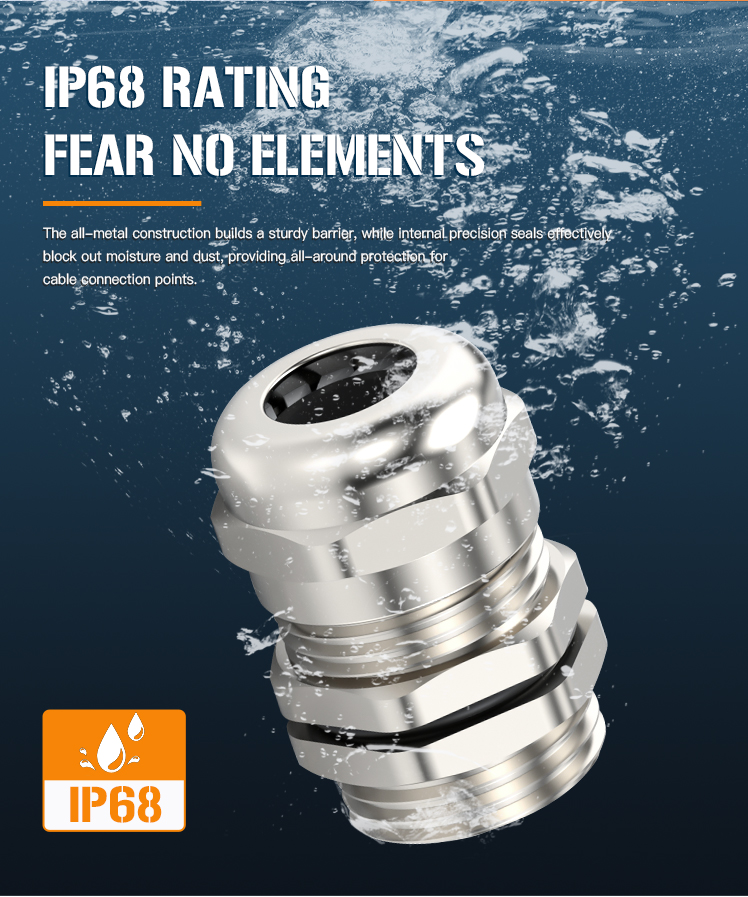

IP68 Waterproof and Dustproof Protection
Precision-machined threads and advanced sealing rings ensure maximum protection against moisture, oil, and environmental exposure.
Strain Relief and Electrical Continuity
Maintains excellent strain relief and grounding, ideal for demanding applications.
Compliance with International Standards
Complies with CE, UL, and RoHS, ensuring a durable and reliable solution for professional-grade cable protection.
Applications
Deep junction boxes, armored cable fittings, or control panels with insulated barriers.
Power systems, marine installations, automation equipment, and heavy machinery.
Complex cable routing and thick-panel enclosures in harsh industrial environments.
Special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.

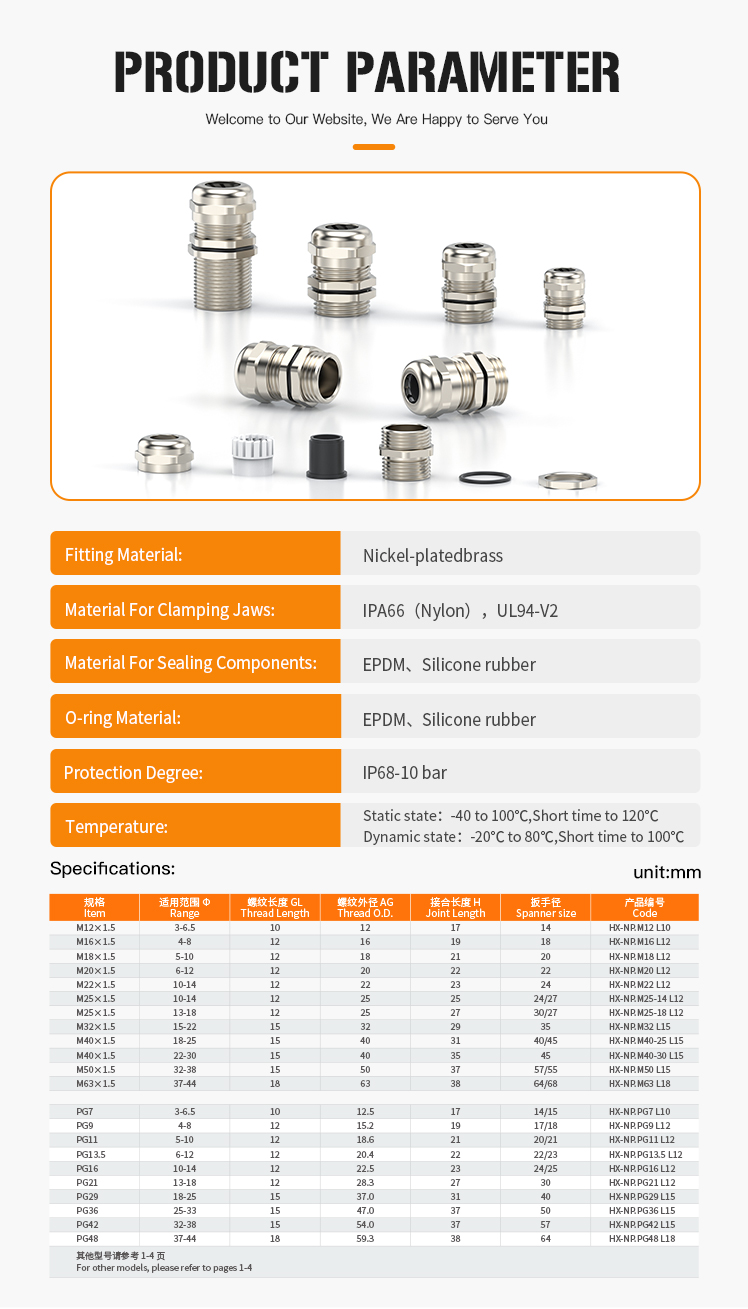

Product Parameters
Unit: mm

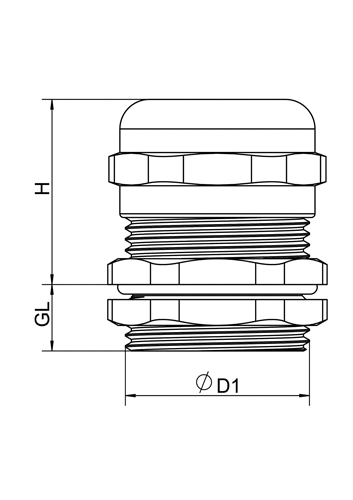

| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 10 | 12 | 17 | 14 | HX-NP.M12 L10 |
| M16×1.5 | 4-8 | 12 | 16 | 19 | 18 | HX-NP.M16 L12 |
| M18×1.5 | 5-10 | 12 | 18 | 21 | 20 | HX-NP.M18 L12 |
| M20×1.5 | 6-12 | 12 | 20 | 22 | 22 | HX-NP.M20 L12 |
| M22×1.5 | 10-14 | 12 | 22 | 23 | 24 | HX-NP.M22 L12 |
| M25×1.5 | 10-14 | 12 | 25 | 25 | 24/27 | HX-NP.M25-14 L12 |
| M25×1.5 | 13-18 | 12 | 25 | 27 | 30/27 | HX-NP.M25-18 L12 |
| M32×1.5 | 15-22 | 15 | 32 | 29 | 35 | HX-NP.M32 L15 |
| M40×1.5 | 18-25 | 15 | 40 | 31 | 40/45 | HX-NP.M40-25 L15 |
| M40×1.5 | 22-30 | 15 | 40 | 35 | 45 | HX-NP.M40-30 L15 |
| M50×1.5 | 32-38 | 15 | 50 | 37 | 57/55 | HX-NP.M50 L15 |
| M63×1.5 | 37-44 | 18 | 63 | 38 | 64/68 | HX-NP.M63 L18 |
| PG7 | 3-6.5 | 10 | 12.5 | 17 | 14/15 | HX-NP.PG7 L10 |
| PG9 | 4-8 | 12 | 15.2 | 19 | 17/18 | HX-NP.PG9 L12 |
| PG11 | 5-10 | 12 | 18.6 | 21 | 20/21 | HX-NP.PG11 L12 |
| PG13.5 | 6-12 | 12 | 20.4 | 22 | 22/23 | HX-NP.PG13.5 L12 |
| PG16 | 10-14 | 12 | 22.5 | 23 | 24/25 | HX-NP.PG16 L12 |
| PG21 | 13-18 | 12 | 28.3 | 27 | 30 | HX-NP.PG21 L12 |
| PG29 | 18-25 | 15 | 37.0 | 31 | 40 | HX-NP.PG29 L15 |
| PG36 | 25-33 | 15 | 47.0 | 37 | 50 | HX-NP.PG36 L15 |
| PG42 | 32-38 | 15 | 54.0 | 37 | 57 | HX-NP.PG42 L15 |
| PG48 | 37-44 | 18 | 59.3 | 38 | 64 | HX-NP.PG48 L18 |
