Engineered Cable Termination & Sealing Systems
Explore our core selection of certified waterproof, double compression, and explosion-resistant cable glands, liquid quick-couplers, and enclosure ventilation components developed in Liushi, Yueqing.
Macro Industrial Architecture: Why Double Compression Technology Governs Critical Assets
In modern industrial facilities, the integrity of high-voltage transmission, instrumentation feeds, and hazardous-area automation relies entirely on the cable entry point. Unarmored single compression fittings merely pinch the outer jacket to resist moisture ingress. However, in heavy petrochemical refineries, floating production storage and offloading (FPSO) vessels, wind turbine transition pieces, and rail transit networks, cables face continuous longitudinal shear, severe harmonic vibration, high static water pressures, and corrosive chemical attack.
A true double compression cable gland provides mechanical separation and dual-stage sealing. It secures the cable's inner sheath with an elastomeric displacement seal while independently clamping the metallic armor (Steel Wire Armor - SWA, Steel Tape Armor - STA, or Aluminum Wire Armor - AWA) via precision-machined armor cones and clamping rings. Simultaneously, an outer environmental compression seal locks against the exterior sheath, creating an impervious dual barrier.
Polymeric inner sheaths tend to undergo plastic deformation (cold flow) under sustained mechanical stress. HOONSUN's double compression internal sealing rings distribute radial hoop stress evenly, preventing insulation extrusion while guaranteeing flameproof Ex d containment under IEC/EN 60079-1 standards.
Three-Zone Mechanical Locking Mechanism
The double compression architecture engineered by Zhejiang Hongxiang Connector Co., Ltd. (HOONSUN) isolates dynamic mechanical loads from electrical conductors across three distinct operational zones:
- Zone A (Inner Seal): Gas-tight radial displacement seal compresses onto inner cable bedding.
- Zone B (Armor Termination): Low-impedance 360-degree conical grip guaranteeing electrical earth continuity.
- Zone C (Outer Seal): High-grade Neoprene/Silicone ingress boot preventing brine and chemical entry.
Double Compression vs Alternative Cable Termination Methodologies
A rigorous metallurgical, mechanical, and ingress assessment comparing industrial cable glands across harsh, hazardous, and heavy commercial deployment scenarios.
| Evaluation Parameter | HOONSUN Double Compression Gland | Standard Single Compression | Barrier / Resin Gland | BW / CW Industrial Metal Glands |
|---|---|---|---|---|
| Primary Sealing Target | Dual: Inner Bedding + Outer Sheath | Outer Sheath Only | Compound Liquid Resin Block Around Cores | Armor Clamp + Outer Seal (CW) or Open (BW) |
| Explosion-Proof Ratings | Ex d IIC / Ex e II / Ex ta IIIC | Ex e / Ex tb (Non-Flameproof) | Ex d IIC (Mandatory for uncompacted cables) | Industrial General / Ex e (CW Selected) |
| Armor Clamping Capacity | 360° SWA, STA, AWA, Braided Screen | None (Unarmored Only) | SWA, Braid, Tape Armor Supported | Mechanical Armor Clamp Rings |
| Hydrostatic Pressure Rating | IP66 / IP68 (50m immersion, 24h) | IP66 / Typical IP68 (Limited depth) | IP68 (Severe deepwater pressure) | IP54 (BW) up to IP66 (CW) |
| Vibration & Pull-Out Resistance | Class A Pull-Out (>450N to 2500N) | Moderate (Friction grip on outer PVC) | Extreme (Solid cured compound) | High mechanical pull-out on armor |
| Installation Complexity & Speed | Fast, Re-enterable, Repeatable Torque | Ultra-Fast, Single Nut Torquing | Curing delay (4-24 hrs), non-reusable | Moderate multi-part assembly |
| Total Lifecycle Procurement Cost | Optimal TCO across 25+ Year Lifespan | Lowest Initial / High Field Failure Risk | Highest Initial Cost & High Labor Costs | Budget-friendly for non-Ex d onshore plants |
Metallurgical Superiority
We forge our metal gland components using premium lead-controlled CW614N/CW617N brass with electrolytic nickel plating (>= 5μm) or direct bar-turned AISI 304/316L austenitic stainless steel for permanent pitting corrosion resistance in C5-M marine environments.
- Zero micro-porosity bar extrusion
- Salt spray resistance exceeding 1,000 hrs
- Strict RoHS & REACH chemical compliance
EMC & Earth Continuity
High-frequency variable speed drives (VSD) and subsea pumps introduce severe electrical noise and fault currents. Our armor clamping cones ensure continuous 360-degree contact with cable braiding or armor, preserving equipment grounding with milliohm transfer impedance.
- Short-circuit fault current tested
- Low-impedance EMC shield grounding
- Eliminates inductive spark hazards
Thermal Resilience
Whether exposed to arctic conditions in LNG processing facilities (-60°C) or scorching desert ambient temperatures in the Middle East (+120°C), our precision-formulated silicone and halogen-free chloroprene sealing rings retain elasticity without embrittlement or compression set.
- Standard NBR: -40°C to +100°C
- Extended Silicone: -60°C to +180°C
- Fluorocarbon (FKM) for aggressive oils
Global Industrial Solutions & Localized Use Cases
From deep offshore drilling platforms in the North Sea to high-capacity battery energy storage containers across North America and Australia, HOONSUN delivers engineered cable gland assemblies matched to project-specific environmental profiles.
Offshore Oil & Gas Platforms, FPSOs & Petrochemical Complexes
In upstream hydrocarbon processing, offshore environments subject junction boxes, mud logging modules, and drive motors to constant saline wash, hydrogen sulfide (H2S), and hydrocarbon vapors. In these classified Zone 1 and Zone 2 hazardous areas, HOONSUN’s double compression explosion-proof cable glands provide certified Ex d flamepaths that quench internal combustion before flame propagation can ignite surrounding volatile atmospheres.
By securing the lead or elastomer inner bedding firmly while anchoring heavy galvanized steel wire armor (GSWA), our glands resist vessel heave, surge, and mechanical stress without sacrificing IP68 ingress protection.
Supplied over 45,000 sets of nickel-plated brass double compression cable glands (Metric M20 to M75, NPT 1/2" to 3") compliant with coastal IECEx requirements, resisting +55°C ambient thermal heat, extreme UV indices, and blowing abrasive desert sand.
Renewable Wind Towers, BESS & Data Centers
Modern utility-scale Battery Energy Storage Systems (BESS) and high-density AI data center computing clusters face high thermal loads and electromagnetic interference:

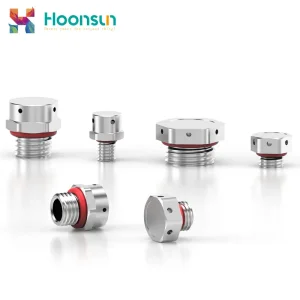

- Megawatt BESS Enclosures: UL-certified reinforced glands seal high-voltage DC distribution bus cables while integrated stainless breathers prevent enclosure condensation and vacuum collapse.

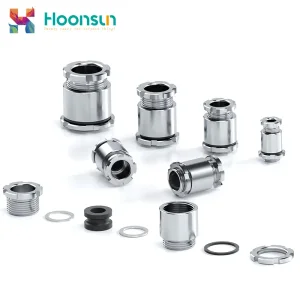

- Offshore Wind Nacelles: Flexible metal conduit unions and marine-grade JIS glands support continuous yaw and pitch rotations while resisting dynamic vibration fatigue.

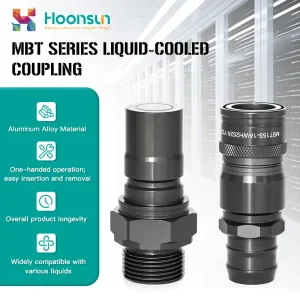

- Liquid Cooling Loops: HOONSUN dry-break quick-release liquid cooling couplings manage thermal dissipation in high-performance GPU compute blades without dripping or dielectric fluid contamination.
Next-Generation Technology Roadmap: Intelligent Industrial Connectivity
How HOONSUN is adapting cable termination hardware for the future of hydrogen economy infrastructure, extreme arctic operations, automated robotic assembly, and digitalized predictive asset health monitoring.
Hydrogen Infrastructure Seals
Hydrogen (H2) gas presents the lowest molecular weight and highest permeation rate among combustible gasses, falling under Gas Group IIC. HOONSUN is pioneering advanced fluorosilicone nano-composite seals engineered to mitigate micro-porosity diffusion and hydrogen embrittlement across high-pressure refueling stations and green electrolyzer plants.
- Zero micro-leakage sealing geometry
- Hydrogen-compatible metallurgy
- Tested under 700-bar cycling conditions
Smart Torque-Indicating Rings
Improper torque application remains the primary cause of cable gland field failure—either under-torquing (resulting in water penetration) or over-torquing (causing cable jacket crushing and core shorting). Our patent-pending visual feedback compression collars give installers tactile and optical confirmation once nominal sealing pressure is achieved.
- Built-in mechanical shear indicators
- Eliminates torque-wrench calibration error
- 50% reduction in contractor installation labor
Additive Lightweight Metallurgy
For aerospace, mobile military electronics, and lightweight robotics, standard machined brass creates payload penalties. We are developing selective laser melting (SLM) titanium and hard-anodized aeronautical aluminum alloy glands that deliver the mechanical strength of stainless steel at 40% of the gross weight.
- Ultra-high strength-to-weight ratio
- Complex internal wire retention geometries
- Superior dynamic shock resistance
Specialized Industrial Enclosure & Cable Gland Solutions

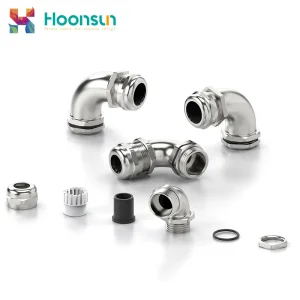

Review additional precision cable clamp models, 90-degree right angle connectors, flanged seal joints, and heavy-duty industrial glands manufactured directly in our certified facility.
Frequently Asked Engineering & Sourcing Questions
Authoritative technical guidance compiled by HOONSUN’s senior applications engineering team to streamline project specification, international compliance audits, and procurement decisions.
What is the fundamental mechanical difference between single and double compression cable glands?
When does international safety code mandate the use of explosion-proof double compression glands?
Which thread standards and entry lengths are manufactured by HOONSUN?
1. ISO Metric Threads (M): M12 through M100 with standard 1.5mm pitch (optional 2.0mm pitch for large frame glands), standard 15mm thread length or extended 20mm+ lengths for thick cast enclosures.
2. National Pipe Taper (NPT): ANSI/ASME B1.20.1 taper threads from 1/2" NPT up to 4" NPT, ideal for North American and offshore skid specifications.
3. German Panzergewinde (PG): PG7 up to PG48 for continental European control cabinetry and machine tool replacements.
4. British Gas Standard (G / BSPP): Parallel gas threads from G1/4" to G3".
