What does IP68 mean for a cable gland?

IP68 under IEC 60529 means the gland is dust-tight (6) and protected against continuous immersion in water (8) under conditions agreed between manufacturer and user. The rating is only valid when the cable outer diameter sits inside the gland's stated clamping range and the cap nut is tightened to the recommended torque.

Should I choose a metal or nylon cable gland?

Nylon PA66 glands are lightweight, corrosion-free and cost-effective for control cabinets, lighting and general outdoor equipment. Nickel-plated brass or stainless steel glands are preferred where you need mechanical strength, EMC shielding, higher vibration resistance, fire performance or exposure to oils, salt spray and UV.

Which thread standards do HOONSUN cable glands support?

HOONSUN supplies cable glands in Metric (M), PG, NPT and G (BSPP) threads. Thread length can be specified to match enclosure wall thickness, and custom thread forms are available for OEM projects.

Can HOONSUN produce custom or OEM cable glands?

Yes. As an in-house manufacturer since 2006, HOONSUN customizes thread type, thread length, seal material, clamping range, plating, colour and private-label packaging for OEM and distributor programs.

What certifications do HOONSUN cable glands carry?

Standard HOONSUN cable gland ranges are produced to CE and UL requirements with IP68 sealing performance. Test reports and certificate copies are supplied with the product catalog or on request for each specific part number.

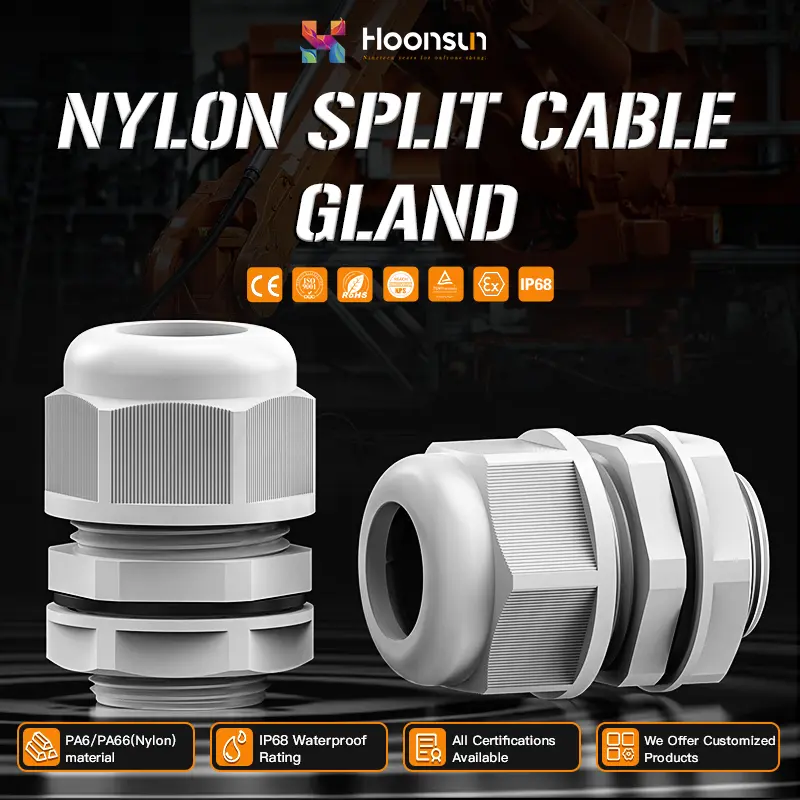

China Nylon Split Cable Gland with IP68 and UL Manufacturers, Supplier

1 / 5

China Nylon Split Cable Gland with IP68 and UL Manufacturers, Supplier

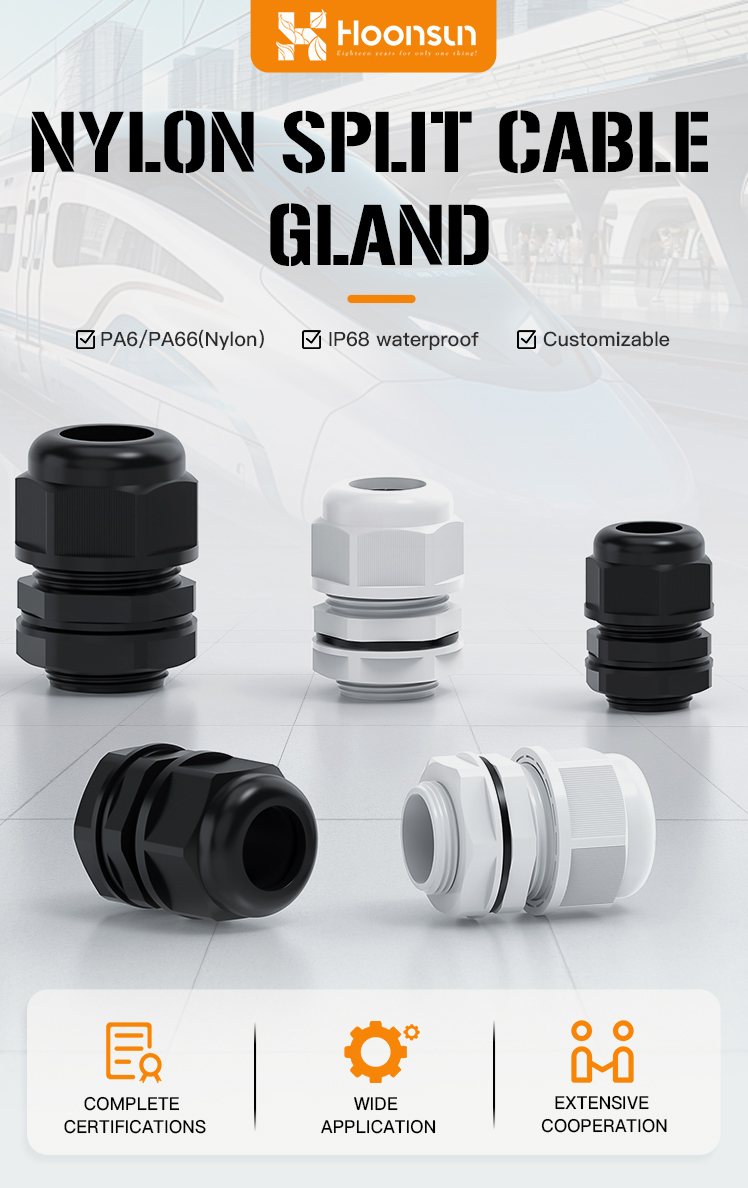

The Nylon Split Cable Gland enables convenient installation on pre-connector cables and provides durable, waterproof and dustproof protection in harsh environments.

Certified for Global Markets：

Send Inquiry

Product Description

Product Highlights

Innovative split-body design for easy installation/removal around pre-terminated cables.
Made from high-grade PA66 nylon, offering mechanical strength, flexibility, and durability.

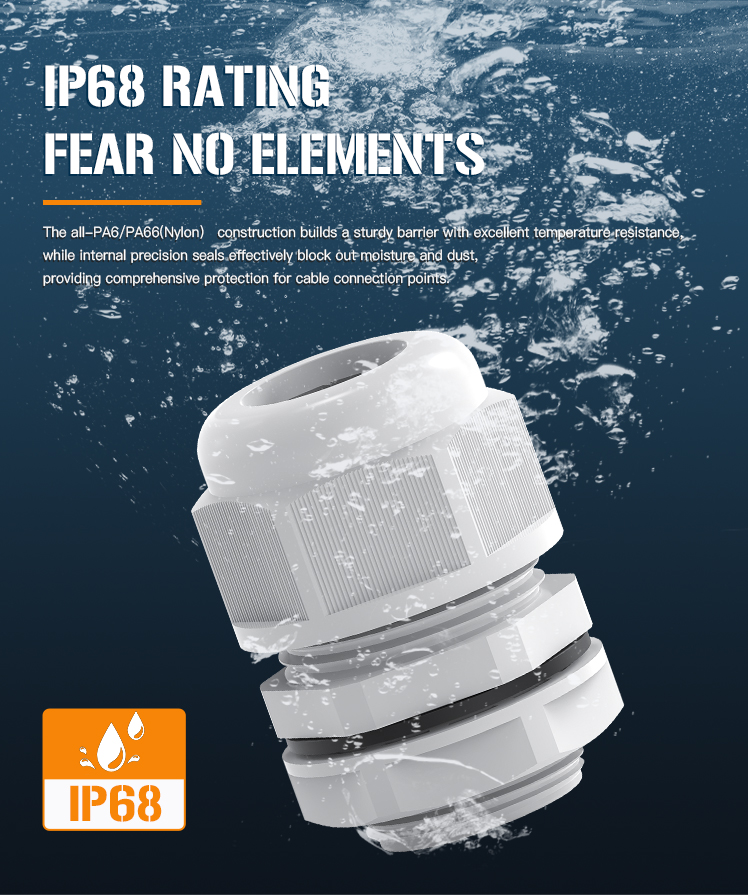

Provides a secure IP68-rated seal against water, dust, oil, and other contaminants.
Lightweight, tough, and features excellent impact resistance, UV stability, and corrosion protection.
Available in PG, NPT, and Metric thread types for international compatibility.
Complies with CE, RoHS, and UL standards.

Applications

Automation Systems
Control Cabinets
Robotics
Renewable Energy
Communication Equipment

Key Benefits

Split design for pre-terminated cable installation
Made from flame-retardant PA66 nylon
IP68 waterproof and dustproof protection
Quick installation and strong strain relief
UV and corrosion resistant
CE / UL / RoHS certified

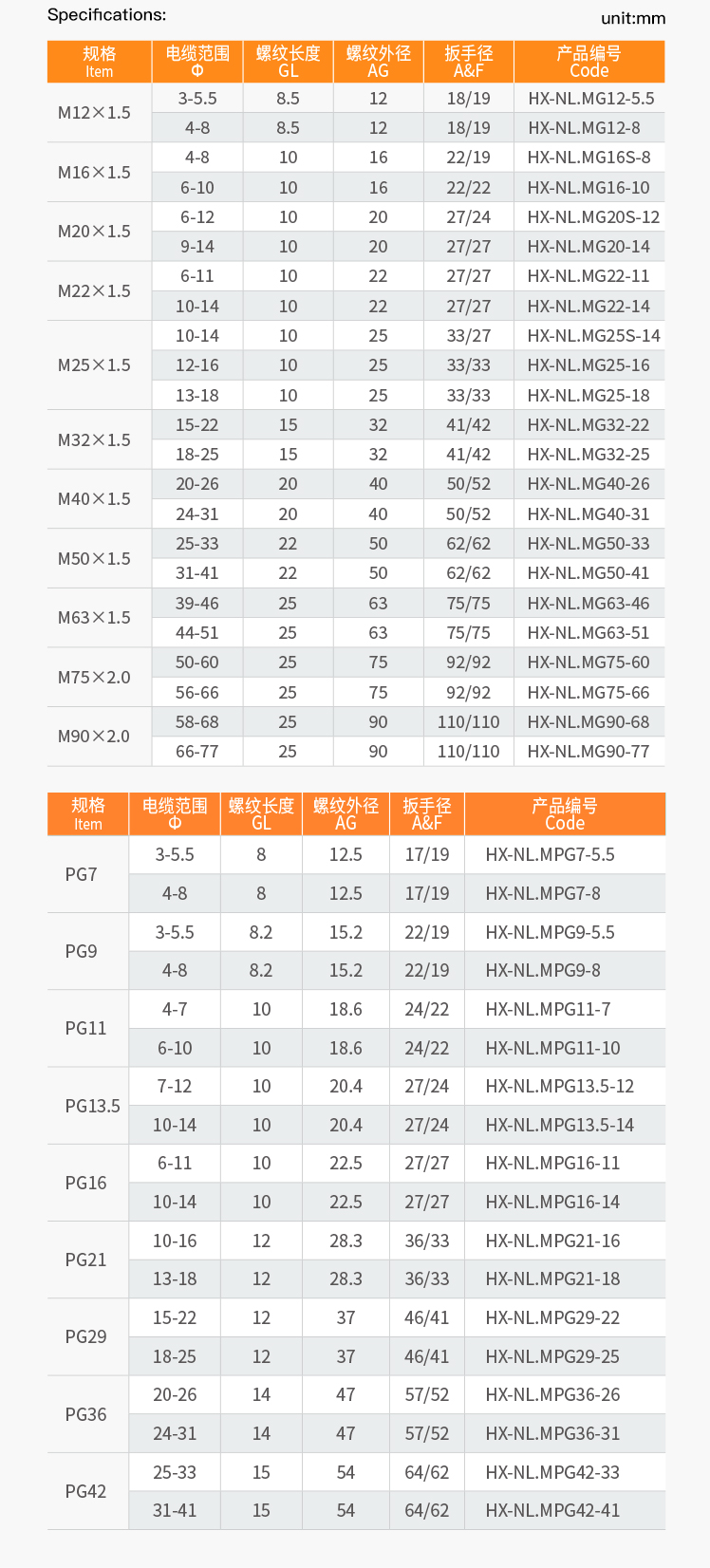

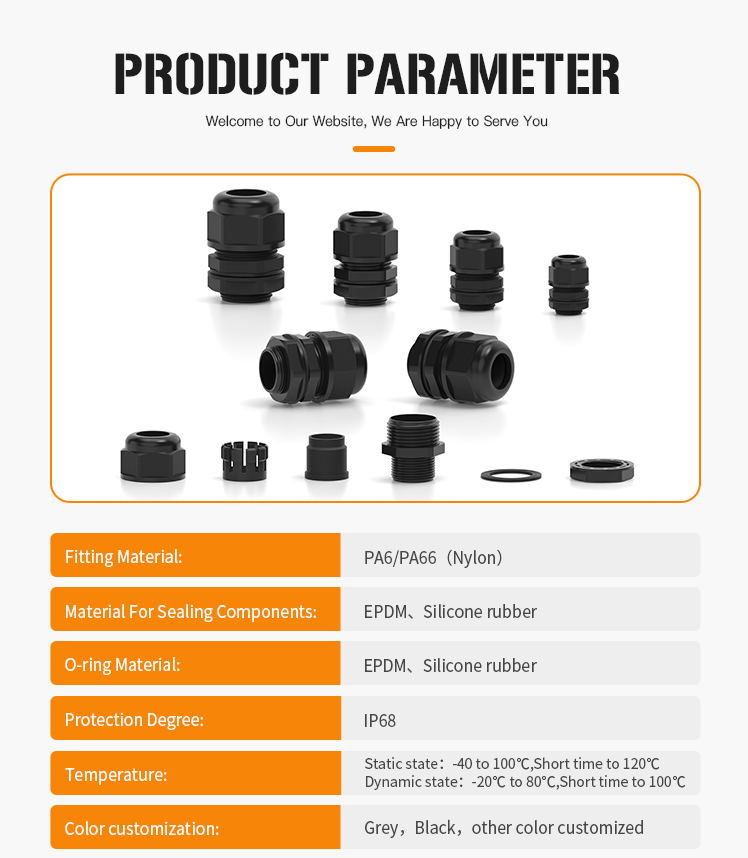

Product Parameter

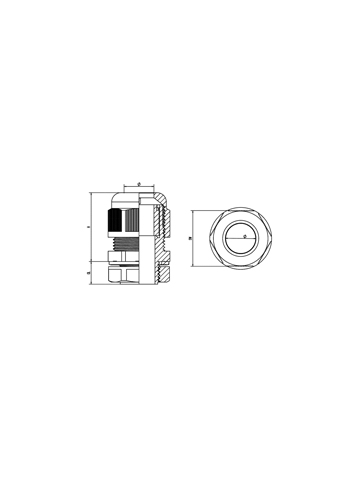

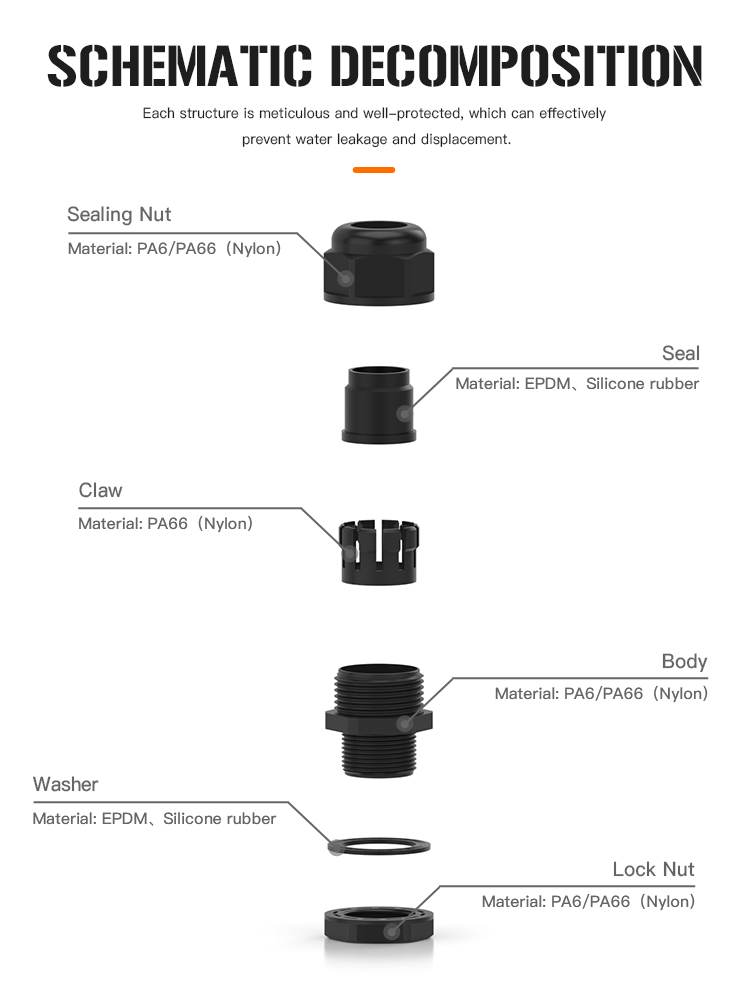

Nylon Split Cable Gland Technical Diagram

unit: mm

Item	Cable Range	GL Thread Length	AG Thread O.D.	A&F Spanner size	Code
M12×1.5	3-5.5	8.5	12	18/19	HX-NL.MG12-5.5
M12×1.5	4-8	8.5	12	18/19	HX-NL.MG12-8
M16×1.5	4-8	10	16	22/19	HX-NL.MG16S-8
M16×1.5	6-10	10	16	22/22	HX-NL.MG16-10
M20×1.5	6-12	10	20	27/24	HX-NL.MG20S-12
M20×1.5	9-14	10	20	27/27	HX-NL.MG20-14
M22×1.5	6-11	10	22	27/27	HX-NL.MG22-11
M22×1.5	10-14	10	22	27/27	HX-NL.MG22-14
M25×1.5	10-14	10	25	33/27	HX-NL.MG25S-14
	12-16	10	25	33/33	HX-NL.MG25-16
	13-18	10	25	33/33	HX-NL.MG25-18
M32×1.5	15-22	15	32	41/42	HX-NL.MG32-22
M32×1.5	18-25	15	32	41/42	HX-NL.MG32-25
M40×1.5	20-26	20	40	50/52	HX-NL.MG40-26
M40×1.5	24-31	20	40	50/52	HX-NL.MG40-31
M50×1.5	25-33	22	50	62/62	HX-NL.MG50-33
M50×1.5	31-41	22	50	62/62	HX-NL.MG50-41
M63×1.5	39-46	25	63	75/75	HX-NL.MG63-46
M63×1.5	44-51	25	63	75/75	HX-NL.MG63-51
M75×2.0	50-60	25	75	92/92	HX-NL.MG75-60
M75×2.0	56-66	25	75	92/92	HX-NL.MG75-66
M90×2.0	58-68	25	90	110/110	HX-NL.MG90-68
M90×2.0	66-77	25	90	110/110	HX-NL.MG90-77

Item	Cable Range	GL Thread Length	AG Thread O.D.	A&F Spanner size	Code
PG7	3-5.5	8	12.5	17/19	HX-NL.MPG7-5.5
PG7	4-8	8	12.5	17/19	HX-NL.MPG7-8
PG9	3-5.5	8.2	15.2	22/19	HX-NL.MPG9-5.5
PG9	4-8	8.2	15.2	22/19	HX-NL.MPG9-8
PG11	4-7	10	18.6	24/22	HX-NL.MPG11-7
PG11	6-10	10	18.6	24/22	HX-NL.MPG11-10
PG13.5	7-12	10	20.4	27/24	HX-NL.MPG13.5-12
PG13.5	10-14	10	20.4	27/24	HX-NL.MPG13.5-14
PG16	6-11	10	22.5	27/27	HX-NL.MPG16-11
PG16	10-14	10	22.5	27/27	HX-NL.MPG16-14
PG21	10-16	12	28.3	36/33	HX-NL.MPG21-16
PG21	13-18	12	28.3	36/33	HX-NL.MPG21-18
PG29	15-22	12	37	46/41	HX-NL.MPG29-22
PG29	18-25	12	37	46/41	HX-NL.MPG29-25
PG36	20-26	14	47	57/52	HX-NL.MPG36-26
PG36	24-31	14	47	57/52	HX-NL.MPG36-31
PG42	25-33	15	54	64/62	HX-NL.MPG42-33
PG42	31-41	15	54	64/62	HX-NL.MPG42-41

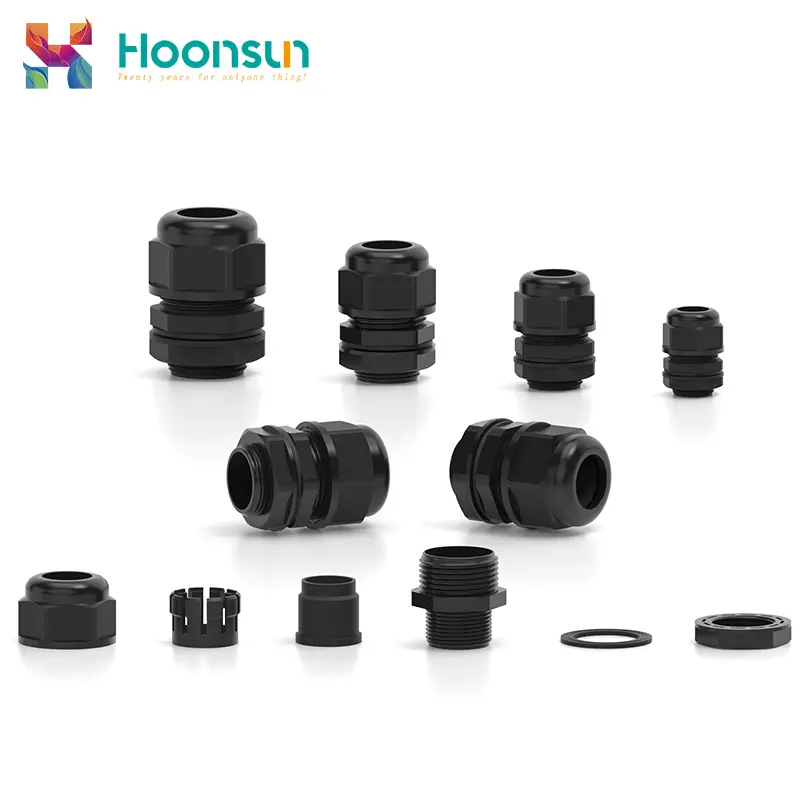

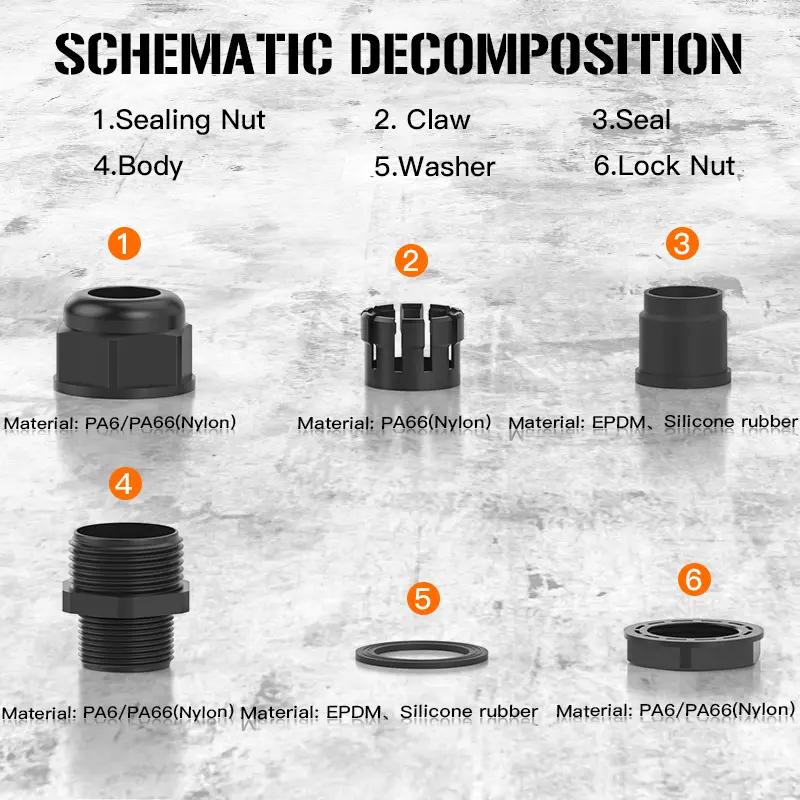

Detailed Image

Frequently Asked Questions

Q What is the primary advantage of a split cable gland?

The split-body design allows the gland to be installed directly around pre-terminated cables without needing to cut or disassemble attached connectors, saving significant time during installation and maintenance.

Q What ingress protection (IP) rating does this cable gland provide?

It offers an IP68 protection rating, ensuring dependable defense against dust, dirt, water submersion, oils, and other environmental contaminants.

Q What material is used to manufacture these cable glands?

The gland is manufactured from high-grade, flame-retardant PA66 nylon, which offers excellent impact resistance, UV stability, and corrosion resistance.

Q Which thread types and sizes are available?

The product is available in Metric (M12 to M90), PG (PG7 to PG42), and NPT thread configurations to support international machinery and enclosure standards.

Q What international compliance standards does this product meet?

The split cable gland complies with CE, RoHS, and UL safety and environmental standards, making it suitable for global industrial use.

Q Can these glands be used in outdoor and renewable energy setups?

Yes, thanks to their robust PA66 nylon construction, UV resistance, and IP68 waterproof performance, they are well suited for outdoor renewable energy systems, robotics, and automation enclosures.
