China MBD04S-1SMG012N-MBD04P-1SMG012N Supplier, Suppliers

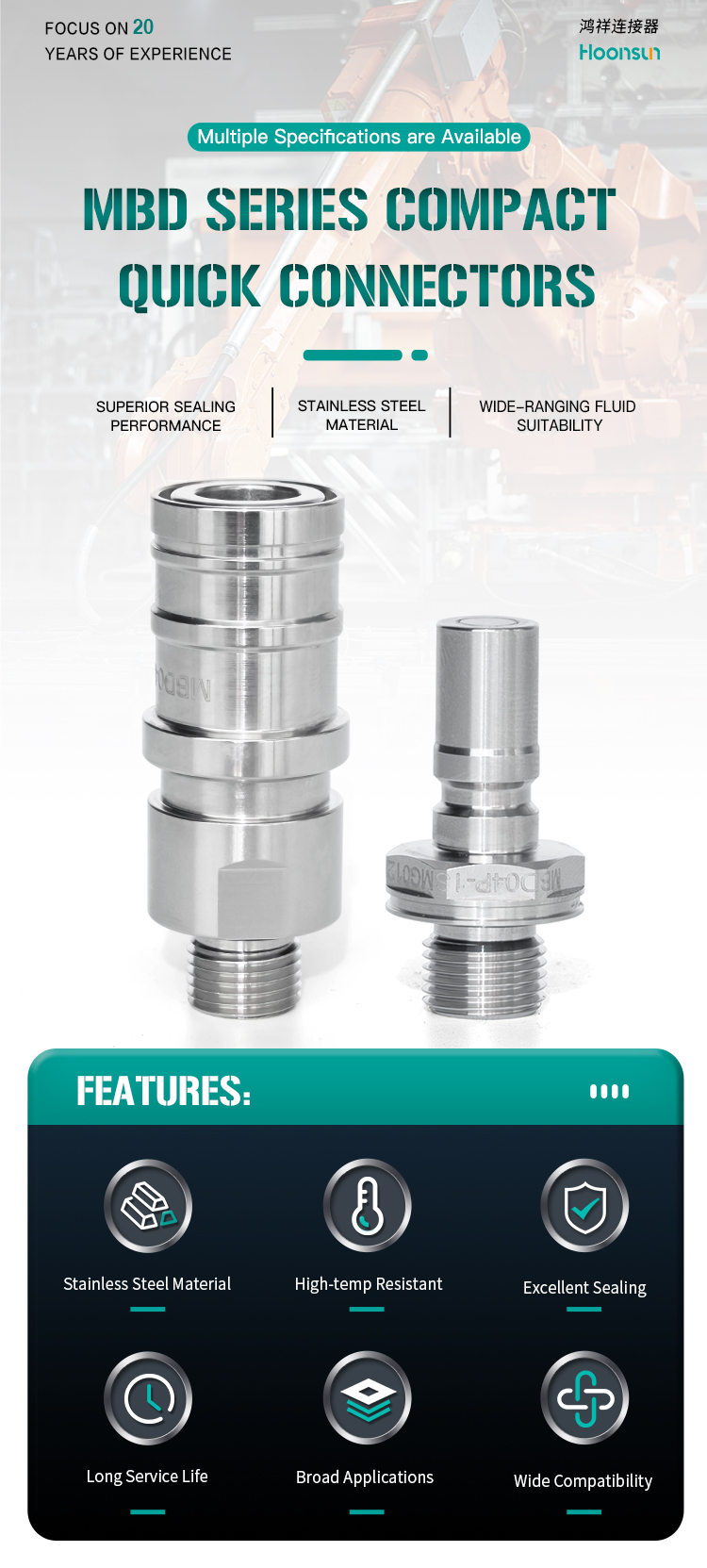

Product Description

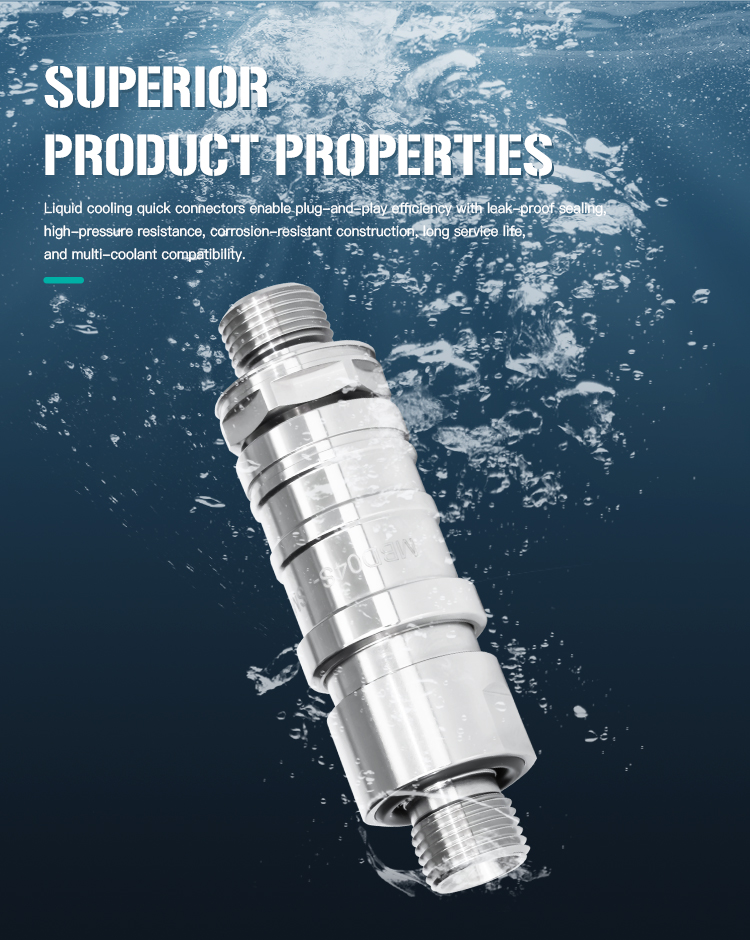

Key Features
Compact Design: Small footprint for space-constrained installations
316L Stainless Steel Construction: Excellent corrosion and chemical resistance
Superior Sealing: EPDM/NBR/FVMO sealing options for zero-leak performance
Wide Temperature Range: -55°C to 125°C, suitable for extreme environments
High Pressure Rating: 20bar working pressure, 80bar burst pressure
Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids

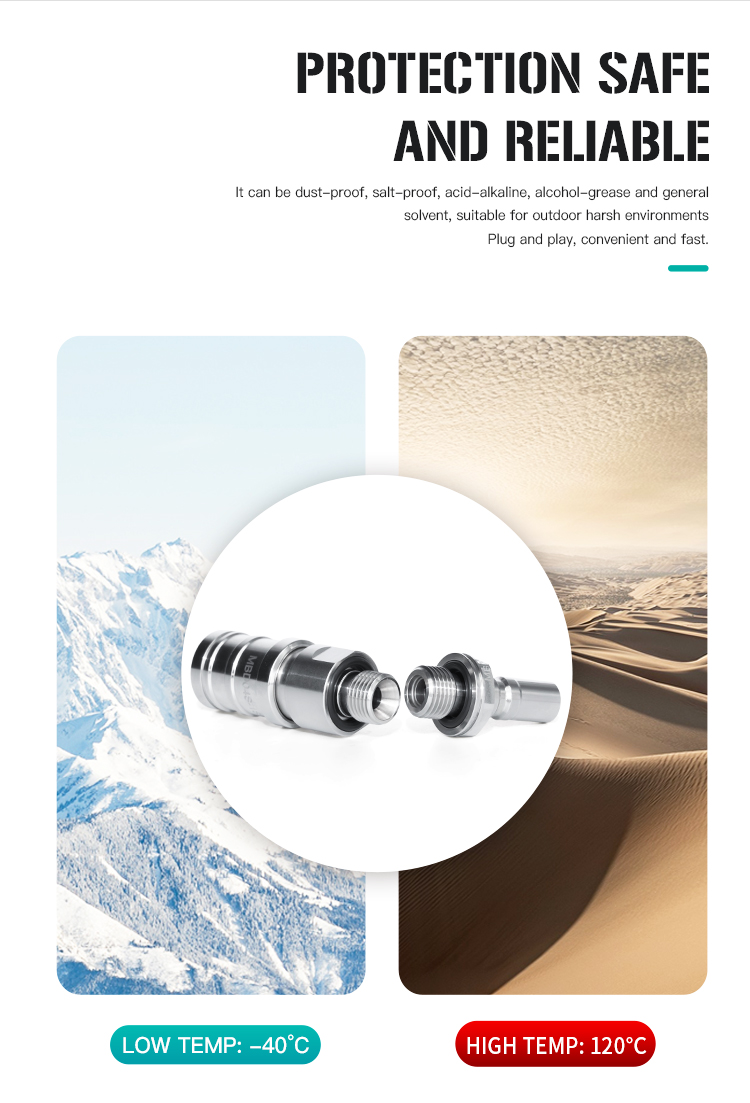

Rugged & Durable: Dust-proof, salt-proof, acid-alkali resistant, ideal for harsh conditions
Plug-and-Play: Fast, tool-free connection and disconnection

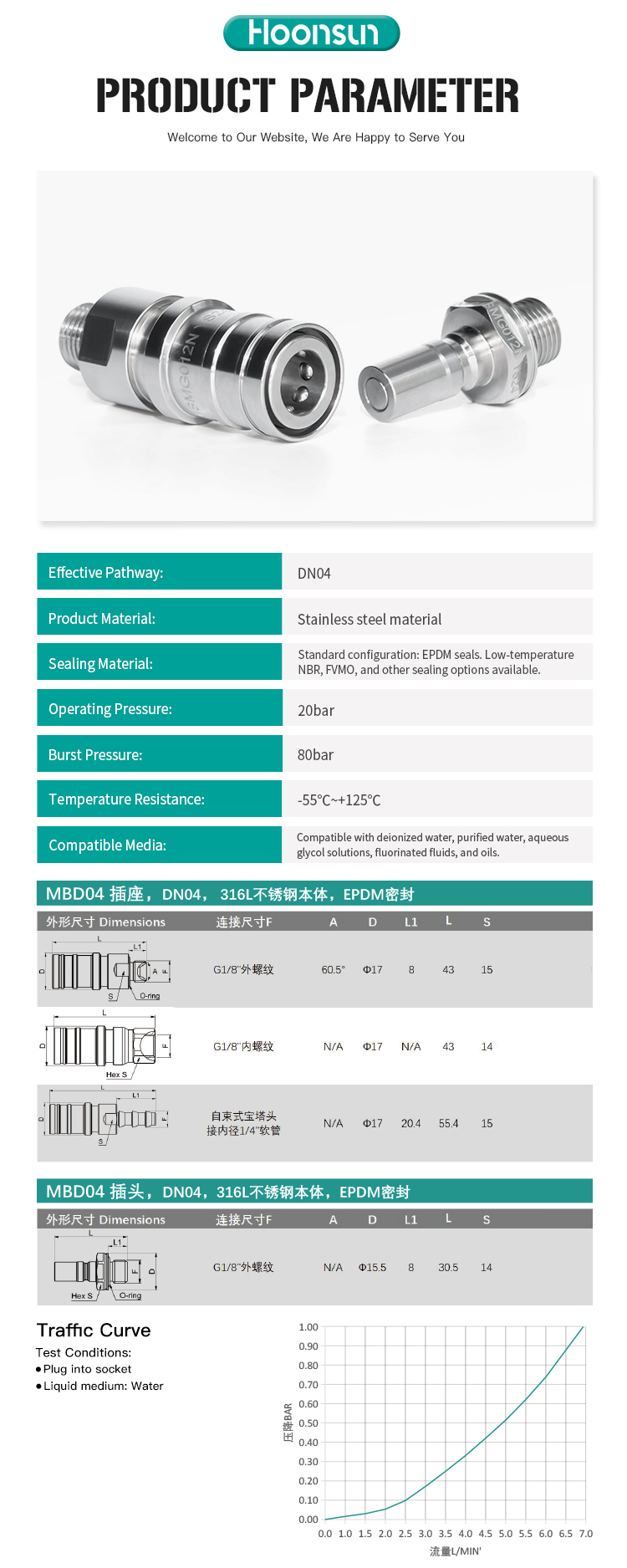

Product Specifications
| Series | DN Size | Material | Sealing | Thread Options | Working Pressure | Temp Range |
|---|---|---|---|---|---|---|
| MBD04 | DN04 | 316L Stainless Steel | EPDM (NBR/FVMO optional) | G1/8" Male / G1/8" Female / 1/4" Hose Barb | 20bar | -55°C~125°C |
Compatible Media: Deionized water, purified water, ethylene glycol solutions, propylene glycol solutions, fluorinated fluids, and oils
Performance Curve: Optimized flow with minimal pressure drop (refer to the flow chart for detailed data)
Dimensions:
• Socket (MBD04): Length 43mm, Hex size 15mm (G1/8" male) / 14mm (G1/8" female)
• Plug (MBD04): Length 30.5mm, Hex size 14mm, Thread G1/8" male
Applications
Data Center Servers: Liquid cooling for high-density server racks
AI Servers & HPC: Thermal management for high-performance computing
Medical Equipment: Precision liquid cooling for MRI, lasers, and diagnostic devices
Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies
Industrial Lasers & Automation: Reliable fluid connections for industrial equipment
PV Inverters & Renewable Energy: Solar and wind energy equipment cooling
Test Benches & Research Equipment: Lab-grade liquid cooling solutions
Detailed Images
Installation Process
1. Preparation: Ensure the connector and mating surface are clean and free of debris. Verify the system is depressurized before installation.
2. Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.
3. Verification: After connection, perform a pressure test to confirm zero leakage.
4. Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.
Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.
Frequently Asked Questions
1. What is the main advantage of the MBD series over standard connectors?
The MBD series features a compact design, making it ideal for space-constrained installations like high-density servers and medical equipment, without sacrificing performance or reliability.
2. What materials are used in these connectors?
The connectors are made of 316L stainless steel for excellent corrosion resistance, with EPDM seals (NBR and FVMO options available for low-temperature or special fluid compatibility).
3. What fluids can these connectors handle?
They are compatible with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, fluorinated fluids, and various oils.
4. What is the operating pressure and temperature range?
The working pressure is 20bar (80bar burst pressure), with a temperature range of -55°C to 125°C.
5. Do these connectors leak during connection/disconnection?
The advanced sealing design minimizes spillage during disconnection, and provides zero leakage under rated pressure when fully connected.
6. Are tools required for installation or removal?
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance.
