Product Description
★Key Features
⚙Applications
- Data Center Servers: High-flow liquid cooling for server racks and HPC systems; the product’s compact design (shown in images) fits the limited space of server racks.
- AI Servers & Computing: Thermal management for high-performance AI hardware; suitable for high-heat, high-density AI equipment, consistent with the product’s high-flow, high-stability features.
- Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices; the zero-leak design (reflected in sealing structure images) ensures safety and precision for medical equipment.
- Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies; the corrosion-resistant and high-pressure-resistant performance (shown in material and structure images) adapts to automotive and power electronic environments.
- Industrial Lasers & Automation: Reliable fluid connections for industrial equipment; the rugged construction (visible in product detail images) withstands industrial harsh conditions.
- PV Inverters & Renewable Energy: Solar and wind energy equipment cooling; adaptable to outdoor environments, matching the product’s dust-proof, salt-proof features.
- Test Benches & Research Equipment: Lab-grade liquid cooling solutions; the precise structure and stable performance (shown in product images) meet lab precision requirements.

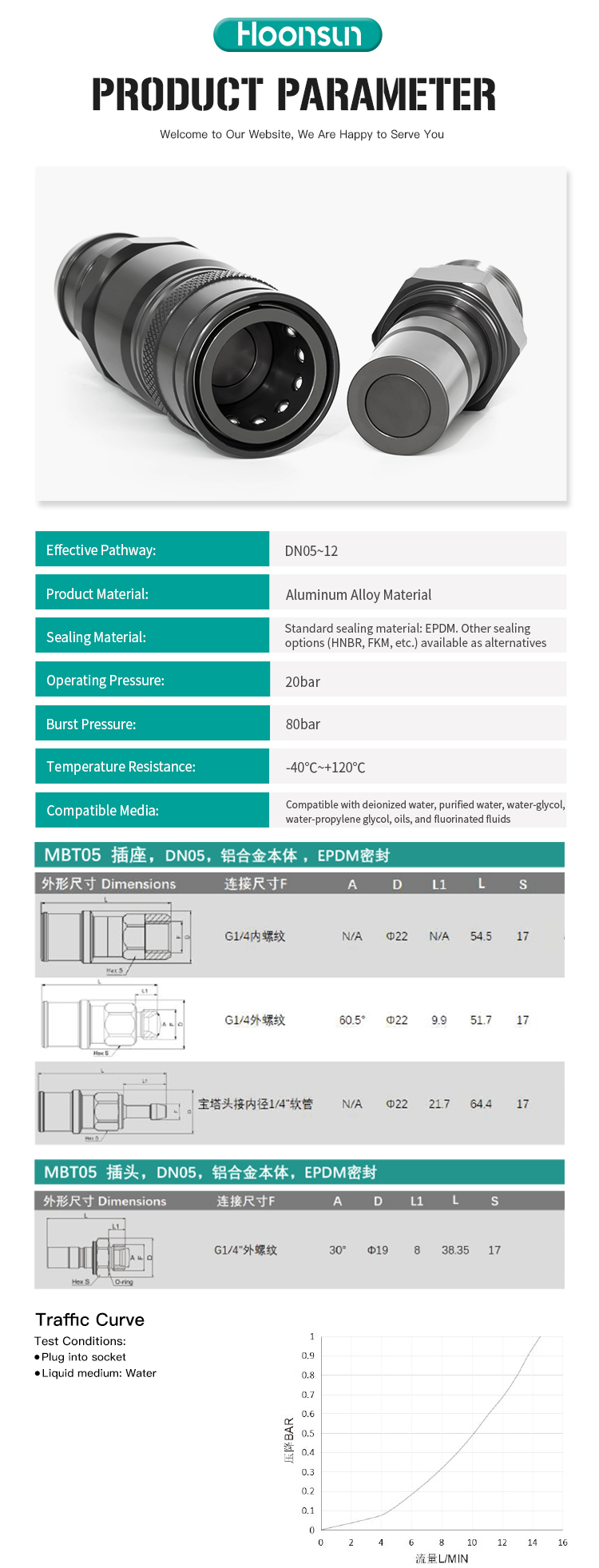

📋Product Specifications
| Series | DN Size | Material | Sealing | Connection Options | Working Pressure | Temp Range |
|---|---|---|---|---|---|---|
| MBT05 | DN05 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/4" Male / G1/4" Female / 1/4" Hose Barb | 20bar | -40°C~120°C |
| MBT08 | DN08 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/8" Male / G3/8" Female / 3/8" & 1/2" Hose Barb | 20bar | -40°C~120°C |
| MBT10 | DN10 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/2" Male / G1/2" Female | 20bar | -40°C~120°C |
| MBT12 | DN12 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/4" Male / G3/4" Female | 20bar | -40°C~120°C |
Compatible Media: Deionized water, purified water, water-glycol solutions, water-propylene glycol solutions, oils, and fluorinated fluids.
Performance Curve: Optimized flow with minimal pressure drop.
Dimensions:
- MBT05: Socket length 54.5mm (G1/4" female), Plug length 38.35mm (G1/4" male)

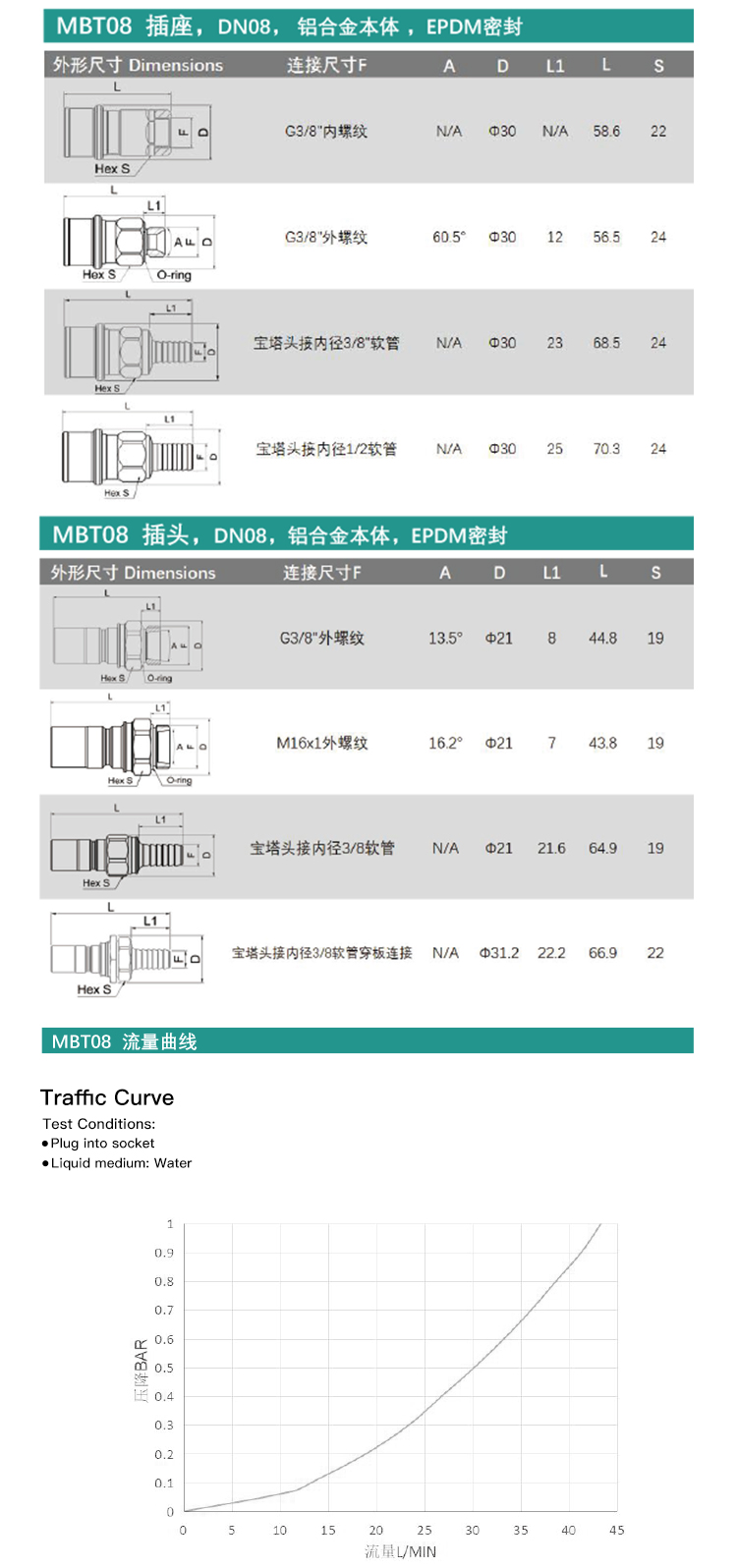

- MBT08: Socket length 58.6mm (G3/8" female), Plug length 44.8mm (G3/8" male)

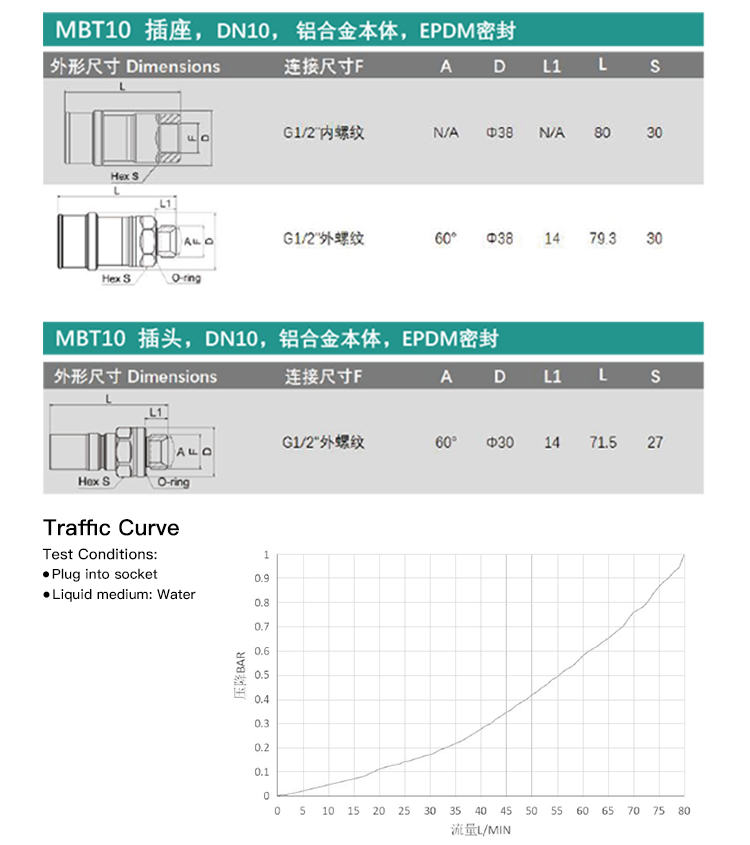

- MBT10: Socket length 80mm (G1/2" female), Plug length 71.5mm (G1/2" male)

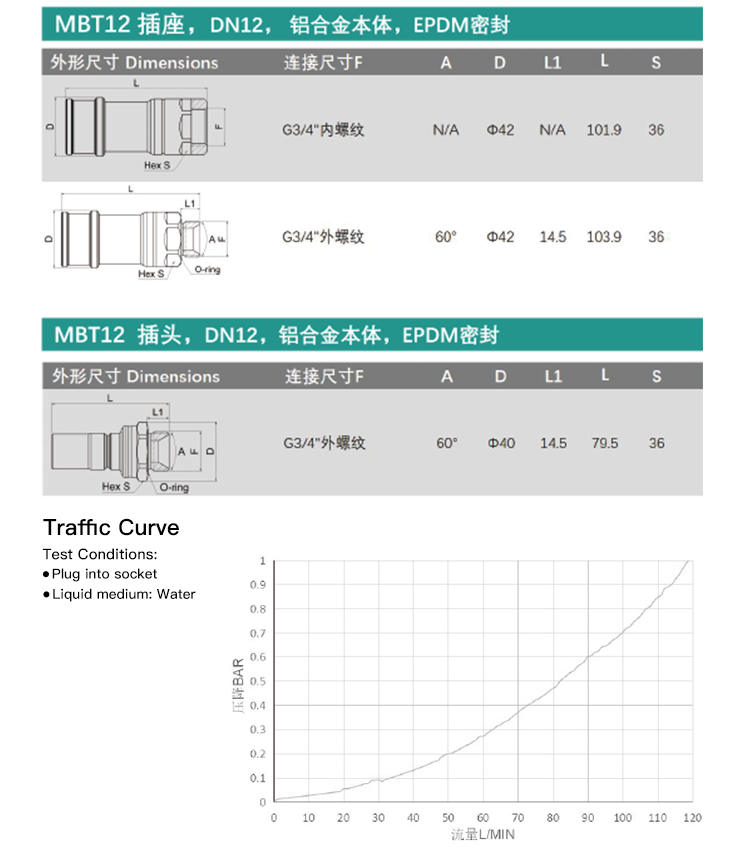

- MBT12: Socket length 101.9mm (G3/4" female), Plug length 79.5mm (G3/4" male)
🔧Installation Process

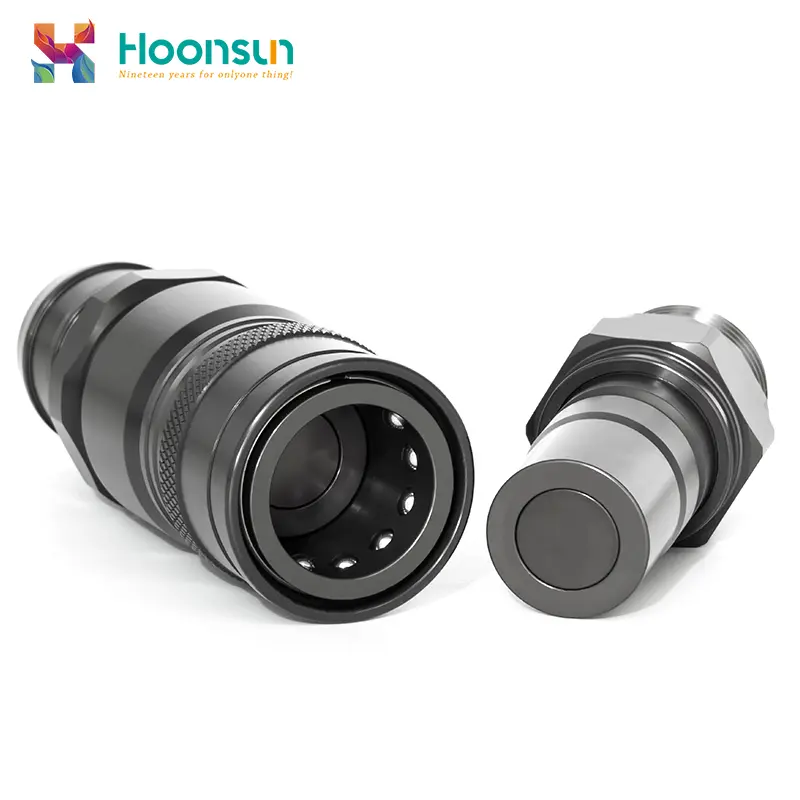

Refer to the product images to check the plug and socket structure; ensure the connector and mating part are clean and free of debris. Depressurize the system before installation to prevent fluid leakage during operation.
Align the plug and socket according to the alignment mark, then push them together until you hear/feel a positive click, confirming full engagement.
After connection, perform a pressure test to confirm zero leakage before full system operation; check the sealing part to ensure no fluid seepage.
Depressurize the system first, then simply pull the plug out of the socket for maintenance or replacement.
🖼Detailed Images
🏢About Us
Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our MBT series liquid-cooled couplings, as shown in the product images, are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies for their reliable performance and user-friendly design.
❓Frequently Asked Questions
The MBT series features lightweight aluminum construction, multiple connection options, and a wide range of sizes (DN05-DN12), making it highly versatile for different liquid cooling applications. Additionally, the plug-and-play design and zero-leak sealing enhance usability and reliability.
The body is made of high-strength aluminum alloy for light weight and corrosion resistance, with EPDM seals (HNBR and FKM options available for low-temperature or special fluid compatibility). The surface treatment of the aluminum alloy effectively prevents corrosion, extending the product’s service life.
They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids.
The working pressure is 20bar (80bar burst pressure), with a temperature range of -40°C to 120°C, which is sufficient to meet the working conditions of most liquid cooling systems, including the harsh environments shown in the product’s application scenarios.
Yes. The MBT series is designed for high flow rates, with sizes up to DN12 supporting flow rates up to 120 L/min. The smooth internal structure reduces flow resistance, making them ideal for large-scale cooling systems such as data centers and AI servers.
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation, which is also a key user-friendly feature shown in the product images.
