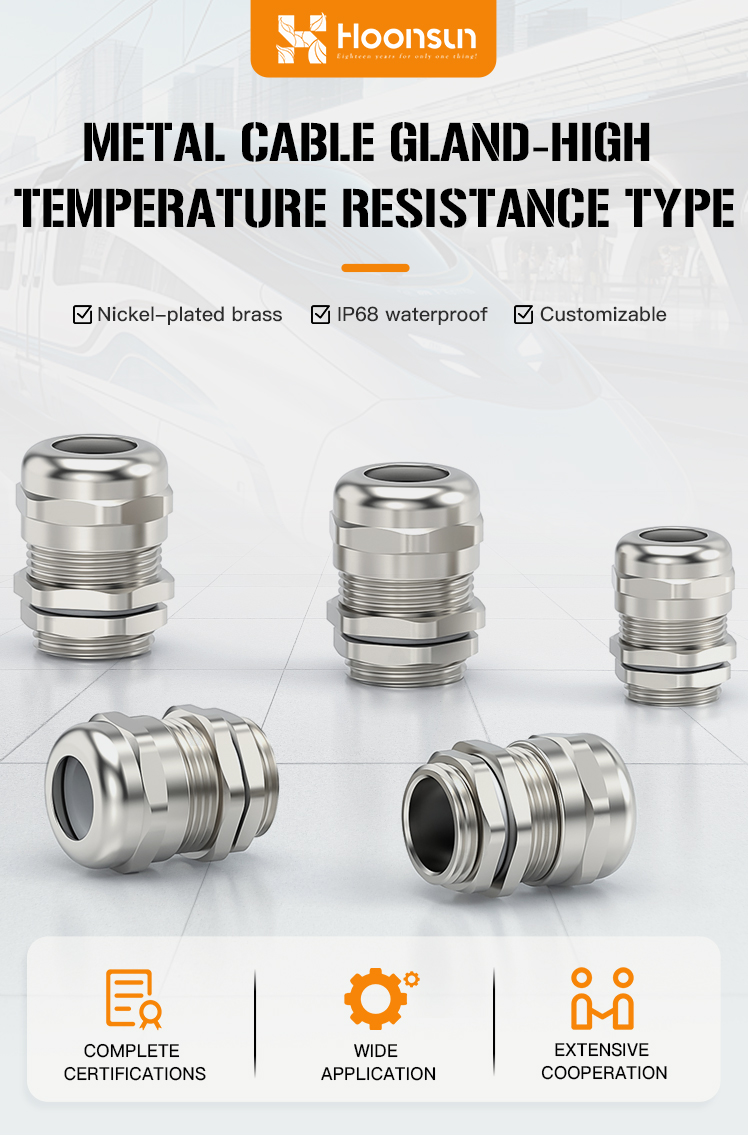

China NGS High Temperature Resistance Metal Cable Gland with UL and IP68 Manufacturers, Suppliers
Product Description
Product Highlights

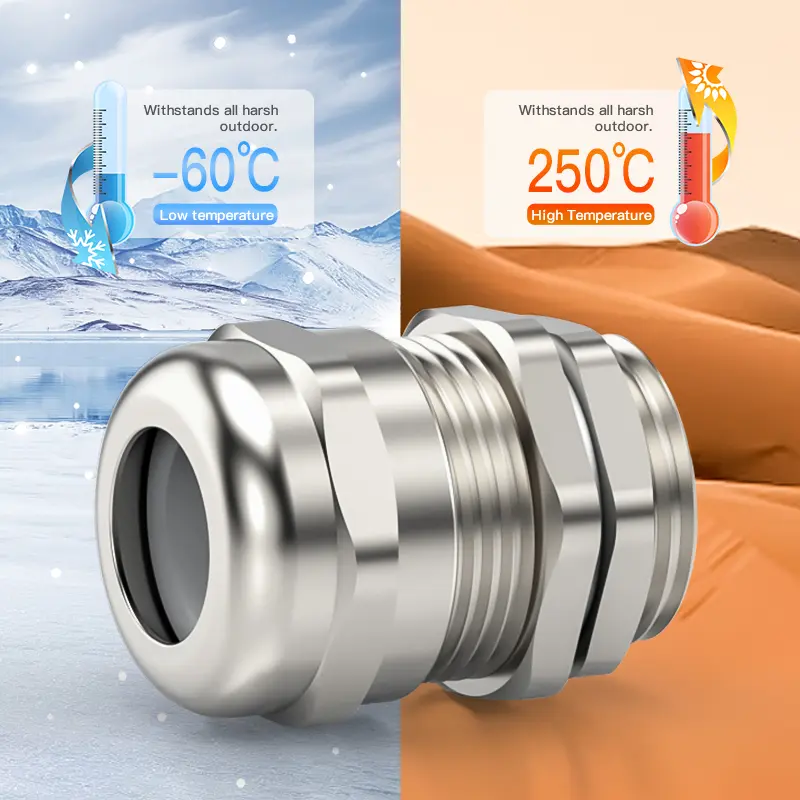

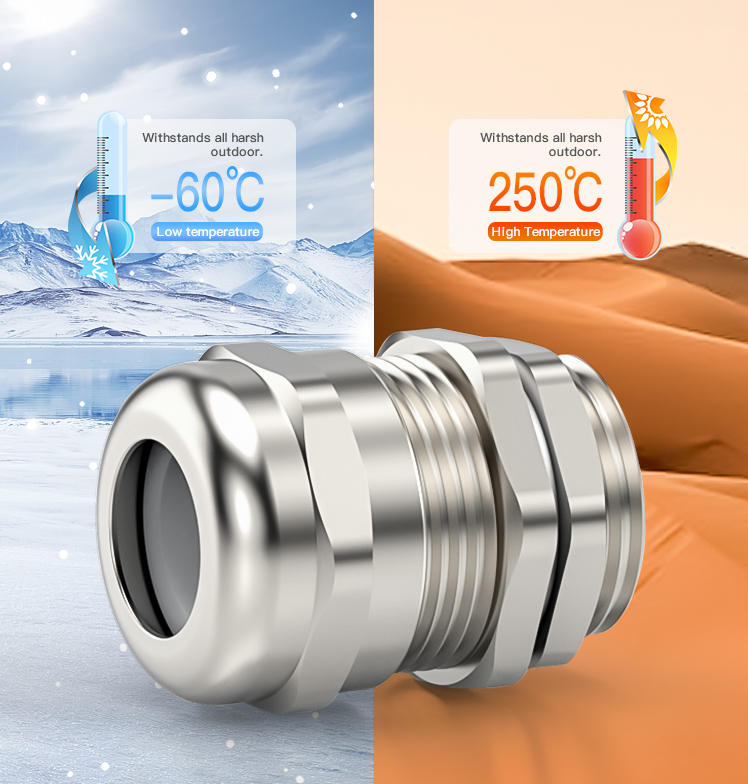

- Exceptional high-temperature performance, reliably operating from -60°C to +250°C
- Constructed from 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber)
- IP68-rated protection against dust, oil, and steam ingress
- Supports PG, NPT, and Metric threads for easy global installation
- Fully complies with IEC and CE standards
Applications
Provides reliable sealing in high-heat industrial thermal processing environments.
Withstands the extreme temperatures and harsh conditions of metal processing and handling equipment.
Ensures connection integrity and safety in power generation and distribution facilities.
Protects cable connections in automated machinery operating under continuous thermal stress.
Key Benefits
- Maintains sealing integrity under continuous high-temperature operation
- Offers thermal stability, corrosion resistance, and mechanical durability
- Resists oxidation and thermal expansion for extended service life
- Ensures electrical safety and reliability with minimal maintenance
- Provides a professional-grade sealing solution for extreme thermal conditions

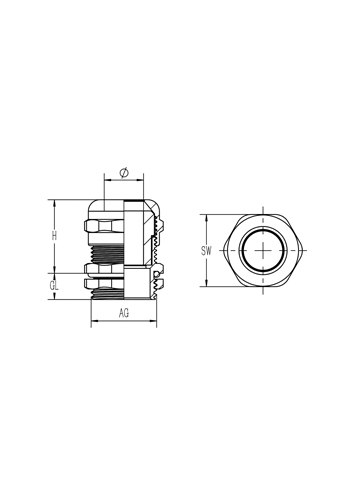

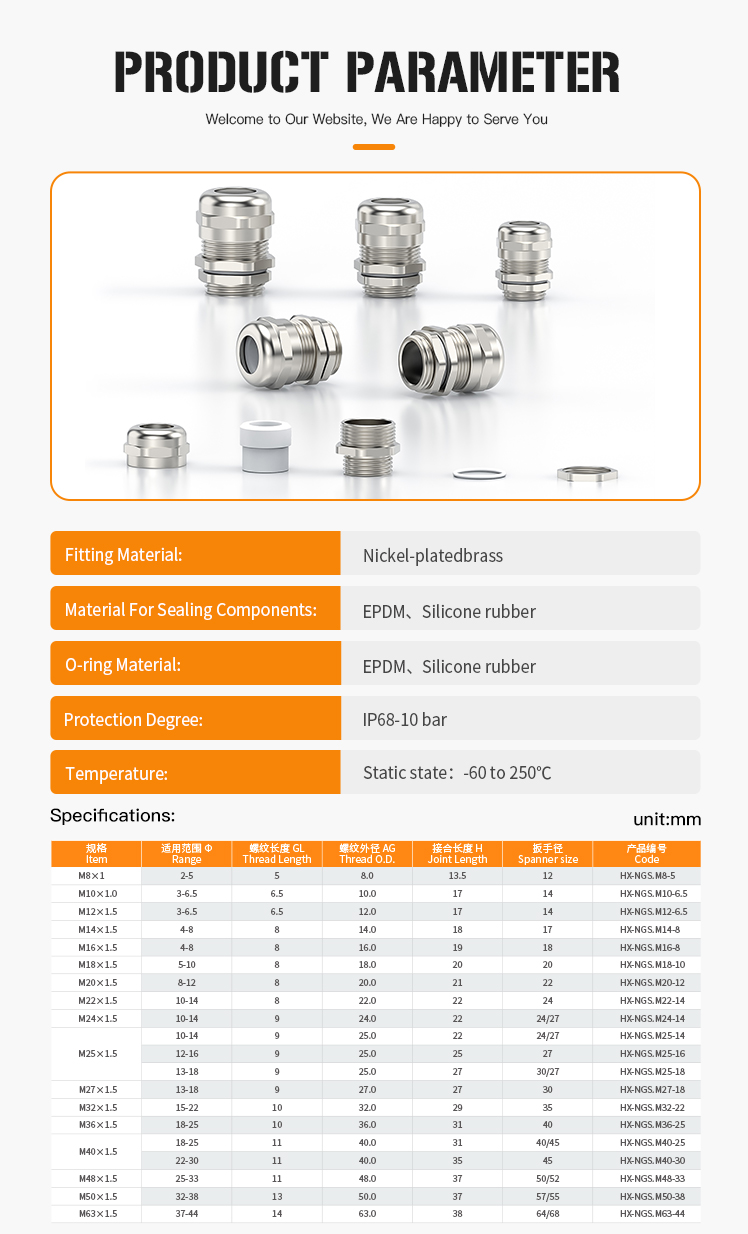

Product Parameters
| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NGS.M8-5 |
| M10×1.0 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NGS.M10-6.5 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NGS.M12-6.5 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NGS.M14-8 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NGS.M16-8 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NGS.M18-10 |
| M20×1.5 | 8-12 | 8 | 20.0 | 21 | 22 | HX-NGS.M20-12 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NGS.M22-14 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NGS.M24-14 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NGS.M25-14 |
| 12-16 | 9 | 25.0 | 25 | 27 | HX-NGS.M25-16 | |
| 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NGS.M25-18 | |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NGS.M27-18 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NGS.M32-22 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NGS.M36-25 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NGS.M40-25 |
| 22-30 | 11 | 40.0 | 35 | 45 | HX-NGS.M40-30 | |
| M48×1.5 | 25-33 | 11 | 48.0 | 37 | 50/52 | HX-NGS.M48-33 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NGS.M50-38 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NGS.M63-44 |
Detailed Images
Frequently Asked Questions
The cable gland provides exceptional performance in extreme conditions, maintaining operational integrity from -60°C to +250°C.
It is precision-machined from 316 stainless steel and fitted with specialized heat-resistant seals made of silicone or fluororubber.
It features an IP68 protection rating, effectively preventing the ingress of dust, oil, and pressurized steam under demanding thermal applications.
The series offers versatile standard thread compatibility, including Metric (M), PG, and NPT configurations to support worldwide installation demands.
The product fully complies with international IEC and CE regulatory safety standards for electrical cable management and protection.
