What does IP68 mean for a cable gland?

IP68 under IEC 60529 means the gland is dust-tight (6) and protected against continuous immersion in water (8) under conditions agreed between manufacturer and user. The rating is only valid when the cable outer diameter sits inside the gland's stated clamping range and the cap nut is tightened to the recommended torque.

Should I choose a metal or nylon cable gland?

Nylon PA66 glands are lightweight, corrosion-free and cost-effective for control cabinets, lighting and general outdoor equipment. Nickel-plated brass or stainless steel glands are preferred where you need mechanical strength, EMC shielding, higher vibration resistance, fire performance or exposure to oils, salt spray and UV.

Which thread standards do HOONSUN cable glands support?

HOONSUN supplies cable glands in Metric (M), PG, NPT and G (BSPP) threads. Thread length can be specified to match enclosure wall thickness, and custom thread forms are available for OEM projects.

Can HOONSUN produce custom or OEM cable glands?

Yes. As an in-house manufacturer since 2006, HOONSUN customizes thread type, thread length, seal material, clamping range, plating, colour and private-label packaging for OEM and distributor programs.

What certifications do HOONSUN cable glands carry?

Standard HOONSUN cable gland ranges are produced to CE and UL requirements with IP68 sealing performance. Test reports and certificate copies are supplied with the product catalog or on request for each specific part number.

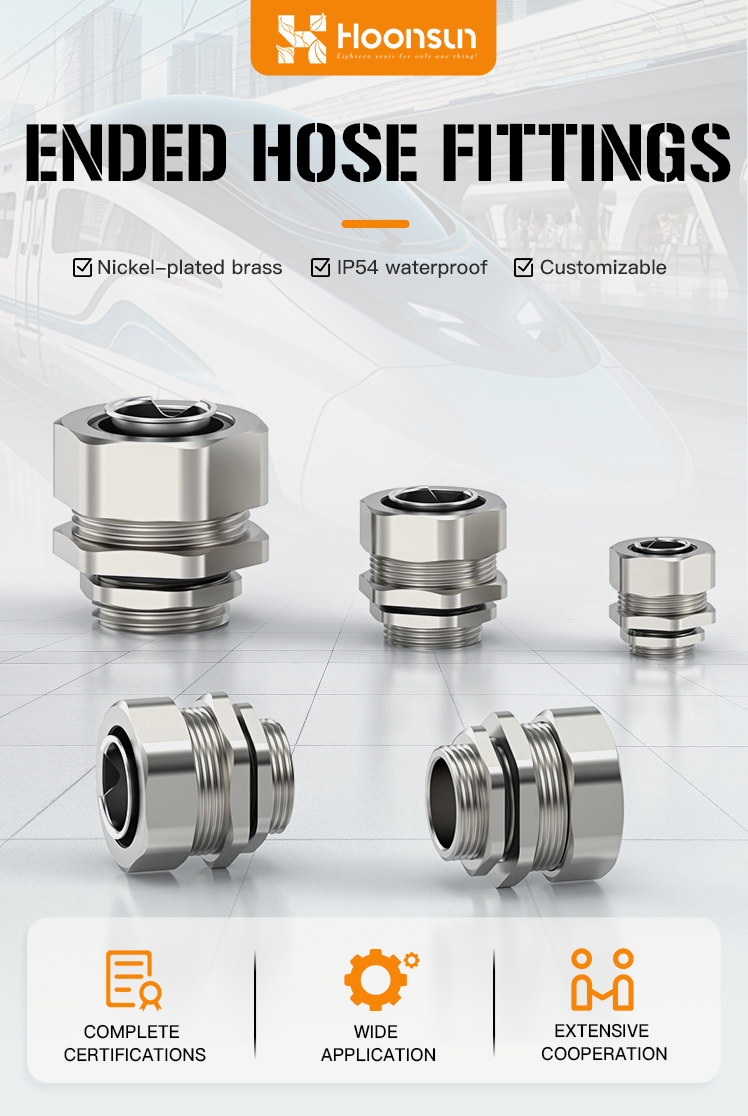

Wholesale Nickel Plated Brass Hose Cable Gland IP68 Waterproof Flexible Conduit Connector China Manufacturer Supplier

Product Highlights

Made from high-quality stainless steel or other corrosion-resistant metals.

Features a corrugated design for excellent flexibility.

Comes with IP68 and UL certificates, ensuring high standards of safety and reliability.

Offers a leak-proof design for secure operation.

Key Benefits

Durable & Long-Lasting

Resists heat, pressure, and corrosion, reducing replacement costs and downtime.

Excellent Heat & Pressure Resistance

Performs reliably in extreme temperatures and under high pressure.

Flexible & Easy to Install

Bends easily for simple installation in tight spaces and absorbs vibration.

Safe & Leak-Proof

Prevents cracks and bursts, ensuring safe transport of hazardous materials and reducing environmental risks.

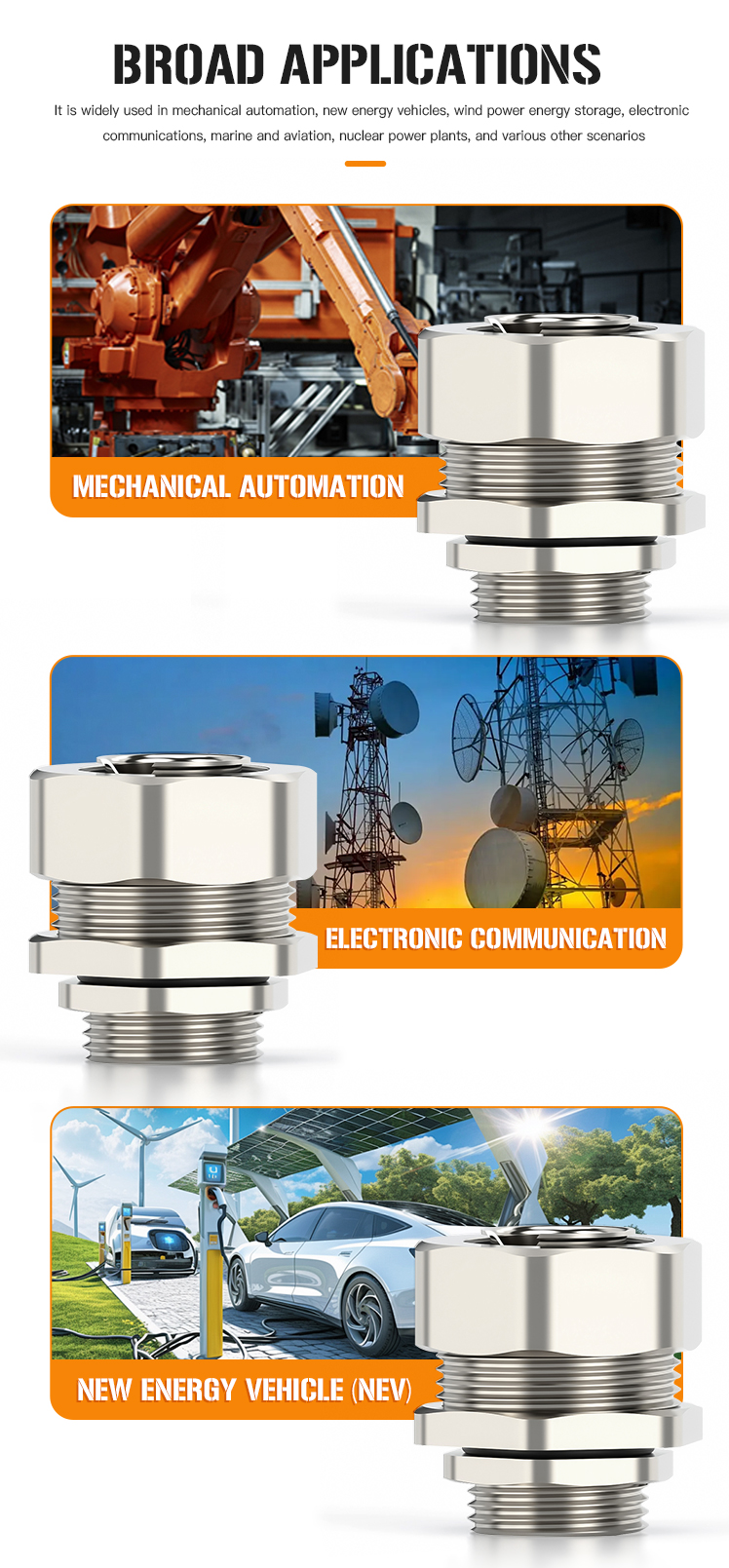

Applications

Chemical and Petrochemical Plants: for transferring aggressive acids, alkalis, and solvents, as well as connecting critical oil and gas pipelines and loading arms.

HVAC and Plumbing Systems: to efficiently circulate refrigerants, handle hot water lines, and connect pumps while absorbing vibration and compensating for movement.

Power Stations and Refineries: to reliably manage high pressure steam lines, fuel transfer systems, and exhaust conduits under extreme operating conditions.

Food and Pharmaceutical Manufacturing: for transporting sensitive ingredients and clean in place steam, meeting stringent hygiene standards with their corrosion resistant surfaces.

Automotive and Aerospace Industries: serving in durable exhaust assemblies, efficient fuel and brake lines, and vital hydraulic systems on board vehicles and aircraft.

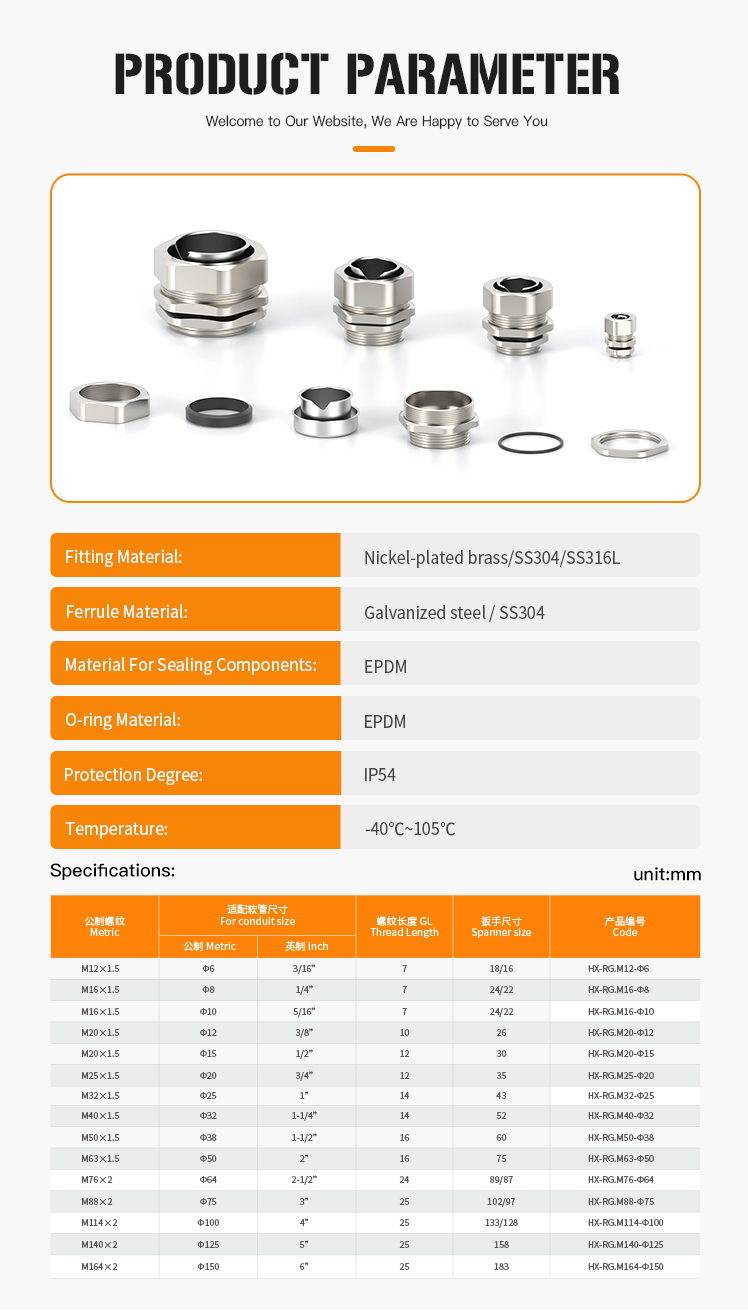

Product Parameters & Specifications

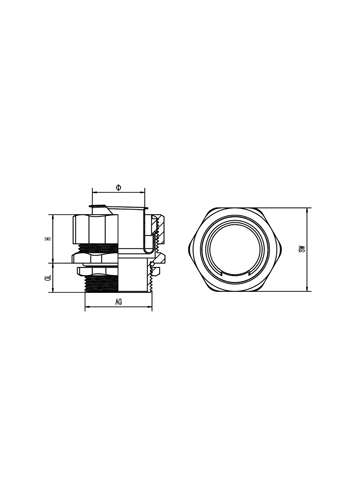

Ended Hose Fittings with IP68 and UL certificate dimensional drawing

Unit: mm

Metric	For conduit size		GL Thread Length	Spanner size	Code
Metric	Metric	Inch	GL Thread Length	Spanner size	Code
M12×1.5	φ6	3/16"	7	18/16	HX-RG.M12-φ6
M16×1.5	φ8	1/4”	7	24/22	HX-RG.M16-φ8
M16×1.5	φ10	5/16”	7	24/22	HX-RG.M16-φ10
M20×1.5	φ12	3/8”	10	26	HX-RG.M20-φ12
M20×1.5	φ15	1/2”	12	30	HX-RG.M20-φ15
M25×1.5	φ20	3/4”	12	35	HX-RG.M25-φ20
M32×1.5	φ25	1”	14	43	HX-RG.M32-φ25
M40×1.5	φ32	1-1/4”	14	52	HX-RG.M40-φ32
M50×1.5	φ38	1-1/2”	16	60	HX-RG.M50-φ38
M63×1.5	φ50	2”	16	75	HX-RG.M63-φ50
M76×2	φ64	2-1/2”	24	89/87	HX-RG.M76-φ64
M88×2	φ75	3"	25	102/97	HX-RG.M88-φ75
M114×2	φ100	4”	25	133/128	HX-RG.M114-φ100
M140×2	φ125	5"	25	158	HX-RG.M140-φ125
M164×2	φ150	6"	25	183	HX-RG.M164-φ150

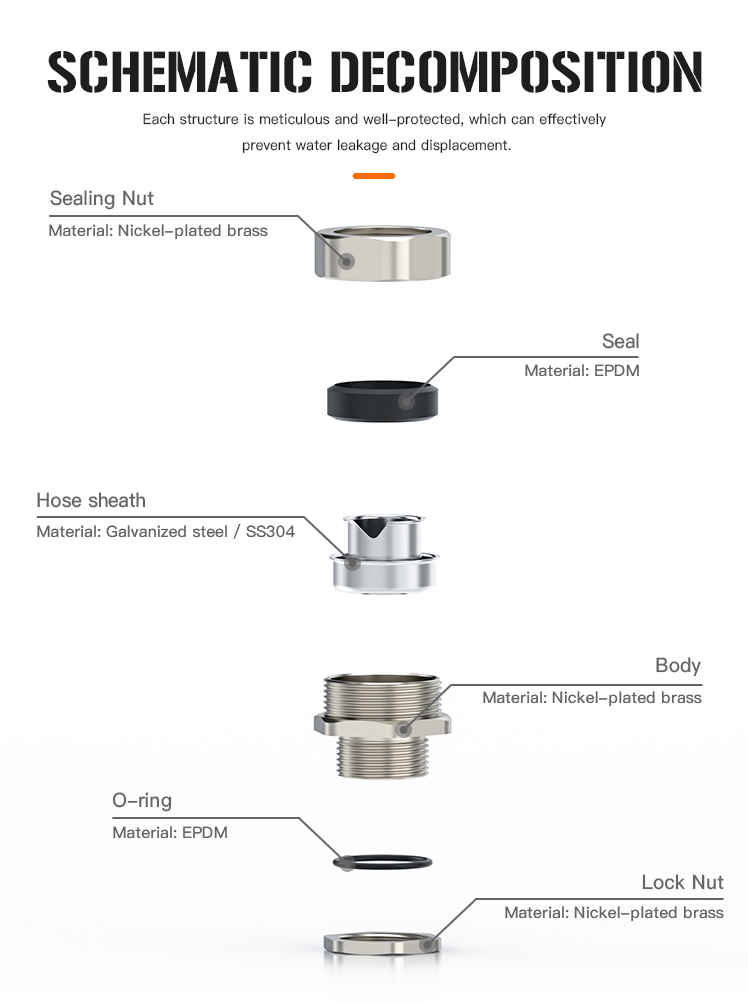

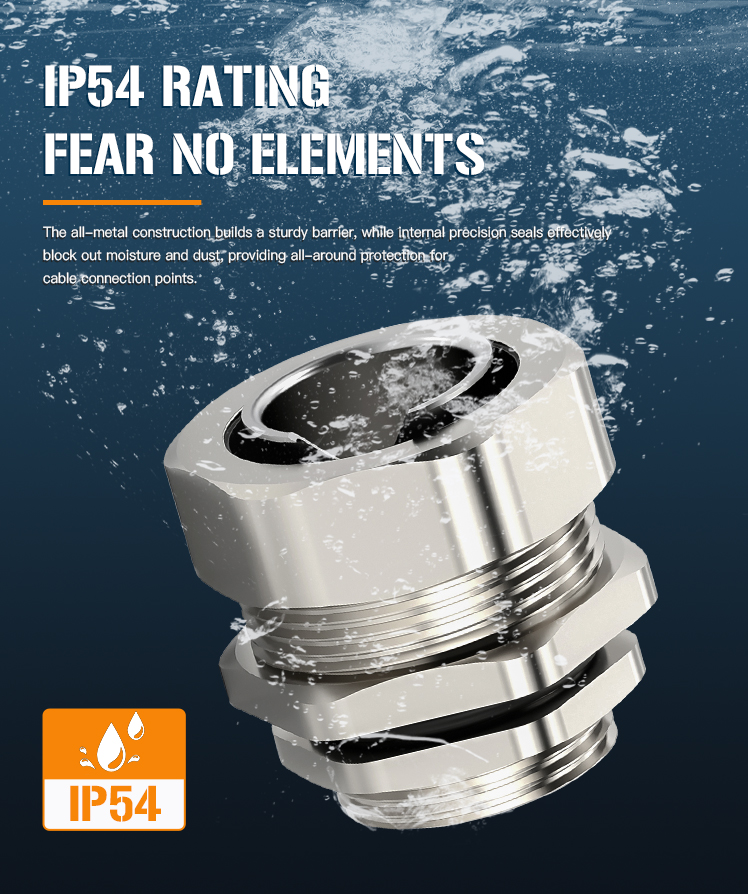

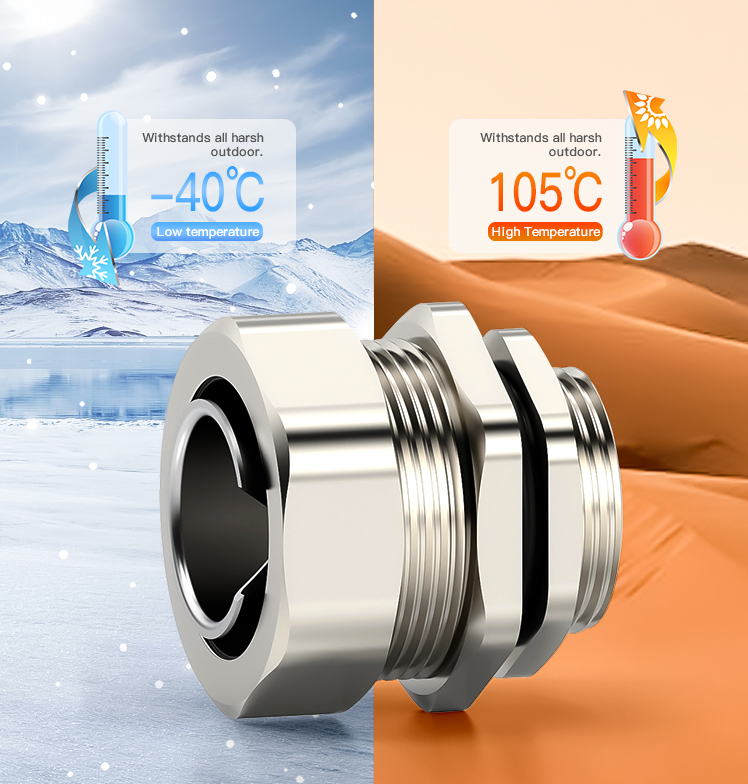

Detailed Images

Frequently Asked Questions (FAQ)

What materials are used for these hose fittings?

These fittings are primarily manufactured from high-quality stainless steel or other premium corrosion-resistant metals to ensure durability under harsh operating environments.

What certifications do these fittings carry?

They come certified to IP68 for superior ingress protection and carry UL certification, ensuring strict compliance with international safety and reliability benchmarks.

Can these fittings handle vibration and flexible installations?

Yes, the corrugated design enables high flexibility, allowing easy bending for simple installation in compact spaces and effectively dampening system vibrations.

Are these products suitable for hazardous fluid and steam transport?

Yes, their leak-proof construction and superior heat and pressure resistance make them ideal for transferring aggressive chemicals, high-pressure steam, and critical fluids safely.
