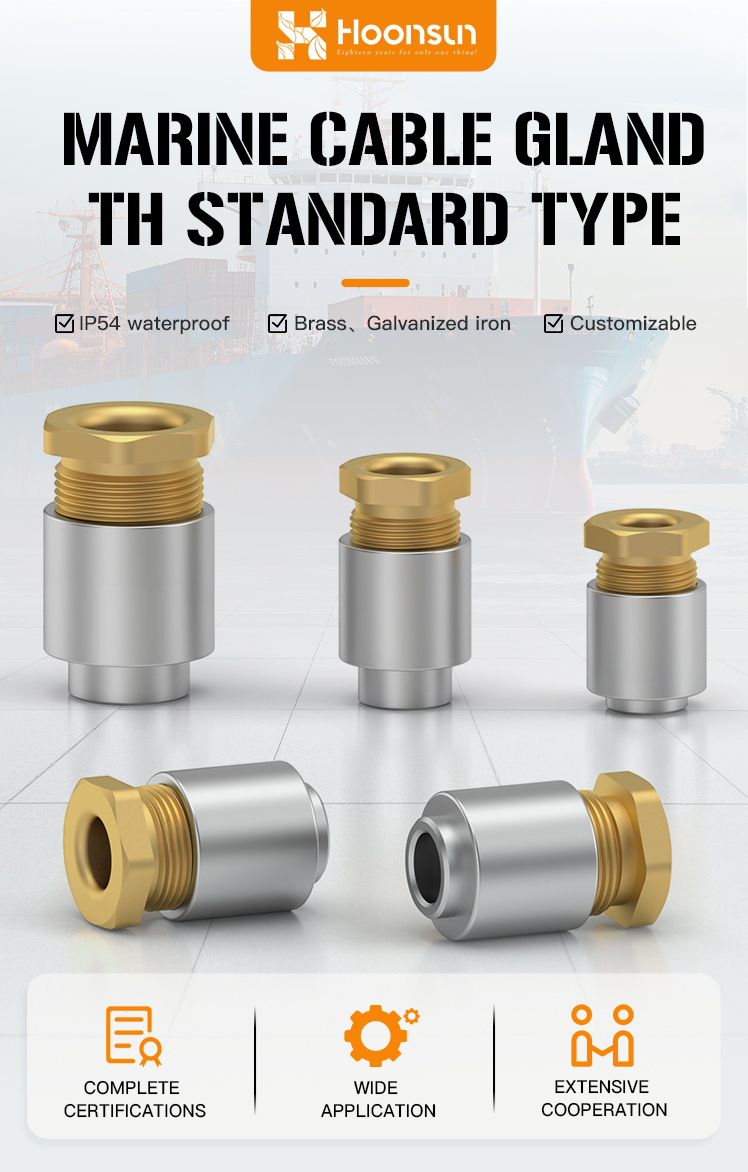

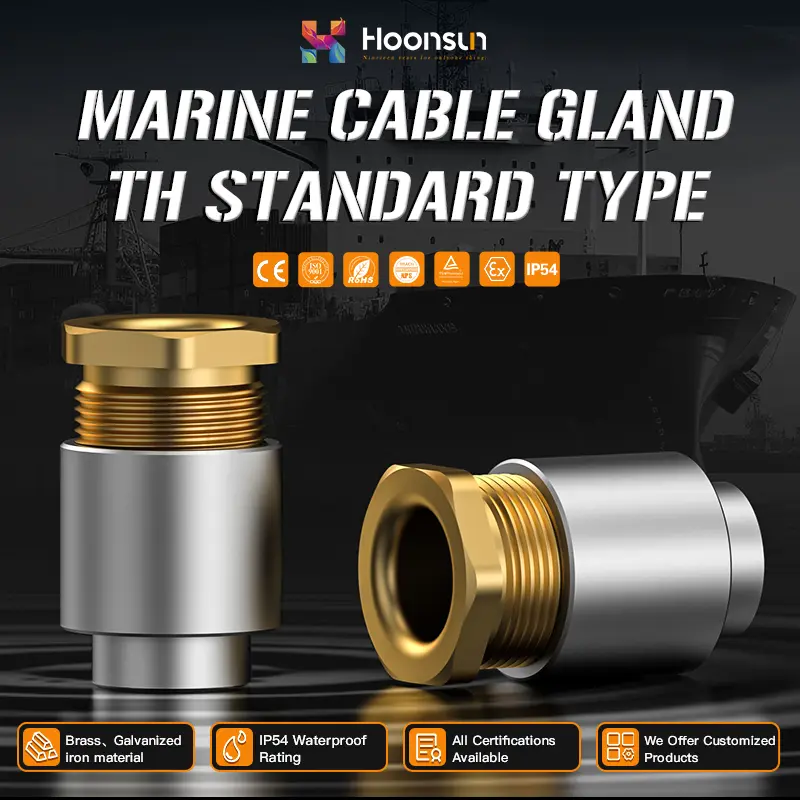

Product Description

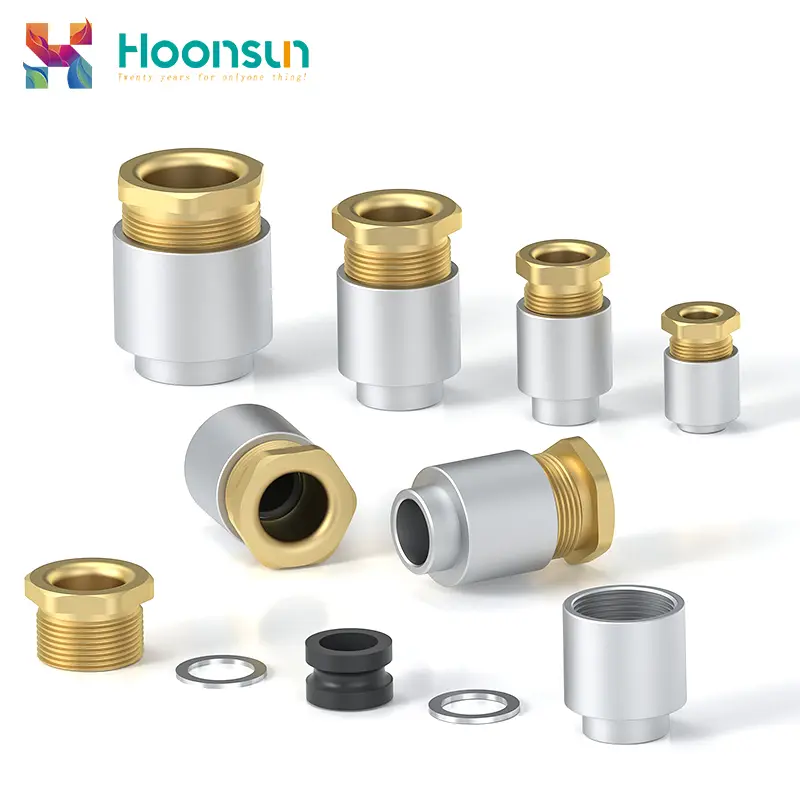

Corrosion Resistant: Constructed from nickel-plated brass or stainless steel for superior corrosion resistance in salt-laden environments.
High Ingress Protection: Achieves up to IP68 protection level, ensuring a completely sealed connection against water, dust, and oil.

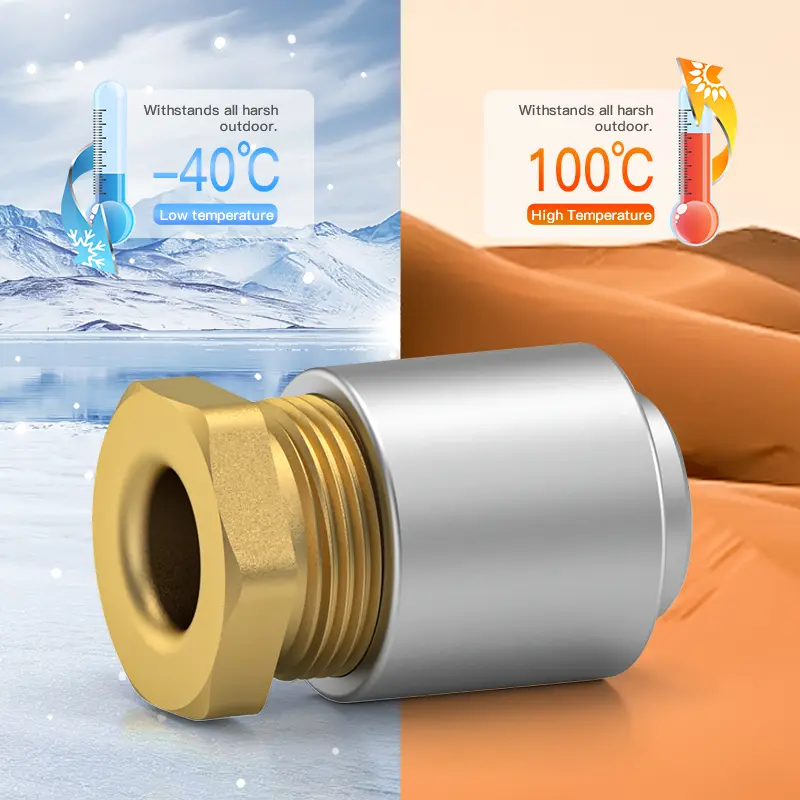

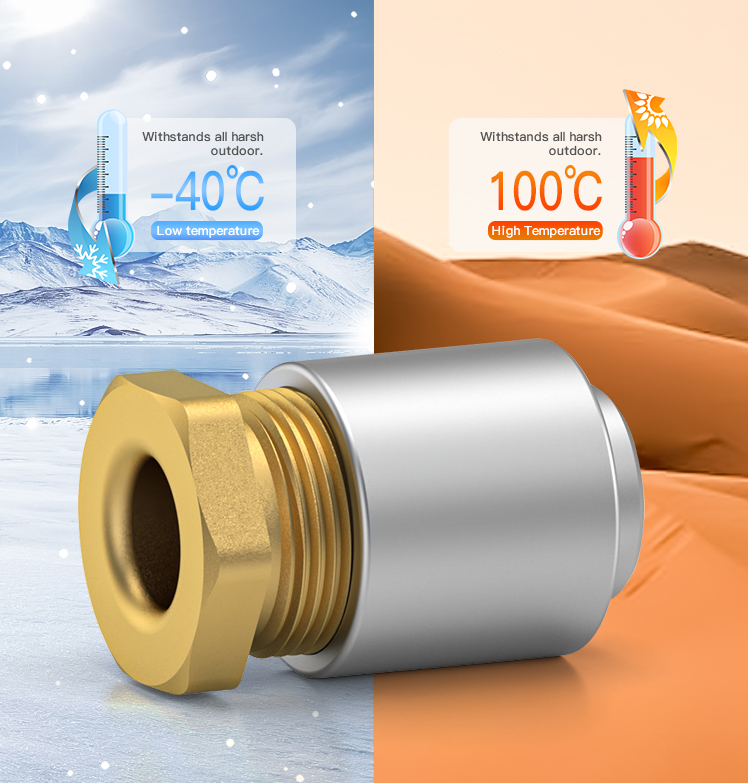

Thermal Stability: Stable performance across a wide thermal range from -40℃ to 120℃.
Flexible Sizing: Offers multiple thread specifications (e.g., M12×1, M16×1.5) and accommodates cable diameters from 5mm to 50mm.
This cable gland is designed for demanding marine applications. It is suitable for securing and sealing cable holes in ship control panels, navigation and communication systems, deck lighting, and power distribution devices. Its robust design can protect connections in the engine room, open decks, and ballast water systems. It is suitable for use in marine environments, including buoys, dock equipment, and other coastal facilities, as in these areas, resistance to saltwater corrosion and weather resistance are crucial for operational safety and lifespan.
Corrosion-Proof Construction
Ensures long-term durability and reliability, resisting the harsh effects of marine atmospheres.

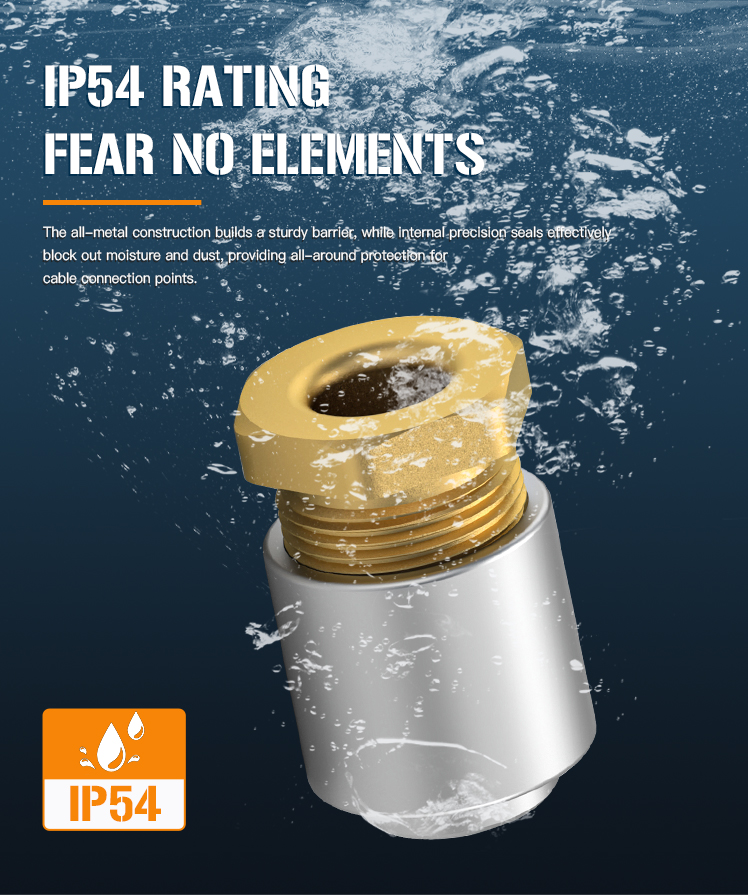

Full Environmental Sealing
Provides peace of mind with robust ingress protection for safe operation in wet and dusty conditions.
Extreme Temperature Resilience
Maintains integrity and function despite fluctuating temperatures encountered at sea.
Versatile & Easy Installation
Simplified compatibility with a broad range of marine cables and standard thread types reduces installation time and effort.

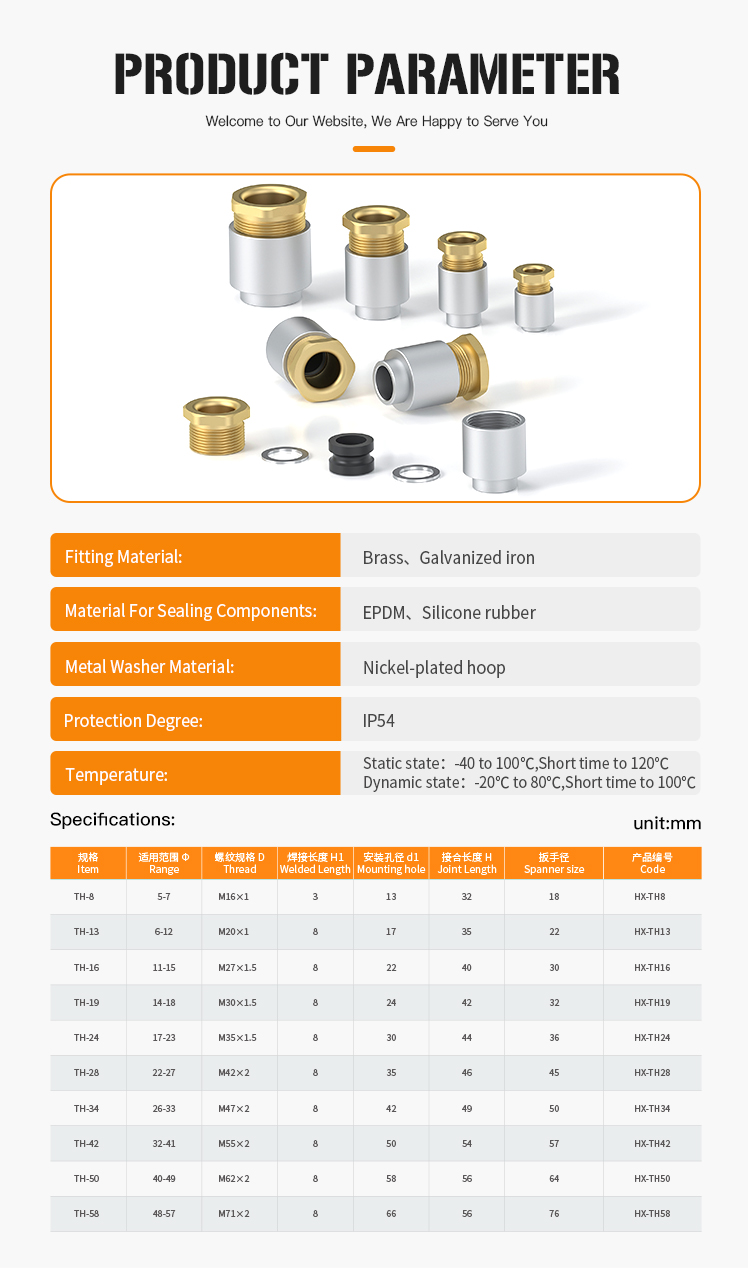

| Item | Range | D Thread | H1 Welded Length | d1 Mounting Hole | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|---|
| TH-8 | 5-7 | M16×1 | 3 | 13 | 32 | 18 | HX-TH8 |
| TH-13 | 6-12 | M20×1 | 8 | 17 | 35 | 22 | HX-TH13 |
| TH-16 | 11-15 | M27×1.5 | 8 | 22 | 40 | 30 | HX-TH16 |
| TH-19 | 14-18 | M30×1.5 | 8 | 24 | 42 | 32 | HX-TH19 |
| TH-24 | 17-23 | M35×1.5 | 8 | 30 | 44 | 36 | HX-TH24 |
| TH-28 | 22-27 | M42×2 | 8 | 35 | 46 | 45 | HX-TH28 |
| TH-34 | 26-33 | M47×2 | 8 | 42 | 49 | 50 | HX-TH34 |
| TH-42 | 32-41 | M55×2 | 8 | 50 | 54 | 57 | HX-TH42 |
| TH-50 | 40-49 | M62×2 | 8 | 58 | 56 | 64 | HX-TH50 |
| TH-58 | 48-57 | M71×2 | 8 | 66 | 56 | 76 | HX-TH58 |
Q: What materials are available for this marine cable gland series?
A: They are mainly manufactured using high-grade nickel-plated brass or stainless steel, specifically chosen to provide maximum resistance against saltwater oxidation and corrosive marine conditions.
Q: What level of ingress protection do these cable glands offer?
A: They achieve up to an IP68 protection rating, offering a reliable, watertight, dust-tight, and oil-resistant seal suitable for continuous submersion or harsh weather.
Q: What is the operating temperature range?
A: The cable glands operate reliably in severe thermal conditions with a temperature range capability from -40℃ to 120℃.
Q: What cable outer diameter sizes are supported?
A: The TH standard series accommodates a broad cable clamping range from 5mm up to 57mm across different sizes from TH-8 to TH-58.
Q: Where are these cable glands typically used?
A: They are widely applied in marine and offshore settings, including ship control consoles, navigation systems, open deck illumination, engine room compartments, buoys, and dock facilities.
