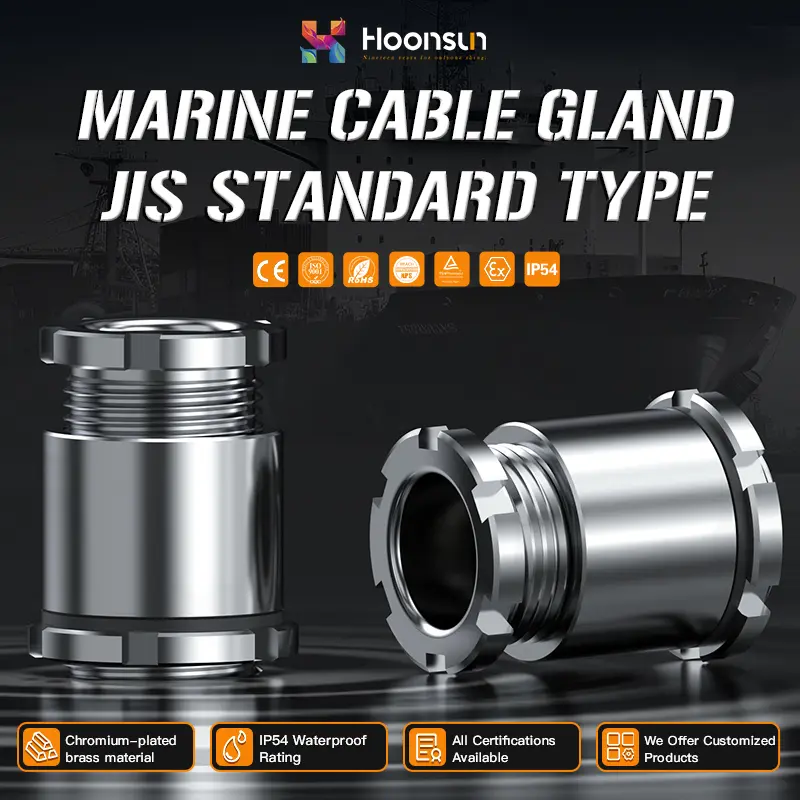

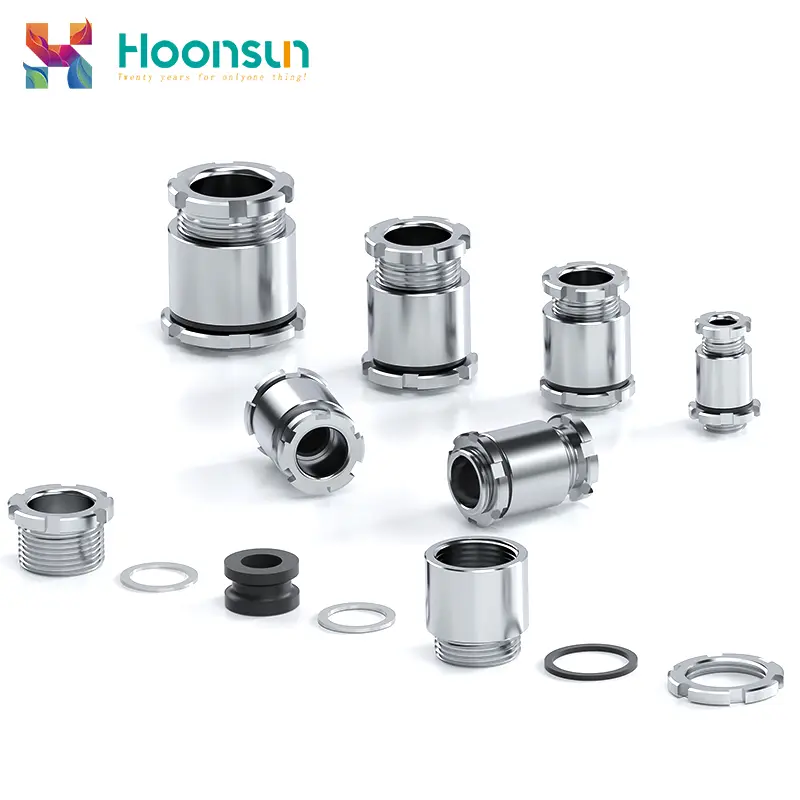

China IP68 and UL Certified Marine Cable Gland JIS Standard Type Manufacturers, Supplier
Product Description
Corrosion Defense
Crafted from premium 316 stainless steel or nickel-plated brass, the gland offers superior defense against salt spray and moisture, ensuring prolonged service life even with prolonged exposure to seawater.
Enhanced Sealing Security
The advanced sealing mechanism provides a robust barrier against dust, water ingress, and oils, guaranteeing secure and stable cable connections in challenging environments.
Broad Compatibility & Easy Installation
Designed for straightforward installation, it accommodates a wide spectrum of standard marine cables, significantly reducing labor time and effort.
Unshakable Connection Integrity

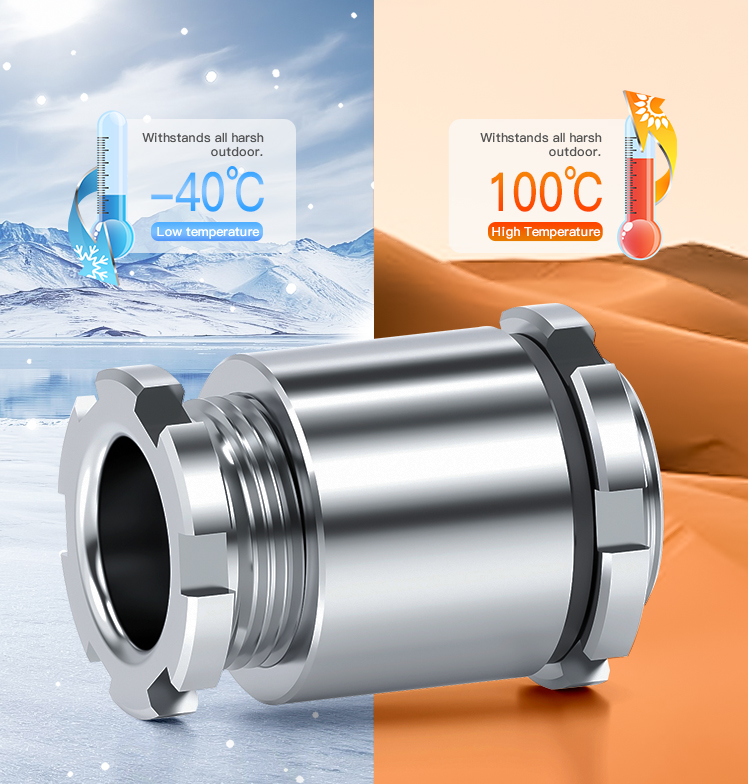

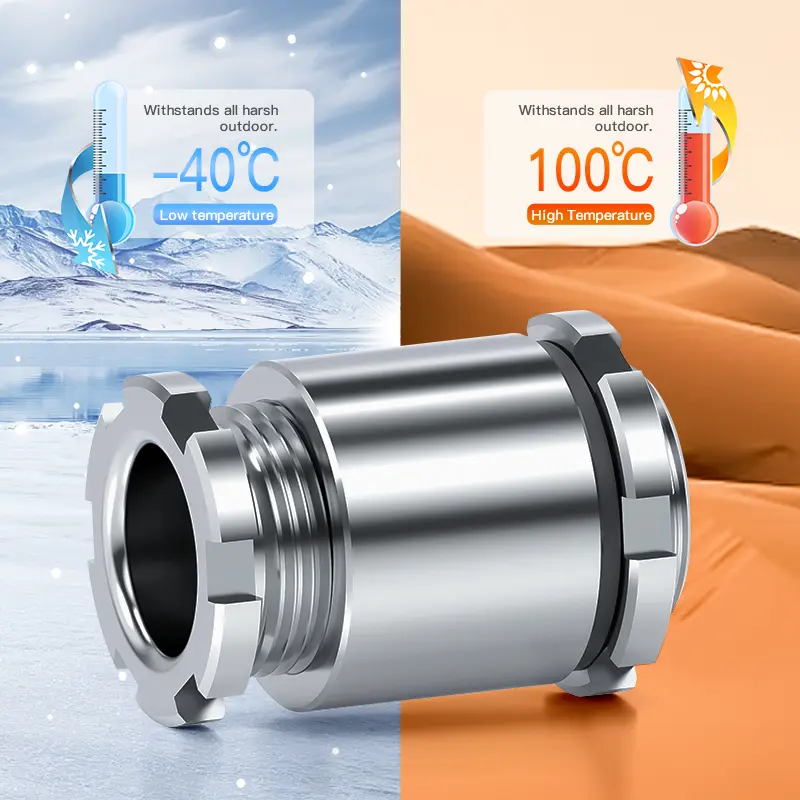

Delivers exceptional performance under harsh conditions, offering reliable resistance against vibrations and temperature variations for long-term operational stability.

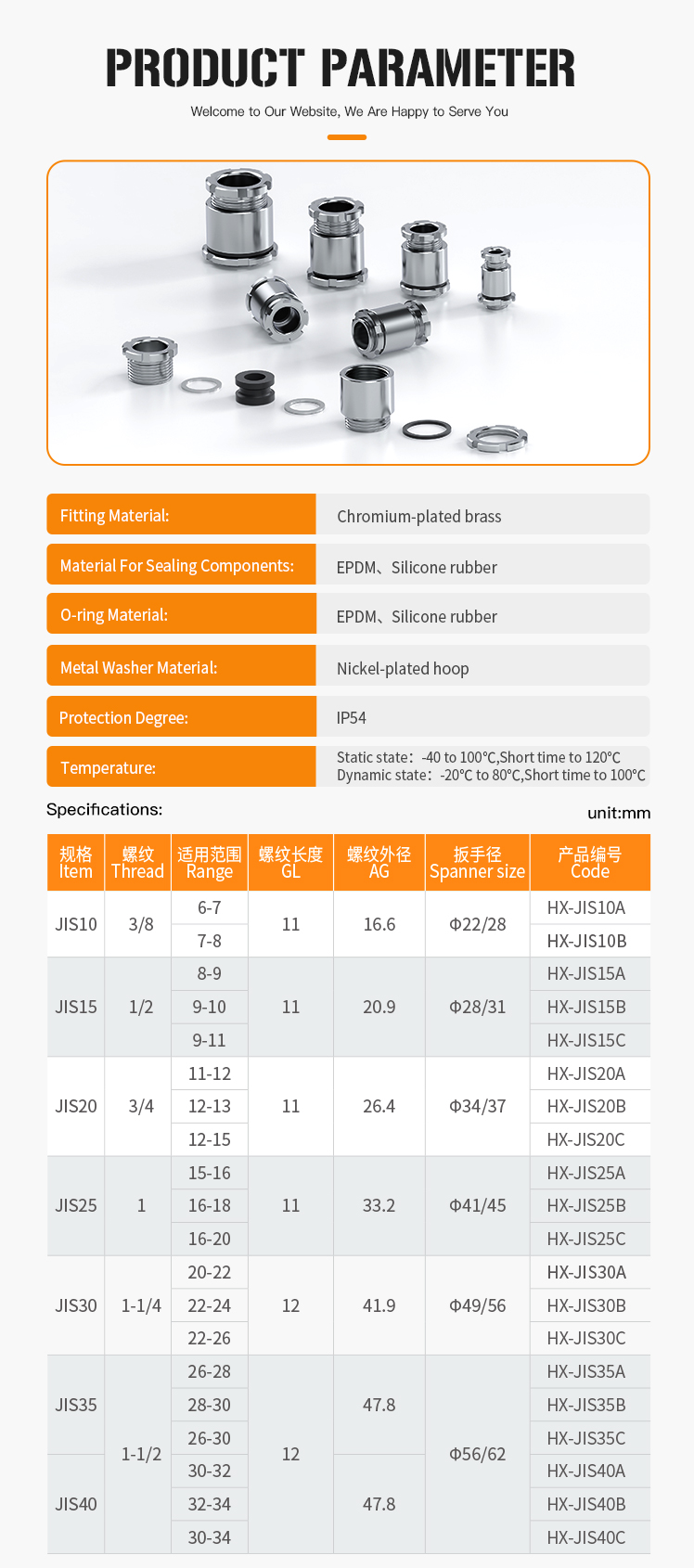

| Item | Thread | Range | GL | AG | Spanner size | Code |
|---|---|---|---|---|---|---|
| JIS10 | 3/8 | 6-7 | 11 | 16.6 | φ22/28 | HX-JIS10A |
| 7-8 | HX-JIS10B | |||||
| JIS15 | 1/2 | 8-9 | 11 | 20.9 | φ28/31 | HX-JIS15A |
| 9-10 | HX-JIS15B | |||||
| 9-11 | HX-JIS15C | |||||
| JIS20 | 3/4 | 11-12 | 11 | 26.4 | φ34/37 | HX-JIS20A |
| 12-13 | HX-JIS20B | |||||
| 12-15 | HX-JIS20C | |||||
| JIS25 | 1 | 15-16 | 11 | 33.2 | φ41/45 | HX-JIS25A |
| 16-18 | HX-JIS25B | |||||
| 16-20 | HX-JIS25C | |||||
| JIS30 | 1-1/4 | 20-22 | 12 | 41.9 | φ49/56 | HX-JIS30A |
| 22-24 | HX-JIS30B | |||||
| 22-26 | HX-JIS30C | |||||
| JIS35 | 1-1/2 | 26-28 | 12 | 47.8 | φ56/62 | HX-JIS35A |
| 28-30 | HX-JIS35B | |||||
| 26-30 | HX-JIS35C | |||||
| JIS40 | 30-32 | 47.8 | HX-JIS40A | |||
| 32-34 | HX-JIS40B | |||||
| 30-34 | HX-JIS40C |

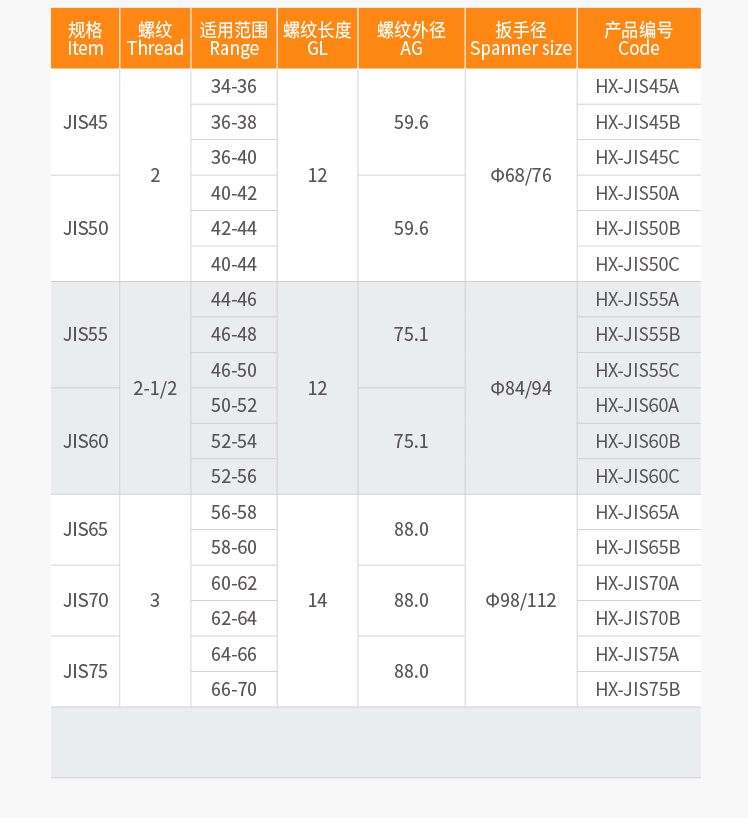

| Item | Thread | Range | GL | AG | Spanner size | Code |
|---|---|---|---|---|---|---|
| JIS45 | 2 | 34-36 | 12 | 59.6 | φ68/76 | HX-JIS45A |
| 36-38 | HX-JIS45B | |||||
| 36-40 | HX-JIS45C | |||||
| JIS50 | 40-42 | 59.6 | HX-JIS50A | |||
| 42-44 | HX-JIS50B | |||||
| 40-44 | HX-JIS50C | |||||
| JIS55 | 2-1/2 | 44-46 | 12 | 75.1 | φ84/94 | HX-JIS55A |
| 46-48 | HX-JIS55B | |||||
| 46-50 | HX-JIS55C | |||||
| JIS60 | 50-52 | 75.1 | HX-JIS60A | |||
| 52-54 | HX-JIS60B | |||||
| 52-56 | HX-JIS60C | |||||
| JIS65 | 3 | 56-58 | 14 | 88.0 | φ98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B | |||||
| JIS70 | 60-62 | 88.0 | HX-JIS70A | |||
| 62-64 | HX-JIS70B | |||||
| JIS75 | 64-66 | 88.0 | HX-JIS75A | |||
| 66-70 | HX-JIS75B |
They are manufactured strictly compliant with JIS (Japanese Industrial Standard) specifications, ensuring compatibility and high precision for marine and vessel installations.
The glands are constructed using high-grade nickel-plated brass or 316 stainless steel to provide optimal corrosion protection against marine salt spray and humidity.
These cable glands feature an optimized sealing mechanism that delivers an IP68 protection level, providing resistance against continuous immersion and fine dust ingress.
The series accommodates a wide range of marine cable outer diameters from 5mm up to 55mm, supporting models from JIS10 to JIS75.

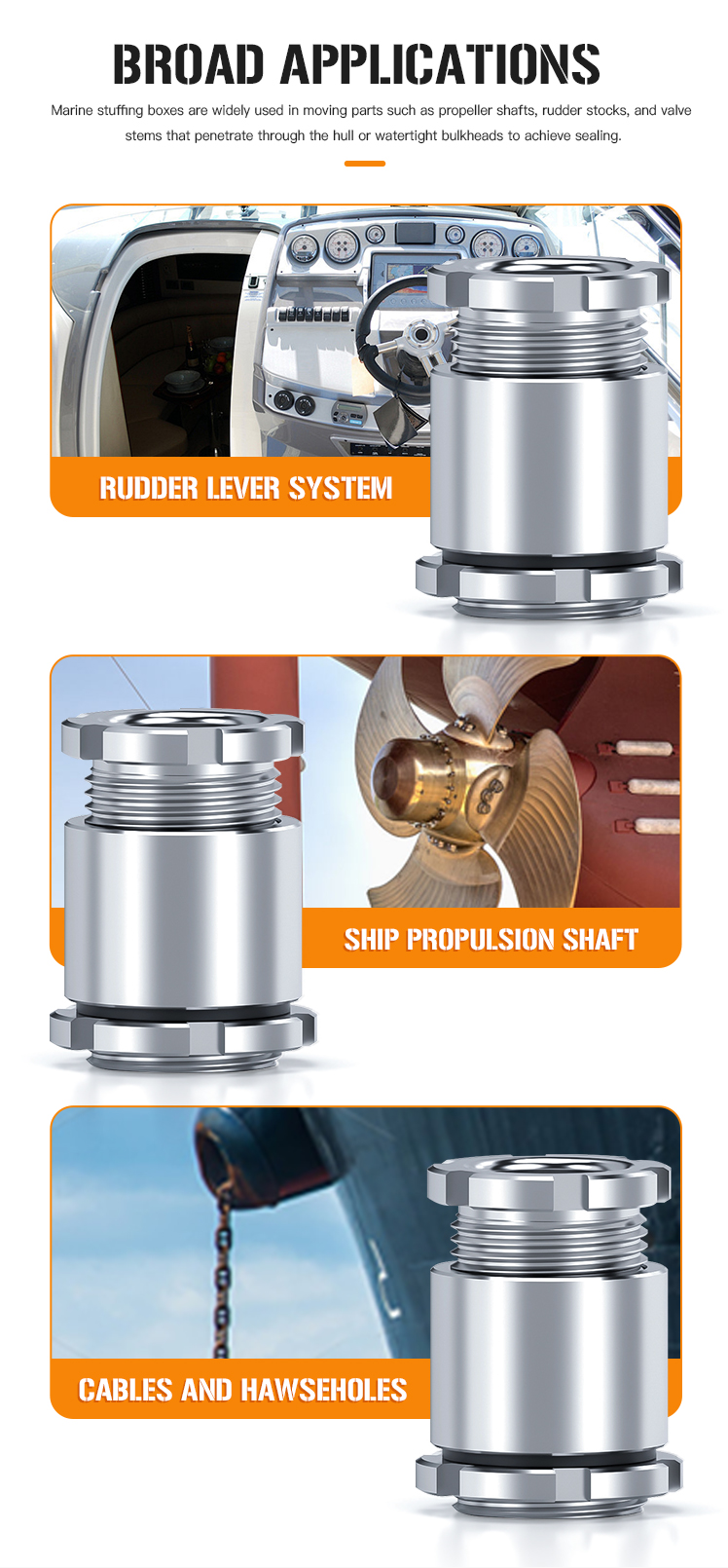

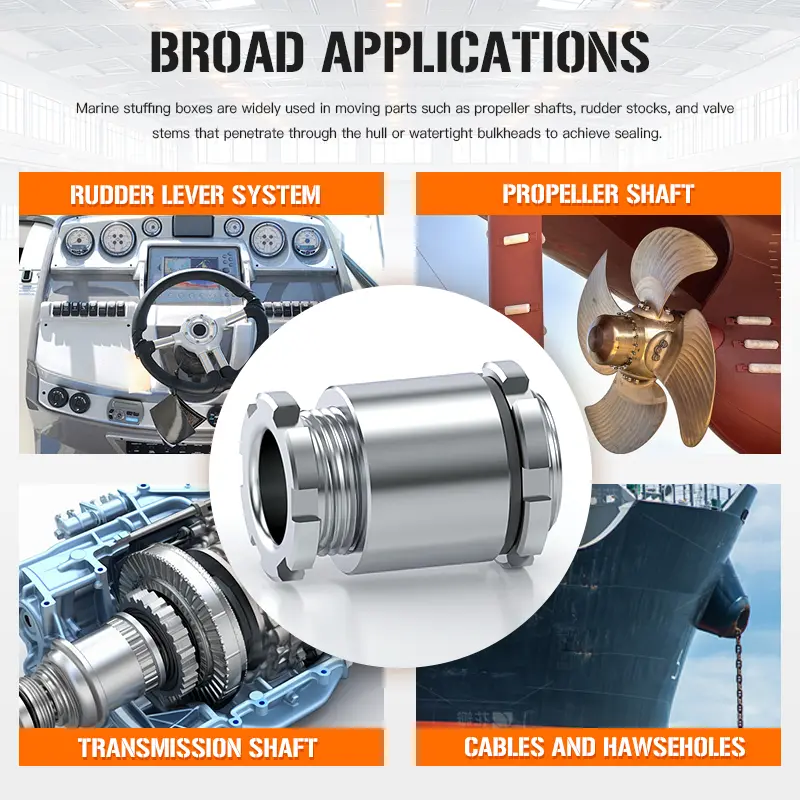

They are ideal for Japanese-style ships, offshore vessels, open-deck machinery, and harsh marine environments requiring vibration resistance and airtight electrical terminations.
