High-Integrity Single Compression Glands & Industrial Sealing
Explore our precision-machined single compression cable glands and certified sealing terminations engineered for extreme temperature resilience, mechanical pull-out prevention, and certified ingress sealing.
The Global Landscape of Single Compression Cable Glands
Analyzing structural demands, engineering mechanics, and international market dynamics for modern cable termination technologies across North America, Europe, and Asia-Pacific.
Single Compression Mechanics
Unlike double-compression glands that grip both inner bedding and outer armor, the single compression cable gland utilizes a precisely configured elastomeric sealing ring (NBR, EPDM, or Silicone) that compresses strictly against the cable’s outer sheath. This creates a uniform radial hermetic seal combined with robust mechanical strain relief, preventing moisture, vapor, and combustible gases from traversing through cable entries.
Global Market Demand Drivers
The global push toward renewable energy installations, massive infrastructure electrification, and modular data center architectures has escalated the demand for single compression fittings. Industrial specifiers require fittings capable of maintaining mechanical anchorage and ingress containment under severe thermal cycling ranging from -40°C to +120°C, without inducing cold flow deformation in unarmored cable jackets.
Harmonized Global Compliance
Navigating global regulatory barriers requires strict cross-certification across IEC/EN 62444 for European electrical machinery, UL 514B for North American commercial panels, and specialized marine classification standards (DNV, ABS, Lloyd’s). HOONSUN manufactures cable gland bodies to strict metallurgical limits, ensuring that lead content complies with RoHS and REACH regulations without sacrificing mechanical machinability.
Why Yueqing, China Dominates Global Cable Gland Manufacturing
Located in Liushi Town, Yueqing — recognized globally as China's electrical capital — HOONSUN leverages an unmatched concentration of raw material metallurgy, multi-axis automated CNC turning centers, and integrated surface finishing lines.
Vertical In-House Control
Unlike trading intermediaries, HOONSUN operates high-precision multi-axis CNC swiss turning centers, automated plastic injection machines, and dedicated vulcanizing units under one roof, keeping tolerance variations within ±0.02mm across batch production runs.
Localized Supply Agility
Yueqing provides instantaneous access to specialized brass extrusion billets (CuZn39Pb3 / CW614N), high-grade austenitic stainless steel bar stock (AISI 304/316L), and virgin polyamide granules (PA66 UL94 V-0), slashing prototype-to-production lead times by 60%.
Automated Quality Testing
Each production run undergoes comprehensive batch testing: hydrostatic ingress chambers testing to 5 bar (50 meters equivalent water column), salt spray fog chambers exceeding 720 hours for marine brass, and tensile pull-out rigs validating retention force per EN 62444.
Scalable Global Logistics
Positioned within 300km of Ningbo and Shanghai deep-water ports, HOONSUN ensures rapid container dispatch, specialized palletized export strapping, and turnkey customs documentation for Tier-1 electrical contractors across North America, Europe, and the GCC.
Localized Engineering Applications & Emerging Sector Trends
Single compression cable glands serve mission-critical electrical junctions across demanding operating environments. Explore field-tested implementations and ongoing technical evolutions.
Renewable PV & BESS Energy Storage
Modern utility-scale solar combiners and high-voltage Battery Energy Storage Systems (BESS) require cable glands capable of withstanding constant UV-A and UV-B exposure, extreme ambient heat, and ozone degradation. HOONSUN's nickel-plated brass and UV-stabilized nylon single compression fittings guarantee gas-tight IP68 sealing to safeguard sensitive inverter circuitry.
Offshore Marine & Desalination Facilities
Marine environments inflict severe galvanic and pitting corrosion. HOONSUN’s marine-grade brass (TJ Clamping series) and AISI 316L stainless steel cable glands feature extended thread lengths, NBR O-rings, and specialized chloroprene seals designed to defy salt spray, continuous maritime wave splash, and chemical exposure in coastal substations.
AI Data Centers & Liquid Cooling Racks
High-density AI computing infrastructure demands leak-proof liquid cooling interconnects paired with vibration-resistant single compression cable entries. Cable glands must block humidity intrusion while providing 360° EMC shielding via specialized spring grounding rings to protect multi-gigabit signal cabling from high-frequency inverter noise.
Single Compression Technical Selection Matrix
Select the optimal single compression cable gland configuration based on metallurgical properties, thread geometry, sealing polymers, and temperature envelopes.
| Gland Series | Base Material & Treatment | Available Thread Forms | Sealing Polymer | IP Ingress Rating | Operating Temp Range | Core Application |
|---|---|---|---|---|---|---|

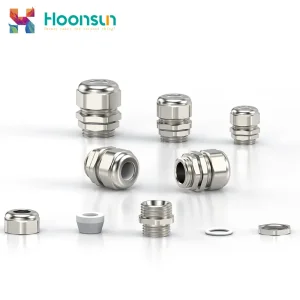

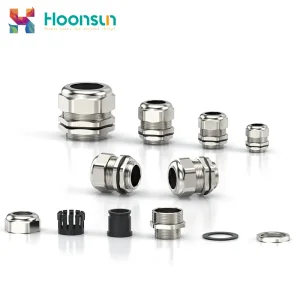

| Standard Metal SCG | CW614N Brass, Nickel-Plated (≥5µm) | Metric (M12-M100), PG, NPT, G | NBR / Neoprene / EPDM | IP68 (5 Bar) | -40°C to +100°C | Industrial automation panels, motors, HVAC systems |
| Marine TJ Clamping | Marine Brass / Stainless 304/316 | Metric, PG, NPT Conical | High-Elasticity Chloroprene | IP68 / Dual IP68 | -50°C to +120°C | Shipbuilding, offshore drilling decks, port container cranes |
| Stainless Sanitary | AISI 304 / AISI 316L Electropolished | Metric (M16-M63), NPT 3/8"-2" | FDA-Grade Silicone / Viton | IP68 / IP69K | -60°C to +180°C | Pharmaceutical processing, food & beverage, washdown lines |
| Industrial Polyamide | PA66 Halogen-Free, UL94 V-0 | Metric, PG, NPT | Santoprene / Nitrile | IP68 (3 Bar) | -40°C to +100°C | Solar PV combiner boxes, telecommunications, EV chargers |
| Explosion-Proof EX3 | Solid Brass / CuZn39Pb3 / SS316 | Metric (M20-M90), NPT 1/2"-3" | Fluoroelastomer / Viton | IP66 / IP68 (Ex d/e) | -60°C to +130°C | Petrochemical refineries, grain silos, mining extraction sites |
Require Customized Gland Bore Diameters or Special Thread Pitches?
Our Yueqing engineering workshops deliver fully customized CNC prototypes within 7 working days, accommodating non-standard cable outer diameters, multi-hole cable entries, and customized EMC grounding springs.
Strategic Global Procurement: Ensuring Reliability at Scale
When global supply chain directors source single compression cable glands from China, success hinges on audited metallurgy, thread fidelity, and comprehensive trace documentation.
Comprehensive Traceability & EN 10204 3.1
Every batch of raw brass, stainless steel, and polyamide compounds is tracked back to raw ingot production. HOONSUN provides EN 10204 Type 3.1 inspection certificates documenting chemical composition, yield strength, and dimensional tolerances, preventing catastrophic stress-cracking in field service.
Precision Thread Gauging (6g / 6H)
Mismatched thread tolerances result in stripping, vibration release, and compromised IP sealing. We deploy Japanese calibrated Go/No-Go thread pitch plug and ring gauges across all Metric, PG, NPT, and BSPP (G) production lines to ensure seamless threading into international junction boxes.
OEM Private Label & Kitting Capabilities
Support your distribution brand with customized laser-engraved part numbers, bespoke hex dimensions, proprietary barcoding, and pre-packaged assembly kits (including locknuts, sealing washers, and serrated earth tags) optimized for warehouse automated picking systems.
Frequently Asked Questions: Single Compression Cable Glands
Key engineering and procurement inquiries addressed by our technical team to assist in your supplier qualification process.
A single compression cable gland compresses a specialized elastomeric seal exclusively around the outer protective sheath of unarmored or light armored cables. This provides environmental ingress protection (up to IP68) and strain relief. A double compression gland features two separate sealing stages: one internal seal gripping the inner cable bedding, a metal cone clamping the steel wire armor (SWA) or braid, and a second seal securing the external sheath, primarily used in heavy-duty hazardous areas.
IP68 is not a generic static rating; it depends strictly on water depth and immersion duration. HOONSUN tests glands inside computerized hydrostatic chambers pressurized to 0.5 MPa (5 bar, equivalent to 50 meters water column) for up to 72 hours. Achieving this requires precise radial tolerances in the compression nut chamfer, matched elastomeric recovery properties in the sealing ring, and high-tensile O-rings installed at the male thread shoulder.
Thread selection depends entirely on regional destination and equipment standards. Metric (ISO 68-1) with a 1.5mm pitch is the global standard across Europe, Asia, and modern IEC machinery. PG (DIN 40430) remains common in legacy German industrial retrofits. NPT (ANSI/ASME B1.20.1) is a 60° tapered pipe thread mandatory for North American UL/NEC installations to achieve flame-tight metal engagement. BSPP / G (ISO 228) is utilized in hydraulic and specialized British standard enclosures.
Nickel-plated brass offers excellent mechanical durability, shielding, and cost efficiency for 85% of industrial applications. However, in environments with high concentrations of chlorides, sulfur dioxide, or aggressive caustic washdowns (such as offshore wind platforms, marine decks, pulp mills, and dairy plants), nickel plating will eventually micro-pit. Grade AISI 316L stainless steel contains 2-3% molybdenum, providing superior pitting resistance equivalent to a PREN > 23.
Over-tightening causes polymer extrusion or crushes internal conductor insulation, while under-tightening compromises IP68 sealing. HOONSUN provides certified torque rating charts with every batch shipment (e.g., M16: 4.5 Nm; M25: 8.0 Nm; M40: 15.0 Nm). Adherence to specified torque values guarantees retention compliance exceeding Class A pull-out requirements defined in EN 62444.
Extended Single Compression, Marine & Hazardous Location Products
Explore our specialized portfolio including double lock high-vibration glands, explosion-proof sealing clamps, pressure-equalizing breather vents, and multi-hole cable feedthroughs.
