Product Description
| Series | DN Size | Material | Sealing | Thread | Working Pressure | Temp Range |
|---|---|---|---|---|---|---|

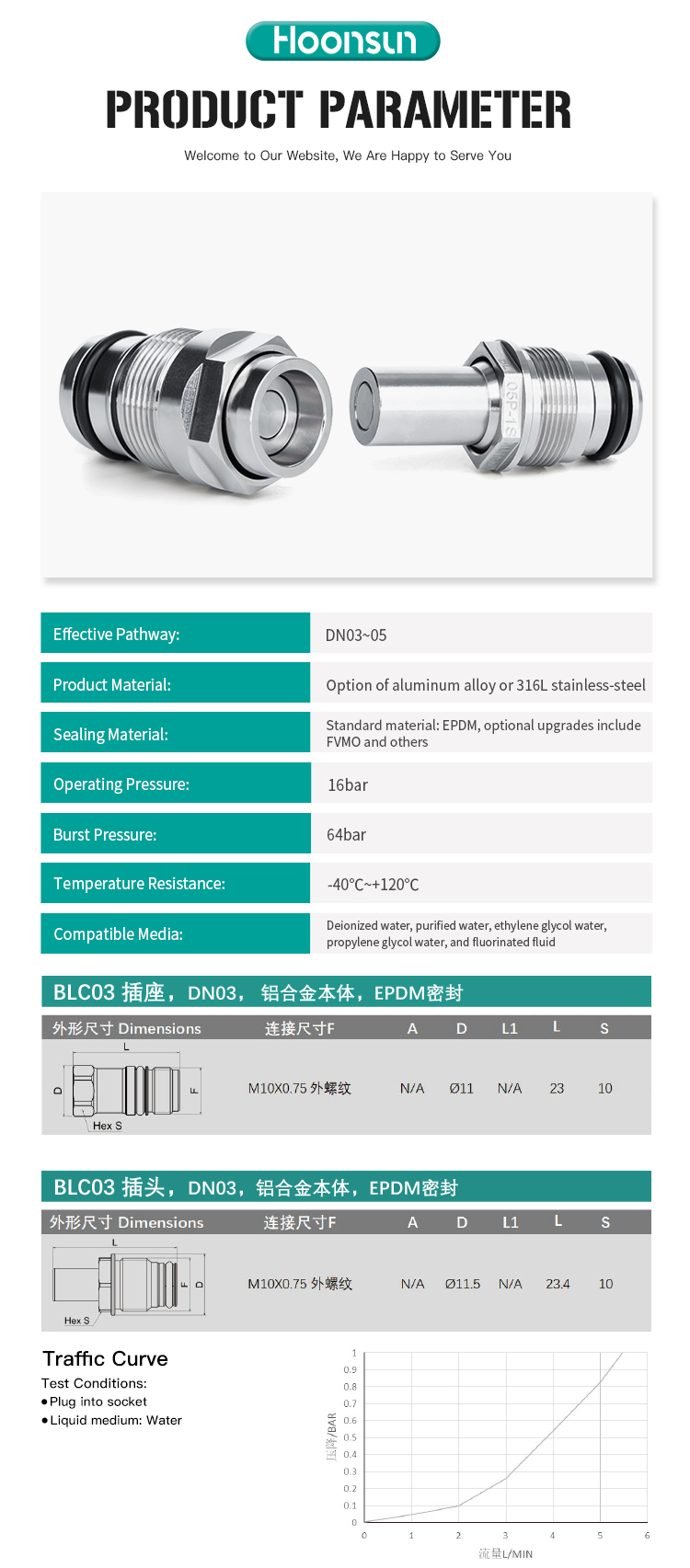

| BLC03 | DN03 | Aluminum / 316L SS | EPDM (FVMO optional) | M10×0.75 | 16bar | -40℃~120℃ |

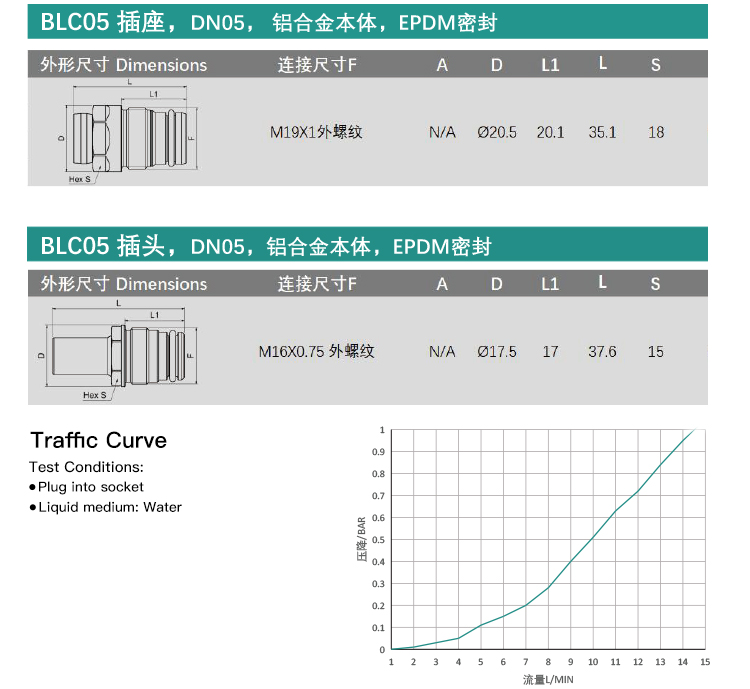

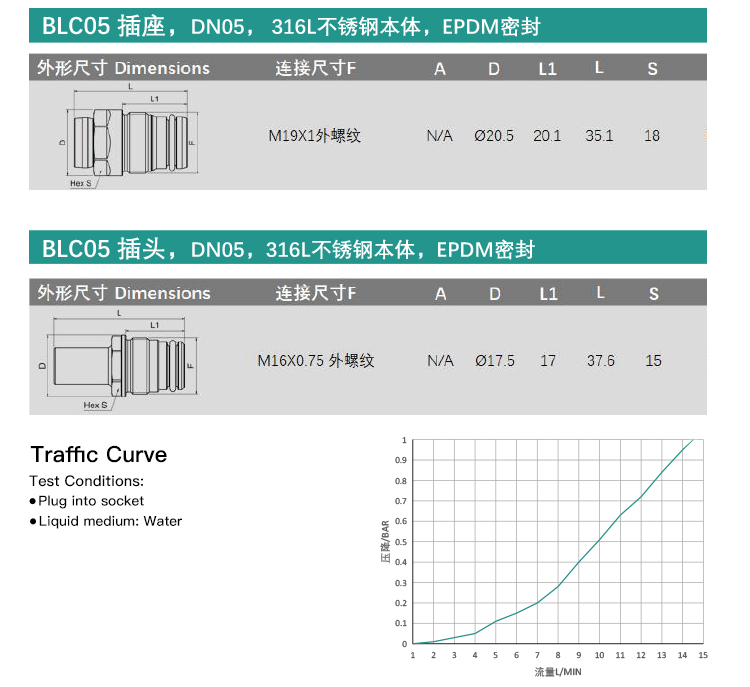

| BLC05 | DN05 | Aluminum / 316L SS | EPDM (FVMO optional) | M19×1.0 / M16×0.75 | 16bar | -40℃~120℃ |

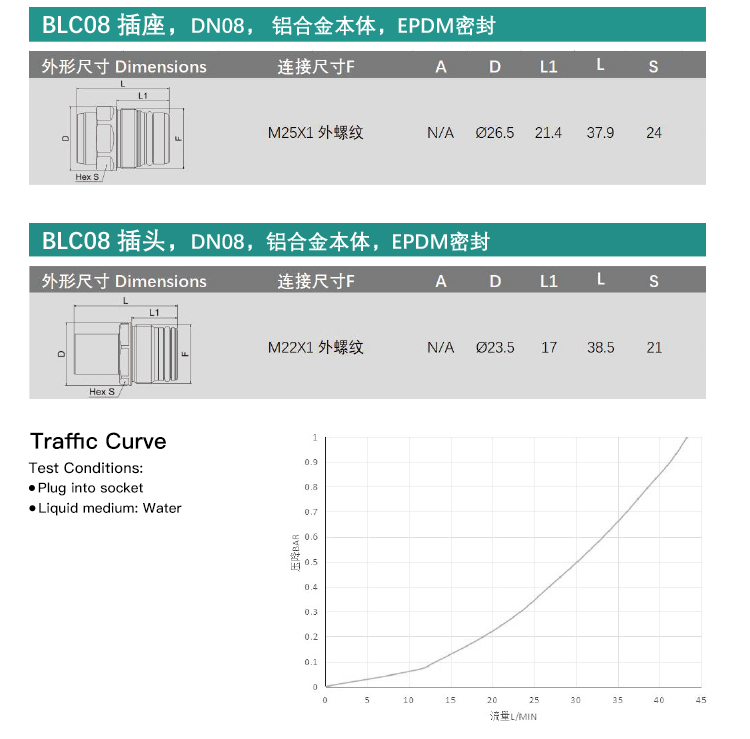

| BLC08 | DN08 | Aluminum | EPDM (FVMO optional) | M25×1.0 / M22×1.0 | 16bar | -40℃~120℃ |
Compatible Media: Deionized water, purified water, ethylene glycol solution, propylene glycol solution, fluorinated fluids
Burst Pressure: 64bar (4x working pressure)
Performance Curve: Optimized flow with minimal pressure drop (refer to the flow chart for detailed data)
- ● Data Center Servers: Liquid cooling for high-density server racks
- ● AI Servers & HPC: Thermal management for high-performance computing
- ● Energy Storage Systems: Cooling solutions for battery packs
- ● Power Electronics & EV Systems: EV three-electric system cooling
- ● Industrial Lasers & Medical Equipment: Precision liquid cooling
- ● PV Inverters & Power Stations: Solar and wind energy equipment cooling
- ● Test Benches & Industrial Automation: Reliable fluid connections

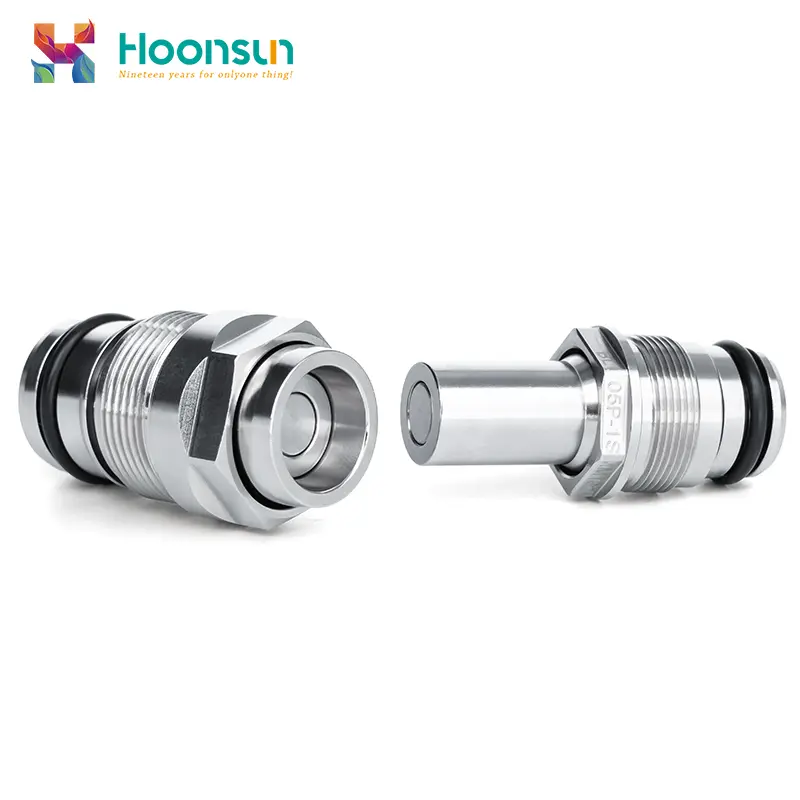

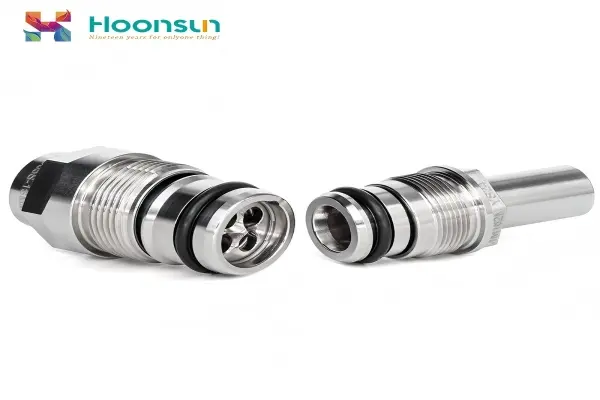

It is a fluid coupling designed for "blind" connections (without visual alignment) in liquid cooling systems, enabling fast, reliable plug-and-play installation.

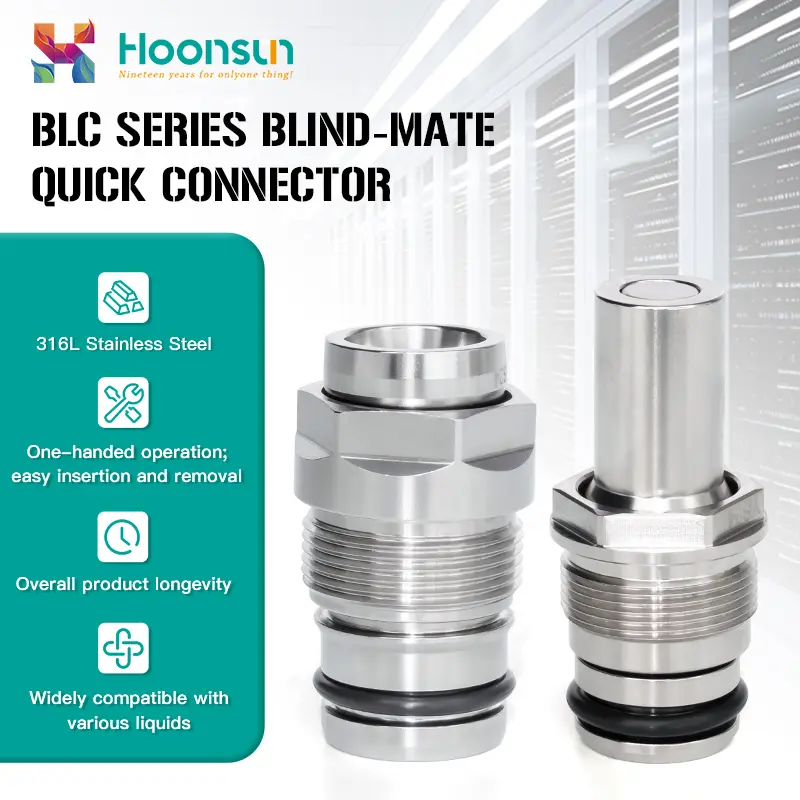

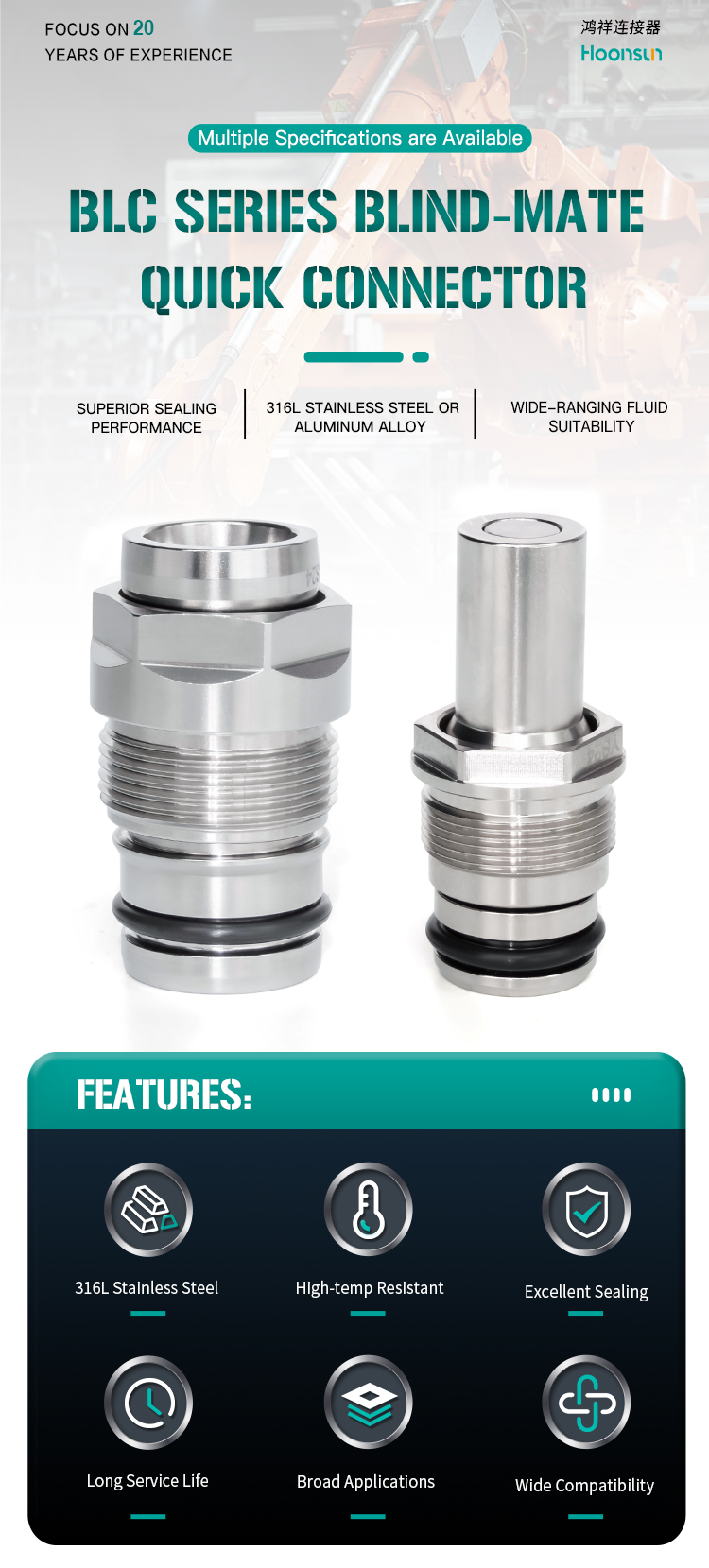

We offer two main options: 316L Stainless Steel for excellent corrosion resistance in harsh environments, and Aluminum Alloy for a lightweight, high strength-to-weight, cost-effective solution.
They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, and fluorinated fluids.

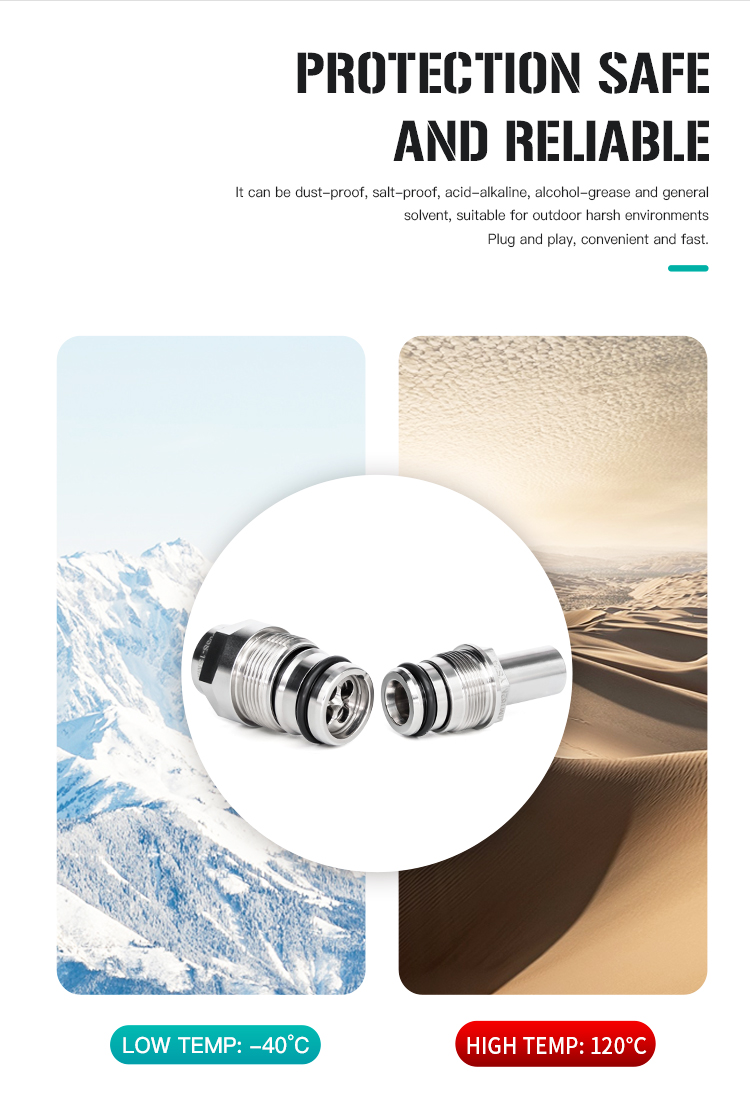

The standard operating range is -40°C to 120°C, making it suitable for most demanding liquid cooling applications.

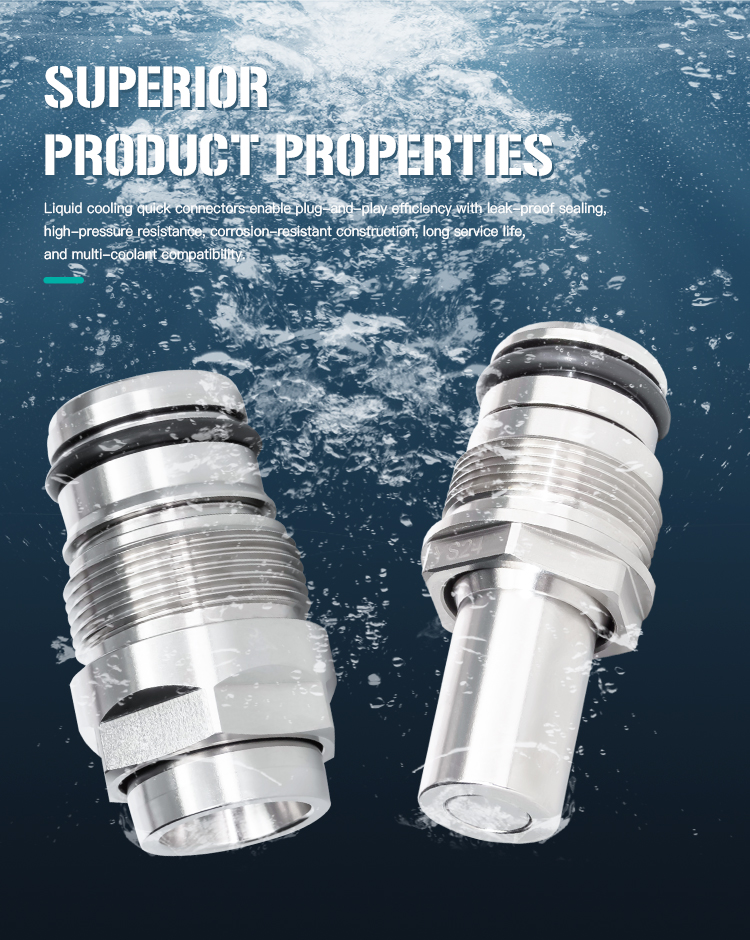

Yes. The advanced EPDM/FVMO sealing system ensures zero-leakage performance under rated working pressures to safeguard your electronic systems.
Yes. We support full OEM/ODM customization for non-standard thread sizes, specific housing materials, or specialized sealing requirements.
Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our BLC series blind-mate connectors are widely trusted by data centers, AI equipment manufacturers, and new energy companies.
