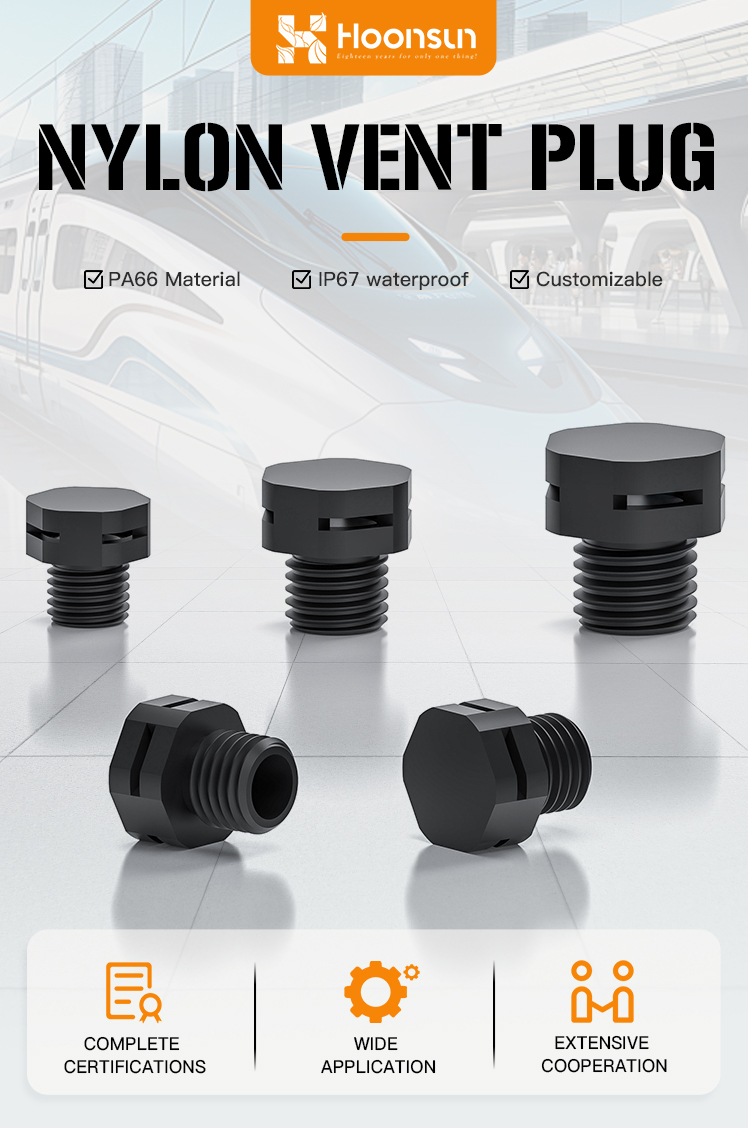

China Nylon Vent Plug with Waterproof IP68 and UL Certification Supplier, Factories
Product Description
- Crafted from flame-retart PA66 nylon for lightweight durability and excellent mechanical strength.
- Features a breathable, waterproof ePTFE membrane, providing reliable IP68 protection against water and dust ingress.
- Holds UL, CE, and RoHS certifications, ensuring international safety and environmental standards.
- Offers UV resistance and anti-aging properties for long-term reliability in harsh conditions.
- Available in both Metric and PG thread types for versatile and easy installation.
- Ideal for outdoor control boxes and cabinets to manage internal pressure and humidity.
- Perfect for protecting LED lighting systems from condensation and corrosion.
- Essential for sensors and communication devices in industrial or outdoor settings.
- Safeguards sensitive electronics in automotive, marine, and telecommunications equipment.
- Effectively equalizes pressure and prevents condensation, significantly extending equipment lifespan.

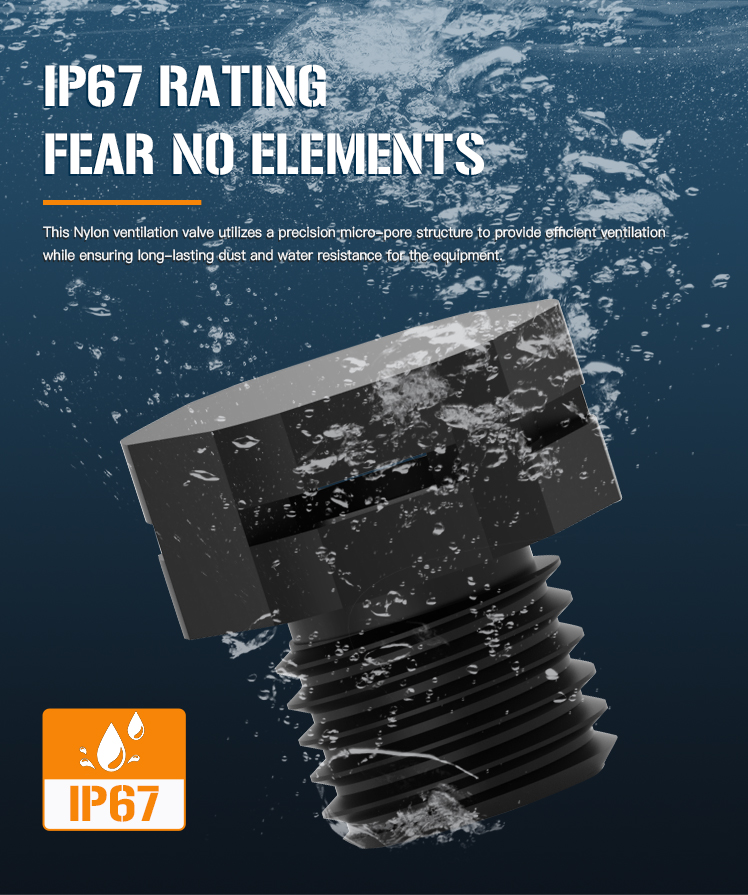

- The robust IP68 rating ensures superior protection, maintaining enclosure integrity.
- Its compact, chemical-resistant design offers a cost-effective, maintenance-free solution.
- Enhances system reliability by preventing moisture-related failures and component damage.

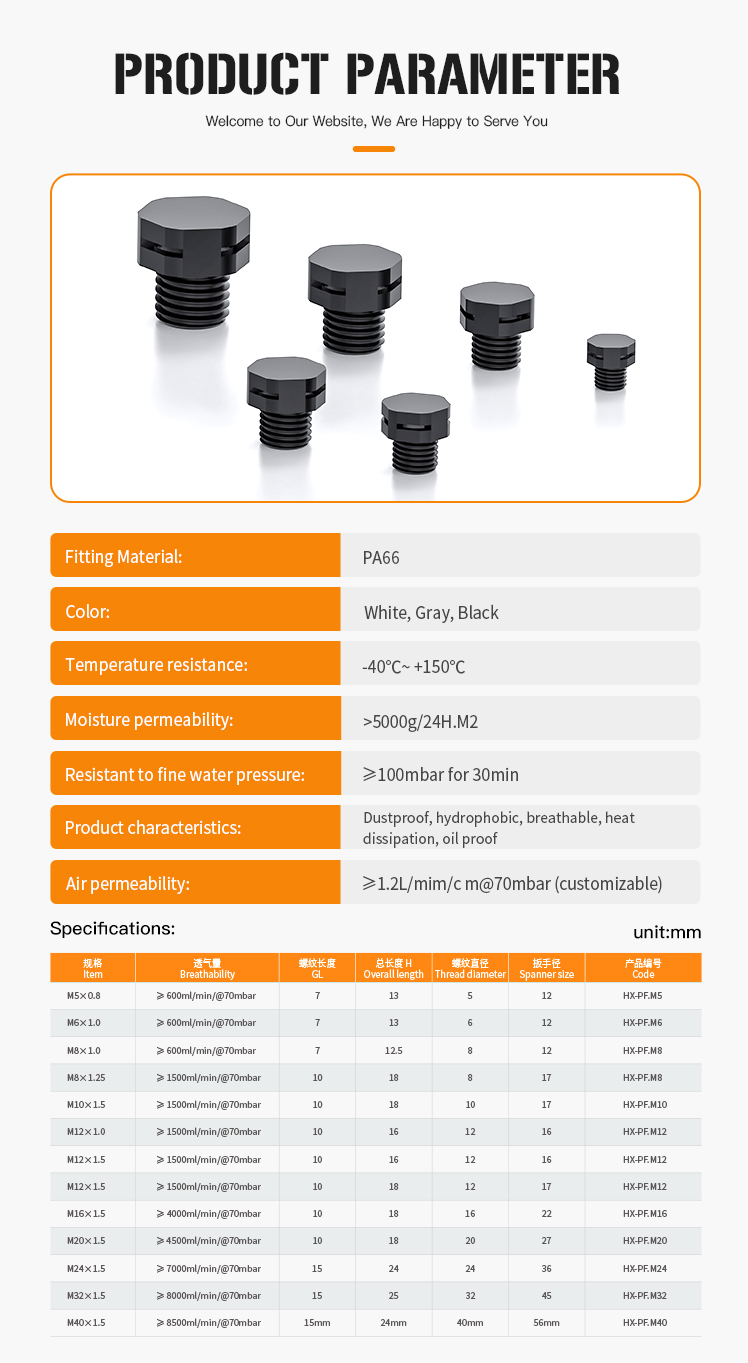

| Item | Breathability | GL | H Overall Length | Thread Diameter | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M5×0.8 | ≥600ml/min/@70mbar | 7 | 13 | 5 | 12 | HX-PF.M5 |
| M6×1.0 | ≥600ml/min/@70mbar | 7 | 13 | 6 | 12 | HX-PF.M6 |
| M8×1.0 | ≥600ml/min/@70mbar | 7 | 12.5 | 8 | 12 | HX-PF.M8 |
| M8×1.25 | ≥1500ml/min/@70mbar | 10 | 18 | 8 | 17 | HX-PF.M8 |
| M10×1.5 | ≥1500ml/min/@70mbar | 10 | 18 | 10 | 17 | HX-PF.M10 |
| M12×1.0 | ≥1500ml/min/@70mbar | 10 | 16 | 12 | 16 | HX-PF.M12 |
| M12×1.5 | ≥1500ml/min/@70mbar | 10 | 16 | 12 | 16 | HX-PF.M12 |
| M12×1.5 | ≥1500ml/min/@70mbar | 10 | 18 | 12 | 17 | HX-PF.M12 |
| M16×1.5 | ≥4000ml/min/@70mbar | 10 | 18 | 16 | 22 | HX-PF.M16 |
| M20×1.5 | ≥4500ml/min/@70mbar | 10 | 18 | 20 | 27 | HX-PF.M20 |
| M24×1.5 | ≥7000ml/min/@70mbar | 15 | 24 | 24 | 36 | HX-PF.M24 |
| M32×1.5 | ≥8000ml/min/@70mbar | 15 | 25 | 32 | 45 | HX-PF.M32 |
| M40×1.5 | ≥8500ml/min/@70mbar | 15mm | 24mm | 40mm | 56mm | HX-PF.M40 |
It equalizes pressure between the interior and exterior of electronic enclosures while maintaining an IP68 barrier against water, dust, and environmental contaminants.

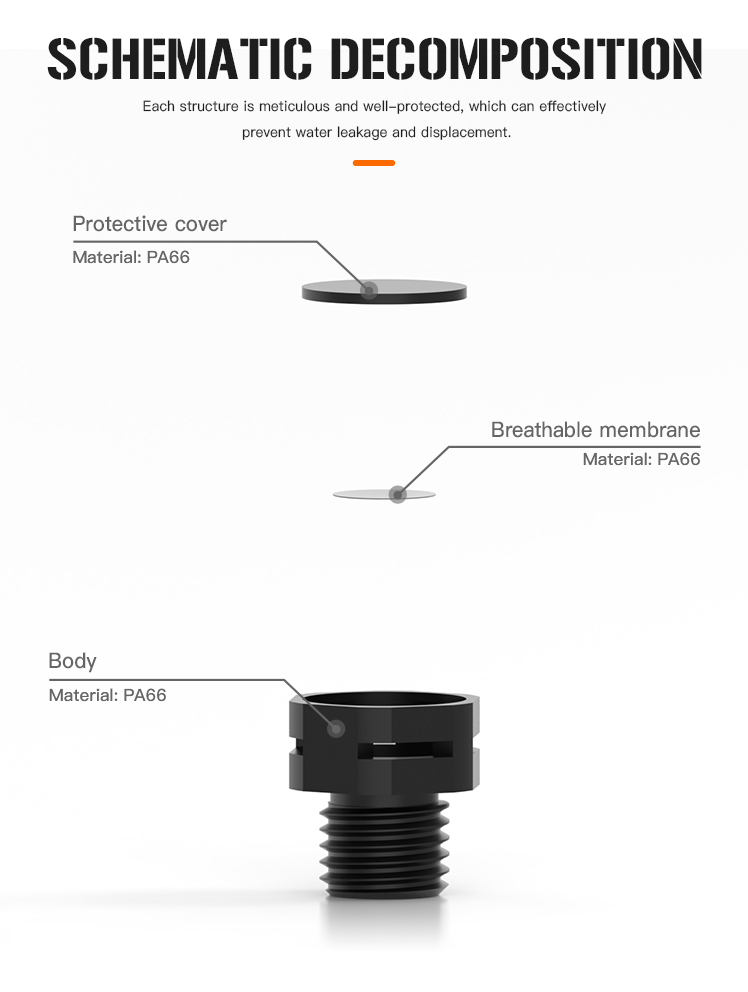

The vent utilizes an advanced ePTFE (expanded polytetrafluoroethylene) membrane that allows air and gas molecules to flow freely while repelling liquids and particulate matter.
By balancing internal and external air pressures continuously, it prevents vacuum effects and allows moisture vapor to escape before condensation forms inside the enclosure.

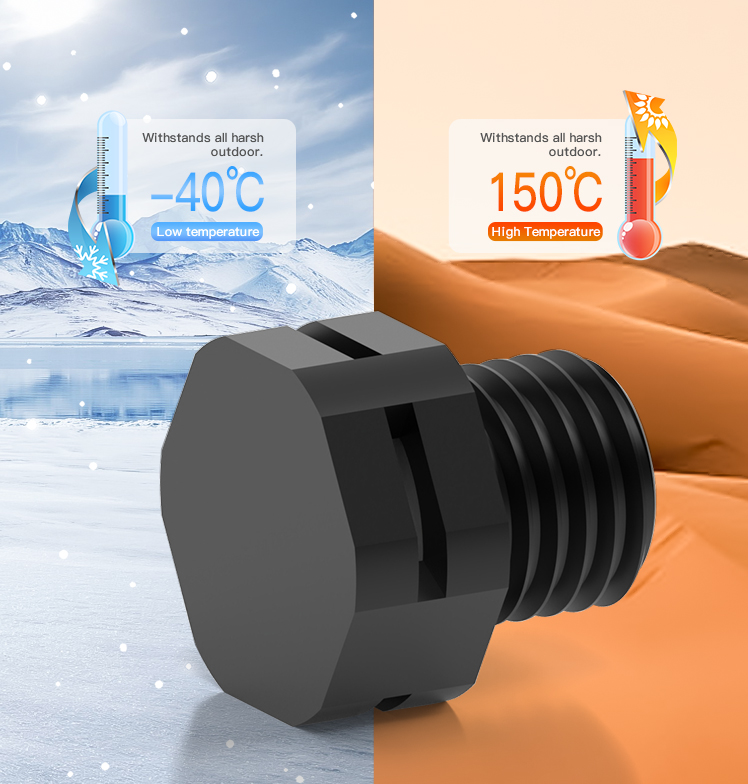

Yes, the PA66 nylon body features UV resistance and anti-aging properties specifically designed for harsh outdoor environments.
They are available in various standard Metric thread sizes (ranging from M5 up to M40) as well as PG thread types to suit diverse application requirements.
