China Nylon Corrugated Cable Gland with UL and IP68 Manufacturer, Suppliers

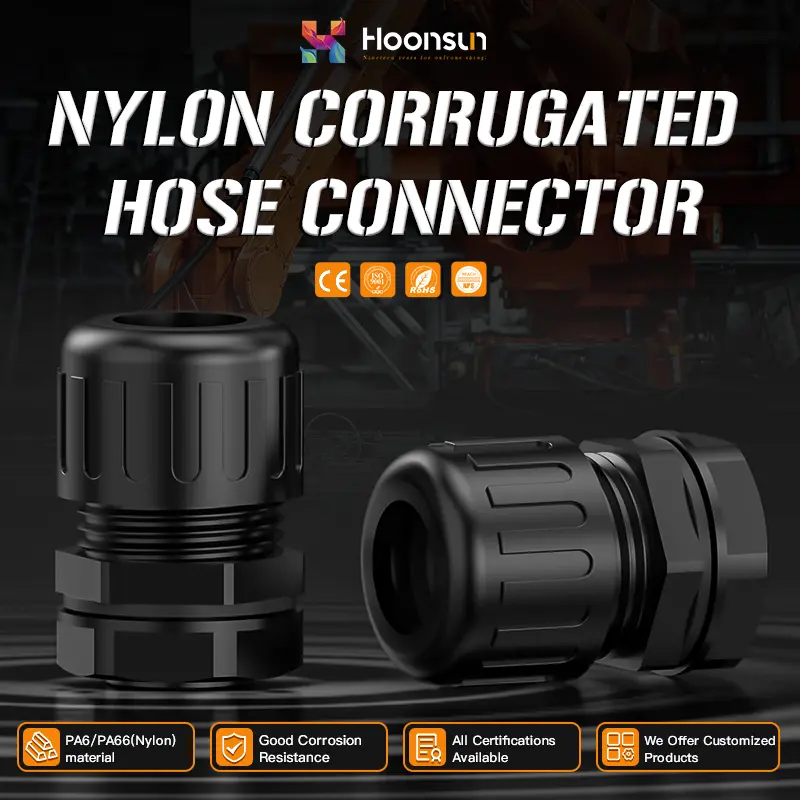

Product Description
Product Highlights
- Dedicated adaptation to corrugated pipes with a special locking structure for a tight fit
- Made of high-quality nylon, offering lightweight and cost-effective performance
- Built-in sealing ring design ensuring reliable IP68/IP65 protection
- Streamlined structure for convenient, tool-free installation
Applications
- Indoor and outdoor general industrial environments
- Flexible wiring needs using nylon corrugated pipes
- Scenarios requiring batch wiring efficiency

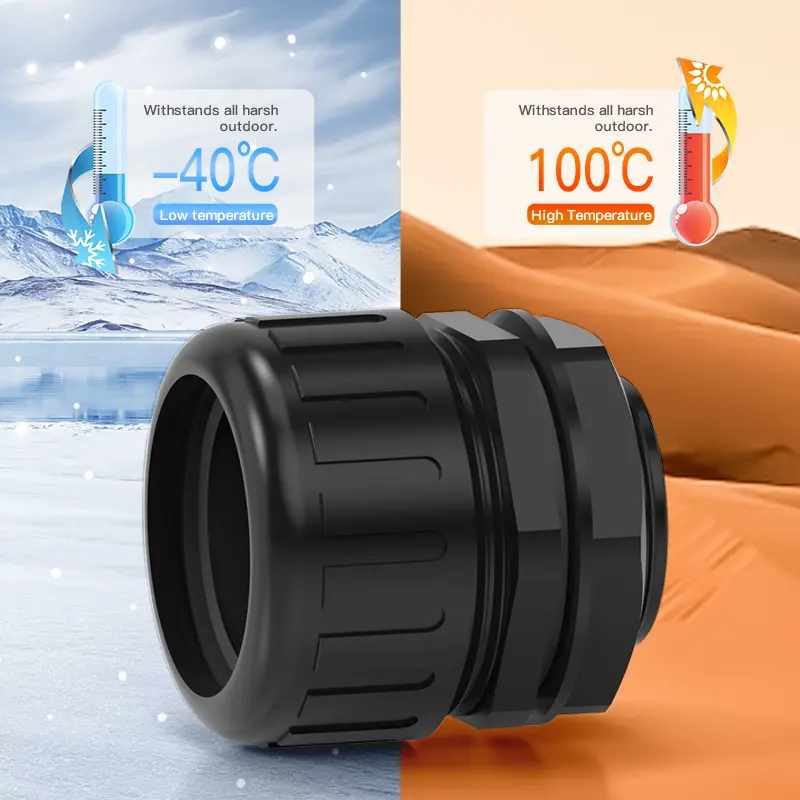

Key Benefits
- Prevents pipe detachment or displacement while maintaining flexibility
- Anti-aging, impact-resistant, and durable for long-term use
- Effectively dustproof, waterproof, and resistant to mild oil stains
- Compatible with various inner diameter specifications for versatile use

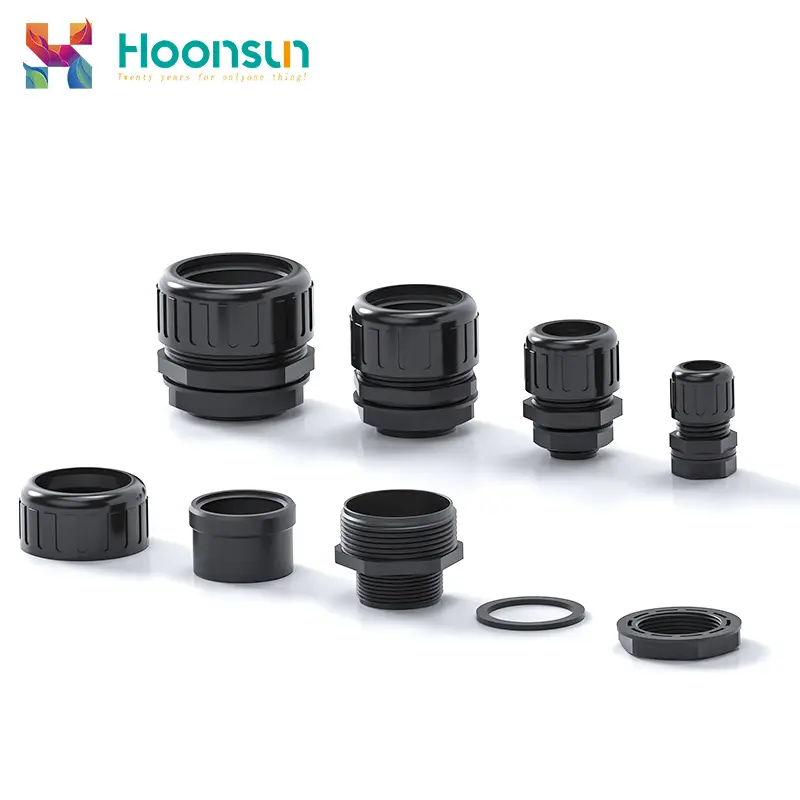

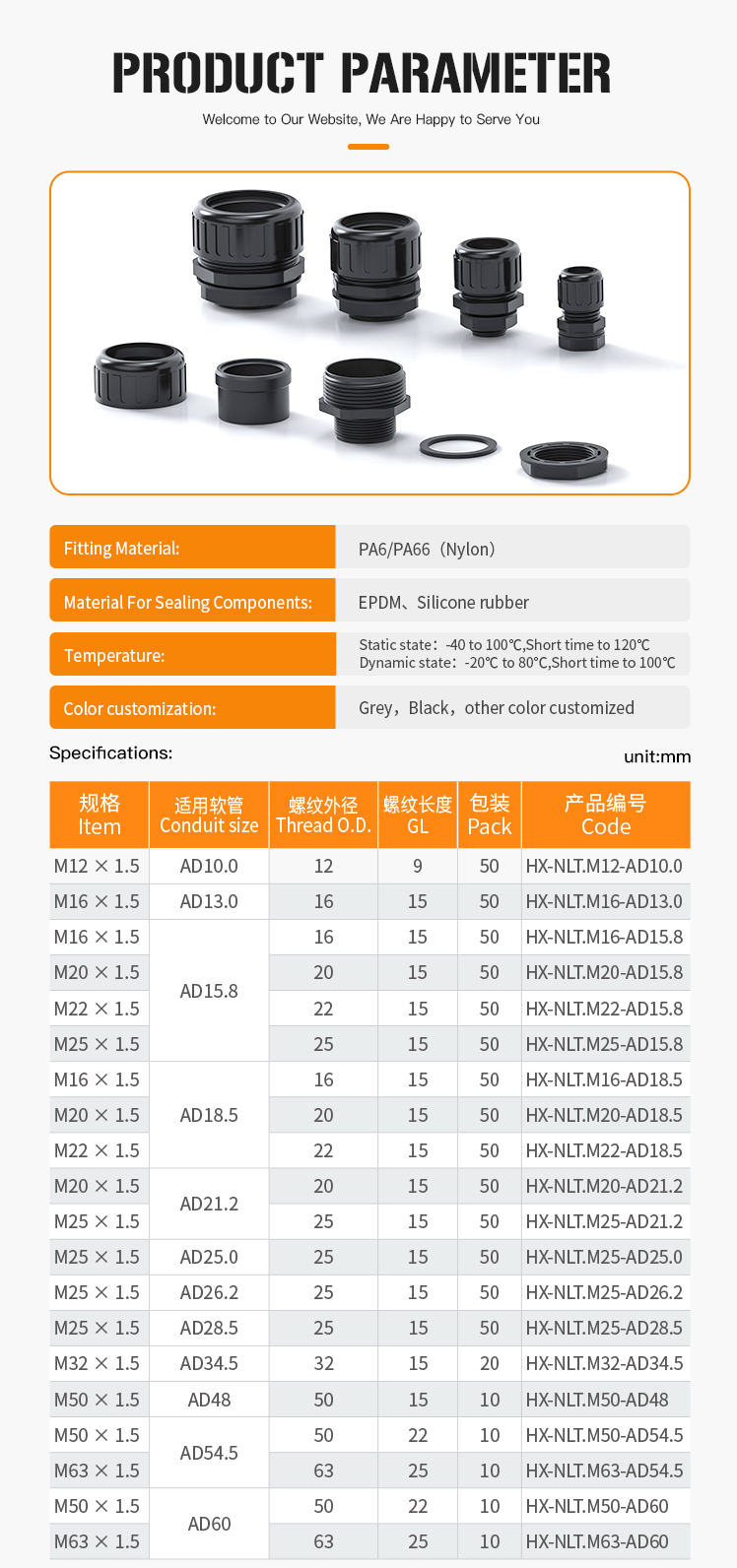

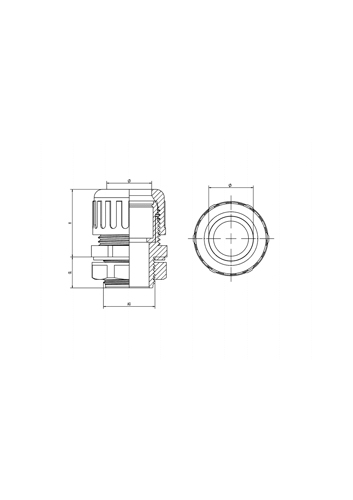

Product Parameters & Technical Specifications
Unit: mm
| Item (Metric) | Conduit Size | Thread O.D. | GL | Pack | Code |
|---|---|---|---|---|---|
| M12×1.5 | AD10.0 | 12 | 9 | 50 | HX-NLT.M12-AD10.0 |
| M16×1.5 | AD13.0 | 16 | 15 | 50 | HX-NLT.M16-AD13.0 |
| M16×1.5 | AD15.8 | 16 | 15 | 50 | HX-NLT.M16-AD15.8 |
| M20×1.5 | 20 | 15 | 50 | HX-NLT.M20-AD15.8 | |
| M22×1.5 | 22 | 15 | 50 | HX-NLT.M22-AD15.8 | |
| M25×1.5 | 25 | 15 | 50 | HX-NLT.M25-AD15.8 | |
| M16×1.5 | AD18.5 | 16 | 15 | 50 | HX-NLT.M16-AD18.5 |
| M20×1.5 | 20 | 15 | 50 | HX-NLT.M20-AD18.5 | |
| M22×1.5 | 22 | 15 | 50 | HX-NLT.M22-AD18.5 | |
| M20×1.5 | AD21.2 | 20 | 15 | 50 | HX-NLT.M20-AD21.2 |
| M25×1.5 | 25 | 15 | 50 | HX-NLT.M25-AD21.2 | |
| M25×1.5 | AD25.0 | 25 | 15 | 50 | HX-NLT.M25-AD25.0 |
| M25×1.5 | AD26.2 | 25 | 15 | 50 | HX-NLT.M25-AD26.2 |
| M25×1.5 | AD28.5 | 25 | 15 | 50 | HX-NLT.M25-AD28.5 |
| M32×1.5 | AD34.5 | 32 | 15 | 20 | HX-NLT.M32-AD34.5 |
| M50×1.5 | AD48 | 50 | 15 | 10 | HX-NLT.M50-AD48 |
| M50×1.5 | AD54.5 | 50 | 22 | 10 | HX-NLT.M50-AD54.5 |
| M63×1.5 | 63 | 25 | 10 | HX-NLT.M63-AD54.5 | |
| M50×1.5 | AD60 | 50 | 22 | 10 | HX-NLT.M50-AD60 |
| M63×1.5 | 63 | 25 | 10 | HX-NLT.M63-AD60 |

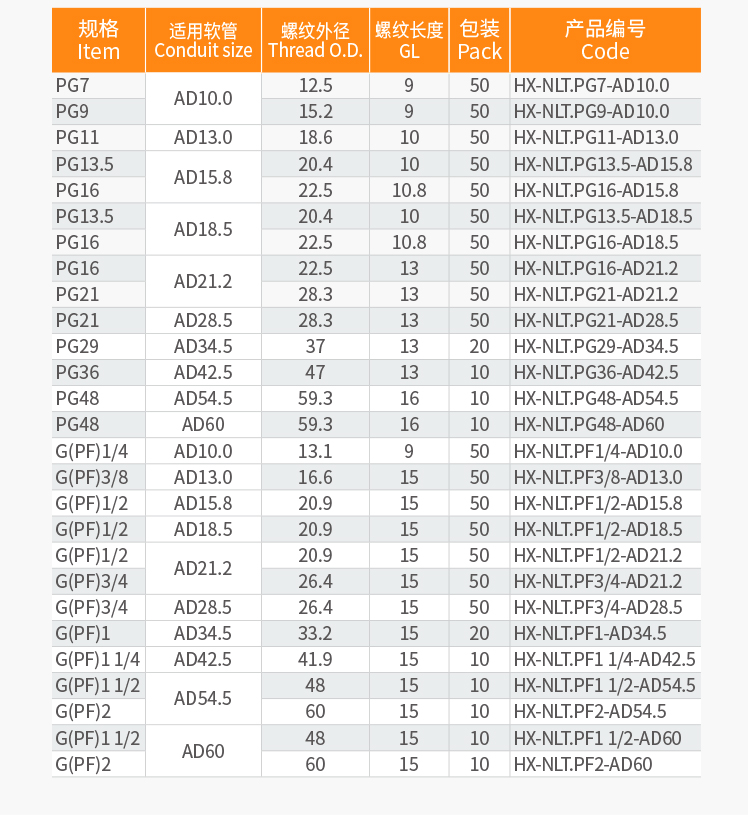

Unit: mm
| Item (PG / G) | Conduit Size | Thread O.D. | GL | Pack | Code |
|---|---|---|---|---|---|
| PG7 | AD10.0 | 12.5 | 9 | 50 | HX-NLT.PG7-AD10.0 |
| PG9 | 15.2 | 9 | 50 | HX-NLT.PG9-AD10.0 | |
| PG11 | AD13.0 | 18.6 | 10 | 50 | HX-NLT.PG11-AD13.0 |
| PG13.5 | AD15.8 | 20.4 | 10 | 50 | HX-NLT.PG13.5-AD15.8 |
| PG16 | 22.5 | 10.8 | 50 | HX-NLT.PG16-AD15.8 | |
| PG13.5 | AD18.5 | 20.4 | 10 | 50 | HX-NLT.PG13.5-AD18.5 |
| PG16 | 22.5 | 10.8 | 50 | HX-NLT.PG16-AD18.5 | |
| PG16 | AD21.2 | 22.5 | 13 | 50 | HX-NLT.PG16-AD21.2 |
| PG21 | 28.3 | 13 | 50 | HX-NLT.PG21-AD21.2 | |
| PG21 | AD28.5 | 28.3 | 13 | 50 | HX-NLT.PG21-AD28.5 |
| PG29 | AD34.5 | 37 | 13 | 20 | HX-NLT.PG29-AD34.5 |
| PG36 | AD42.5 | 47 | 13 | 10 | HX-NLT.PG36-AD42.5 |
| PG48 | AD54.5 | 59.3 | 16 | 10 | HX-NLT.PG48-AD54.5 |
| PG48 | AD60 | 59.3 | 16 | 10 | HX-NLT.PG48-AD60 |
| G(PF)1/4 | AD10.0 | 13.1 | 9 | 50 | HX-NLT.PF1/4-AD10.0 |
| G(PF)3/8 | AD13.0 | 16.6 | 15 | 50 | HX-NLT.PF3/8-AD13.0 |
| G(PF)1/2 | AD15.8 | 20.9 | 15 | 50 | HX-NLT.PF1/2-AD15.8 |
| G(PF)1/2 | AD18.5 | 20.9 | 15 | 50 | HX-NLT.PF1/2-AD18.5 |
| G(PF)1/2 | AD21.2 | 20.9 | 15 | 50 | HX-NLT.PF1/2-AD21.2 |
| G(PF)3/4 | 26.4 | 15 | 50 | HX-NLT.PF3/4-AD21.2 | |
| G(PF)3/4 | AD28.5 | 26.4 | 15 | 50 | HX-NLT.PF3/4-AD28.5 |
| G(PF)1 | AD34.5 | 33.2 | 15 | 20 | HX-NLT.PF1-AD34.5 |
| G(PF)1 1/4 | AD42.5 | 41.9 | 15 | 10 | HX-NLT.PF1 1/4-AD42.5 |
| G(PF)1 1/2 | AD54.5 | 48 | 15 | 10 | HX-NLT.PF1 1/2-AD54.5 |
| G(PF)2 | 60 | 15 | 10 | HX-NLT.PF2-AD54.5 | |
| G(PF)1 1/2 | AD60 | 48 | 15 | 10 | HX-NLT.PF1 1/2-AD60 |
| G(PF)2 | 60 | 15 | 10 | HX-NLT.PF2-AD60 |

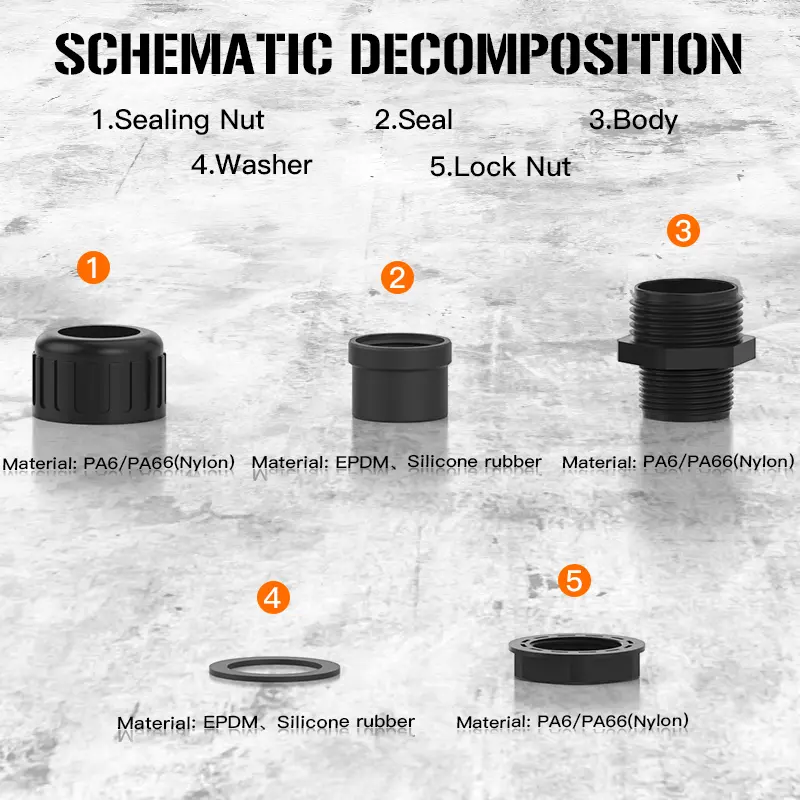

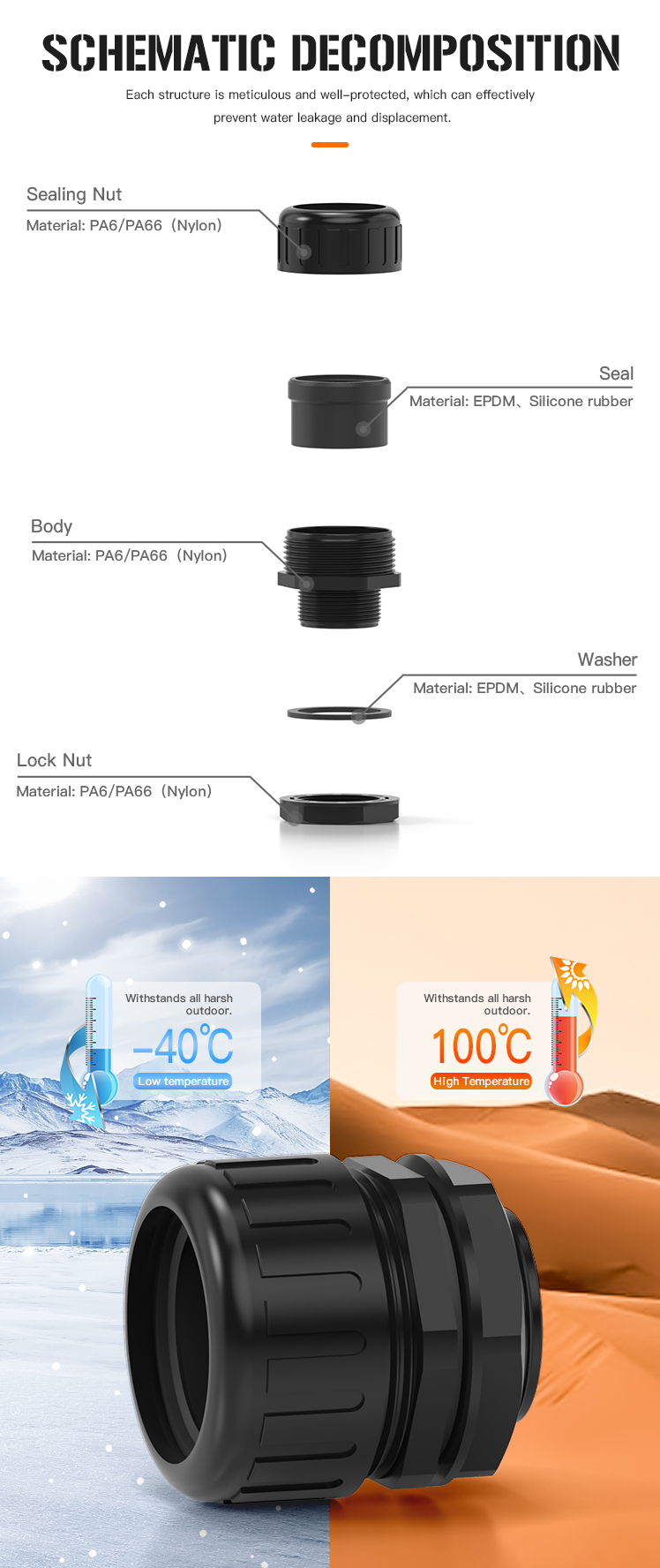

Detailed Product Gallery
Frequently Asked Questions (FAQ)
What types of conduits are compatible with these connectors?
These connectors are specifically designed for flexible nylon corrugated pipes across standard sizes from AD10.0 up to AD60.
What ingress protection (IP) ratings do these fittings provide?
Equipped with internal sealing rings, they ensure reliable IP65 to IP68 water and dust ingress protection depending on proper installation and conduit match.
What thread standards are available in this series?
The product line includes a comprehensive range of Metric threads (M12 to M63), German PG threads (PG7 to PG48), and Gas/Pipe threads (G/PF 1/4" to 2").
Are special tools required for installation?
No. The internal buckle and locking mechanism allow for quick, push-in, tool-free conduit installation, which significantly speeds up batch assembly.
Can these cable glands withstand harsh industrial environments?
Yes, constructed from durable high-quality nylon, they offer excellent anti-aging, impact resistance, and durability against mild oil stains and industrial weathering.
