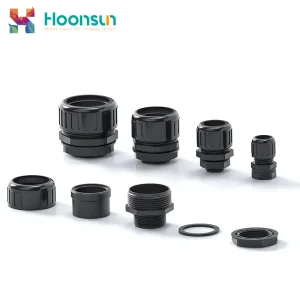

China Nylon Corrugated Cable Gland - IP68 Certified, UL Approved | Flexible Tubing Conduit Termination
China IP68 Waterproof UL Listed Metal Shielded Cable Joint - 360 Degree Continuous Grounding
China UL Certified Nylon Vent Plug with IP68 Waterproof Performance - Pressure Balance Membrane
The Global Rise of Waterproof Split Cable Gland Systems
How modular split gland engineering has disrupted legacy single-bore cable entries across factory automation, industrial robotics, railway rolling stock, and multi-megawatt energy storage architectures.
The Pre-Terminated Cable Imperative
Modern industrial equipment relies heavily on factory-overmolded connectors—including M12 sensor couplers, heavy-duty rectangular Han connectors, high-speed RJ45 Industrial Ethernet plugs, and delicate pre-polished fiber optic ferrules. Conventional non-split cable glands demand cutting and field-resoldering cables, completely voiding manufacturer warranties and introducing assembly error. Split cable glands allow pre-terminated harnesses to pass directly through electrical enclosures with zero terminal dismantling.
Downtime Elimination in MRO
Maintenance, Repair, and Overhaul (MRO) in 24/7 operating facilities—such as automotive body shops, offshore wind substations, and automated parcel distribution centers—demands near-zero downtime. When an encoder cable fails, swapping a conventional gland system requires unwiring the terminal strip inside the cabinet. A split cable gland system permits rapid lateral de-clamping, instant grommet extraction, and continuous cable swap within minutes, slashing industrial line-stoppage costs by over 78%.
High Packing Density vs. Cabinet Space
Control cabinet real estate has become premium engineering space. Installing ten separate single-hole glands on an enclosure wall consumes excessive drilling surface area and compromises sheet-metal rigidity. Multi-insert split cable gland frames concentrate up to 32 pre-terminated lines within an ultra-compact cut-out standard (e.g., standard 24-pin heavy-duty connector dimensions), preserving structural integrity while delivering validated IP65/IP66/IP68 ingress protection.
Engineering Anatomy: How True IP68 Waterproof Split Glands Work
A granular breakdown of mechanical interlocking geometries, elastomeric memory, and micro-labyrinth compression zones that prevent capillary moisture ingress under hydrostatic head pressures.
Dual-Shell Split Polymer Housing (PA66-GF30)
The external frame is precision-molded from Polyamide 66 reinforced with 30% glass fibers (PA66-GF30) or cast from marine-grade zinc-aluminum alloys. The glass fiber matrix imparts exceptional tensile strength, flexural modulus, and thermal dimensional stability, eliminating creep deformation under constant fastening torque. The split mating interface utilizes an asymmetric tongue-and-groove profile containing an integrated co-molded perimeter elastomer seal. When the lock screws or threaded split cap nuts are torqued, the two halves collapse uniformly without pinching.
Slit Elastomeric Grommet Geometry & Hydrostatic Sealing
The core of the sealing mechanism is a pre-slit elastomeric insert engineered from high-grade Thermoplastic Elastomer (TPE) or Ethylene Propylene Diene Monomer (EPDM). Unlike flat seals, our split grommets feature multiple concentric sealing ribs on the internal bore and dual lateral sealing ridges on the external circumference. The precision diagonal or wave slit allows effortless cable insertion while maintaining full circumferential contact upon axial compression, achieving IP66, IP68 (up to 5 bar / 50 meters water depth for 72 hours), and high-pressure steam jet resistance (IP69K).
Strain Relief Mechanics According to EN 62444 Class B
Ingress protection alone is insufficient without certified mechanical retention. According to EN 62444 (Cable glands for electrical installations), cable entries must withstand significant tensile pull forces without sheath detachment or conductor slippage. In traditional solid glands, an internal plastic collet compresses radially into the soft cable jacket. In our high-performance split cable gland systems, strain relief is achieved via engineered friction coefficients between the textured TPE grommet interior and the cable jacket, reinforced by interlocking outer cage teeth.
This dual-action geometry ensures that dynamic cable movements, repetitive machine accelerations, and human pull errors cannot transmit mechanical loads directly to internal electrical screw terminals or crimped pins. Testing validates that our split gland assemblies meet and exceed EN 62444 Type B cord retention standards across temperatures ranging from -40°C to +125°C.
China Manufacturing Super-Cluster: Why Yueqing Dominates Global Cable Connectivity
The strategic synergy of localized raw material metallurgy, ultra-high-speed precision mold fabrication, fully automated assembly cells, and in-house environmental test laboratories.
Unrivaled Supply Chain Clustering
Situated in Liushi Town, Yueqing—widely recognized as China's electrical component capital—our manufacturing ecosystem integrates high-purity brass bar mills, specialized polymer compounders, CNC machining centers, and surface plating providers within a 15-kilometer radius. This hyper-dense industrial concentration reduces raw material lead times to hours, eliminates freight-in bottlenecks, and shields our global distributors from unpredictable supply chain volatility.
72-Hour Rapid Tooling & Mold R&D
While European or North American tooling cycles routinely span 12 to 16 weeks for custom grommet cross-sections or non-standard metric/NPT thread pitches, our in-house tool shop utilizes multi-axis high-speed CNC EDM (Electrical Discharge Machining) and Swiss mirror-finish wire-cutting centers. We take customer STEP/CAD files from prototype simulation to functional mold trials within 72 hours, drastically accelerating Time-to-Market (TTM) for global OEM clients.
Rigorous In-House Testing Laboratory
Compliance is not an afterthought; it is engineered into every lot. Our internal testing center features automated hydrostatic pressure vessels (submersion simulation up to 10 bar), cyclic thermal shock chambers (-50°C to +150°C), continuous salt-spray corrosion cabinets (ASTM B117 exceeding 1,000 hours), mechanical tensile pull test benches (IEC 62444), and UL 94 vertical flammability combustion chambers. Every batch carries verifiable traceability certificates.
Cable Gland Entry Technologies: Comprehensive Engineering Matrix
A detailed technical trade-off comparison between solid compression glands, split modular glands, modular entry plates, and poured resin barrier fittings.
| Evaluation Parameter | Standard Metal/Nylon Gland | Waterproof Split Cable Gland | Modular Split Entry Plate | Poured Resin Barrier Gland |
|---|---|---|---|---|
| Pre-Terminated Plugs (RJ45, M12) | Impossible (Requires rewiring) | Flawless Pass-Through | High Volume Pass-Through | Impossible (Potting resin seals) |
| Ingress Protection Rating | IP68 (Up to 10 bar) / IP69K | IP66 / IP68 (Up to 5 bar) / IP69K | IP54 to IP66 | IP68 / Explosion Proof Ex d |
| Warranty Impact on Pre-Made Cables | Voids Harness Warranty | 100% Preserved Warranty | 100% Preserved Warranty | Voids Harness Warranty |
| Assembly / Replacement Speed | Moderate (Slow for retrofits) | Ultra-Fast (Under 2 minutes) | Very Fast (Multi-line batching) | Extremely Slow (Resin cure time) |
| Strain Relief Performance | EN 62444 Class A / B | EN 62444 Class B Certified | Integrated Cable Tie Rails | Permanent Potting Anchor |
| Space Consumption per 10 Cables | High (Wide spacing required) | Moderate (Compact thread ports) | Ultra-Low (High packing density) | High (Large potting chambers) |
| Reusability & Field Serviceability | Grommet/Washers degrade | 100% Reusable Frame & Slit Grommet | 100% Reusable Frame & Inserts | Non-reusable (Destructive removal) |
* Note: Ratings apply strictly when matching outer cable diameters to the published manufacturer grommet clamping envelope and torquing fasteners to nominal ratings.
Mission-Critical Deployment Scenarios Across Global Heavy Industry
From freezing offshore wind farms in the North Sea to high-temperature solar utility inverters in the Middle East, our split gland technology provides unyielding barrier defense.
Utility-Scale Solar & Energy Storage (BESS)
Central inverters and containerized Battery Energy Storage Systems (BESS) experience severe daily temperature shifts leading to housing condensation. High-voltage DC string cables, liquid-cooling sensor circuits, and thermal runaway monitoring loops demand UV-stabilized, non-hygroscopic split glands. Our UL 94 V-0 flame-retardant polyamide systems resist intense solar radiation, ozone exposure, and chemical mist from lithium coolant loops without embrittlement.
Dynamic Industrial Robotics & Automated Cells
Six-axis articulated robots, Cartesian gantries, and Automated Guided Vehicles (AGVs) subject pre-fabricated servo and vision cables to constant torsional stress, multi-directional bending, and oil-laden atmosphere. Our split cable glands with anti-vibration detent locknuts prevent back-off under extreme acceleration, while specialized soft-durometer TPE grommets absorb cyclical mechanical vibration without abrasive cable sheath wear.
Marine, Offshore Platforms & Wind Nacelles
Operating in salt-laden coastal and open-sea environments demands compliance with C5-M high-salinity corrosion standards. Our 316L stainless steel split cable glands and marine-spec brass joints resist galvanic pitting, severe wave washdown, and driving rain. Designed for offshore wind nacelles, slip rings, and shipboard junction boxes, they maintain hermetic IP68 barriers against corrosive seawater ingress.
Rail Transit Rolling Stock (EN 45545-2)
Under-car equipment boxes, bogie sensor feeds, and roof-mounted pantograph controls must satisfy strict European fire safety standard EN 45545-2 (Hazard Levels HL1, HL2, HL3). Our halogen-free, low-smoke, non-toxic elastomeric inserts and self-extinguishing polyamide bodies prevent toxic gas emissions and fire spread during critical railway operations.
Hazardous Zones (ATEX / IECEx Environments)
In chemical processing units, flour milling facilities, and oil & gas extraction refineries, flammable gases and explosive dust clouds represent constant threats. Our explosion-proof clamping joints feature CW/BWL mechanical armor retention and dual compound seals, stopping flame propagation through conduit systems and maintaining intrinsic safety barriers.
Food, Beverage & Pharmaceutical Washdown
Sanitary processing lines undergo daily sanitation protocols using high-pressure caustic washes (80°C washdown at 100 bar, IP69K). Our stainless steel 304/316L cable gland ranges eliminate crevices and horizontal ledges where organic residue and bacteria could propagate, ensuring FDA-grade compliance for sensitive hygienic installations.
Technological Frontiers: 360° EMC Split Shielding & Advanced Elastomers
Addressing the compounding challenges of Variable Frequency Drive (VFD) noise, high-bandwidth signal fidelity, and eco-friendly sustainable engineering.
Split 360° EMC / RFI Shielding Integration
As power electronic switches (SiC and GaN MOSFETs) drive industrial switching frequencies higher, Electromagnetic Interference (EMI) threatens low-voltage signal transmission. Traditional split glands lacked continuous shielding ground pathways.
HOONSUN has engineered dual-pathway conductive split grommets incorporating silver-nickel plated silicone compounds and beryllium copper spring contacts. When tightened, the system establishes a full 360° continuous low-impedance ground connection between the cable's braided screen and the metal cabinet wall, guaranteeing compliance with strict IEC 61000-6-2 immunity and IEC 61000-6-4 emission standards.
Bio-Based Polyamides & Fluorosilicone Inserts
Global corporate ESG mandates require component suppliers to continually lower embodied carbon. In response, our materials engineering department has qualified bio-based Polyamide 6.10 derived from sebacic acid (castor oil plant origin), maintaining standard mechanical properties and UL 94 V-0 flame characteristics with a 45% reduced cradle-to-gate carbon footprint.
Concurrently, for extreme hydrocarbon immersion in aerospace test rigs and military vehicles, our specialized fluorosilicone (FVMQ) split inserts provide chemical resistance against synthetic aviation oils, Skydrol hydraulic fluids, and aggressive fuels across a -60°C to +175°C operational envelope.
Global Enterprise Procurement Guide: Factory Audit & Quality Acceptance
Key evaluation criteria for technical sourcing managers, quality engineers, and overseas procurement officers qualifying Chinese cable gland suppliers.
1. Thread Precision & Gauge Verification
Poorly cut threads cause binding, stripped enclosure wall taps, and loose ingress seals. Procurement teams must require Go/No-Go thread plug gauge certification (conforming to ISO 965-1 for Metric 6g/6H tolerances and ANSI/ASME B1.20.1 for NPT taper threads). At HOONSUN, thread runout and root diameters are continuously validated via automated optical profile comparators right at the CNC lathe discharge conveyor.
2. Durometer Consistency & Compression Set
Low-grade reclaimed rubber or cheap PVC blends suffer from severe compression set, hardening over time and losing radial sealing pressure. Specifications must demand 100% virgin TPE or EPDM elastomers with Shore A durometer tolerances strictly controlled within ±3 points (typically Shore A 45 to 55). Compression set testing must confirm less than 20% permanent deformation after 1,000 hours at 70°C per ASTM D395 Method B.
3. Complete Regulatory File Audit
Avoid brokers offering fraudulent certificates. Always demand primary laboratory test reports traceable to file numbers: UL 514B / UL 50E under Underwriters Laboratories file standards, CE Declaration of Conformity under Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU including (EU) 2015/863 phthalate limitations, and REACH SVHC candidate list clearance. HOONSUN provides direct access to audited certification test records.
Request Full Technical Documentation & Free Engineer Sample Kit
Accelerate your supplier qualification process. Receive our 160-page comprehensive engineering catalog, 3D CAD models (STEP/IGES), complete material compliance certificates, and customized sample split glands delivered directly to your R&D facility within 5 business days.
Frequently Asked Technical Questions (FAQ)
Direct, engineering-grounded answers addressing the critical mechanical, electrical, and commercial parameters of industrial split cable glands.
How do split cable glands maintain IP68 sealing despite a physical parting line?
Split cable glands overcome the parting seam through a high-precision tongue-and-groove mechanical labyrinth combined with integrated elastomeric perimeter seals. When the tightening nut or frame screws are torqued, the outer shell applies uniform three-dimensional compressive pressure onto the internal slit grommet. The grommet's engineered multi-lip interior and self-aligning wave-cut seam lock together seamlessly, creating an impermeable barrier validated against hydrostatic submersion up to 5 bar.
Can HOONSUN split glands pass standard RJ45 and industrial D-Sub plugs?
Yes. Our split gland series (available in Metric sizes M20, M25, M32, M40, M50, and M63 as well as modular plate cutouts) are designed specifically with enlarged inner diameters to accommodate standard pre-molded RJ45 Ethernet connectors, high-density SUB-D plugs, USB industrial interfaces, and circular M12/M8 automation sensors without requiring cable disassembly.
What is the recommended tightening torque for polyamide split cable glands?
Torque depends on frame size and thread standard. For example, our M20 PA66 split glands require a locknut torque of 4.5 to 5.0 Nm, while M32 bodies specify 8.0 to 10.0 Nm. The split cap compression nut is typically hand-tightened until firm contact, followed by 1 to 1.5 turns with a torque wrench (approx. 3.0 to 6.0 Nm depending on cable diameter). Precise values per part number are clearly cataloged on our technical datasheets.
How do you accommodate cables with out-of-round or varying diameters?
Industrial cables rarely feature perfectly circular outer jackets. Our grommets are molded from high-elasticity TPE with multiple internal concentric ribs that deform progressively around elliptical or jacket-imperfect profiles. Furthermore, we provide multi-range cone-shaped grommets and dual-cable or quad-cable slit grommets, allowing several small sensor leads to securely share a single split gland aperture.
Are HOONSUN split cable glands certified for UL 94 V-0 flame ratings?
Yes. For applications demanding highest fire safety (such as rail vehicles, data centers, and enclosed electrical control vaults), we formulate both the split polyamide housing and the elastomeric sealing inserts with halogen-free flame-retardant packages certified to meet UL 94 V-0 self-extinguishing criteria within 10 seconds without flaming drips.
What is the standard production lead time for custom OEM split gland orders?
For catalog models in standard metric/PG threads and grey/black colors, we maintain a rolling warehouse inventory exceeding 500,000 units ready for container shipment within 48 hours. Custom OEM requests (custom insert hole diameters, private labeling, specific thread lengths, or nickel-plated brass split shells) typically ship within 14 to 21 business days following tool verification.
