Product Description
Product Highlights
Reliably operates in extreme temperatures ranging from -60β to +250β, ensuring performance where standard glands fail.
Made from corrosion-resistant 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber) for superior durability.
Features IP68 rating to effectively prevent the ingress of dust, oil, or steam, maintaining electrical integrity.
Supports PG, NPT, and Metric threads, facilitating easy and versatile installation across different regions and applications.
Fully complies with IEC and CE standards, guaranteeing a professional-grade and certified sealing solution.
Key Benefits
Ensures stable signal transmission and enhanced system reliability by eliminating electromagnetic interference (EMI) and radio frequency interference (RFI)
Delivers outstanding electrical conductivity and continuous conductive path
Offers robust mechanical and environmental protection even in demanding industrial conditions
Maintains signal integrity in challenging applications
Provides secure, shielded, and interference-free cable connections for modern industrial systems
Applications
Automation systems
Communication devices
Power converters
Data transmission equipment
Ideal for use in high-frequency and high-noise environments

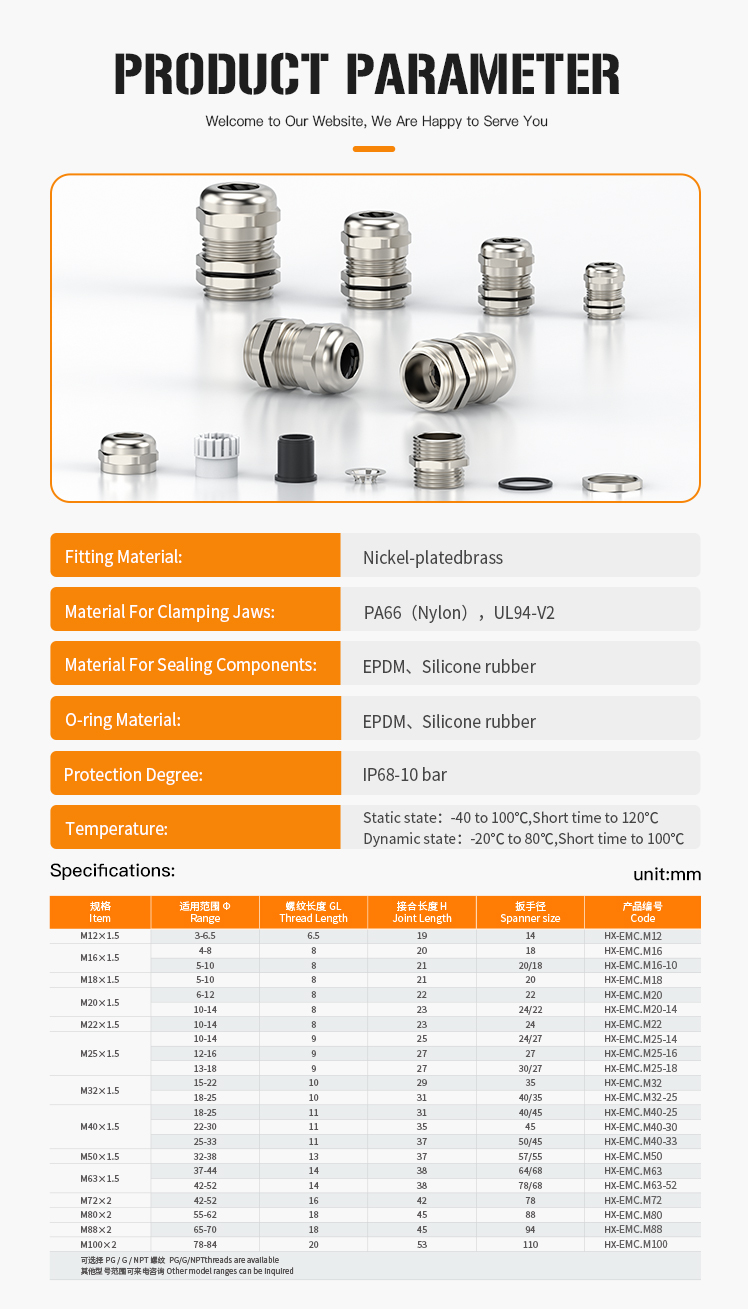

Product Specifications

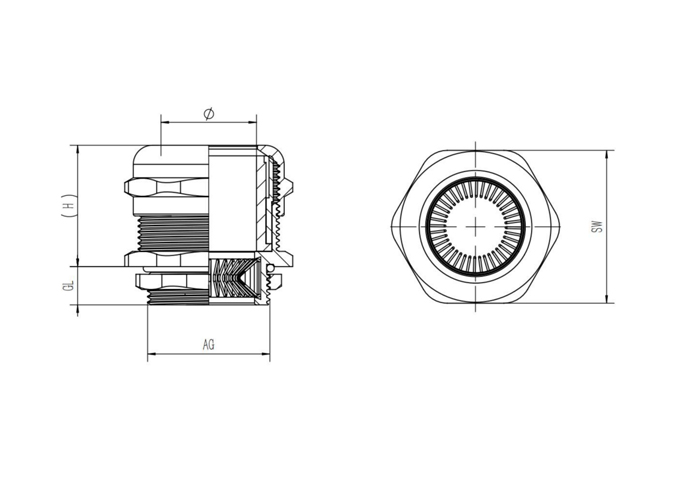

| Code | Scope of application | AG External diameter of thread | GL Length of thread | H Join Length | SW Torque wrench size |
|---|---|---|---|---|---|
| HX-EMC.M12-8-T | 4-8 | M12Γ1.5 | 8 | (21) | 17/14 |
| Item | Range | GL Thread Length | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|
| M12Γ1.5 | 3-6.5 | 6.5 | 19 | 14 | HX-EMC.M12 |
| M16Γ1.5 | 4-8 | 8 | 20 | 18 | HX-EMC.M16 |
| 5-10 | 8 | 21 | 20/18 | HX-EMC.M16-10 | |
| M18Γ1.5 | 5-10 | 8 | 21 | 20 | HX-EMC.M18 |
| M20Γ1.5 | 6-12 | 8 | 22 | 22 | HX-EMC.M20 |
| 10-14 | 8 | 23 | 24/22 | HX-EMC.M20-14 | |
| M22Γ1.5 | 10-14 | 8 | 23 | 24 | HX-EMC.M22 |
| M25Γ1.5 | 10-14 | 9 | 25 | 24/27 | HX-EMC.M25-14 |
| 12-16 | 9 | 27 | 27 | HX-EMC.M25-16 | |
| 13-18 | 9 | 27 | 30/27 | HX-EMC.M25-18 | |
| M32Γ1.5 | 15-22 | 10 | 29 | 35 | HX-EMC.M32 |
| 18-25 | 10 | 31 | 40/35 | HX-EMC.M32-25 | |
| M40Γ1.5 | 18-25 | 11 | 31 | 40/45 | HX-EMC.M40-25 |
| 22-30 | 11 | 35 | 45 | HX-EMC.M40-30 | |
| 25-33 | 11 | 37 | 50/45 | HX-EMC.M40-33 | |
| M50Γ1.5 | 32-38 | 13 | 37 | 57/55 | HX-EMC.M50 |
| M63Γ1.5 | 37-44 | 14 | 38 | 64/68 | HX-EMC.M63 |
| 42-52 | 14 | 38 | 78/68 | HX-EMC.M63-52 | |
| M72Γ2 | 42-52 | 16 | 42 | 78 | HX-EMC.M72 |
| M80Γ2 | 55-62 | 18 | 45 | 88 | HX-EMC.M80 |
| M88Γ2 | 65-70 | 18 | 45 | 94 | HX-EMC.M88 |
| M100Γ2 | 78-84 | 20 | 53 | 110 | HX-EMC.M100 |
Detailed Images
Frequently Asked Questions (FAQ)
An EMC shielded cable joint is designed to provide continuous grounding contact with the cable shield, eliminating electromagnetic (EMI) and radio frequency interference (RFI) to secure stable signal transmission.
The IP68 rating ensures total protection against dust ingress and continuous immersion in water under specific conditions, as well as high resistance to oil and steam.
It is engineered for extreme working environments, maintaining functional reliability across an extensive operating temperature range from -60β up to +250β.
In addition to the standard Metric threads listed, PG, G, and NPT threads are available. Custom dimension inquiries are welcome for application-specific demands.
The gland is manufactured from premium 316 stainless steel combined with high-grade silicone or fluororubber seals to withstand corrosive elements and high thermal exposure.
