China MBT08S-1AWH102N-MBT08P-1AMG042N Manufacturer, Factories

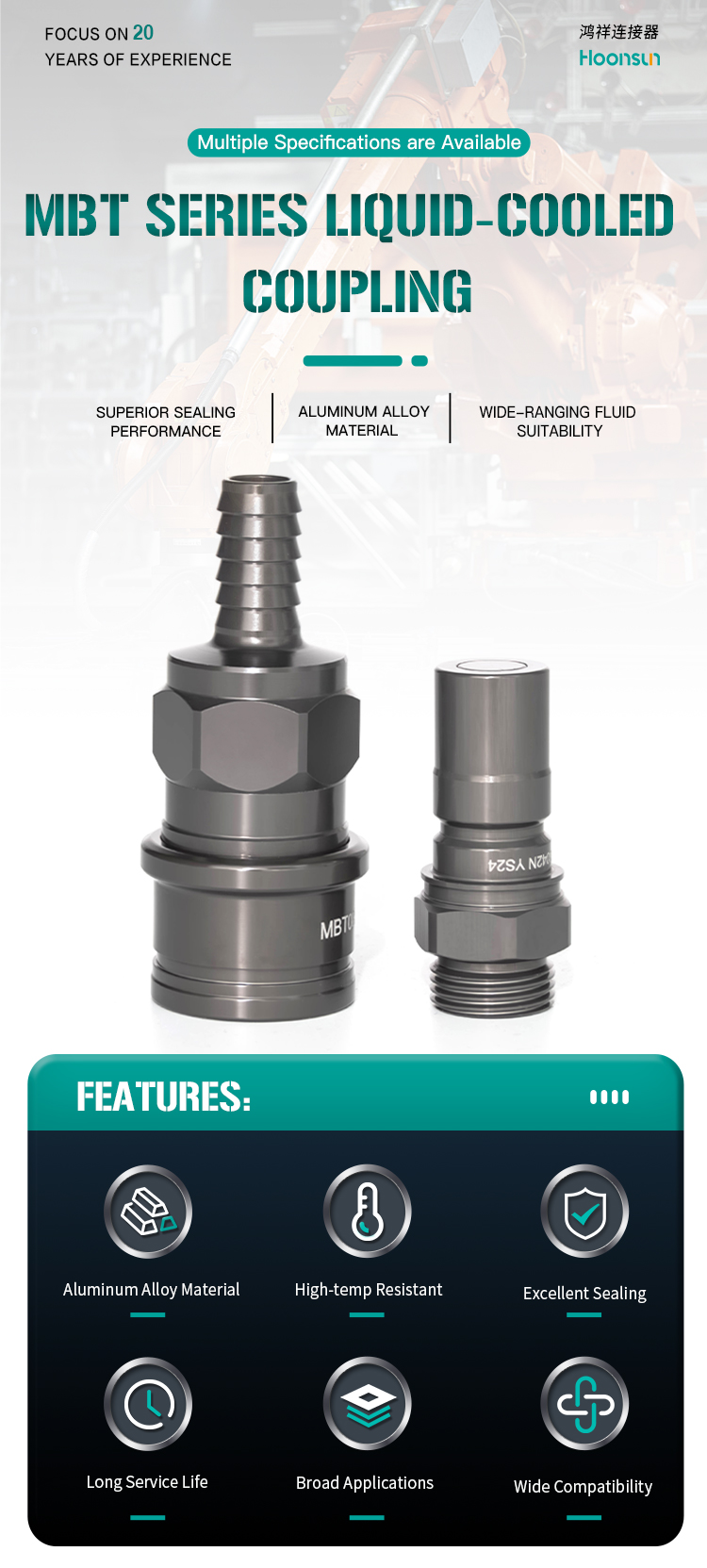

Product Description
Key Features
⚡
Lightweight Aluminum Alloy: High strength-to-weight ratio for reduced system load
🛡️
Superior Sealing: EPDM/HNBR/FKM seals for zero-leakage performance
🌊
High Flow Rates: DN05 to DN12 sizes available for various cooling needs
🌡️
Wide Temperature Range: -40°C to 120°C, suitable for diverse environments
⚙️
High Pressure Rating: 20bar working pressure, 80bar burst pressure
🧪
Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids
🏗️
Rugged Construction: Dust-proof, salt-proof, and chemical-resistant for harsh conditions
🔌
Plug-and-Play: Fast, tool-free connection and disconnection
Applications
Data Center Servers: High-flow liquid cooling for server racks and HPC systems
AI Servers & Computing: Thermal management for high-performance AI hardware
Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices
Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies
Industrial Lasers & Automation: Reliable fluid connections for industrial equipment
PV Inverters & Renewable Energy: Solar and wind energy equipment cooling
Test Benches & Research Equipment: Lab-grade liquid cooling solutions
Installation Process
1
Preparation: Ensure the connector and mating part are clean and free of debris. Depressurize the system before installation.
2
Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.
3
Verification: Perform a pressure test to confirm zero leakage before full system operation.
4
Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.
⚠️ Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.
Product Specifications
| Series | DN Size | Material | Sealing | Connection Options | Working Pressure | Temp Range |
|---|---|---|---|---|---|---|
| MBT05 | DN05 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/4" Male / G1/4" Female / 1/4" Hose Barb | 20bar | -40°C~120°C |
| MBT08 | DN08 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/8" Male / G3/8" Female / 3/8" & 1/2" Hose Barb | 20bar | -40°C~120°C |
| MBT10 | DN10 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/2" Male / G1/2" Female | 20bar | -40°C~120°C |
| MBT12 | DN12 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/4" Male / G3/4" Female | 20bar | -40°C~120°C |
- Compatible Media: Deionized water, purified water, water-glycol solutions, water-propylene glycol solutions, oils, and fluorinated fluids
- Performance Curve: Optimized flow with minimal pressure drop (refer to the flow chart for detailed data)
Dimensions

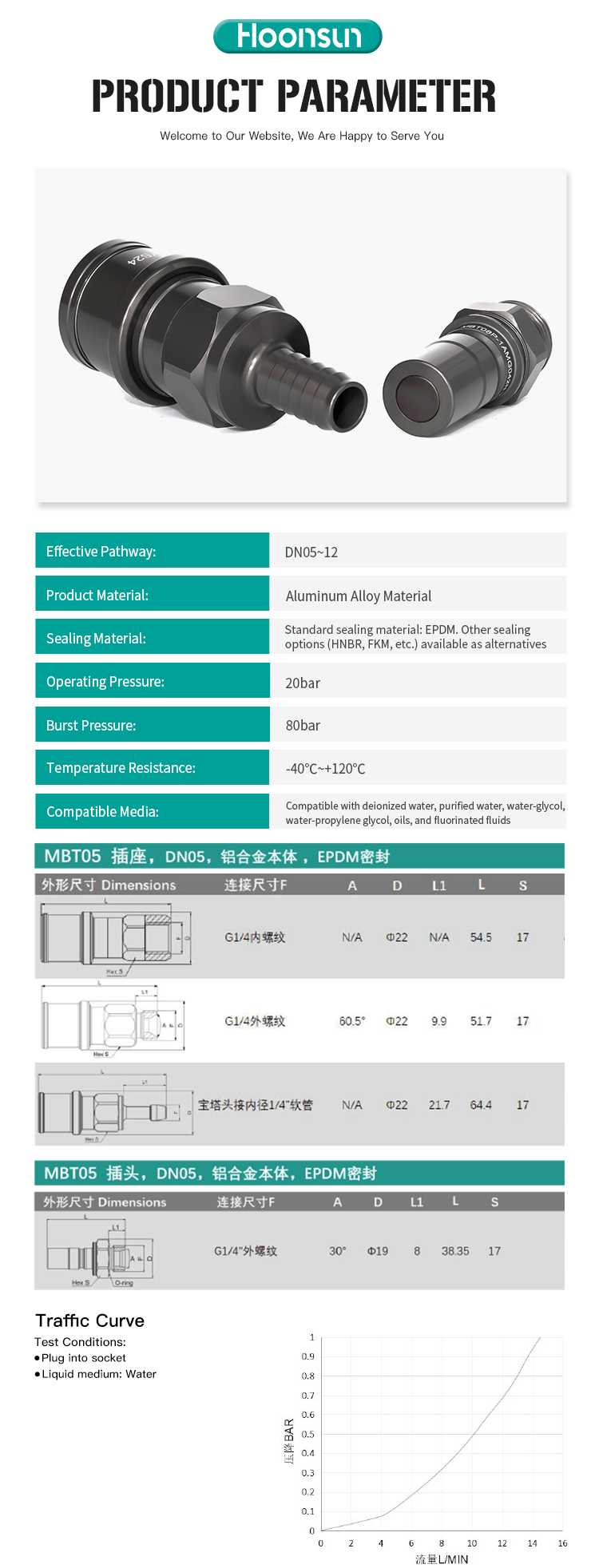

- MBT05: Socket length 54.5mm (G1/4" female), Plug length 38.35mm (G1/4" male)

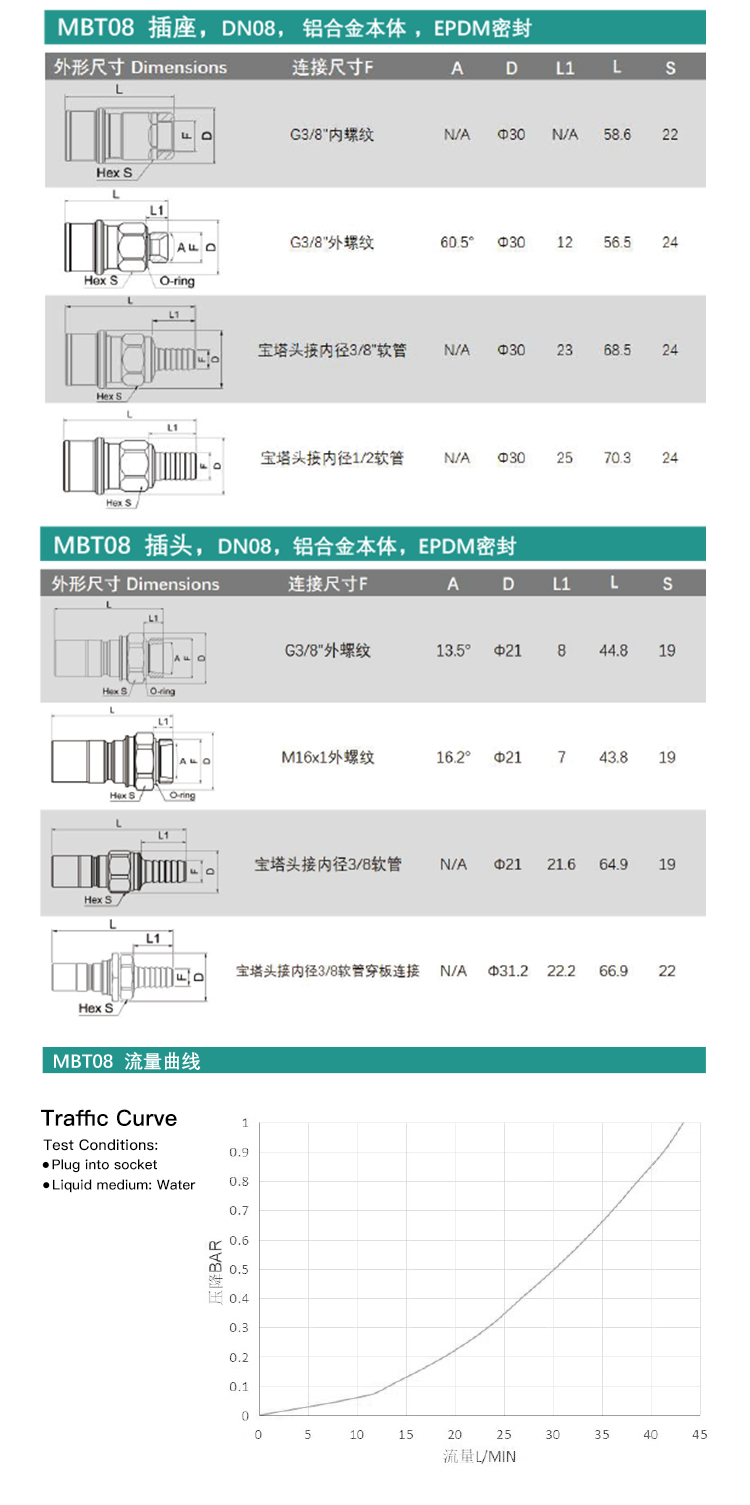

- MBT08: Socket length 58.6mm (G3/8" female), Plug length 44.8mm (G3/8" male)

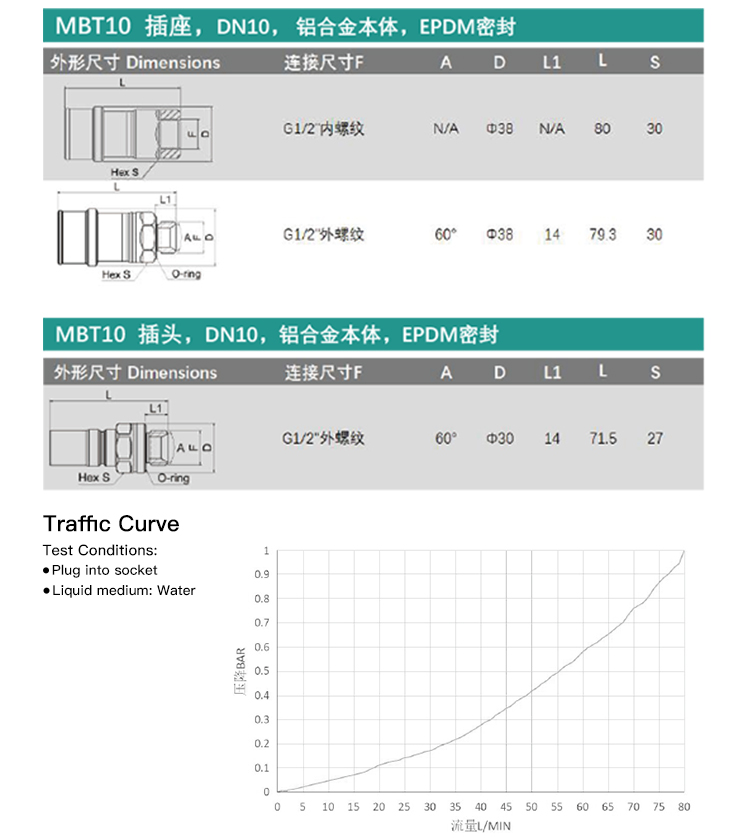

- MBT10: Socket length 80mm (G1/2" female), Plug length 71.5mm (G1/2" male)

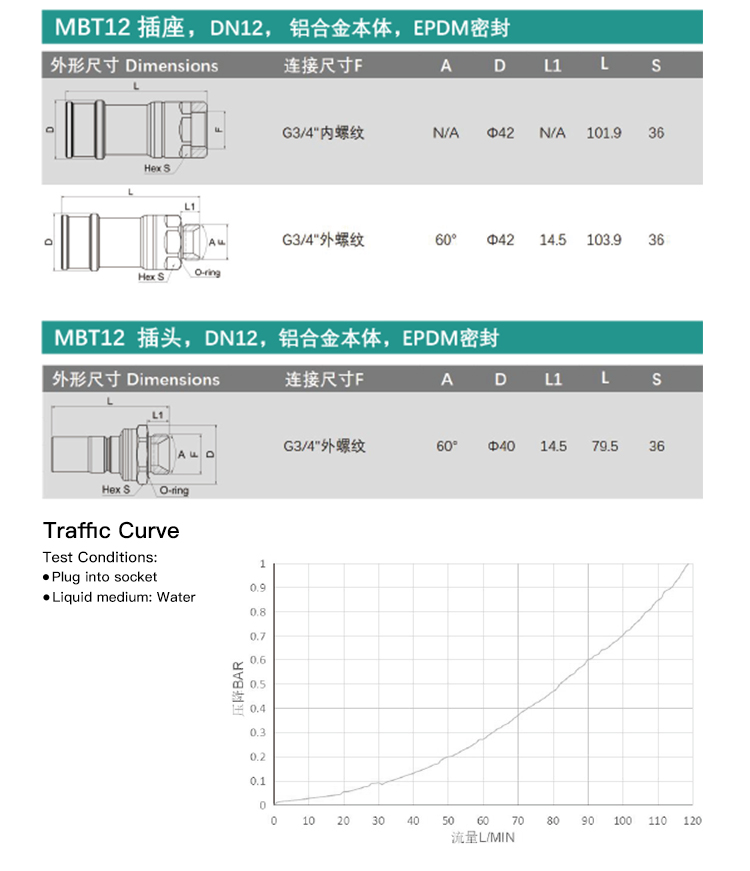

- MBT12: Socket length 101.9mm (G3/4" female), Plug length 79.5mm (G3/4" male)
Detailed Images

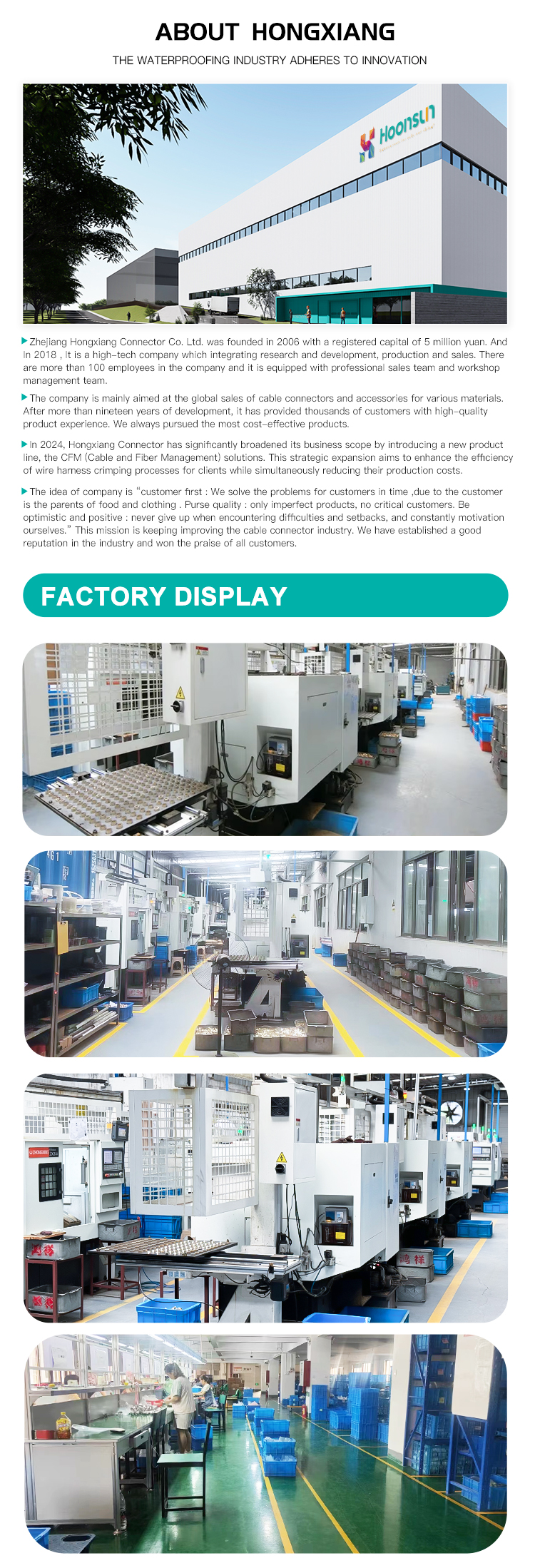

About Us
Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our MBT series liquid-cooled couplings are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies.
Frequently Asked Questions
What are the primary advantages of the MBT series?
The MBT series features lightweight aluminum construction, multiple connection options (threaded and hose barb), and a wide range of sizes (DN05-DN12), making it highly versatile for different liquid cooling applications.
What materials and sealing options are used in these connectors?
The body is made of high-strength aluminum alloy for light weight and corrosion resistance, with standard EPDM seals (HNBR and FKM options available for low-temperature or special fluid compatibility).
Which cooling fluids are compatible with the MBT series?
They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids.
What are the operating pressure and temperature limits?
The working pressure is 20bar (80bar burst pressure), with an operating temperature range of -40°C to 120°C.
Do I need specialized tools for connection or disconnection?
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation procedures.

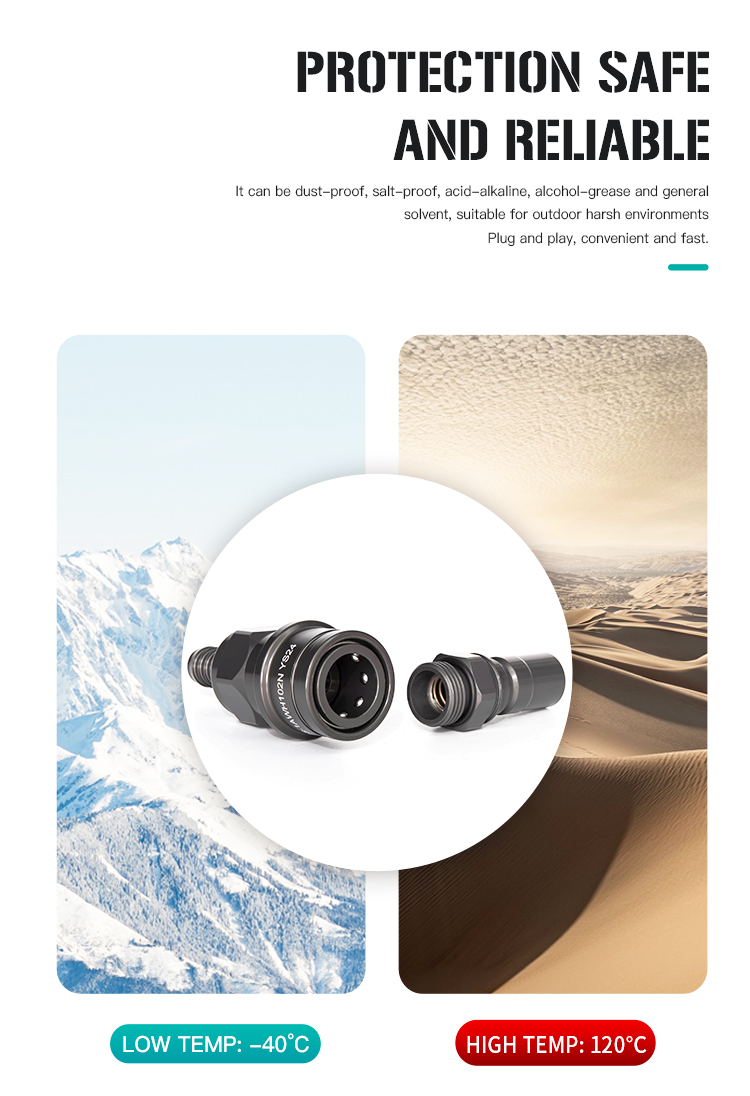

Can these quick-disconnect couplings be used in outdoor conditions?
Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents, making them suitable for harsh outdoor environments.
