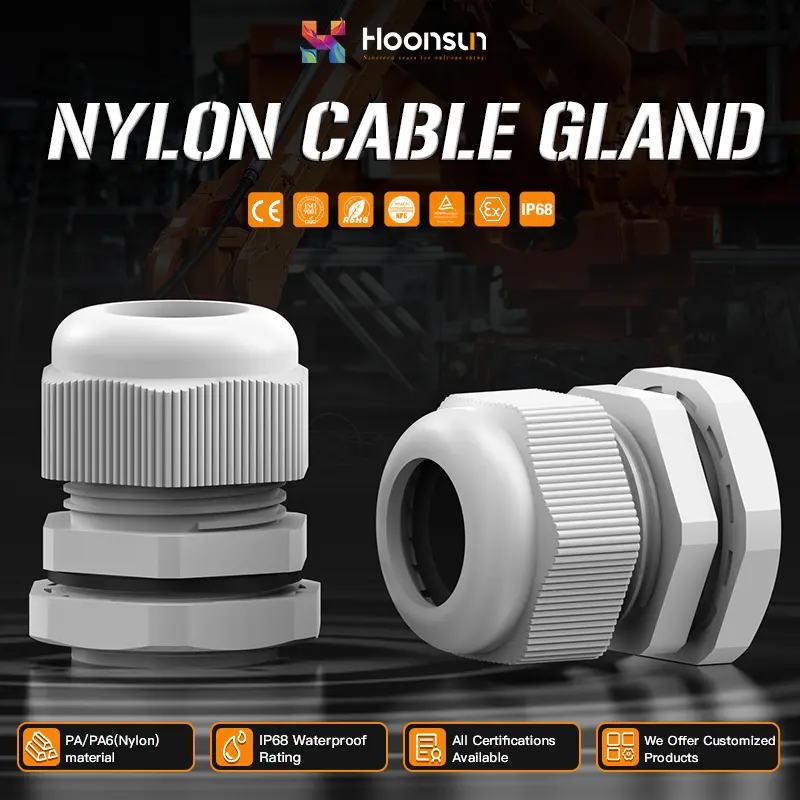

Product Description
Product Highlights
Made from durable nylon, offering excellent sealing, strain relief, and insulation
Lightweight yet strong, resistant to pulling, twisting, and vibration

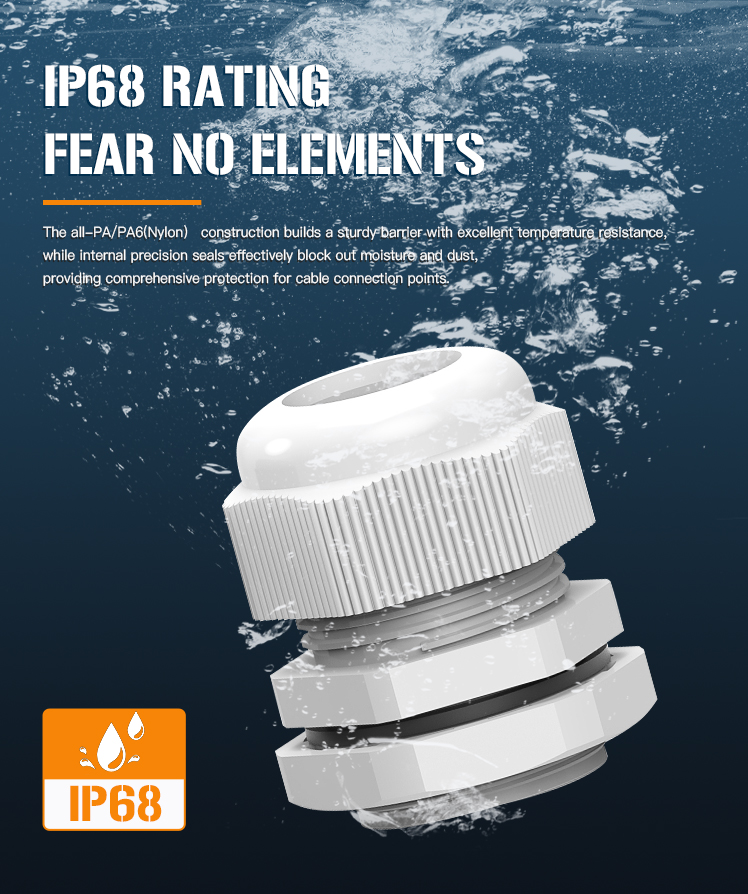

IP68-rated for superior waterproof and dustproof performance
UL-certified for safety and reliability
Non-conductive material ensures electrical safety
Resistant to corrosion, acids, oils, and most chemicals
Easy to install and remove without special tools
Applications
Electrical panels and equipment
Machinery and industrial control systems
Communication and data transmission systems
Outdoor or humid environments
Factories, marine settings, and harsh working conditions
Key Benefits
Safe and reliable cable protection with excellent insulation performance
With powerful performance, it maintains consistent performance even in harsh environments.
This is an economical and cost-effective solution with low maintenance costs.
The design of the Nylon Cable Gland is flexible and can accommodate various sizes of cables.
Compared with metal products, this product is lighter, more durable and has a lower cost.

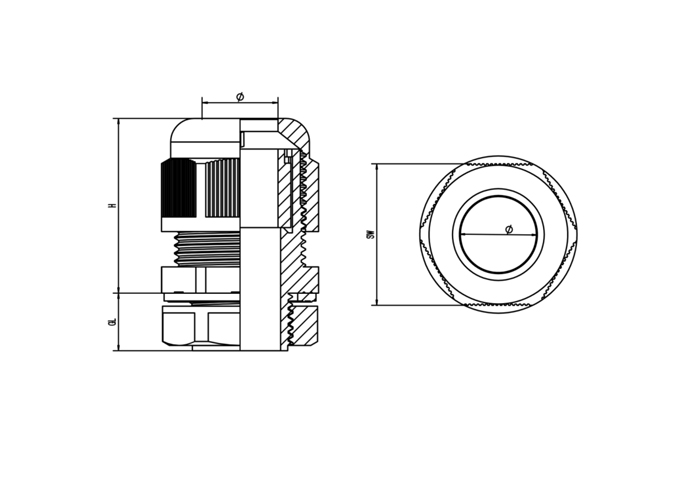

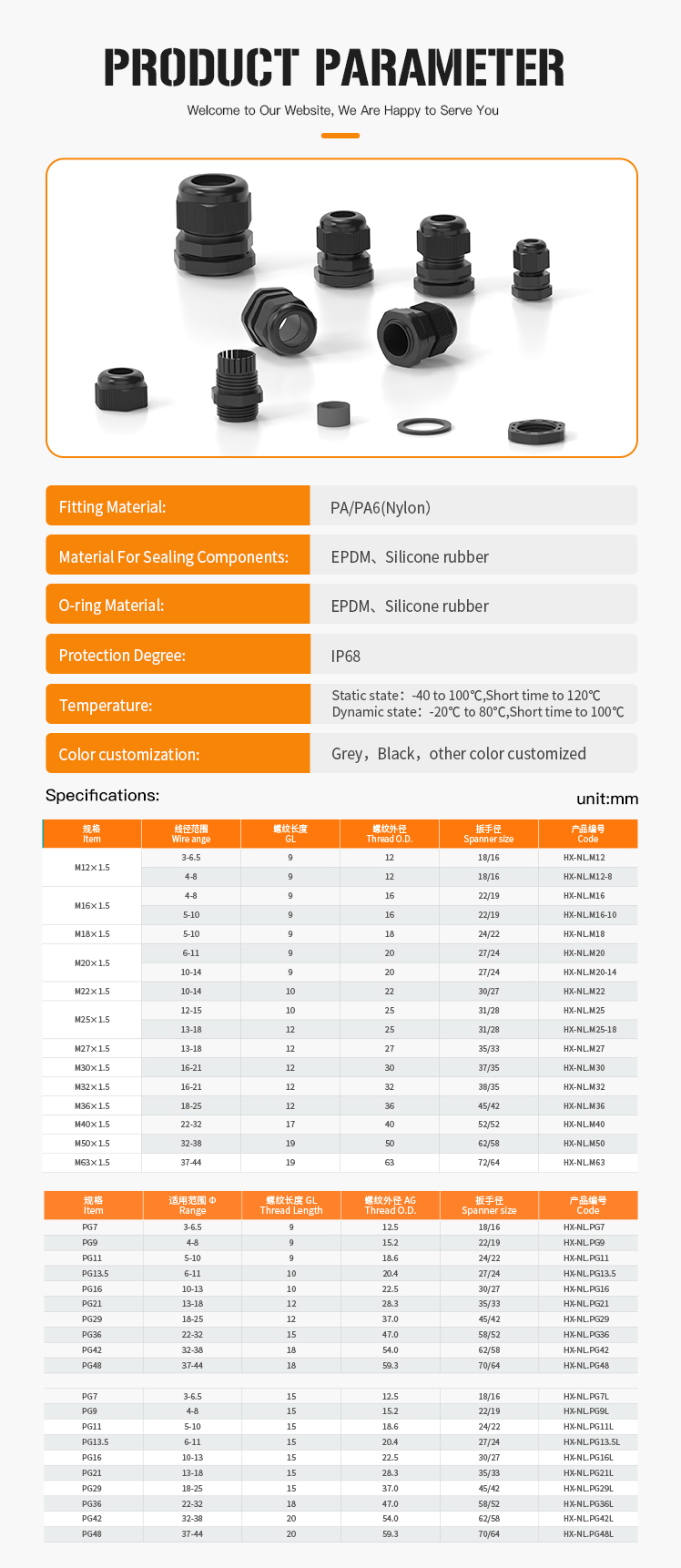

Product Parameters
unit:mm
| Code | Scope of application | AG Thread size | GL Length of thread | SW Torque wrench size |
|---|---|---|---|---|
| HX-NL.M12-6.5B | 3-6.5 | M12*1.5 | 8 | 18/15 |
| Item | Wire ange | GL | Thread O.D. | Spanner size | Code |
|---|---|---|---|---|---|
| M12Γ1.5 | 3-6.5 | 9 | 12 | 18/16 | HX-NL.M12 |
| 4-8 | 9 | 12 | 18/16 | HX-NL.M12-8 | |
| M16Γ1.5 | 4-8 | 9 | 16 | 22/19 | HX-NL.M16 |
| 5-10 | 9 | 16 | 22/19 | HX-NL.M16-10 | |
| M18Γ1.5 | 5-10 | 9 | 18 | 24/22 | HX-NL.M18 |
| M20Γ1.5 | 6-11 | 9 | 20 | 27/24 | HX-NL.M20 |
| 10-14 | 9 | 20 | 27/24 | HX-NL.M20-14 | |
| M22Γ1.5 | 10-14 | 10 | 22 | 30/27 | HX-NL.M22 |
| M25Γ1.5 | 12-15 | 10 | 25 | 31/28 | HX-NL.M25 |
| 13-18 | 12 | 25 | 31/28 | HX-NL.M25-18 | |
| M27Γ1.5 | 13-18 | 12 | 27 | 35/33 | HX-NL.M27 |
| M30Γ1.5 | 16-21 | 12 | 30 | 37/35 | HX-NL.M30 |
| M32Γ1.5 | 16-21 | 12 | 32 | 38/35 | HX-NL.M32 |
| M36Γ1.5 | 18-25 | 12 | 36 | 45/42 | HX-NL.M36 |
| M40Γ1.5 | 22-32 | 17 | 40 | 52/52 | HX-NL.M40 |
| M50Γ1.5 | 32-38 | 19 | 50 | 62/58 | HX-NL.M50 |
| M63Γ1.5 | 37-44 | 19 | 63 | 72/64 | HX-NL.M63 |

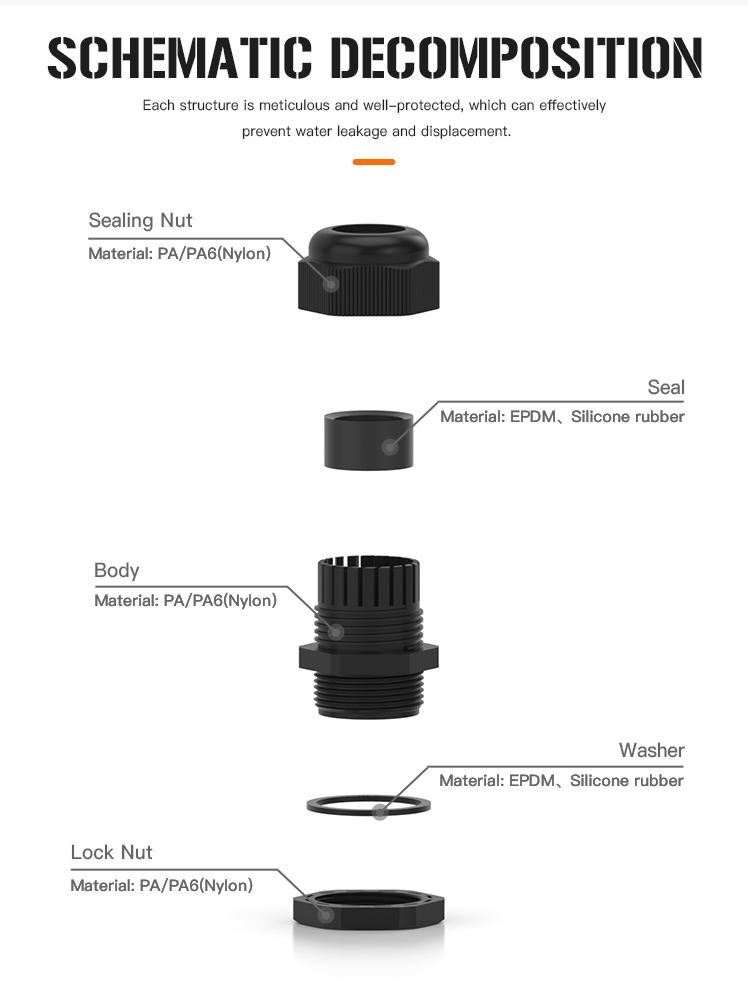

Detailed Images
Frequently Asked Questions (FAQ)
A: An IP68 rating indicates complete protection against dust ingress and continuous immersion in water under specified conditions, ensuring optimal protection in demanding environments.
A: No, standard spanners or torque wrenches matching the specification table are sufficient. The glands are engineered for quick installation and removal without dedicated specialized equipment.
A: These nylon cable glands are UL-certified, non-conductive, and designed to meet stringent global electrical and mechanical safety regulations.
A: Yes, the nylon material offers superior resistance to corrosion, saltwater, oils, weak acids, and most industrial chemicals, making it ideal for marine and chemical plants.
A: Check the outer diameter of your cable and match it to the 'Scope of application' or 'Wire range' listed in the parameter table, then verify your panel knockout matches the thread size.
A: Nylon cable glands provide significant weight savings, natural electrical insulation, corrosion resistance, and lower overall maintenance and procurement costs.
