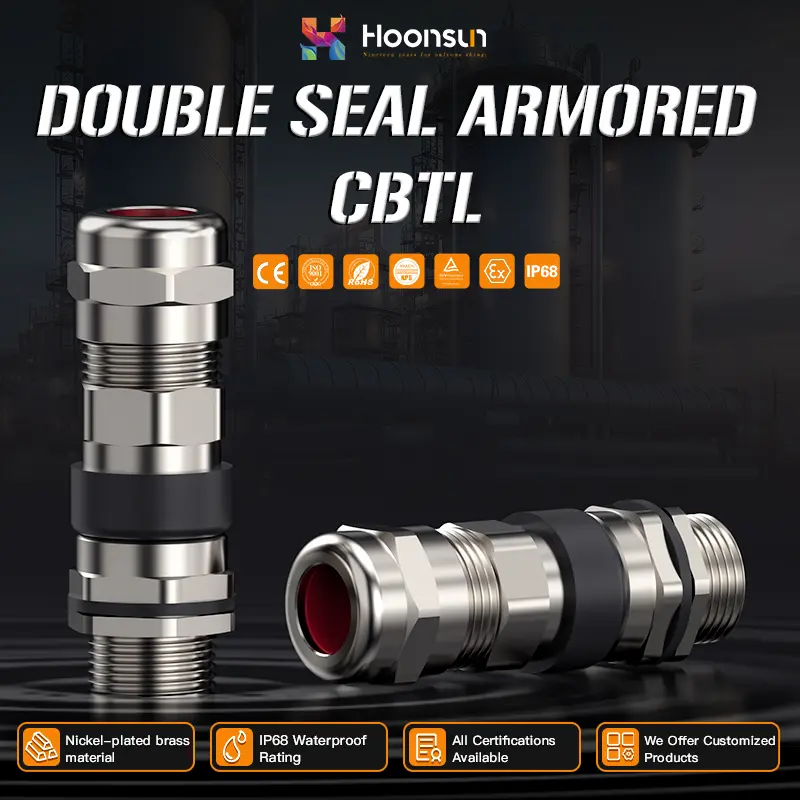

Product Description
Product Highlights
- ✔Robust double-seal construction effectively blocks flammable gases and dust.
- ✔High-strength, corrosion-resistant shell withstands severe impact and crushing forces.
- ✔Certified explosion-proof design eliminates potential ignition sources.
Key Benefits
- ★Ensures long-term operational safety in hazardous locations.
- ★Maintains performance under extreme temperatures and corrosive conditions.
- ★Provides superior cable grip and strain relief for vibration-heavy machinery.
- ★Simplifies installation and maintenance with a user-friendly modular design.
Applications

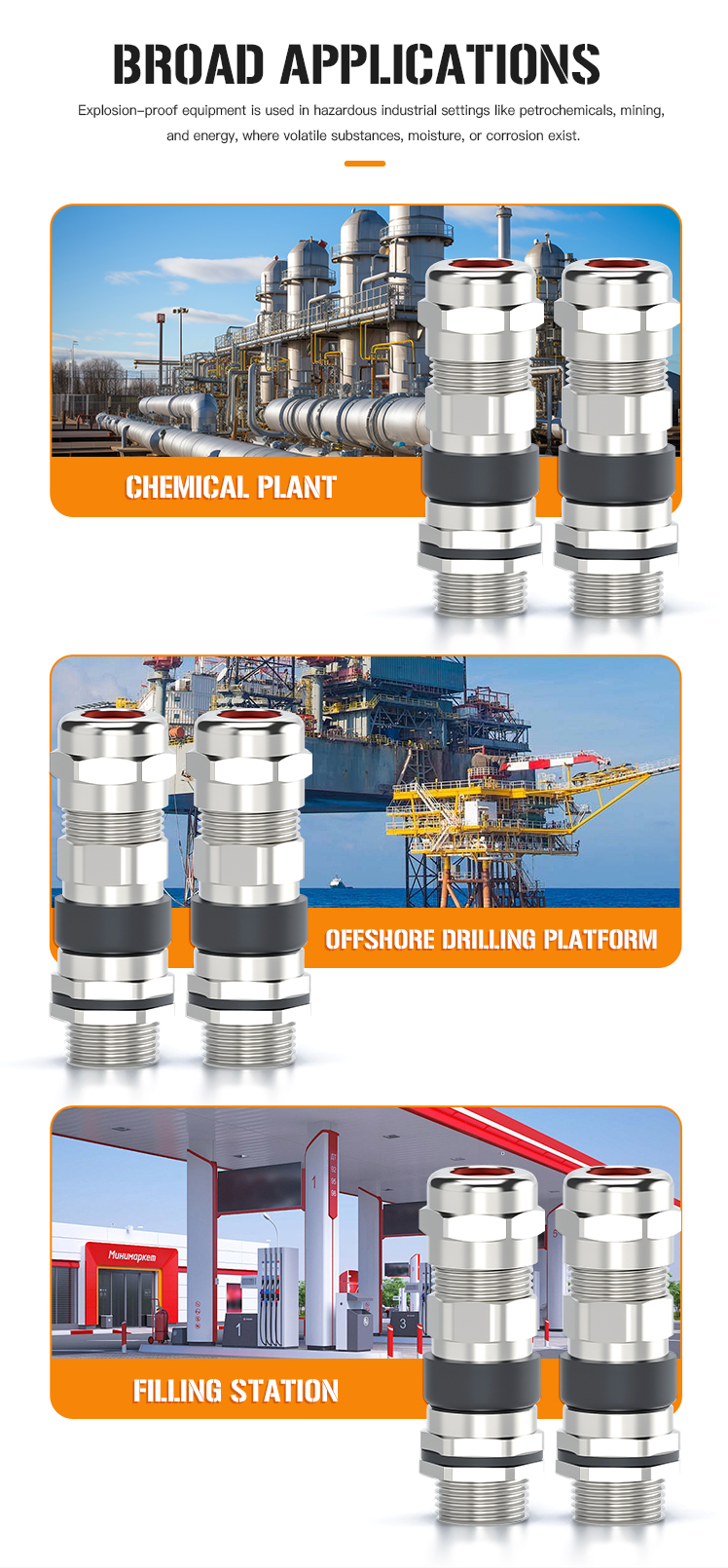

- ▶Power and Energy Distribution Systems
- ▶Petrochemical and Refining Facilities
- ▶Industrial Automation and Control Panels
- ▶Construction and Marine Installations

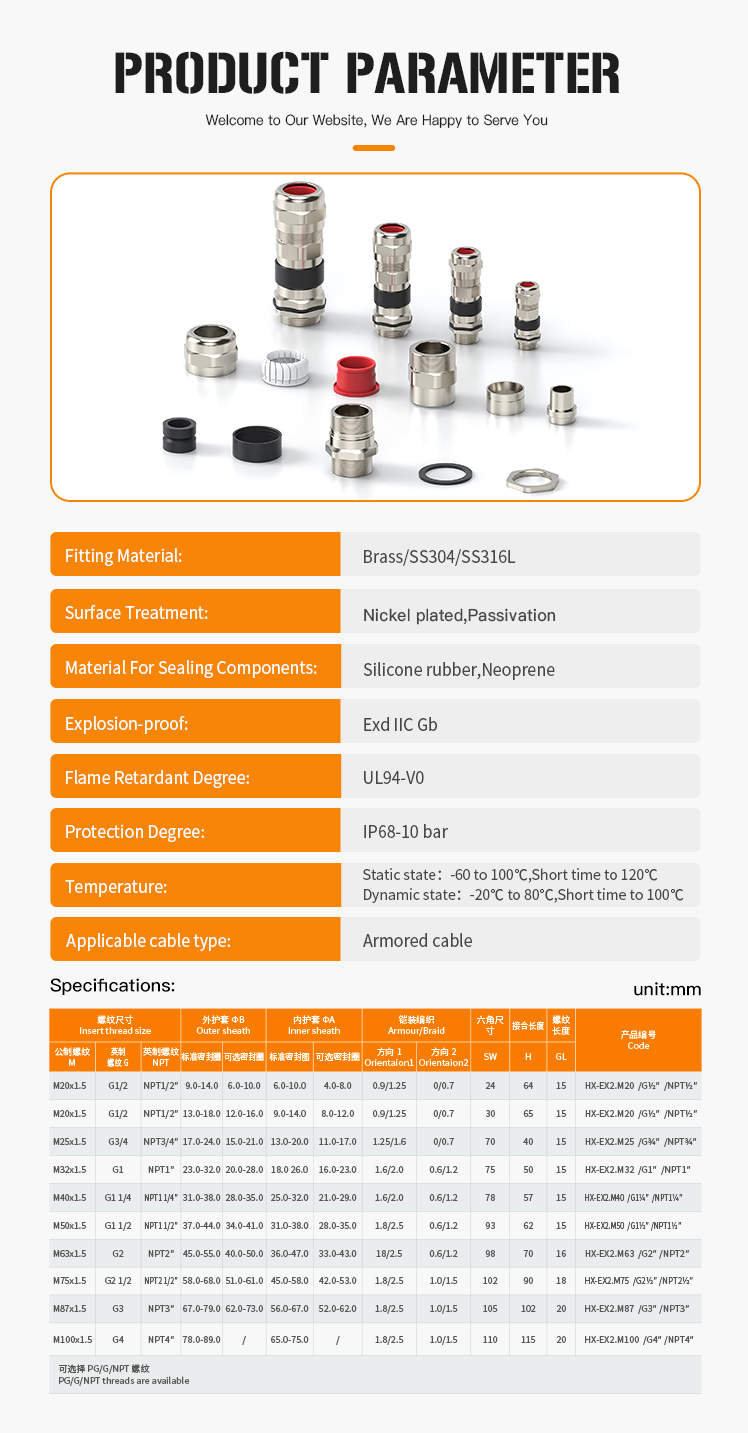

Product Parameters

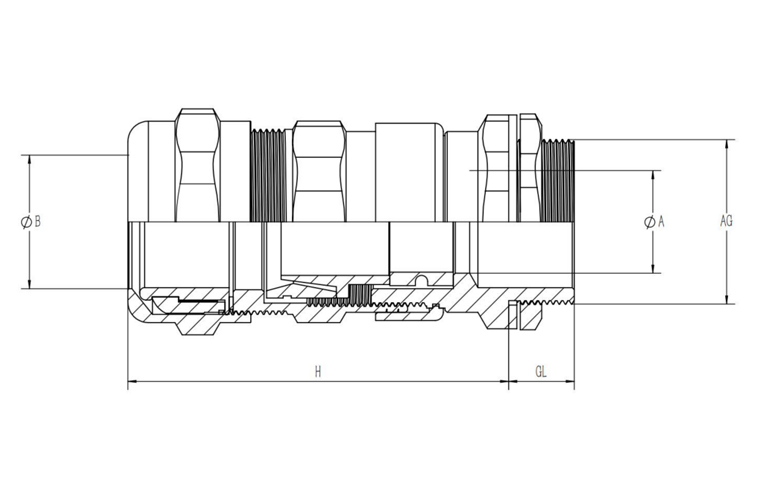

| Code | AG External diameter of thread | GL Length of thread | H Join Length | B Oversheath | A Inner sheath |
|---|---|---|---|---|---|
| HX-EX2.M20 SS | M20×1.5 | 15 | (65) | 9-18 | 9-14 |
| Insert thread size | B Outer sheath | A Inner sheath | code | ||||
|---|---|---|---|---|---|---|---|
| M | G | NPT | Standard sealing diagram | Optional sealing diagram | Standard sealing diagram | Optional sealing diagram | |
| M20x1.5 | G1/2 | NPT1/2" | 9.0-14.0 | 6.0-10.0 | 6.0-10.0 | 4.0-8.0 | HX-EX2.M20 /G½" /NPT½" |
| M20x1.5 | G1/2 | NPT1/2" | 13.0-18.0 | 12.0-16.0 | 9.0-14.0 | 8.0-12.0 | HX-EX2.M20 /G½" /NPT½" |
| M25x1.5 | G3/4 | NPT3/4” | 17.0-24.0 | 15.0-21.0 | 13.0-20.0 | 11.0-17.0 | HX-EX2.M25 /G¾" /NPT¾" |
| M32X1.5 | G1 | NPT1” | 23.0-32.0 | 20.0-28.0 | 18.0-26.0 | 16.0-23.0 | HX-EX2.M32 /G1" /NPT1" |
| M40x1.5 | G1 1/4 | NPT1 1/4" | 31.0-38.0 | 28.0-35.0 | 25.0-32.0 | 21.0-29.0 | HX-EX2.M40 /G1¼" /NPT1¼" |
| M50x1.5 | G1 1/2 | NPT1 1/2" | 37.0-44.0 | 34.0-41.0 | 31.0-38.0 | 28.0-35.0 | HX-EX2.M50 /G½" /NPT1½" |
| M63x1.5 | G2 | NPT2" | 45,0-55,0 | 40.0-50.0 | 36.0-47.0 | 33.0-43.0 | HX-EX2.M63 /G2" /NPT2" |
| M75x1.5 | G2 1/2 | NPT2 1/2" | 58.0-68.0 | 51.0-61.0 | 45.0-58.0 | 42.0-53.0 | HX-EX2.M75 /G2½" /NPT2½" |
| M87x1.5 | G3 | NPT3" | 67.0-79.0 | 62.0-73.0 | 56.0-670 | 52.0-62.0 | HX-EX2.M87 /G3" /NPT3" |
| M100x1.5 | G4 | NPT4" | 78.0-89.0 | / | 65.0-75.0 | / | HX-EX2.M100 /G4" /NPT4" |
| Amour/Brald | Hexagonal dimension | Bonding length | Thread Length | code | |
|---|---|---|---|---|---|
| orlentalon1 | orlentalon2 | SW | H | GL | |
| 0.9/1.25 | 0/0.7 | 24 | 64 | 15 | HX-EX2.M20 /G½" /NPT½" |
| 0.9/1.25 | 0/0.7 | 30 | 65 | 15 | HX-EX2.M20 /G½" /NPT½" |
| 1.25/1.6 | 0/0.7 | 70 | 40 | 15 | HX-EX2.M25 /G¾" /NPT¾" |
| 1.6/2.0 | 0.6/1.2 | 75 | 50 | 15 | HX-EX2.M32 /G1" /NPT1" |
| 1.6/2.0 | 0.6/1.2 | 78 | 57 | 15 | HX-EX2.M40 /G1¼" /NPT1¼" |
| 1.8/2.5 | 0.6/1.2 | 93 | 62 | 15 | HX-EX2.M50 /G½" /NPT1½" |
| 1.8/2.5 | 0.6/1.2 | 98 | 70 | 16 | HX-EX2.M63 /G2" /NPT2" |
| 1.8/2.5 | 1.0/1.5 | 102 | 90 | 18 | HX-EX2.M75 /G2½" /NPT2½" |
| 1.8/2.5 | 1.0/1.5 | 105 | 102 | 20 | HX-EX2.M87 /G3" /NPT3" |
| 1.8/2.5 | 1.0/1.5 | 110 | 115 | 20 | HX-EX2.M100 /G4" /NPT4" |

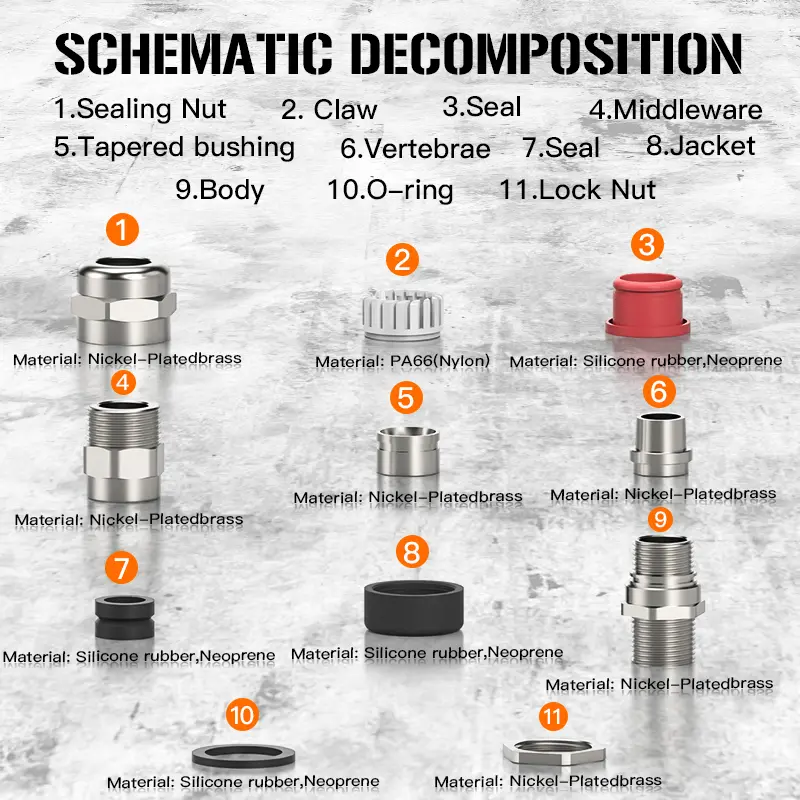

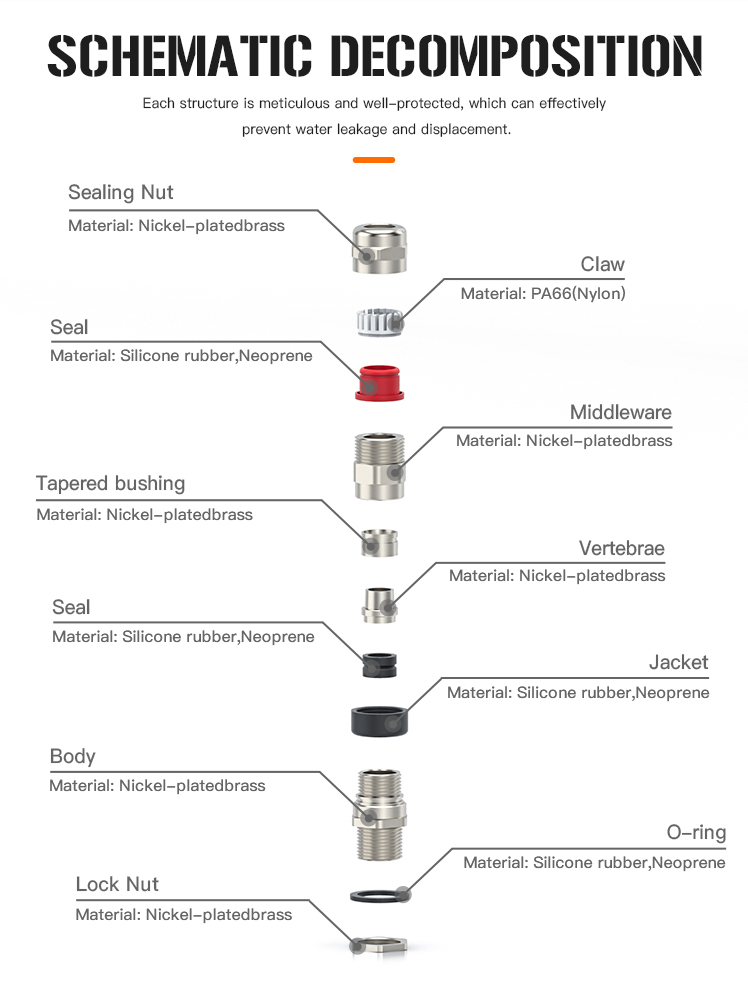

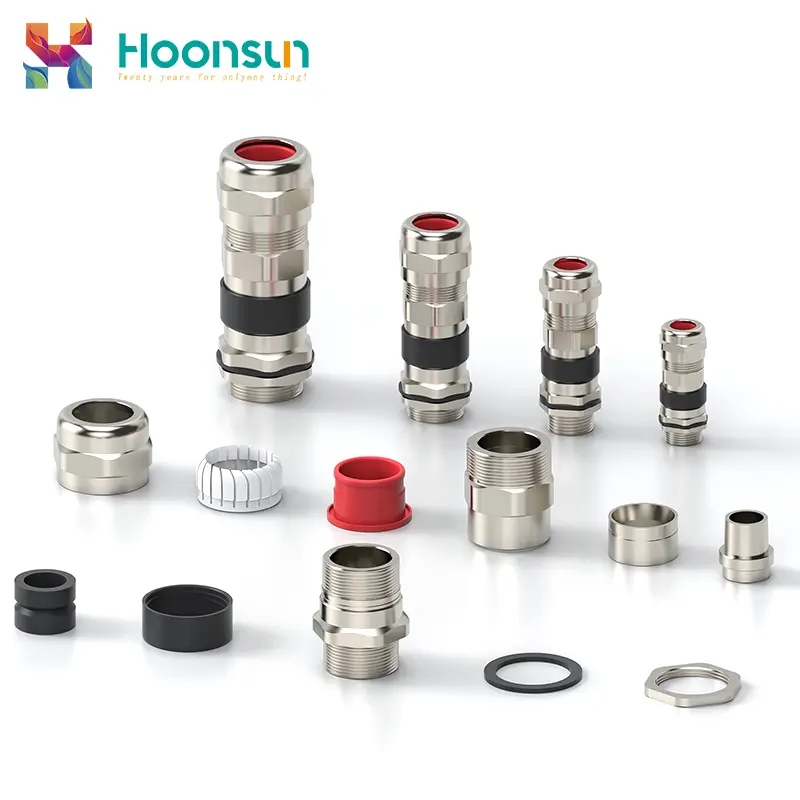

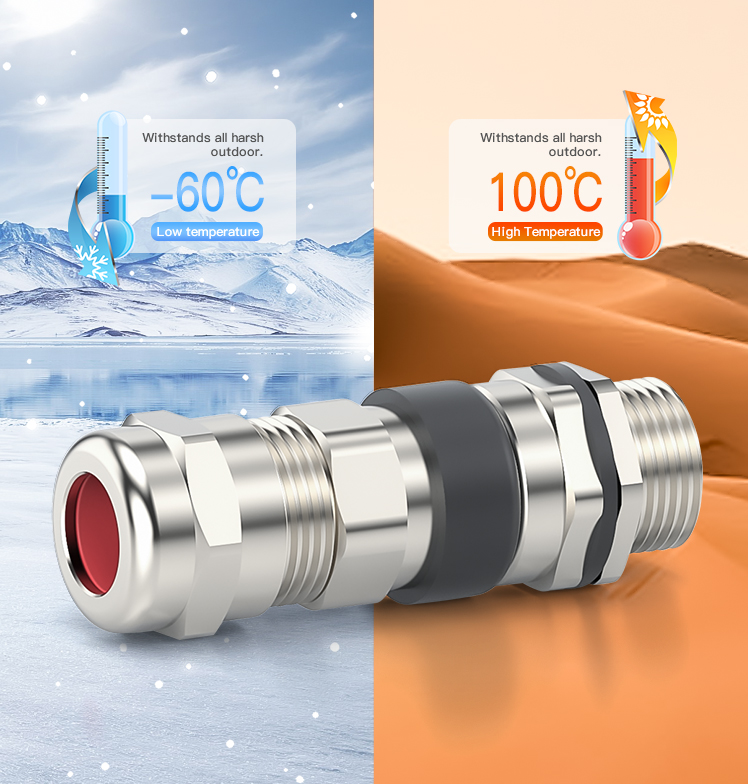

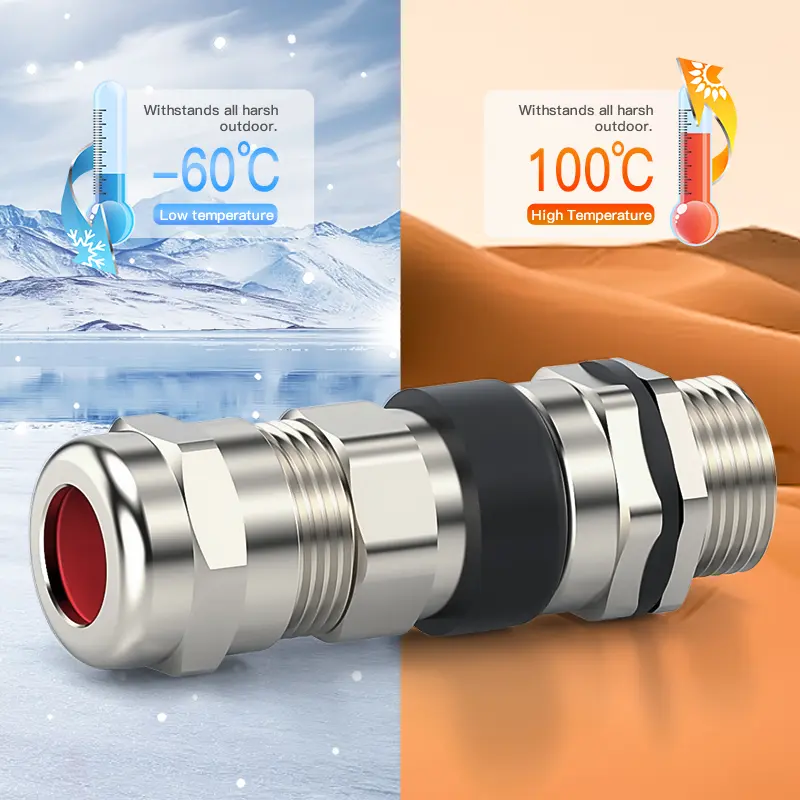

Detailed Images
Frequently Asked Questions
The double-seal design provides sealing on both the inner sheath and the outer sheath of the armored cable, ensuring maximum protection against dust, water ingress, and the migration of flammable gases in hazardous environments.
The series supports Metric (M), British Standard Pipe/Gas (G), and National Pipe Taper (NPT) entry threads ranging from M20 up to M100 to suit various global installation requirements.
Yes, these glands are specifically engineered for armored or braided cables, providing secure mechanical cable retention and effective electrical bonding of the armor.
They are widely utilized in harsh industrial conditions including petrochemical plants, oil refineries, marine platforms, power distribution hubs, and heavy industrial automation facilities.
Measure the inner sheath and outer sheath diameters of your cable, then consult the parameter sizing chart above to match the corresponding outer/inner sheath clamping ranges and desired thread standard.
