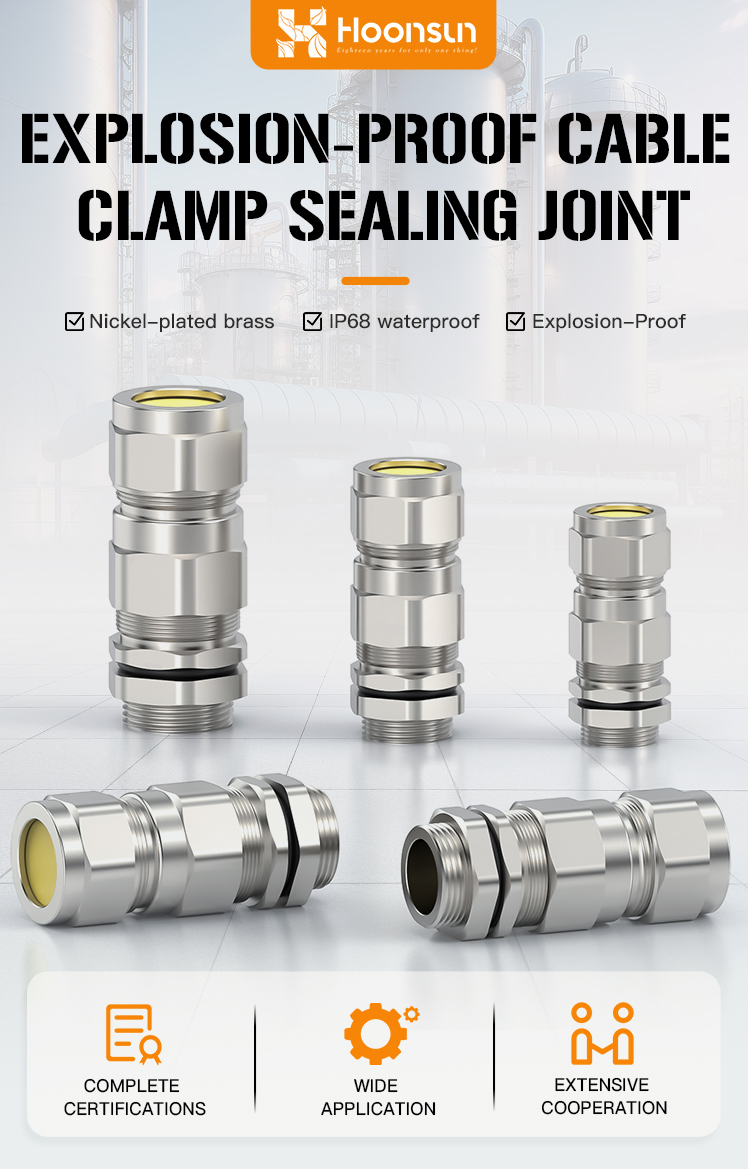

China IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX5 Manufacturer, Factories
Product Description
Product Highlights
Key Benefits

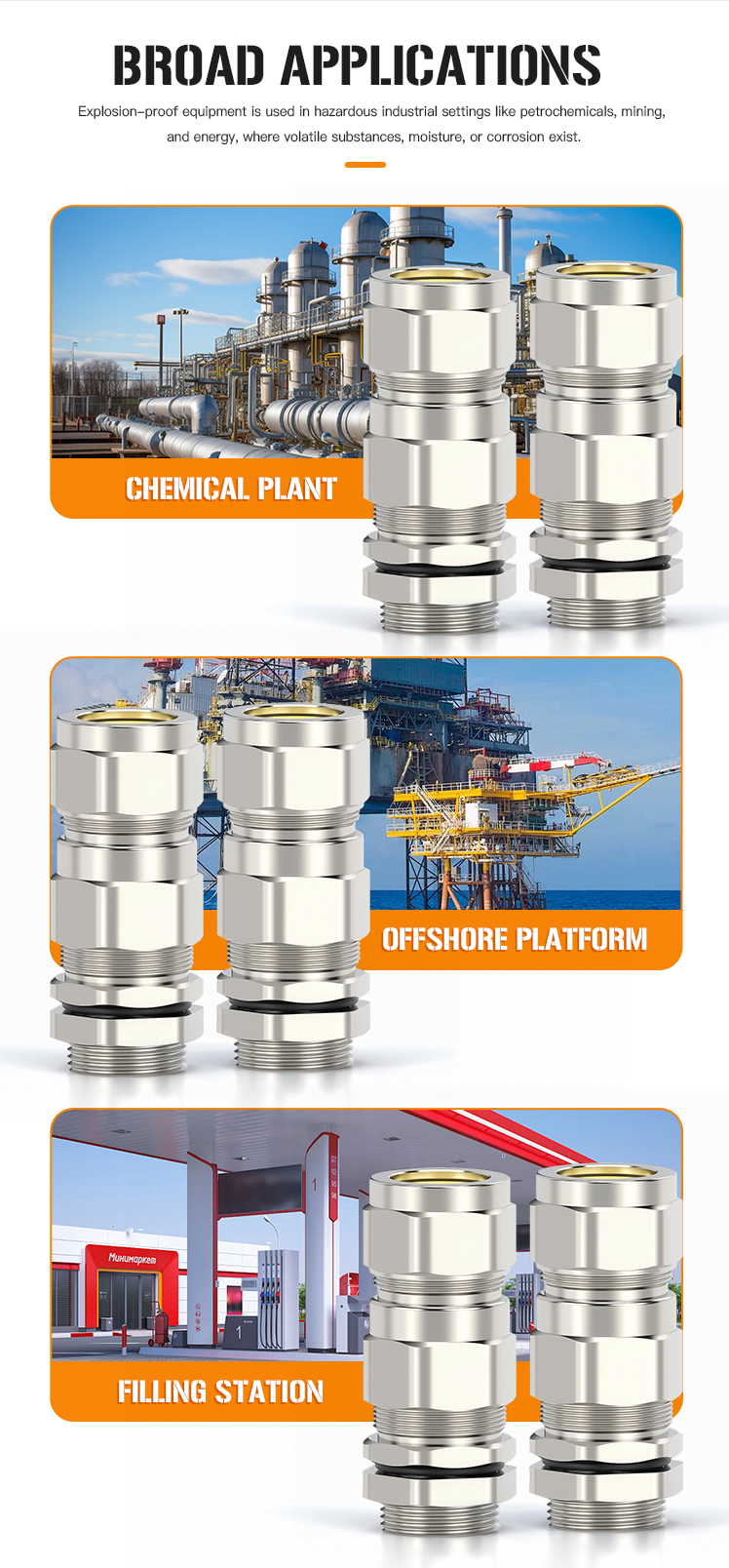

Applications
Chemical & Gas Processing
Secures cable entries in control panels, junction boxes, and lighting fixtures within refineries, chemical plants, and gas handling facilities where volatile atmospheres are present.
Heavy Industry & Manufacturing
Provides reliable sealing for machinery, motor connections, and automation systems in metal processing, automotive plants, and other heavy-duty industrial settings.
Critical Infrastructure & Utilities
Ideal for water treatment plants, power generation facilities, and outdoor telecommunications cabinets that require robust protection against moisture, dust, and corrosion.
Harsh & Exterior Environments
Ensures long-term performance for equipment installed in marine applications, offshore platforms, tunnels, and other locations exposed to weather, washdowns, or corrosive elements.

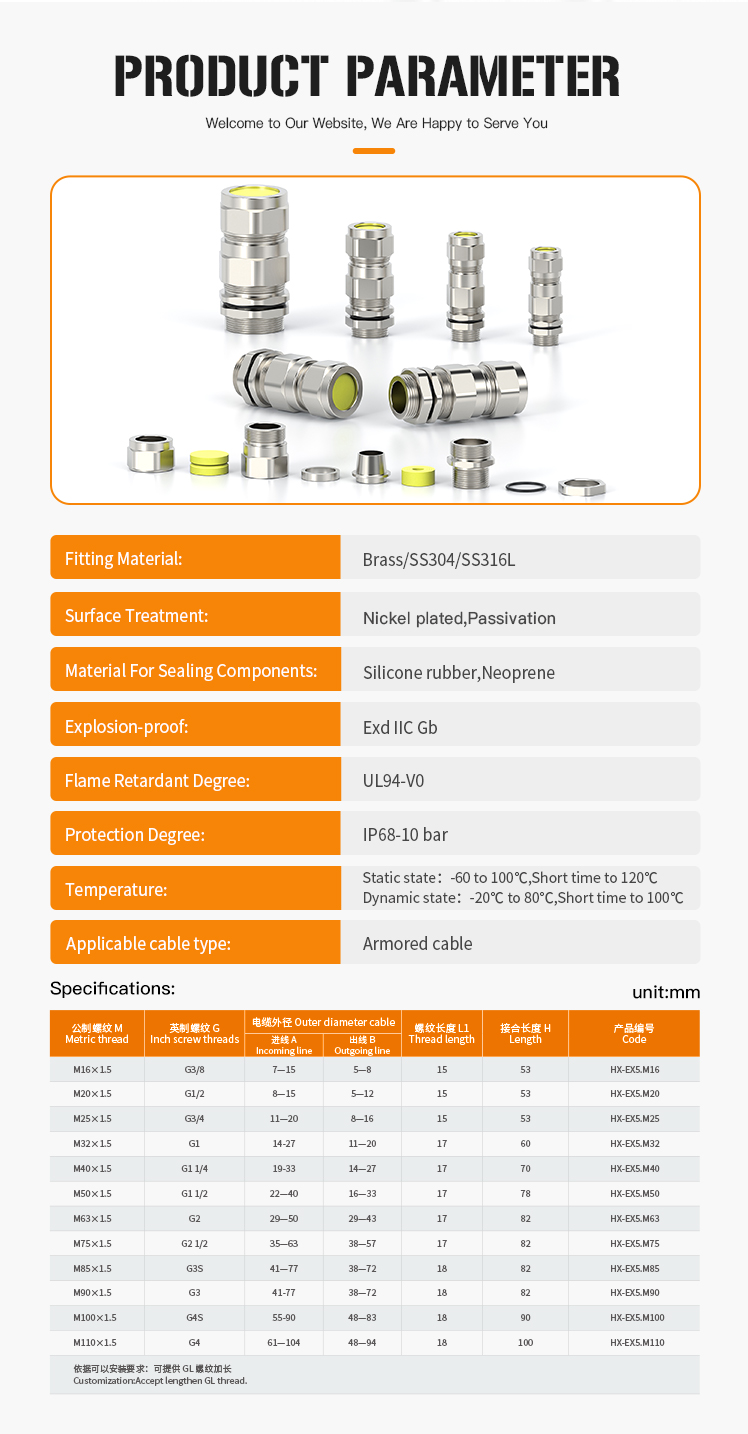

Product Parameters

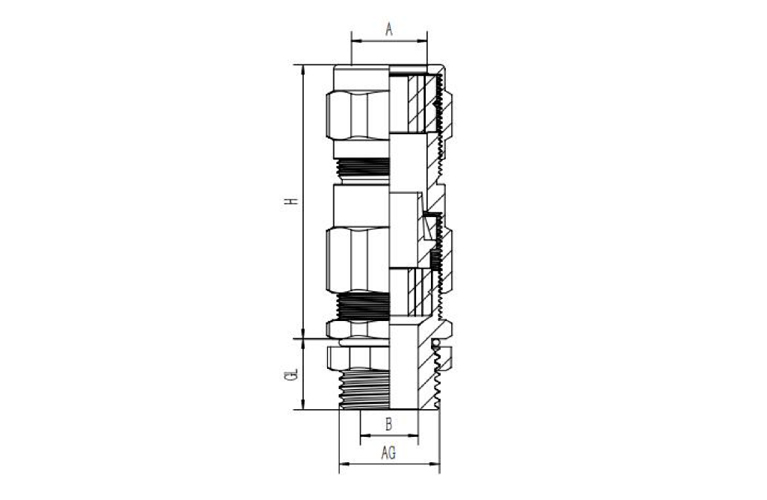

| Code | AG External diameter of thread | GL Length of thread | H Join Length | B Outlet | A Coil in |
|---|---|---|---|---|---|
| HX-EX5.NPT1 | 33.2 | 17 | (88) | 11-22 | 14-27 |
| M Metric thread | G Inch screw threads | Outer diameter cable | L1 Thread length | H Length | Code | |
|---|---|---|---|---|---|---|
| A Incoming line | B outgoing line | |||||
| M16×1.5 | G3/8 | 7-15 | 5-8 | 15 | 53 | HX-EX5.M16 |
| M20×1.5 | G1/2 | 8-15 | 5-12 | 15 | 53 | HX-EX5.M20 |
| M25×1.5 | G3/4 | 11-20 | 8-16 | 15 | 53 | HX-EX5.M25 |
| M32×1.5 | G1 | 14-27 | 11-20 | 17 | 60 | HX-EX5.M32 |
| M40×1.5 | G1 1/4 | 19-33 | 14-27 | 17 | 70 | HX-EX5.M40 |
| M50×1.5 | G1 1/2 | 22-40 | 16-33 | 17 | 78 | HX-EX5.M50 |
| M63×1.5 | G2 | 29-50 | 29-43 | 17 | 82 | HX-EX5.M63 |
| M75×1.5 | G2 1/2 | 35-63 | 38-57 | 17 | 82 | HX-EX5.M75 |
| M85×1.5 | G3S | 41-77 | 38-72 | 18 | 82 | HX-EX5.M85 |
| M90×1.5 | G3 | 41-77 | 38-72 | 18 | 82 | HX-EX5.M90 |
| M100×1.5 | G4S | 55-90 | 48-83 | 18 | 90 | HX-EX5.M100 |
| M110×1.5 | G4 | 61-104 | 48-94 | 18 | 100 | HX-EX5.M110 |
| Customization: Accept lengthen GL thread. | ||||||
Detailed Images
Frequently Asked Questions (FAQ)
The EX5 series is engineered for hazardous and harsh industrial settings, including refineries, chemical processing plants, marine and offshore platforms, power plants, and washdown environments where volatile gases, extreme dust, or moisture are present.
The series offers comprehensive threading support including Metric threads (from M16 up to M110), Inch screw threads (G3/8 to G4), and standard NPT fittings such as NPT 1".
Yes, customization options are available to provide extended GL thread lengths to accommodate varying panel thicknesses and specialized enclosure needs.

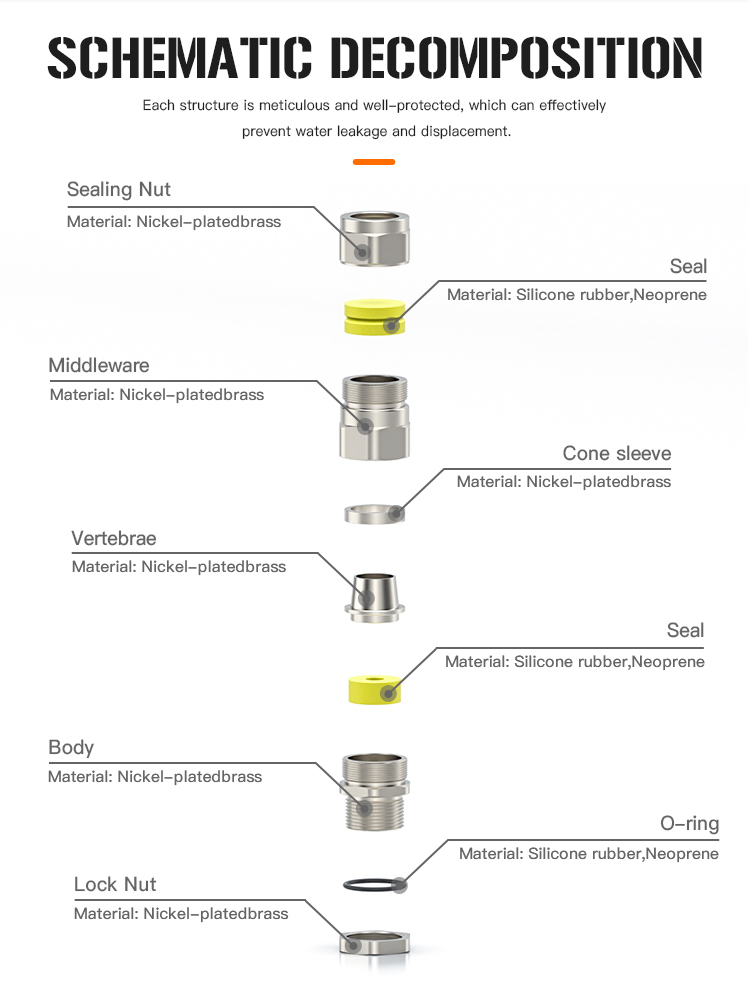

The integrated clamping mechanism provides both high pull resistance and anti-vibration stability, ensuring cables stay firmly anchored and sealed under severe operational stress.
No, the design allows for straightforward, tool-free assembly and quick adjustments, significantly reducing installation time and maintenance overhead.
