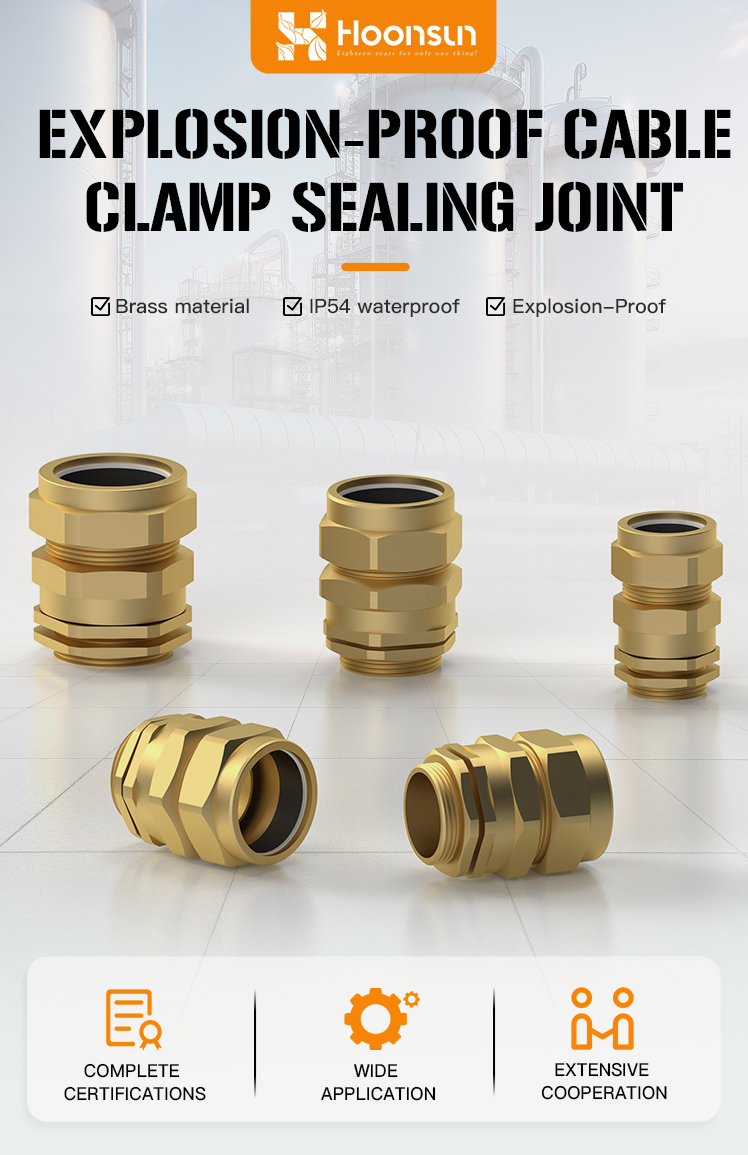

Product Description
Product Highlights
Resists Ignition Spread with Airtight Sealing
Maintains Grip Under Mechanical Stress and Movement

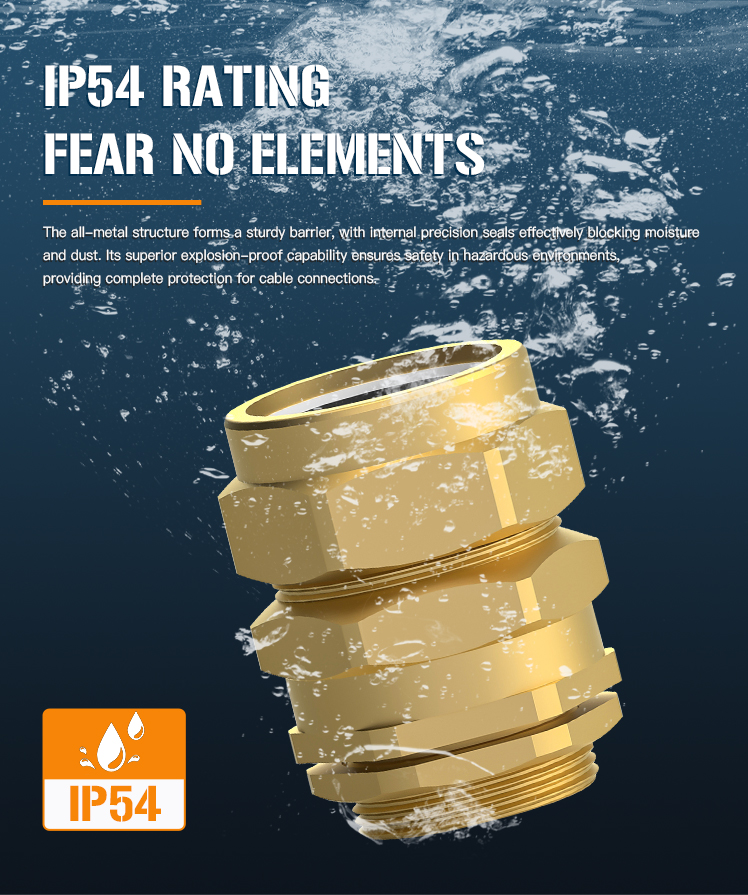

Built to Endure Moisture, Dust, and Corrosive Elements
Applications
Petrochemical and Refining Facilities
Ideal for cable entry points on equipment in classified hazardous zones where explosive atmospheres may be present.
Mining and Tunneling Machinery
Protects electrical connections on heavy machinery subjected to intense vibration, dust, and moisture.
Outdoor Industrial Infrastructure
Suitable for control panels, lighting systems, and sensors exposed to harsh weather, salt spray, or pervasive industrial dust.
Streamlined Installation
Designed for tool-free assembly, allowing for rapid and straightforward installation that reduces deployment time and requires no specialist skills.
Key Benefits
Mitigates Explosion Risk
Directly enhances site safety by containing potential ignition sources within enclosures, protecting personnel and critical assets.
Ensures System Integrity
Maintains consistent cable connectivity and seal integrity over time, even in demanding applications, preventing costly downtime.
Reduces Lifetime Costs
The combination of durable construction and minimal maintenance requirements delivers long-term operational savings and reliability.
Accelerates Project Timelines
The tool-free, quick-connect design significantly speeds up installation and any subsequent modifications, lowering labor costs.

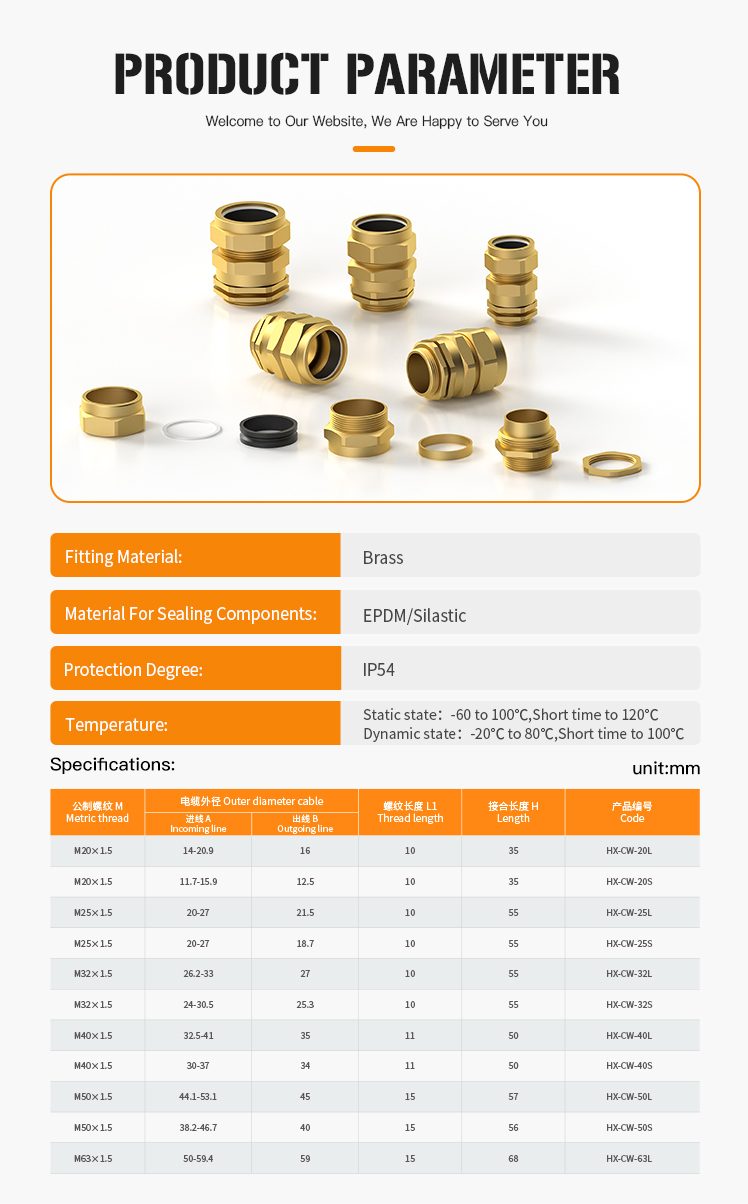

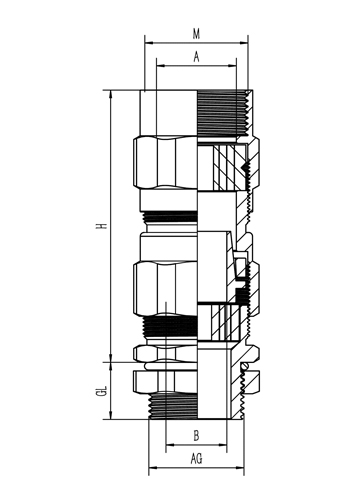

Product Parameters
| M Metric thread | Outer diameter cable | L1 Thread length | H Length | Code | |
|---|---|---|---|---|---|
| A Incoming line | B outgoing line | ||||
| M20×1.5 | 14-20.9 | 16 | 10 | 35 | HX-CW-20L |
| M20×1.5 | 11.7-15.9 | 12.5 | 10 | 35 | HX-CW-20S |
| M25×1.5 | 20-27 | 21.5 | 10 | 55 | HX-CW-25L |
| M25×1.5 | 20-27 | 18.7 | 10 | 55 | HX-CW-25S |
| M32×1.5 | 26.2-33 | 27 | 10 | 55 | HX-CW-32L |
| M32×1.5 | 24-30.5 | 25.3 | 10 | 55 | HX-CW-32S |
| M40×1.5 | 32.5-41 | 35 | 11 | 50 | HX-CW-40L |
| M40×1.5 | 30-37 | 34 | 11 | 50 | HX-CW-40S |
| M50×1.5 | 44.1-53.1 | 45 | 15 | 57 | HX-CW-50L |
| M50×1.5 | 38.2-46.7 | 40 | 15 | 56 | HX-CW-50S |
| M63×1.5 | 50-59.4 | 59 | 15 | 68 | HX-CW-63L |

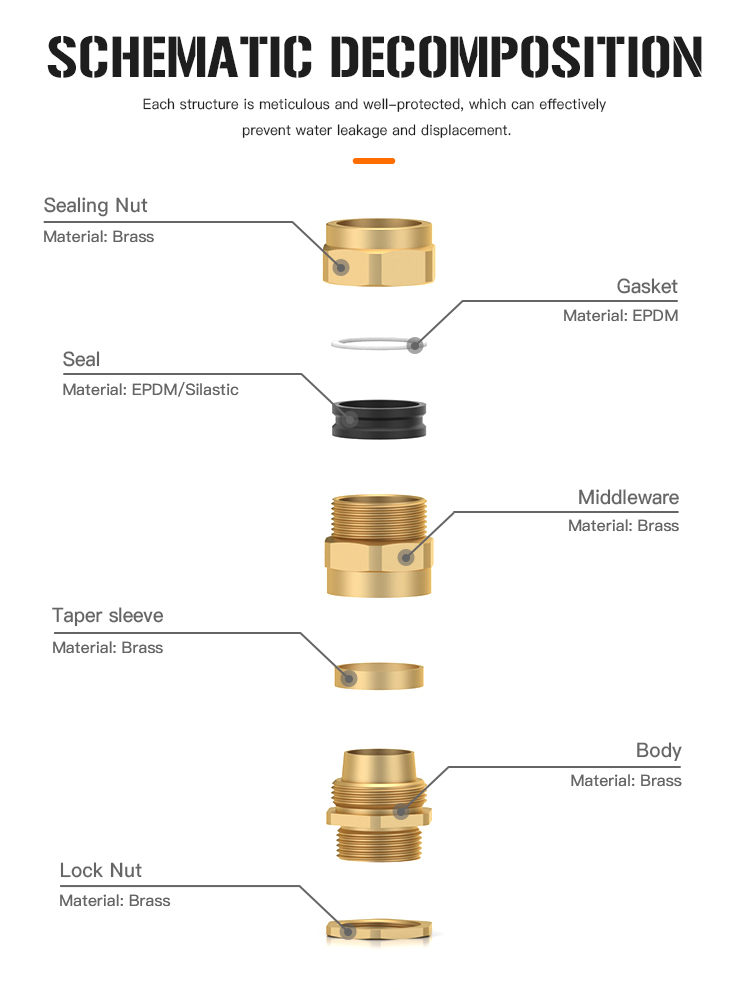

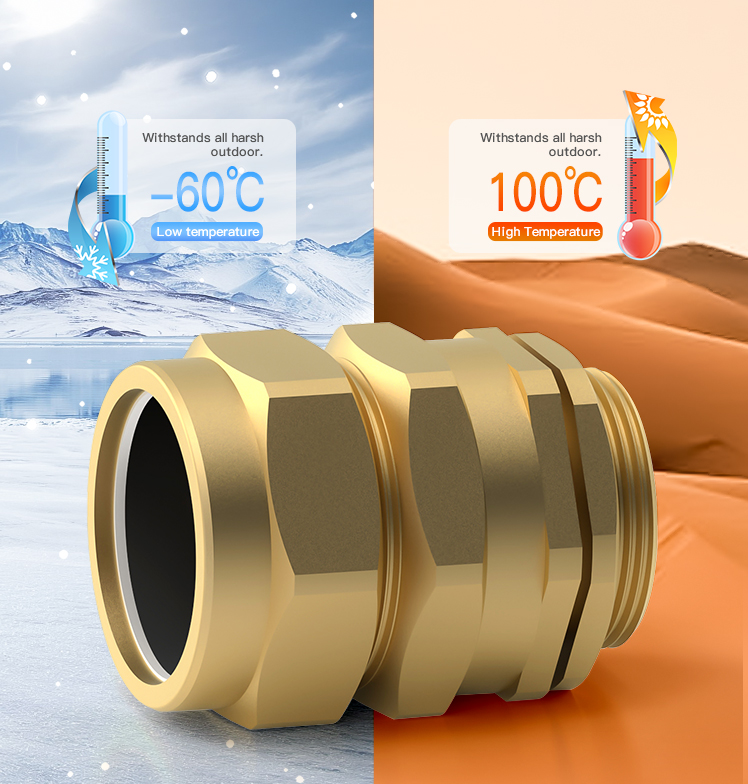

Detailed Images
Frequently Asked Questions
Q1 What protection ratings and certifications does the CW cable sealing joint carry?
The joint is IP68 and UL certified, providing dependable airtight protection against moisture, pervasive dust, corrosive environments, and explosive hazards.
Q2 In which environments is this explosion-proof cable clamp recommended?
It is specially designed for petrochemical and refining facilities, mining and tunneling equipment, as well as outdoor industrial infrastructure subject to severe weather and vibrations.
Q3 Does the CW cable gland require specialized tools for assembly?
No, it is built with a tool-free assembly design that allows quick and straightforward deployment without needing specialist tools or advanced technical training.
Q4 How does the joint maintain grip during high vibration and mechanical stress?
The engineered clamping mechanism secures cable grip under constant mechanical stress and dynamic movement, preventing loosening or seal degradation.
Q5 What thread sizes and cable diameter options are supported?
The series includes metric threads ranging from M20×1.5 up to M63×1.5, accommodating cable outer diameters from 11.7 mm to 59.4 mm.
Q6 How does this product help lower total operational expenses?
By combining airtight ignition containment, long-term seal integrity, and minimal maintenance demands, it prevents costly downtime and premature replacement.
