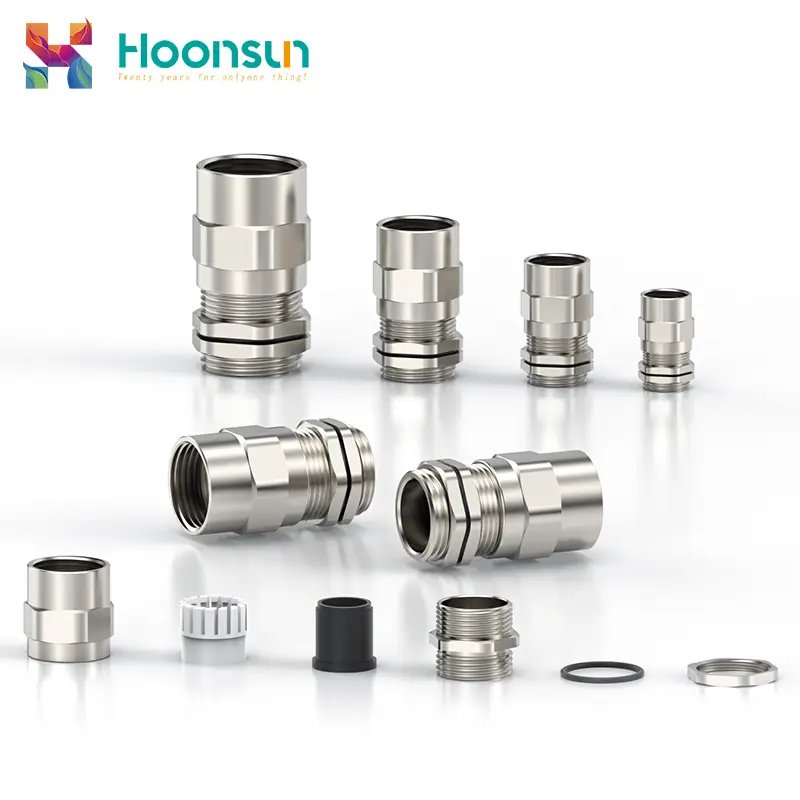

China Metal Tubular Cable Gland with IP68 Rating and UL Listing Manufacturers, Suppliers
Product Description
Overview & Specifications
Product Highlights
- ■Engineered for demanding industrial environments, providing superior protection and reliable cable management.
- ■Designed for use with metal conduits or armored cables, ensuring a secure mechanical and electrical connection between the cable and equipment housing.

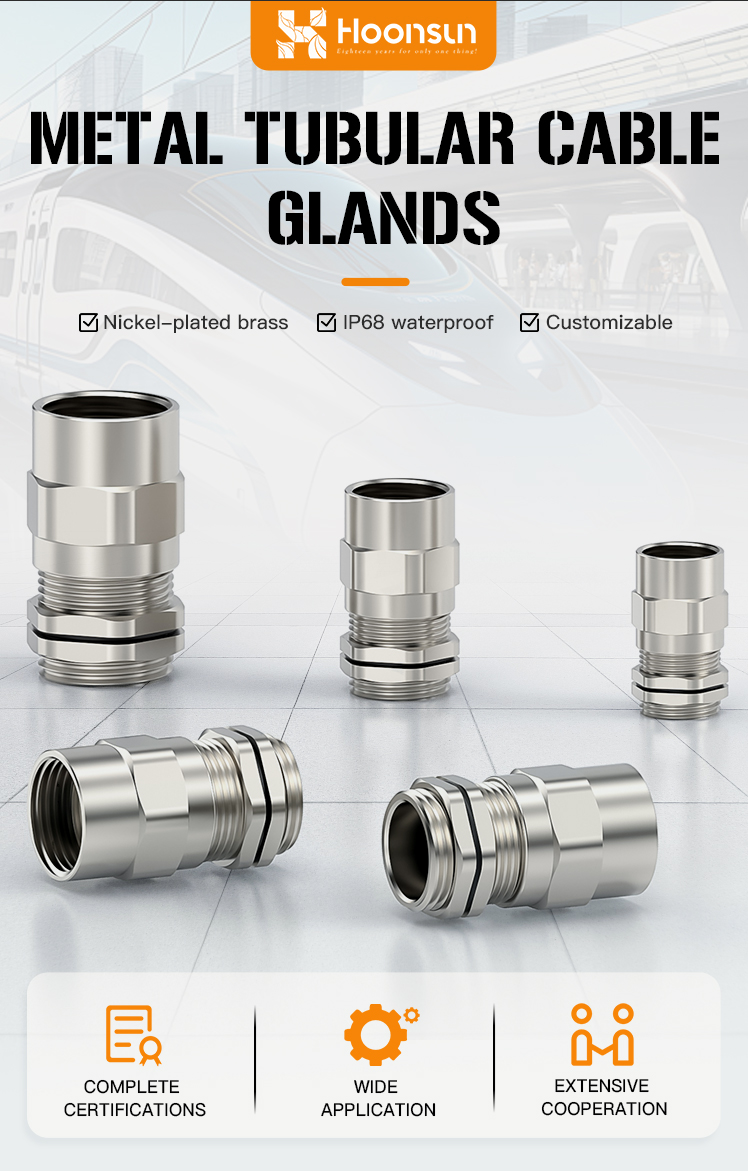

- ■Constructed from nickel-plated brass or stainless steel, offering high tensile strength, excellent corrosion resistance, and long-term durability.

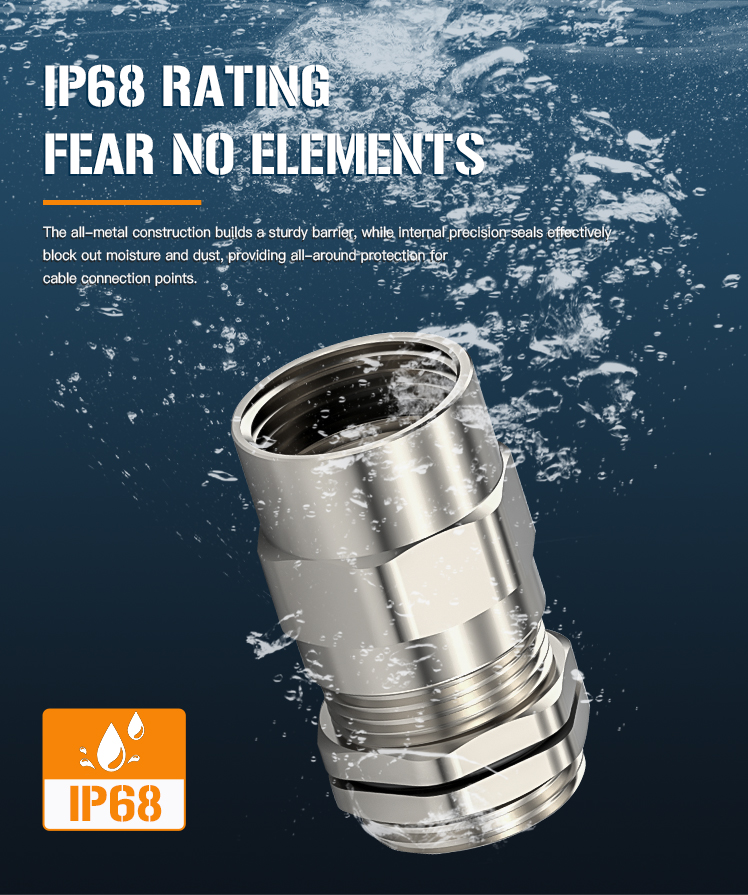

- ■Features precision-threaded structure and sealing ring for IP68-rated waterproof and dustproof protection.
- ■Provides effective EMC shielding performance to minimize electromagnetic interference.
- ■Available in PG, NPT, and Metric thread types to meet global industrial standards.
Applications
- ●Suitable for automation systems, power distribution, machinery, marine, and rail applications.
- ●Ideal for environments requiring protection against oil, moisture, and mechanical stress.
Key Benefits
- ✔Prevents cable twisting and pull-out with its conduit-compatible design.
- ✔Ensures stable electrical operation through superior shielding and secure connections.
- ✔Represents a professional, high-reliability solution for heavy-duty cable protection and connection.

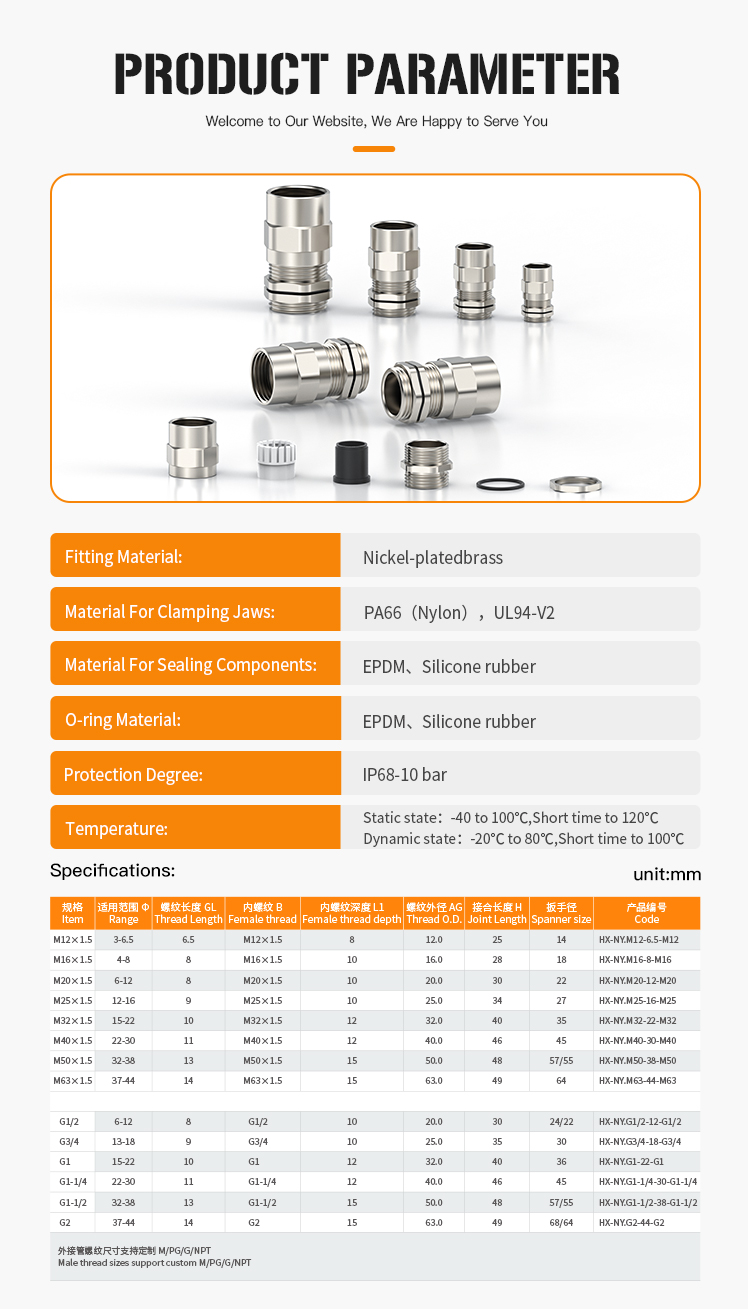

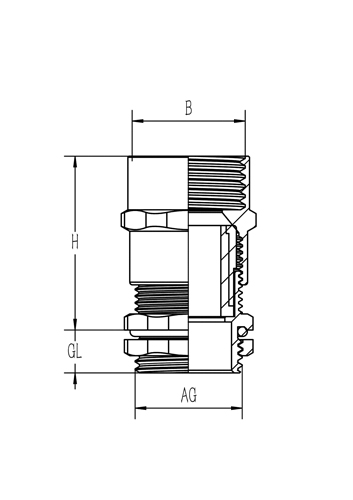

Technical Specifications
unit: mm
| Item | Range | GL Thread Length | B Female thread | L1 Female thread depth | AG Thread O.D | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 6.5 | M12×1.5 | 8 | 12.0 | 25 | 14 | HX-NY.M12-6.5-M12 |
| M16×1.5 | 4-8 | 8 | M16×1.5 | 10 | 16.0 | 28 | 18 | HX-NY.M16-8-M16 |
| M20×1.5 | 6-12 | 8 | M20×1.5 | 10 | 20.0 | 30 | 22 | HX-NY.M20-12-M20 |
| M25×1.5 | 12-16 | 9 | M25×1.5 | 10 | 25.0 | 34 | 27 | HX-NY.M25-16-M25 |
| M32×1.5 | 15-22 | 10 | M32×1.5 | 12 | 32.0 | 40 | 35 | HX-NY.M32-22-M32 |
| M40×1.5 | 22-30 | 11 | M40×1.5 | 12 | 40.0 | 46 | 45 | HX-NY.M40-30-M40 |
| M50×1.5 | 32-38 | 13 | M50×1.5 | 15 | 50.0 | 48 | 57/55 | HX-NY.M50-38-M50 |
| M63×1.5 | 37-44 | 14 | M63×1.5 | 15 | 63.0 | 49 | 64 | HX-NY.M63-44-M63 |
| G1/2 | 6-12 | 8 | G1/2 | 10 | 20.0 | 30 | 24/22 | HX-NY.G1/2-12-G1/2 |
| G3/4 | 13-18 | 9 | G3/4 | 10 | 25.0 | 35 | 30 | HX-NY.G3/4-18-G3/4 |
| G1 | 15-22 | 10 | G1 | 12 | 32.0 | 40 | 36 | HX-NY.G1-22-G1 |
| G1-1/4 | 22-30 | 11 | G1-1/4 | 12 | 40.0 | 46 | 45 | HX-NY.G1-1/4-30-G1-1/4 |
| G1-1/2 | 32-38 | 13 | G1-1/2 | 15 | 50.0 | 48 | 57/55 | HX-NY.G1-1/2-38-G1-1/2 |
| G2 | 37-44 | 14 | G2 | 15 | 63.0 | 49 | 68/64 | HX-NY.G2-44-G2 |
| Male thread sizes support custom M/PG/G/NPT | ||||||||

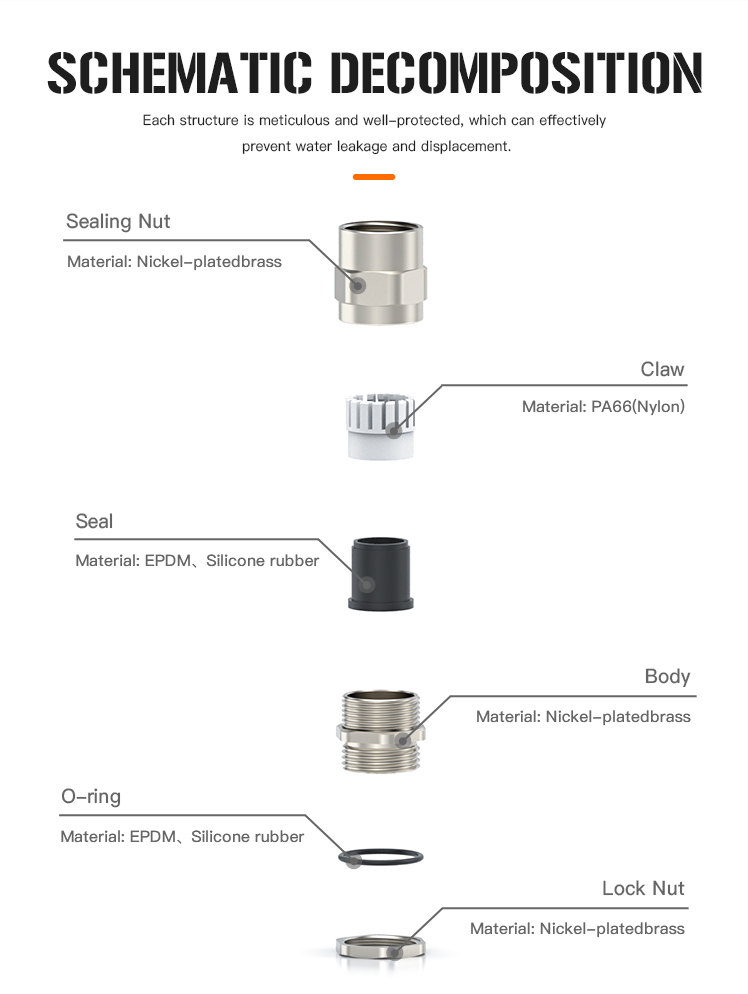

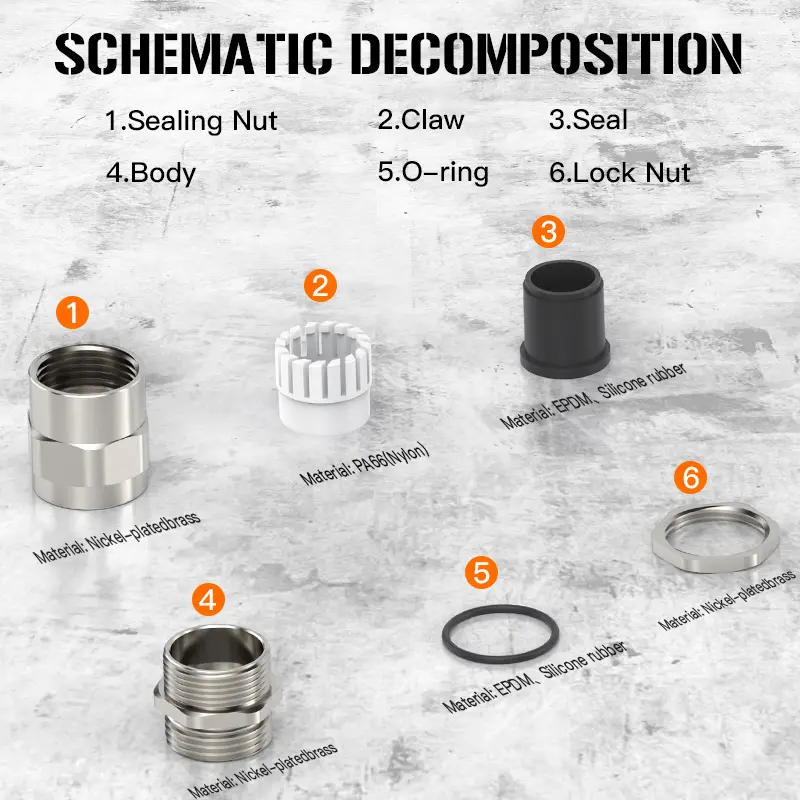

Detailed Product Gallery
Frequently Asked Questions
What material options are available for this cable gland?
The cable gland is manufactured using nickel-plated brass or stainless steel, providing exceptional tensile strength, corrosion resistance, and operational longevity in aggressive environments.
What is the ingress protection (IP) rating?
It features an IP68-rated waterproof and dustproof protection level thanks to its precision-threaded structure and internal sealing ring.
Does this cable gland provide electromagnetic compatibility (EMC) protection?
Yes, it is designed with effective EMC shielding performance to minimize electromagnetic interference across electrical systems.
Which thread types can be customized?
Male and female threads can be accommodated in Metric (M), PG, G, and NPT thread standards to meet global industrial application requirements.
What are the primary applications for this product?
It is widely used in automation systems, power distribution units, mechanical equipment, marine engineering, and railway applications where resistance to oil, moisture, and mechanical strain is required.
