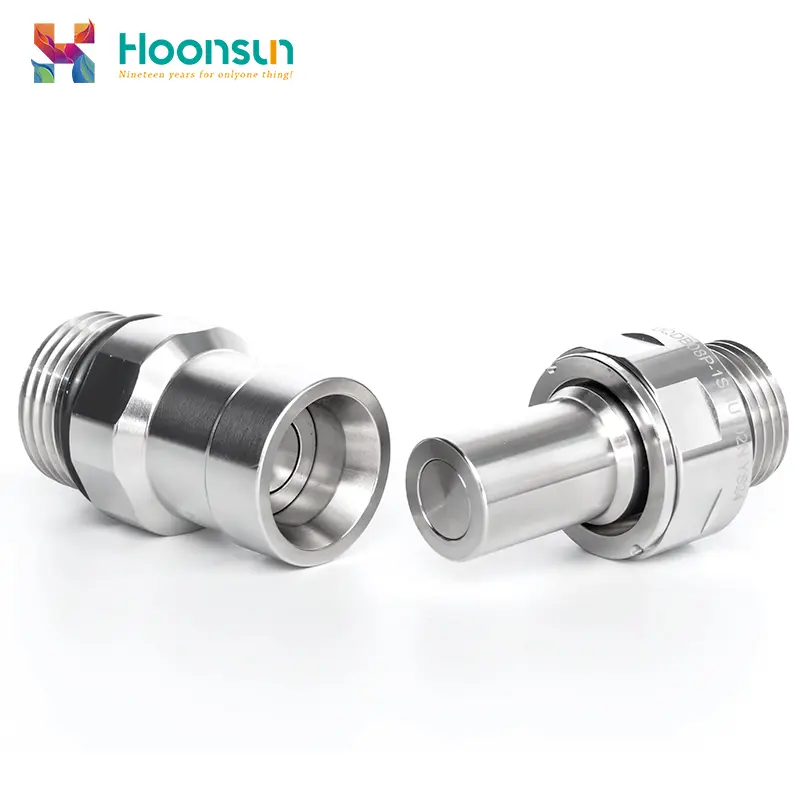

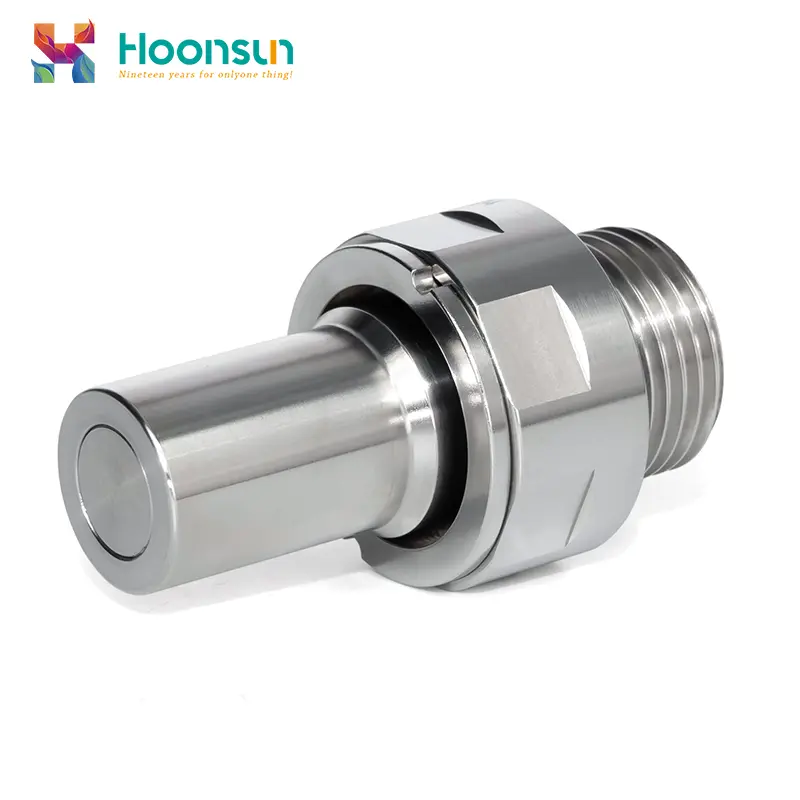

China UQDB08S-1SMU122N-UQDB08P-1SMU102N Supplier, Suppliers
Product Description

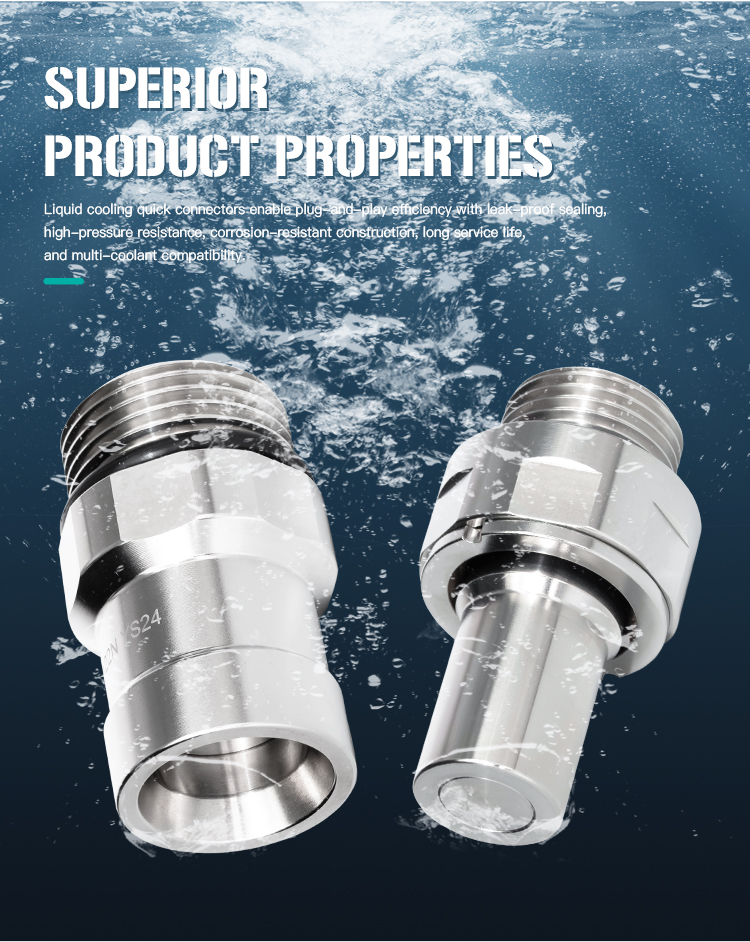

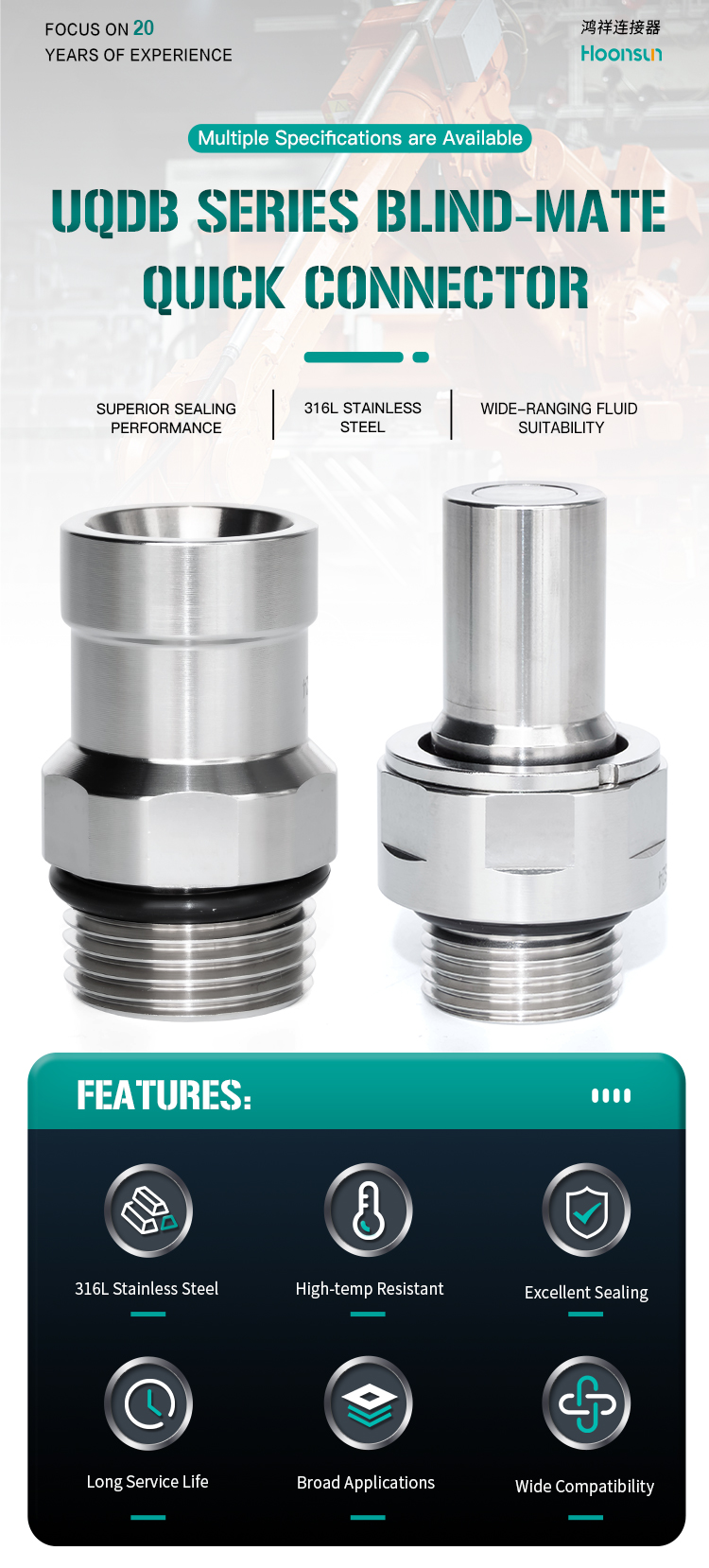

Core Features
✅ 316L Stainless Steel Construction: Excellent corrosion resistance for industrial and outdoor environments
✅ Blind-Mate, Self-Aligning Design: Enables fast, tool-free connections without visual alignment
✅ Superior Sealing Performance: EPDM seals ensure zero leakage under rated pressure
✅ Wide Operating Range: -40°C to 120°C temperature resistance, 20 bar working pressure
✅ Multiple Size Options: DN03 to DN10, supporting flow rates up to 85 L/min
✅ Harsh Environment Ready: Dust-proof, salt-proof, and resistant to acids, alkalis, and common solvents
✅ Low Pressure Drop: Optimized internal flow path for efficient fluid transfer
✅ Long Service Life: Robust construction and precision engineering for continuous use
Application Fields

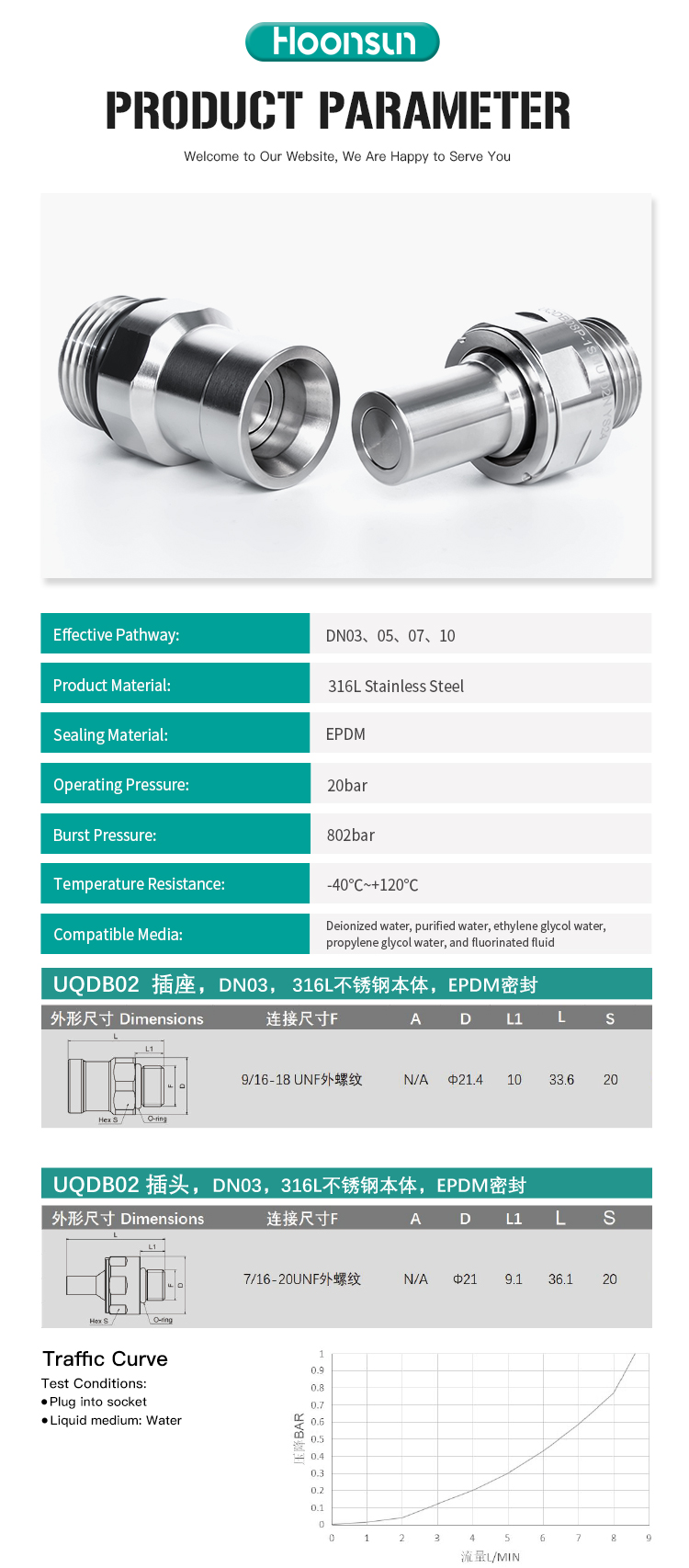

Product Specifications
| Model | DN Size | Body Material | Seal Material | Socket Thread | Plug Thread | Working Pressure | Temperature Range |
|---|---|---|---|---|---|---|---|
| UQDB02 | DN03 | 316L Stainless Steel | EPDM | 9/16-18 UNF | 7/16-20 UNF | 20 bar | -40°C~120°C |
| UQDB04 | DN05 | 316L Stainless Steel | EPDM | 3/4-16 UNF | 9/16-18 UNF | 20 bar | -40°C~120°C |
| UQDB06 | DN07 | 316L Stainless Steel | EPDM | 7/8-14 UNF | 3/4-16 UNF | 20 bar | -40°C~120°C |
| UQDB08 | DN10 | 316L Stainless Steel | EPDM | 1 1/16-12 UNF | 7/8-14 UNF | 20 bar | -40°C~120°C |
Compatible Media: Deionized water, purified water, ethylene glycol solution, propylene glycol solution, oils, and fluorinated fluids
Flow Performance: Optimized internal flow path with minimal pressure drop, supporting flow rates up to 85 L/min
Installation Process

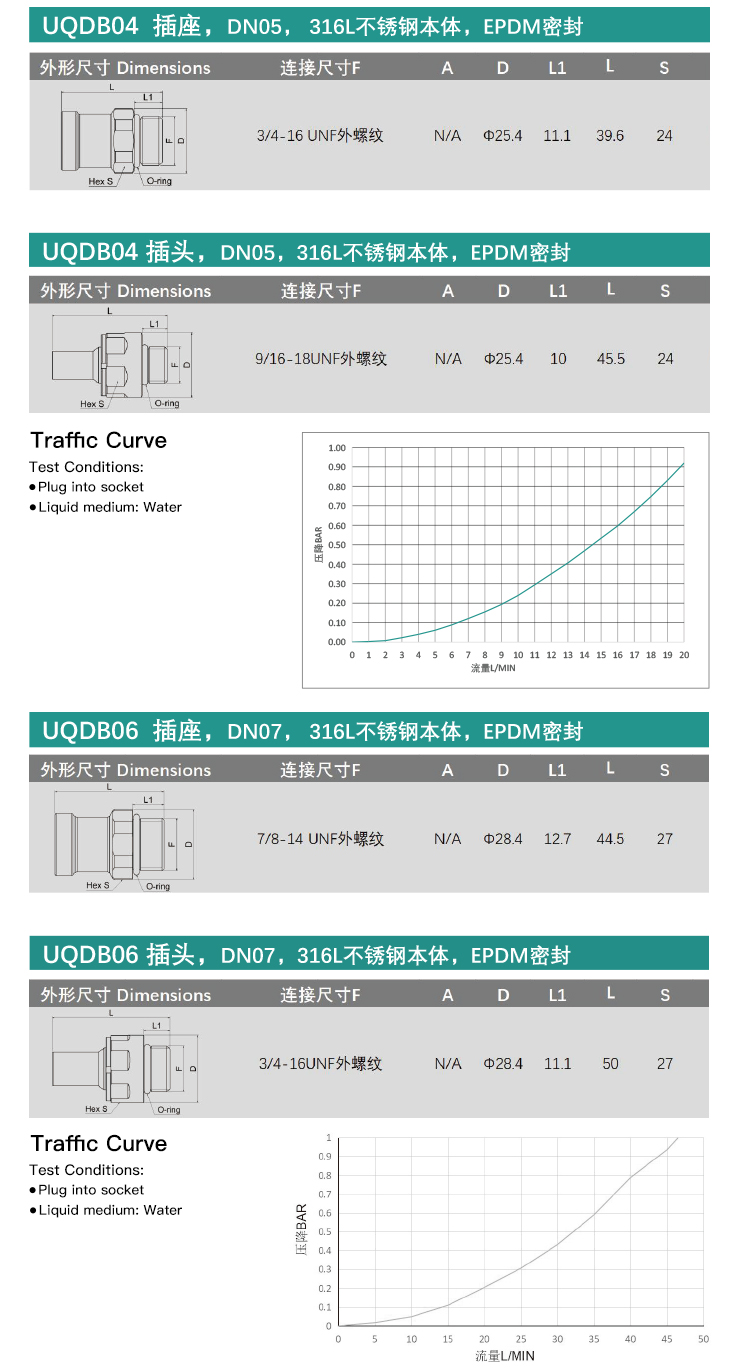

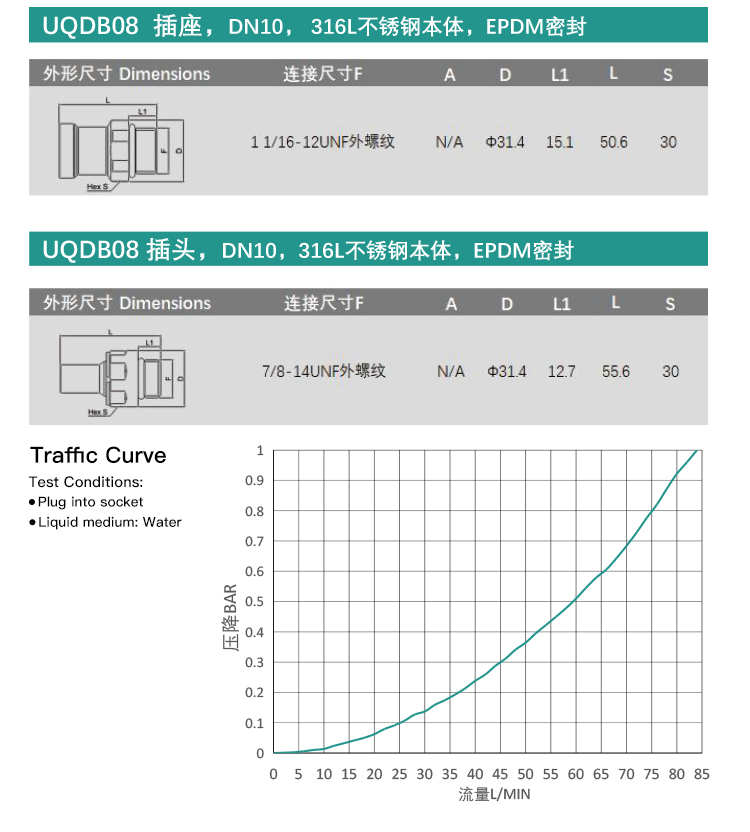

Detailed Images
Frequently Asked Questions
The UQDB series features a blind-mate, self-aligning design, allowing for fast, error-proof connections without visual alignment. This is ideal for high-density, automated assembly environments where space is limited.
Standard EPDM seals are suitable for water and glycol solutions. Custom sealing materials (such as FKM for high-temperature or chemically aggressive fluids) are available upon request.
They work with most common liquid cooling media, including deionized water, glycol mixtures, industrial oils, and fluorinated fluids.
Rated working pressure is 20 bar (burst pressure 80 bar), with an operating temperature range of -40°C to 120°C.
Yes. The 316L stainless steel construction provides excellent resistance to corrosion, salt spray, and extreme temperatures, making them ideal for outdoor and industrial applications.
No. The blind-mate design allows for tool-free connection and disconnection, simplifying installation and maintenance.
