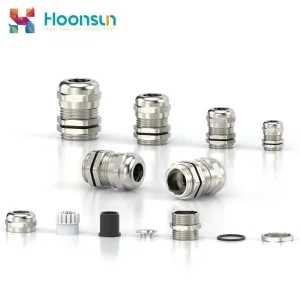

China IP68 Waterproof Metal Shielded Cable Joint - High Performance EMI/RFI Attenuation
China MDC09S-15MG052N-MDC09P-1SMG052N Industrial Interconnect Assembly
The Engineering Evolution: Transitioning to Split Cable Entry Architectures
In modern electrical design, cutting pre-terminated cables to pass through standard glands voids manufacturer warranties, increases labor costs by up to 65%, and compromises signal integrity. Split cable glands provide the missing architectural link.
Eliminates wire desoldering, pin extraction, and field re-crimping on factory harnesses.
Pre-tested optical fiber, RJ45, D-Sub, and heavy-duty circular connectors remain intact.
Engineered elastomeric grommets maintain continuous hydrodynamic compression up to 5 bar.
UL 94 V-0 glass-filled polyamide housings self-extinguish within 10 seconds of ignition.
The Bottleneck of Monolithic Cable Glands
Traditional non-split cable glands require un-terminated bare cables to be threaded through locknuts, rubber seals, and clamping cones before final pin termination. In the era of Industry 4.0, industrial IoT, and modular field buses, over 70% of factory-floor connections arrive as pre-assembled, factory-overmolded harnesses (such as M12 sensor cables, Profinet RJ45 patches, and multi-conductor servo feedback lines).
When system integrators deploy traditional glands with pre-assembled lines, technicians are forced into costly workarounds: cutting factory connectors, voiding vendor warranties, risking pin mapping errors, and drastically extending Mean Time to Repair (MTTR) during routine field maintenance.
- Inevitable pin mapping errors and impedance mismatches during re-crimping.
- Complete loss of OEM factory sealing and IP testing certificates.
- Unscheduled downtime during modular swap-outs and retrofits.
The Split Gland & Modular Transit Solution
Split cable glands solve this friction through a dual-hemisphere or separable body architecture combined with slotted elastomeric sealing inserts. As China’s leading industrial connection and cable gland manufacturer, Hoonsun engineers high-precision modular cable entry frames and split round glands that assemble securely around intact connector heads.
The system couples mechanical separation with interlocking tongue-and-groove sealing geometries. When the split cap nut or frame fasteners are torqued, uniform radial compression is exerted onto the elastomeric insert, delivering strain relief compliant with EN 62444 alongside IP66/IP68 environmental sealing.
- Direct installation over pre-terminated connectors up to 48 mm diameter.
- High-density routing: multi-hole inserts permit up to 4 lines per gland entry.
- Rapid retrofit without de-energizing or dismantling cabinet backplates.
Macro Industry Trends Shaping Global Procurement
Cross-border original equipment manufacturers (OEMs), engineering procurement construction (EPC) contractors, and industrial automation architects are fundamentally revamping cable entry specifications across four pivotal vectors.
1. Prefabricated IO-Link & SPE Expansion
The universal adoption of Single Pair Ethernet (SPE) and IO-Link master-slave topologies has made standardized molded harnesses the default across manufacturing lines. Monolithic drilling is being replaced by modular split plates to support fast retooling cycles.
- 100% connector pass-through guarantee.
- Plug-and-produce field commissioning.
2. High-Voltage EV & ESS Deployment
Electrification across energy storage systems (BESS) and megawatt charging stations requires cable entries capable of handling high thermal loads, mechanical vibration, and continuous outdoor moisture without chemical degradation or dielectric breakdown.
- Silicone elastomers rated for -50°C to +150°C.
- UL 94 V-0 flame-retardant certification.
3. Harsh Marine & Offshore Resiliency
Coastal and offshore wind turbine installations demand C5-M atmospheric corrosion resistance. Modern split entries deploy halogen-free, UV-stabilized polyamide-66 and marine-grade 316L stainless steel hardware to prevent stress-corrosion cracking.
- Salt spray endurance exceeding 1,000 hours.
- ISO 4892-2 accelerated UV degradation testing.
4. Total Cost of Ownership Optimization
Global procurement teams have moved past unit-purchase-price models to evaluate holistic Total Cost of Ownership (TCO). Split cable glands lower cabinet footprint, reduce panel cutouts by 60%, and eliminate specialized electrical labor during field assembly.
- 40% reduction in cabinet enclosure drill space.
- Zero wiring rework liability on client sites.
Technical Anatomy of a High-Performance Split Cable Gland
A rigorous breakdown of body geometries, elastomeric memory mechanics, thread engagement dynamics, and sealing performance under thermal and hydrostatic shock.
1. Split Polyamide Frame / Body
Fabricated from high-grade Polyamide 6.6 with 30% structural glass fiber reinforcement (PA66-GF30). This formulation achieves an optimal balance between tensile yield strength (175 MPa) and flexural modulus, preventing micro-deformation when the split halves are torqued down against enclosure walls.
- Flame rating: UL 94 V-0 self-extinguishing.
- Halogen-free, phosphorus-free, RoHS 3 compliant.
- Continuous temperature rating: -40°C to +125°C.
2. Precision Slit Elastomeric Inserts
The sealing insert is molded from specialized cross-linked Thermoplastic Elastomer (TPE) or NBR with an engineered shore durometer of 50±5 Shore A. Features an undulating lateral slit that accommodates cable insertion without permanent plastic deformation, maintaining continuous radial elasticity over 20+ years of operational service life.
- High resistance to industrial oils, coolants, and greases.
- Dual-ridge internal sealing contour for cable retention.
- Accommodates outer diameters from 1.0 mm to 35.0 mm.
3. Split Locknut & Anti-Vibration Thread
Equipped with separable locknuts engineered with interlocking dovetail or bayonet teeth. These mechanical interfaces withstand high tightening torques without jumping threads. Patented integrated locking ridges on the flange mating surface prevent vibrational loosening under resonant conditions defined by IEC 61373.
- Thread standards: Metric (M16 to M63) and NPT (3/8" to 2").
- Vibration shock testing: Cat 1 Class B certified.
- Reusable design allows over 50 assembly cycles.
| Evaluation Parameter | Hoonsun Split Cable Gland | Standard Compression Gland | Multi-Cable Transit (MCT Frame) |
|---|---|---|---|
| Pre-Terminated Harness Compatibility | 100% Native (No cutting) | Incompatible (Requires cutting) | Fully Compatible |
| Enclosure Cutout Footprint | Standard Metric / NPT Knockout | Standard Metric / PG Knockout | Large Custom Rectangular Cutout |
| Ingress Protection Rating | IP66 / IP68 (Up to 5 bar) | IP68 (Static immersion) | IP66 / IP67 typical |
| Strain Relief Performance | EN 62444 Class A Compliant | EN 62444 Class A Compliant | Variable / Requires separate tie-bars |
| Field Assembly Time Per Cable | Under 45 Seconds | 8-15 Minutes (If re-crimping) | 2-4 Minutes |
| Total Installed Cost (Labor + Parts) | Lowest Overall TCO | Low initial part cost, high labor | High hardware & installation cost |
Enterprise Solutions Across Critical Industrial Sectors
Field-proven deployments where moisture penetration, mechanical fatigue, or chemical attack could result in catastrophic system shutdowns.
EV Charging & Liquid Cooling Loops
High-power megawatt DC fast chargers circulate liquid coolant directly adjacent to high-voltage lines. Our split glands and fluid coupling interfaces ensure zero liquid migration into sensitive power electronics cabinets.
- Liquid-cooling connector integration.
- Flame barrier compliant with UL 2251.
Articulated Robotics & Cobots
Axis 6 robot arms subject dress packs to rapid torsion, angular bending, and oil spray. Hoonsun anti-bending metal glands and split conduits protect internal optical fiber and servo feedback cores from pinch fatigue.
- High-tensile spiral flex relief.
- Dynamic flex cycles exceeding 5M sweeps.
Wind Power Nacelles & Offshore Substations
Located in hostile C5-M marine environments, offshore wind turbines suffer from salt spray fog and severe thermal swings. Our breathable vent glands equalize internal cabinet pressure while blocking saline water ingress.
- ePTFE hydrophobic membrane.
- Eliminates internal moisture condensation.
Rolling Stock & Rail Infrastructure
Locomotive under-car wiring and wayside junction boxes encounter ballast stone impacts and vibration. Hoonsun split entries comply with strict European railway fire standard EN 45545-2 (HL3 hazard level classification).
- Low smoke toxicity (CIT value < 0.75).
- IEC 61373 railway shock certified.
Rigorous Quality Verification: From Yueqing Plant to Global Port
Headquartered in Liushi, Yueqing—China’s premier electrical apparatus manufacturing hub—Zhejiang Hongxiang Connector Co., Ltd. (HOONSUN) executes end-to-end quality control governed by ISO 9001:2015.
In-House Tooling & Mold Precision
We maintain full ownership of tooling design and CNC EDM machining. This in-house vertical control guarantees parting-line tolerances within ±0.02 mm, preventing flash that could compromise split seal compression.
- Automated multi-cavity injection molding.
- Optical profile projector thread verification.
Hydrostatic Ingress Testing (IP68)
Every batch undergoes strict hydrostatic pressure immersion testing inside calibrated pressure tanks simulating continuous underwater deployment (up to 50 meters water column / 5 bar) for 72 consecutive hours.
- Certified IEC 60529 standard compliance.
- Automated air decay leak testing stations.
Global Certification Dossiers
All product families are backed by accredited third-party test reports (TUV, UL, CE) to facilitate smooth engineering approvals during municipal, utility, and military system integration audits.
- UL 514B / CSA C22.2 No. 18.3 listings.
- Full RoHS, REACH SVHC declaration support.
Technology Roadmap: The Next Era of Smart Cable Entry
How Hoonsun is integrating sensor intelligence, bio-circular materials, and ultra-wideband EMC protection into next-generation split cable entries.
Phase 1: Embedded IoT Condition Monitoring
Integration of passive UHF RFID micro-tags and micro-strain sensors directly inside elastomeric inserts. This allows maintenance teams in smart factories to scan enclosures with handheld readers to verify internal clamping torque and seal degradation without dismantling the assembly.
Phase 2: 360° Split Shielding Architecture
Development of two-piece interlocking phosphor bronze shielding cages. These provide uninterrupted 360° circumferential shield bonding around split braided bus cables, achieving over 85 dB attenuation up to 10 GHz for high-frequency 5G industrial base stations.
Phase 3: Bio-Circular Polymers & Cryo-Seals
Replacing fossil-based polyamides with ISCC-certified bio-circular PA66 compounds, reducing embedded carbon by 45%. Expanding fluorosilicone split formulations capable of retaining elastic compliance in arctic and aerospace environments down to -65°C.
Frequently Asked Engineering & Procurement Questions
In-depth, direct answers to technical questions raised by electrical engineers, EPC specifiers, and global procurement managers.
Need Engineering CAD Files or Custom Insert Geometries?
Our application engineering team provides 3D STEP models, customized clamping inserts, and private-label OEM tooling packages tailored to your enclosure dimensions.
