China IP68 and REACH Certified breathable Cable Gland Type Manufacturers, Supplier
Product Description
Product Overview
Product Highlights

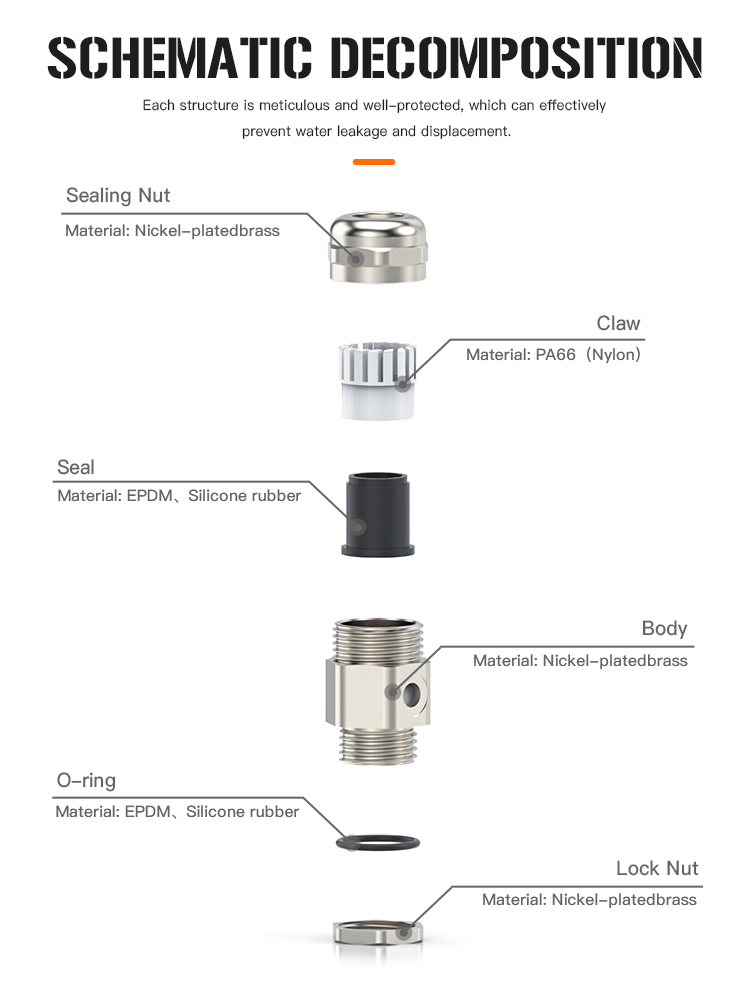

- Crafted from premium nickel-plated brass or stainless steel for superior mechanical strength and corrosion resistance.
- Integrated microporous membrane enables smooth airflow and vapor release, effectively blocking liquids, oils, and dust.
- Maintains consistent pressure equilibrium to eliminate condensation risks in sealed enclosures.

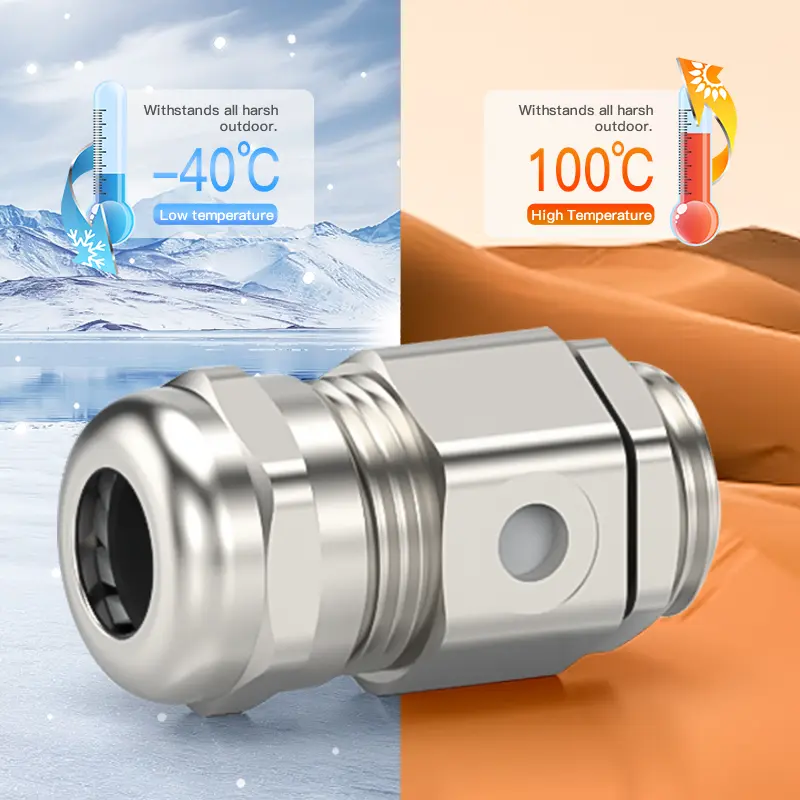

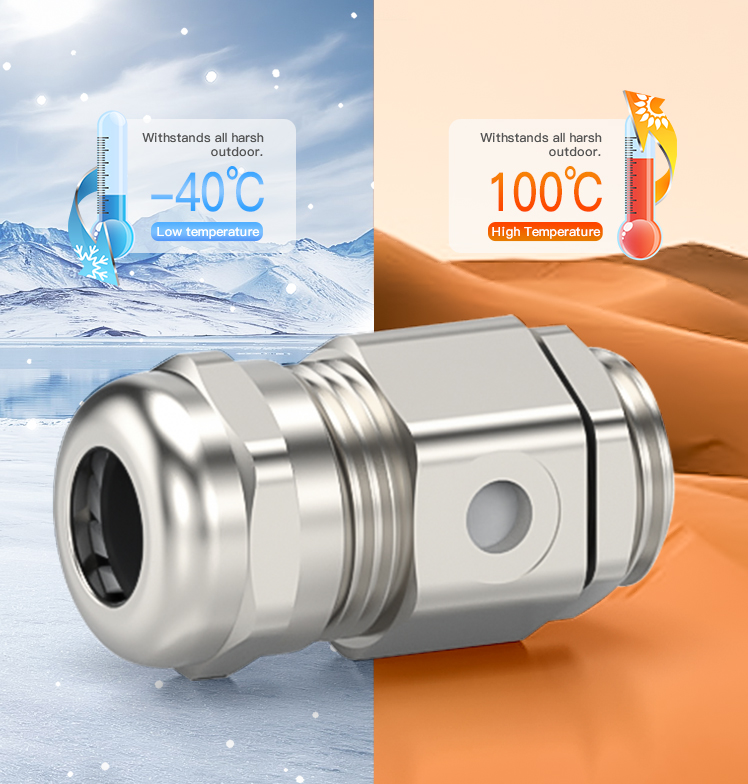

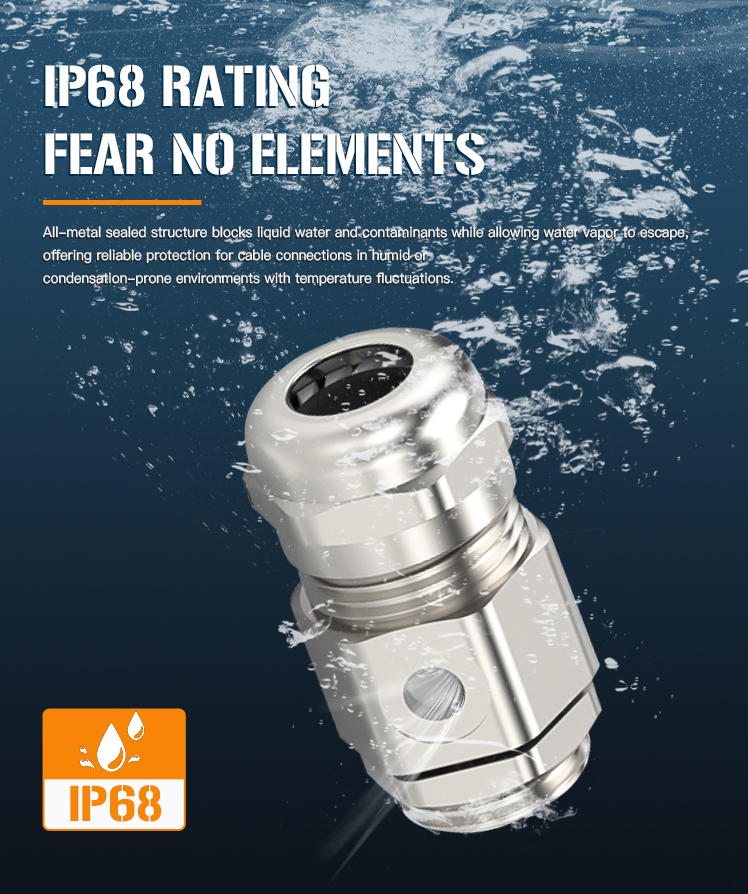

- Delivers IP67–IP68 rated waterproof and dustproof performance under varying temperatures and pressures.
- Precision clamping mechanism ensures secure cable grip and vibration-resistant strain relief.
- Compliant with CE, UL, and RoHS standards; available in Metric, PG, and NPT thread types.

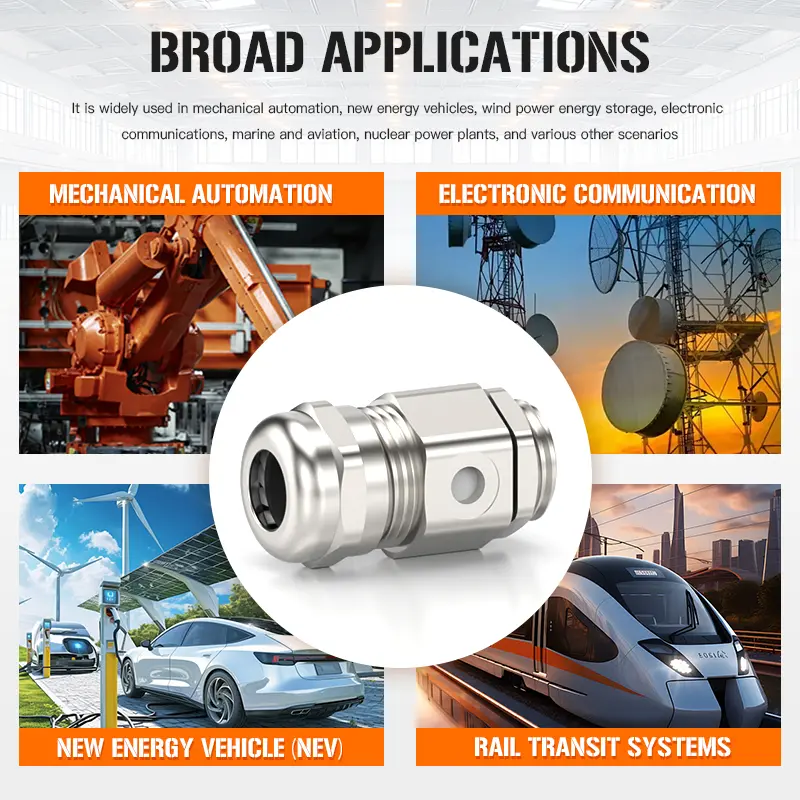

Applications
- Ideal for LED lighting fixtures, outdoor control cabinets, and communication equipment.
- Suited for renewable energy systems, sensor housings, and industrial automation enclosures.
- Enhances protection and service life of electronic systems in challenging environmental conditions.
Key Benefits
Built-in breathable waterproof membrane
IP67–IP68 waterproof and dustproof rating
Balances internal and external air pressure
Prevents condensation and moisture damage
Nickel-plated brass or stainless-steel body
CE / UL / RoHS certified

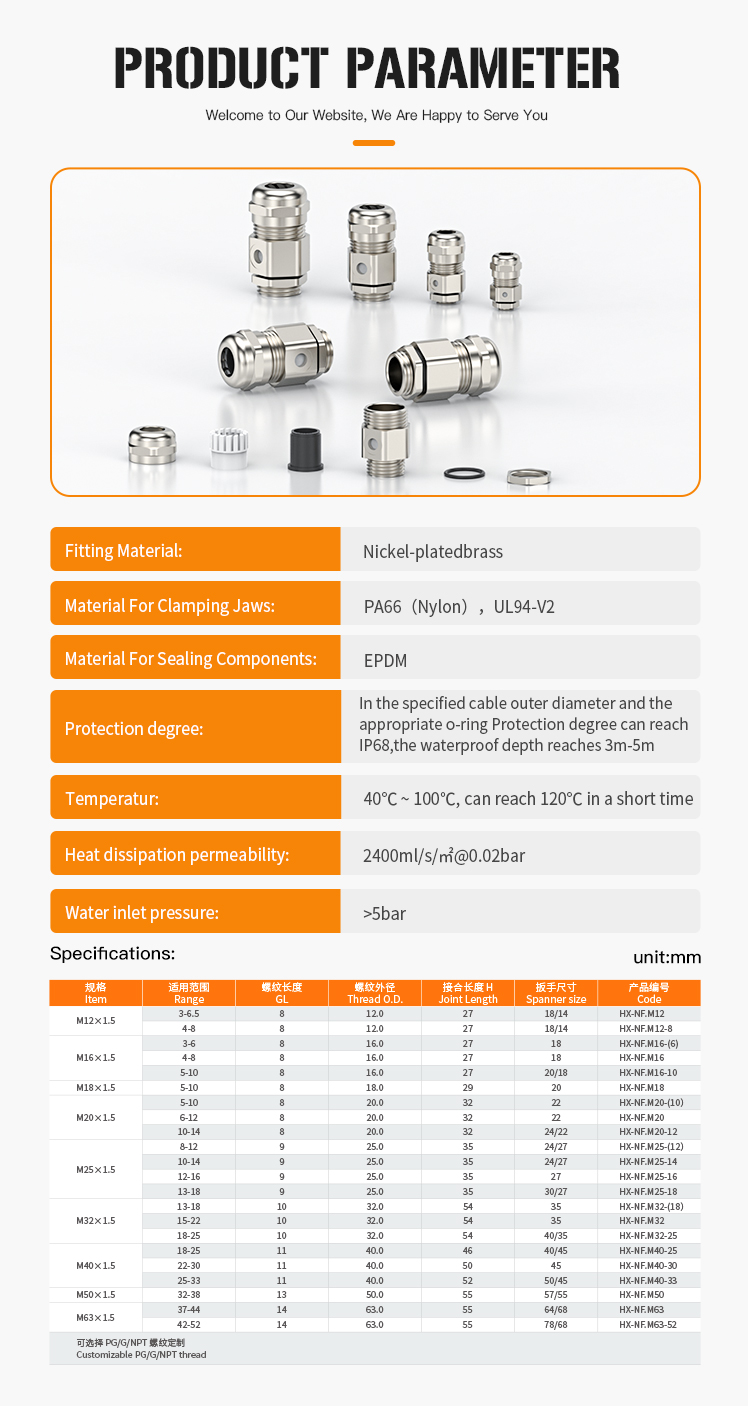

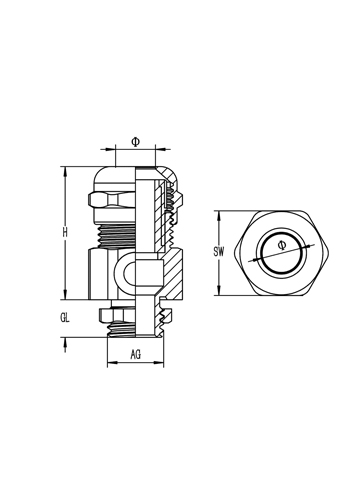

Product Parameters & Specifications
Unit: mm
| Item | Range | GL | Thread O.D. | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12 |
| 4-8 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12-8 | |
| M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NF.M16-(6) |
| 4-8 | 8 | 16.0 | 27 | 18 | HX-NF.M16 | |
| 5-10 | 8 | 16.0 | 27 | 20/18 | HX-NF.M16-10 | |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NF.M18 |
| M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NF.M20-(10) |
| 6-12 | 8 | 20.0 | 32 | 22 | HX-NF.M20 | |
| 10-14 | 8 | 20.0 | 32 | 24/22 | HX-NF.M20-12 | |
| M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-(12) |
| 10-14 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-14 | |
| 12-16 | 9 | 25.0 | 35 | 27 | HX-NF.M25-16 | |
| 13-18 | 9 | 25.0 | 35 | 30/27 | HX-NF.M25-18 | |
| M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NF.M32-(18) |
| 15-22 | 10 | 32.0 | 54 | 35 | HX-NF.M32 | |
| 18-25 | 10 | 32.0 | 54 | 40/35 | HX-NF.M32-25 | |
| M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NF.M40-25 |
| 22-30 | 11 | 40.0 | 50 | 45 | HX-NF.M40-30 | |
| 25-33 | 11 | 40.0 | 52 | 50/45 | HX-NF.M40-33 | |
| M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NF.M50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NF.M63 |
| 42-52 | 14 | 63.0 | 55 | 78/68 | HX-NF.M63-52 | |
| Customizable PG / G / NPT thread available upon request | ||||||
Detailed Images
Frequently Asked Questions (FAQ)
What is an air-permeable (breathable) cable gland?
An air-permeable cable gland incorporates an integrated breathable ePTFE membrane. It provides standard waterproof and dustproof sealing (IP67/IP68) while allowing air molecules to pass freely. This equalizes pressure between the interior and exterior of sealed enclosures, preventing condensation build-up and vacuum formation.
How does this cable gland prevent condensation?
Temperature fluctuations often create pressure differentials that draw in humid air or seal in damp air, leading to condensation. The continuous breathability of our membrane balances differential pressure quickly, expelling internal moisture vapor before it can condense on sensitive electronics.
What materials are available for harsh industrial environments?
The glands are primarily machined from high-grade nickel-plated brass or robust stainless steel. Both options provide exceptional mechanical strength, UV stability, and resistance against corrosion, saline environments, and chemical washdowns.
Can I order custom thread standards?
Yes. While standard Metric threads (M12 to M63) are readily available in inventory, we fully support custom manufacturing for PG, NPT, and G (Gas) thread standards based on your specific enclosure entry requirements.
What certifications do these cable glands carry?
Our breathable cable glands meet international quality and safety benchmarks, adhering strictly to CE, UL, and RoHS compliance standards for reliable operation across industrial, renewable energy, and outdoor lighting applications.
