Product Description
Product Highlights
Dual-certified to IP68 and UL standards for airtight and waterproof integrity
Robust clamping mechanism ensures cable stability against mechanical stress
Resists dust, moisture, chemicals, and corrosive elements
Tool-free assembly simplifies the installation process

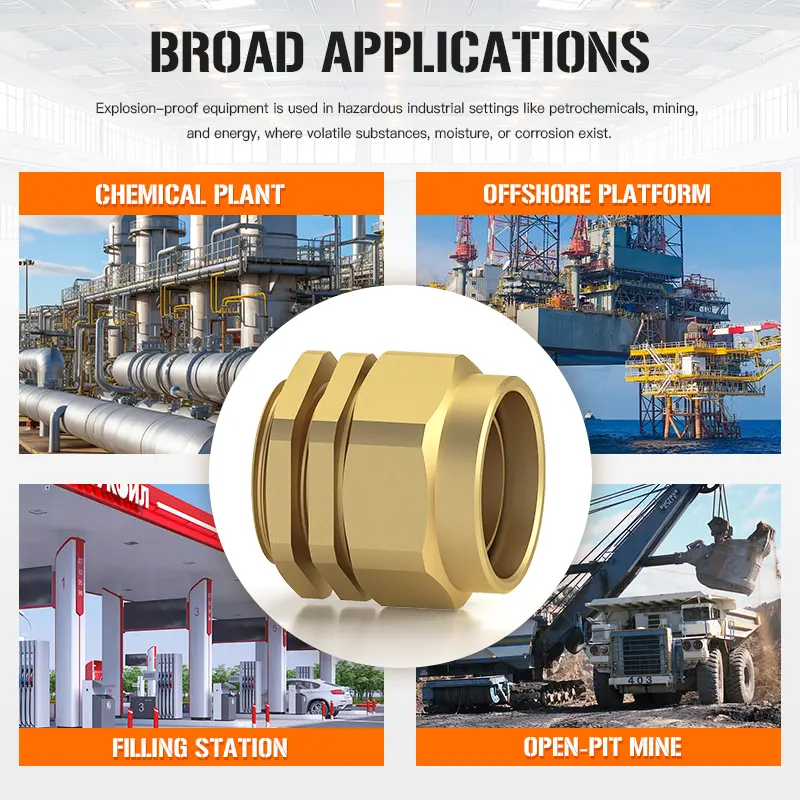

Applications
Hazardous industrial zones requiring explosion safety, such as oil platforms, mining sites, and chemical processing plants
Outdoor and underground electrical installations, including traffic control systems, marine docks, and solar power setups
Industrial machinery and automation equipment where vibration resistance and cable stability are critical
Infrastructure in harsh climates or wet locations, such as water treatment facilities and outdoor lighting systems
Key Benefits
Enhanced Explosion Protection
The gland’s robust sealing effectively isolates internal sparks and blocks flammable gases, significantly reducing ignition risks in volatile settings.
Long-Term Reliability & Cost Savings
Its design is capable of resisting the erosion of moisture, dust and chemical substances, thereby effectively reducing wear and tear, lowering maintenance frequency, and extending service life in harsh environments.
Quick, Error-Resistant Installation
It adopts a tool-free and user-friendly design, which can accelerate the deployment speed and also prevent loose connections or sealing failures caused by improper assembly.

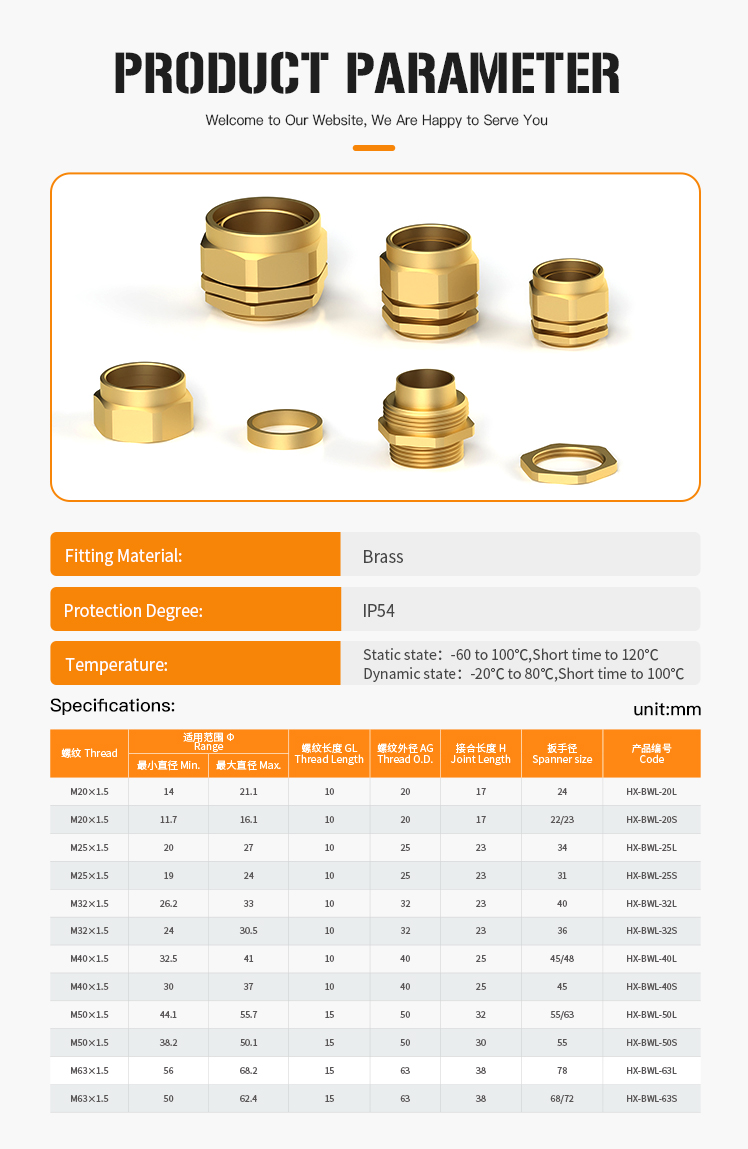

Product Parameters
Unit: mm
| Thread | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner Size | Code | |
|---|---|---|---|---|---|---|---|
| Diameter Min. | Diameter Max. | ||||||
| M20×1.5 | 14 | 21.1 | 10 | 20 | 17 | 24 | HX-BWL-20L |
| M20×1.5 | 11.7 | 16.1 | 10 | 20 | 17 | 22/23 | HX-BWL-20S |
| M25×1.5 | 20 | 27 | 10 | 25 | 23 | 34 | HX-BWL-25L |
| M25×1.5 | 19 | 24 | 10 | 25 | 23 | 31 | HX-BWL-25S |
| M32×1.5 | 26.2 | 33 | 10 | 32 | 23 | 40 | HX-BWL-32L |
| M32×1.5 | 24 | 30.5 | 10 | 32 | 23 | 36 | HX-BWL-32S |
| M40×1.5 | 32.5 | 41 | 10 | 40 | 25 | 45/48 | HX-BWL-40L |
| M40×1.5 | 30 | 37 | 10 | 40 | 25 | 45 | HX-BWL-40S |
| M50×1.5 | 44.1 | 55.7 | 15 | 50 | 32 | 55/63 | HX-BWL-50L |
| M50×1.5 | 38.2 | 50.1 | 15 | 50 | 30 | 55 | HX-BWL-50S |
| M63×1.5 | 56 | 68.2 | 15 | 63 | 38 | 78 | HX-BWL-63L |
| M63×1.5 | 50 | 62.4 | 15 | 63 | 38 | 68/72 | HX-BWL-63S |

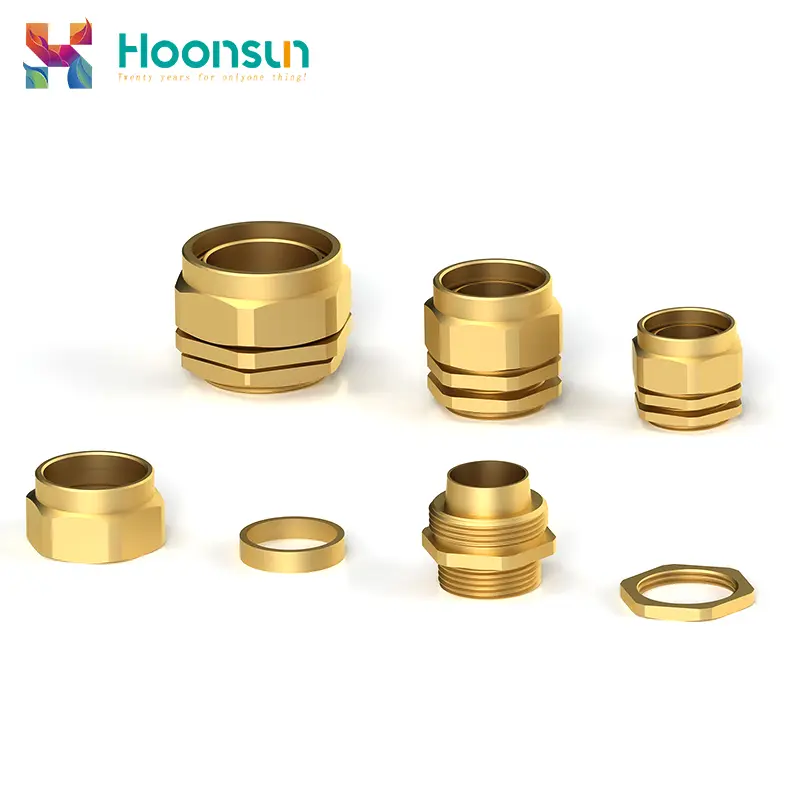

Detailed Images
Frequently Asked Questions
QWhat certifications do these cable glands hold?
These cable glands are dual-certified to meet IP68 ingress protection standards and UL safety standards, ensuring total dust-tightness and water immersion protection under specified conditions.
QCan these cable glands be used in hazardous environments?
Yes, they are engineered for hazardous locations requiring robust explosion protection, including petrochemical sites, marine platforms, and chemical processing facilities.
QAre special tools required for assembling these glands?
No, they feature a tool-free assembly mechanism that accelerates field deployment and significantly reduces the probability of installation errors.
QWhat thread sizes and cable diameters are supported?
The series covers metric thread sizes from M20×1.5 up to M63×1.5, accommodating clamping cable diameters ranging from 11.7 mm up to 68.2 mm depending on the model.
QHow does the product resist environmental corrosion and vibration?
The gland employs an integrated high-grade clamping and sealing system that withstands continuous vibration, mechanical strain, and corrosive substances like moisture and common industrial chemicals.
