IP68 and UL Right Angle 90° Cable Gland for corrosion-resistant, space-saving cable management in demanding environments.

Certified for Global Markets：

Send Inquiry

Product Description

Product Highlights

Our precision-engineered 90° design optimizes enclosure layout, enabling smooth cable direction changes and a cleaner installation profile where space is at a premium.

Manufactured from robust nickel-plated brass or 316 stainless steel, the gland excels in harsh conditions, providing outstanding corrosion and impact resistance for maximum longevity.

A superior multi-component sealing system, featuring a high-grade sealing ring and compression seal, guarantees a consistent IP68 rating, effectively blocking moisture, dust, and oils.

The integrated strain relief and vibration-dampening design lock cables securely in place, preventing pull-out and protecting connection integrity in dynamic settings.

Offering broad compatibility, the gland is supplied in PG, NPT, and Metric thread standards and is backed by recognized international certifications including UL, CE, and RoHS for guaranteed quality and safety.

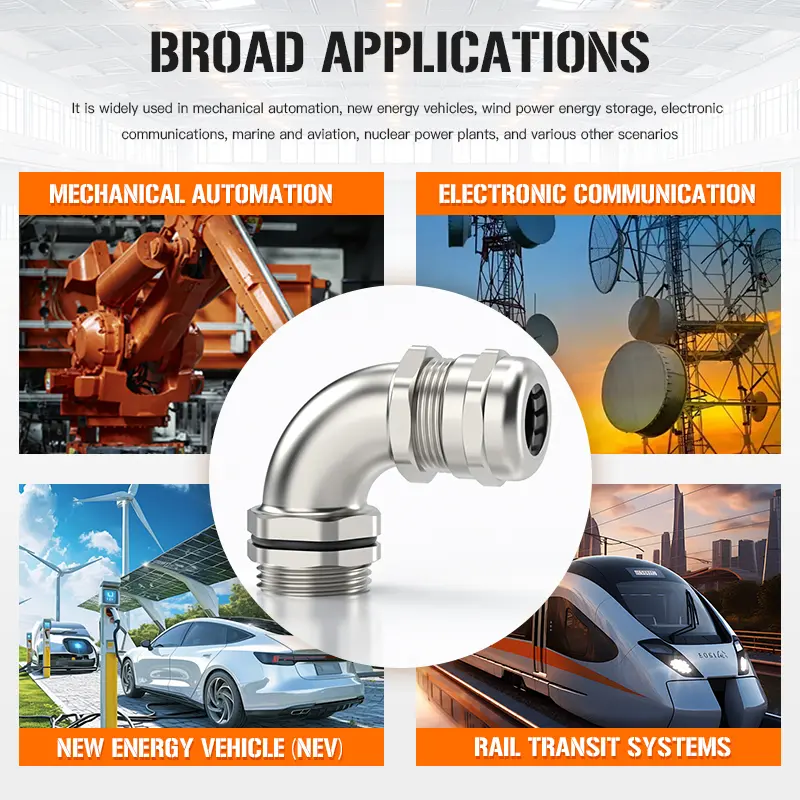

Applications
Ideal for control panels and industrial automation systems.
Suitable for marine installations and heavy-duty machinery.
Perfect for robotics and applications requiring precise cable management.
Key Benefits
Maximizes space efficiency and improves system aesthetics.
Prevents mechanical strain, extending cable service life.
Maintains secure electrical connections under challenging conditions.
Offers robust protection against moisture, oil, and dust.
Ensures reliable performance with strong impact resistance.
Product Parameters

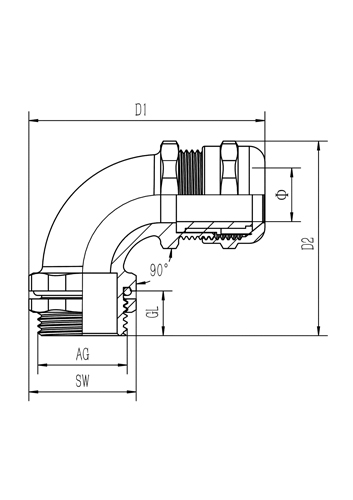

IP68 and UL Right Angle 90° Cable Gland Technical Diagram
unit: mm
Item Range GL Thread Length Spanner Size D1 D2 Code
M12×1.5 4-8 10 20/22/14 53 45 HX-NW.M12-8
M16×1.5 4-8 10 20/22/18 53 44.5 HX-NW.M16
M20×1.5 6-12 10 22/25/22 55 47 HX-NW.M20
M25×1.5 13-18 10 30/30/27 66 54 HX-NW.M25
M32×1.5 15-22 12 34/34/35 69 60 HX-NW.M32
M40×1.5 22-32 16 50/55/43 106 93 HX-NW.M40
M50×1.5 25-32 16 50/55/55 106 92 HX-NW.M50
M63×1.5 37-44 18 64/73/68 128 116 HX-NW.M63
PG7 4-8 10 20/22/14 52 44 HX-NW.PG7-8
PG9 4-8 10 20/22/18 53 45.5 HX-NW.PG9
PG11 5-10 10 20/22/20 53 46.5 HX-NW.PG11
PG13.5 6-12 10 22/24/22 55 47 HX-NW.PG13.5
PG21 13-18 12 30/35/31 68 60 HX-NW.PG21
PG29 18-25 15 40/43/40 85.5 75 HX-NW.PG29
PG36 25-32 16 50/55/50 105 92 HX-NW.PG36
PG42 25-32 16 50/55/55 106 92 HX-NW.PG42
PG48 37-44 18 64/73/68 128 116 HX-NW.PG48
G/NPT threads are avllable
Detailed Images
1.IP68 and UL Right Angle 90° Cable Gland
2.IP68 and UL Right Angle 90° Cable Gland
3.IP68 and UL Right Angle 90° Cable Gland

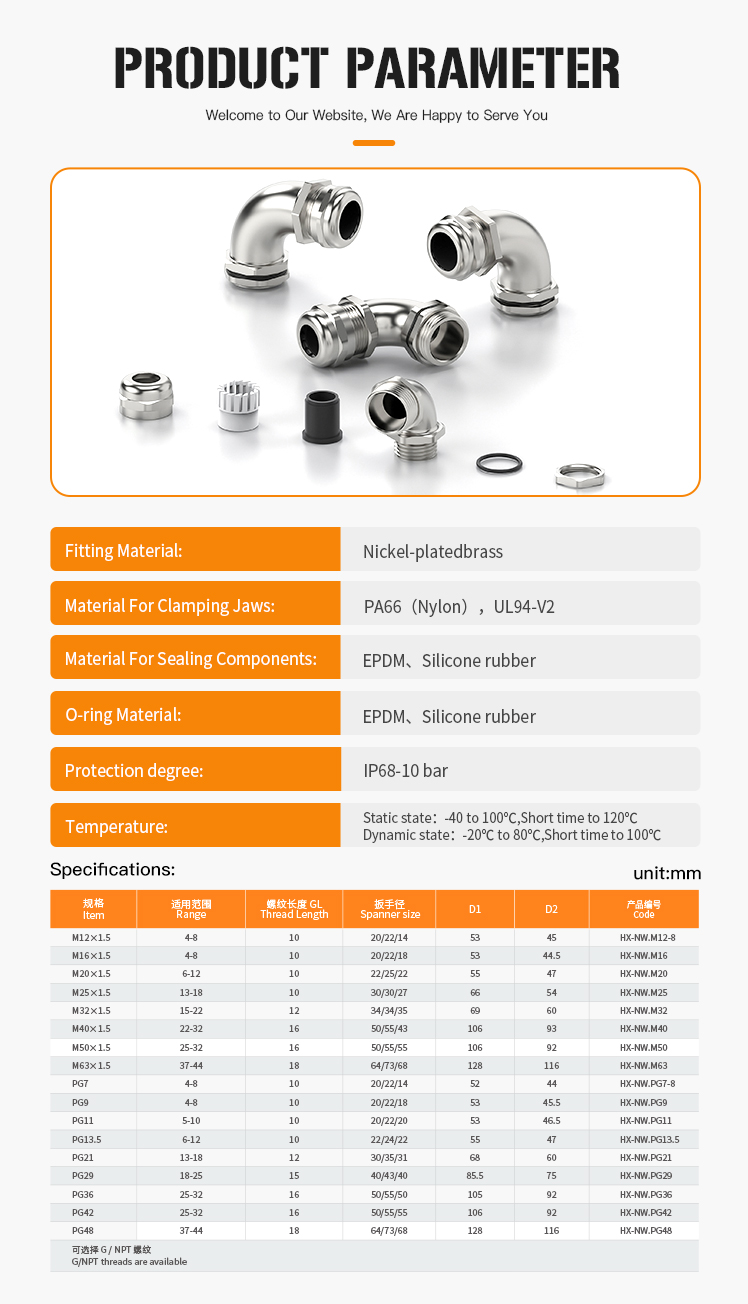

4.IP68 and UL Right Angle 90° Cable Gland

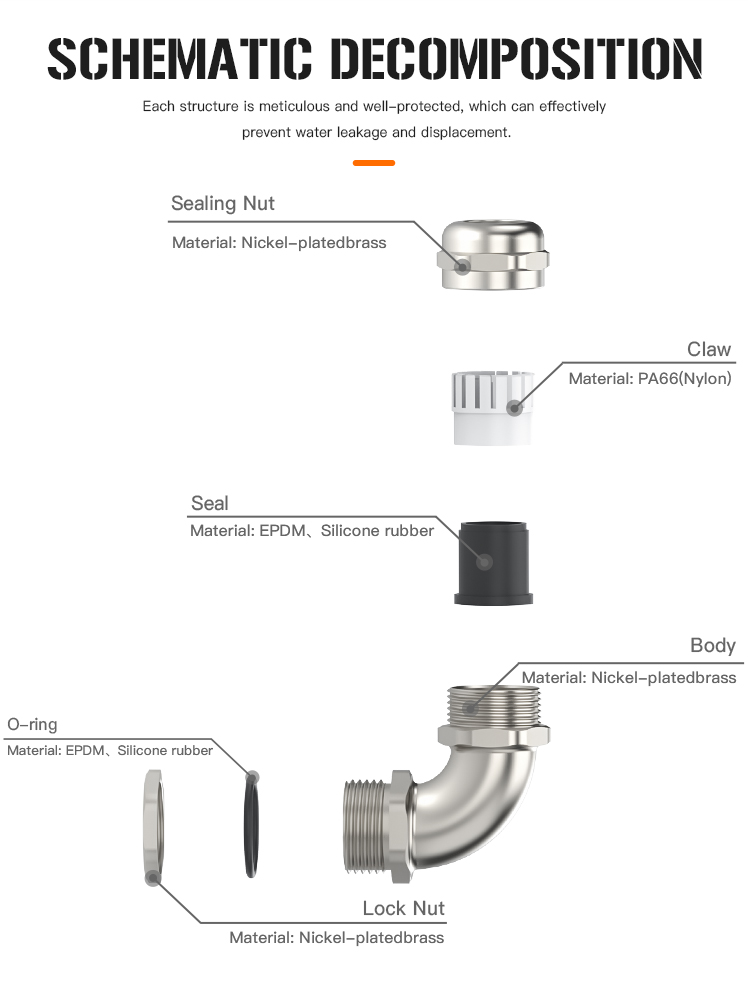

5.IP68 and UL Right Angle 90° Cable Gland

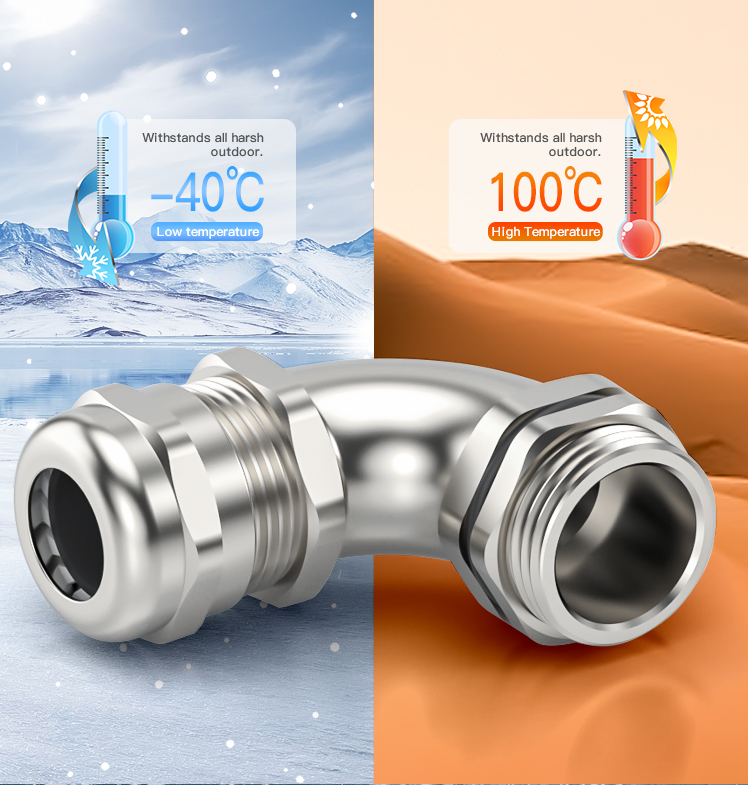

6.IP68 and UL Right Angle 90° Cable Gland
7.IP68 and UL Right Angle 90° Cable Gland
8.IP68 and UL Right Angle 90° Cable Gland
9.IP68 and UL Right Angle 90° Cable Gland
10.IP68 and UL Right Angle 90° Cable Gland
11.IP68 and UL Right Angle 90° Cable Gland
Frequently Asked Questions (FAQ)
What makes the 90° right-angle cable gland design advantageous?
The 90° elbow design maximizes enclosure space efficiency and permits smooth cable transitions in tight or space-restricted layouts, eliminating severe cable bending and ensuring clean routing.
What ingress protection (IP) rating does this cable gland provide?
It features a multi-component sealing system with high-grade sealing rings and compression seals, offering an IP68 ingress protection rating to effectively resist water, moisture, oil, and dust ingress.
What materials are available for harsh industrial or marine conditions?
The glands are manufactured from durable nickel-plated brass or 316 stainless steel, offering outstanding impact resistance and corrosion resistance against outdoor, industrial, and marine conditions.
Which thread standards and cable clamping ranges are offered?
A wide array of thread standards is supported, including Metric (M12 to M63), PG (PG7 to PG48), as well as G and NPT thread configurations, accommodating cable diameters ranging from 4mm up to 44mm.
How does the gland protect connections against vibration and mechanical stress?
An integrated strain relief and vibration-dampening clamp mechanism firmly secures cables, preventing dynamic pull-out forces and preserving continuous connection integrity even in vibrating machinery or automated equipment.
What industry quality and safety certifications do these cable glands carry?
These right-angle cable glands comply with recognized international standards and are certified with UL, CE, and RoHS accreditations for globally compliant industrial and commercial installations.
