China MDC09S-15MG052N-MDC09P-1SMG052N Manufacturer, Suppliers

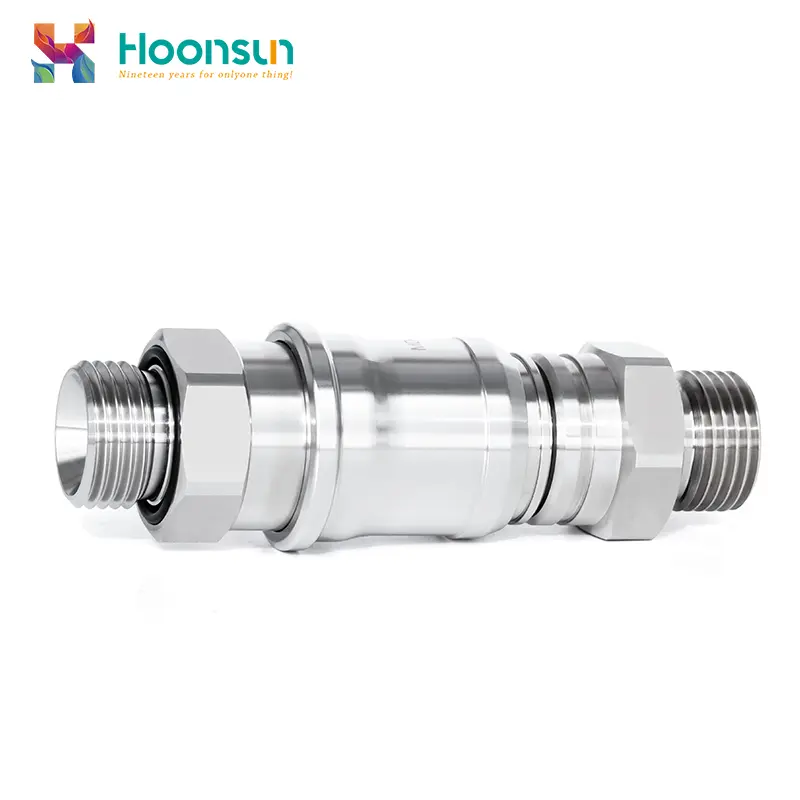

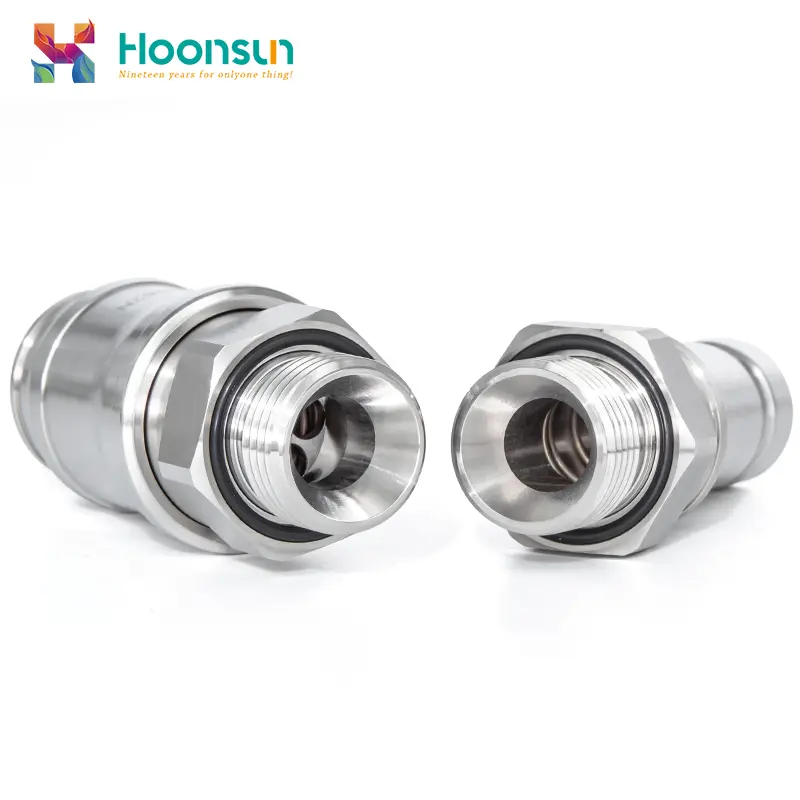

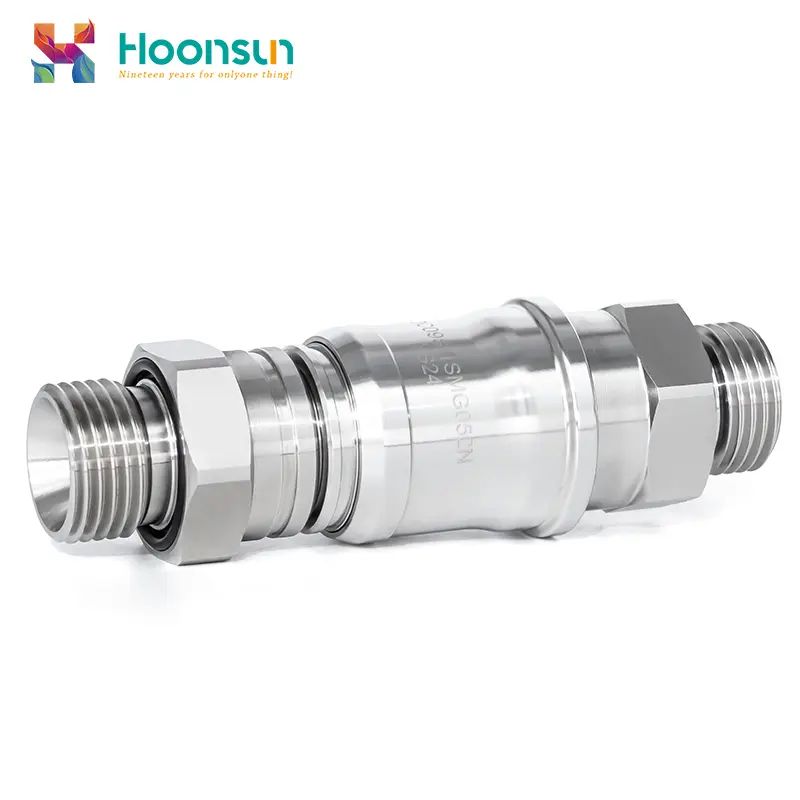

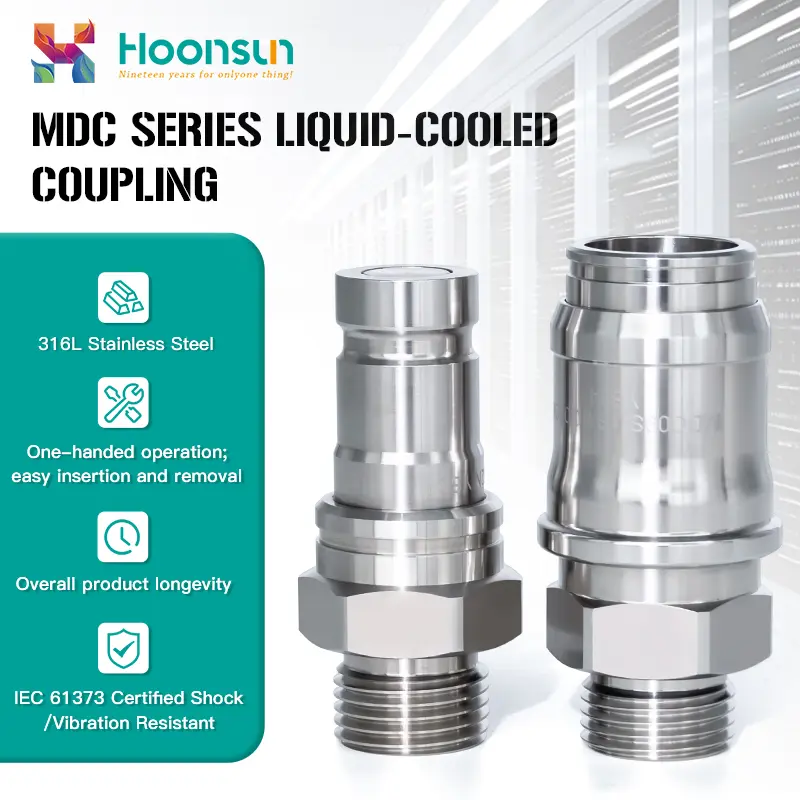

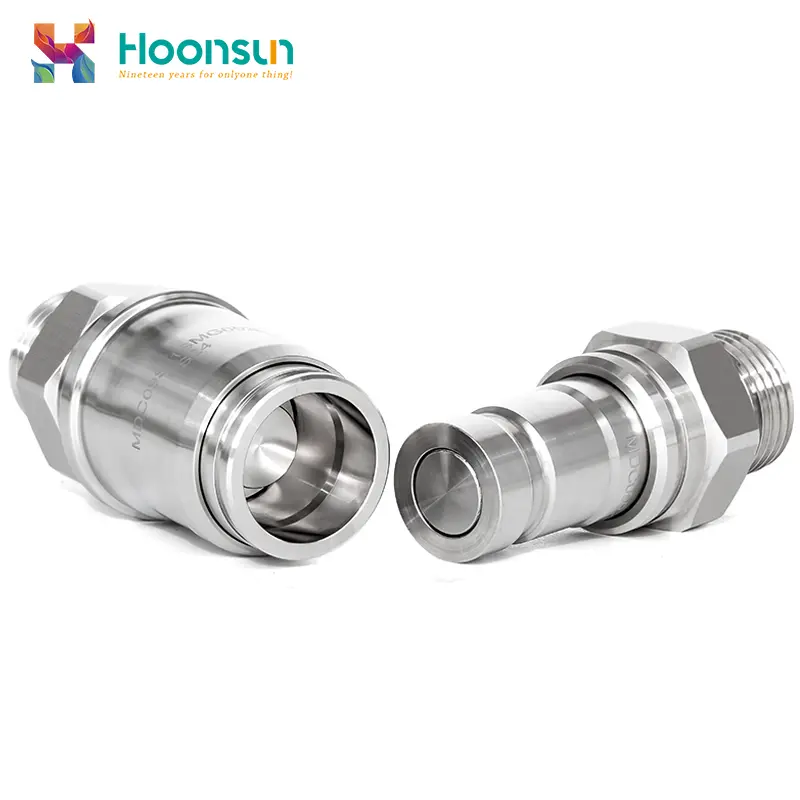

MDC series quick disconnect couplings are premium all-316L stainless steel liquid cooling connectors, developed and manufactured by Hongxiang. Adopting integrated stainless steel structure and high-performance EPDM sealing (HNBR/FKM optional), the couplings feature zero leakage, high pressure resistance, wide temperature adaptability and excellent anti-corrosion performance.

Available in complete sizes from DN04 to DN25, they support working pressure up to 20bar and burst pressure up to 80bar, with operating temperature ranging from -40°C to 120°C. Tool-free plug-and-play design enables fast connection and disconnection. Multiple connection types including male/female thread, hose barb and tube fitting are available for seamless integration into various liquid cooling systems.

Certified for Global Markets：

Send Inquiry

Product Description

Key Features

Full 316L stainless steel body, outstanding salt spray and chemical corrosion resistance

Zero-leakage sealing system with EPDM/HNBR/FKM material options

Complete size range: DN04 ~ DN25 for low to high flow demand

High pressure & wide temperature endurance: 20bar rated pressure, -40°C~120°C

Various port options: G thread, hose barb and quick-fit connection

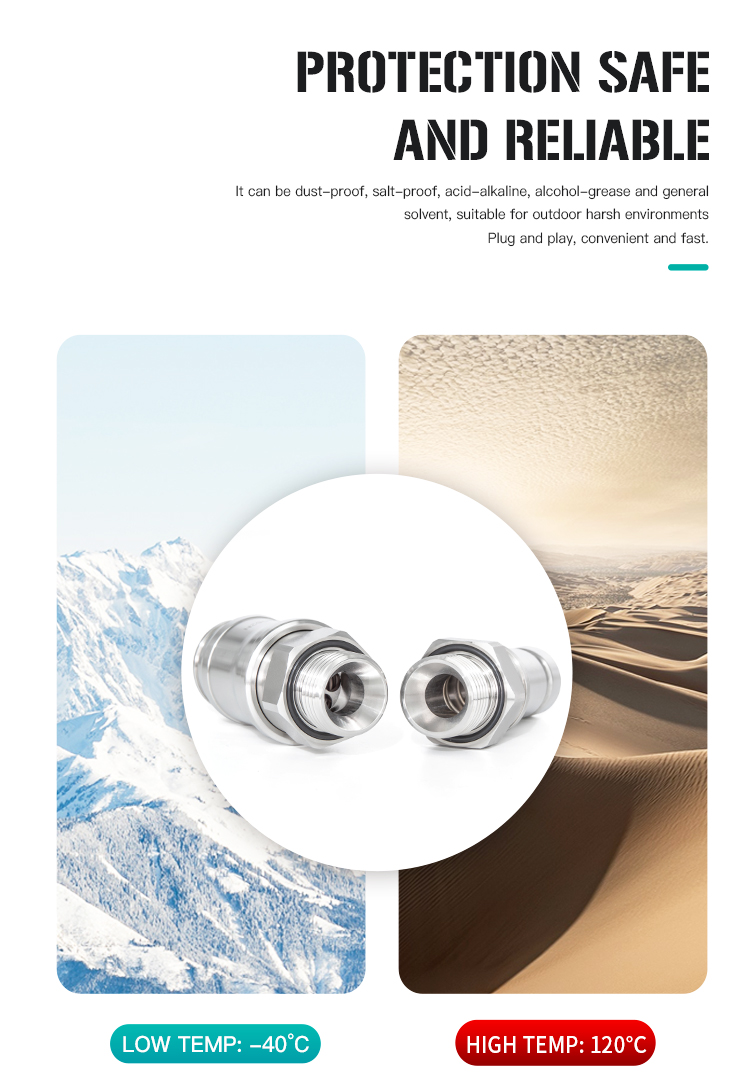

Dust-proof, splash-proof and suitable for harsh outdoor industrial environments

Tool-free mounting and disassembly, easy for daily maintenance

Optimized internal flow channel, low pressure drop and high flow efficiency

Application Fields

Data center & HPC server liquid cooling system

Medical equipment, laser device and precision instrument cooling

Energy storage system, new energy vehicle thermal management

Industrial automation, high-power laser cooling equipment

PV inverter, wind power and outdoor power electronic equipment

Laboratory test bench and fluid circulation system

Marine, coastal and high-corrosion industrial scenarios

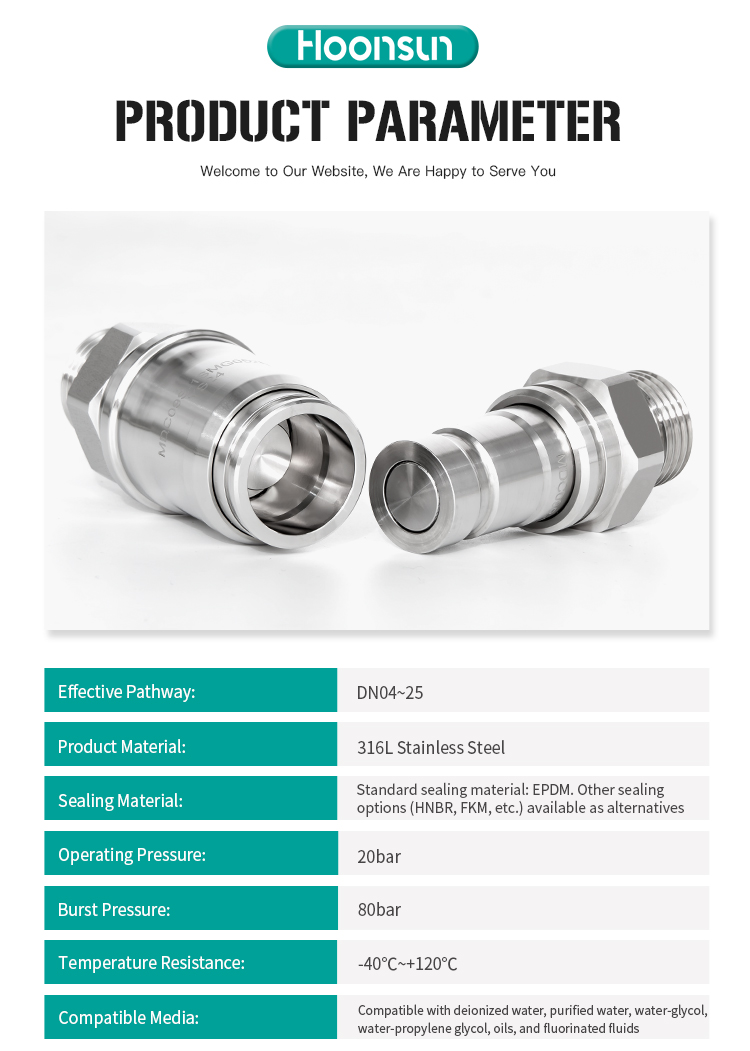

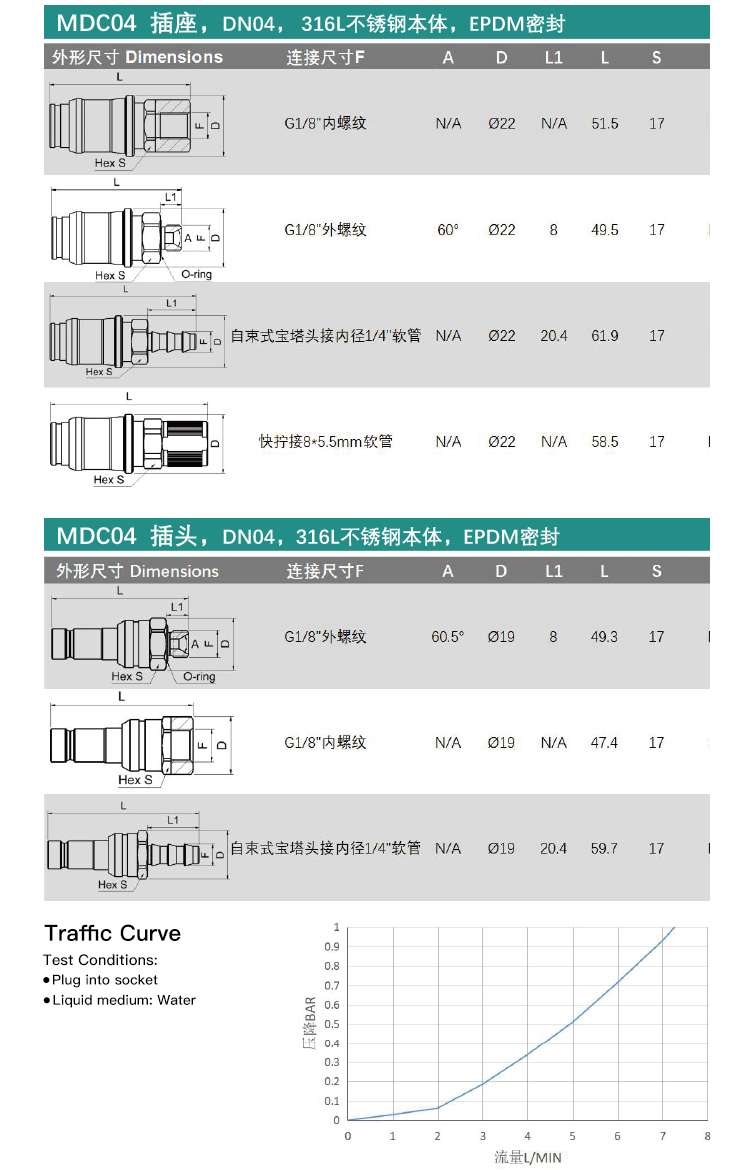

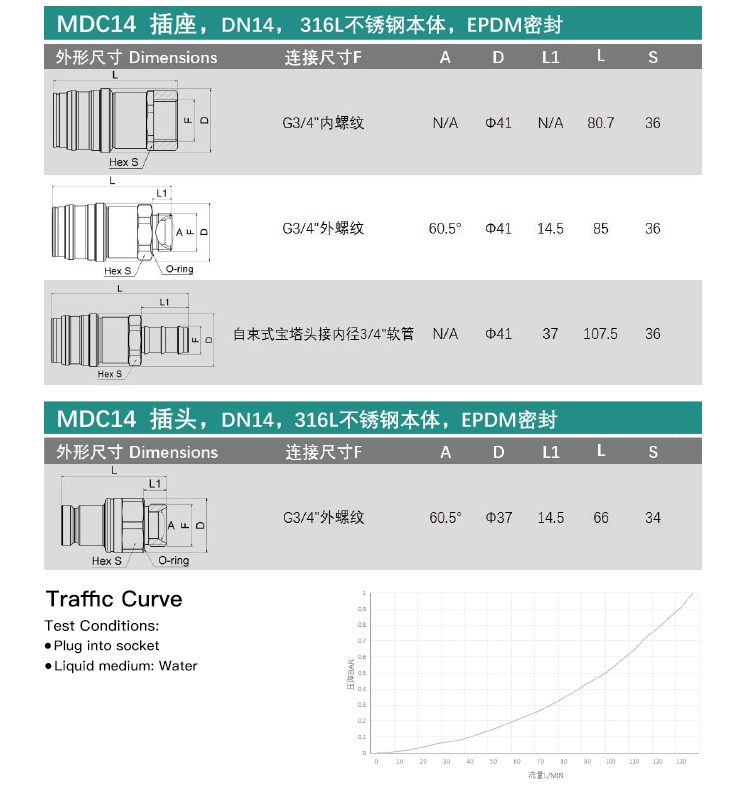

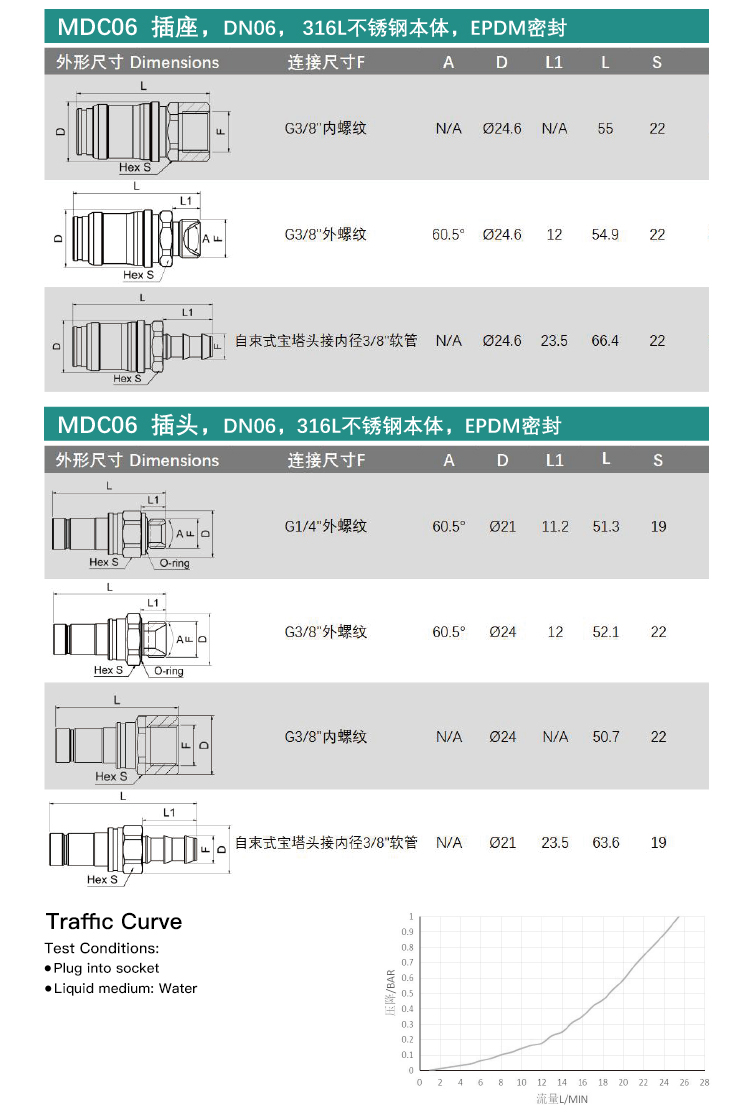

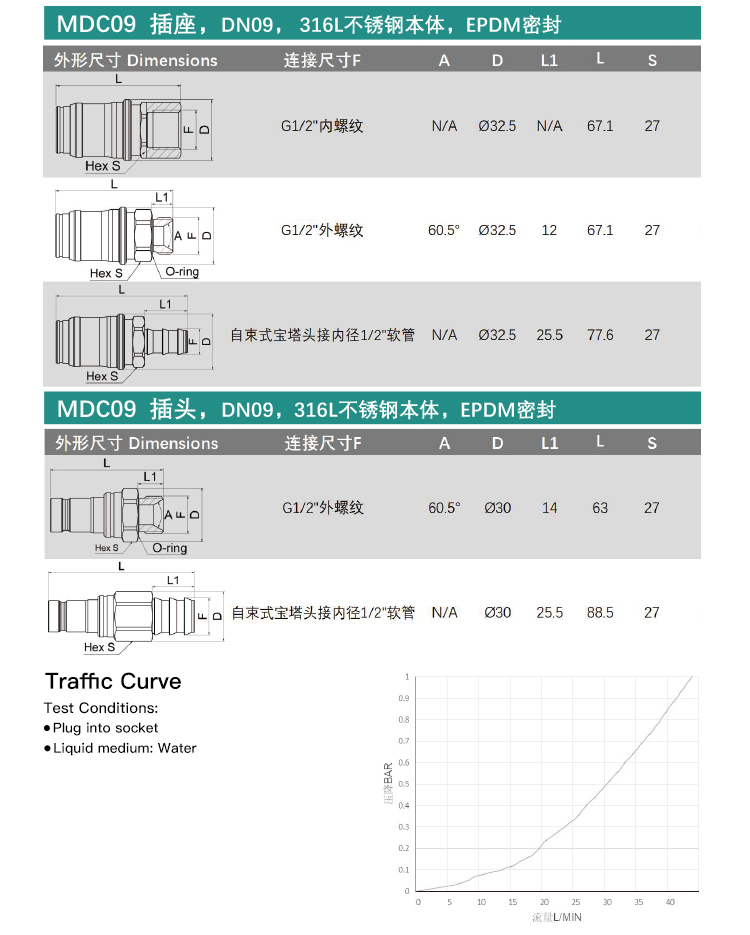

Product Specifications

Model	DN Size	Body Material	Seal Material	Port Type	Working Pressure	Temperature Range
MDC04	DN04	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G1/8" Thread / 1/4" Hose Barb	20bar	-40°C~120°C
MDC06	DN06	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G3/8" Thread / 3/8" Hose Barb	20bar	-40°C~120°C
MDC09	DN09	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G1/2" Thread / 1/2" Hose Barb	20bar	-40°C~120°C
MDC14	DN14	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G3/4" Thread / 3/4" Hose Barb	20bar	-40°C~120°C

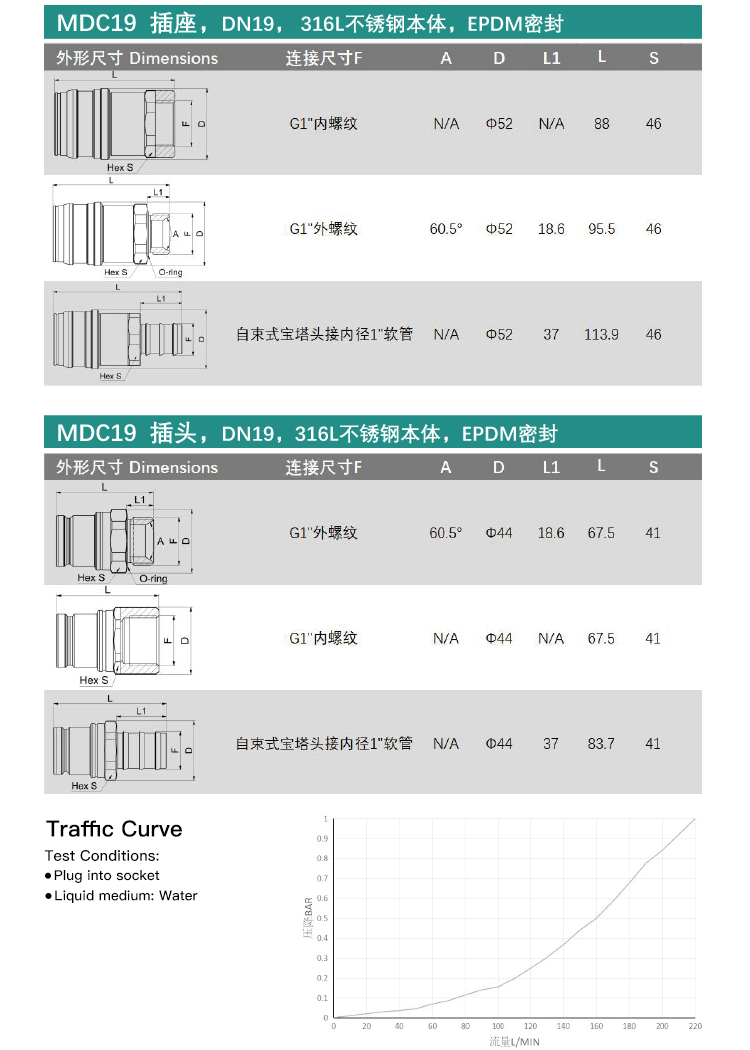

MDC19	DN19	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G1" Thread / 1" Hose Barb	20bar	-40°C~120°C

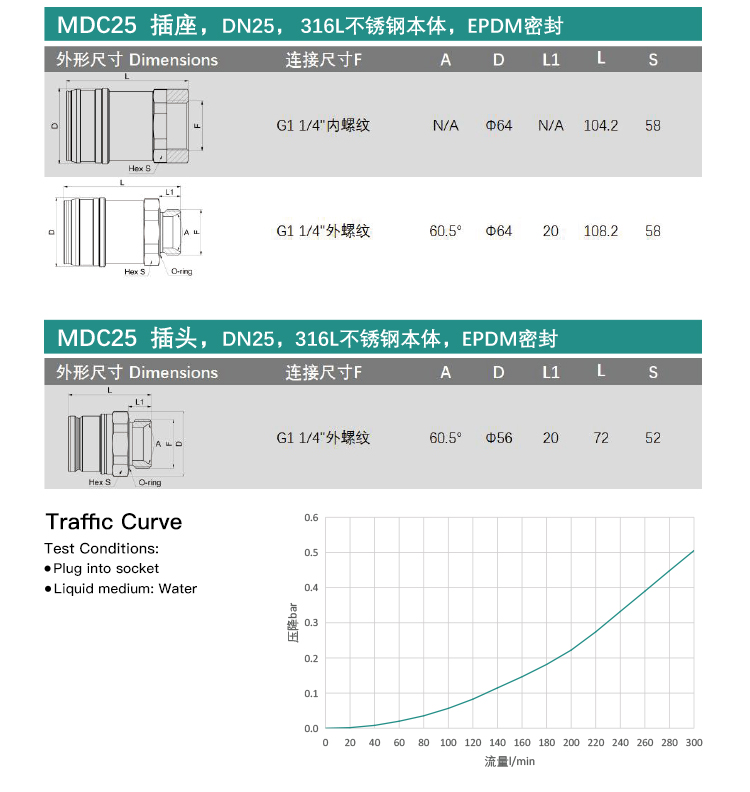

MDC25	DN25	316L Stainless Steel	EPDM (HNBR/FKM Optional)	G1 1/4" Thread	20bar	-40°C~120°C

Compatible Media:

Deionized water, purified water, ethylene glycol solution, propylene glycol solution, hydraulic oil, lubricating oil and fluorinated liquid.

Installation Instruction

1. Preparation

Keep the plug and socket clean and intact; make sure the entire fluid system is fully depressurized before operation.

2. Connection

Align the plug with the socket along the axial direction, push straightly until an obvious click sound is heard, which confirms complete locking.

3. Leakage Inspection

After connection, conduct pressure holding test to check no liquid leakage before formal operation.

4. Disassembly

Depressurize the system firstly, then pull out the plug directly by hand; no tools are required.

⚠️

Notice: Never disconnect the coupling under pressurized status. Protect the sealing surface from scratch to avoid leakage.

Detailed Image















About Us

Founded in 2006, Hongxiang Connectors is a professional manufacturer of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, with a focus on innovation, quality, and customer service. Our MBT series liquid-cooled couplings, as shown in the product images, are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies for their reliable performance and user-friendly design.

FAQ

1. What is the advantage of MDC series couplings?

MDC series adopts full 316L stainless steel structure, much better corrosion resistance than aluminum or brass connectors. Complete size options and multiple port types meet diversified liquid cooling system demands.

2. Are alternative sealing materials available?

Yes. Standard EPDM for water and glycol liquid; HNBR for oil medium; FKM for high temperature and strong chemical resistance scenarios.

3. What liquids can the couplings adapt to?

It is compatible with deionized water, water-glycol mixture, industrial oil and fluorinated cooling liquid, covering most common liquid cooling media.

4. What is the rated pressure and temperature range?

Rated working pressure 20bar, burst pressure 80bar; operating temperature: -40°C ~ 120°C.

5. Can it be used in outdoor and salt spray environments?

Absolutely. 316L stainless steel provides excellent anti-rust and anti-salt spray performance, ideal for coastal, photovoltaic and wind power outdoor equipment.

6. Do I need tools for installation and removal?

No tools needed. The self-locking plug-and-play structure allows manual quick connection and disassembly.
