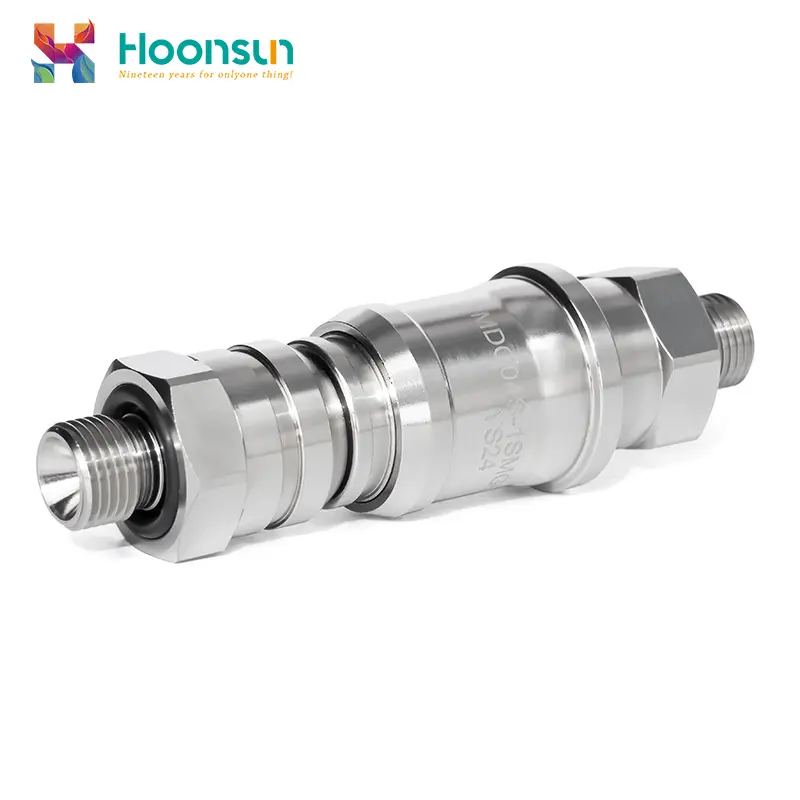

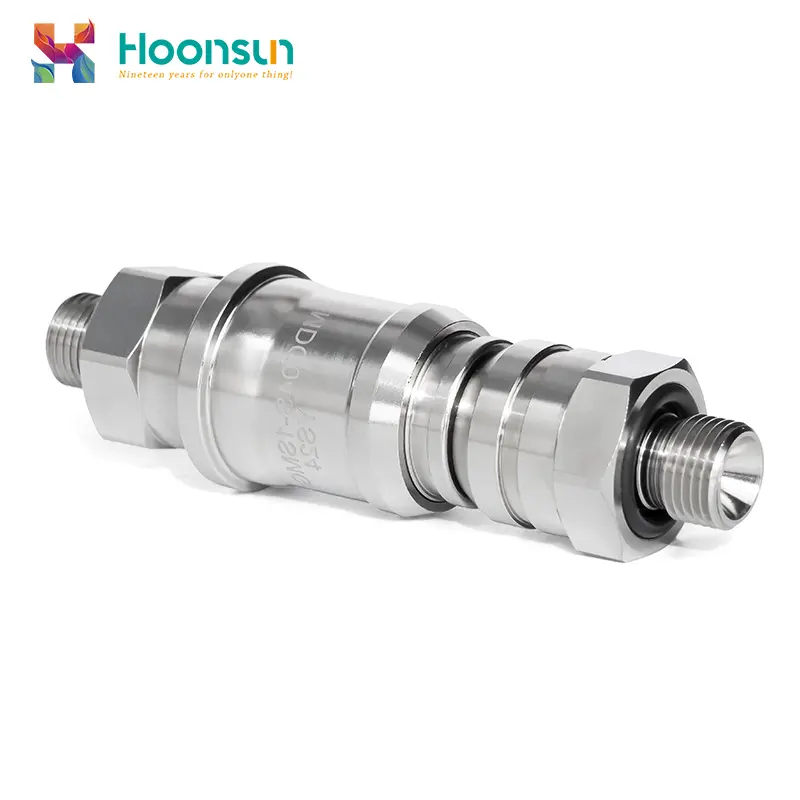

China MDC04S-1SMG012N-MDC04P-1SMG012N Manufacturer, Supplier
Product Description
Key Features
Applications
- Data Center Servers & HPC: High-flow liquid cooling for high-density server racks and supercomputers
- Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices
- New Energy Systems: EV charging piles, three-electric systems, and battery energy storage
- Industrial Lasers & Automation: Reliable fluid connections for high-power industrial equipment
- Power Electronics & PV Inverters: Cooling for solar inverters, wind turbines, and power supplies
- Test Benches & Research Labs: Lab-grade liquid cooling solutions for precision experiments
- Outdoor Harsh Environments: Dust-proof and salt-proof performance for outdoor equipment

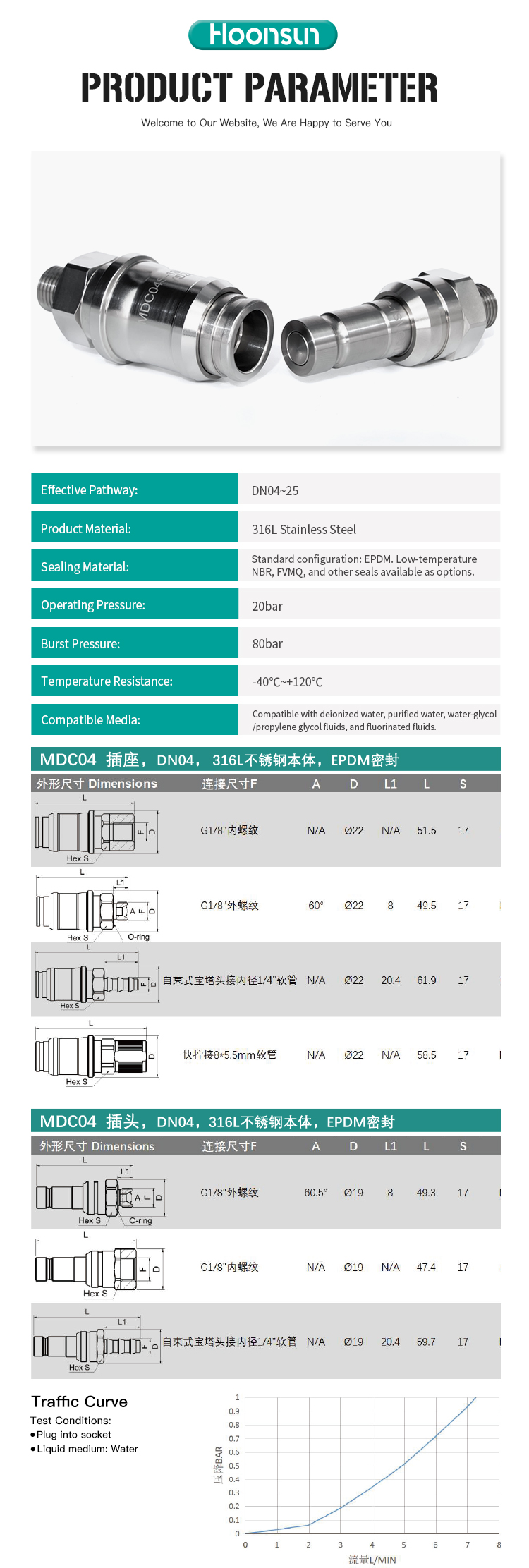

Product Specifications
| Series | DN Size | Material | Sealing | Connection Options | Working Pressure | Temp Range |
|---|---|---|---|---|---|---|
| MDC04 | DN04 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G1/8" Male/Female / 1/4" Hose Barb / 8×5.5mm Quick Fit | 20bar | -40°C~120°C |

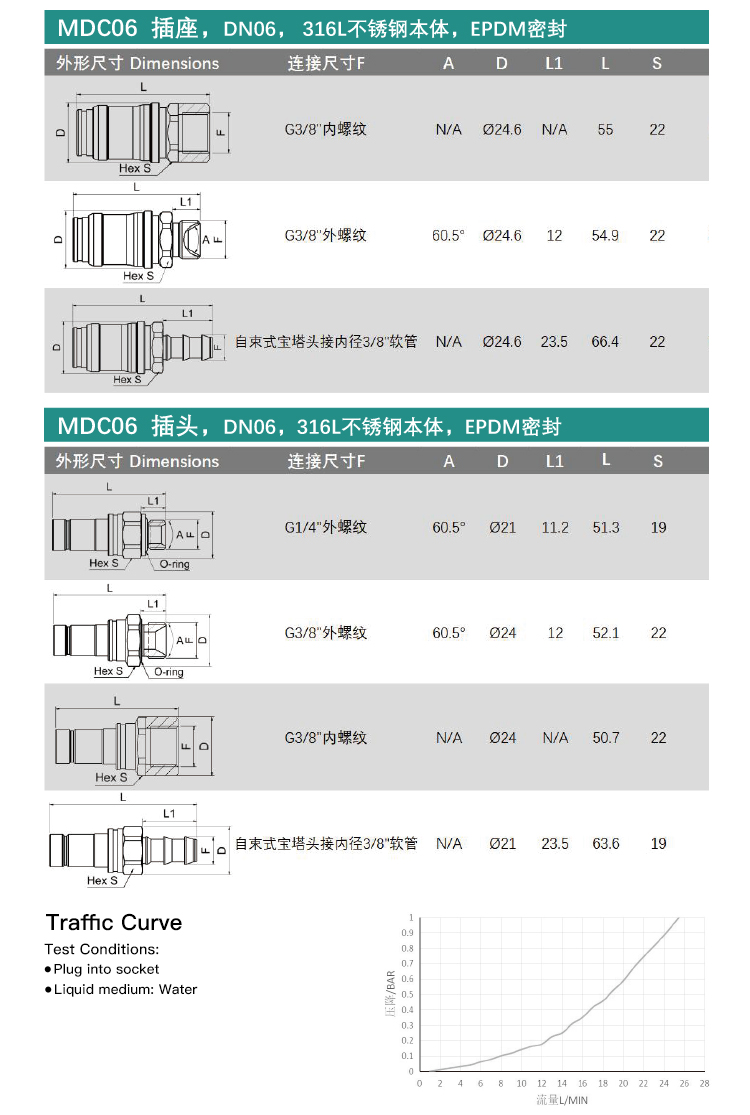

| MDC06 | DN06 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G3/8" Male/Female / 3/8" Hose Barb | 20bar | -40°C~120°C |

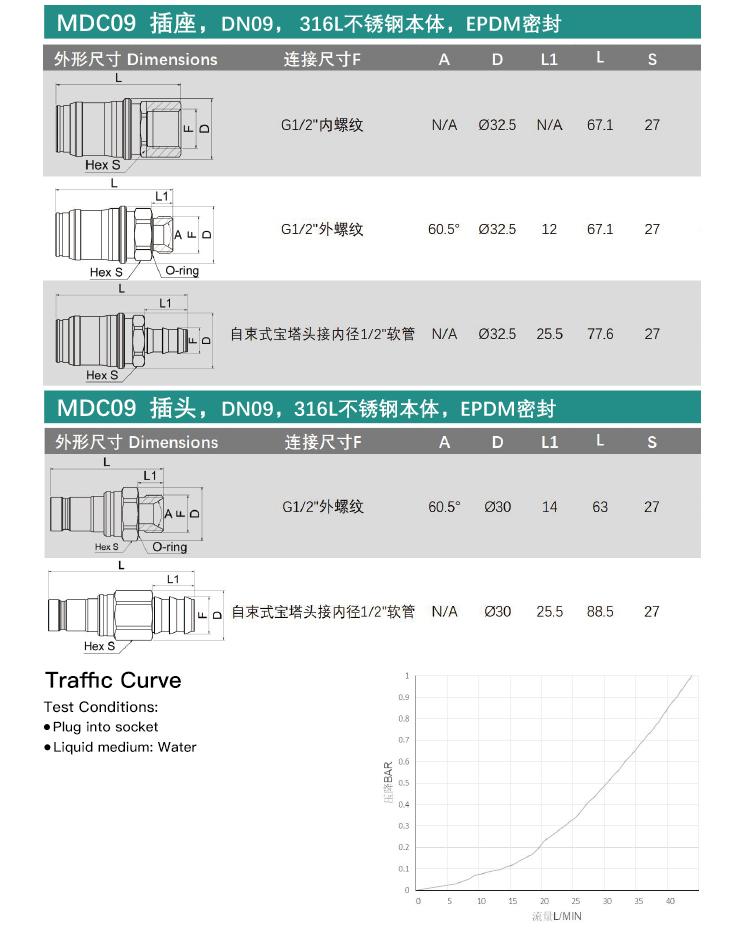

| MDC09 | DN09 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G1/2" Male / 1/2" Hose Barb | 20bar | -40°C~120°C |

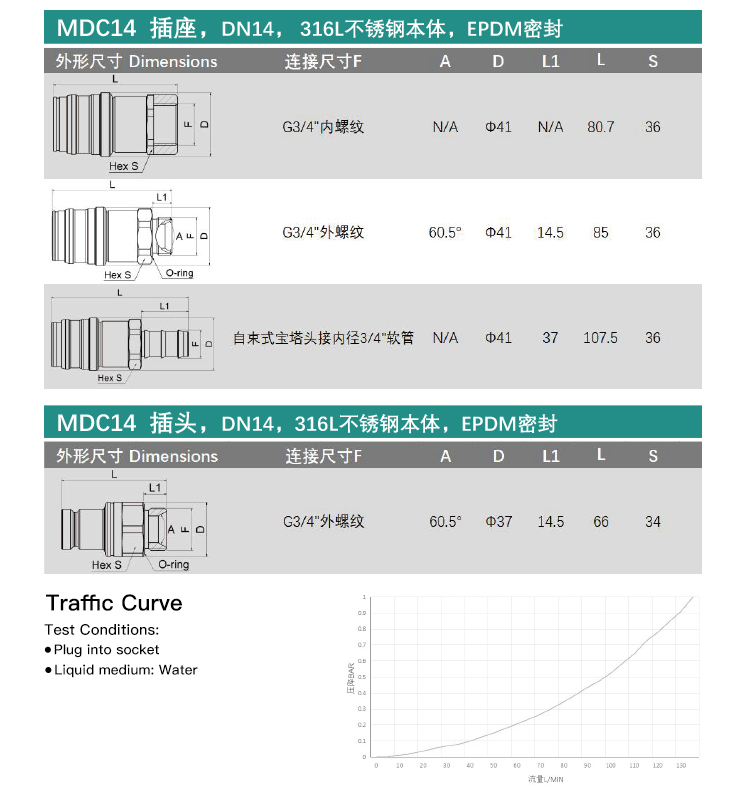

| MDC14 | DN14 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G3/4" Male/Female / 3/4" Hose Barb | 20bar | -40°C~120°C |
| MDC19 | DN19 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G1" Male/Female / 1" Hose Barb | 20bar | -40°C~120°C |

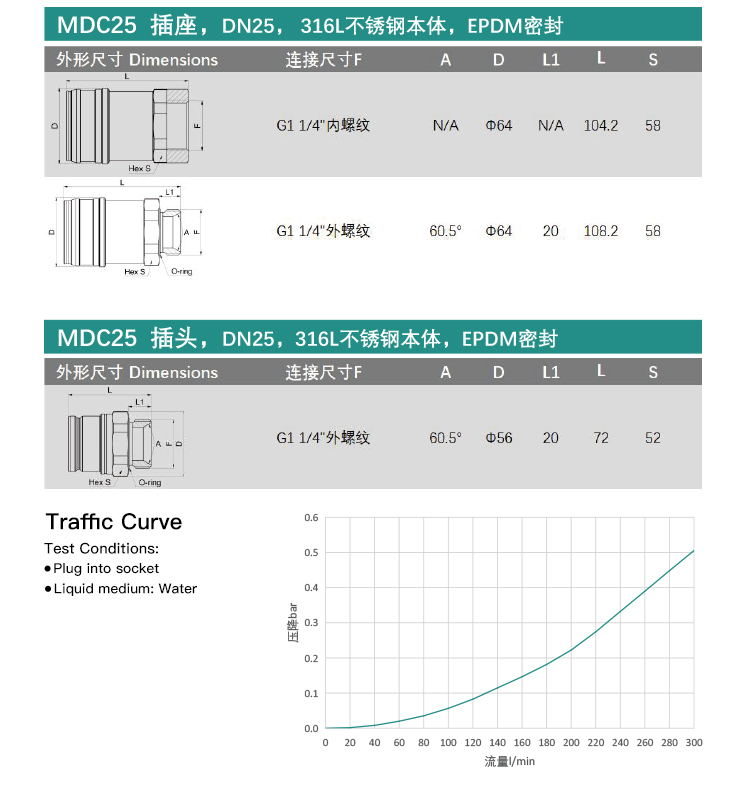

| MDC25 | DN25 | 316L Stainless Steel | EPDM (NBR/FVMQ optional) | G1 1/4" Male | 20bar | -40°C~120°C |
- Compatible Media: Deionized water, purified water, water-glycol solutions, water-propylene glycol solutions, oils, and fluorinated fluids
- Performance Curve: Optimized flow with minimal pressure drop, supporting flow rates up to 300 L/min
Installation Process
Ensure the connector and mating surface are clean and free of debris. Depressurize the system before installation to avoid fluid spray.
Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.
Perform a pressure test to confirm zero leakage before full system operation.
Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.

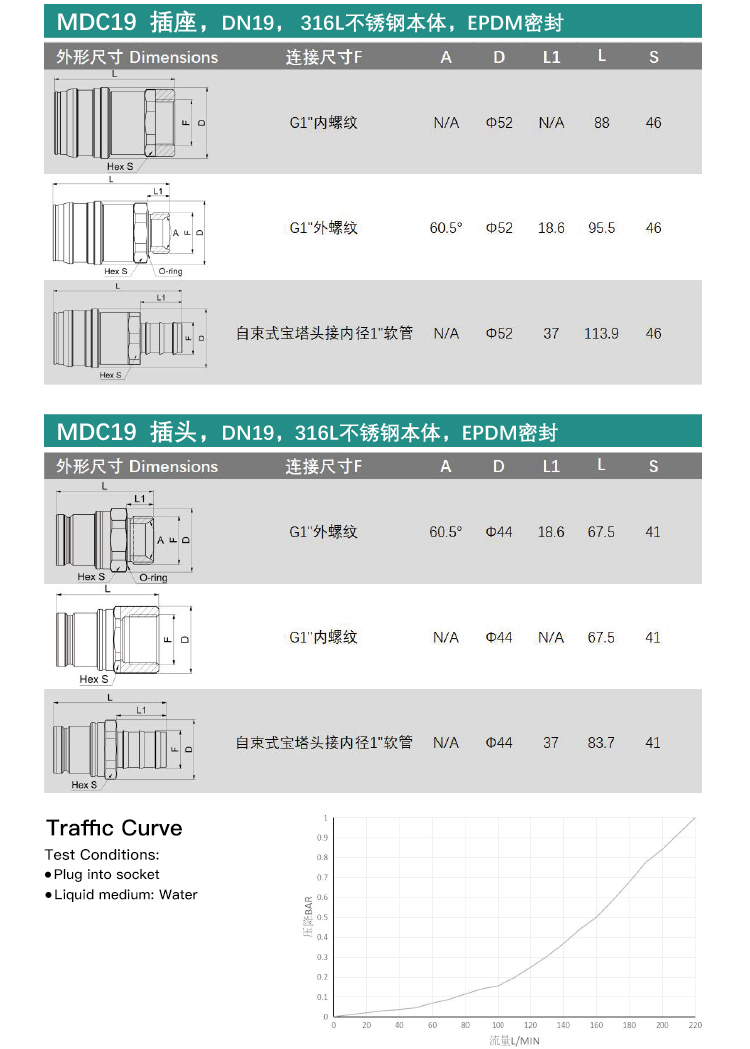

Detailed Image
About Us

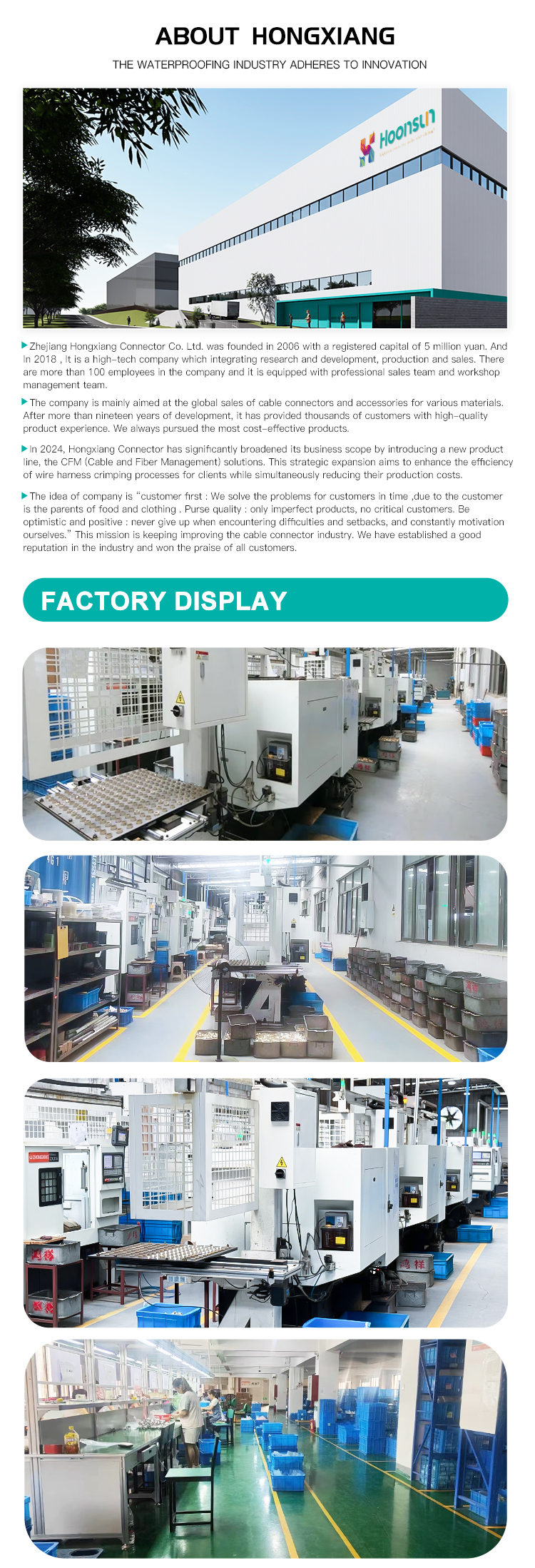

Founded in 2006, Zhejiang Hongxiang Connector Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of industrial connectors and fluid solutions. With over 20 years of experience, we provide high-quality products to customers worldwide, backed by a professional sales team and strict quality control. Our MDC series liquid-cooled couplings are widely trusted by leading data centers, medical equipment manufacturers, and new energy companies for their reliable performance and durability.
Frequently Asked Questions

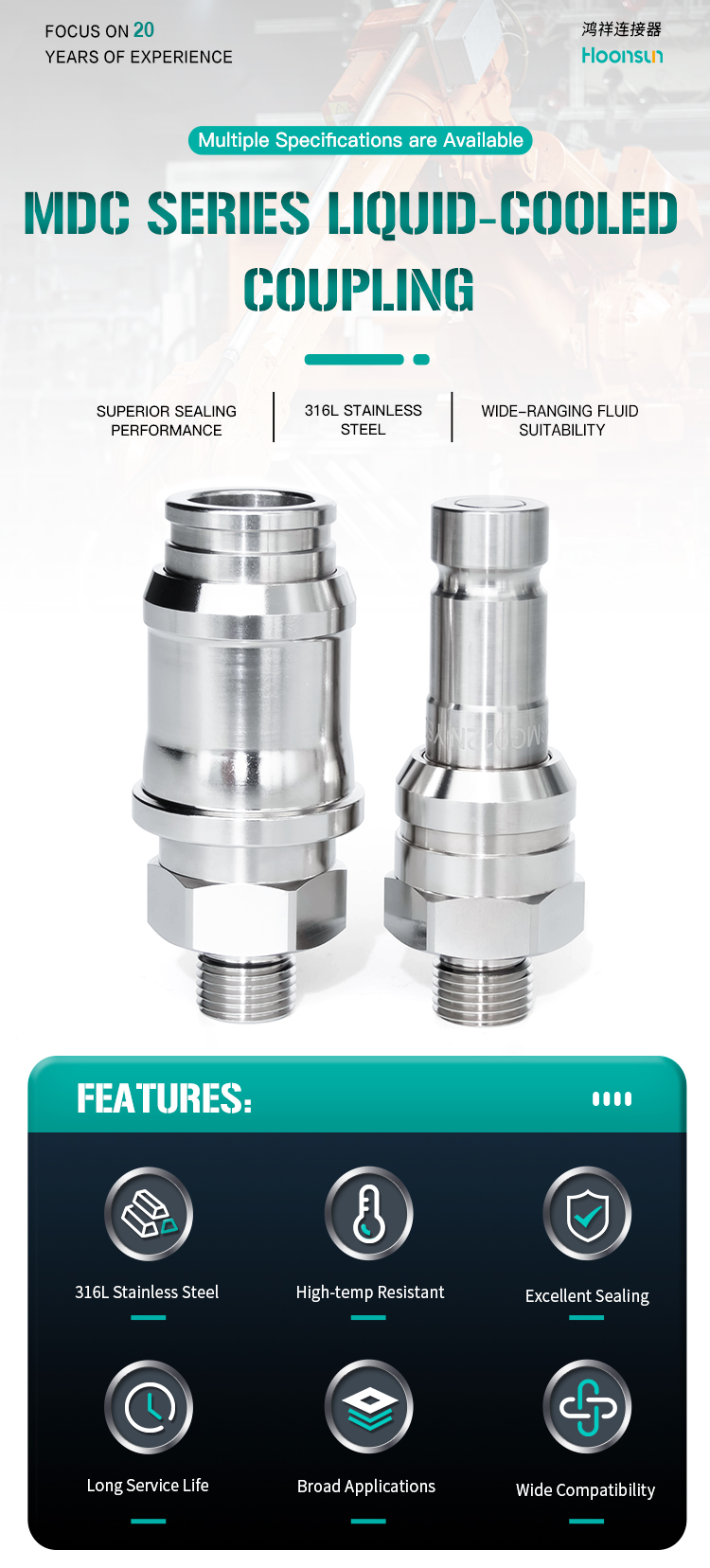

The MDC series is constructed entirely from 316L stainless steel, offering superior corrosion resistance compared to aluminum or brass connectors. It also supports a wider range of sizes (DN04 to DN25) and connection options, making it highly versatile for diverse liquid cooling applications.
Standard sealing material is EPDM. Optional seals include low-temperature NBR and FVMQ, which are suitable for different fluid compatibility and temperature requirements.
They are compatible with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids, covering most common liquid cooling media.
The working pressure is 20bar (burst pressure 80bar), with a temperature range of -40°C to 120°C, suitable for most industrial and commercial liquid cooling systems.

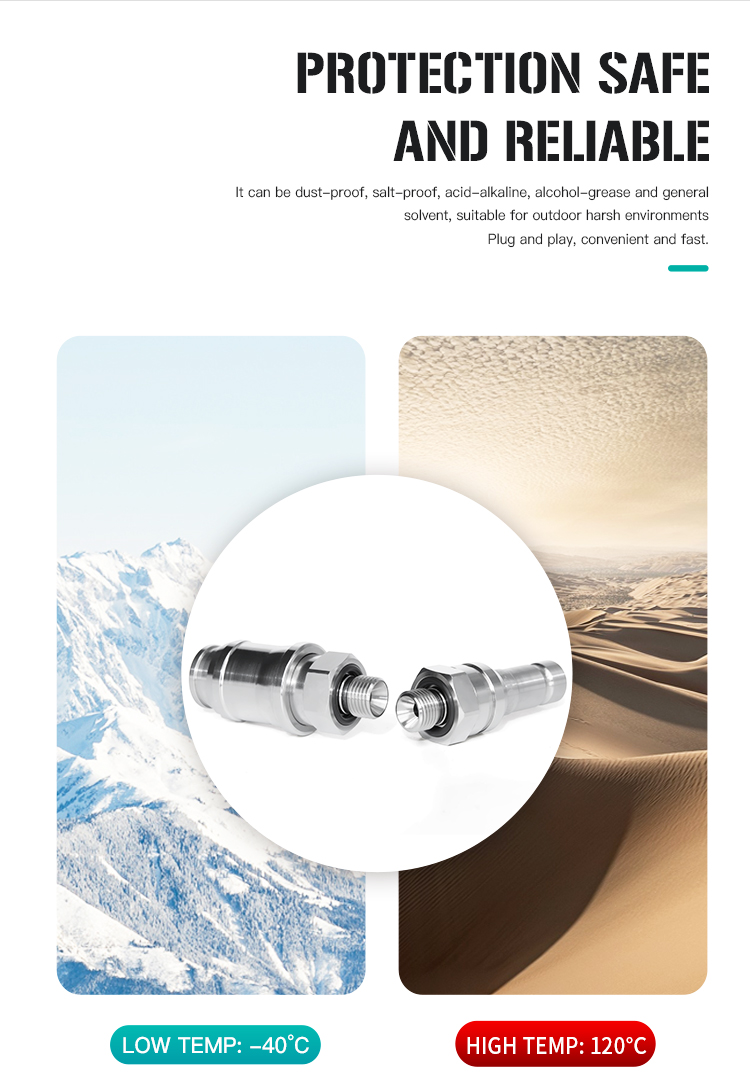

Yes. The 316L stainless steel construction and dust-proof/salt-proof design make them ideal for outdoor environments, such as solar inverters and wind energy equipment.
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation.
