Product Description
Engineered with an advanced explosion-proof design, the gland effectively contains internal ignitions by blocking flammable gases and particles from entering or exiting the enclosure, thereby preventing the transmission of flames to the surrounding hazardous atmosphere.
Its integrated dual-sealing mechanism, featuring precision-made components and high-grade materials, guarantees exceptional long-term sealing performance. This robust construction reliably achieves an IP68 rating, offering complete protection against intrusive dust, prolonged water immersion, and corrosive elements.

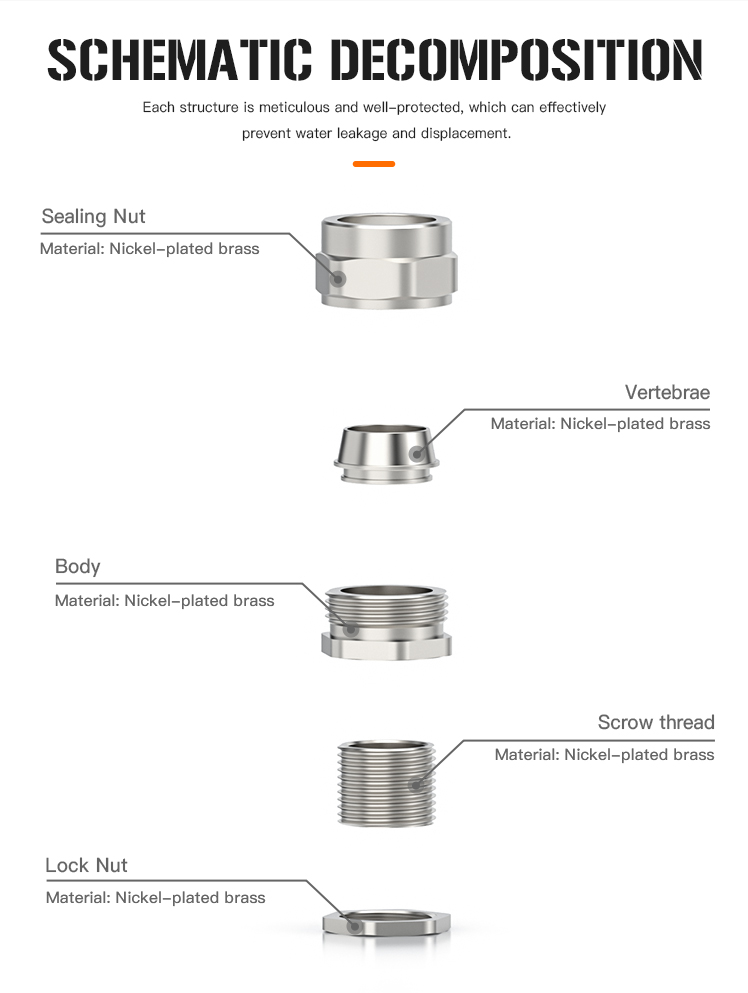

The innovative multi-component clamping system ensures a supremely secure and vibration-resistant grip on various cable types. This firm anchoring effectively withstands mechanical stresses, including forceful pulling, twisting, and constant vibration, safeguarding connection integrity.
Designed for efficiency, the gland's streamlined structure and user-friendly components allow for quick, straightforward assembly and disassembly. This simplified process significantly reduces installation time and effort, requiring no specialized or complex tools.
- Hazardous environments requiring explosion protection (e.g., oil and gas, chemical plants).
- Outdoor or industrial settings exposed to dust, moisture, and corrosion risks.
- Infrastructure demanding secure cable fixation under mechanical stress (e.g., machinery, transportation systems).
- Enhanced safety through ignition containment and corrosion resistance.
- Reduced maintenance with reliable sealing against leaks and environmental damage.
- Cost-efficient installation and long-term durability under harsh conditions.

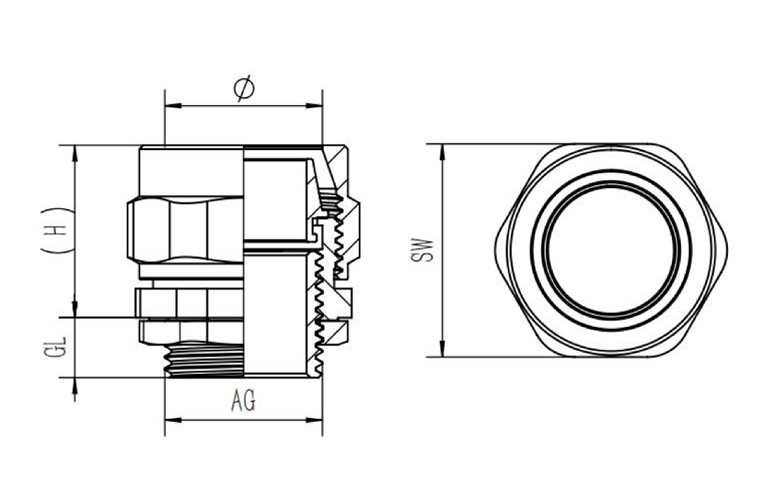

| Code | Scope of application | AG External diameter of thread | GL Length of thread | H Join Length | SW Torque wrench size |
|---|---|---|---|---|---|
| HX-BW.1-M20 | 16-19 | M20×1.5 | -7.5 | -22 | 24/25/27 |

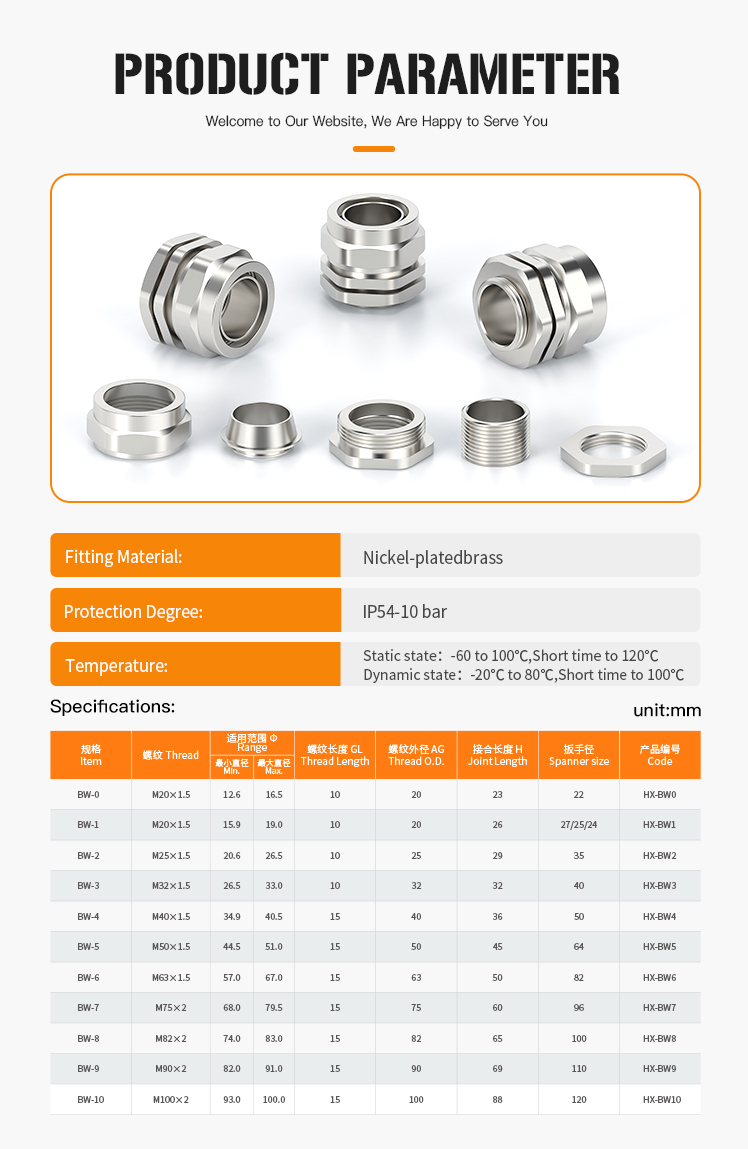

| Item | Thread | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code | |
|---|---|---|---|---|---|---|---|---|
| Diameter Min. | Diameter Max. | |||||||
| BW-0 | M20×1.5 | 12.6 | 16.5 | 10 | 20 | 23 | 22 | HX-BWO |
| BW-1 | M20×1.5 | 15.9 | 19.0 | 10 | 20 | 26 | 27/25/24 | HX-BW1 |
| BW-2 | M25×1.5 | 20.6 | 26.5 | 10 | 25 | 29 | 35 | HX-BW2 |
| BW-3 | M32×1.5 | 26.5 | 33.0 | 10 | 32 | 32 | 40 | HX-BW3 |
| BW-4 | M40×1.5 | 34.9 | 40.5 | 15 | 40 | 36 | 50 | HX-BW4 |
| BW-5 | M50×1.5 | 44.5 | 51.0 | 15 | 50 | 45 | 64 | HX-BW5 |
| BW-6 | M63×1.5 | 57.0 | 67.0 | 15 | 63 | 50 | 82 | HX-BW6 |
| BW-7 | M75×2 | 68.0 | 79.5 | 15 | 75 | 60 | 96 | HX-BW7 |
| BW-8 | M82×2 | 74.0 | 83.0 | 15 | 82 | 65 | 100 | HX-BW8 |
| BW-9 | M90×2 | 82.0 | 91.0 | 15 | 90 | 69 | 110 | HX-BW9 |
| BW-10 | M100×2 | 93.0 | 100.0 | 15 | 100 | 88 | 120 | HX-BW10 |
The cable gland achieves a certified IP68 rating, ensuring complete protection against dust penetration and prolonged continuous immersion under water.
Yes, it features an explosion-proof design engineered to contain internal ignitions and prevent flame transmission, making it ideal for oil and gas, chemical plants, and other hazardous areas.
It utilizes an innovative multi-component clamping system that firmly anchors the cable against mechanical stresses such as severe vibrations, twisting, and forceful pulls.
No, the simplified construction allows for quick and direct installation and disassembly using standard spanners or torque wrenches, significantly reducing installation labor and time.
The series accommodates a wide range of external diameters from 12.6 mm up to 100.0 mm across metric thread sizes from M20 up to M100.
