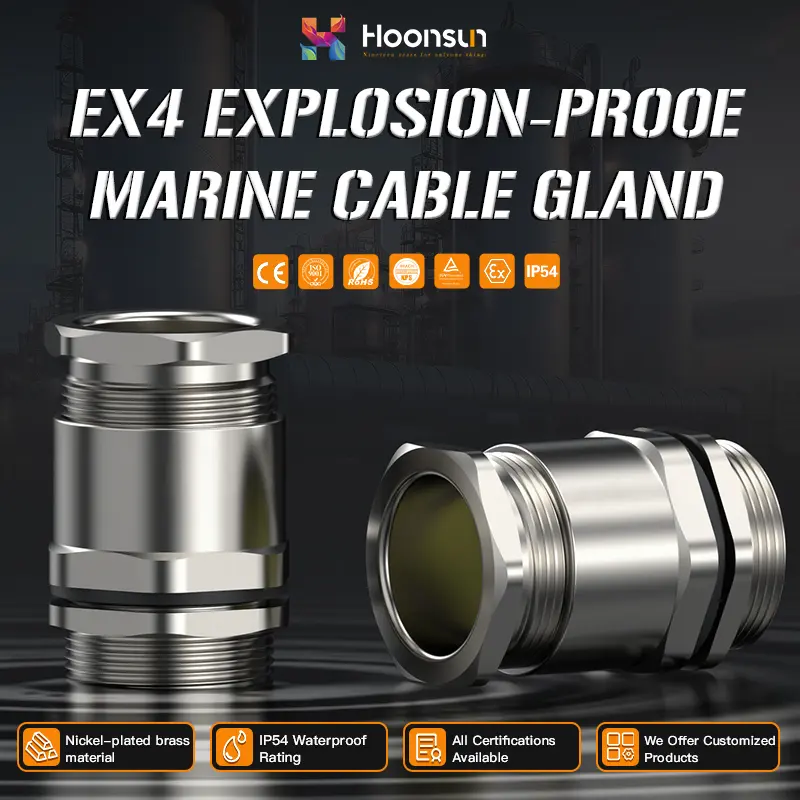

China EX4 Explosion-Proof Marine Cable Gland Rated IP68 and UL Listed Manufacturers, Factories
Product Description
Product Highlights
Effectively contains internal explosions and prevents the ingress of flammable gases or dusts.
Provides exceptional pull and vibration resistance for reliable cable holding.

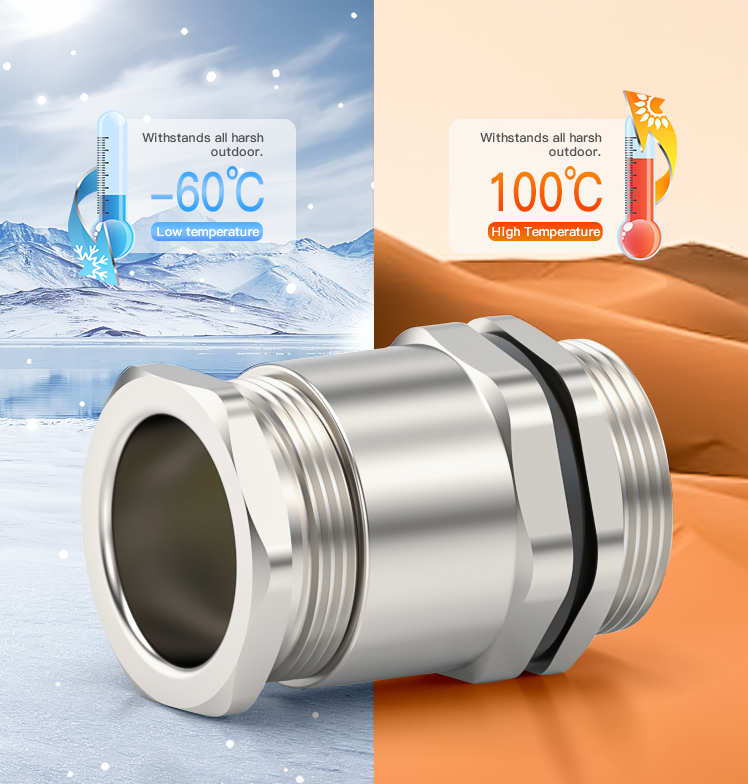

Built with high-quality materials to withstand harsh marine and industrial conditions.
Enables simple, tool-less installation for significant time savings.

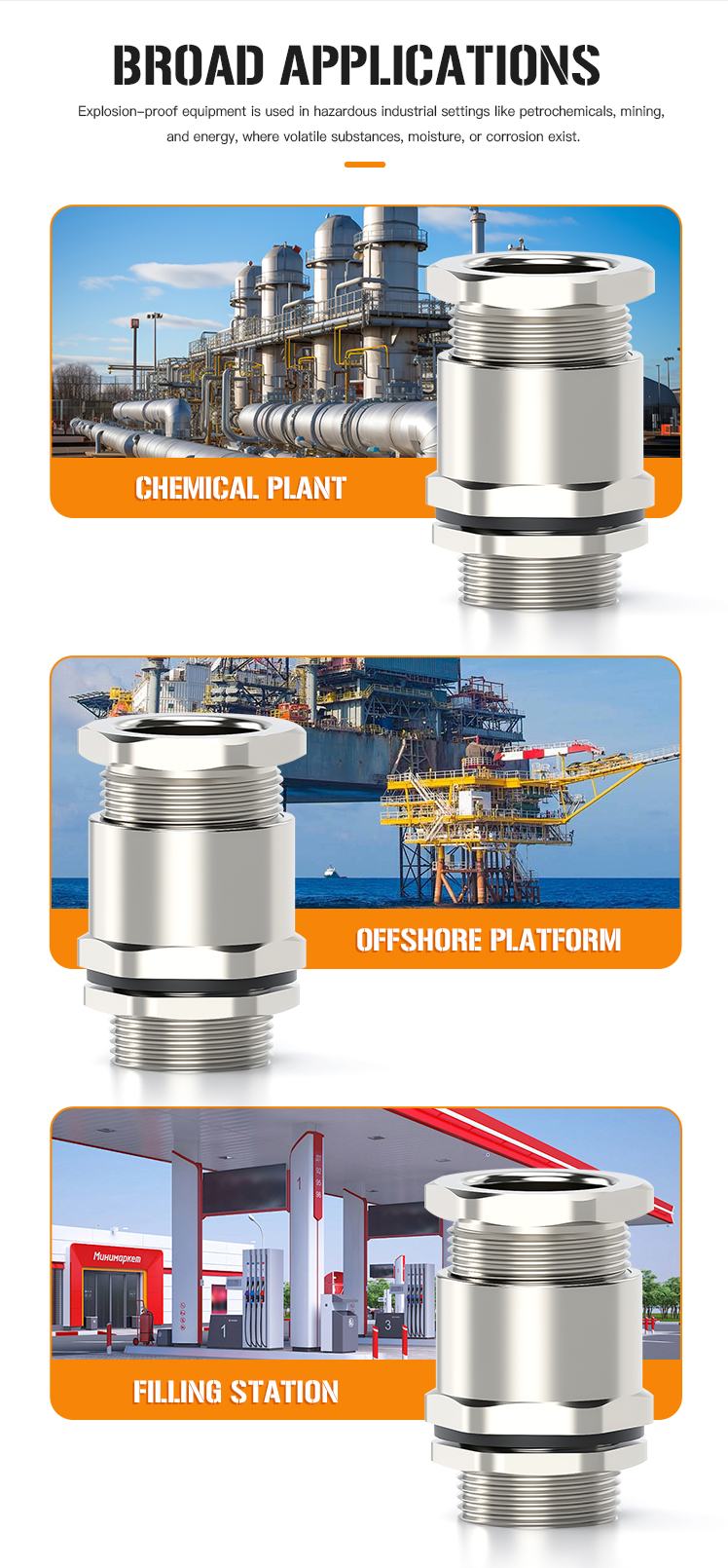

Applications
Hazardous area lighting, control systems, and navigation equipment on ships, oil rigs, and floating production platforms.
Installation in refineries, processing units, and storage facilities where flammable vapors are present.
Use in conveyor systems, pump controls, and equipment within dusty or potentially explosive atmospheres.
Infrastructure projects, tunnel lighting, and water treatment plants requiring robust IP68 protection against weather and corrosion.
Key Benefits
Mitigates ignition risks, ensuring compliance with stringent safety standards.
Offers long-term reliability with minimal downtime in demanding settings.
Streamlines the setup process, lowering overall labor costs.

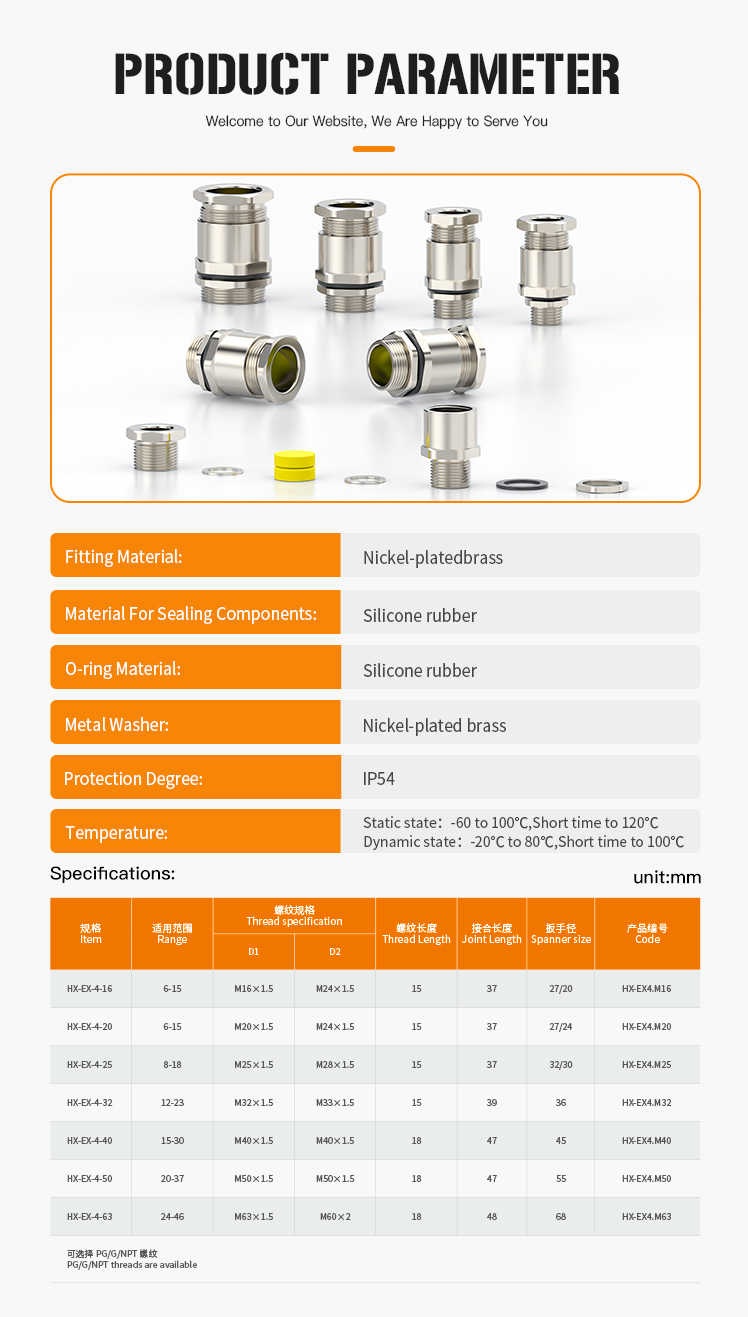

Product Parameters
| Item | Range | Thread specification | Thread Length | Joint Length | Spanner size | Code | |
|---|---|---|---|---|---|---|---|
| D1 | D2 | ||||||
| HX-EX-4-16 | 6-15 | M16Γ1.5 | M24Γ1.5 | 15 | 37 | 27/20 | HX-EX4.M16 |
| HX-EX-4-20 | 6-15 | M20Γ1.5 | M24Γ1.5 | 15 | 37 | 27/24 | HX-EX4.M20 |
| HX-EX-4-25 | 8-18 | M25Γ1.5 | M28Γ1.5 | 15 | 37 | 32/30 | HX-EX4.M25 |
| HX-EX-4-32 | 12-23 | M32Γ1.5 | M33Γ1.5 | 15 | 39 | 36 | HX-EX4.M32 |
| HX-EX-4-40 | 15-30 | M40Γ1.5 | M40Γ1.5 | 18 | 47 | 45 | HX-EX4.M40 |
| HX-EX-4-50 | 20-37 | M50Γ1.5 | M50Γ1.5 | 18 | 47 | 55 | HX-EX4.M50 |
| HX-EX-4-63 | 24-46 | M63Γ1.5 | M60Γ2 | 18 | 48 | 68 | HX-EX4.M63 |
| PG / G / NPT threads are available | |||||||

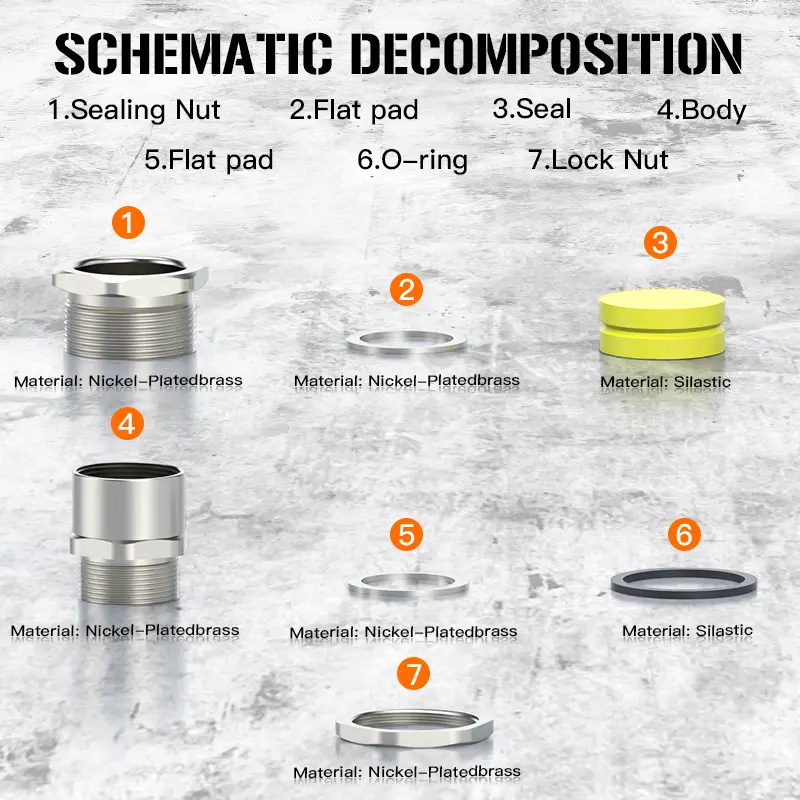

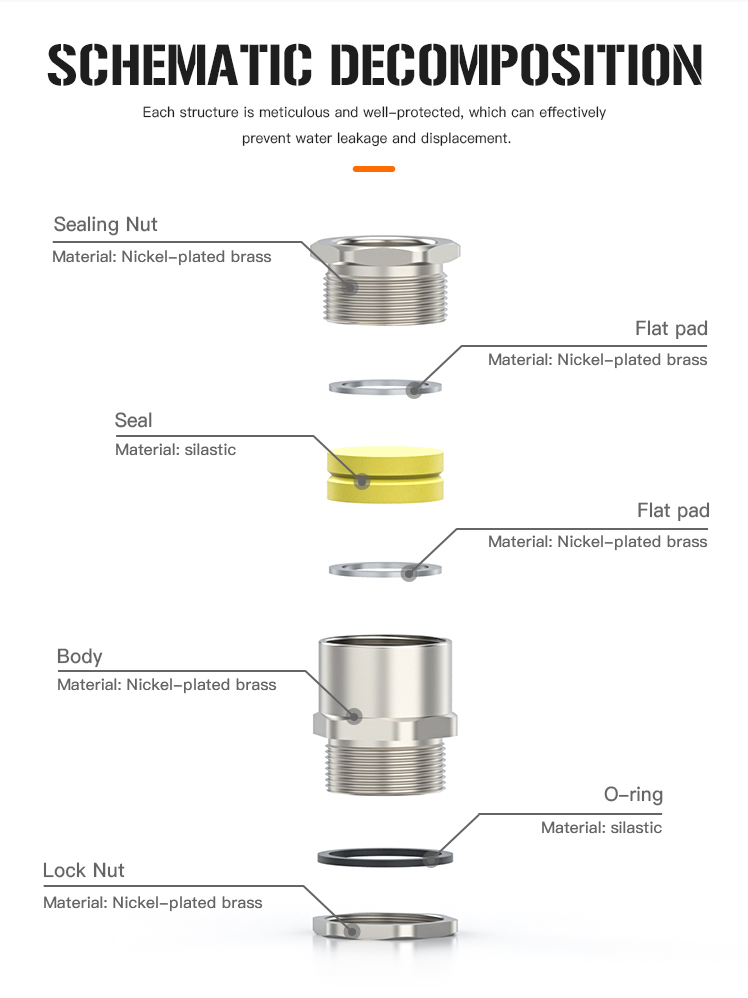

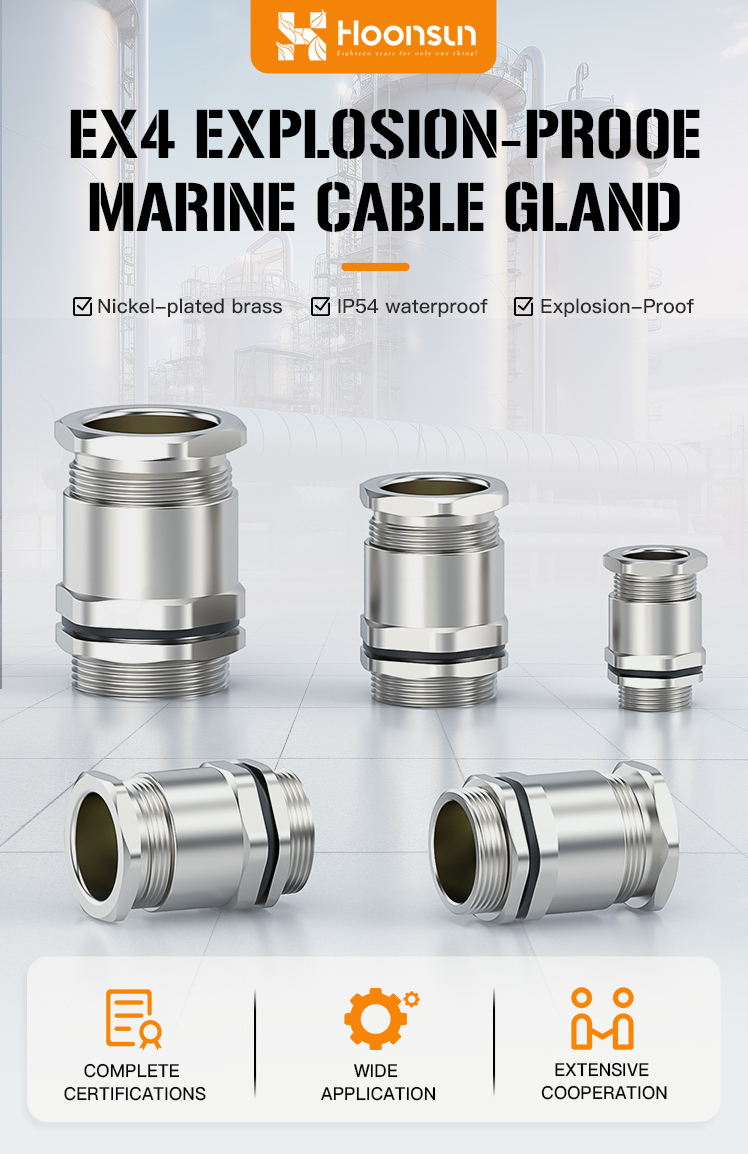

Detailed Images
