What does IP68 mean for a cable gland?

IP68 under IEC 60529 means the gland is dust-tight (6) and protected against continuous immersion in water (8) under conditions agreed between manufacturer and user. The rating is only valid when the cable outer diameter sits inside the gland's stated clamping range and the cap nut is tightened to the recommended torque.

Should I choose a metal or nylon cable gland?

Nylon PA66 glands are lightweight, corrosion-free and cost-effective for control cabinets, lighting and general outdoor equipment. Nickel-plated brass or stainless steel glands are preferred where you need mechanical strength, EMC shielding, higher vibration resistance, fire performance or exposure to oils, salt spray and UV.

Which thread standards do HOONSUN cable glands support?

HOONSUN supplies cable glands in Metric (M), PG, NPT and G (BSPP) threads. Thread length can be specified to match enclosure wall thickness, and custom thread forms are available for OEM projects.

Can HOONSUN produce custom or OEM cable glands?

Yes. As an in-house manufacturer since 2006, HOONSUN customizes thread type, thread length, seal material, clamping range, plating, colour and private-label packaging for OEM and distributor programs.

What certifications do HOONSUN cable glands carry?

Standard HOONSUN cable gland ranges are produced to CE and UL requirements with IP68 sealing performance. Test reports and certificate copies are supplied with the product catalog or on request for each specific part number.

IP68 UL Certified Explosion Proof Cable Gland Clamp Sealing Joint EX3 China Wholesale Industrial Waterproof Cable Connector Manufacturer Factory Supplier

Product Highlights

Tool-Free, Quick Assembly Design

Engineered for rapid, tool-less installation, this joint significantly reduces deployment time and eliminates the need for specialized equipment or complex procedures on site.

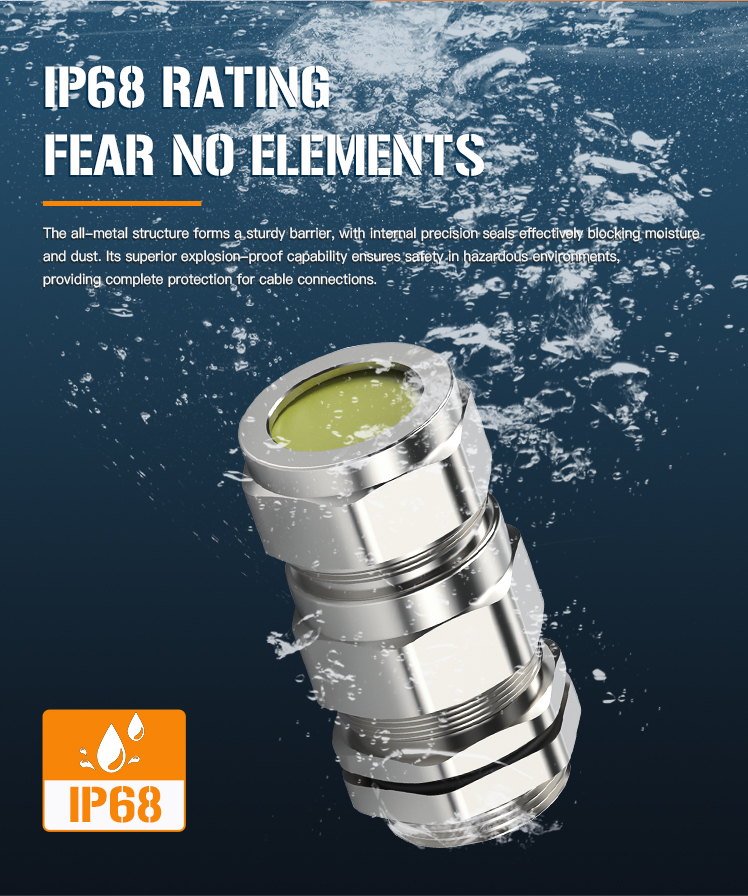

Certified for Superior Resistance

With robust IP68, UL, and explosion-proof certifications, it guarantees exceptional performance against invasive dust, high-pressure water jets, and corrosive chemicals, ensuring long-term integrity.

Secure Vibration & Pull Resistance

The advanced clamping mechanism firmly anchors cables, effectively mitigating the risks of loosening or damage caused by constant vibration, accidental impacts, and pulling forces.

Applications

Hazardous Area Electrical Systems

Industrial Sites with Flammable Substances

Outdoor or Marine Installations Exposed to Harsh Conditions

Key Benefits

Enhanced Operational Safety

Creates a critical barrier that prevents the ingress of flammable gases and dust, thereby containing potential ignition sources and protecting both personnel and equipment in classified hazardous zones.

Reduced Maintenance & Downtime

The durable, corrosion-resistant construction and reliable seal minimize the need for inspections, replacements, and repairs, leading to lower total cost of ownership and increased operational availability.

Simplified Installation & Cost Savings

The straightforward, tool-free assembly process allows for quick setup by on-site personnel, directly cutting labor costs, minimizing installation errors, and accelerating project completion timelines.

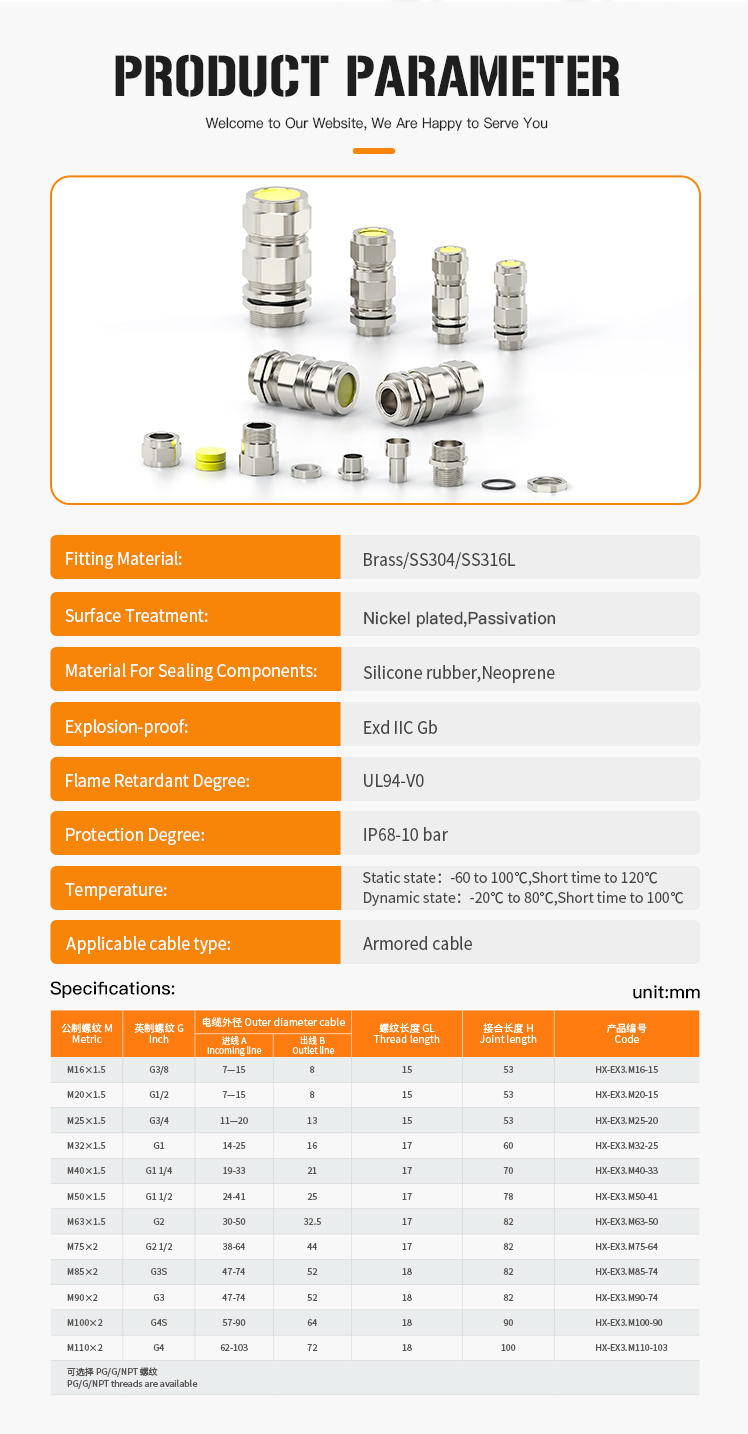

Product Parameters

Unit: mm

M Metric	G Inch	Outer Diameter Cable		GL Thread Length	H Join Length	Code
M Metric	G Inch	A Incoming Line	B Outlet Line	GL Thread Length	H Join Length	Code
M16×1.5	G3/8	7-15	8	15	53	HX-EX3.M16-15
M20×1.5	G1/2	7-15	8	15	53	HX-EX3.M20-15
M25×1.5	G3/4	11-20	13	15	53	HX-EX3.M25-20
M32×1.5	G1	14-25	16	17	60	HX-EX3.M32-25
M40×1.5	G1 1/4	19-33	21	17	70	HX-EX3.M40-33
M50×1.5	G1 1/2	24-41	25	17	78	HX-EX3.M50-41
M63×1.5	G2	30-50	32.5	17	82	HX-EX3.M63-50
M75×2	G2 1/2	38-64	44	17	82	HX-EX3.M75-64
M85×2	G3S	47-74	52	18	82	HX-EX3.M85-74
M90×2	G3	47-74	52	18	82	HX-EX3.M90-74
M100×2	G4S	57-90	64	18	90	HX-EX3.M100-90
M110×2	G4	62-103	72	18	100	HX-EX3.M110-103
PG / G / NPT threads are available

Detailed Images

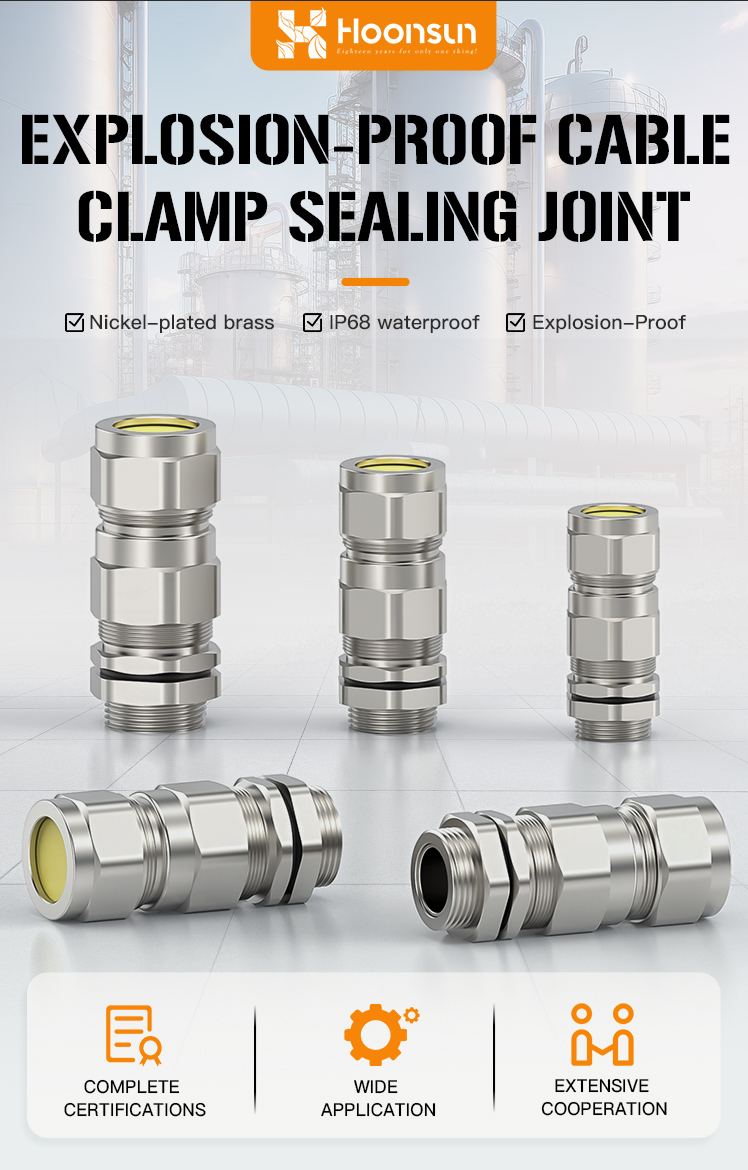

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Overview

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Detail 1

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Detail 2

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Clamping Mechanism

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Sealing View

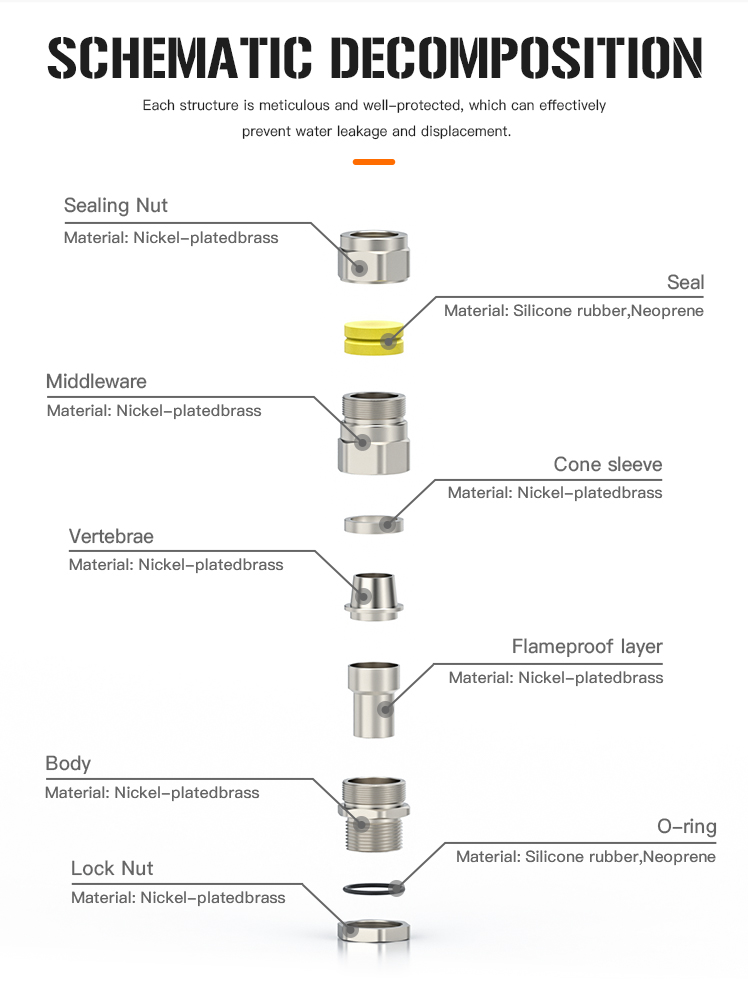

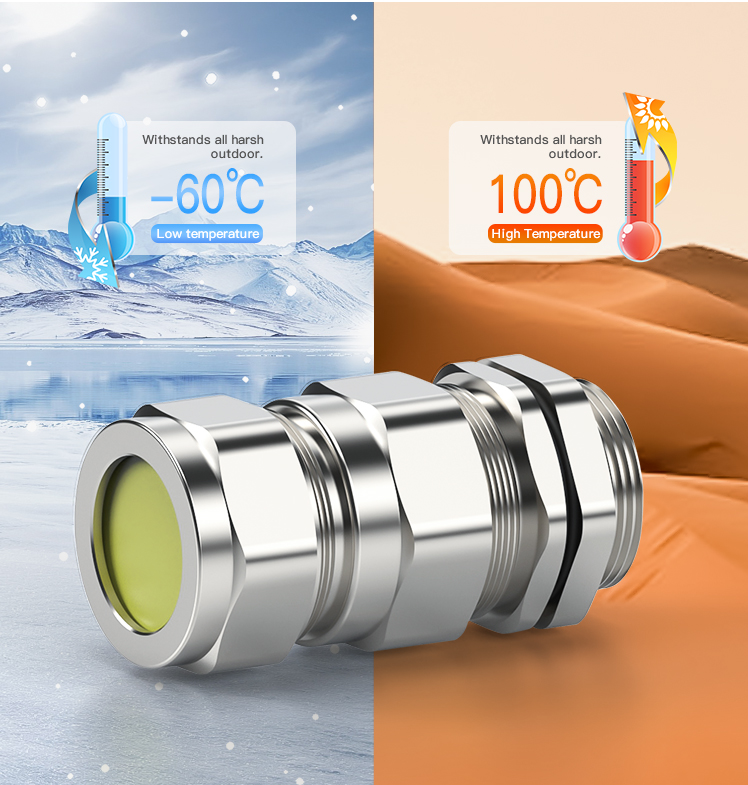

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Component Structure

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Thread Detail

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Dimension Schematic

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Assembly Perspective

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Side Angle

IP68 and UL Certified Explosion-Proof Cable Clamp Sealing Joint EX3 - Cross Section

Frequently Asked Questions

What certifications does the HX-EX3 cable clamp sealing joint hold?

The HX-EX3 joint is engineered with IP68, UL, and explosion-proof certifications, guaranteeing dependable protection against flammable gases, combustible dust, high-pressure water jets, and harsh chemical exposure.

Does installation require any specialized tools or equipment?

No. It features an innovative tool-free, quick assembly design that allows on-site operators to install and anchor cables quickly and securely without complex procedures or specialized tooling.

What thread types and standards are supported?

The standard specification supports Metric (M16 to M110) and Inch (G3/8 to G4) thread sizes. PG, G, and NPT thread configurations are also readily available upon request.

How does this product maintain performance in high-vibration applications?

It incorporates an advanced mechanical cable clamping system that delivers exceptional pull resistance and dynamic stability, preventing cable displacement or seal loosening during sustained equipment vibration.

Is the HX-EX3 joint suitable for marine and outdoor environments?

Yes. Thanks to its corrosion-resistant construction and certified IP68 watertight seal, the joint delivers reliable, maintenance-free performance in harsh marine platforms, coastal installations, and outdoor industrial sites.
