China Metal Multi-Hole Cable Gland with IP68 and UL certificate Manufacturers, Supplier
Product Description
Product Highlights

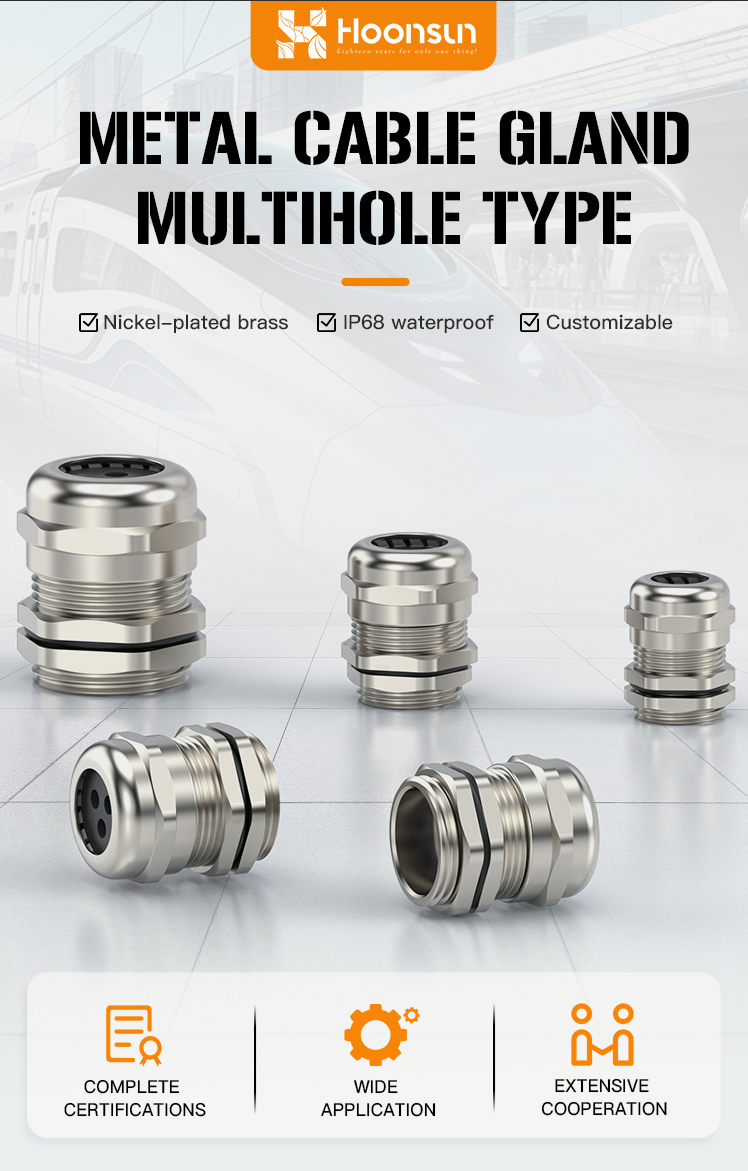

Features a precision-engineered multi-aperture design for individual cable clamping and sealing.
Constructed from high-quality nickel-plated brass or stainless steel for superior strength and corrosion resistance.

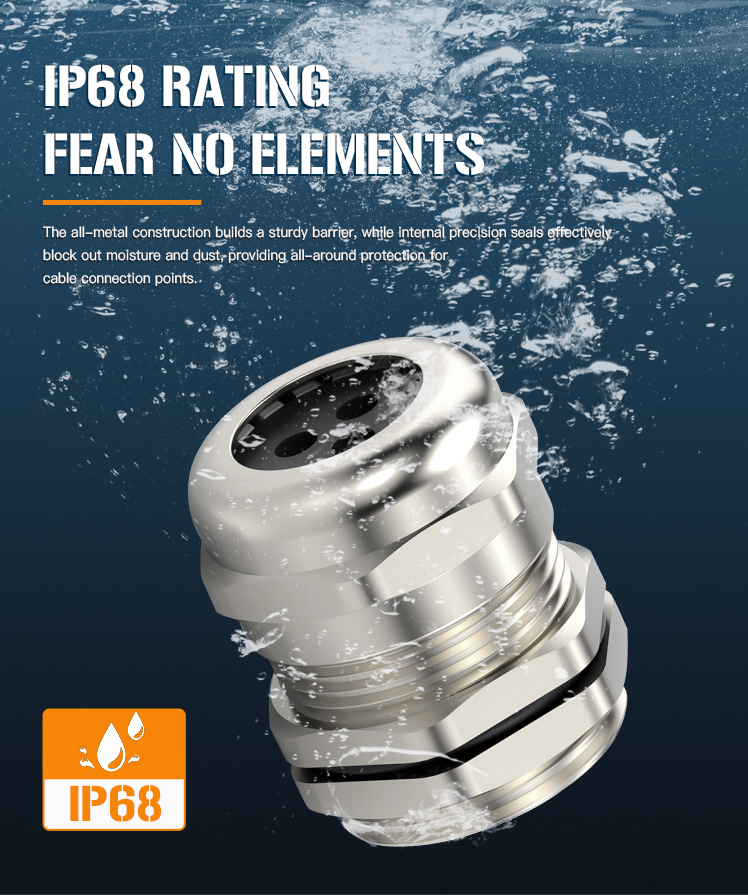

Provides reliable IP68 waterproof protection and excellent strain relief for all inserted cables.
Available with PG, NPT, and Metric threads for compatibility with international standards.
Applications
Control Panels & Automation Equipment
Provides centralized, sealed entry for multiple control and power cables in enclosures and automated machinery.
Industrial Machinery
Ensures reliable cable sealing and strain relief in various manufacturing and processing equipment subjected to vibration and contaminants.
Marine Systems
Withstands corrosive saltwater environments to protect critical electrical connections on ships and offshore installations.
Space-Constrained Installations
Optimizes layout efficiency by consolidating multiple cable entries into a single gland, ideal for compact systems.
Key Benefits
Maintains reliable sealing against dust, moisture, and vibration.
Enhances wiring aesthetics and safety by reducing the need for multiple glands.
Offers long-lasting performance in harsh industrial and outdoor environments.
Simplifies installation with its compact structure.

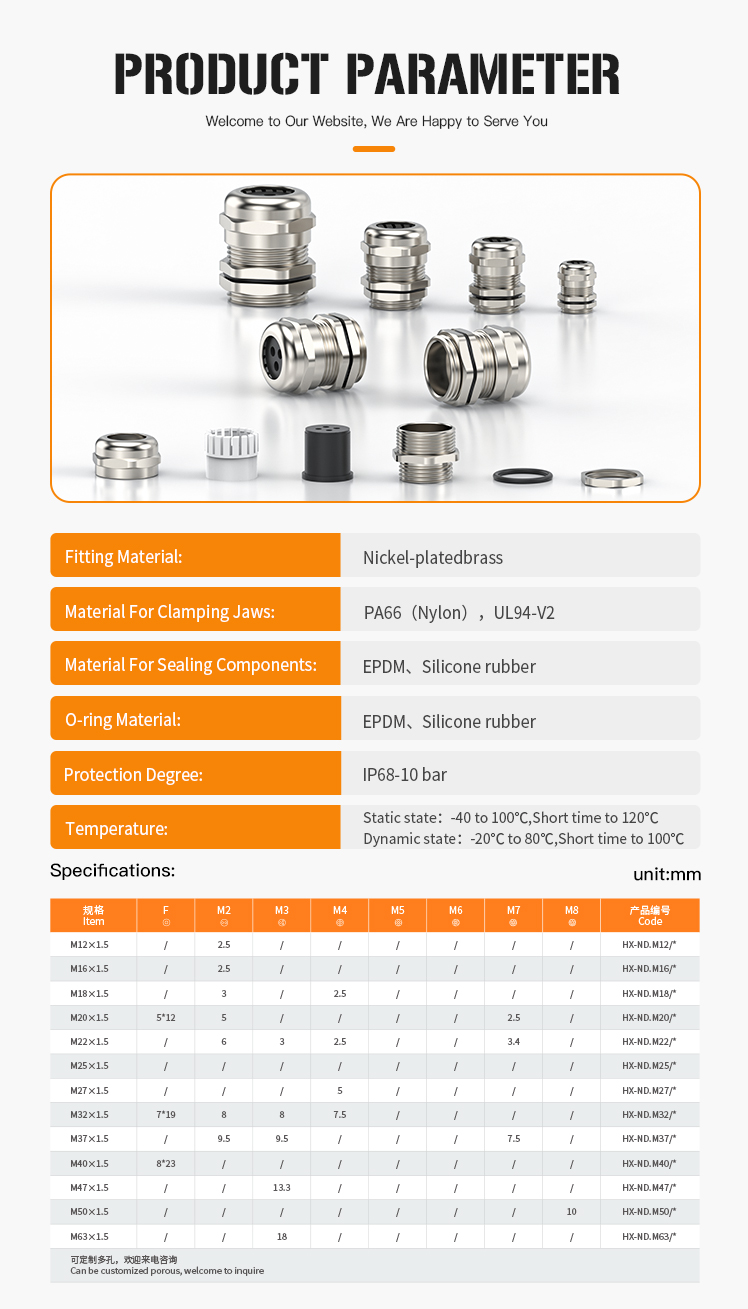

Product Parameters
unit: mm
| Item | F | M2 | M3 | M4 | M5 | M6 | M7 | M8 | Code |
|---|---|---|---|---|---|---|---|---|---|
| M12×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M12/* |
| M16×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M16/* |
| M18×1.5 | / | 3 | / | 2.5 | / | / | / | / | HX-ND.M18/* |
| M20×1.5 | 5*12 | 5 | / | / | / | / | 2.5 | / | HX-ND.M20/* |
| M22×1.5 | / | 6 | 3 | 2.5 | / | / | 3.4 | / | HX-ND.M22/* |
| M25×1.5 | / | / | / | / | / | / | / | / | HX-ND.M25/* |
| M27×1.5 | / | / | / | 5 | / | / | / | / | HX-ND.M27/* |
| M32×1.5 | 7*19 | 8 | 8 | 7.5 | / | / | / | / | HX-ND.M32/* |
| M37×1.5 | / | 9.5 | 9.5 | / | / | / | 7.5 | / | HX-ND.M37/* |
| M40×1.5 | 8*23 | / | / | / | / | / | / | / | HX-ND.M40/* |
| M47×1.5 | / | / | 13.3 | / | / | / | / | / | HX-ND.M47/* |
| M50×1.5 | / | / | / | / | / | / | / | 10 | HX-ND.M50/* |
| M63×1.5 | / | / | 18 | / | / | / | / | / | HX-ND.M63/* |
| Can be customized porous, welcome to inquire | |||||||||

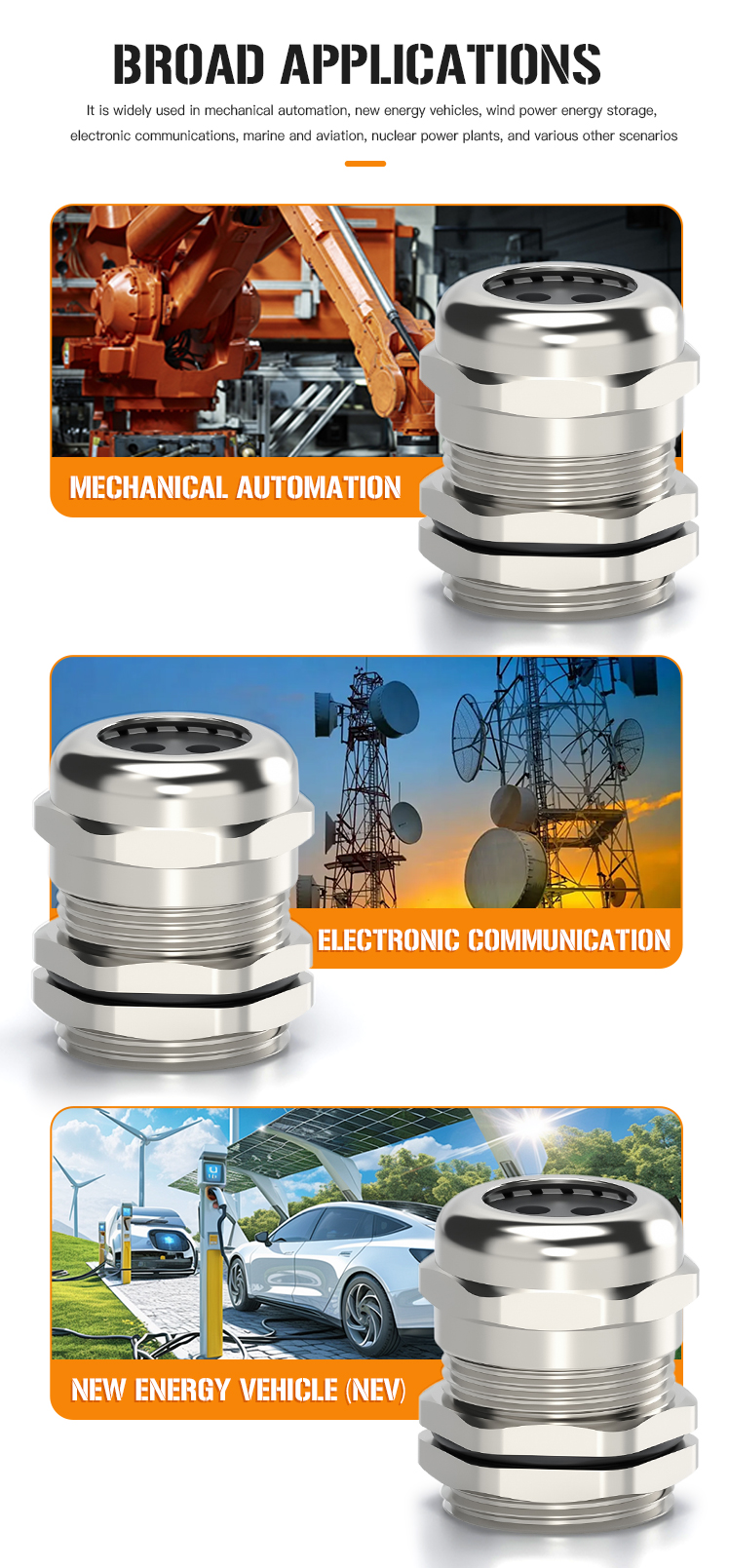

Detailed Images
Frequently Asked Questions
What materials are available for the multi-hole cable glands?
The cable glands are primarily constructed from high-quality nickel-plated brass or stainless steel, ensuring superior mechanical strength and excellent resistance against corrosion.
What level of ingress protection (IP) do these cable glands offer?
These glands provide reliable IP68 waterproof and dustproof protection, delivering exceptional strain relief and environmental sealing for every cable inserted.
Which thread types are supported?
Our multi-hole cable glands are available with Metric (M), PG, and NPT thread standards, ensuring broad compatibility with industrial and international electrical equipment.
Can the multi-hole insert be customized for non-standard cable configurations?
Yes, custom porous inserts can be engineered and manufactured to fit specific cable counts, diameters, or shapes. Inquiries for custom configurations are welcome.
What are the primary advantages of using multi-aperture cable glands?
They consolidate multiple incoming cables into a single enclosure opening, which saves valuable panel space, reduces installation time, improves overall aesthetic organization, and lowers component costs.
