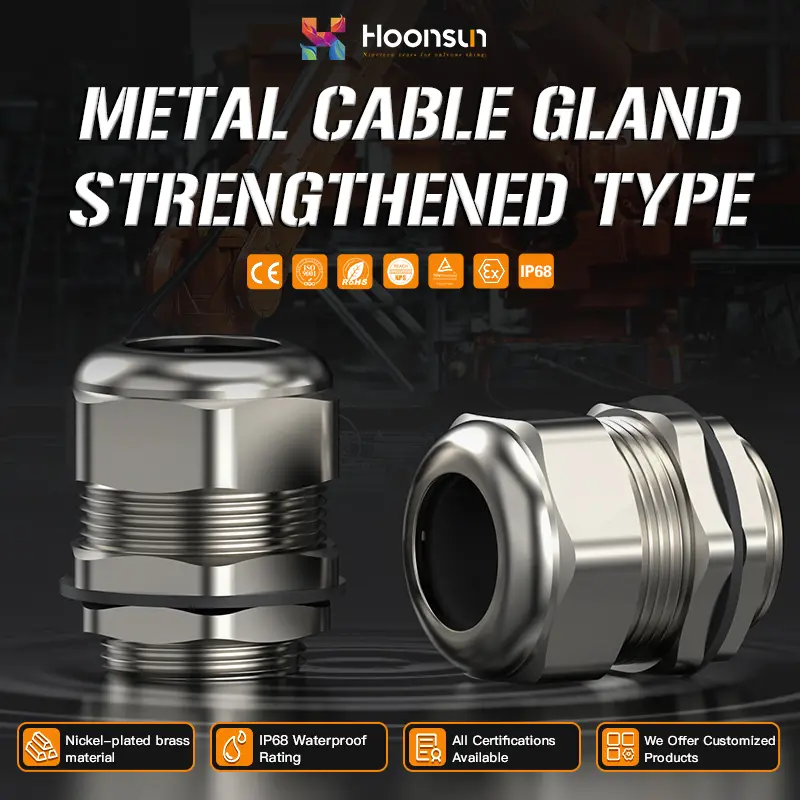

China Metal Cable Gland Strengthened Type with UL and IP68 Supplier, Suppliers

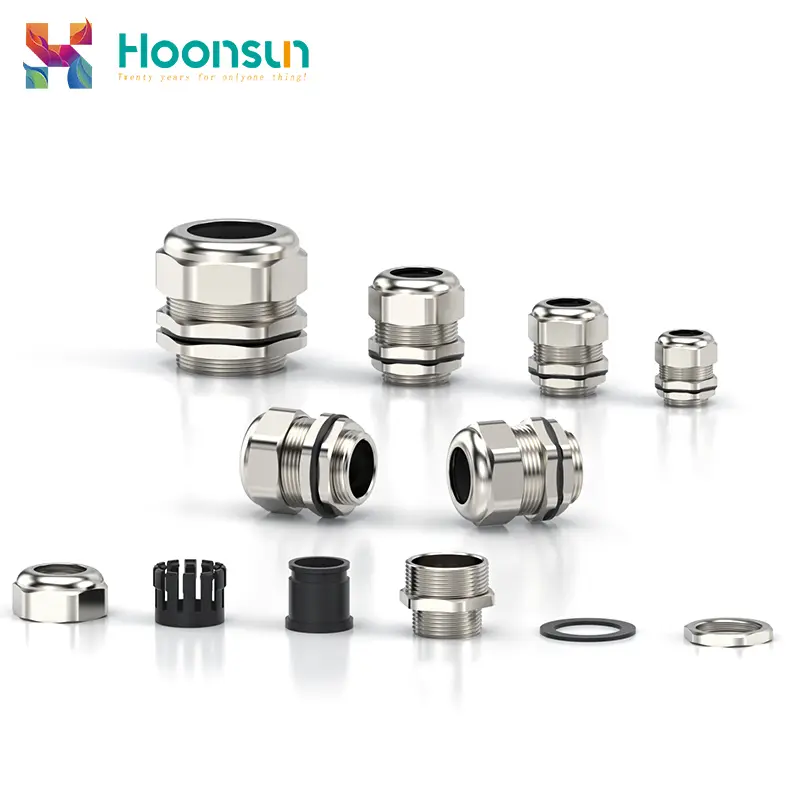

Product Description
Product Highlights

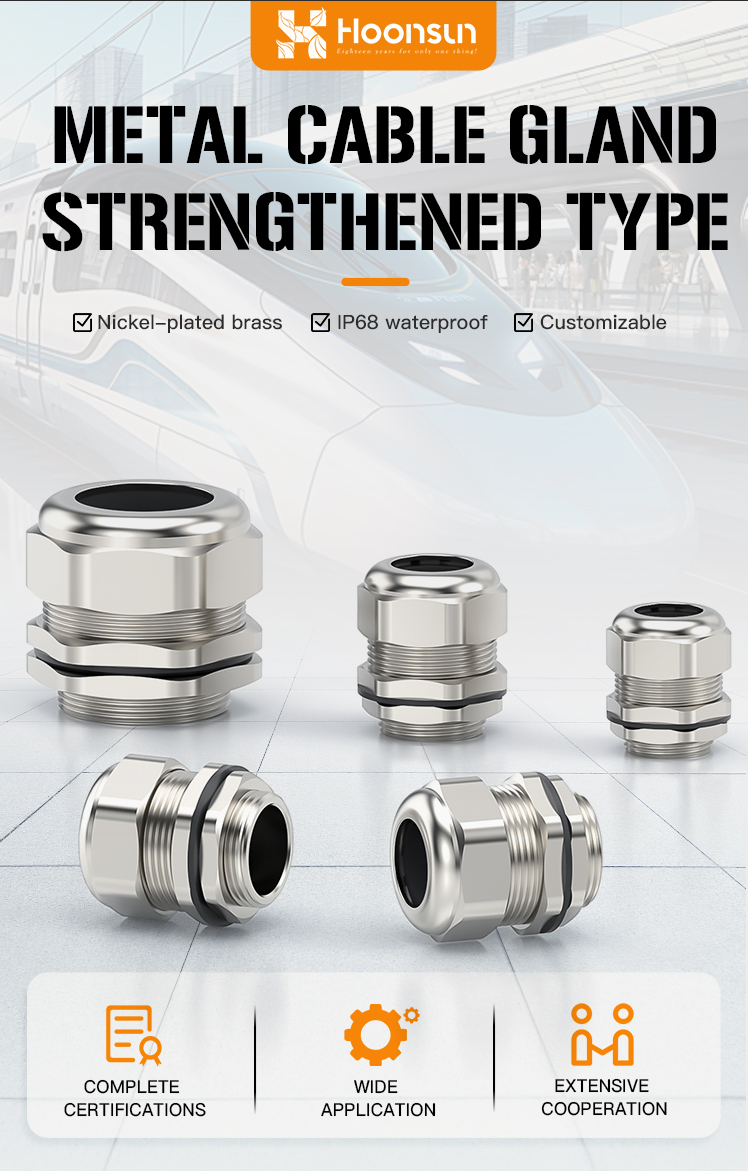

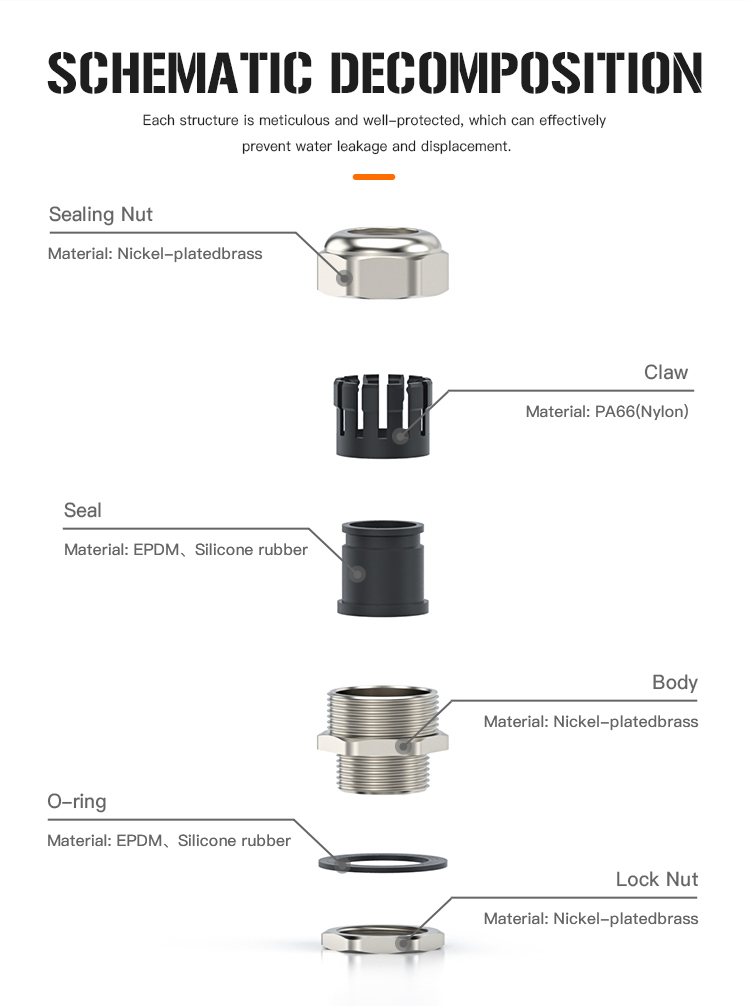

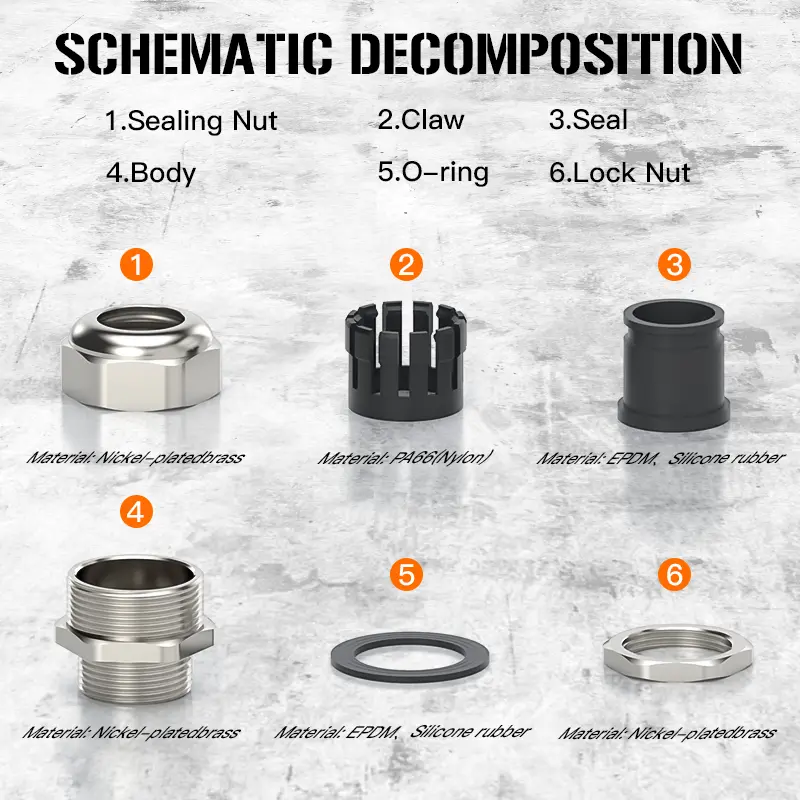

Comprehensive Structural Reinforcement
Both the main body and clamping components adopt thickened, high-strength materials, significantly improving overall mechanical performance and enabling resistance to greater external impact.
Upgraded Protection Level
Optimized sealing structure with an IP68+ protection rating, enhancing dustproof, waterproof, oilproof, and corrosion-resistant capabilities for harsh working conditions.
Extremely Secure Connection
Upgraded dual clamping design, featuring excellent tensile, anti-vibration, and anti-torque performance to effectively prevent cable loosening and ensure long-term stable use.
Wide Application Compatibility
Compatible with various cable specifications and thread standards (PG, NPT, and Metric threads), easy to install, and widely used in high-intensity scenarios.

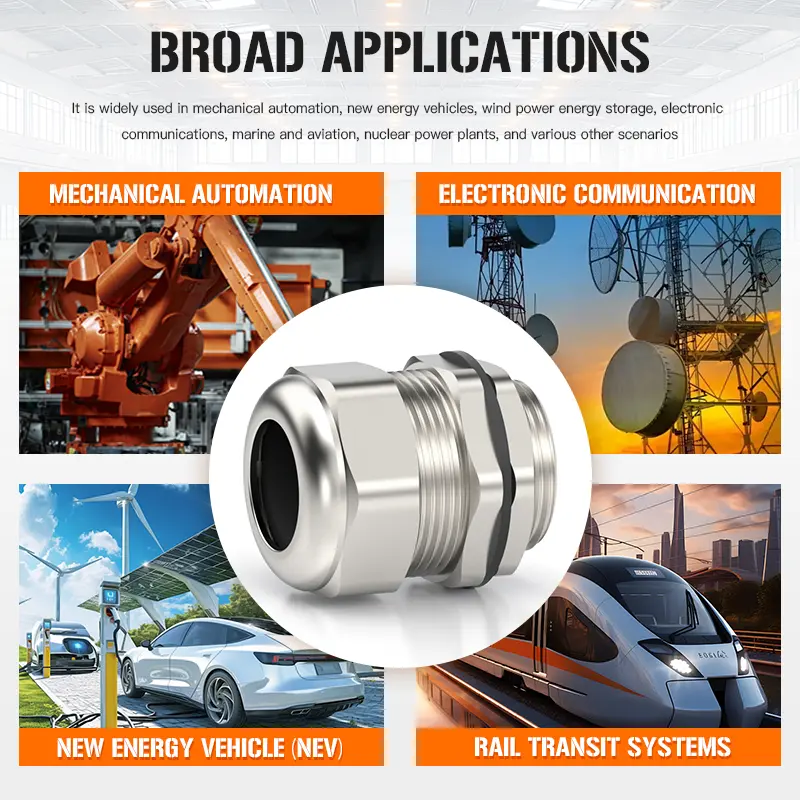

Applications
Heavy machinery, power distribution systems, and automation equipment

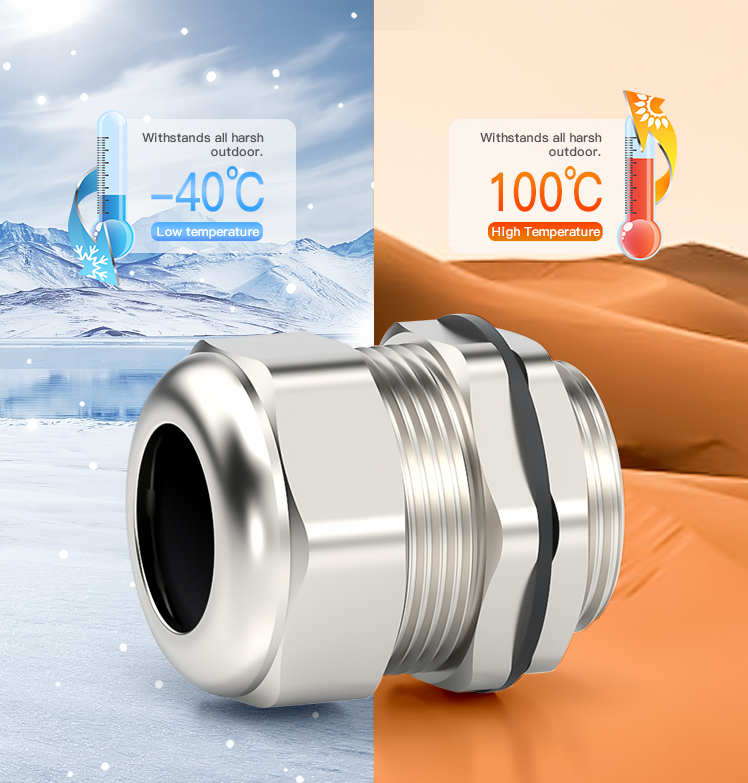

Outdoor installations exposed to extreme conditions
Rail systems, marine environments, and industrial control panels
Mining, shipping, and outdoor engineering applications
Key Benefits
Exceptional durability and stability for demanding industrial and outdoor use
Outstanding mechanical strength, impact resistance, and corrosion protection
Reliable cable retention under continuous vibration and mechanical stress

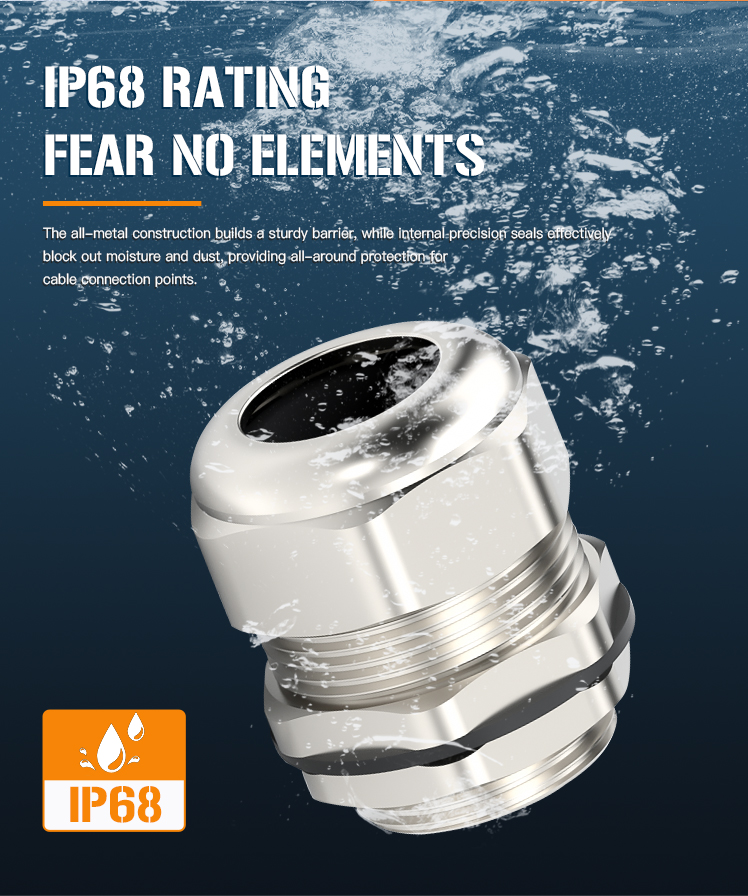

Tight IP68 seal preventing water, oil, or dust ingress
Robust design minimizing deformation under high torque, providing excellent strain relief and long-term sealing integrity
Ensures system safety and reliability for years of operation

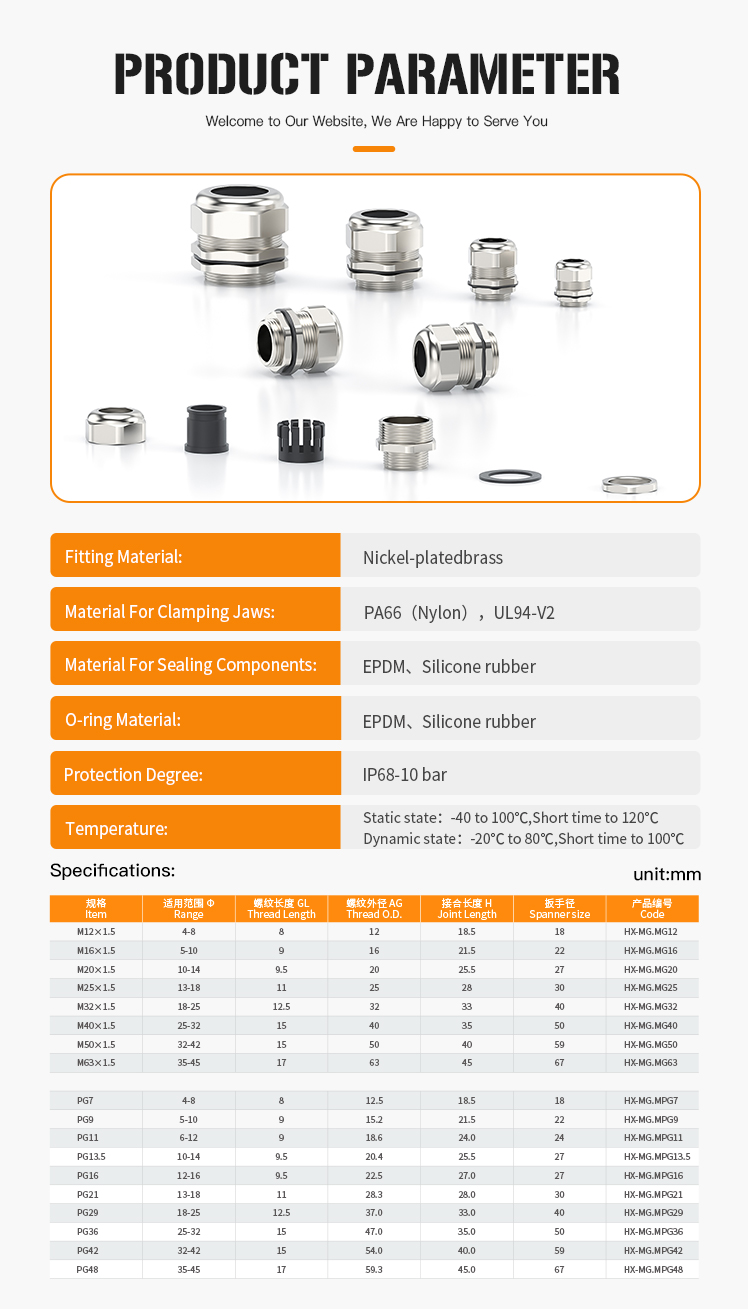

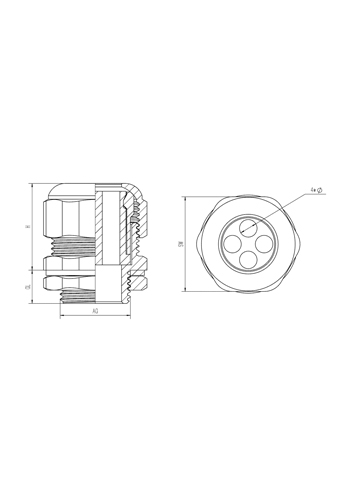

Product Specifications
Unit: mm
| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 4-8 | 8 | 12 | 18.5 | 18 | HX-MG.MG12 |
| M16×1.5 | 5-10 | 9 | 16 | 21.5 | 22 | HX-MG.MG16 |
| M20×1.5 | 10-14 | 9.5 | 20 | 25.5 | 27 | HX-MG.MG20 |
| M25×1.5 | 13-18 | 11 | 25 | 28 | 30 | HX-MG.MG25 |
| M32×1.5 | 18-25 | 12.5 | 32 | 33 | 40 | HX-MG.MG32 |
| M40×1.5 | 25-32 | 15 | 40 | 35 | 50 | HX-MG.MG40 |
| M50×1.5 | 32-42 | 15 | 50 | 40 | 59 | HX-MG.MG50 |
| M63×1.5 | 35-45 | 17 | 63 | 45 | 67 | HX-MG.MG63 |
| PG7 | 4-8 | 8 | 12.5 | 18.5 | 18 | HX-MG.MPG7 |
| PG9 | 5-10 | 9 | 15.2 | 21.5 | 22 | HX-MG.MPG9 |
| PG11 | 6-12 | 9 | 18.6 | 24.0 | 24 | HX-MG.MPG11 |
| PG13.5 | 10-14 | 9.5 | 20.4 | 25.5 | 27 | HX-MG.MPG13.5 |
| PG16 | 12-16 | 9.5 | 22.5 | 27.0 | 27 | HX-MG.MPG16 |
| PG21 | 13-18 | 11 | 28.3 | 28.0 | 30 | HX-MG.MPG21 |
| PG29 | 18-25 | 12.5 | 37.0 | 33.0 | 40 | HX-MG.MPG29 |
| PG36 | 25-32 | 15 | 47.0 | 35.0 | 50 | HX-MG.MPG36 |
| PG42 | 32-42 | 15 | 54.0 | 40.0 | 59 | HX-MG.MPG42 |
| PG48 | 35-45 | 17 | 59.3 | 45.0 | 67 | HX-MG.MPG48 |
Detailed Product Gallery
Frequently Asked Questions
Q What protection rating does this cable gland offer?
It offers an optimized sealing structure with an IP68+ rating, ensuring high performance against dust, water, oil, and corrosion in demanding environments.
Q What thread types are available for this series?
The strengthened series is compatible with standard Metric (M-thread), PG, and NPT thread configurations to meet various global industrial standards.
Q How does the strengthened design improve performance?
Both the main body and clamping components utilize thickened materials alongside a dual clamping design, significantly increasing tensile strength, anti-vibration capability, and torque resistance.
Q Can these cable glands be used in outdoor or marine environments?
Yes, they are engineered for harsh working conditions, including outdoor applications with extreme weather exposure, rail transit, mining, and marine installations.
Q What cable diameters are compatible with these fittings?
Depending on the specific model chosen (from M12 up to M63 or PG7 up to PG48), the clamping ranges cover cable diameters from 4mm up to 45mm.
