Product Description

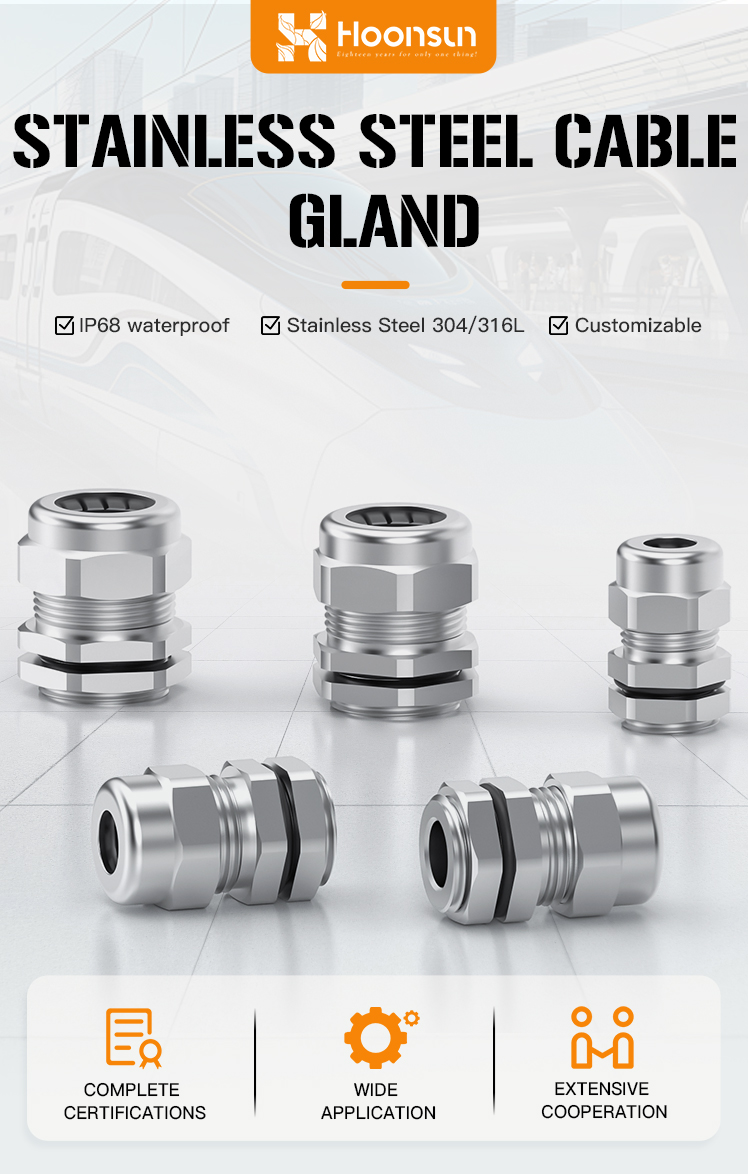

Made of 304 or 316 stainless steel, ensuring excellent resistance to moisture, salt, and chemicals — perfect for marine, chemical, and outdoor environments.
High mechanical strength prevents cable loosening under vibration or pressure, providing long-lasting stability.
Fully sealed against water, dust, and oil, ideal for electrical panels, junction boxes, and outdoor installations.

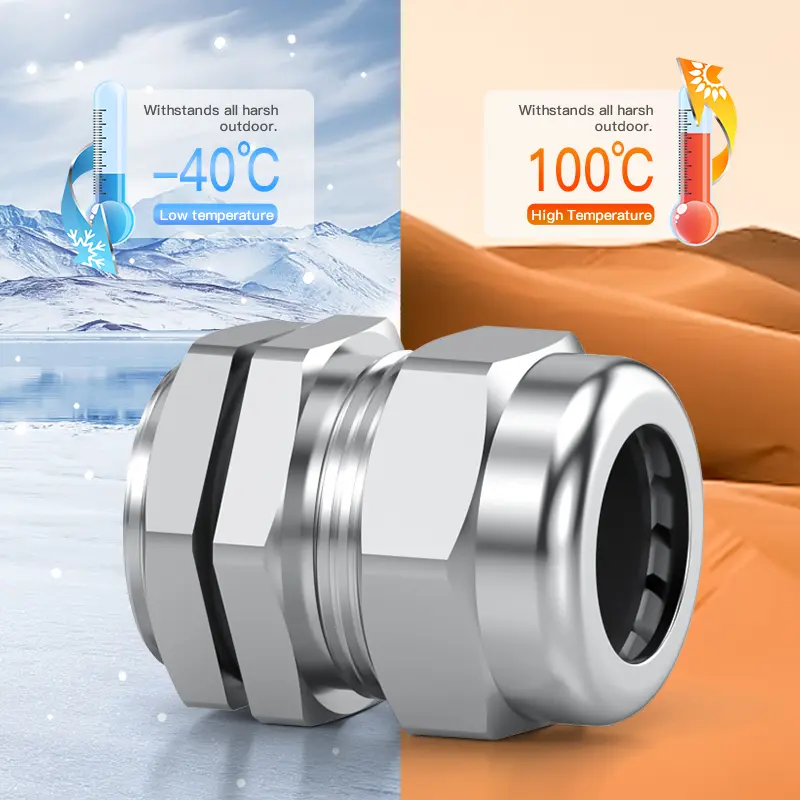

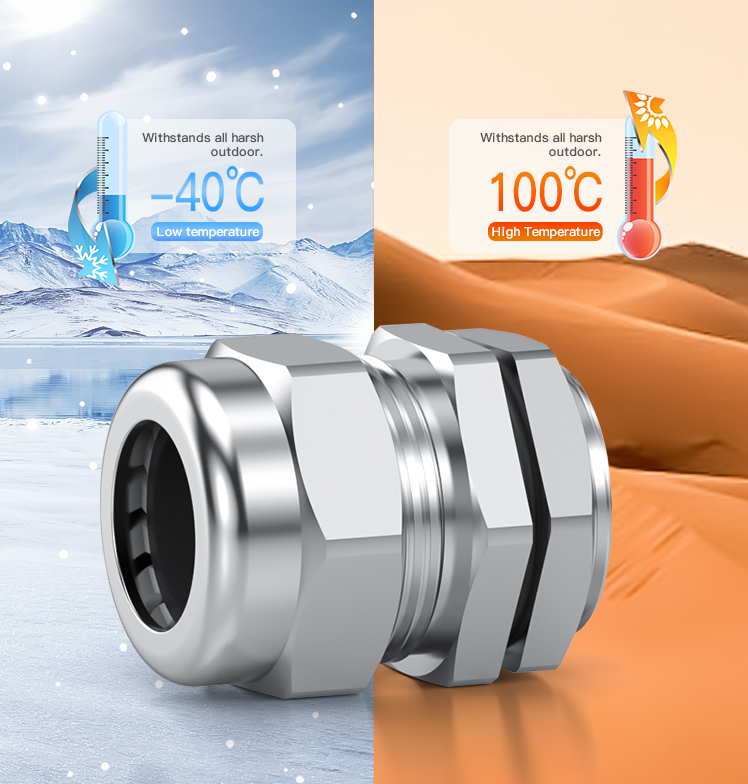

Performs reliably between -40°C and +120°C, suitable for extreme environments.
Available in PG, NPT, and Metric threads, with rubber or silicone seals for secure, simple installation.
ROHS-certified versions available for hazardous or explosive areas.
Corrosion-resistant material ensures minimal maintenance and long service life.

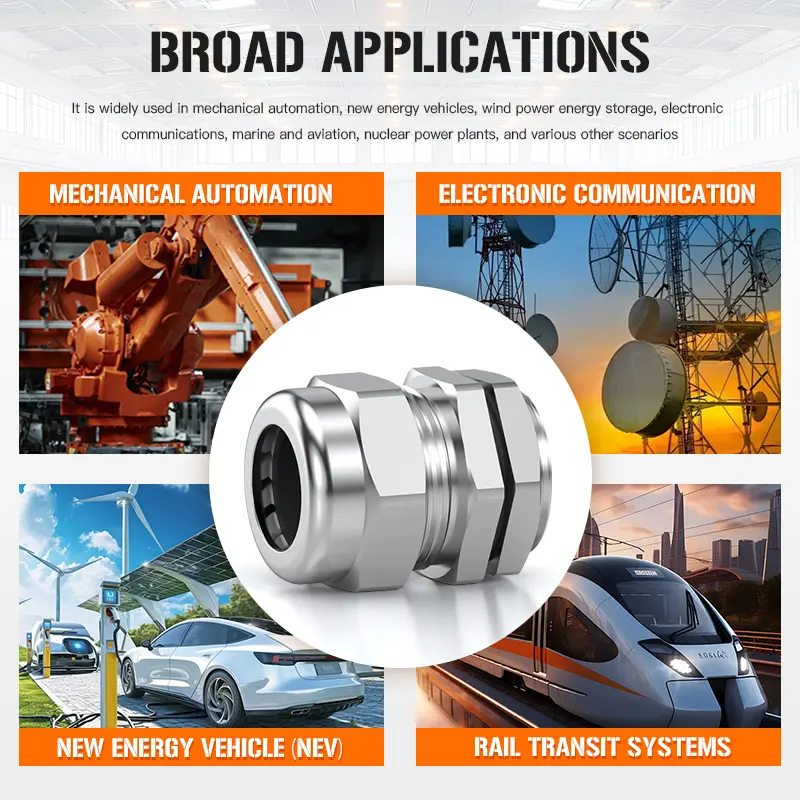

Ensures safe and reliable connections in electrical distribution and control equipment.
Withstands harsh saltwater conditions to protect vital shipboard and offshore rig wiring.
Resists corrosive chemicals and gases, ensuring safety in hazardous environments.
Protects sensitive sensor and controller connections from dust, moisture, and oil on production lines.
Maintains the integrity of signal transmission for both indoor and outdoor telecommunication infrastructure.
Provides a durable seal for street lights, landscape lighting, and architectural illuminations against rain and temperature changes.
Secures cable connections in railways, electric vehicles, and traffic control systems against vibration and weather.
Offers superior protection for wiring in solar panel installations and wind turbine control systems.

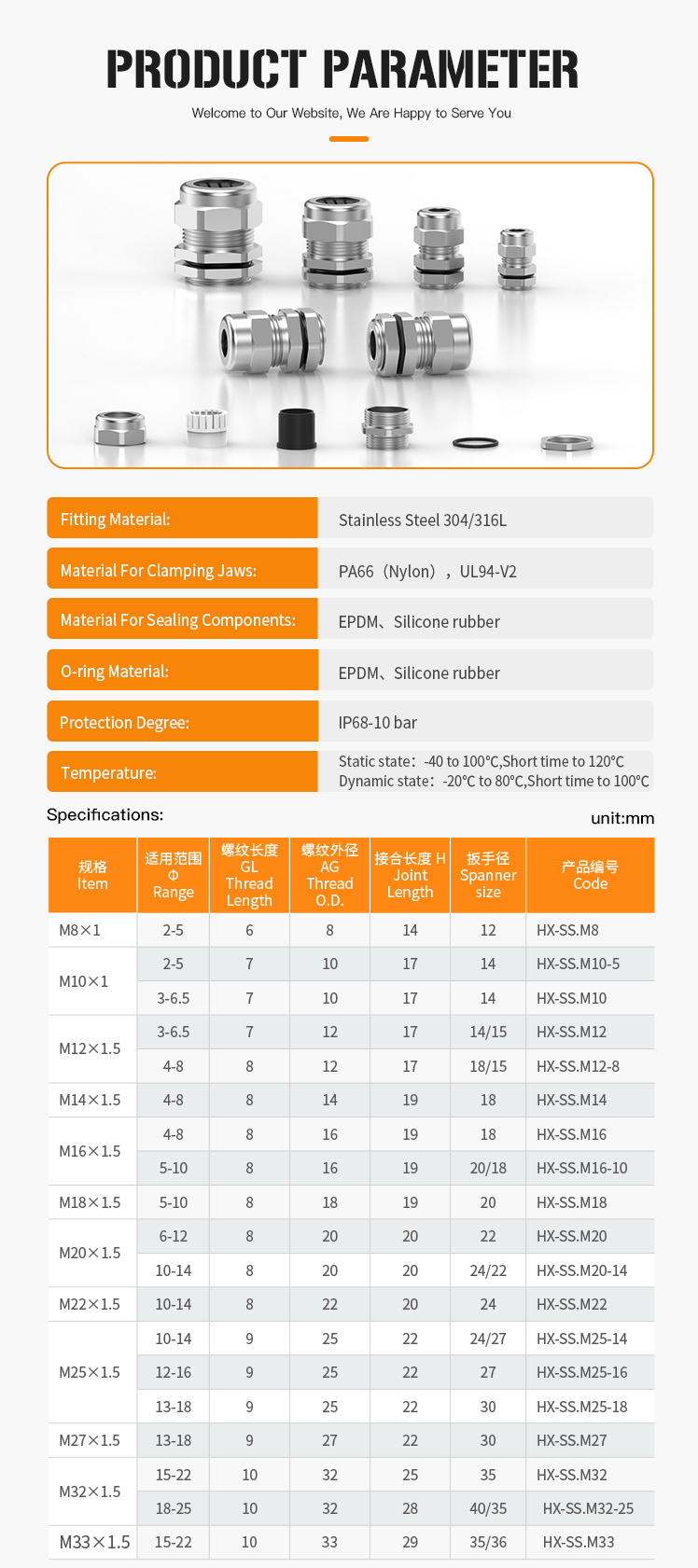

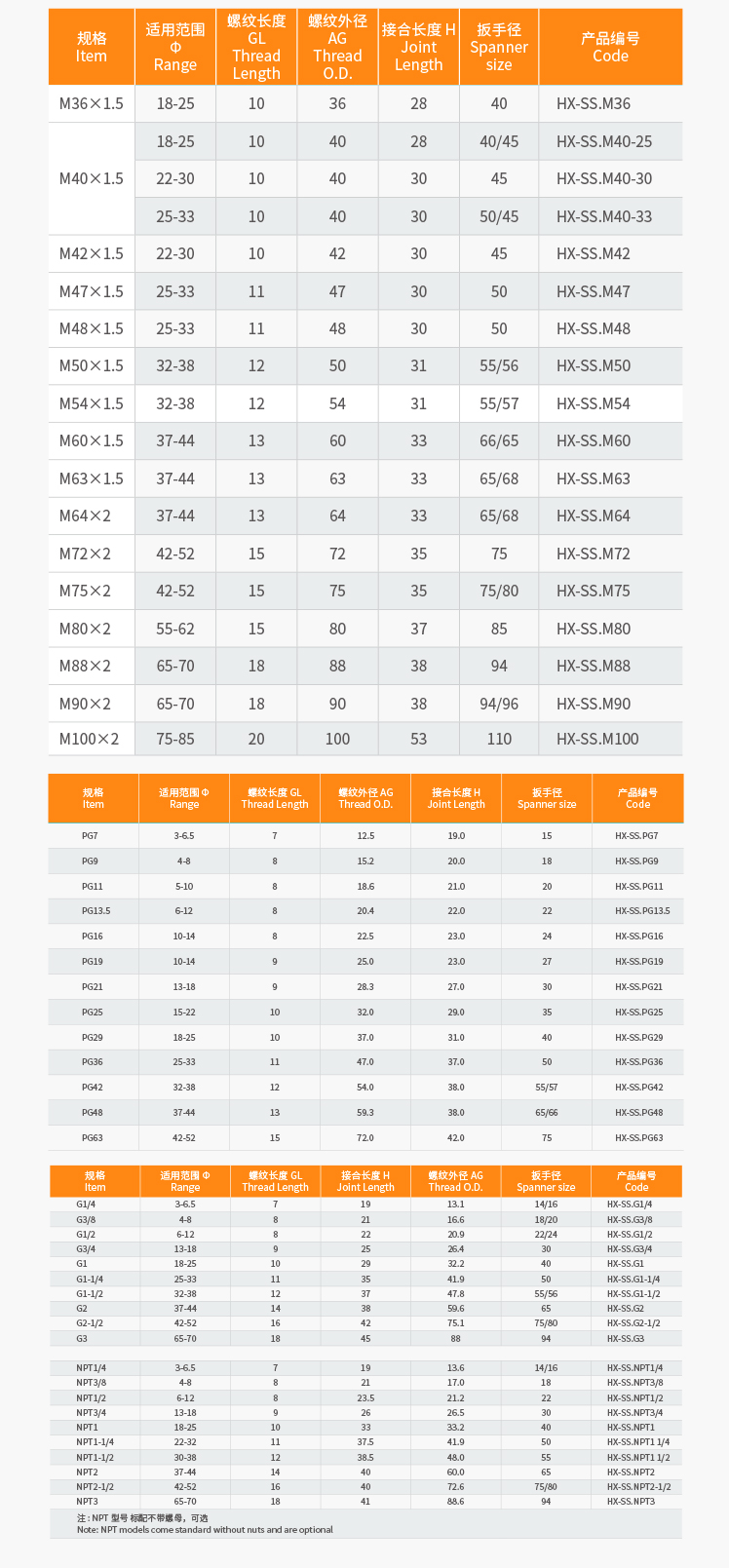

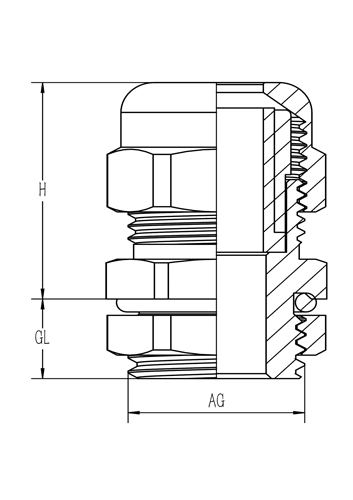

| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| M8×1 | 2-5 | 6 | 8 | 14 | 12 | HX-SS.M8 |
| M10×1 | 2-5 | 7 | 10 | 17 | 14 | HX-SS.M10-5 |
| 3-6.5 | 7 | 10 | 17 | 14 | HX-SS.M10 | |
| M12×1.5 | 3-6.5 | 7 | 12 | 17 | 14/15 | HX-SS.M12 |
| 4-8 | 8 | 12 | 17 | 18/15 | HX-SS.M12-8 | |
| M14×1.5 | 4-8 | 8 | 14 | 19 | 18 | HX-SS.M14 |
| M16×1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-SS.M16 |
| 5-10 | 8 | 16 | 19 | 20/18 | HX-SS.M16-10 | |
| M18×1.5 | 5-10 | 8 | 18 | 19 | 20 | HX-SS.M18 |
| M20×1.5 | 6-12 | 8 | 20 | 20 | 22 | HX-SS.M20 |
| 10-14 | 8 | 20 | 20 | 24/22 | HX-SS.M20-14 | |
| M22×1.5 | 10-14 | 8 | 22 | 20 | 24 | HX-SS.M22 |
| M25×1.5 | 10-14 | 9 | 25 | 22 | 24/27 | HX-SS.M25-14 |
| 12-16 | 9 | 25 | 22 | 27 | HX-SS.M25-16 | |
| 13-18 | 9 | 25 | 22 | 30 | HX-SS.M25-18 | |
| M27×1.5 | 13-18 | 9 | 27 | 22 | 30 | HX-SS.M27 |
| M32×1.5 | 15-22 | 10 | 32 | 25 | 35 | HX-SS.M32 |
| 18-25 | 10 | 32 | 28 | 40/35 | HX-SS.M32-25 | |
| M33×1.5 | 15-22 | 10 | 33 | 29 | 35/36 | HX-SS.M33 |
| M36×1.5 | 18-25 | 10 | 36 | 28 | 40 | HX-SS.M36 |
| M40×1.5 | 18-25 | 10 | 40 | 28 | 40/45 | HX-SS.M40-25 |
| 22-30 | 10 | 40 | 30 | 45 | HX-SS.M40-30 | |
| 25-33 | 10 | 40 | 30 | 50/45 | HX-SS.M40-33 | |
| M42×1.5 | 22-30 | 10 | 42 | 30 | 45 | HX-SS.M42 |
| M47×1.5 | 25-33 | 11 | 47 | 30 | 50 | HX-SS.M47 |
| M48×1.5 | 25-33 | 11 | 48 | 30 | 50 | HX-SS.M48 |
| M50×1.5 | 32-38 | 12 | 50 | 31 | 55/56 | HX-SS.M50 |
| M54×1.5 | 32-38 | 12 | 54 | 31 | 55/57 | HX-SS.M54 |
| M60×1.5 | 37-44 | 13 | 60 | 33 | 66/65 | HX-SS.M60 |
| M63×1.5 | 37-44 | 13 | 63 | 33 | 65/68 | HX-SS.M63 |
| M64×2 | 37-44 | 13 | 64 | 33 | 65/68 | HX-SS.M64 |
| M72×2 | 42-52 | 15 | 72 | 35 | 75 | HX-SS.M72 |
| M75×2 | 42-52 | 15 | 75 | 35 | 75/80 | HX-SS.M75 |
| M80×2 | 55-62 | 15 | 80 | 37 | 85 | HX-SS.M80 |
| M88×2 | 65-70 | 18 | 88 | 38 | 94 | HX-SS.M88 |
| M90×2 | 65-70 | 18 | 90 | 38 | 94/96 | HX-SS.M90 |
| M100×2 | 75-85 | 20 | 100 | 53 | 110 | HX-SS.M100 |
| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| PG7 | 3-6.5 | 7 | 12.5 | 19.0 | 15 | HX-SS.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 20.0 | 18 | HX-SS.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 21.0 | 20 | HX-SS.PG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22.0 | 22 | HX-SS.PG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23.0 | 24 | HX-SS.PG16 |
| PG19 | 10-14 | 9 | 25.0 | 23.0 | 27 | HX-SS.PG19 |
| PG21 | 13-18 | 9 | 28.3 | 27.0 | 30 | HX-SS.PG21 |
| PG25 | 15-22 | 10 | 32.0 | 29.0 | 35 | HX-SS.PG25 |
| PG29 | 18-25 | 10 | 37.0 | 31.0 | 40 | HX-SS.PG29 |
| PG36 | 25-33 | 11 | 47.0 | 37.0 | 50 | HX-SS.PG36 |
| PG42 | 32-38 | 12 | 54.0 | 38.0 | 55/57 | HX-SS.PG42 |
| PG48 | 37-44 | 13 | 59.3 | 38.0 | 65/66 | HX-SS.PG48 |
| PG63 | 42-52 | 15 | 72.0 | 42.0 | 75 | HX-SS.PG63 |
| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| G1/4 | 3-6.5 | 7 | 19 | 13.1 | 14/16 | HX-SS.G14 |
| G3/8 | 48 | 8 | 21 | 16.6 | 18/20 | HX-SS.G3/8 |
| G1/2 | 45820 | 8 | 22 | 20.9 | 22/24 | HX-SS.G1/2 |
| G3/4 | 13-18 | 9 | 25 | 26.4 | 30 | HX-SS.G3/4 |
| G1 | 18-25 | 10 | 29 | 32.2 | 40 | HX-SS.G1 |
| G1-1/4 | 25-33 | 11 | 35 | 41.9 | 50 | HX-SS.G1-1/4 |
| G1-1/2 | 32-38 | 12 | 37 | 47.8 | 55/56 | HX-SS.G1-1/2 |
| G2 | 37-44 | 14 | 38 | 59.6 | 65 | HX-SS.G2 |
| G2-1/2 | 42-52 | 16 | 42 | 75.1 | 75/80 | HX-SS.G2-1/2 |
| G3 | 65-70 | 18 | 45 | 88 | 94 | HX-SS.G3 |
| NPT1/4 | 3-6.5 | 7 | 19 | 13.6 | 14/16 | HX-SS.NPT1/4 |
| NPT3/8 | 4-8 | 8 | 21 | 17.0 | 18 | HX-SS.NPT3/8 |
| NPT1/2 | 6-12 | 8 | 23.5 | 21.2 | 22 | HX-SS.NPT1/2 |
| NPT3/4 | 13-18 | 9 | 26 | 26.5 | 30 | HX-SS.NPT3/4 |
| NPT1 | 18-25 | 10 | 33 | 33.2 | 40 | HX-SS.NPT1 |
| NPT1-1/4 | 22-32 | 11 | 37.5 | 41.9 | 50 | HX-SS.NPT1 1/4 |
| NPT1-1/2 | 30-38 | 12 | 38.5 | 48.0 | 55 | HX-SS.NPT1 1/2 |
| NPT2 | 37-44 | 14 | 40 | 60.0 | 65 | HX-SS.NPT2 |
| NPT2-1/2 | 42-52 | 16 | 40 | 72.6 | 75/80 | HX-SS.NPT2-1/2 |
| NPT3 | 65-70 | 18 | 41 | 88.6 | 94 | HX-SS.NPT3 |

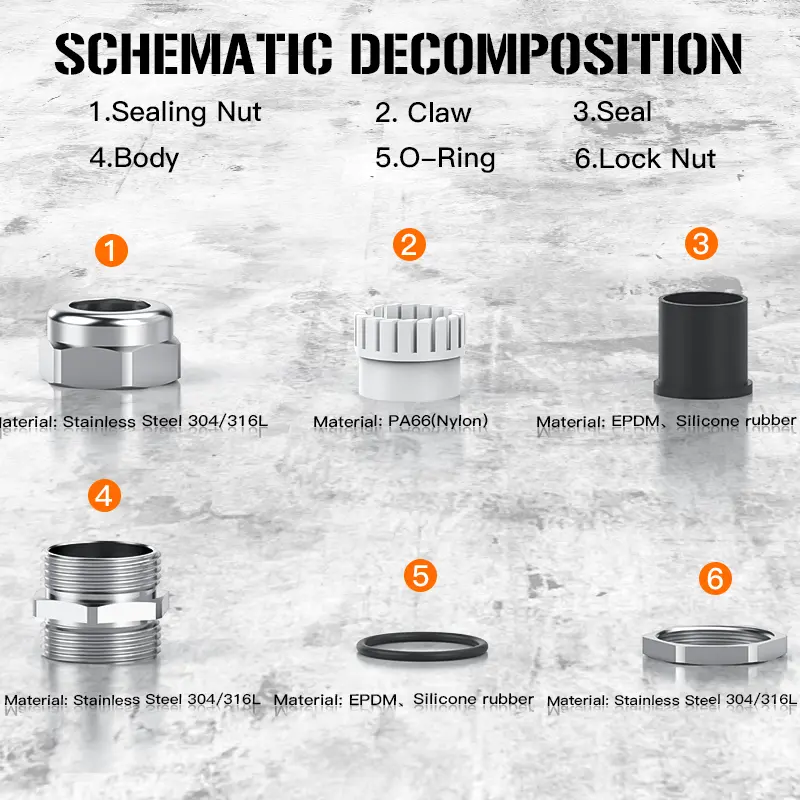

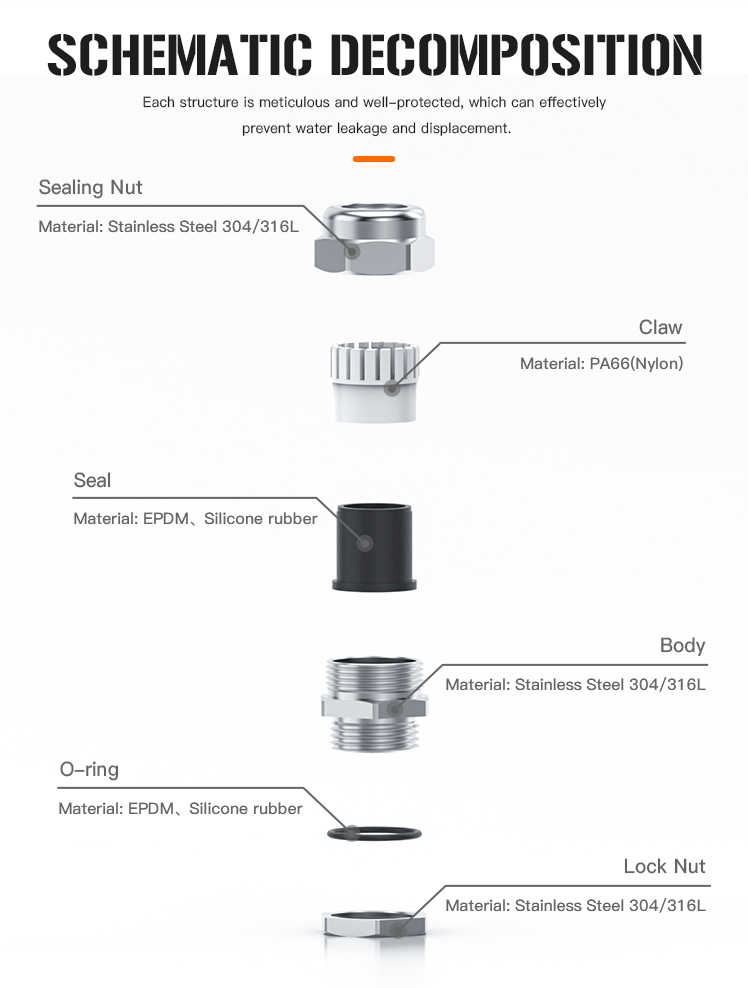

They are precision-machined from high-grade 304 or 316 stainless steel and fitted with premium rubber or silicone seals, delivering superior corrosion and chemical resistance in harsh environments.

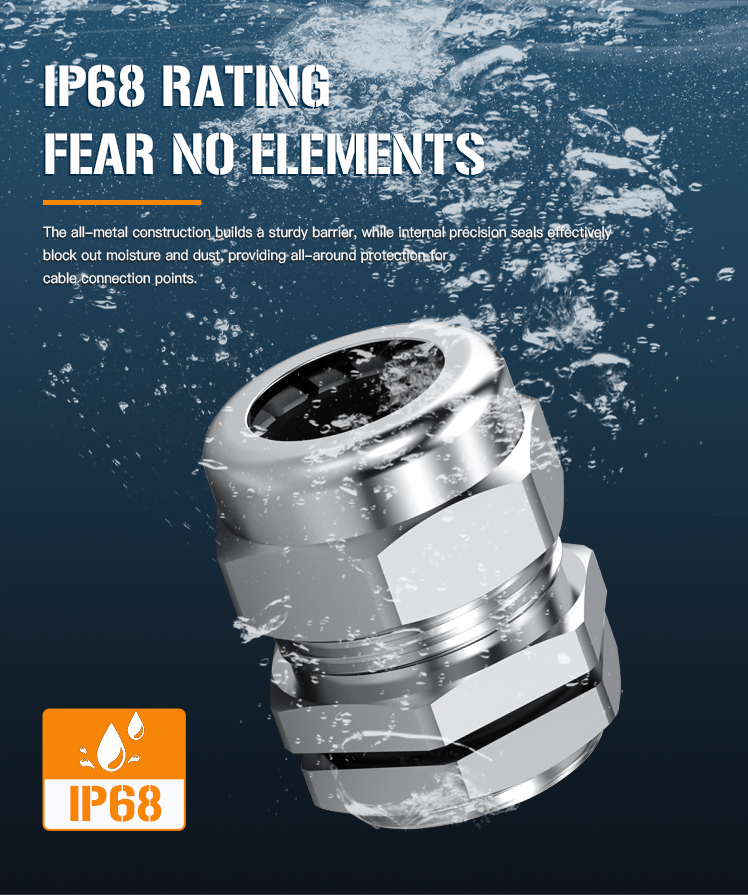

These cable glands carry an IP68 waterproof and dustproof certification, completely sealing against moisture, dirt, and oil, and function reliably across a wide operating temperature range of -40°C to +120°C.
A comprehensive selection of thread types is offered, including Metric (M8 to M100), German standard PG (PG7 to PG63), Gas thread G (G1/4 to G3), and American standard NPT (NPT1/4 to NPT3).
NPT thread models are supplied standard without nuts, but locknuts are available as an optional accessory upon request.
Yes, explosion-proof and ROHS-certified variations are available specifically designed to operate safely in hazardous, chemical, and explosive industrial areas.
The products comply with recognized international standards and carry global certifications including CE, UL, and RoHS.
