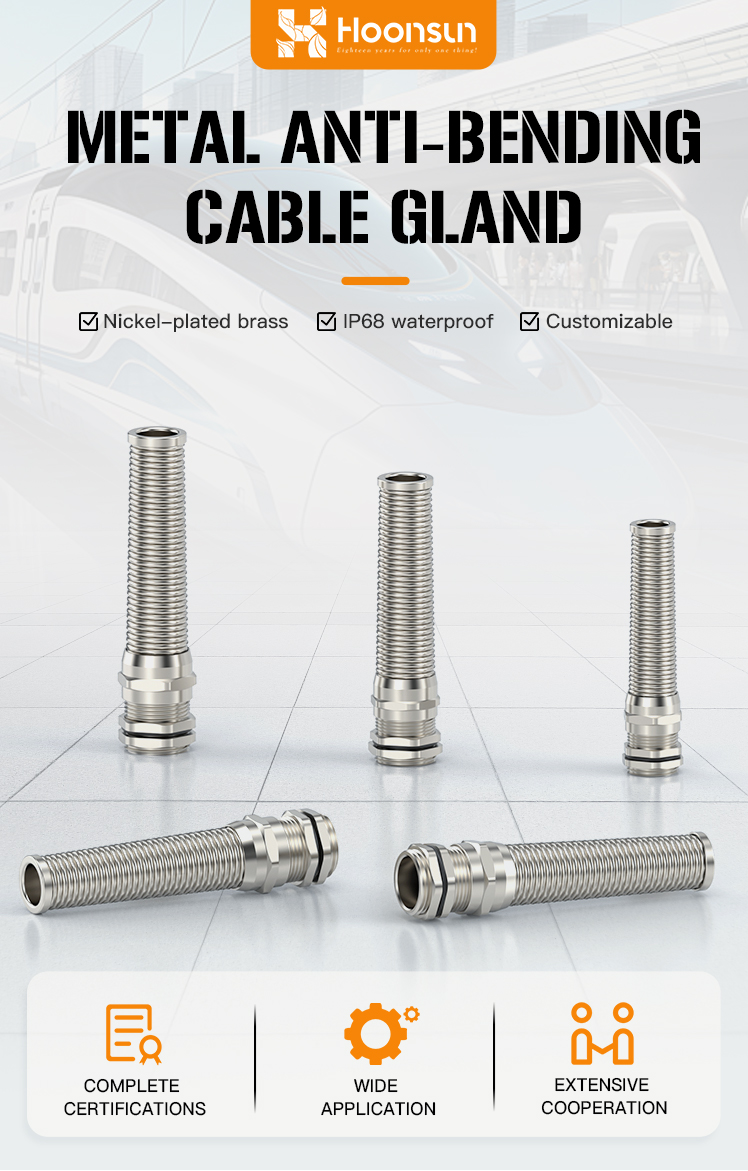

Product Description
Product Highlights
Key Benefits
Extends Cable Life
Prevents sharp bending and reduces cable breakage

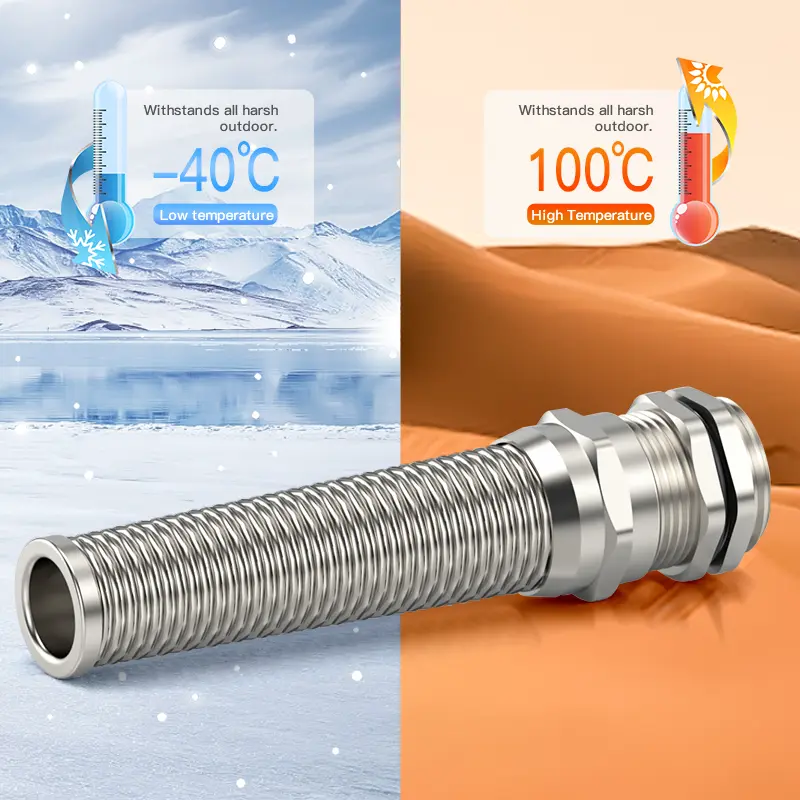

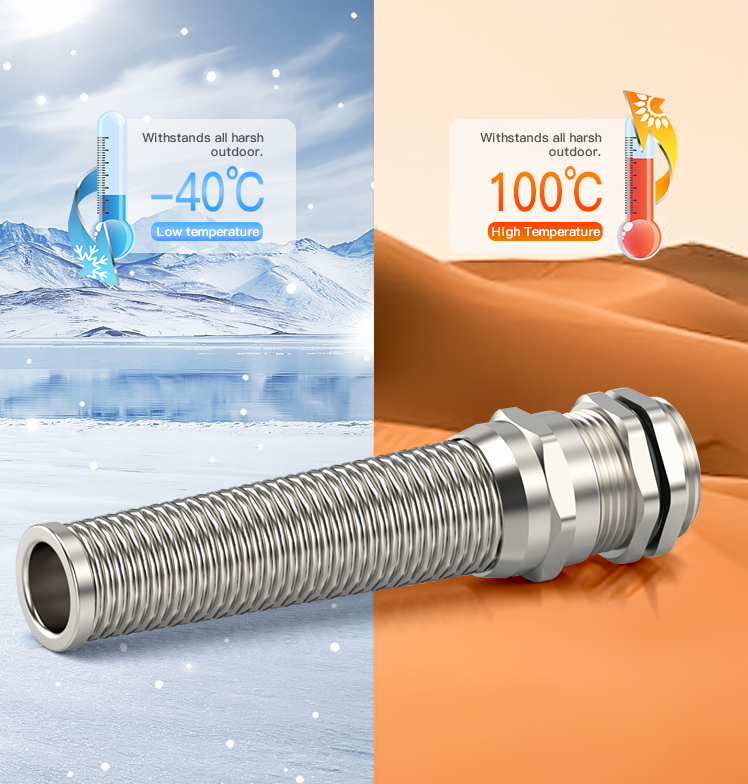

Durable & Corrosion-Resistant
Withstands harsh industrial and outdoor conditions
Reliable Sealing
IP68 rating ensures protection against water and dust
Secure Connection
Maintains cable stability during movement and vibration
Easy Installation
Simplifies setup for efficient integration
Applications
This metal anti-bending cable gland is ideal for a wide range of applications where cables are exposed to movement, stress, or harsh conditions:
Industrial Machinery & Automation
CNC machines, robotic arms, assembly lines, and control panels.
Outdoor & Marine Equipment
Street lighting, traffic signals, maritime vessels, and dock-side equipment.
Public & Commercial Lighting
Stadium lights, billboard lighting, garden lights, and fountain systems.
Harsh Environment Applications
Wastewater treatment plants, chemical processing facilities, and agricultural machinery.
Transportation Infrastructure
Ideal for railway signaling and control systems, onboard train equipment, electric vehicle (EV) charging stations, tunnel and subway lighting, highway traffic management systems, airport runway lighting, and bridge monitoring equipment.

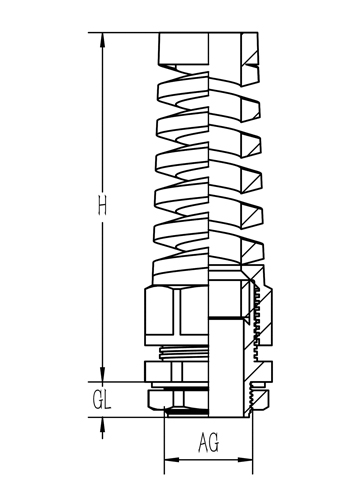

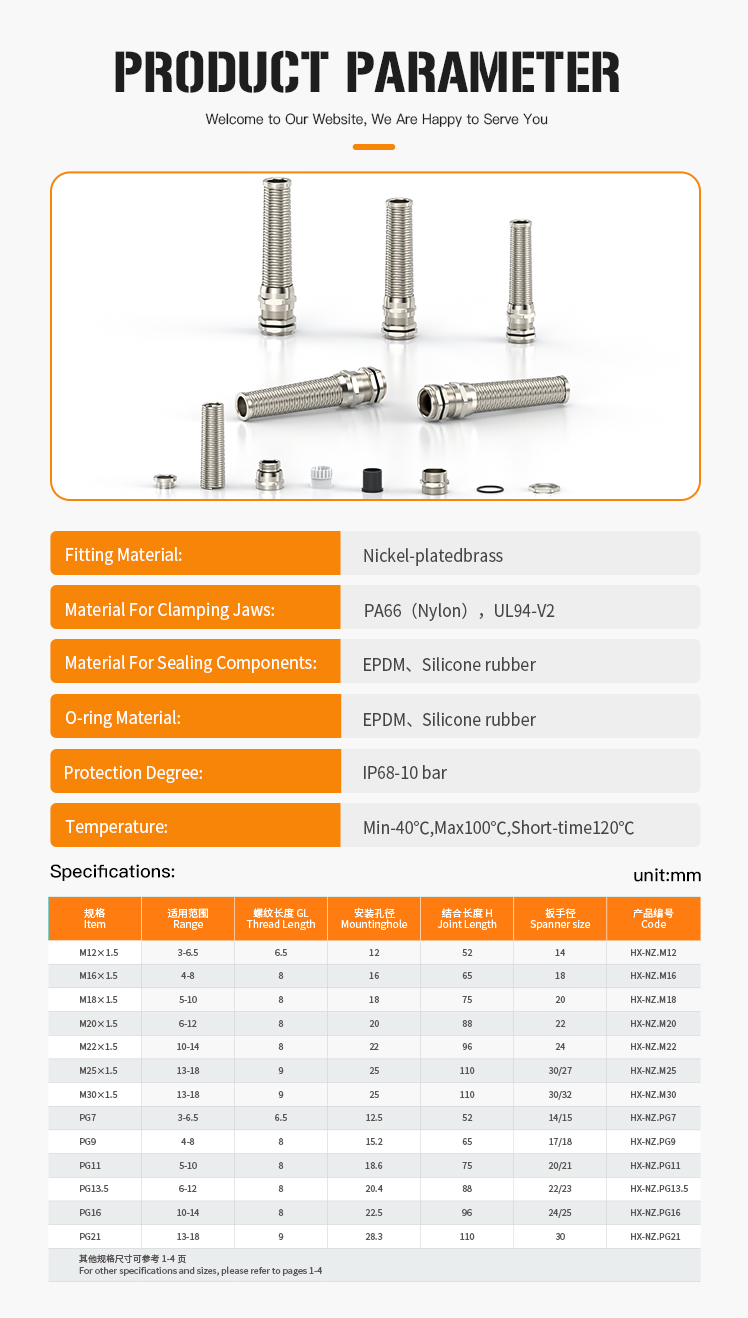

Product Parameters & Dimensions
| Item | Range | GL Thread Length | Mounting Hole | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 6.5 | 12 | 52 | 14 | HX-NZ.M12 |
| M16×1.5 | 4-8 | 8 | 16 | 65 | 18 | HX-NZ.M16 |
| M18×1.5 | 5-10 | 8 | 18 | 75 | 20 | HX-NZ.M18 |
| M20×1.5 | 6-12 | 8 | 20 | 88 | 22 | HX-NZ.M20 |
| M22×1.5 | 10-14 | 8 | 22 | 96 | 24 | HX-NZ.M22 |
| M25×1.5 | 13-18 | 9 | 25 | 110 | 30/27 | HX-NZ.M25 |
| M30×1.5 | 13-18 | 9 | 25 | 110 | 30/32 | HX-NZ.M30 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 52 | 14/15 | HX-NZ.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 65 | 17/18 | HX-NZ.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 75 | 20/21 | HX-NZ.PG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 88 | 22/23 | HX-NZ.PG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 96 | 24/25 | HX-NZ.PG16 |
| PG21 | 13-18 | 9 | 28.3 | 110 | 30 | HX-NZ.PG21 |
Detailed Images
Frequently Asked Questions (FAQ)

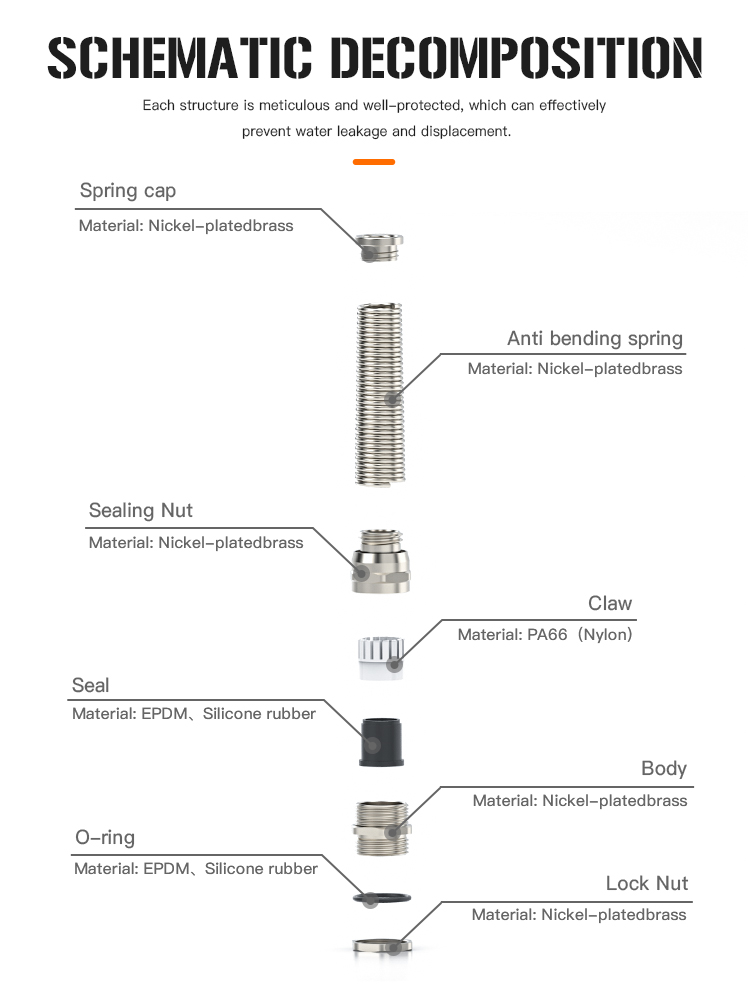

What materials are available for this anti-bending cable gland?

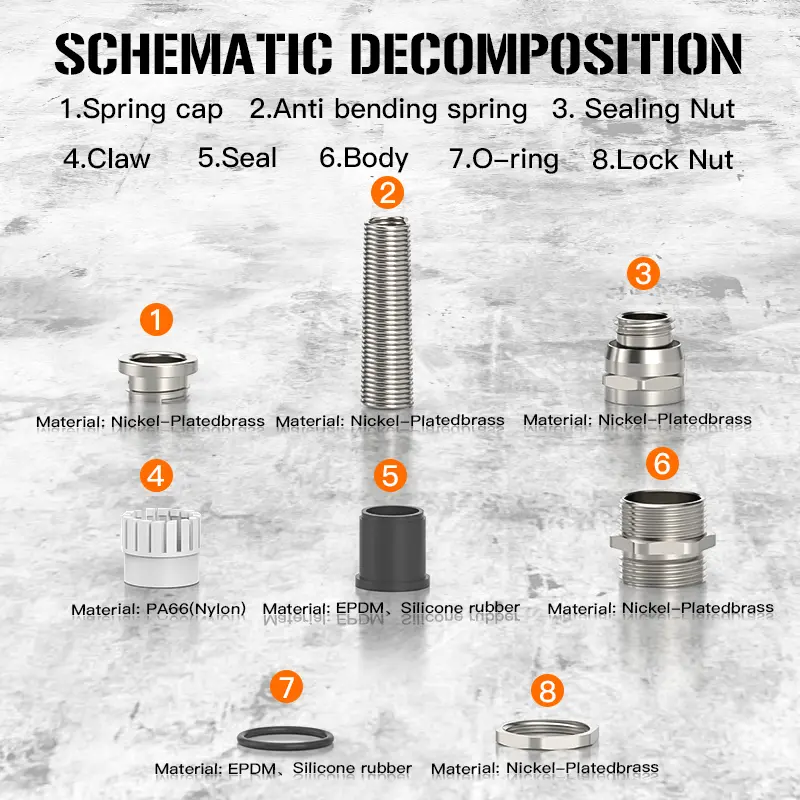

This cable gland is manufactured using premium brass or high-grade stainless steel, providing exceptional mechanical strength and corrosion resistance across various operating environments.
What does the IP68 rating signify?
The IP68 rating certifies that the gland offers complete protection against dust ingress and continuous submersion in water, ensuring safe and reliable operation in wet, outdoor, or submersible conditions.
How does the spiral spring/sleeve protect the cable?
The integrated flexible spring or sleeve prevents sharp bends at the entry point, distributing bending stress evenly to extend cable lifespan and eliminate internal wire fractures caused by dynamic motion or vibration.
What thread standards are supported?
We supply full series in both Metric threads (M12×1.5 to M30×1.5) and PG threads (PG7 to PG21) to fit diverse enclosure cutouts and international equipment standards.
Does this product have international safety certification?
Yes, this metal anti-bending cable gland holds UL certification, ensuring full compliance with stringent safety and performance standards for industrial and commercial projects.
Can these glands be used in dynamic moving equipment?
Absolutely. The built-in strain relief mechanism and flexible anti-bending structure are specifically engineered for robotic arms, moving gantry machinery, cranes, and port equipment subjected to frequent movement.
