Product Description
Product Highlights
Certified for ultimate safety and complete dust/waterproof protection.
Prevents cable kinking and stress in tight spaces.
Saves time and labor for secure, vibration-proof connections.
Made of flame-retardant, high-strength PA66 Nylon for durability.
Available in Metric, PG, and NPT threads to fit worldwide equipment.
Built for high-movement applications in robotics and automation.
Applications
Key Benefits
The anti-bending design drastically reduces failure points, lowering maintenance costs and downtime.
IP68 sealing and vibration resistance prevent failures caused by contaminants and movement.
The quick-connect design slashes project time and simplifies future modifications.
UL, CE, and RoHS certifications ensure your products meet international market requirements.
The robust nylon construction resists impact, chemicals, and UV exposure for long-term performance.
Product Parameters
unit: mm

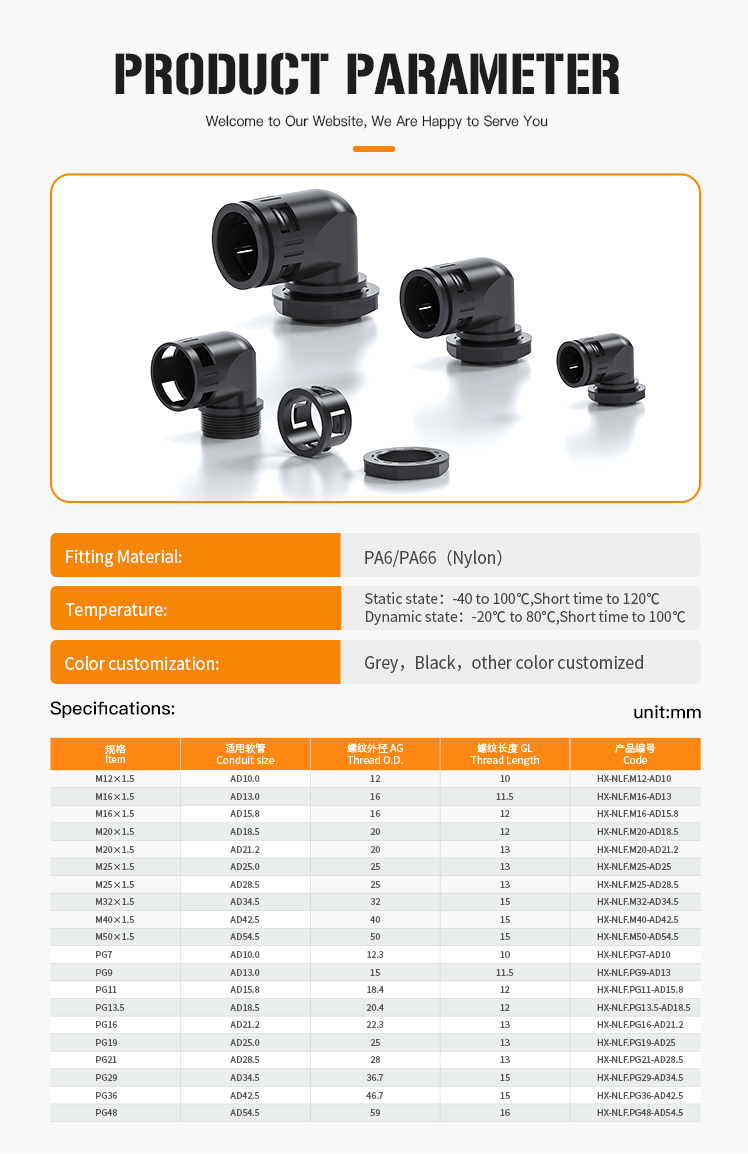

| Item | Conduit size | AG Thread O.D. | GL Thread Length | Code |
|---|---|---|---|---|
| M12Γ1.5 | AD10.0 | 12 | 10 | HX-NLF.M12-AD10 |
| M16Γ1.5 | AD13.0 | 16 | 11.5 | HX-NLF.M16-AD13 |
| M16Γ1.5 | AD15.8 | 16 | 12 | HX-NLF.M16-AD15.8 |
| M20Γ1.5 | AD18.5 | 20 | 12 | HX-NLF.M20-AD18.5 |
| M20Γ1.5 | AD21.2 | 20 | 13 | HX-NLF.M20-AD21.2 |
| M25Γ1.5 | AD25.0 | 25 | 13 | HX-NLF.M25-AD25 |
| M25Γ1.5 | AD28.5 | 25 | 13 | HX-NLF.M25-AD28.5 |
| M32Γ1.5 | AD34.5 | 32 | 15 | HX-NLF.M32-AD34.5 |
| M40Γ1.5 | AD42.5 | 40 | 15 | HX-NLF.M40-AD42.5 |
| M50Γ1.5 | AD54.5 | 50 | 15 | HX-NLF.M50-AD54.5 |
| PG7 | AD10.0 | 12.3 | 10 | HX-NLF.PG7-AD10 |
| PG9 | AD13.0 | 15 | 11.5 | HX-NLF.PG9-AD13 |
| PG11 | AD15.8 | 18.4 | 12 | HX-NLF.PG11-AD15.8 |
| PG13.5 | AD18.5 | 20.4 | 12 | HX-NLF.PG13.5-AD18.5 |
| PG16 | AD21.2 | 22.3 | 13 | HX-NLF.PG16-AD21.2 |
| PG19 | AD25.0 | 25 | 13 | HX-NLF.PG19-AD25 |
| PG21 | AD28.5 | 28 | 13 | HX-NLF.PG21-AD28.5 |
| PG29 | AD34.5 | 36.7 | 15 | HX-NLF.PG29-AD34.5 |
| PG36 | AD42.5 | 46.7 | 15 | HX-NLF.PG36-AD42.5 |
| PG48 | AD54.5 | 59 | 16 | HX-NLF.PG48-AD54.5 |
Detailed Images
Frequently Asked Questions (FAQ)
The connector is IP68-rated, ensuring complete protection against dust ingress and continuous immersion in water under specified conditions.
It is made from high-grade, flame-retardant PA66 Nylon, which offers exceptional resistance to impacts, chemicals, and UV radiation.
No, the fitting features a quick-lock, tool-free mechanism allowing for fast, labor-saving assembly that remains secure and vibration-proof.
The connector is available in standard Metric, PG, and NPT threads, accommodating a wide range of industrial equipment specifications worldwide.
The 90Β° angle prevents severe bending and mechanical strain on cables located in compact spaces, reducing premature cable wear and lowering system downtime.
This connector complies with global standards, carrying certifications including UL, CE, and RoHS for assured safety and environmental standards.
