What does IP68 mean for a cable gland?

IP68 under IEC 60529 means the gland is dust-tight (6) and protected against continuous immersion in water (8) under conditions agreed between manufacturer and user. The rating is only valid when the cable outer diameter sits inside the gland's stated clamping range and the cap nut is tightened to the recommended torque.

Should I choose a metal or nylon cable gland?

Nylon PA66 glands are lightweight, corrosion-free and cost-effective for control cabinets, lighting and general outdoor equipment. Nickel-plated brass or stainless steel glands are preferred where you need mechanical strength, EMC shielding, higher vibration resistance, fire performance or exposure to oils, salt spray and UV.

Which thread standards do HOONSUN cable glands support?

HOONSUN supplies cable glands in Metric (M), PG, NPT and G (BSPP) threads. Thread length can be specified to match enclosure wall thickness, and custom thread forms are available for OEM projects.

Can HOONSUN produce custom or OEM cable glands?

Yes. As an in-house manufacturer since 2006, HOONSUN customizes thread type, thread length, seal material, clamping range, plating, colour and private-label packaging for OEM and distributor programs.

What certifications do HOONSUN cable glands carry?

Standard HOONSUN cable gland ranges are produced to CE and UL requirements with IP68 sealing performance. Test reports and certificate copies are supplied with the product catalog or on request for each specific part number.

IP68 Waterproof Nylon Union Connector for Flexible Conduit Pipe UL Certified Wholesale China Manufacturer Factory Supplier

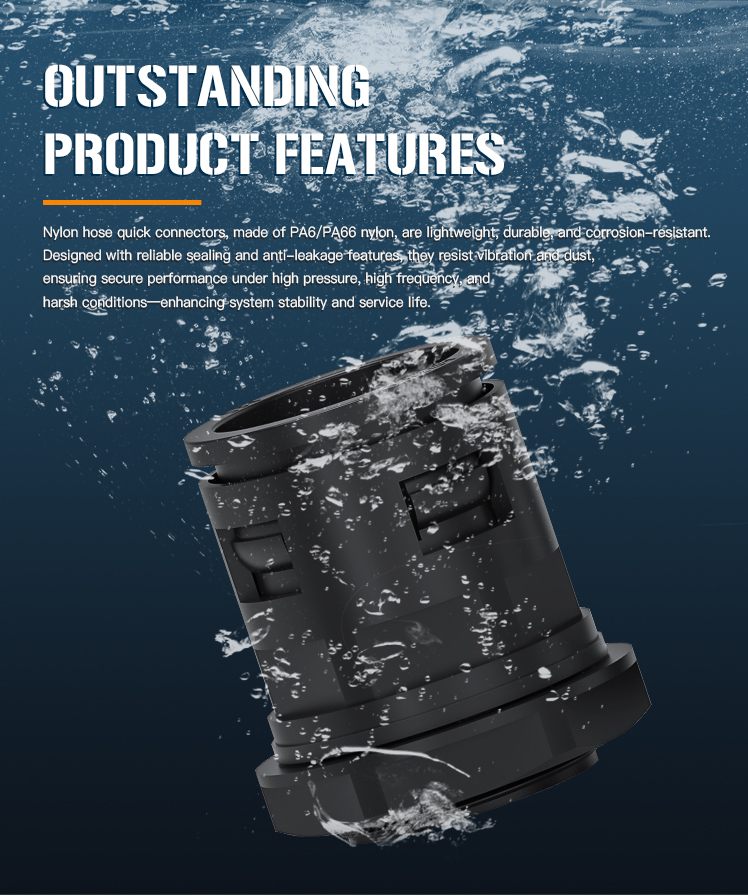

Product Highlights

🛡️

Premium Materials

Made of high-quality nylon (PA), lightweight and durable.

⚡

Superior Performance

It has IP68 waterproof and dustproof performance and is UL certified, making it safe and reliable.

🔄

Strong Compatibility

Suitable for protecting cables, air lines and fluid media.

🔧

Easy to Install

Easy to cut and connect, compatible with a variety of connectors and cable glands.

Applications

Automotive Industry: Power lines, fluid lines, and protective cables used in vehicles.

Mechanical Equipment: Suitable for factory automation systems, power transmission, and other scenarios.

Electronic & Electrical Appliances: Provides lightweight and robust protection for cables and lines.

Wide Range of Industries: Suitable for harsh industrial environments and everyday applications requiring corrosion and chemical resistance.

Key Benefits

💎

Lightweight yet Robust

Lighter than metal or rubber hoses, yet with high mechanical strength, capable of withstanding high pressure without deformation.

〰️

Excellent Flexibility

It is easy to bend and will not crack, making it ideal for compact or curved installation spaces.

💪

High Durability

It has excellent wear resistance and impact resistance, making it suitable for environments with frequent movement or vibration.

🧪

Excellent Resistance

Resistant to corrosion, oil and most chemicals, ensuring a long service life in harsh environments.

🌡️

Wide Temperature Range

It can maintain strength and flexibility in high and low temperature environments, and its performance is stable.

📈

Cost-Effective

More cost-effective than metal hoses, with a longer lifespan and lower maintenance requirements.

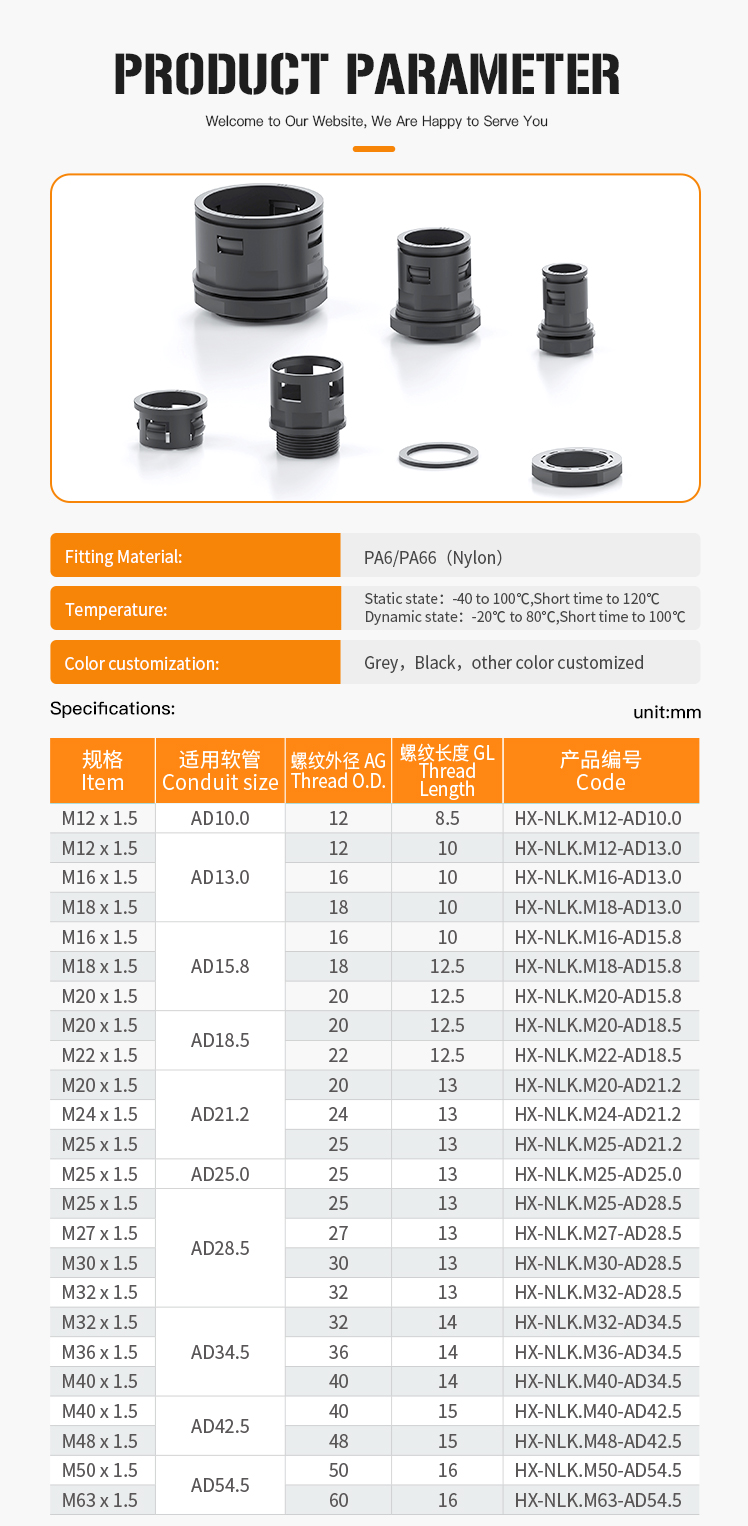

Product Specifications

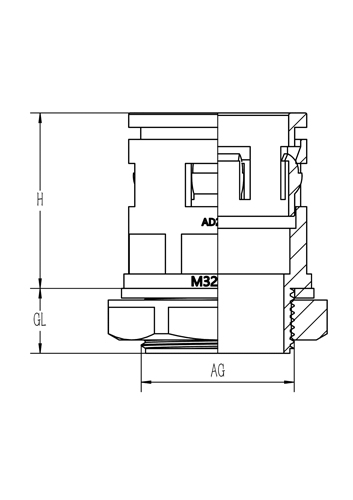

Nylon Union for Flexible Pipe with IP68 and UL

Unit: mm

Item	Conduit Size	AG Thread O.D	GL Thread Length	Code
M12x1.5	AD10.0	12	8.5	HX-NLK.M12-AD10.0
M12x1.5	AD13.0	12	10	HX-NLK.M12-AD13.0
M16x1.5		16	10	HX-NLK.M16-AD13.0
M18×1.5		18	10	HX-NLK.M18-AD13.0
M16×1.5	AD15.8	16	10	HX-NLK.M16-AD15.8
M18×1.5		18	12.5	HX-NLK.M18-AD15.8
M20x1.5		20	12.5	HX-NLK.M20-AD15.8
M20×1.5	AD18.5	20	12.5	HX-NLK.M20-AD18.5
M22×1.5	AD18.5	22	12.5	HX-NLK.M22-AD18.5
M20×1.5	AD21.2	20	13	HX-NLK.M20-AD21.2
M24x1.5		24	13	HX-NLK.M24-AD21.2
M25x1.5		25	13	HX-NLK.M25-AD21.2
M25×1.5	AD25.0	25	13	HX-NLK.M25-AD25.0
M25×1.5	AD28.5	25	13	HX-NLK.M25-AD28.5
M27x1.5		27	13	HX-NLK.M27-AD28.5
M30x1.5		30	13	HX-NLK.M30-AD28.5
M32x1.5		32	13	HX-NLK.M32-AD28.5
M32x1.5	AD34.5	32	14	HX-NLK.M32-AD34.5
M36×1.5		36	14	HX-NLK.M36-AD34.5
M40×1.5		40	14	HX-NLK.M40-AD34.5
M40x1.5	AD42.5	40	15	HX-NLK.M40-AD42.5
M48x1.5	AD42.5	48	15	HX-NLK.M48-AD42.5
M50x1.5	AD54.5	50	16	HX-NLK.M50-AD54.5
M63x1.5	AD54.5	60	16	HX-NLK.M63-AD54.5

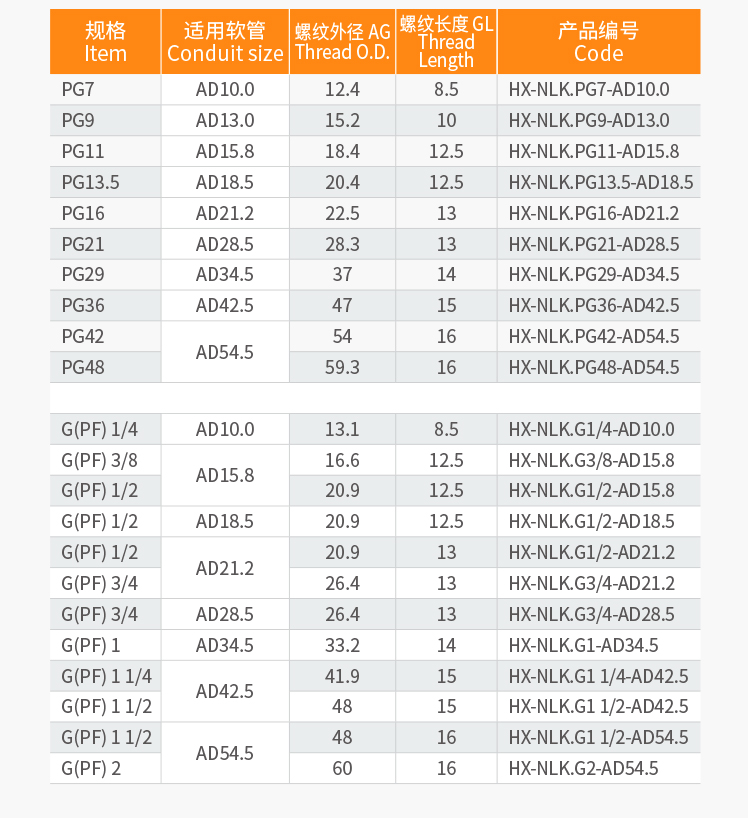

Item	Conduit Size	AG Thread O.D	GL Thread Length	Code
PG7	AD10.0	12.4	8.5	HX-NLK.PG7-AD10.0
PG9	AD13.0	15.2	10	HX-NLK.PG9-AD13.0
PG11	AD15.8	18.4	12.5	HX-NLK.PG11-AD15.8
PG13.5	AD18.5	20.4	12.5	HX-NLK.PG13.5-AD18.5
PG16	AD21.2	22.5	13	HX-NLK.PG16-AD21.2
PG21	AD28.5	28.3	13	HX-NLK.PG21-AD28.5
PG29	AD34.5	37	14	HX-NLK.PG29-AD34.5
PG36	AD42.5	47	15	HX-NLK.PG36-AD42.5
PG42	AD54.5	54	16	HX-NLK.PG42-AD54.5
PG48	AD54.5	59.3	16	HX-NLK.PG48-AD54.5

Item	Conduit Size	AG Thread O.D	GL Thread Length	Code
G(PF)1/4	AD10.0	13.1	8.5	HX-NLK.G1/4-AD10.0
G(PF)3/8	AD15.8	16.6	12.5	HX-NLK.G3/8-AD15.8
G(PF)1/2	AD15.8	20.9	12.5	HX-NLK.G1/2-AD15.8
G(PF)1/2	AD18.5	20.9	12.5	HX-NLK.G1/2-AD18.5
G(PF)1/2	AD21.2	20.9	13	HX-NLK.G1/2-AD21.2
G(PF)3/4	AD21.2	26.4	13	HX-NLK.G3/4-AD21.2
G(PF)3/4	AD28.5	26.4	13	HX-NLK.G3/4-AD28.5
G(PF)1	AD34.5	33.2	14	HX-NLK.G1-AD34.5
G(PF)1 1/4	AD42.5	41.9	15	HX-NLK.G1 1/4-AD42.5
G(PF)1 1/2	AD42.5	48	15	HX-NLK.G1 1/2-AD42.5
G(PF)1 1/2	AD54.5	48	16	HX-NLK.G1 1/2-AD54.5
G(PF)2	AD54.5	60	16	HX-NLK.G2-AD54.5

Detailed Images

1.Nylon Union for Flexible Pipe with IP68 and UL

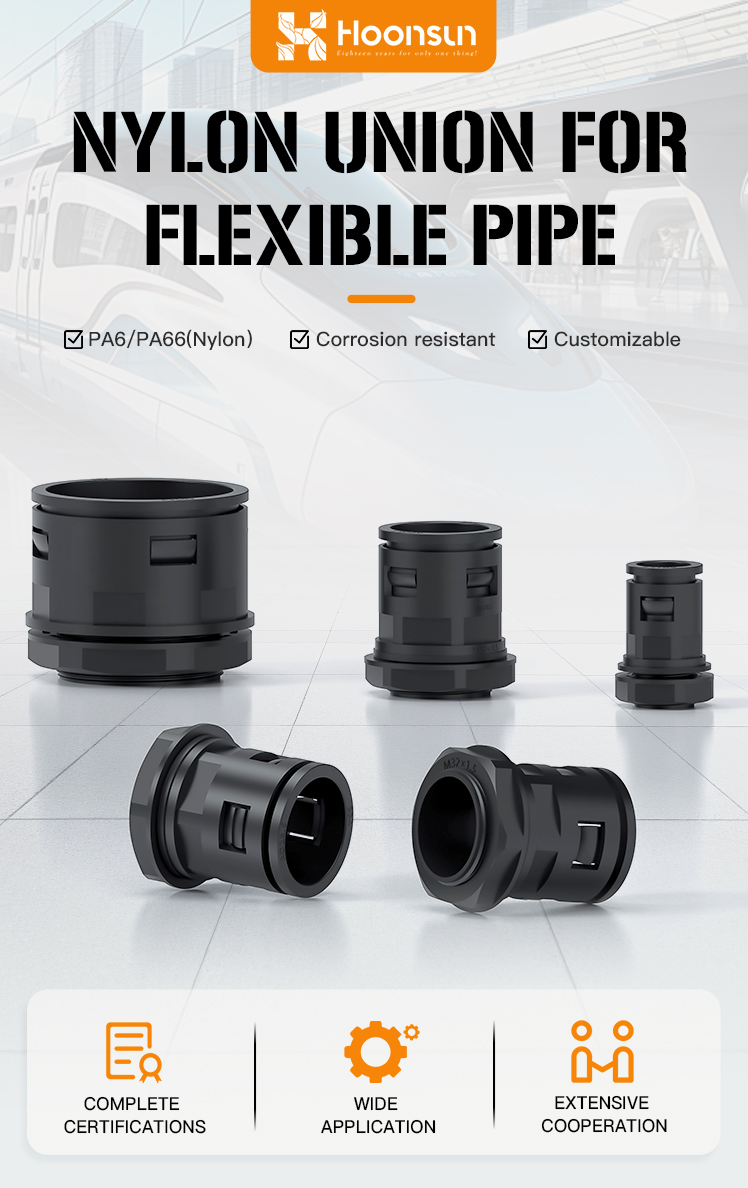

2.Nylon Union for Flexible Pipe with IP68 and UL

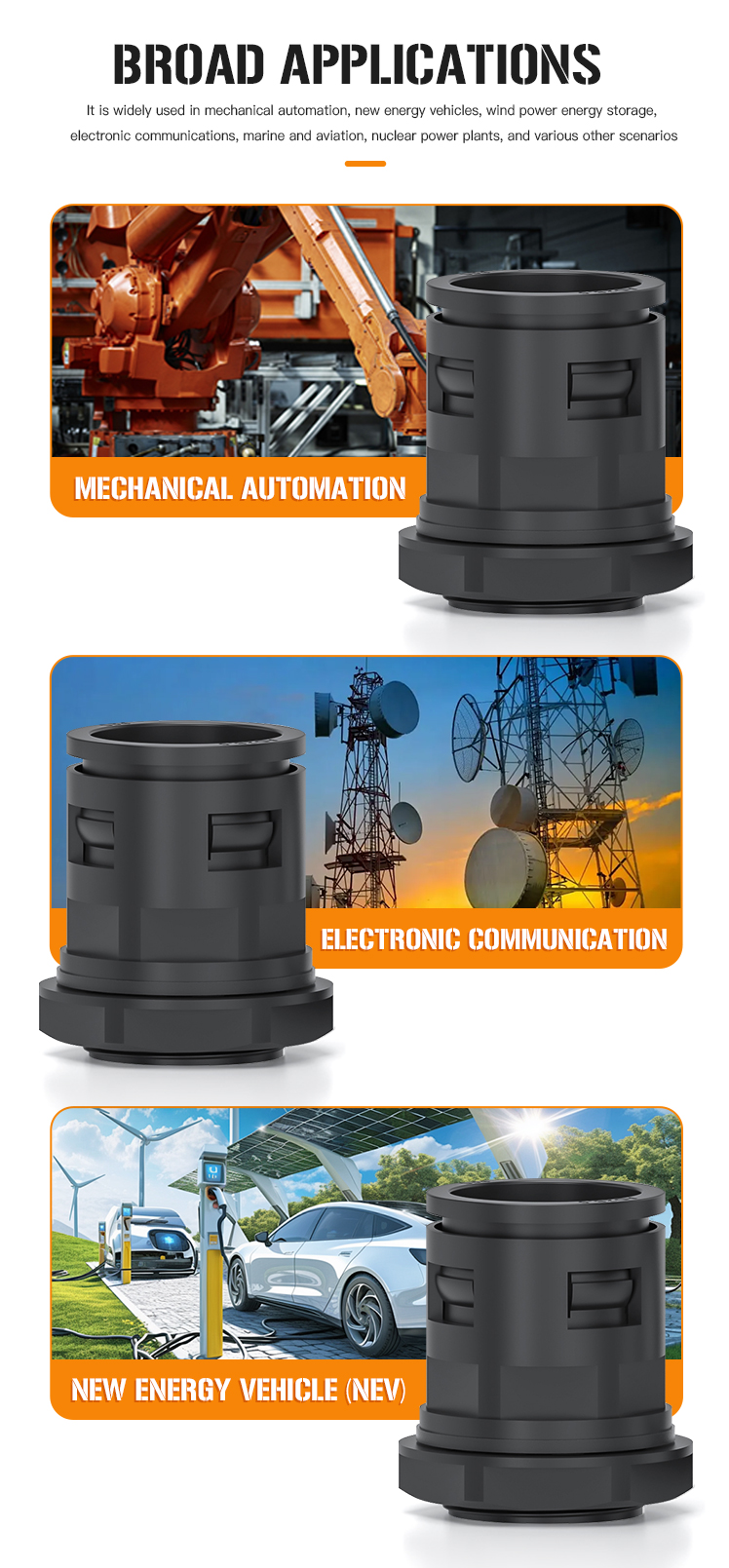

3.Nylon Union for Flexible Pipe with IP68 and UL

4.Nylon Union for Flexible Pipe with IP68 and UL

5.Nylon Union for Flexible Pipe with IP68 and UL

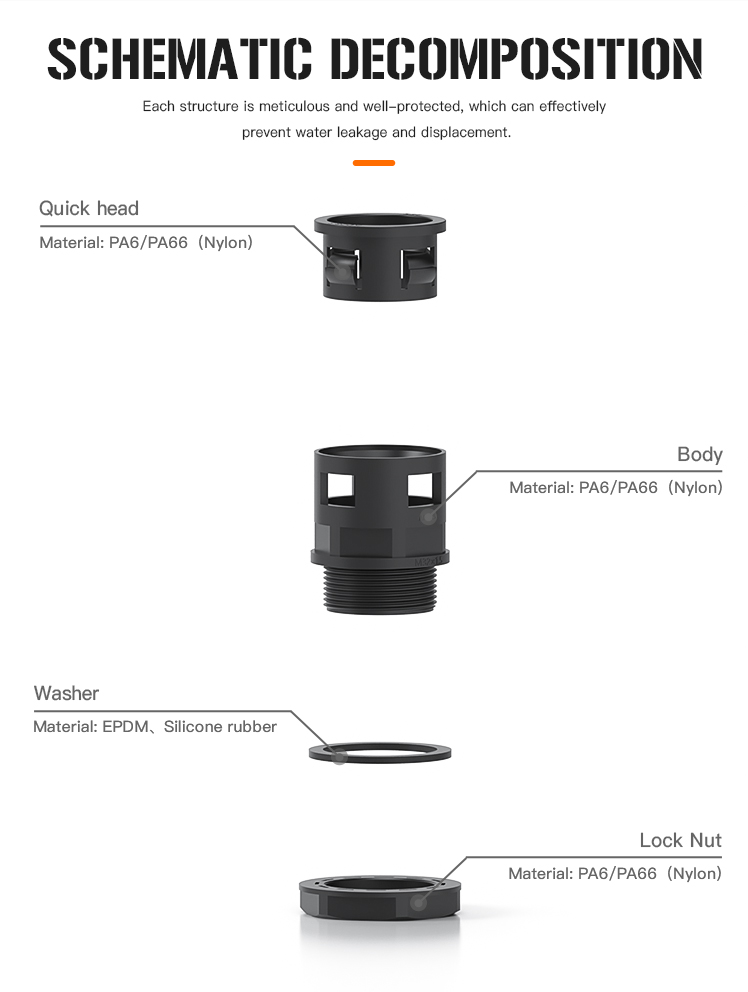

6.Nylon Union for Flexible Pipe with IP68 and UL

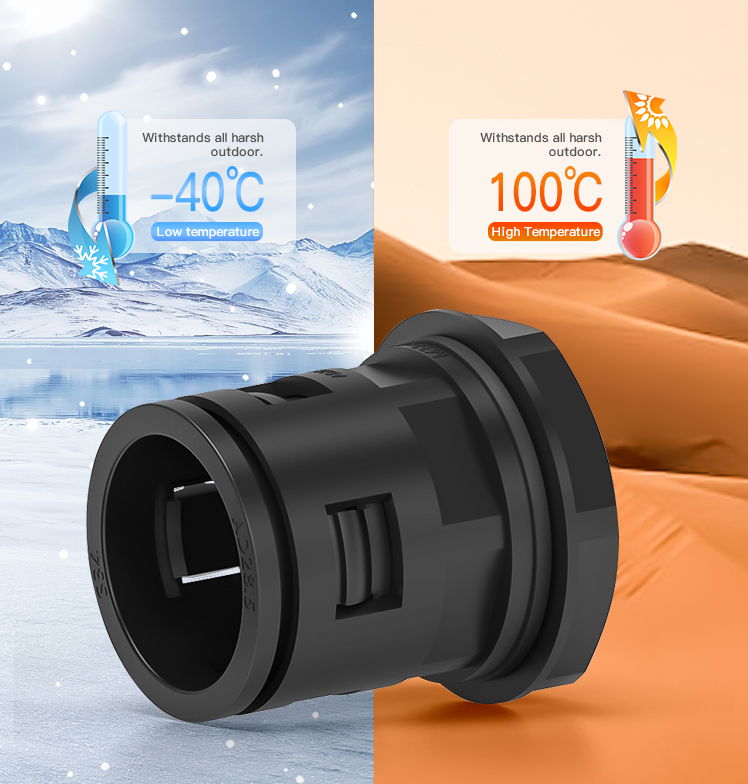

7.Nylon Union for Flexible Pipe with IP68 and UL

8.Nylon Union for Flexible Pipe with IP68 and UL

9.Nylon Union for Flexible Pipe with IP68 and UL

10.Nylon Union for Flexible Pipe with IP68 and UL

11.Nylon Union for Flexible Pipe with IP68 and UL

12.Nylon Union for Flexible Pipe with IP68 and UL

Frequently Asked Questions

❓ What material is used for this flexible pipe union?

The connector is manufactured from high-grade polyamide nylon (PA), offering superior mechanical strength, durability, and a lightweight design.

❓ What are the ingress protection (IP) rating and certifications?

It features an IP68 waterproof and dustproof rating, ensuring high reliability under harsh conditions, and complies with UL certification standards.

❓ Which thread standards are available for this connector?

We offer three major standard thread specifications: Metric (M), PG, and Gas/Pipe threads (G/PF) across multiple sizes to fit various connection requirements.

❓ Can this product be used in outdoor or harsh chemical environments?

Yes, it features excellent resistance to corrosion, oil, and most industrial chemicals, and maintains stability across a wide temperature range.

❓ What are the main application areas for these nylon unions?

They are commonly used for cable protection, pneumatic lines, and fluid containment across the automotive industry, factory automation, robotics, and electrical engineering.
