Product Description

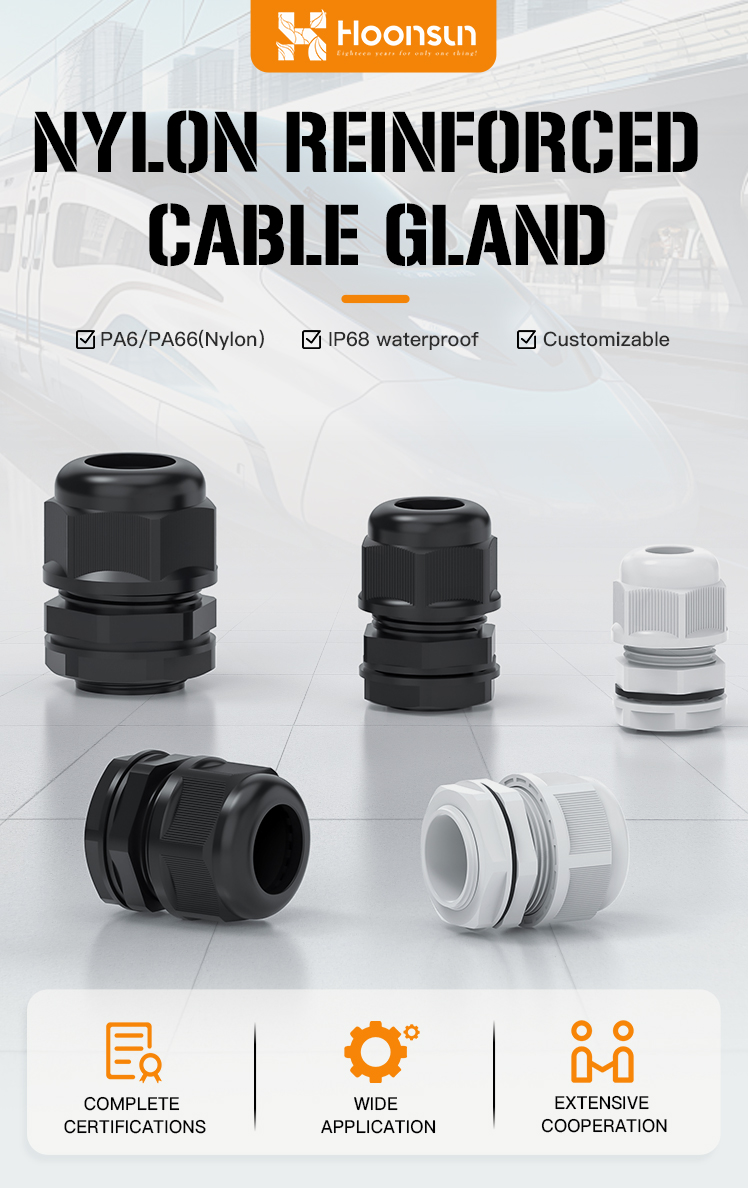

Made of PA66 nylon (UL94-V2), compliant with CE, ROHS, and rated IP68.

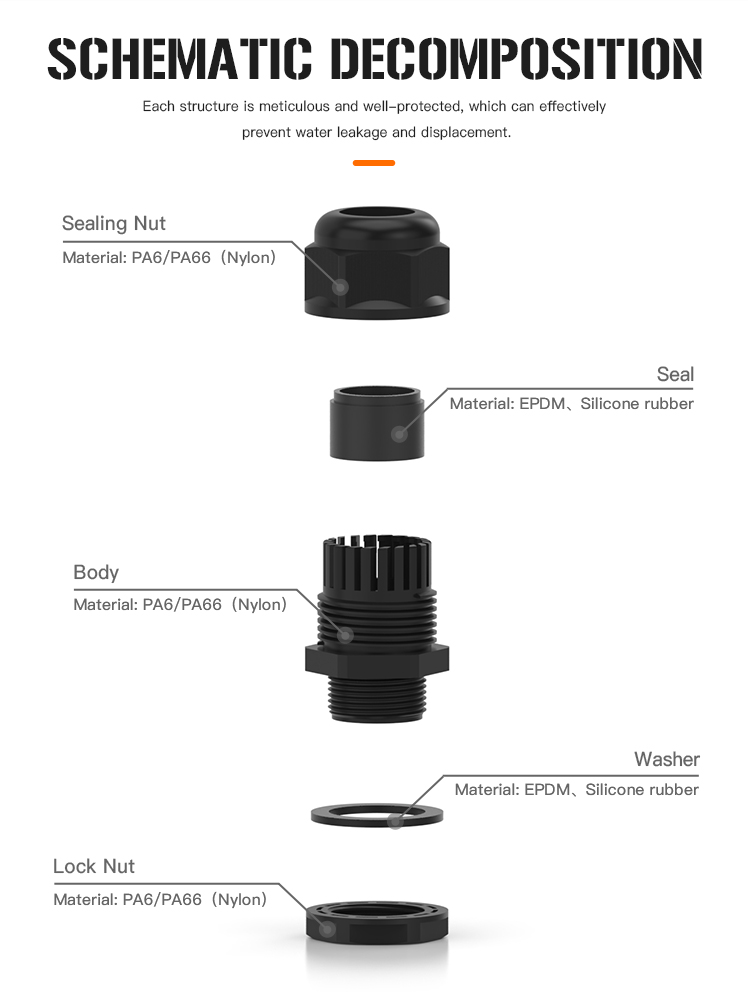

Consists of Sealing Nut, Seal, Body, Washer, and Lock Nut.

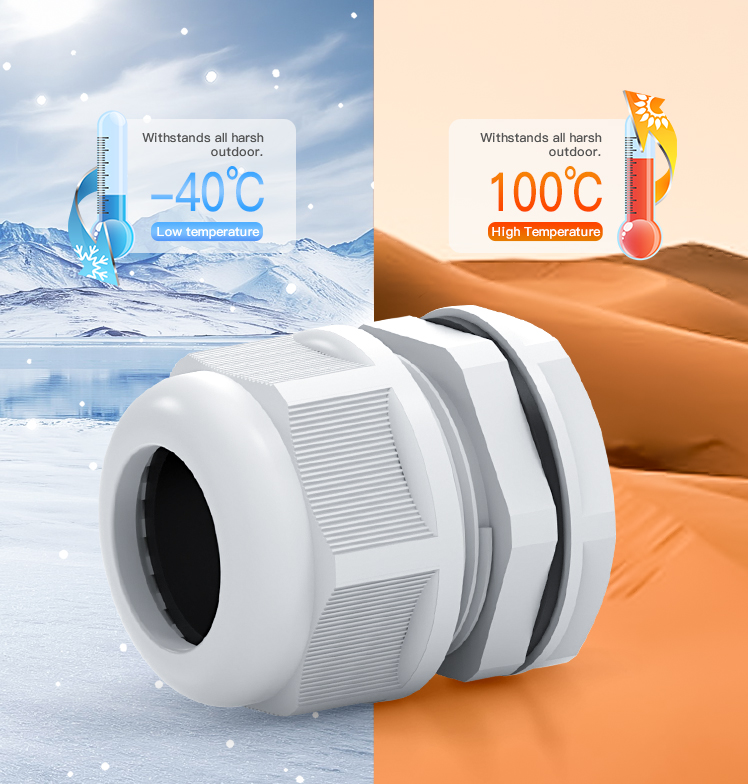

Static: -40℃ to 100℃ (short time up to 120℃); Dynamic: -20℃ to 80℃ (short time up to 100℃).
Available in grey, black, and other colors.
Ensures effective resistance against water and dust ingress.
Offers strength and longevity, with UL94-V2 flame retardancy for added safety.
Performs well in both static and dynamic temperature conditions, suitable for diverse operating environments.
Color options meet specific project or aesthetic requirements.
Uses EPDM and Silicone rubber seals/O-rings for robust hermetic sealing.

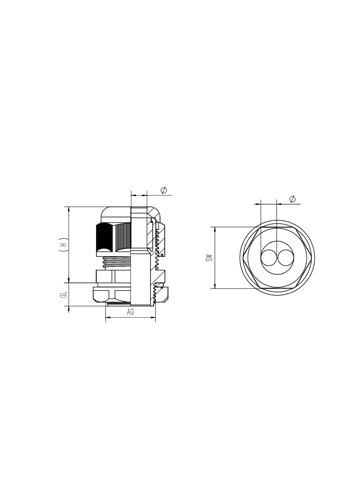

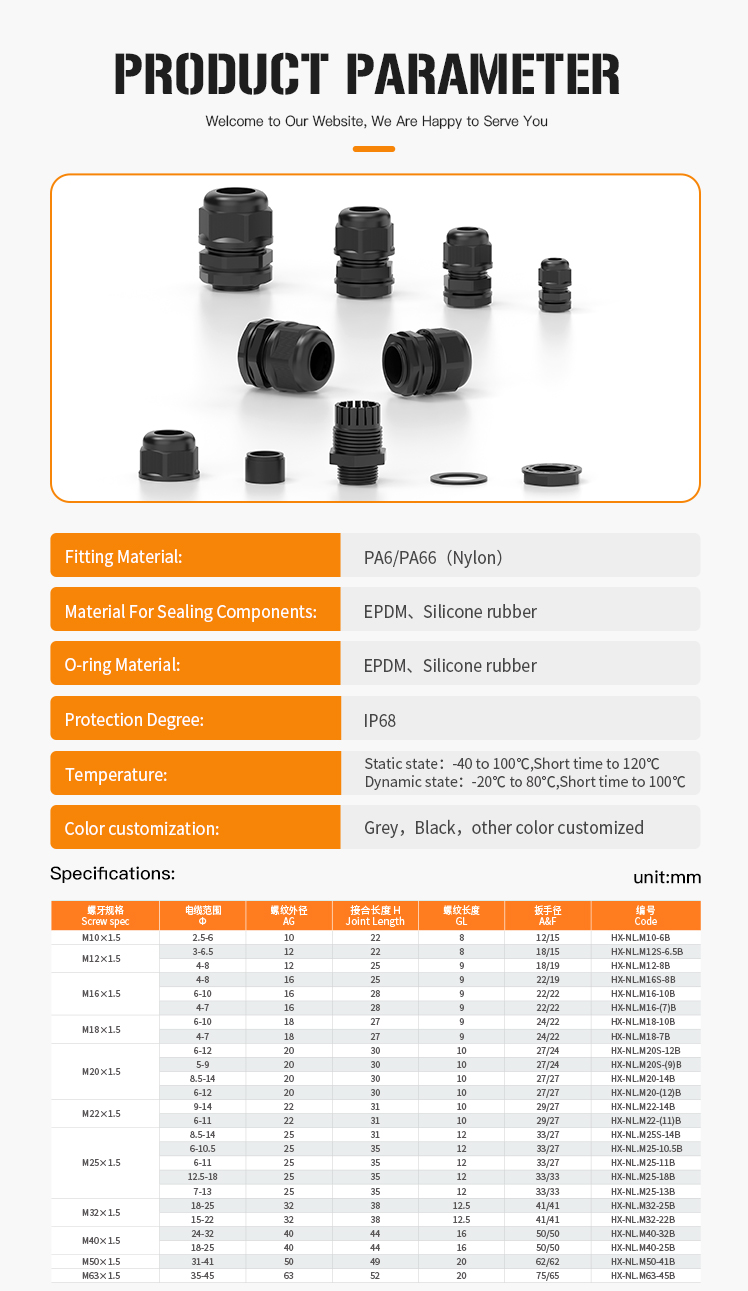

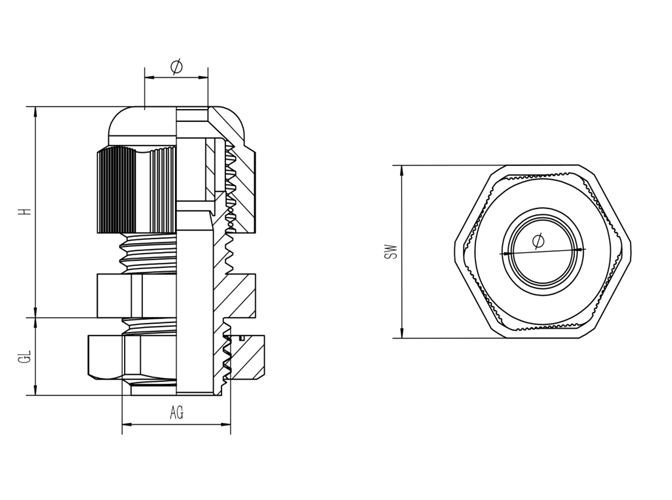

| Code | Scope of application | AG Thread size | GL Length of Thread | SW Torque wrench size |
|---|---|---|---|---|
| HX-NL.M12-6.5 | 3-6.5 | M12*1.5 | 9 | 18/16 |
| Screw spec | Cable Range | AG Thread O.D. | H Joint Length | GL Thread Length | A&F Spanner size | Code |
|---|---|---|---|---|---|---|
| M10×1.5 | 2.5-6 | 10 | 22 | 8 | 12/15 | HX-NL.M10-6B |
| M12×1.5 | 3-6.5 | 12 | 22 | 8 | 18/15 | HX-NL.M12S-6.5B |
| 4-8 | 12 | 25 | 9 | 18/19 | HX-NL.M12-8B | |
| M16×1.5 | 4-8 | 16 | 25 | 9 | 22/19 | HX-NL.M16S-8B |
| 6-10 | 16 | 28 | 9 | 22/22 | HX-NL.M16-10B | |
| 4-7 | 16 | 28 | 9 | 22/22 | HX-NL.M16-(7)B | |
| M18×1.5 | 6-10 | 18 | 27 | 9 | 24/22 | HX-NL.M18-10B |
| 4-7 | 18 | 27 | 9 | 24/22 | HX-NL.M18-7B | |
| M20×1.5 | 6-12 | 20 | 30 | 10 | 27/24 | HX-NL.M20S-12B |
| 5-9 | 20 | 30 | 10 | 27/24 | HX-NL.M20S-(9)B | |
| 8.5-14 | 20 | 30 | 10 | 27/27 | HX-NL.M20-14B | |
| 6-12 | 20 | 30 | 10 | 27/27 | HX-NL.M20-(12)B | |
| M22×1.5 | 9-14 | 22 | 31 | 10 | 29/27 | HX-NL.M22-14B |
| 6-11 | 22 | 31 | 10 | 29/27 | HX-NL.M22-(11)B | |
| M25×1.5 | 8.5-14 | 25 | 31 | 12 | 33/27 | HX-NL.M25S-14B |
| 6-10.5 | 25 | 35 | 12 | 33/27 | HX-NL.M25-10.5B | |
| 6-11 | 25 | 35 | 12 | 33/27 | HX-NL.M25-11B | |
| 12.5-18 | 25 | 35 | 12 | 33/33 | HX-NL.M25-18B | |
| 7-13 | 25 | 35 | 12 | 33/33 | HX-NL.M25-13B | |
| M32×1.5 | 18-25 | 32 | 38 | 12.5 | 41/41 | HX-NL.M32-25B |
| 15-22 | 32 | 38 | 12.5 | 41/41 | HX-NL.M32-22B | |
| M40×1.5 | 24-32 | 40 | 44 | 16 | 50/50 | HX-NL.M40-32B |
| 18-25 | 40 | 44 | 16 | 50/50 | HX-NL.M40-25B | |
| M50×1.5 | 31-41 | 50 | 49 | 20 | 62/62 | HX-NL.M50-41B |
| M63×1.5 | 35-45 | 63 | 52 | 20 | 75/65 | HX-NL.M63-45B |

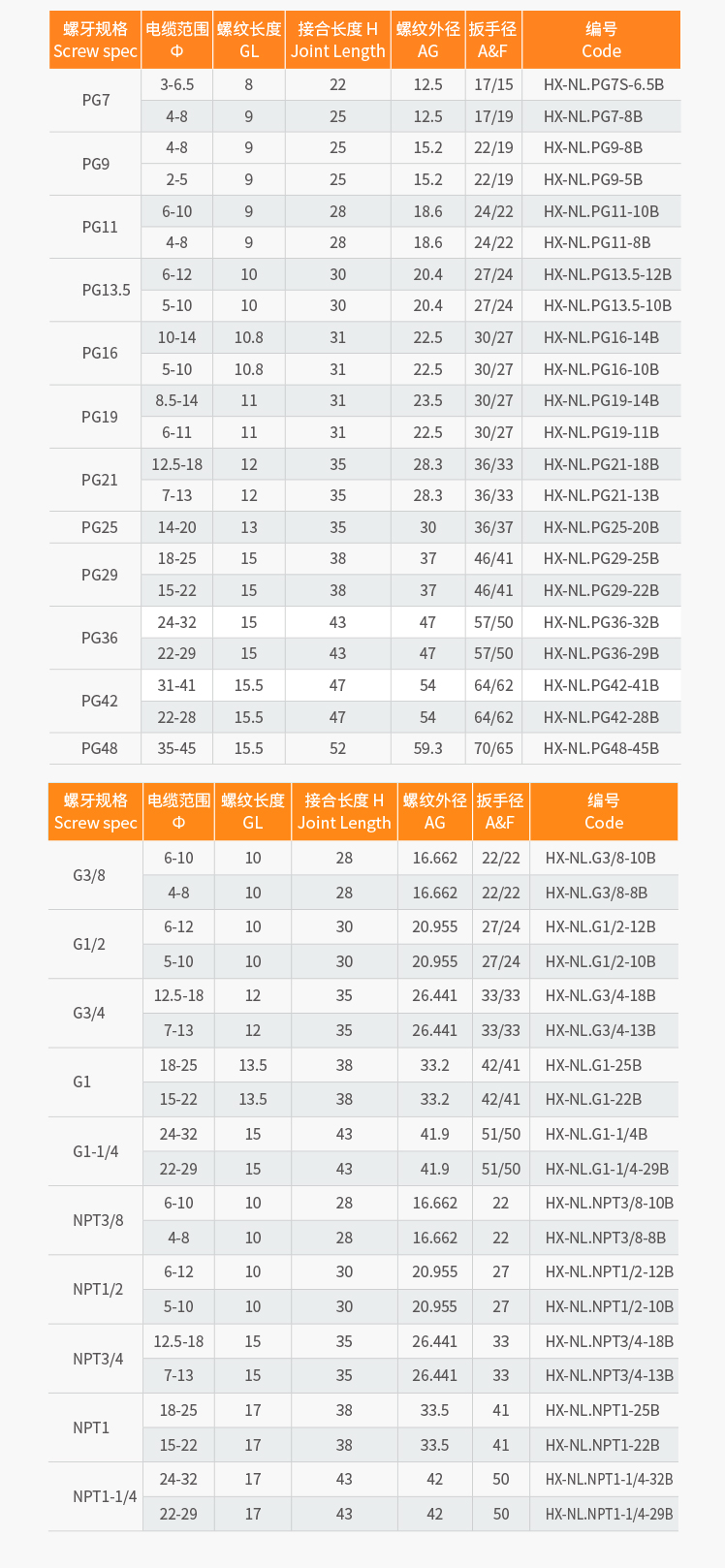

| Screw spec | Cable Range | GL Thread Length | H Joint Length | AG Thread O.D. | A&F Spanner size | Code |
|---|---|---|---|---|---|---|
| PG7 | 3-6.5 | 8 | 22 | 12.5 | 17/15 | HX-NL.PG7S-6.5B |
| 4-8 | 9 | 25 | 12.5 | 17/19 | HX-NL.PG7-8B | |
| PG9 | 4-8 | 9 | 25 | 15.2 | 22/19 | HX-NL.PG9-8B |
| 2-5 | 9 | 25 | 15.2 | 22/19 | HX-NL.PG9-5B | |
| PG11 | 6-10 | 9 | 28 | 18.6 | 24/22 | HX-NL.PG11-10B |
| 4-8 | 9 | 28 | 18.6 | 24/22 | HX-NL.PG11-8B | |
| PG13.5 | 6-12 | 10 | 30 | 20.4 | 27/24 | HX-NL.PG13.5-12B |
| 5-10 | 10 | 30 | 20.4 | 27/24 | HX-NL.PG13.5-10B | |
| PG16 | 10-14 | 10.8 | 31 | 22.5 | 30/27 | HX-NL.PG16-14B |
| 5-10 | 10.8 | 31 | 22.5 | 30/27 | HX-NL.PG16-10B | |
| PG19 | 8.5-14 | 11 | 31 | 23.5 | 30/27 | HX-NL.PG19-14B |
| 6-11 | 11 | 31 | 22.5 | 30/27 | HX-NL.PG19-11B | |
| PG21 | 12.5-18 | 12 | 35 | 28.3 | 36/33 | HX-NL.PG21-18B |
| 7-13 | 12 | 35 | 28.3 | 36/33 | HX-NL.PG21-13B | |
| PG25 | 14-20 | 13 | 35 | 30 | 36/37 | HX-NL.PG25-20B |
| PG29 | 18-25 | 15 | 38 | 37 | 46/41 | HX-NL.PG29-25B |
| 15-22 | 15 | 38 | 37 | 46/41 | HX-NL.PG29-22B | |
| PG36 | 24-32 | 15 | 43 | 47 | 57/50 | HX-NL.PG36-32B |
| 22-29 | 15 | 43 | 47 | 57/50 | HX-NL.PG36-29B | |
| PG42 | 31-41 | 15.5 | 47 | 54 | 64/62 | HX-NL.PG42-41B |
| 22-28 | 15.5 | 47 | 54 | 64/62 | HX-NL.PG42-28B | |
| PG48 | 35-45 | 15.5 | 52 | 59.3 | 70/65 | HX-NL.PG48-45B |
| Screw spec | Cable Range | GL Thread Length | H Joint Length | AG Thread O.D. | A&F Spanner size | Code |
|---|---|---|---|---|---|---|
| G3/8 | 6-10 | 10 | 28 | 16.662 | 22/22 | HX-NL.G3/8-10B |
| 4-8 | 10 | 28 | 16.662 | 22/22 | HX-NL.G3/8-8B | |
| G1/2 | 6-12 | 10 | 30 | 20.955 | 27/24 | HX-NL.G1/2-12B |
| 5-10 | 10 | 30 | 20.955 | 27/24 | HX-NL.G1/2-10B | |
| G3/4 | 12.5-18 | 12 | 35 | 26.441 | 33/33 | HX-NL.G3/4-18B |
| 7-13 | 12 | 35 | 26.441 | 33/33 | HX-NL.G3/4-13B | |
| G1 | 18-25 | 13.5 | 38 | 33.2 | 42/41 | HX-NL.G1-25B |
| 15-22 | 13.5 | 38 | 33.2 | 42/41 | HX-NL.G1-22B | |
| G1-1/4 | 24-32 | 15 | 43 | 41.9 | 51/50 | HX-NL.G1-1/4B |
| 22-29 | 15 | 43 | 41.9 | 51/50 | HX-NL.G1-1/4-29B | |
| NPT3/8 | 6-10 | 10 | 28 | 16.662 | 22 | HX-NL.NPT3/8-10B |
| 4-8 | 10 | 28 | 16.662 | 22 | HX-NL.NPT3/8-8B | |
| NPT1/2 | 6-12 | 10 | 30 | 20.955 | 27 | HX-NL.NPT1/2-12B |
| 5-10 | 10 | 30 | 20.955 | 27 | HX-NL.NPT1/2-10B | |
| NPT3/4 | 12.5-18 | 15 | 35 | 26.441 | 33 | HX-NL.NPT3/4-18B |
| 7-13 | 15 | 35 | 26.441 | 33 | HX-NL.NPT3/4-13B | |
| NPT1 | 18-25 | 17 | 38 | 33.5 | 41 | HX-NL.NPT1-25B |
| 15-22 | 17 | 38 | 33.5 | 41 | HX-NL.NPT1-22B | |
| NPT1-1/4 | 24-32 | 17 | 43 | 42 | 50 | HX-NL.NPT1-1/4-32B |
| 22-29 | 17 | 43 | 42 | 50 | HX-NL.NPT1-1/4-29B |
They are manufactured from high-grade PA66 nylon with a UL94-V2 flammability rating, providing exceptional mechanical strength, durability, and safety.

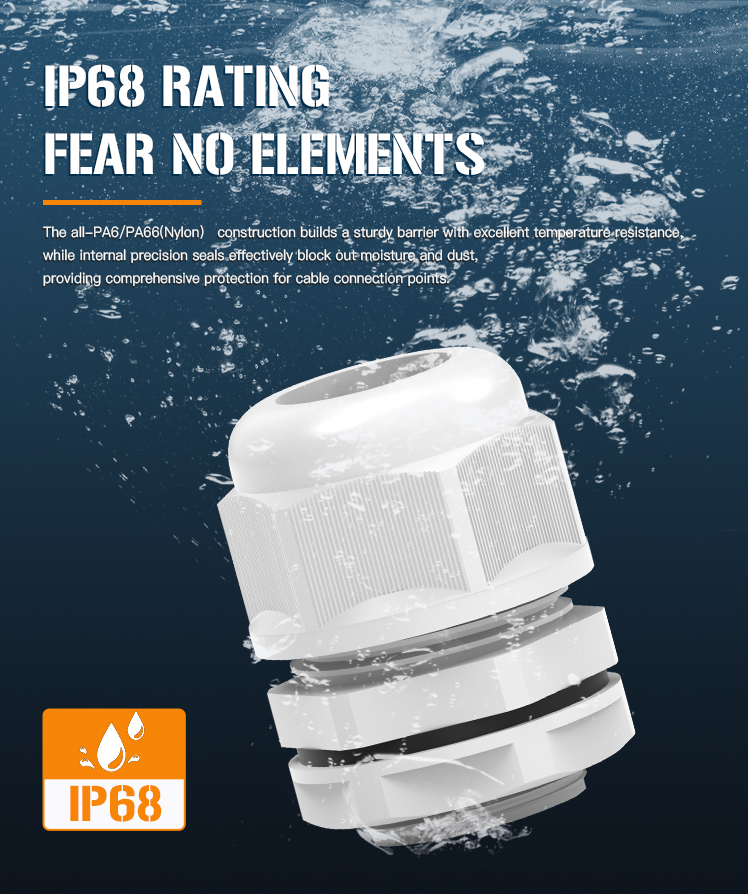

The IP68 rating verifies complete protection against dust ingress and continuous submersion under water, making it ideal for outdoor, marine, and harsh industrial environments.
In static conditions, the operating temperature is -40℃ to 100℃ (short term up to 120℃). Under dynamic conditions, it performs reliably from -20℃ to 80℃ (short term up to 100℃).
A comprehensive selection of thread systems is supported, including Metric (M), PG, G (gas/BSPP), and NPT thread standards across various clamping ranges.
The assembly utilizes high-elasticity EPDM and Silicone rubber for seals and O-rings to deliver reliable, long-lasting hermetic sealing.
Yes, in addition to standard grey and black finishes, custom colors can be provided to meet specific enclosure aesthetics or project coding needs.
